DE ship 2.2KW Air-cooled spindle motor ER20,24000rpm,4 bearings & 2.2kw Inverter 220V VFD 2HP for CNC Router Engraving Milling

0.0 ( votes) | 4 orders
Price: US $852.68 - 980.54 / piece
Discount Price:
US $ 704.42 - 802.88 / piece
-17%
Ships From
Quantity















Notice:


this item will delivery from our "EU/Germany"warehouse,within European Union countries free VAT(import duty) and free shipping by UPS/DHL,    the package will be not easy broken with delivery.









The free ship and free VAT Europe countries area:



Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

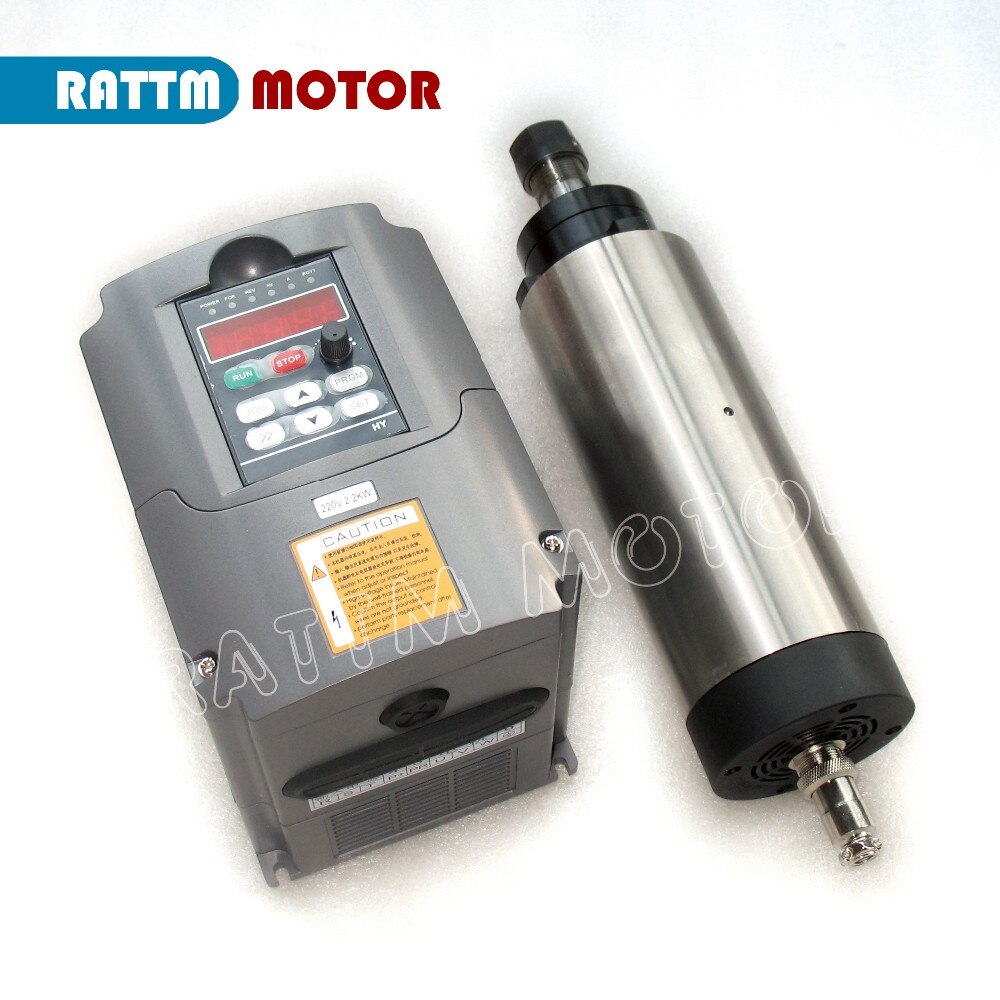

Package include:

1 x 2.2KW Air-cooled spindle motor ( ER20, 220V,400Hz,24000rpm,4 bearing )

1 x 2.2KW Inverter 2HP VFD 220V input with 220V output

0.1112222211112221111122221111111111112222

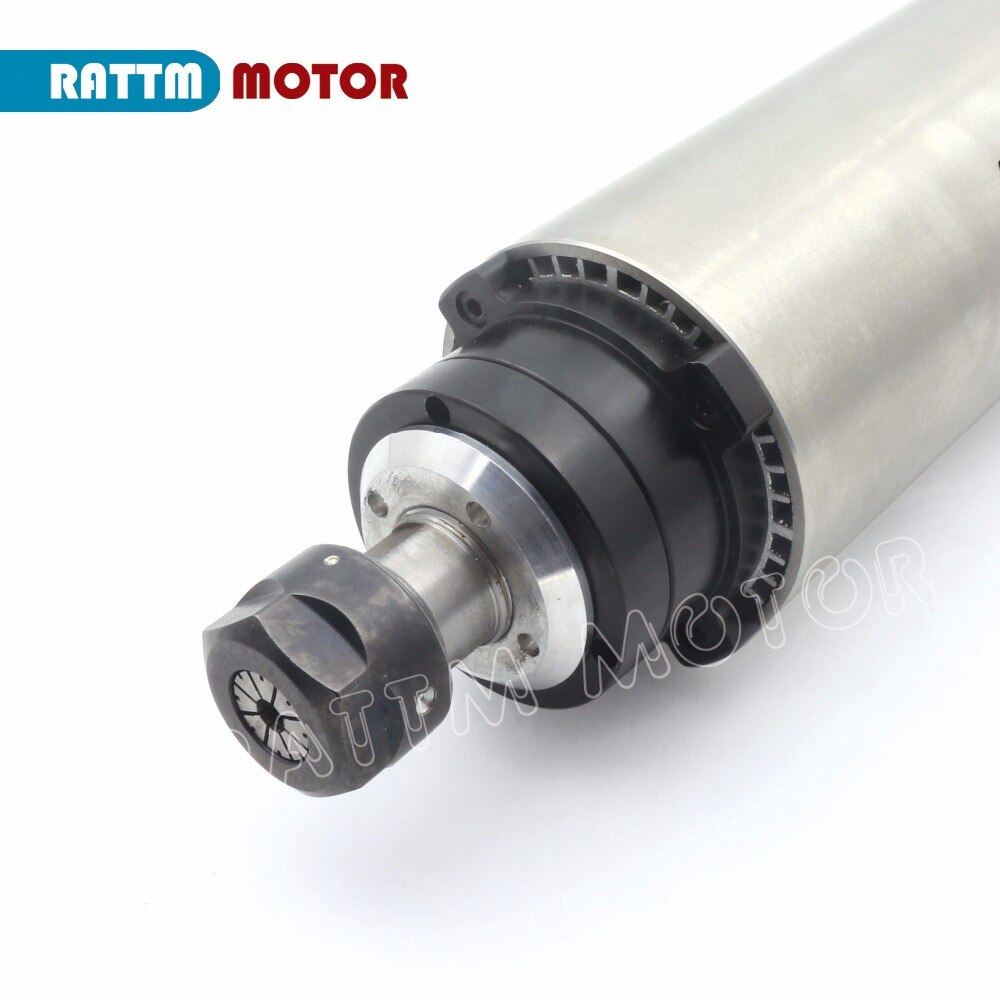

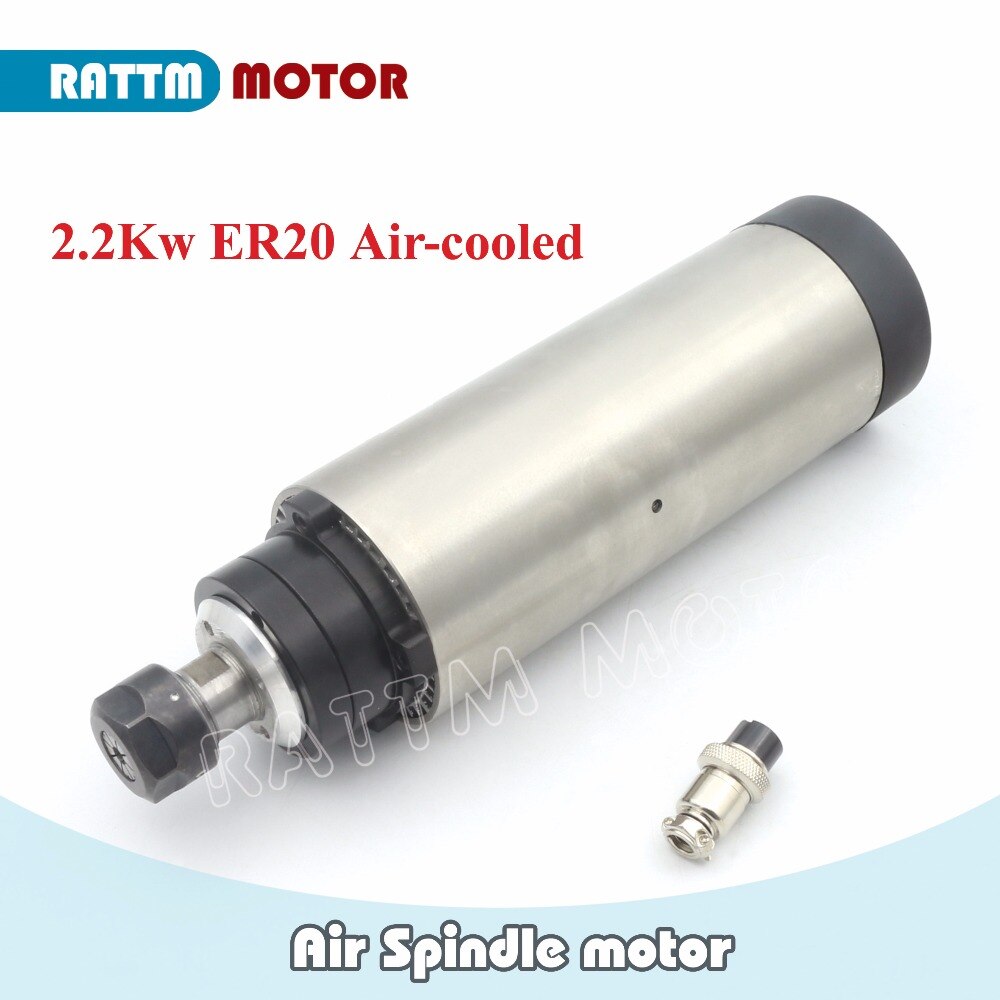

1) 2.2KW ER20 Air-cooled Spindle motor Engraving milling Grind

2.2KW HJYXFL ER20 220-22.2KW HJYXFL ER20 220-4

Specification:

Material: Stainless Steel

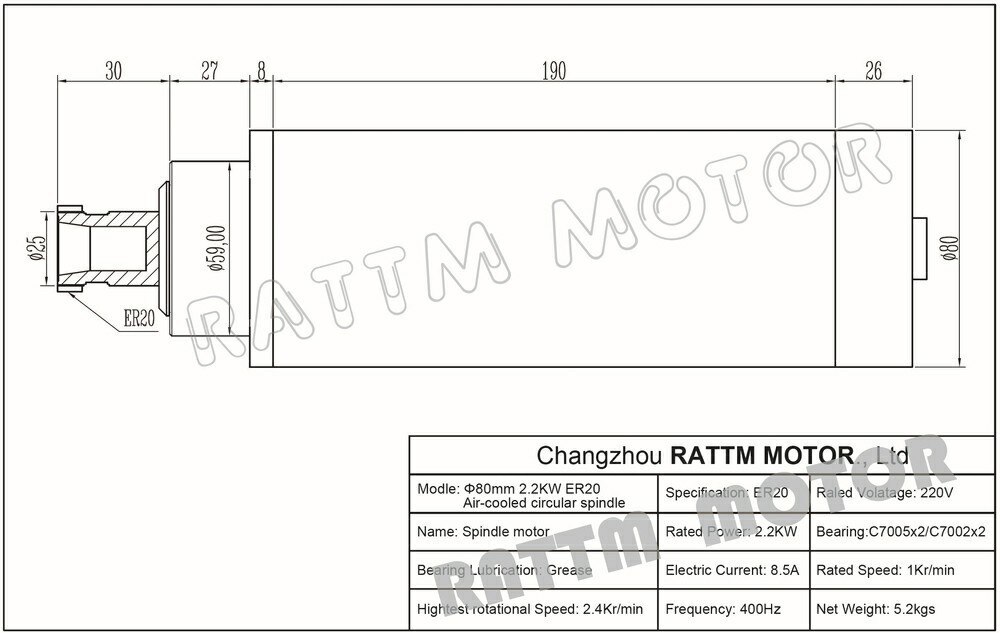

Size: 80x230 mm(Middle body diameter:80mmxLength:230mm)

Power: 2.2Kw

Voltage: 220VAC

Current: 8.5A

Frequency: 400Hz

Speed: 24000rpm

Cooling: Air-cooled

Accuracy: 0.003--0.005

Runout off: Less than 0.05mm

Bearing Lubrication: Grease

Collet size: ER20

Bearings: 4 bearings(C7005x2 + C7002x2),P4 class, Angular contact bearings

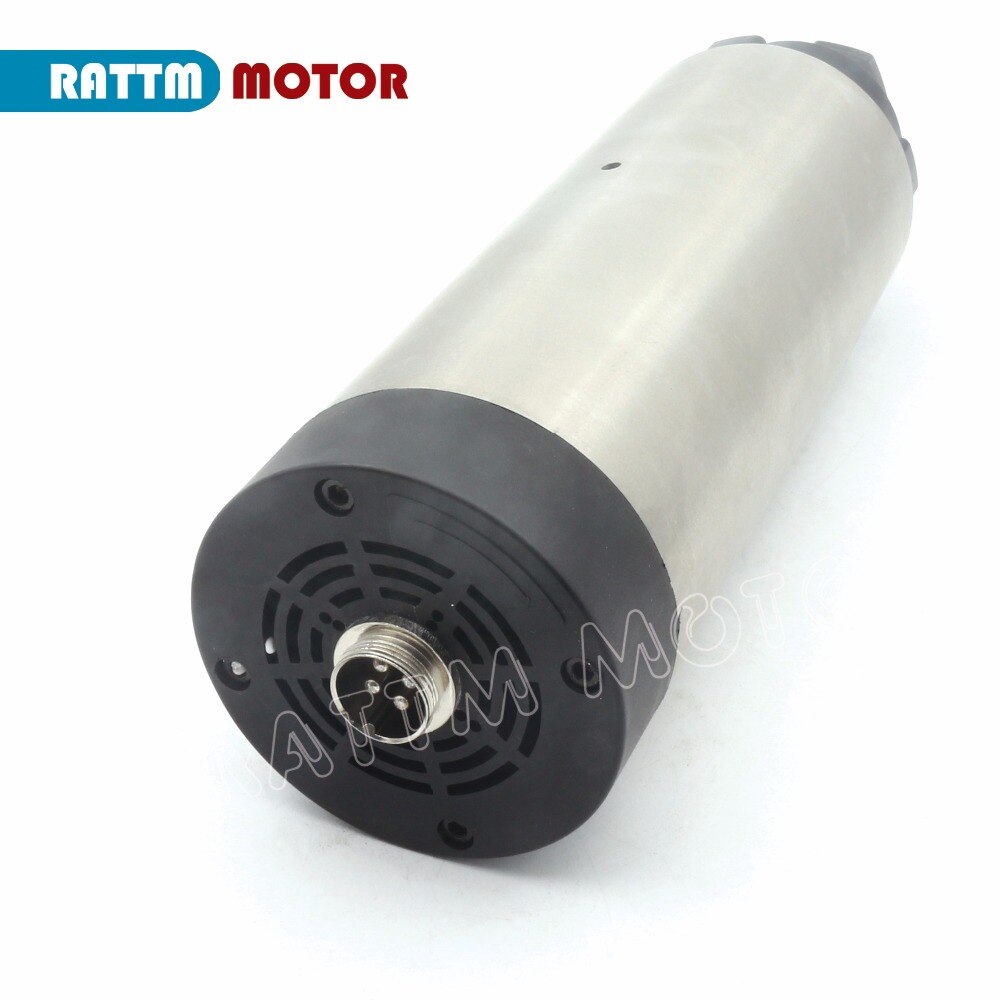

Power Interface: Optional GX16 waterproof air plug, there are marked  1234,123 were connected to the  inverter power supply (U, V, W), 4 connected inverter ground.

Net Weight: 5.2kg

Main application: Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry



1. Structural features

1) High speed electric main bearing all adopt the C-class high-speed angular contact ball bearing, axis sets of loading, Improve spindle in the high-speed rotation supporting stiffness and precision grinding.

2) Before driving, rotation of the shaft by hand.Spindle high speed rotation caused by temperature rise, use of cooling liquid circulating system to eliminate.



2. Instructions for use

1) In use, must first connect the cooling water pipe, make spindle connect cooling water and then start.

2) Before driving, turned by hand spindle. If sensory block is not flexible, you should troubleshoot, and then check the direction of rotation of the spindle from the spindle end to see if the match should rotate counterclockwise power wiring should be changed to make it consistent.

3) Before driving, cooling water for grinding workpiece can’t be in the front end of the spindle cover, to prevent the front bearing cover slot inlet burning motor and bearing. the motor must not enter the water, after turned on of the motor, when you live in grinding the workpiece to open the grinding of workpieces coolant. First off the workpiece coolant shutdown, and then close the spindle motor.



3. Maintenance and Service

1) Motorized spindle by medium frequency power supply rated voltage, frequency should be consistent with electric spindle technology parameters, motorized spindle rotational speed can change the frequency to adjust, also directly proportional voltage change.

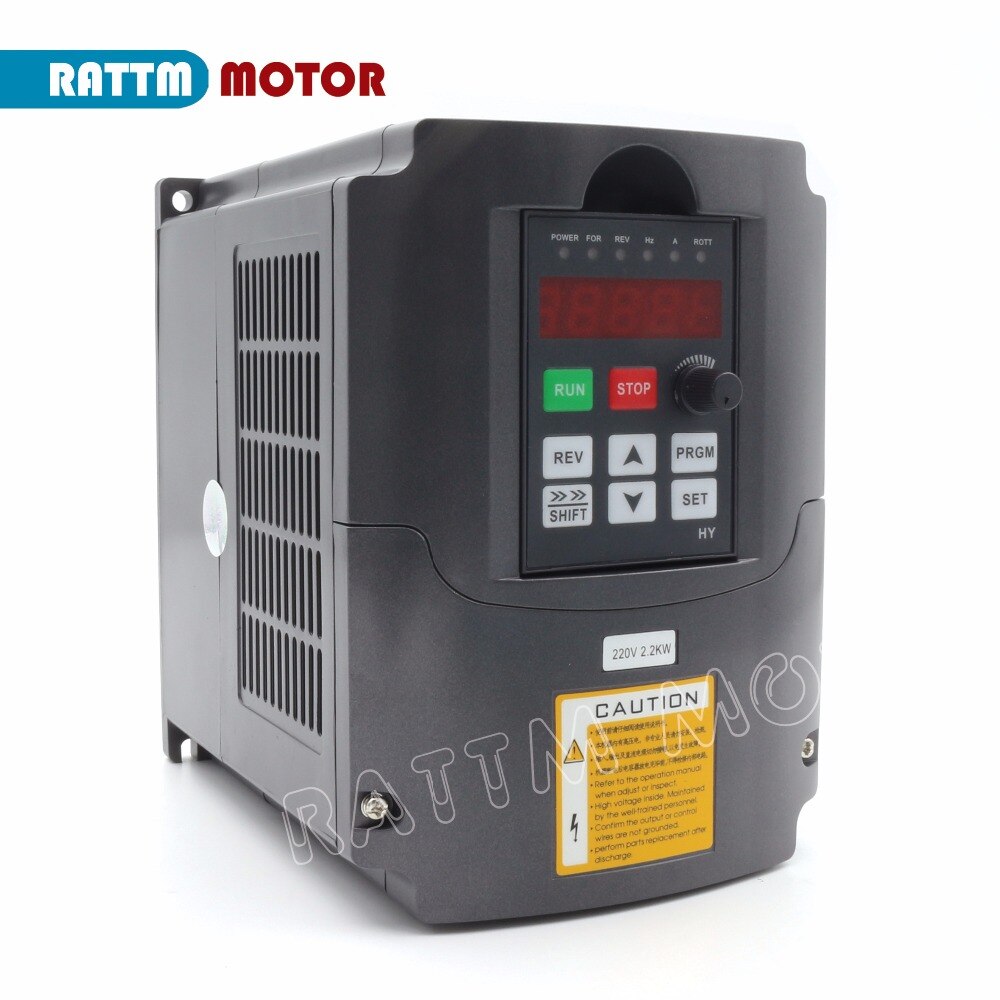

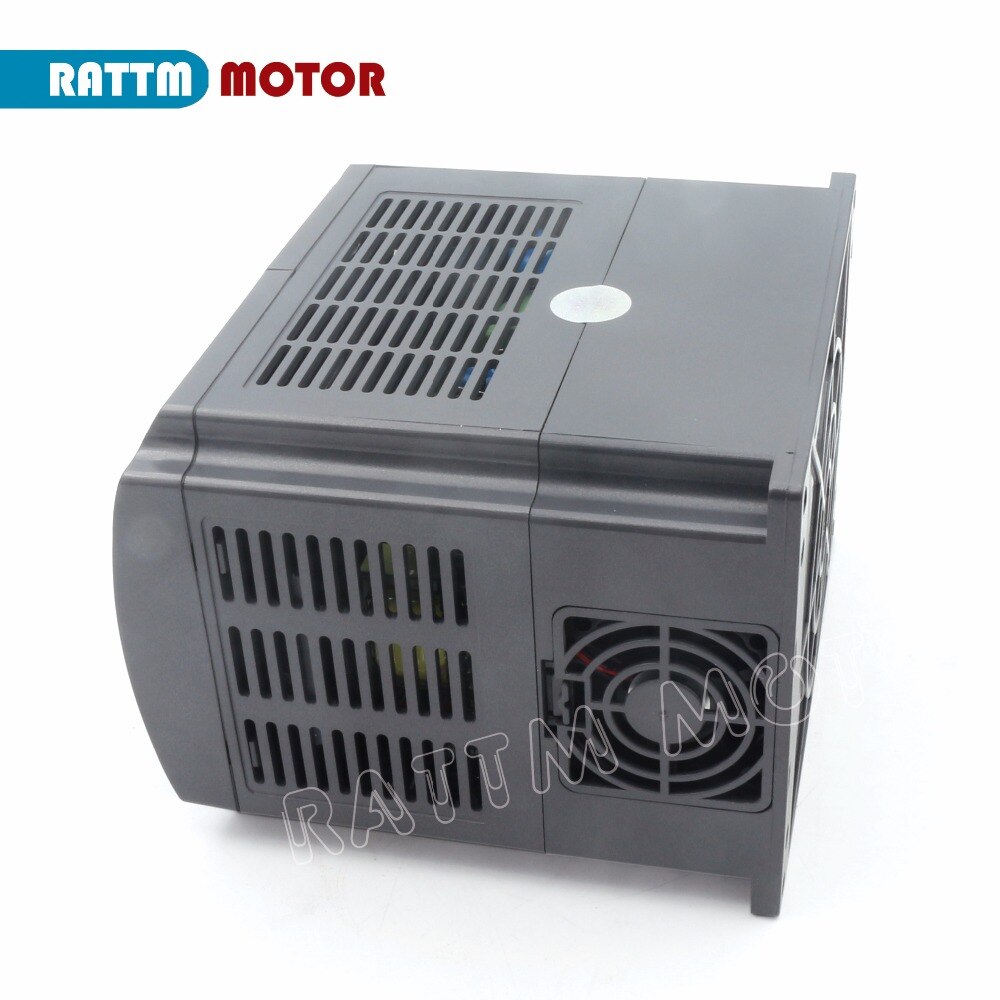

2. 2.2kw Inverter VFD 220V input

2.2.22.2.3

Product Feature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

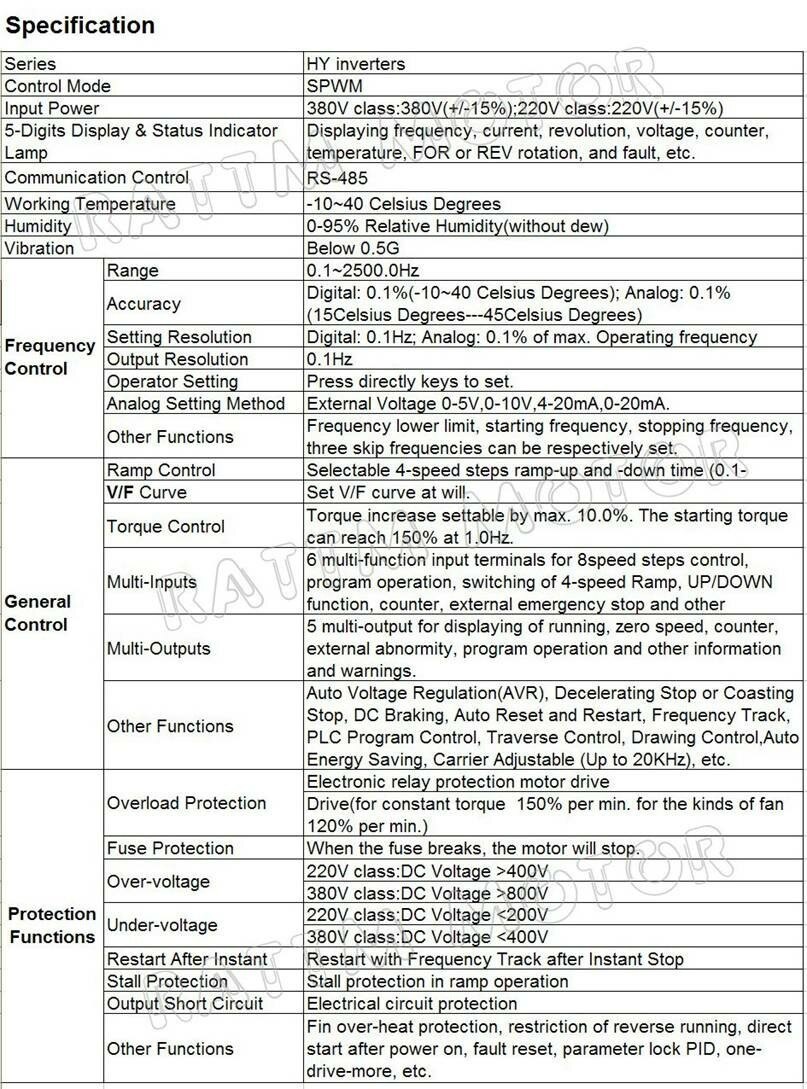

Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us

for item stock.
2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase

0.133333





Shipping

===================================================================

This Item will ship within 1-2 business days by DHL Paket on payment received .

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By "DHL Paket" delivery 3-15 working days,

tracking web: www.dhl.de/en/paket/information/sendungsverfolgung.html

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.



Payment

===================================================================

1.Free VAT and free import duty (TAX ) within EU counties.

2.Before purchasing, pls confirm with us whether in stock.

3.Pls make payment within 3 days of the order if possible.

4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.



Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,



Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.



Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.


  • Operating Speed: 24000rpm
  • Maximum Torque: None
  • Application: Milling
  • Model Number: 2.2Kw Air Cooled
  • Drive: Motor
  • Certification: NONE
  • Origin: Mainland China
  • Cooling: Air cooled
  • Spindle Size: 80x230mm
  • Power: 2.2KW
  • Lubrication: Grease
  • Phase: 3
  • Frequency: 400Hz
  • Collet: ER20
  • Voltage: 220V
  • Place of Origin: China (Mainland)
  • Model Number: 2.2KW Spindle & Inverter 220V
  • Runout off: Less than 0.05mm
  • Current: 8.5A
