110V 220V 900W PHONEFIX 861DW Digital Hot Air Rework Station Leed Free BGA Soldering Station Cellphone Welding Repair Tool

0.0 ( votes)
Price:
US $ 266.00 - 407.55 / piece
Ships From
Voltage
Quantity

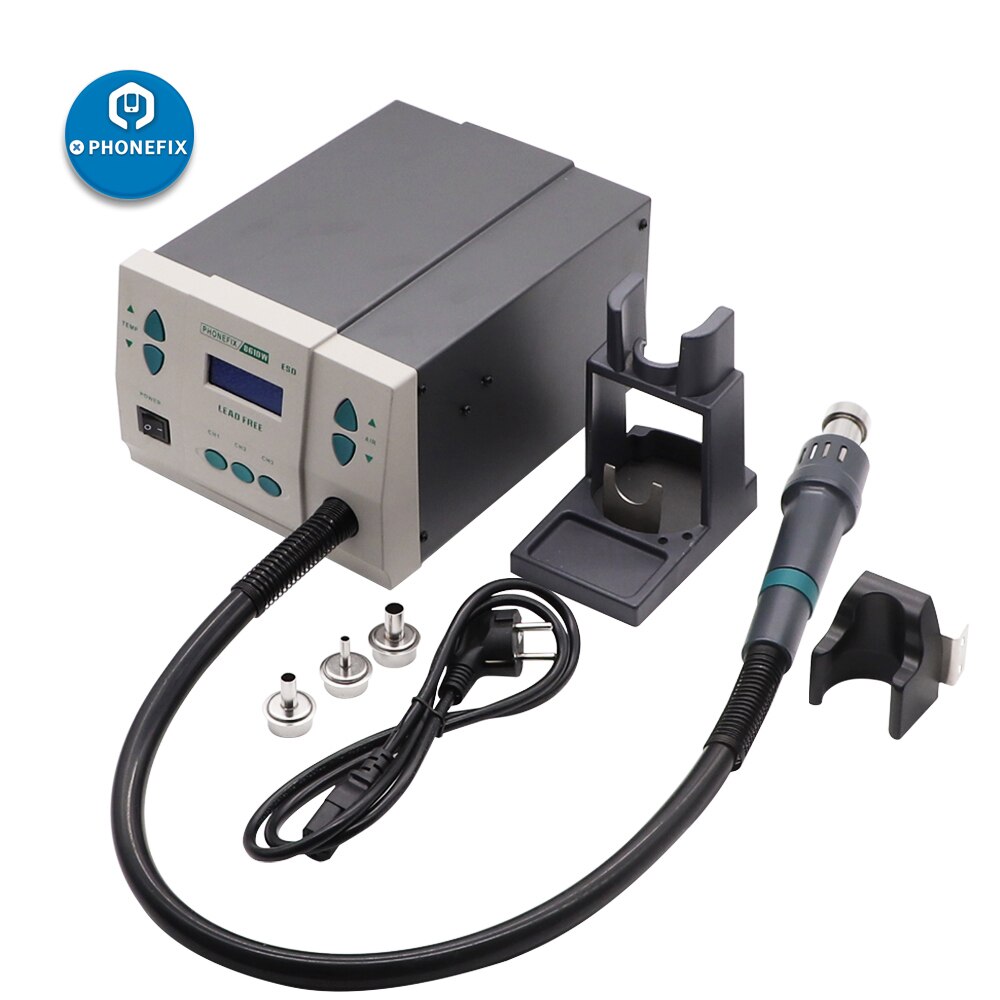

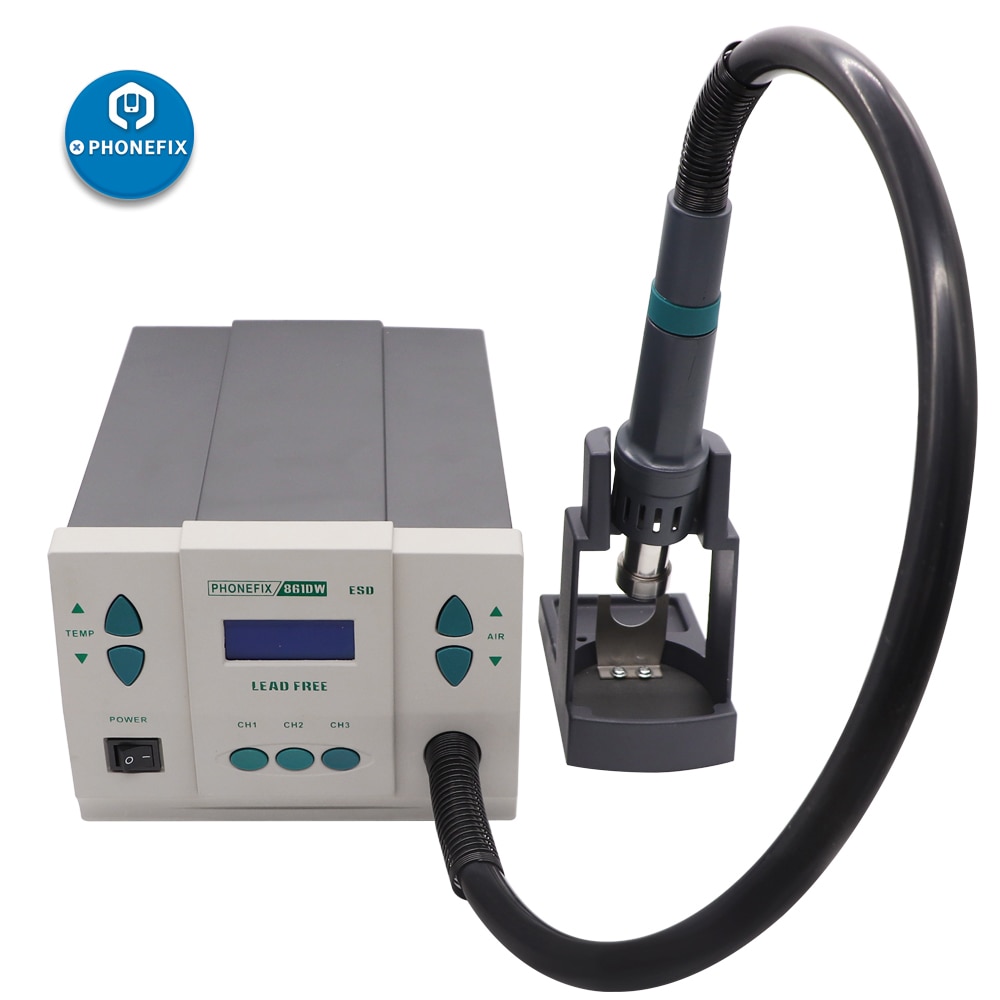

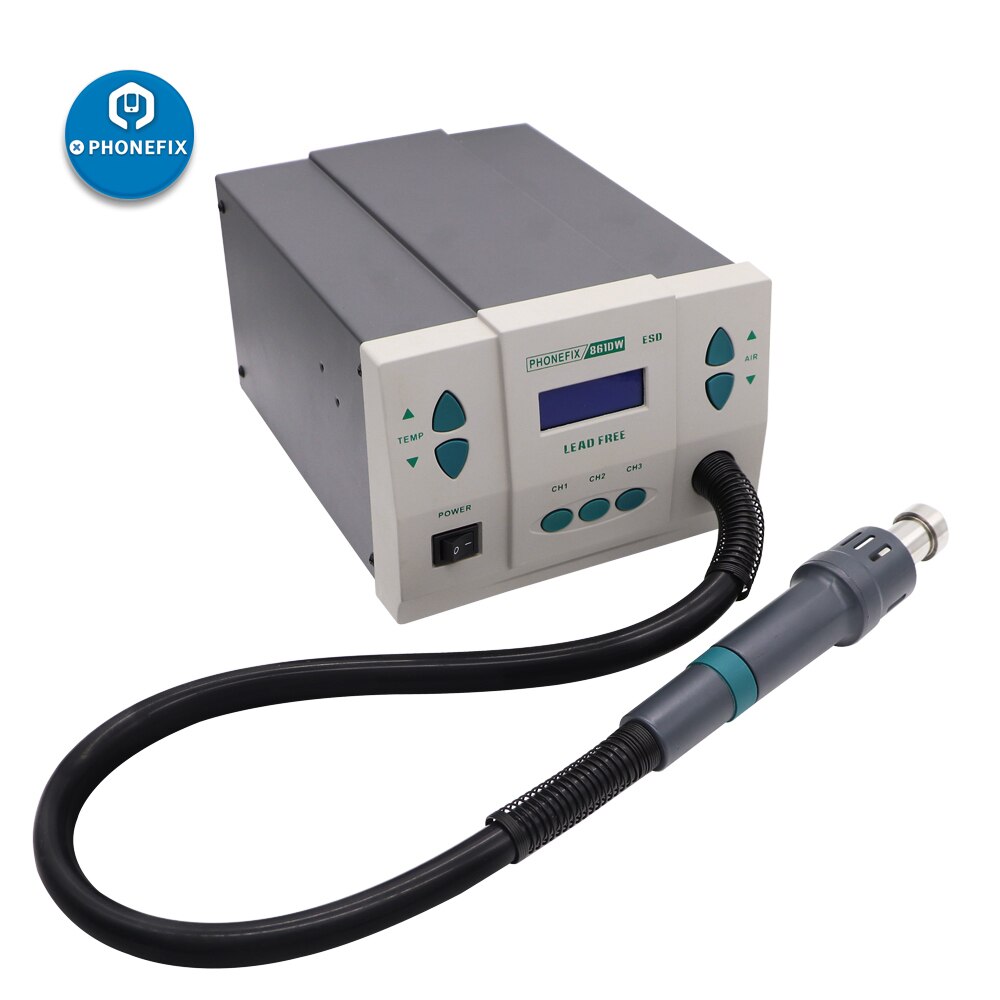

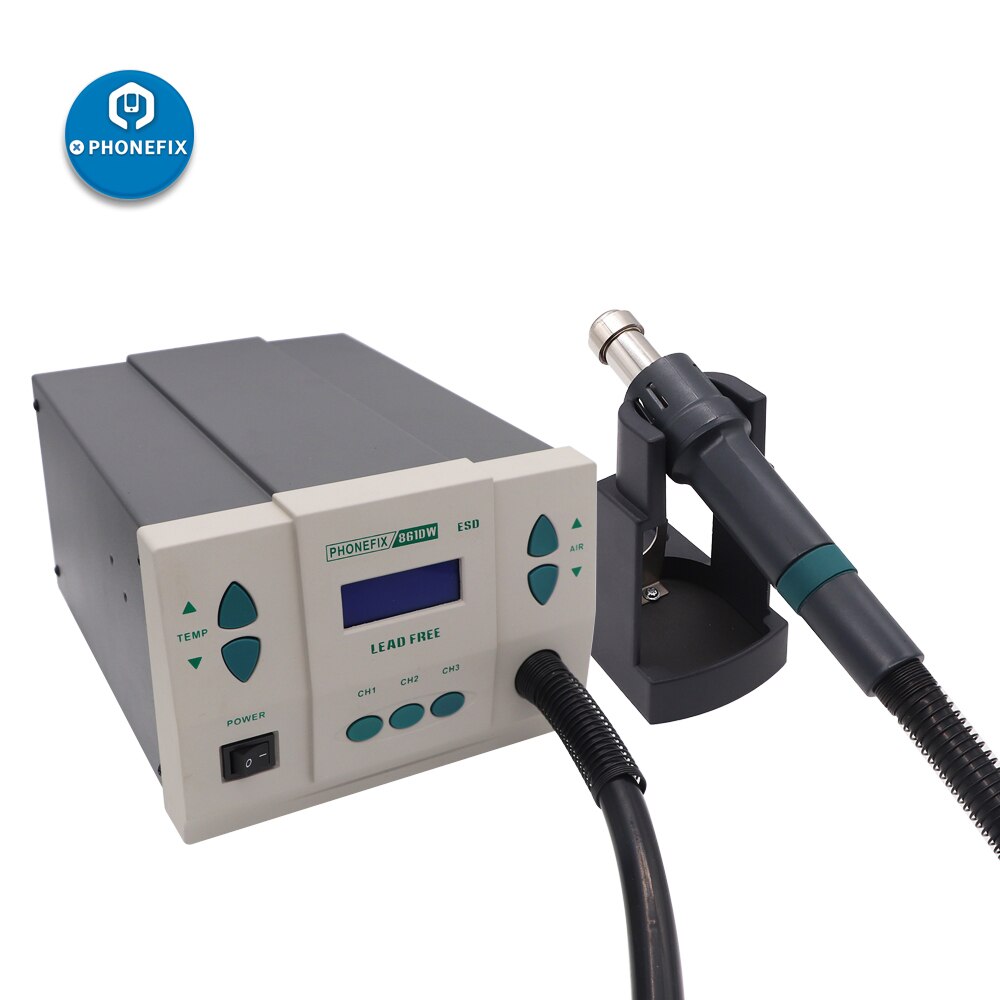

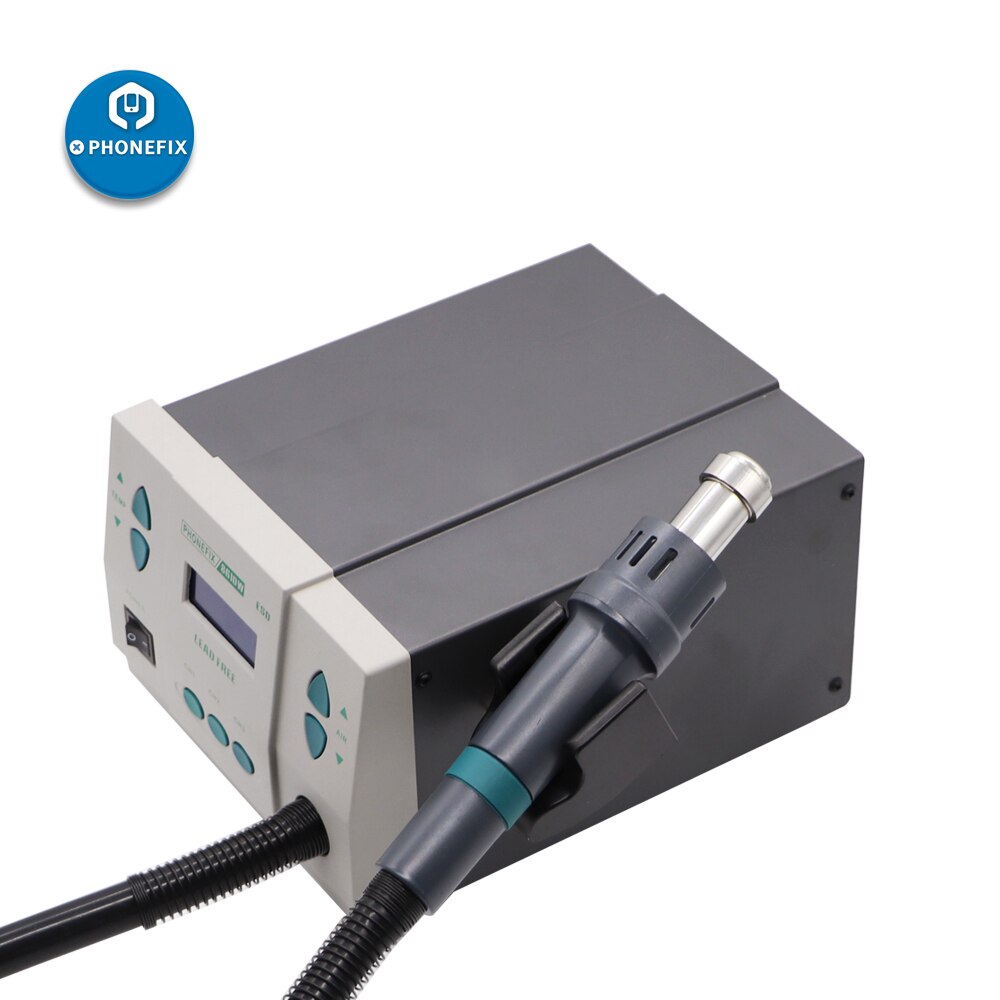

PHONEFIX 861DW Hot Air Rework Station 110v /  220v Lead Free Phone PCB Solder Station with 4, 7,10mm Hot Air Gun Nozzle

Product Introduction:

861DW Hot Air Rework station is the new Lead Free Rework Station, 861DW Rework Station for Mobile Phone BGA desoldering Repairing, 900W / 500 °C Genuine original Hot Air Rework station, With CH1, CH2, CH3 three working channels

01020304

Power: 900W
Voltage: AC 220V / 110V
Temperature range: 100 °C  ~ 500 °C
Air volume ratio range: 1 to 120
Maximum air flow: 120L / min
Dimensions: 188 (L) × 245 (D) × 135 (H) mm

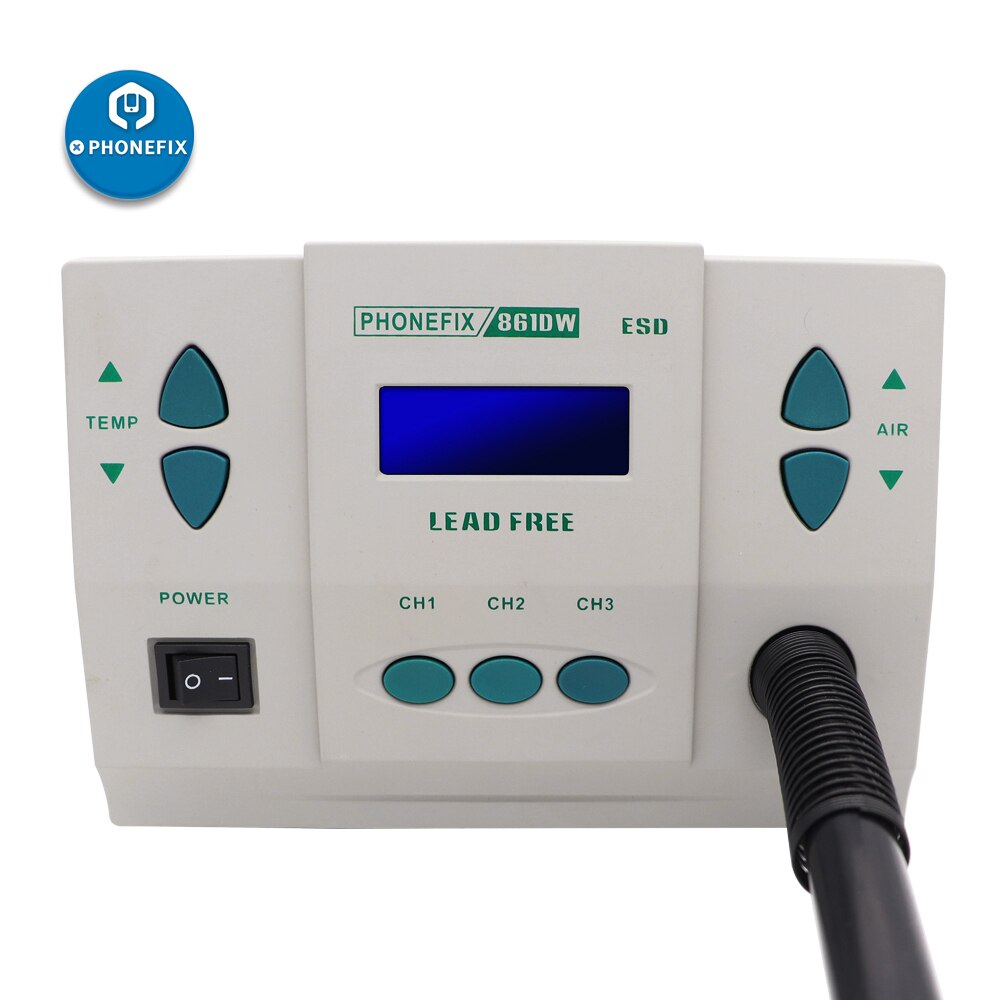

Three regular channels are "CH1", "CH2" and "CH3". Each channel's parameters including temperature and airflow can be set.
Password protection and key-lock functions.
Real time operation by the magnetic switch. It will enter sleeping state when the handle is placed on holder.
Auto sleeping function. Parameters can be set in sleeping state.
Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurate and stable, not affected by airflow.
Large power, rapid heating.
A multipurpose unit, having brushless whirlpool motor, wide range and stepless adjustable airflow.
An automatic cooling system can prolong the life time of heating element and protect the handle.



05060708

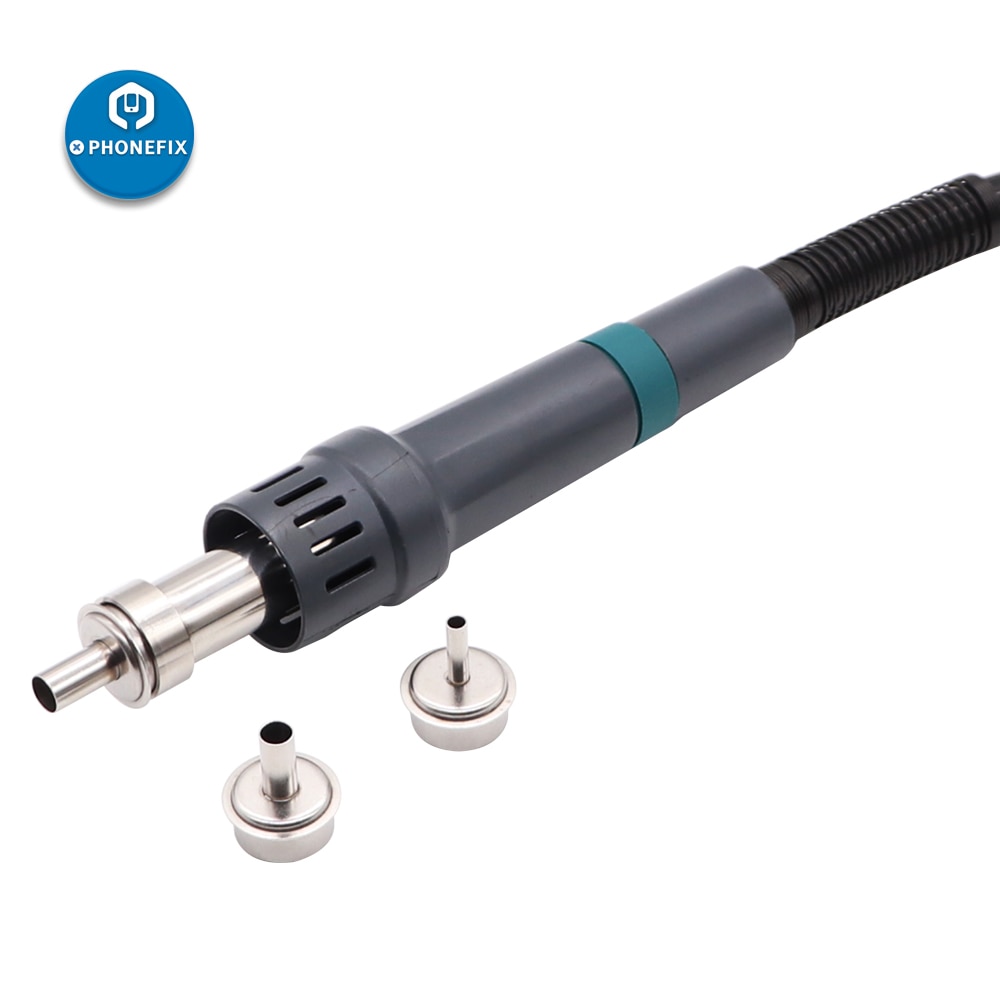

3pcs Nozzles 4mm + 7mm + 10mm will be shipped with Hot Air Rework Station, other size nozzles need to buy alone.








  • is_customized: No
  • Model Number: 861DW
  • Brand Name: DIYPHONE
  • Origin: Mainland China
  • Certification: NONE
  • Item Name: 861DW Hot Air Rework Station
  • Function: PCB chip repair tool
  • Power: 900W
  • Voltage: AC 220V /110V
  • Temperature range: 100 ~ 500 degree centigrade
  • Air volume ratio range: 1 to 120
  • Maximum air flow: 120L / min
  • Dimensions: 188 (L) x 245 (D) x 135 (H) mm
  • Package Include: Hot Air Rework Station + 3 Heat Gun Nozzles(4mm + 7mm + 10mm)
