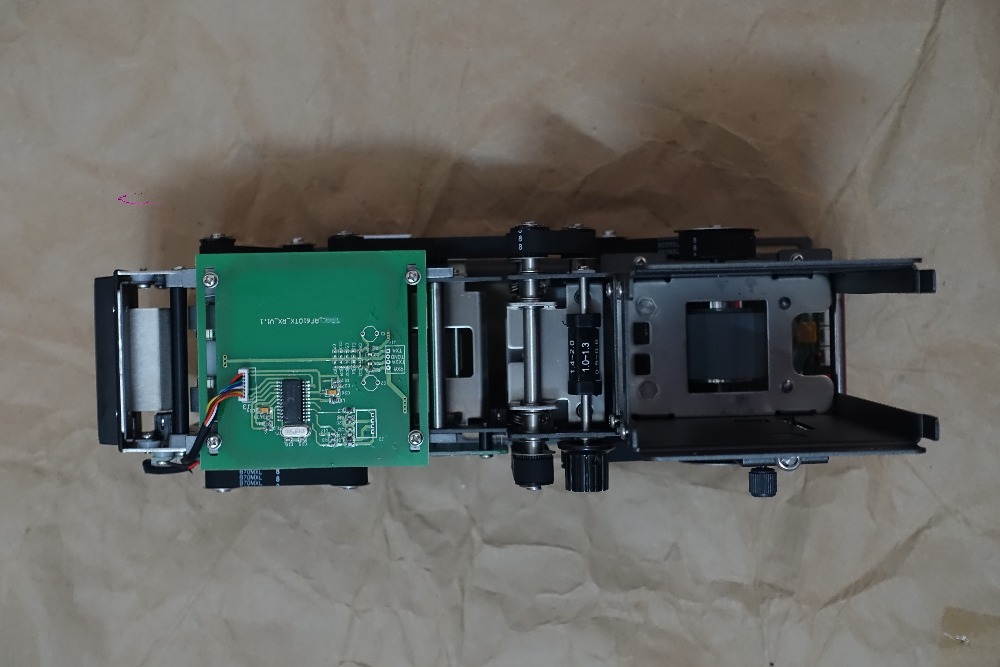

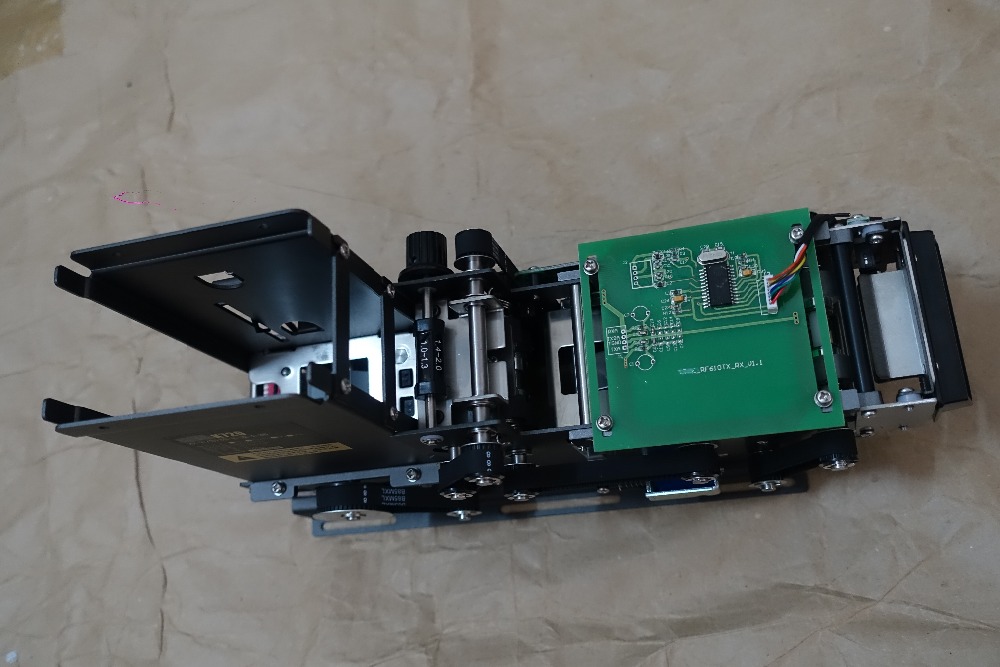

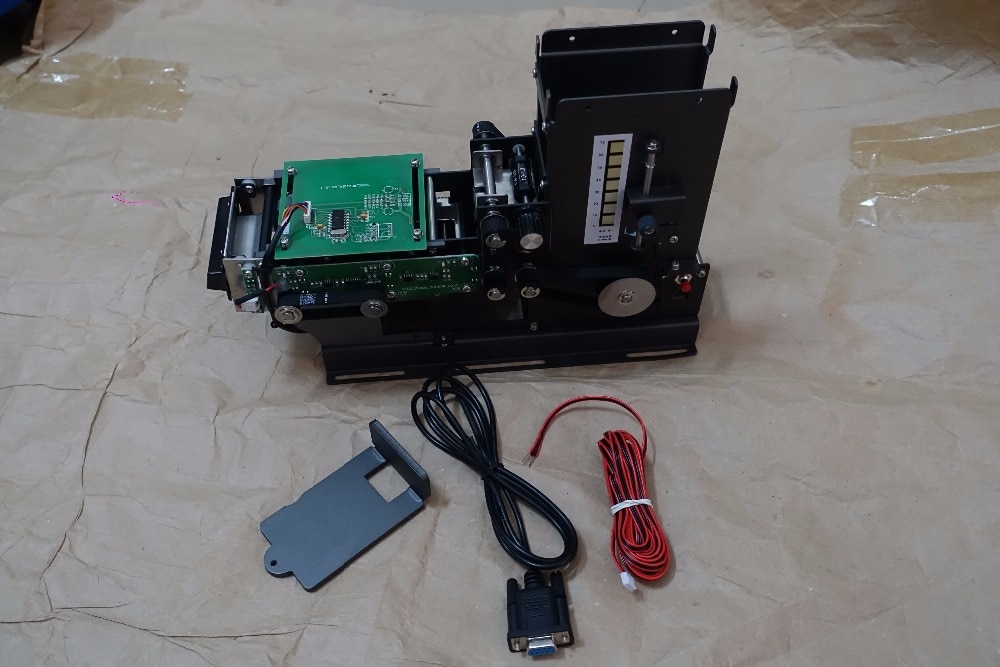

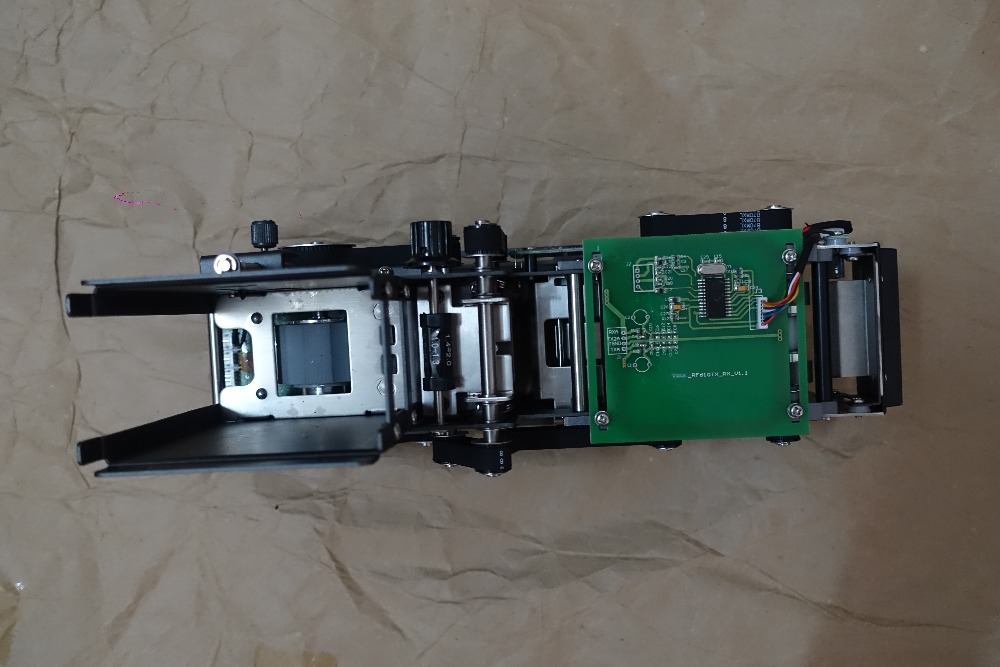

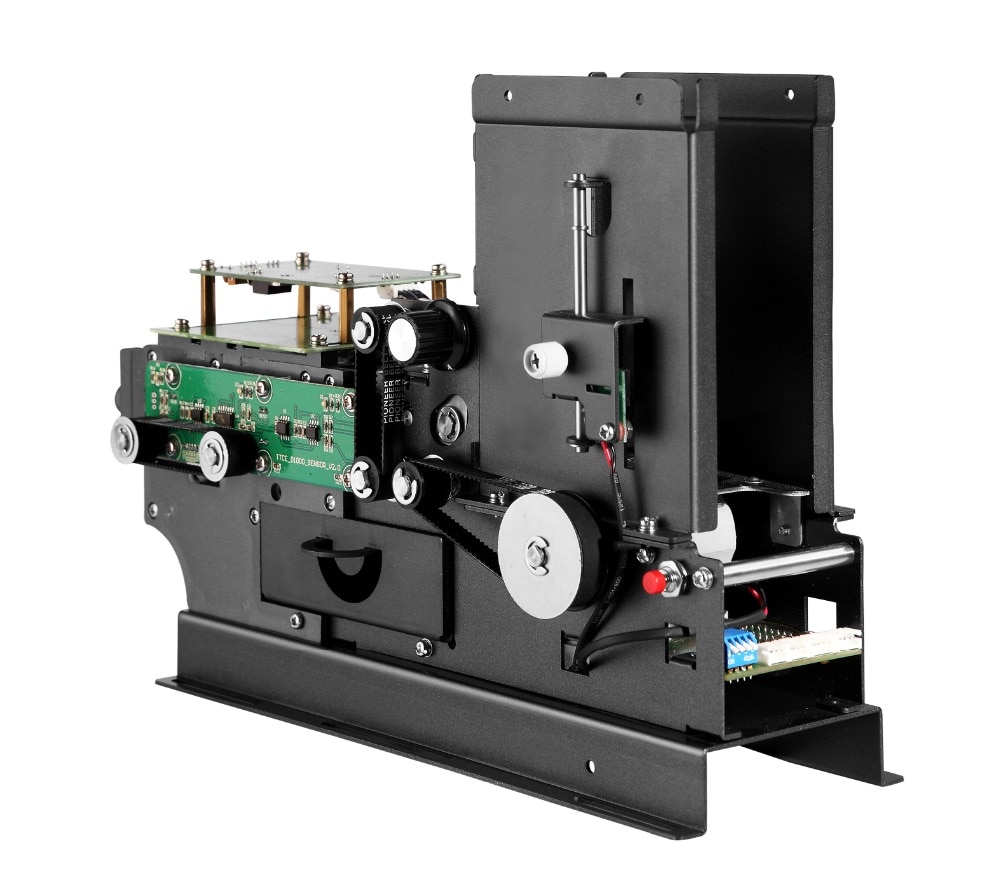

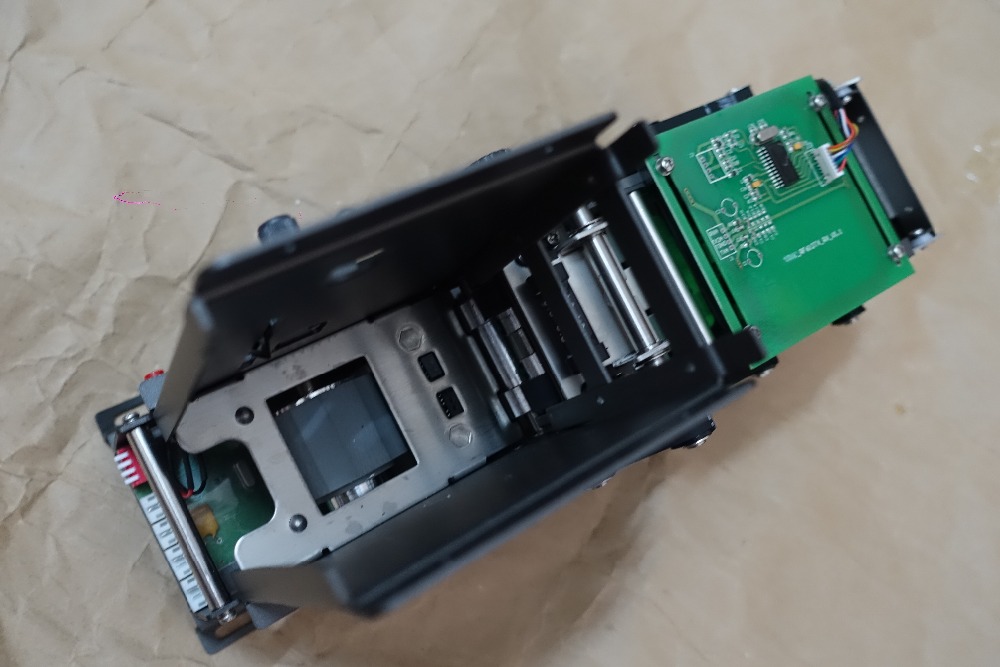

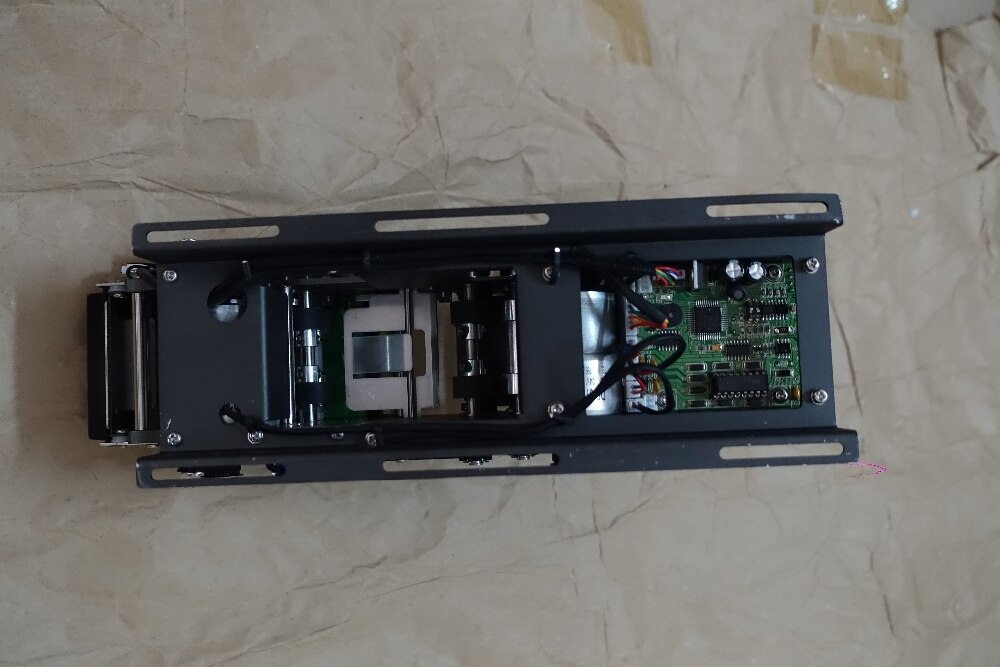

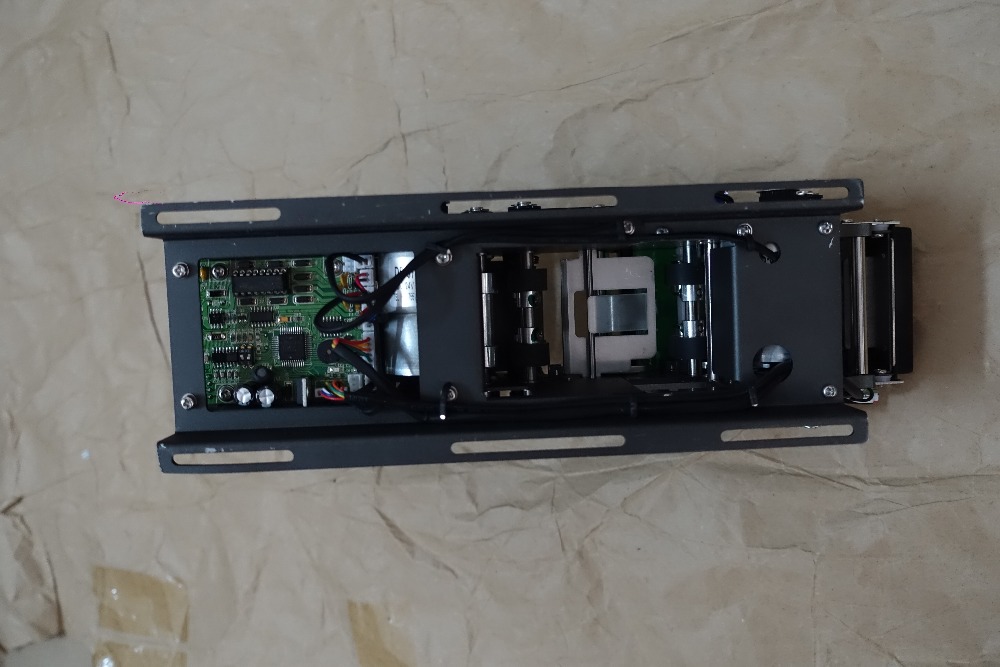

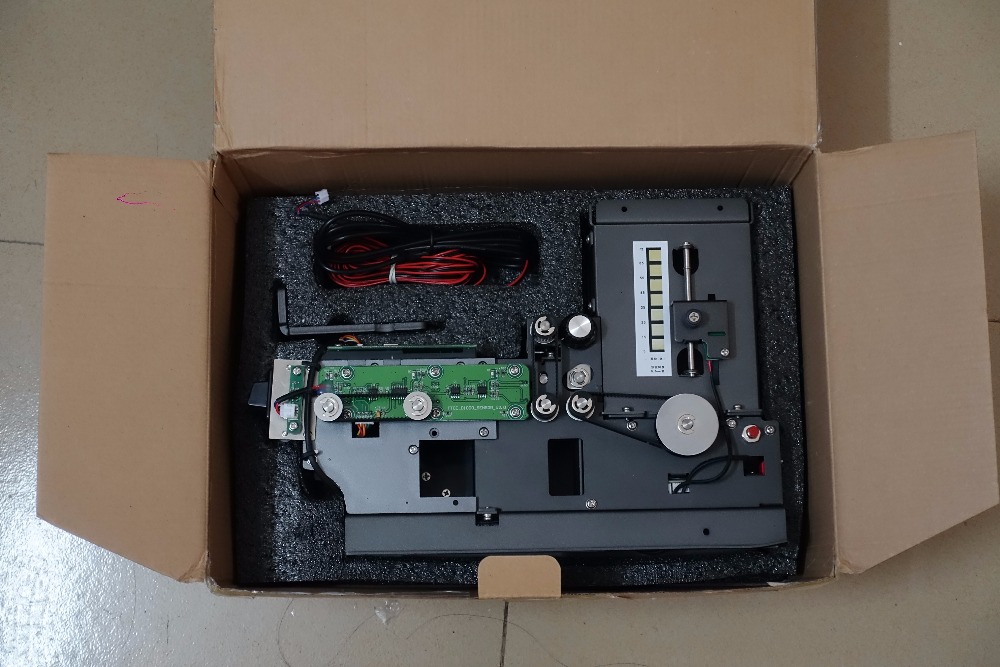

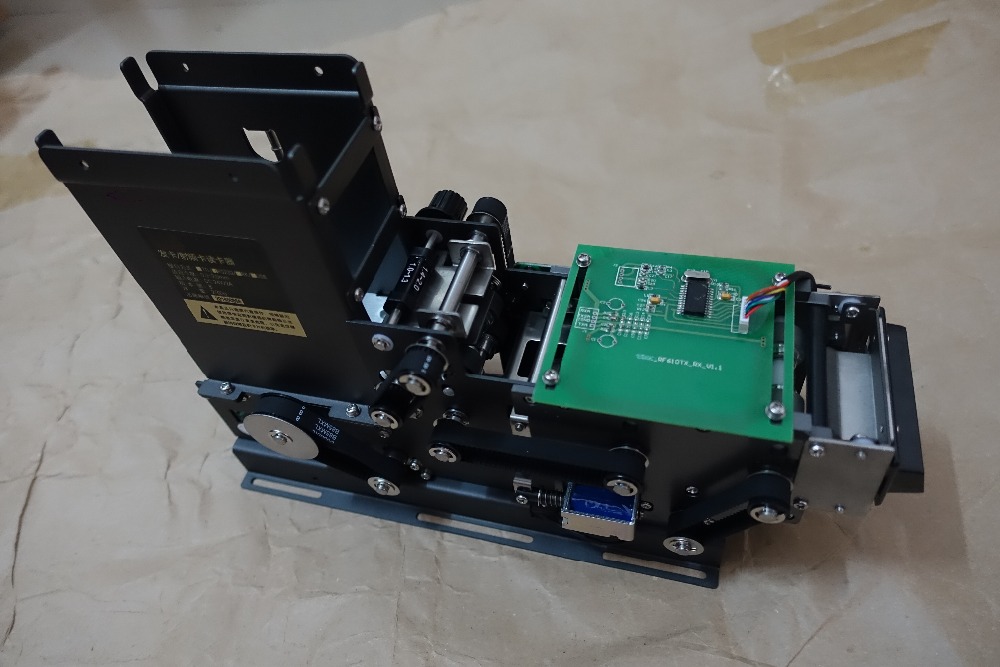

13.56MHZ ISO14443A/B RFID,Mifare card dispenser and reader writer sort mechanism for Parking lot/metro kiosk machine system
Product Description
INTRODUCE:
This Kiosk RFID card dispenser with 1 kinds of card reading function:smart card PC/SC protocol; ISO14443 TYPE A contactless card For all card with card dispense function. It can operate even dirty cards. In china market, it widely use in hospital, telecome, financial card issue work. It also use for vending machine use, and also many other self-service kiosks. Please feel free contact with us for the further detail of barcode ticket dispensing parking lot system, thanks.
Features of rfid card dispenser
--RFID card (Compliance with ISO14443 protocol, TYPEA, TYPEB) --Modular structure, easy to disassemble and maintain machine --High precision card transmitting channel (moulding)
--Extremely strong card compatibility --Support jitter card entry and out, which can prevent from stealing card information effectively --With retrieve box to capture bad card or non-valid card
--Smart card space adjustment ensures the accurracy of card out
--Customize function module freely
--Industrial design, Surface finished with corrosive and abrasion resistant paint, suitable for high and low temperature, and dusty conditions
--Six optional card space adjustment, CNC precision ensures absolute card unanimity of card space
Application of rfid card dispenser
(1) Parking lot management system
(2) Automatic vending machine system
(3) Bank self-service open account card issue
(4) Telecom and electric power business card issue
(5) Park ticket vending system
(6) Card initialization issue and sort
(7) Subway or public transport card issue
Technical data
|
Subject |
Content |
|
Model |
SW-720K |
|
Operation power |
24VDC(Max. Current 2A,static current 0.1A) |
|
Card stay position |
Multiple card stop position |
|
Operation condition |
Install in the cabinet |
|
Card thickness |
width : 54 ± 0.5 mm Length : 85 ± 0.5 mm Thickness: |
|
Card material |
Paper or PVC |
|
Stacker capacity |
150 pcs standard cards at thickness of 0.76mm |
|
card type |
RFID ISO14443 Type A/B |
|
Transmission device |
500,000pcs |
|
IC card contact point |
500,000pcs |
|
Magnetic head life span |
800000passes |
|
Few card Alert |
7~50 pcs (Preset 15pcs of 0.76mm thick cards) |
|
Interface |
RS232 |
|

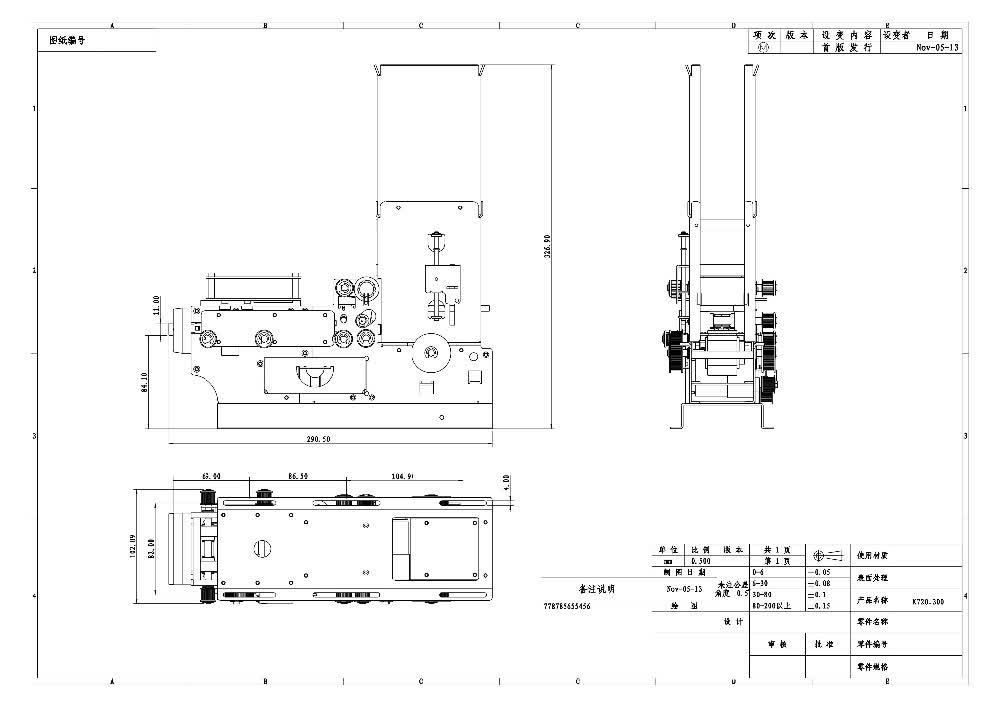

Dimension |
290*93*204mm |
|
Weight |
2.4KG |
- Model Number: SW-K720
- Brand Name: Sinowork
- Item Name: RFID Read/Write/Sort Card Dispenser Machine
- Operation power: 24VDC, Max current 2A
- Card stay position: Multiple card stay position control
- Operation condition: Install in the cabinet
- Card Type: RFID ISO14443 Type A/B
- Stacker capacity: 150pcs standard cards based on the thickness of 0.76 mm
- Interface: RS232/TTL
- Few card Alert: 7-50 pcs (Preset 15pcs of 0.76mm thick cards)
- Transmission device: 500,000pcs
- Application: Read/Write/Sort Card Dispenser Machine
