ID: 64114

200-channel RTMP streaming server, support ONVIF / RTSP access to 200-channel IPC for forwarding and RTMP streaming services, su

0.0 ( votes)
Price:
US $ 3095.50 / piece
Quantity

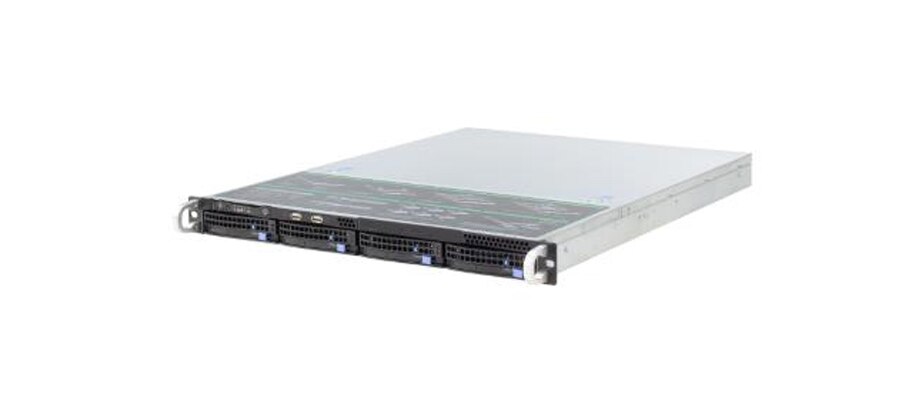

█ Product Image

█ Features

1、8 ~ 200 H.265 / H.264 mixed access real-time recording
2、Support access image quality 12MP / 8MP / 6MP / 5MP / 3MP / 1080P / 720P
3、Using a single high-performance embedded chip and LINUX operating system
4、Support GB / T28181 [2016] for docking with designated third-party platforms
5、Support ONVIF, RTSP and HIK / DH / JSACCTV private protocols to access IPC
6、Synchronized playback of 1 ~ 4 channels video, support mobile phone remote monitoring
7、1 ~ 16 SATA hard disk interfaces, support up to 12TB hard disk, support hard disk redundant recording method
8、16-bay model supports HDMI HD 4K output, 2 HDMI and 1 VGA, optional dual screen splicing and expansion
9、Adopt standard H.265 / H.264 video compression algorithm, intelligent time tag / time-sharing playback / high-speed playback
10、Supports establishing connection with the platform through active registration, suitable for networking in the Internet environment
11、Single machine supports 32 ~ 320M access / 32 ~ 320M storage / 32 ~ 320M forwarding, optional 600 ~ 800M storage / forwarding large capacity models
12、Support RTMP streaming function, compatible with mainstream media platforms such as Tencent Cloud, LeTV Cloud, Baidu Cloud, Witness, Youtube and Wowza.
13、Support stand-alone management software / security integrated management platform system / third-party management platform management; can be mixed with analog or SDI / TVI system

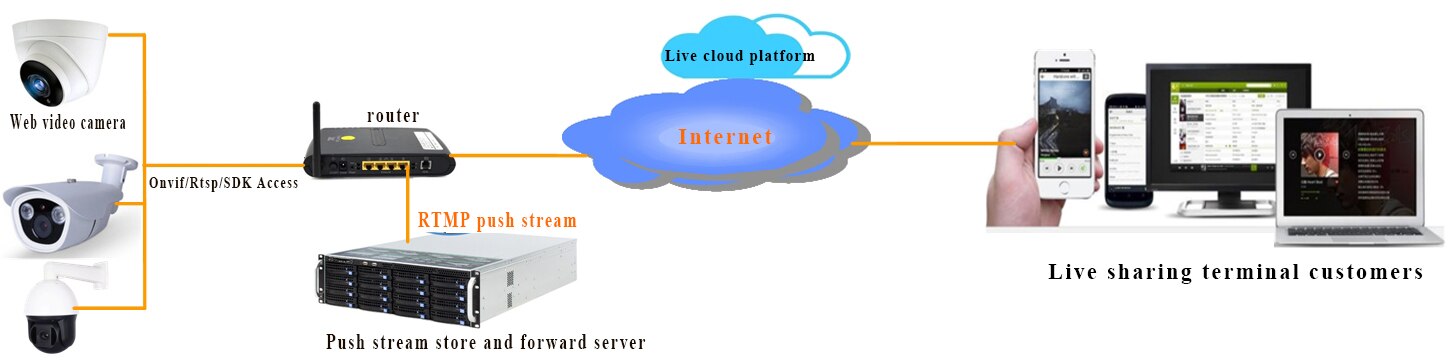

█ Application network topology

█ Specifications

Model

JSA-6SFGS200I300F8SR

system

processor

Industrial embedded microcontroller

operating system

Embedded Linux operating system

video

Screen display

B / S output: 1/4 picture

Video quality

12MP/8MP/6MP/5MP/3MP/1080P/720P/D1/CIF

Compression standard

H.265/H.264/MPEG

Stream type

Limited code stream

Playback quality

4K/1080P/720P/D1/CIF/QCIF

Video management

Local playback

Support 4ch synchronous playback

inquiry mode

Smart time tag, time point search, calendar search, event search, channel search

Video save

Local hard disk / network / disk expansion cabinet

Backup method

Network / USB / Native Hard Disk / eSATA / Platform Storage Cluster / Disk Expansion Cabinet

input Output

Access capacity

≤200 / 500Mb access storage

Forwarding capacity

≤300Mb forwarding

HDMI output

not support

VGA output

1 VGA

Access method

ONVIF and RTSP agreement, HIK / DH / AXIS / JACCTV private agreement

Audio

Audio compression

G.711

Audio input

Sync with access IPC

Audio output

not support

External I / O

Alarm input

Synchronized with IPC access

Alarm Output

not support

USB

2*USB2.0

RS485

not support

RS232

not support

hard disk

SATA

8

Hard drive specifications

3.5” 500G~12T SATA

Raid

not support

Network characteristics

Network Interface

2*RJ45 10M / 100M / 1000M adaptive Ethernet ports

Protocol support

TCP/IP、HTTP、UDP、RTP/RTCP、DHCP、RTSP、ONVIF 、GB/T28181

RTMP push stream

≤200 road

WIFI/4G

Optional / external USB mode

Networking

Independent networking or hybrid networking with platform server / GB / T28181 and upper platform / storage expansion cabinet / analog or SDI system

Power

Power Specifications

AC220V

Power consumption

65W [excluding hard disk]

Other parameters

Operating temperature

+10℃~+55℃

Operating temperature

10%~90% RH

Atmospheric pressure

86kpa~106kpa

Size

2U

weight

10KG

Installation method

Rack or desktop installation



Appendix A-Monitoring Live Application Scenarios

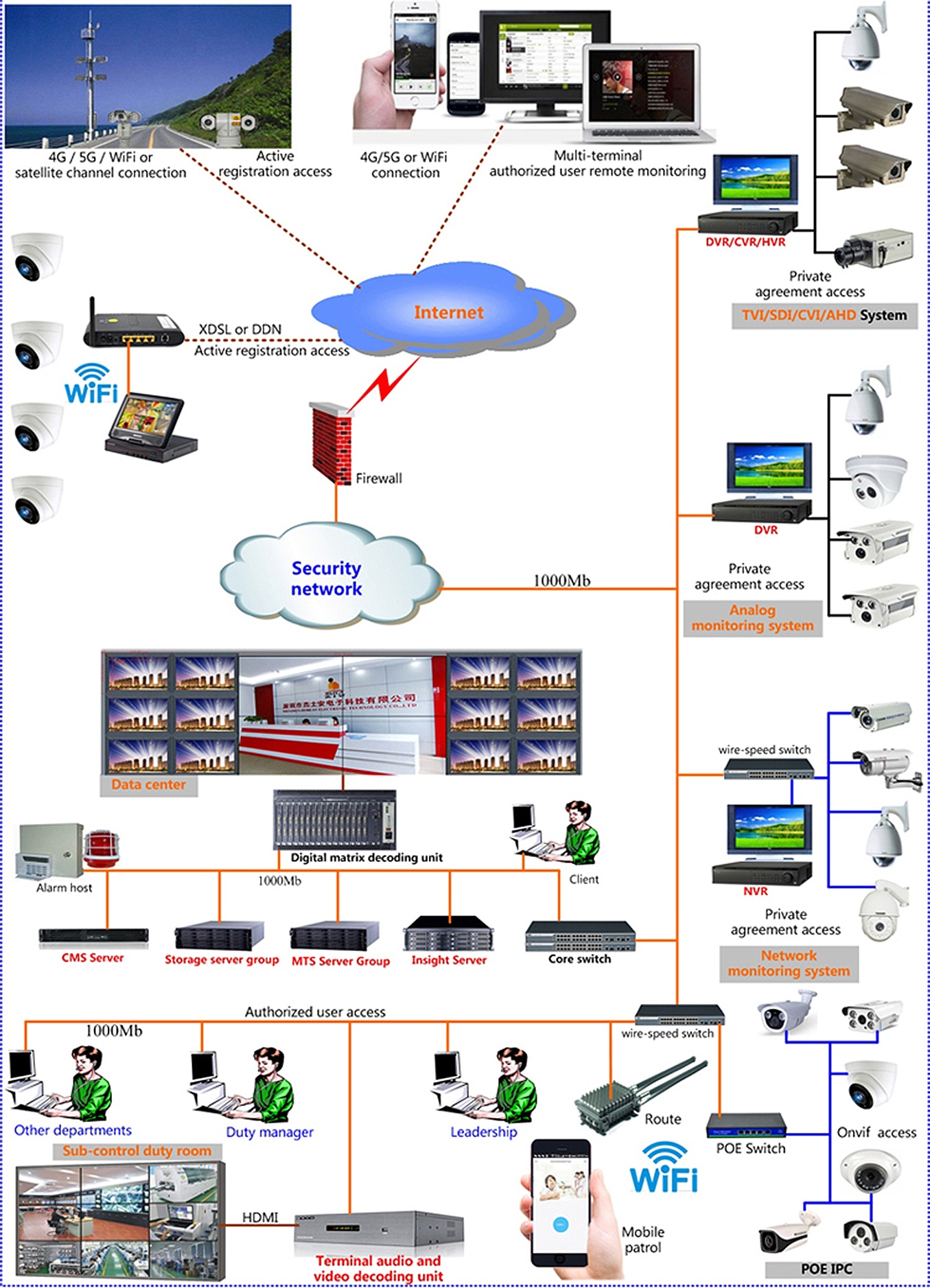

Attached B- Topology diagram of application network of integrated security system

Attached C-Jiesan Company's main product line list

█ Main application product line application scenarios

With 15 years[2005~2020] of accumulated precipitation



  • Model Number: JSA-6SFGS200I300F8SR
  • Brand Name: NoEnName_Null
  • Origin: Mainland China
