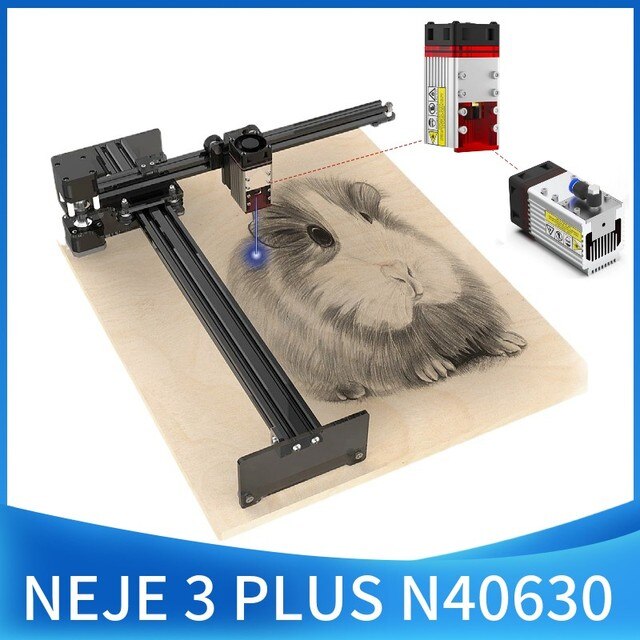

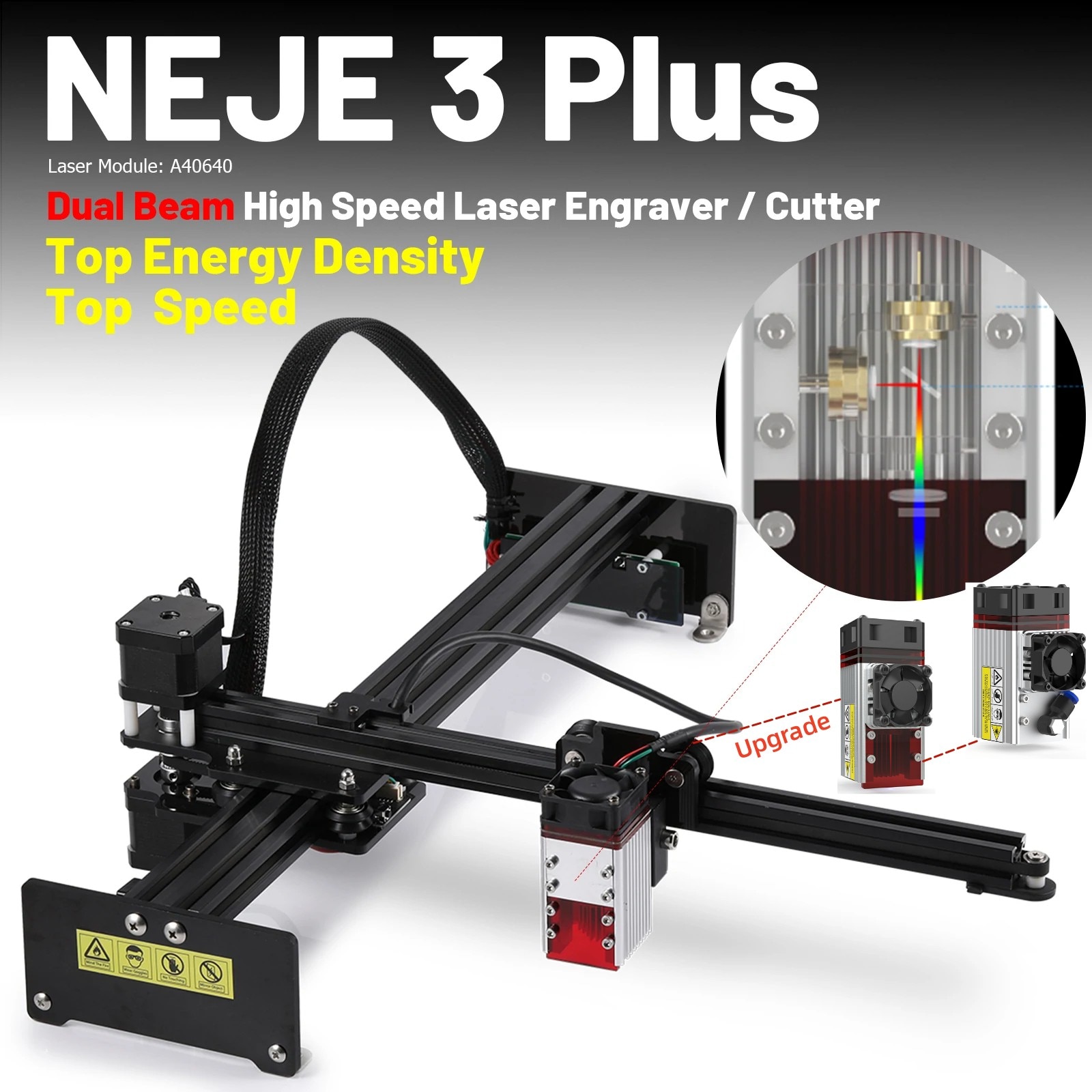

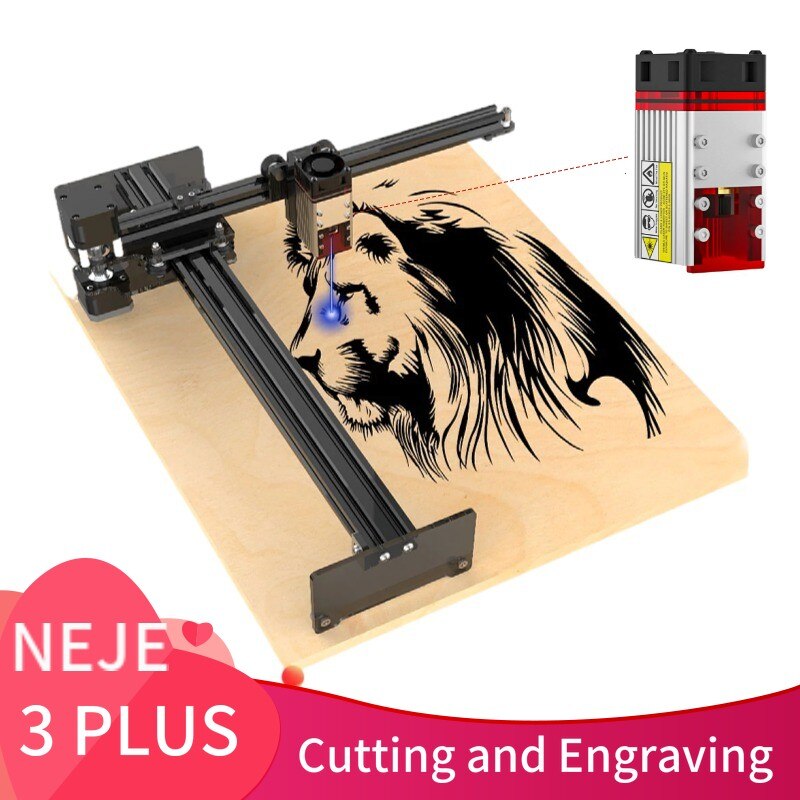

2023 NEJE 3 Plus Dual Beam Laser Engraver and Cutter, 255x420mm CNC Wood Router / Engraving / Cutting Machine
0.0 (16 votes) | 39 orders
Price:
US $1018.00 - 1672.72
/ piece
Discount Price:
US $
553.92 -
921.66
/ piece
-46%
- Ships From
- Color
-
-
A40640 Laser Module
N40630 Laser Module
A40630 Laser Module
RECOMMENDED REASON
NEJE A40640 module is an zoom carving and cutting module specially designed to overcome high hardness materials and high-speed engraving, and it also has strong cutting ability. NEJE adopts NEJE's unique optical processing technology to compress the focus to 0.04x0.06mm and has 12W pulse Power, focus are clearer than ordinary 2 LD modules, there is no stray light interference on the edge, each pixel is powerful, it can directly and clearly engrave grayscale images on stainless steel and stone surfaces, as well as on wooden 3D images\ Plasma high-definition effect. Stronger energy density and clearer engraving focus than 4xLD laser module, can be said to be the king of engraving. The NEJE A40640 module is an zoom focus module, which can obtain a 20mm thickness cutting ability at a 55mm focus, and has excellent performance in cutting acrylic, wood board, fabric, balsa, corrugated paper, EPE and other materials. NEJE designed a metal quick-release air nozzle for the A40640 module, which can be compatible with cutting needs of different focal lengths. The latest lens has added a high-temperature window lens, which can effectively prevent water and smoke from damaging the lens. If you want to find a model that can A module that solves almost all your needs, A40640 is the best choice.
Feature
【Top engraving speed】Just fit on a desktop with a width of 600mm, and the left side of the machine is not limited by the size of the material. It is suitable for processing large area materials. Under the protection of the MEMS vibration protection sensor, the engraving and cutting processes can be completed at the same time. The X-axis motion module is only 120g and is driven by a 40mm thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure, 3400 x 5600 pixels, engraving accuracy: 0.075 mm dot pitch, 339 dots/inch. The whole machine function test requires only 4 screws to complete the installation.

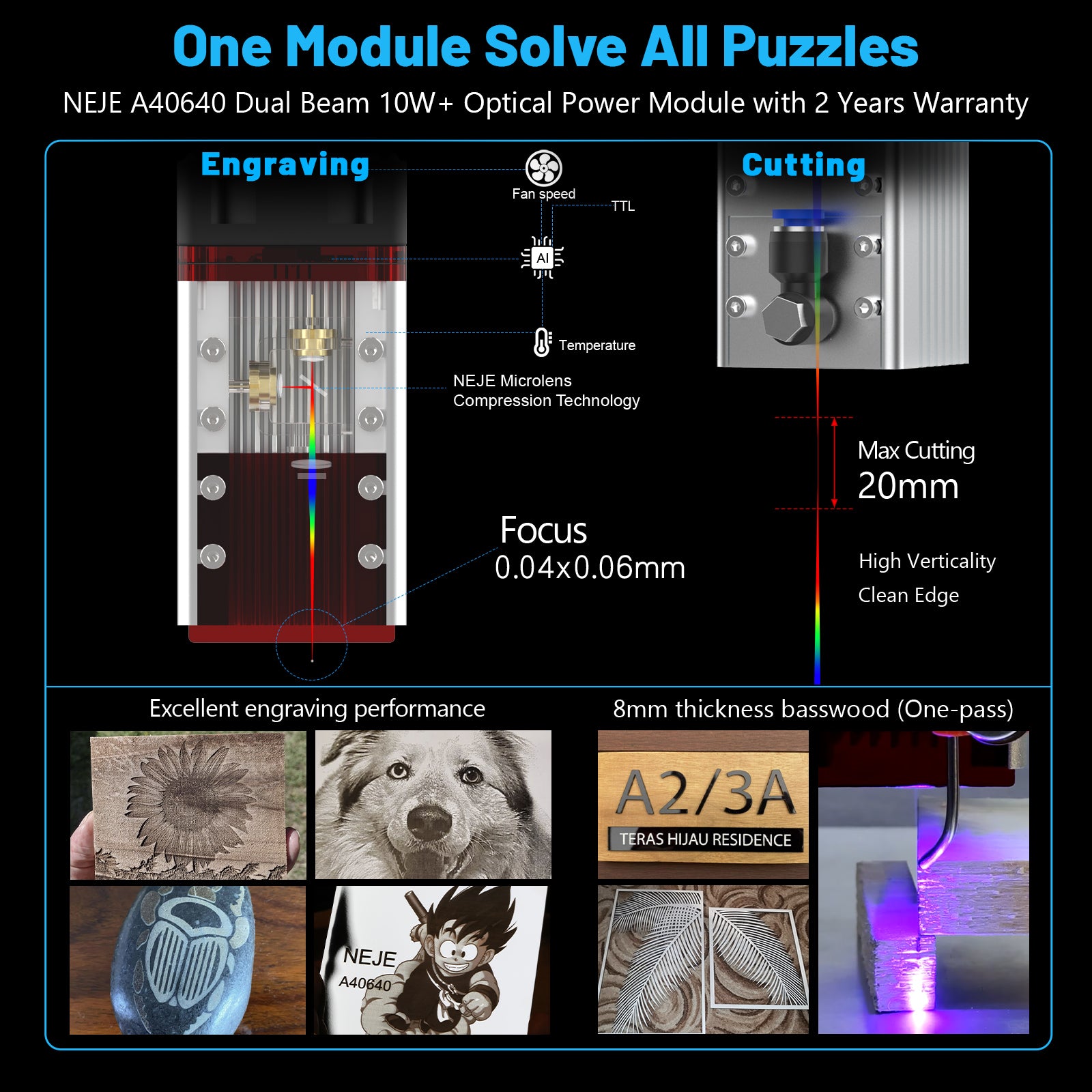

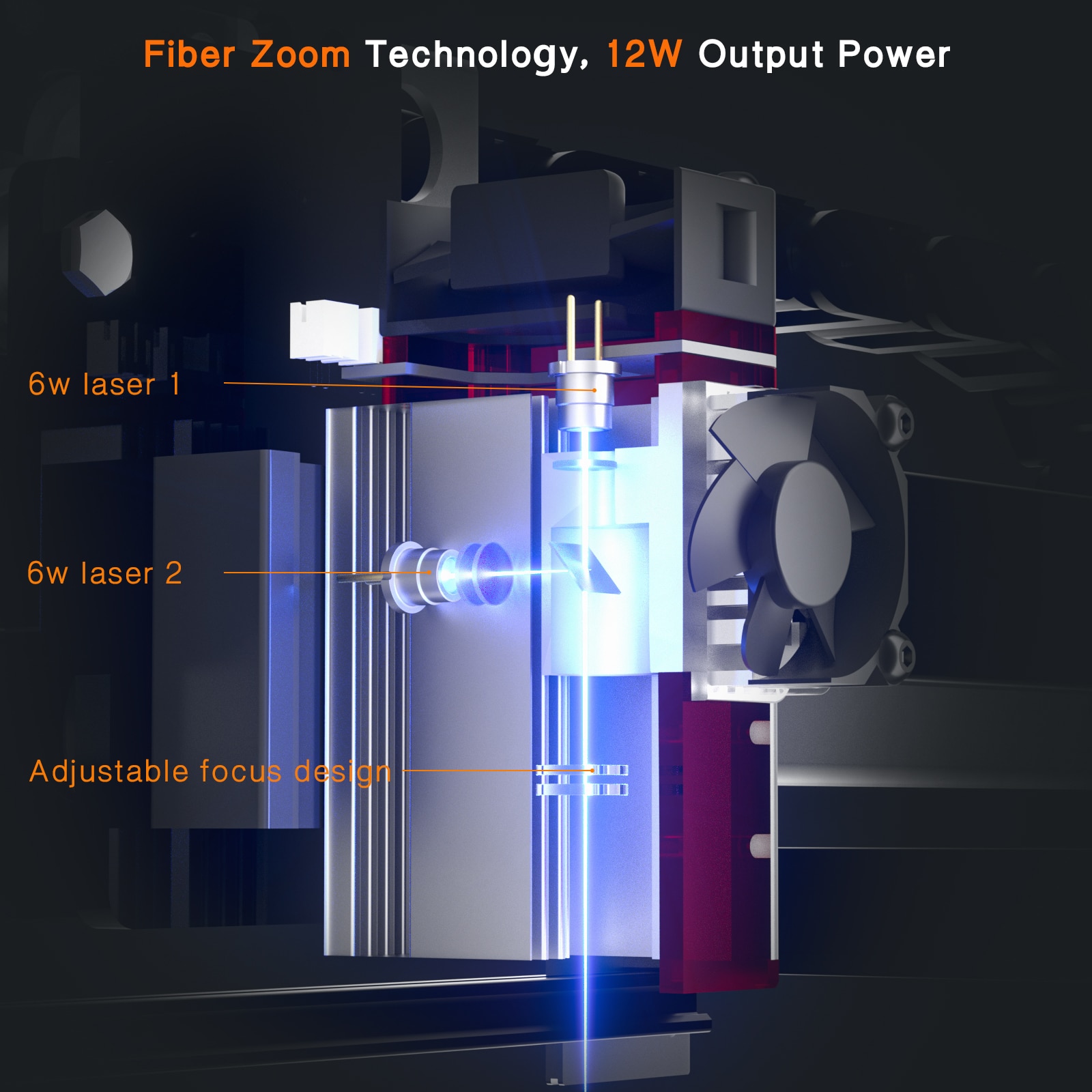

【Top engraving capabilities】 The laser beam is formed by combining two high-power laser diodes distinctive technology. The minimum focus point reaches 0.04x0.06mm(A40640 module). 12w pulse real pulse output. It can directly engrave clear grayscale on the stainless steel surface. Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

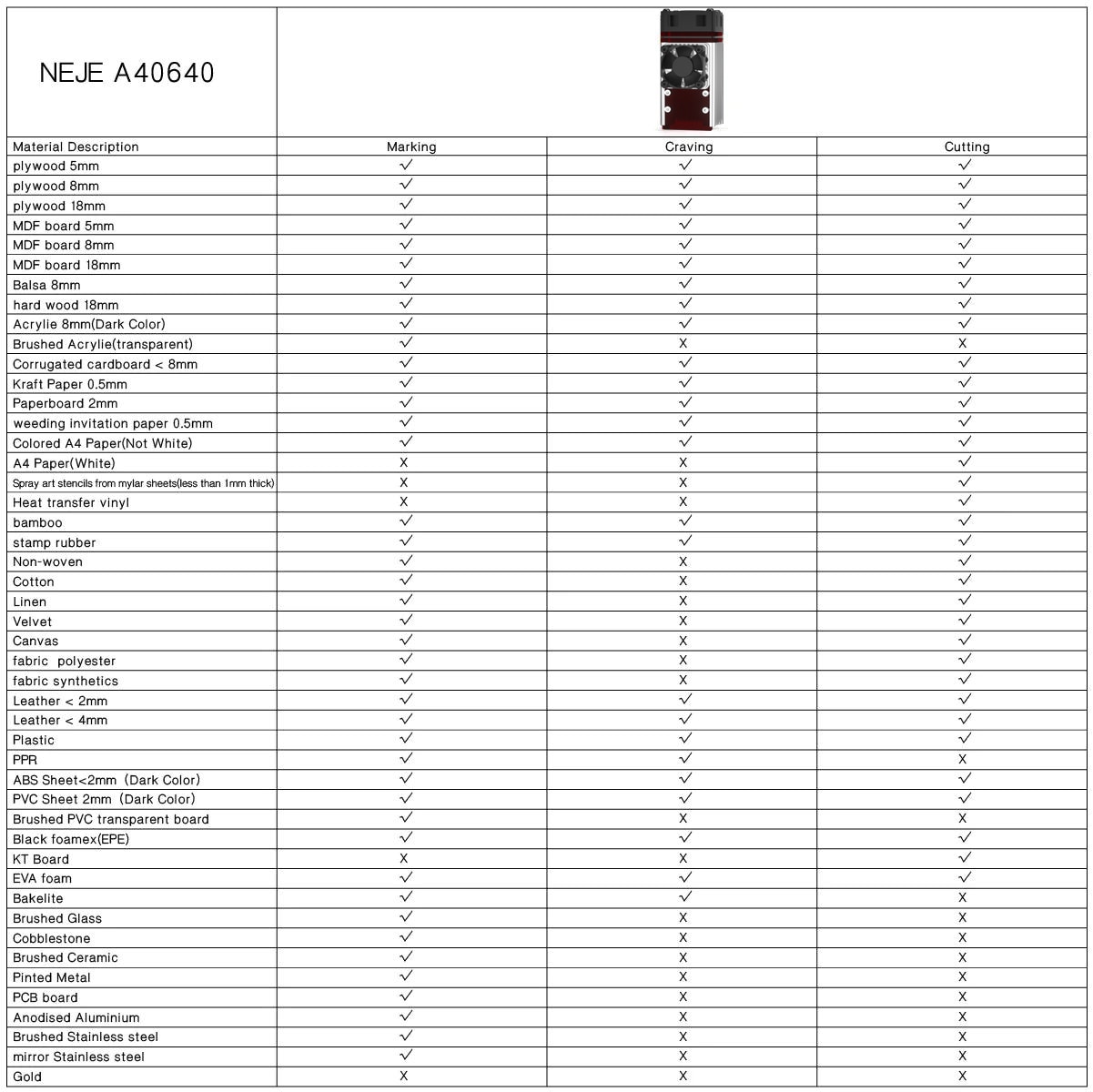

【More materials, clearer】 Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs air-assisted cutting once (A40640), and the cutting is very clean. Can directly engrave stainless steel, glass, transparent acrylic and so on.

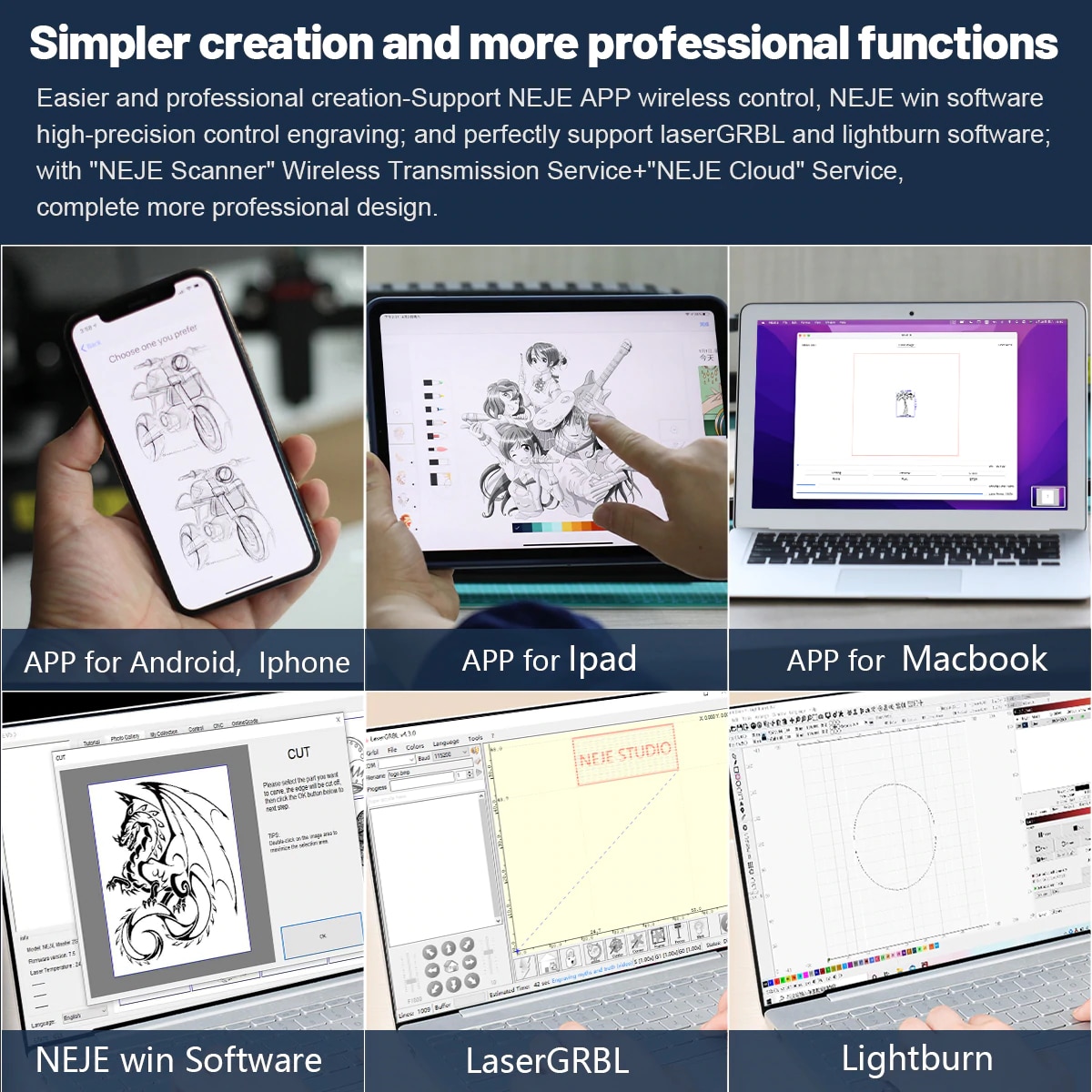

【Portable professional control software]】32-bit control system, the fastest speed can reach 200,000mm/min, supports LaserGRBL, Lightburn, NEJE Win software, NEJE APP (Android phone, iphone, iPAD, macbook), you can change it by taking photos with your mobile phone or selecting images from the album To complete the work quickly, NEJE provides free software OTA upgrade services.
【Perfect after-sales service]】The whole machine is guaranteed for free for 2 years (laser module: 2 years and 20,000 hours warranty), and vulnerable parts are shipped worldwide within 24 hours.
SPECIFICATION

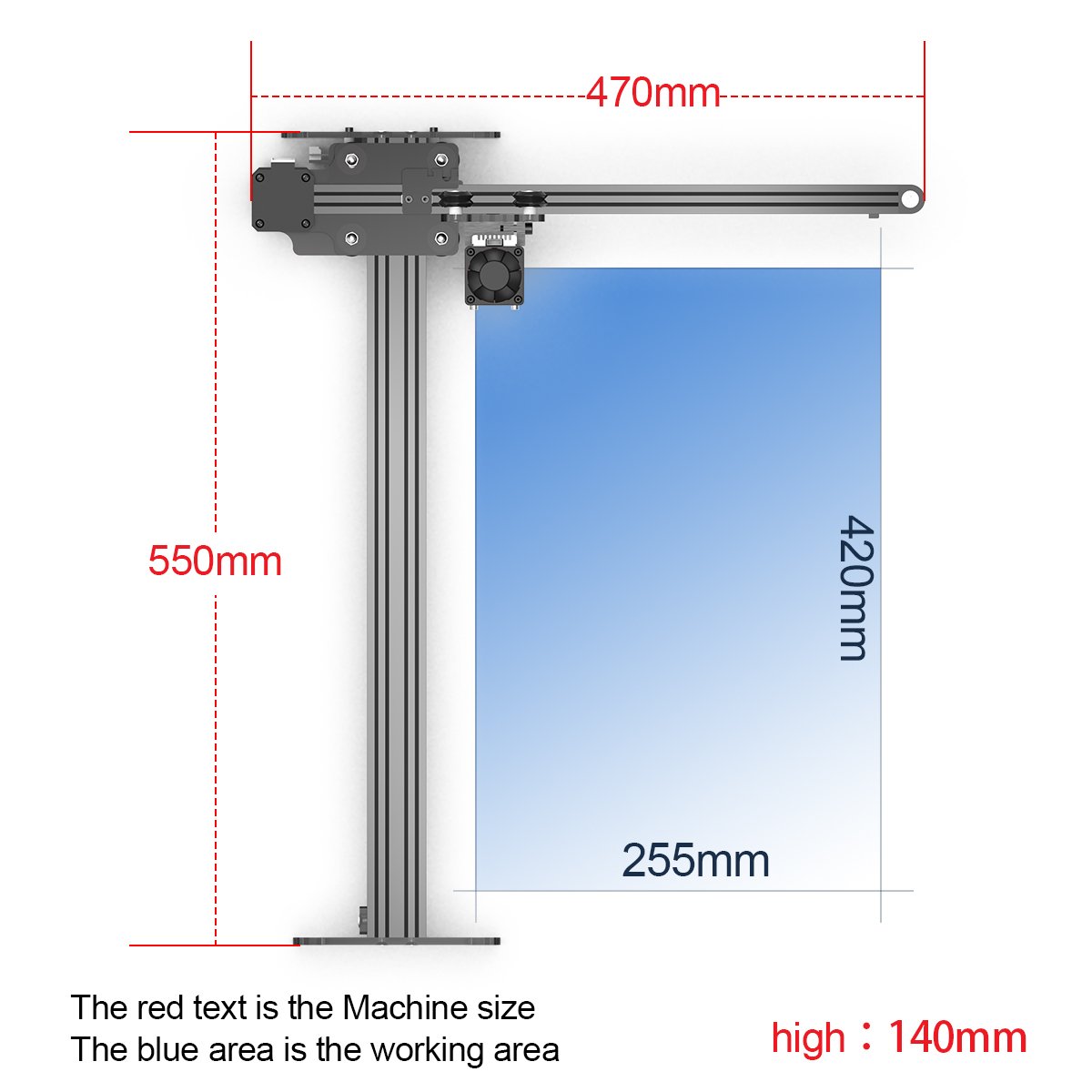

Frame size (L - W -H): 550x480x140mm
Working area( X - Y): 255 x 420mm
Dot Pitch: 0.075mm, 338dpi
Pixel: 2400 x 5600 px
Drive accuracy: 0.01mm
Max Move Speed: X:1500mm/s(with A40640 module 204g), Y:1000mm/s
Frame Material: High precision PC material hybrid frame
Structure Feature: Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
Vertical Carving: Yes (45°)
Motor Size: 42 x 42 x 50mm
Motor Drive Current: 0.9A
Module Height Adjuster：Yes
Home: Rear Left
Origin: Front Left
Compatible Modules: All NEJE 4pin 12V Laser Moudle (Recomend: A40640, N40630, A40630, E40, N308220, N30610, B30635)

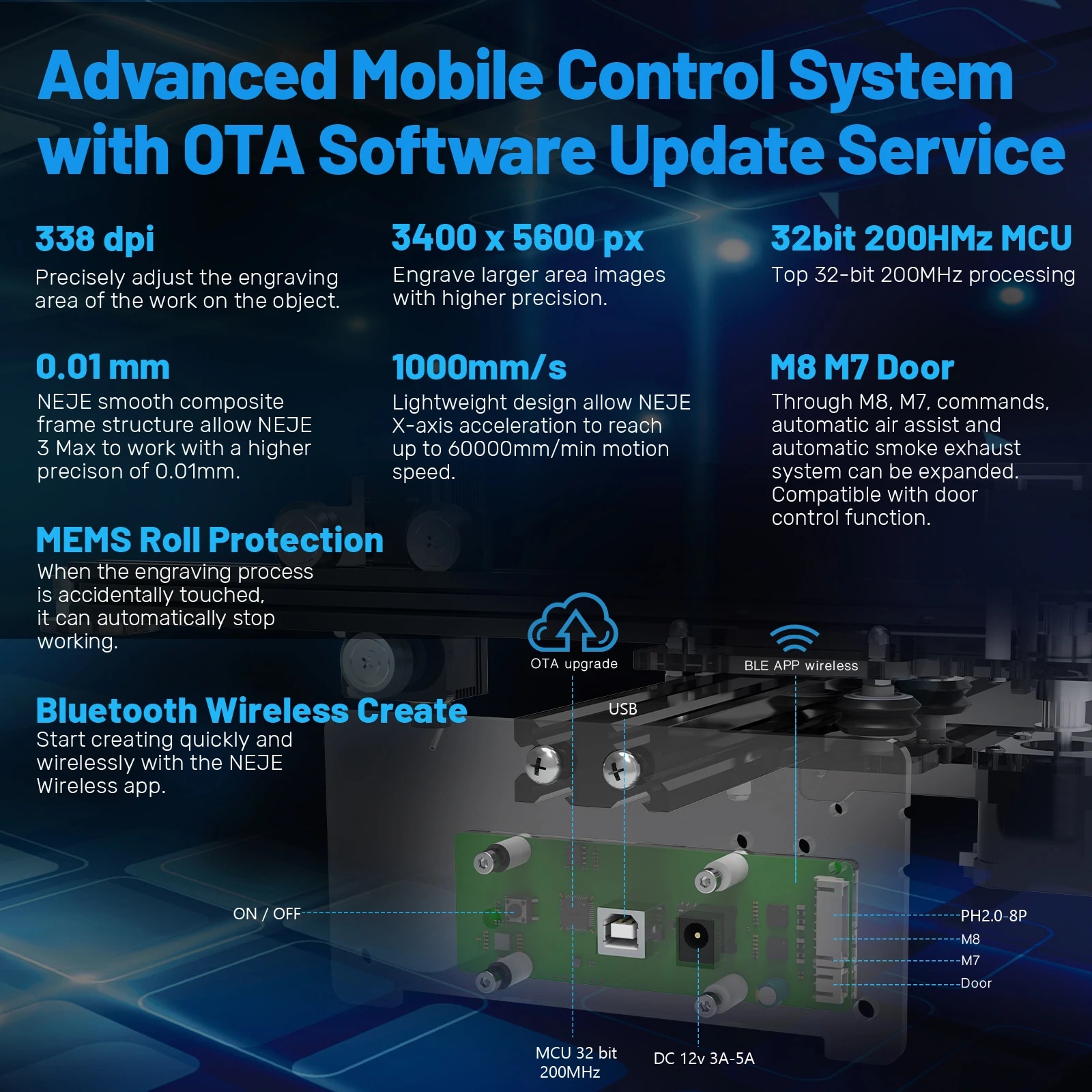

MCU: 32-bit 200Mhz MCU (Top 32-bit MCU)
BLE APP control: Yes
MEMS protection: Yes
M7 Control: Yes (For building automatic smoke extraction systems)
M8 Control: Yes (For building automatic air assist systems)
Door Control: Yes (Emergency Suspension and Safety Door Control)
Limit Switch: Yes
ON/OFF Switch: Yes
Input: DC 5.5 2.1, 12V 4A or 5A (Power Adapter)
System: Win 7 / Win 8/ Win 10, Android, iOS, ipadOS, macOS, HarmonyOS.
File format supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc.
OTA Upgrade: Yes
NEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use.
Lightburn and LaserGRBL: Yes, improved low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction.
Off-Line Working: Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone.
Repeat Engraving: Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work.
NEJE Android APP: Yes
NEJE iphone/iPad APP: Yes
NEJE Cloud Gallery Service: Yes
Software Download: Https://neje.wiki

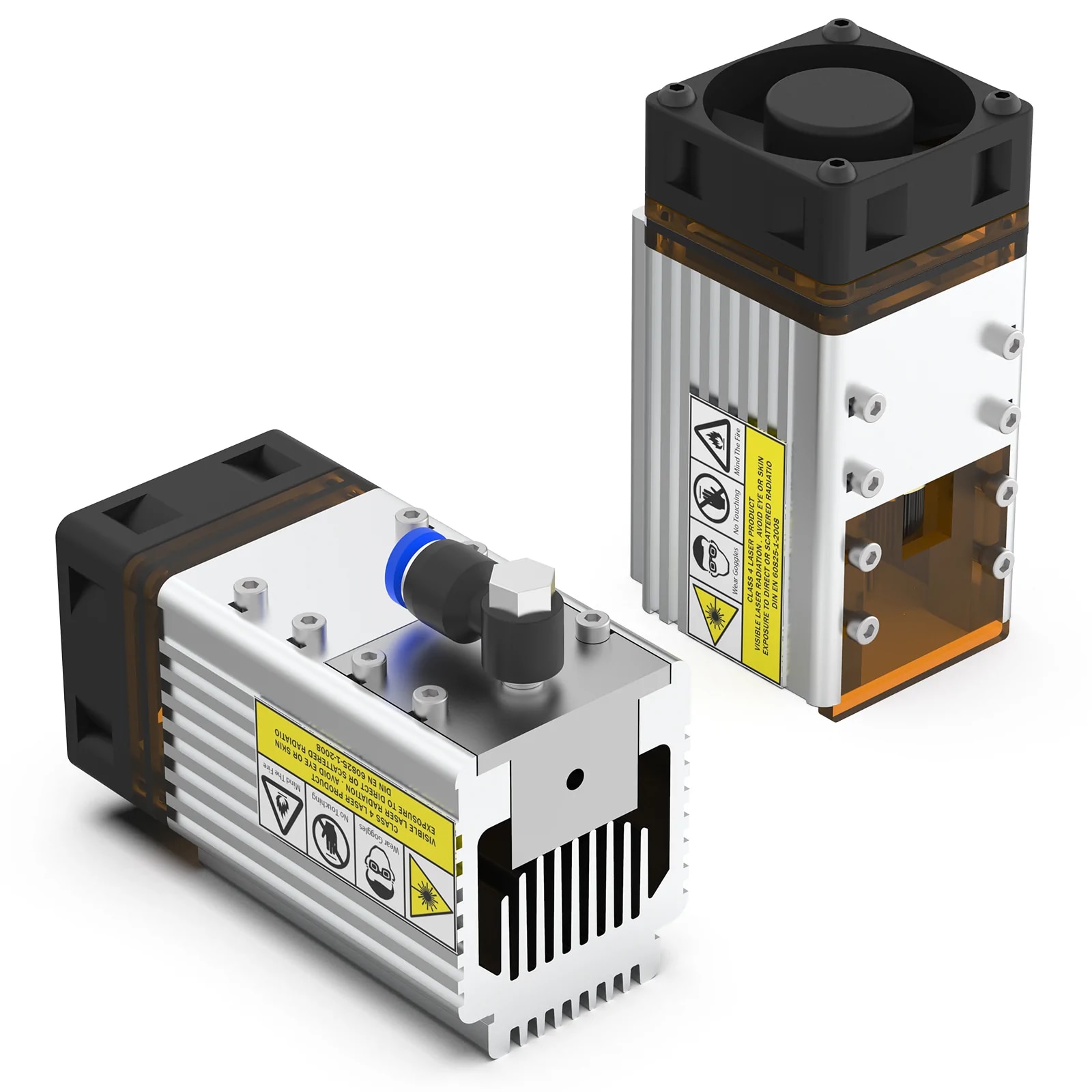

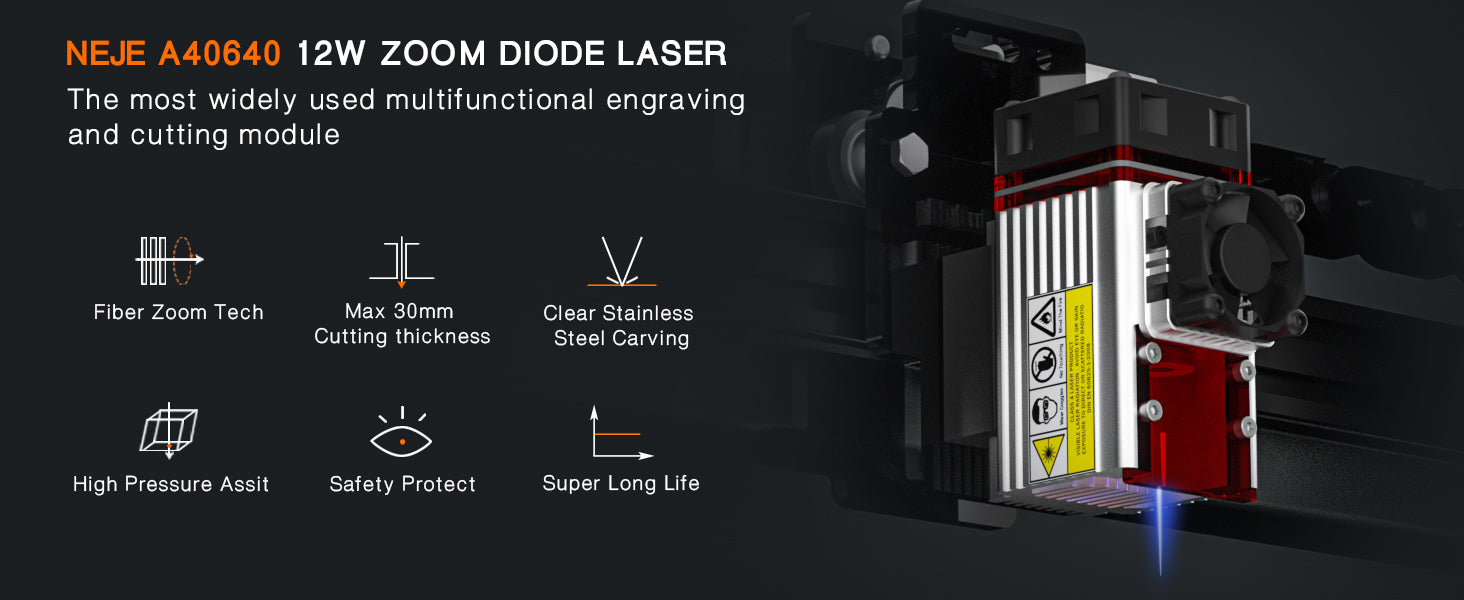

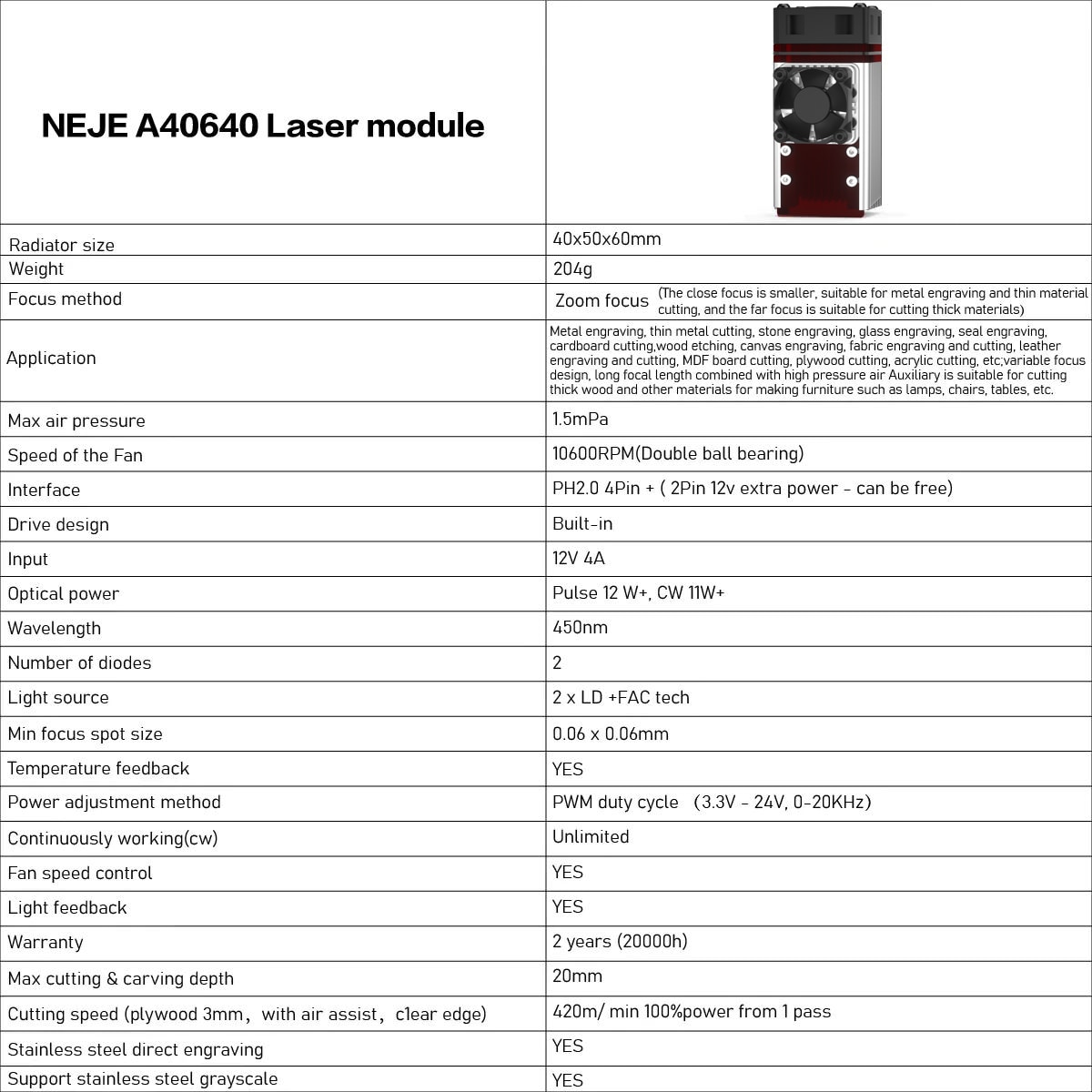

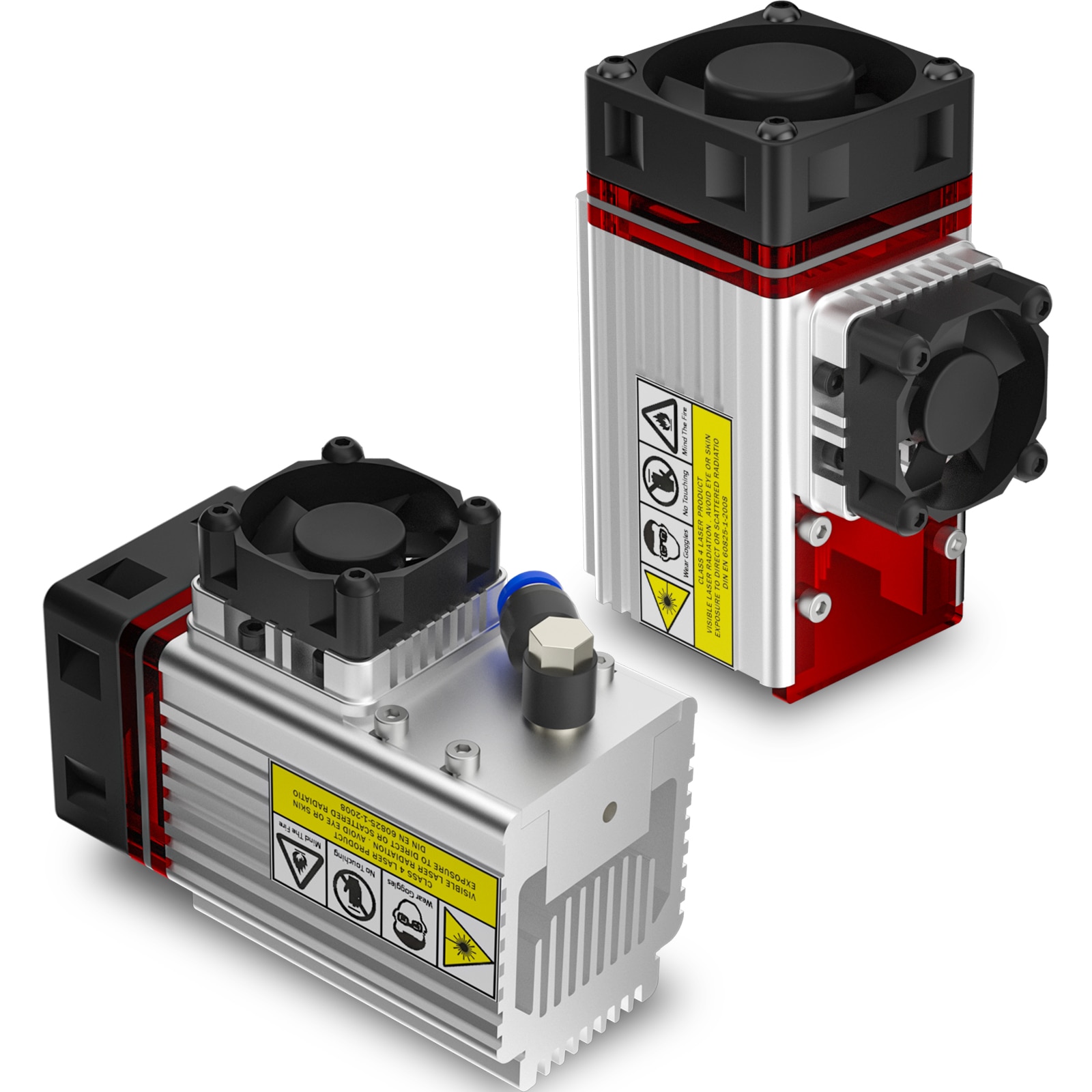

Module: NEJE A40640

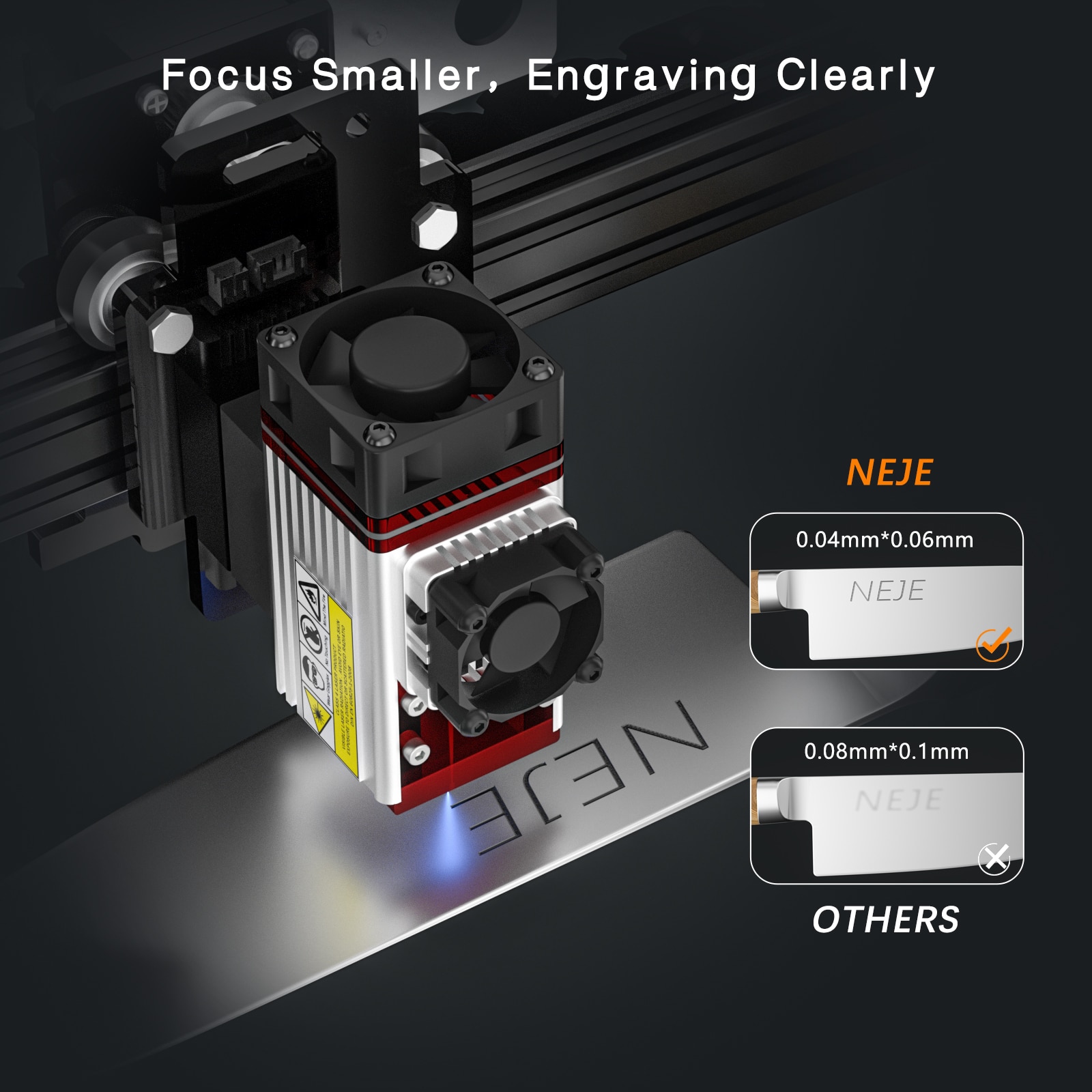

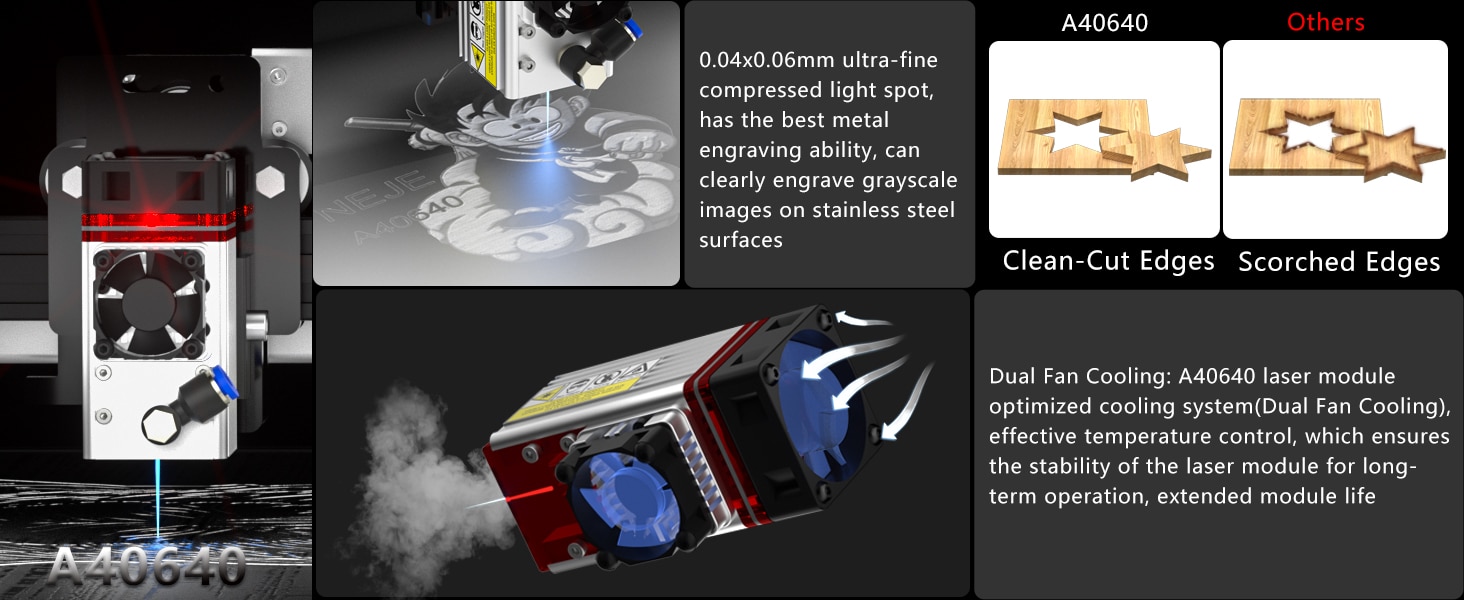

Focus: 0.04x0.06mm
Focus method: adjustable ( Recommend 30-55mm )
Optical power: Pulse 12W+, CW 11W
Replaceable lens design: Yes
Stainless steel direct grayscale engraving: Yes
3D hardwood engraving: Yes

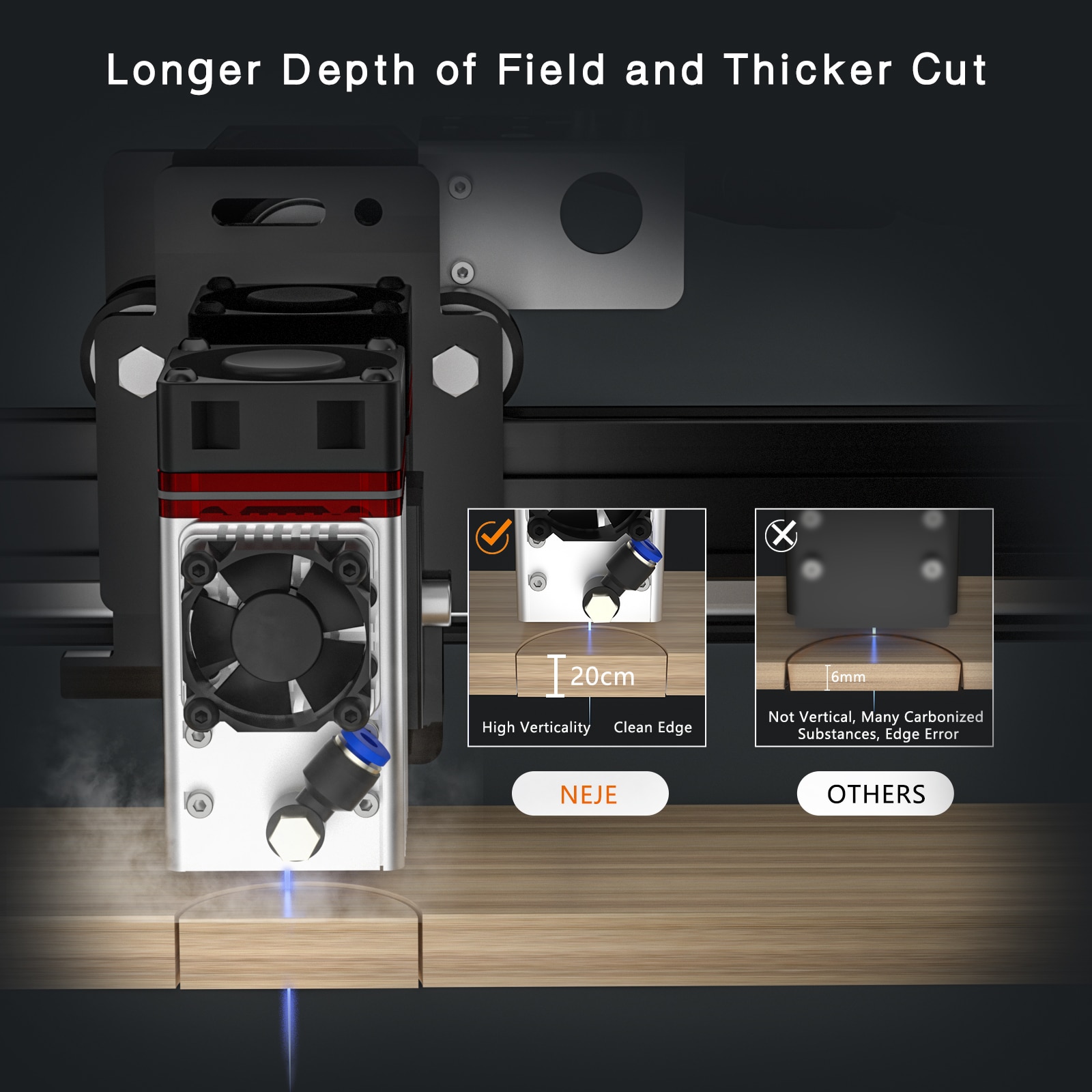

Maximum cutting thickness: 20mm
Wavelength: 450nm
Weight: 204g
Module Size: 40x50x85 mm
Input: DC 12V 4A
Interface: 4pin PH2.0
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc...
Power control: PWM Power Modulation
Fan: double ball high life fan
Drive: NEJE smart quiet drive, built-in static elimination technology.
Surge protection: Yes
Smart feedback: Yes
Temperature feedback: Yes
Temperature control: 45℃
air pump: 0.5-1.5mpa clean air (Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air interface: 4mm pvc trachea
Original registered brand: Yes
Warranty: 2 years
Warranty Statement: The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment.
View Manual: https://neje.wiki

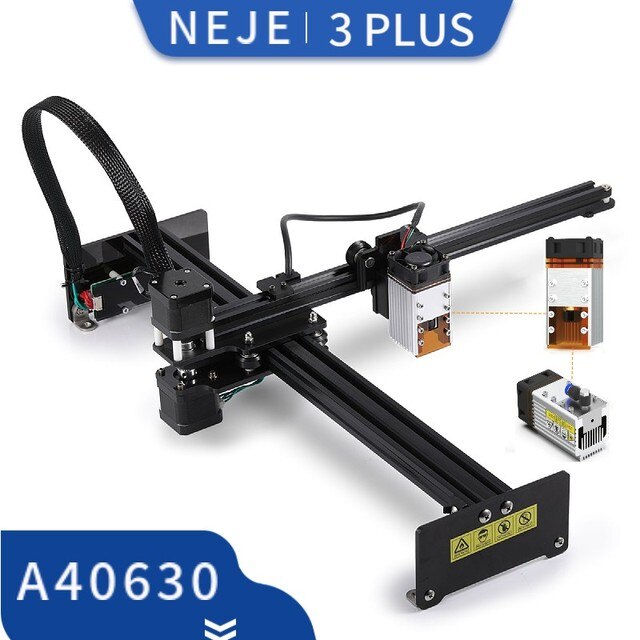

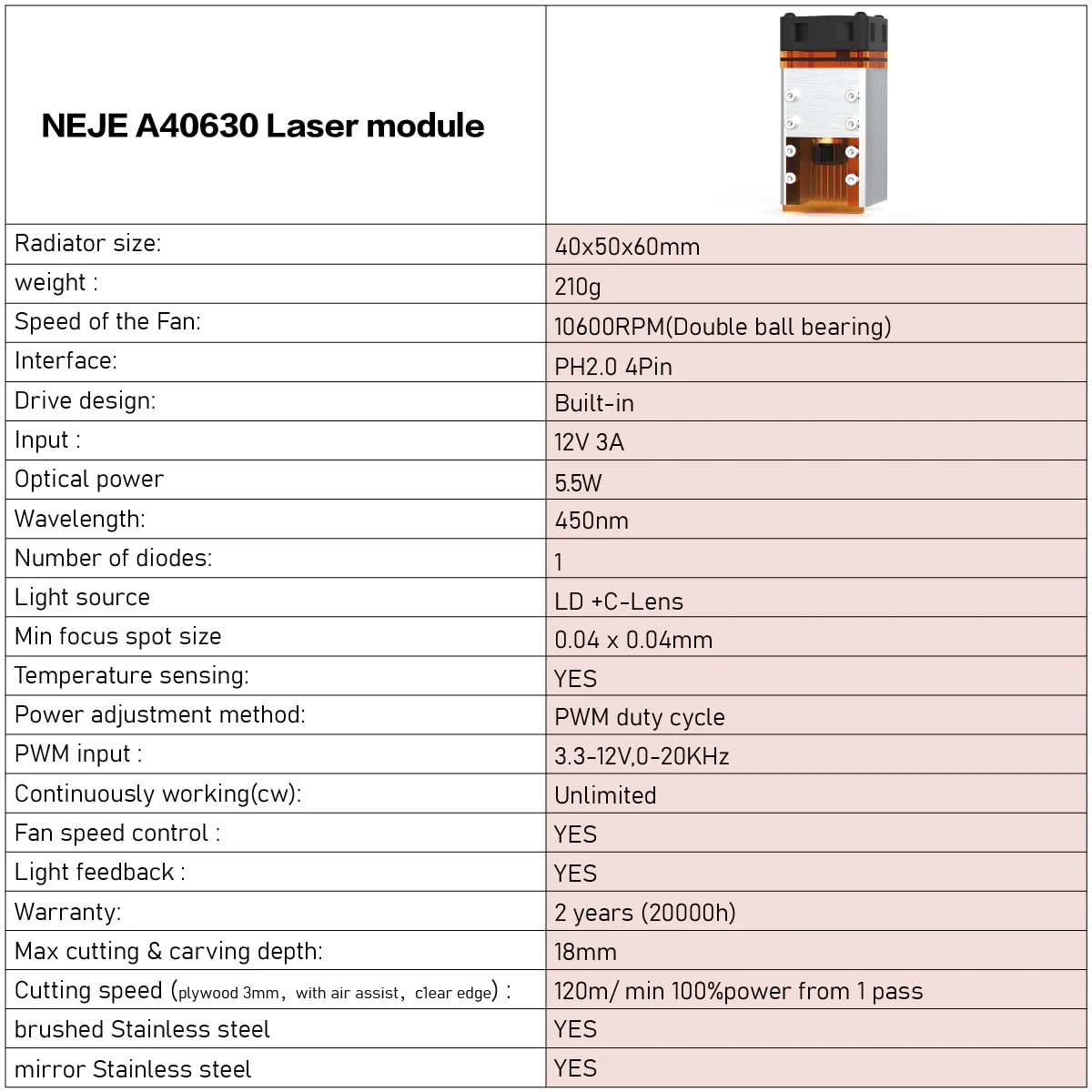

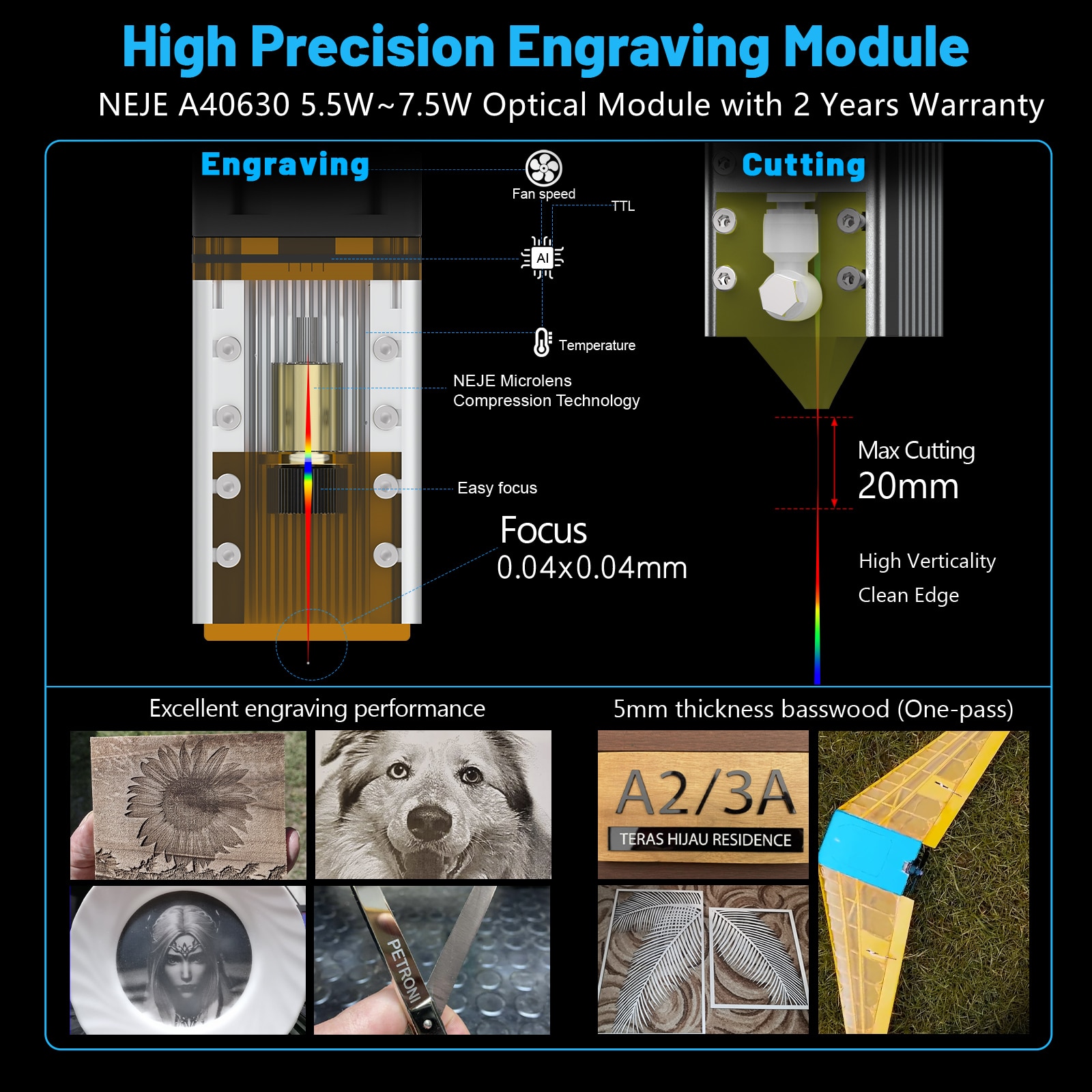

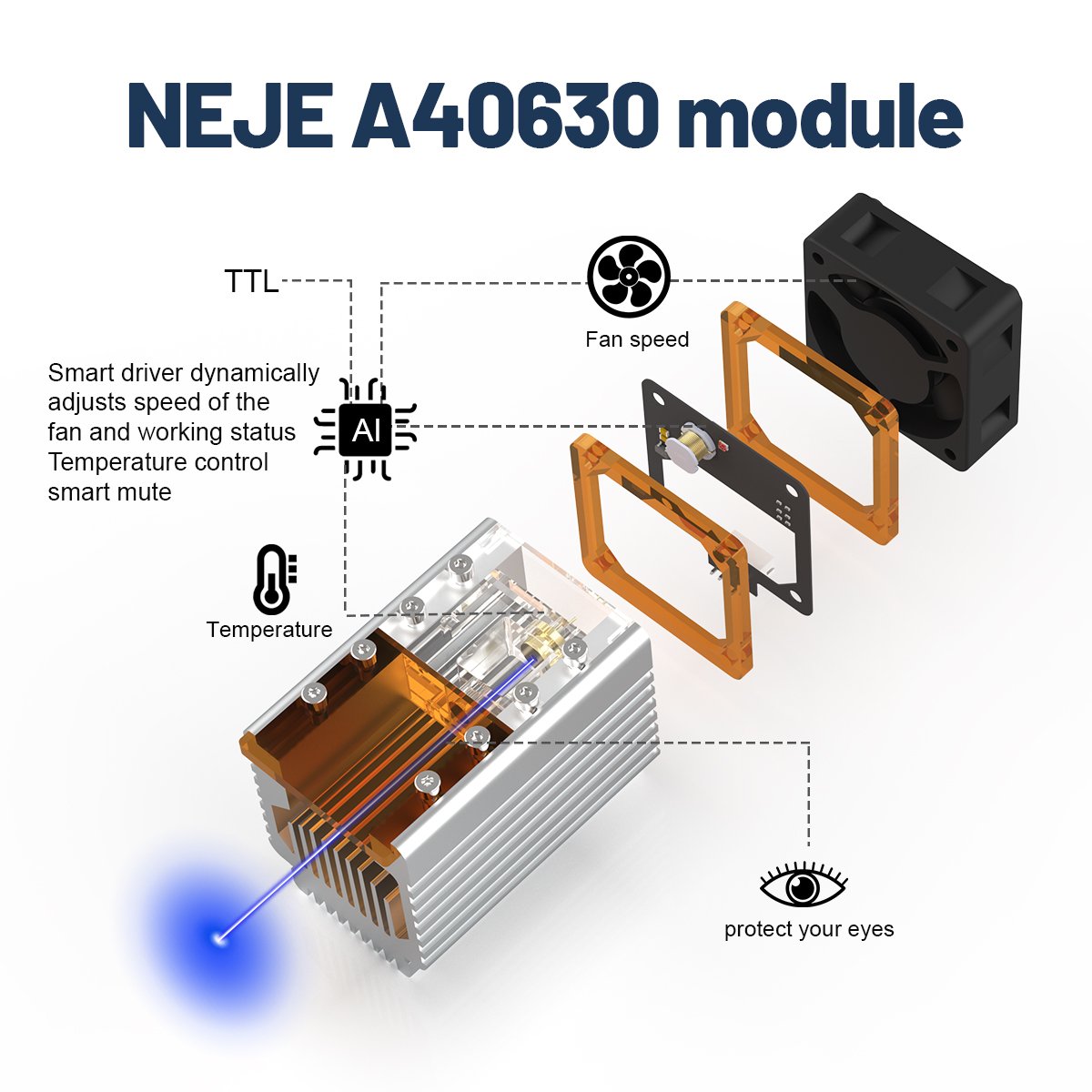

Model：A40630
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm

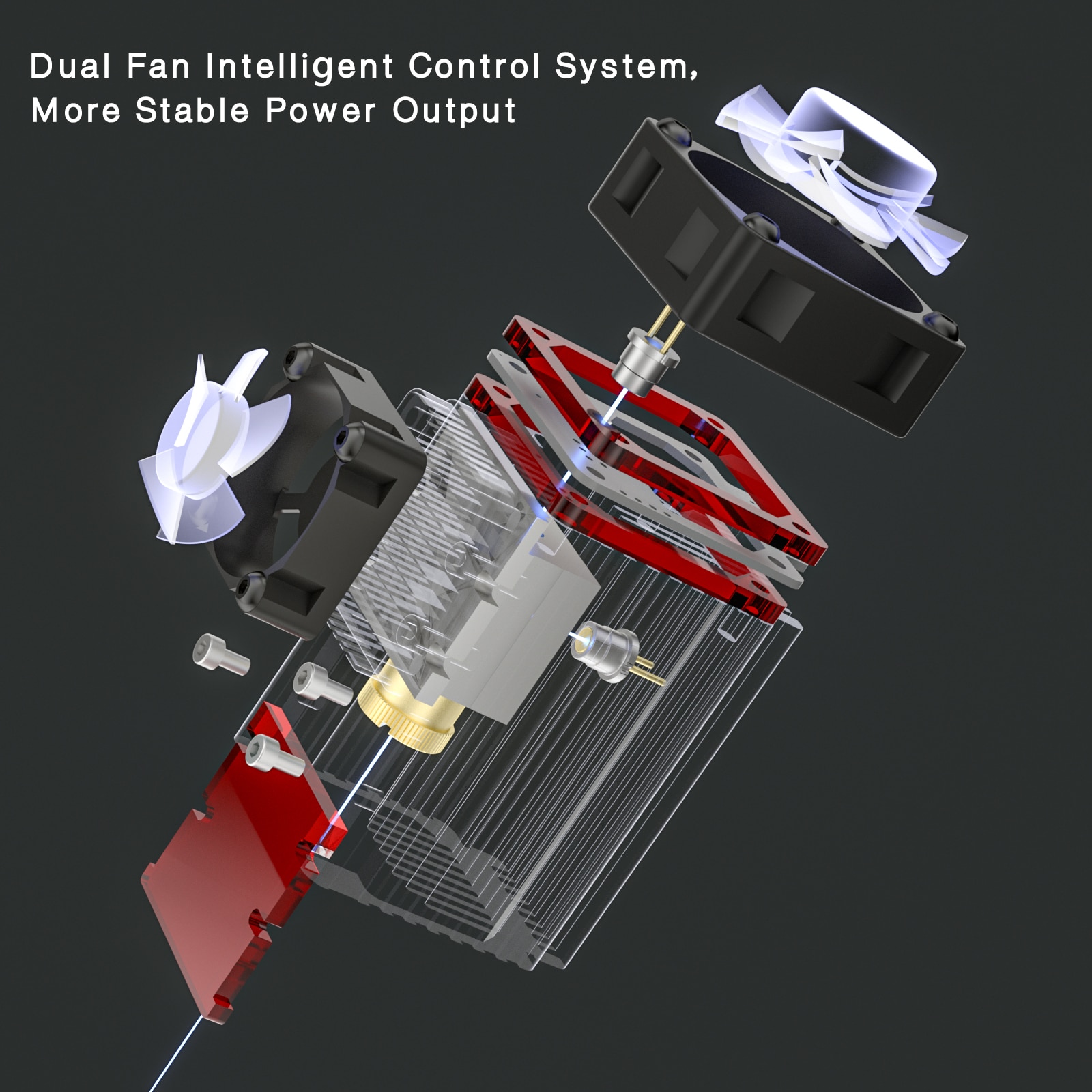

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port

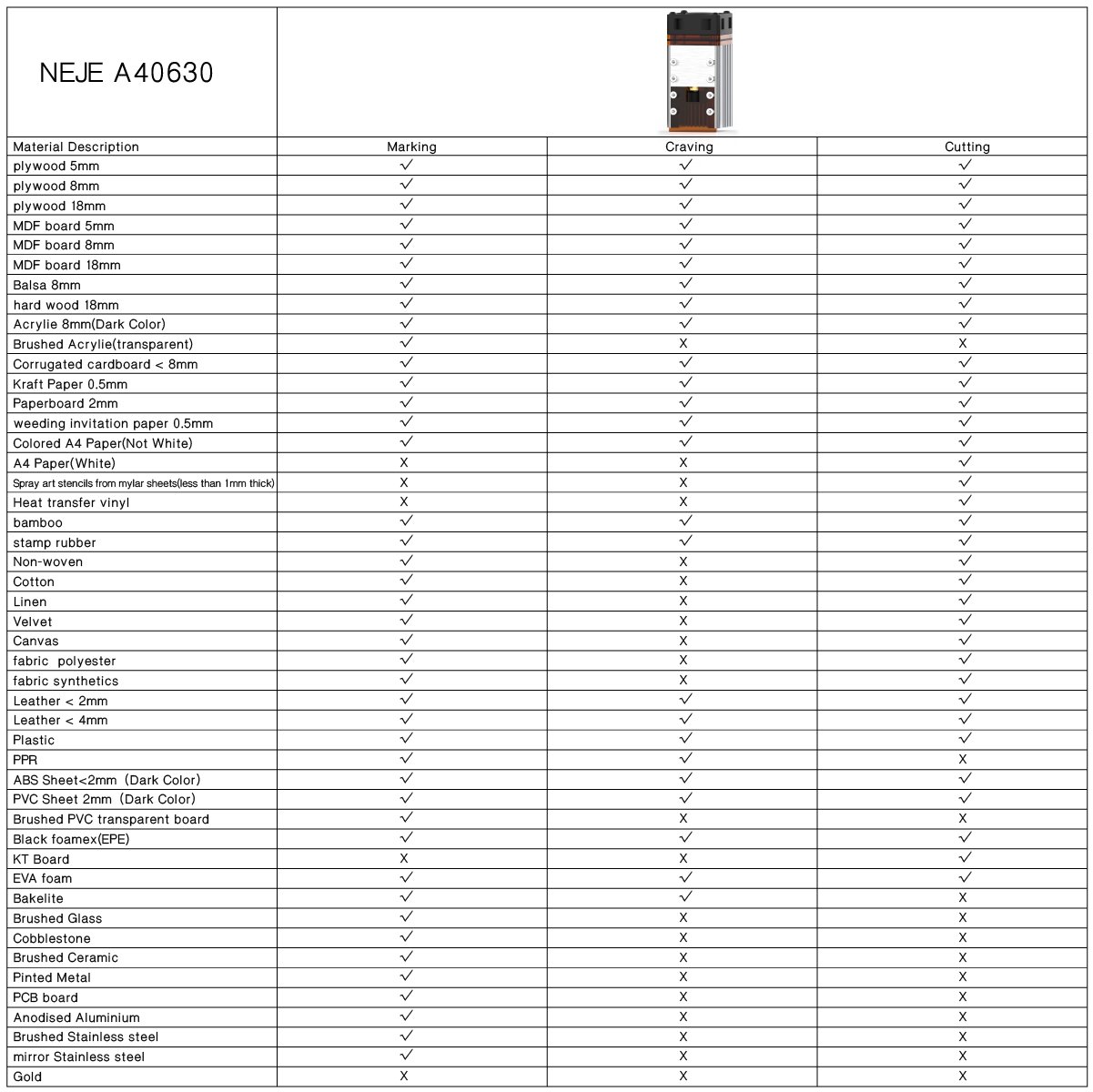

Can Engrave：Rock/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：40-50W
Optical power output：5.5W (5500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours
Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES

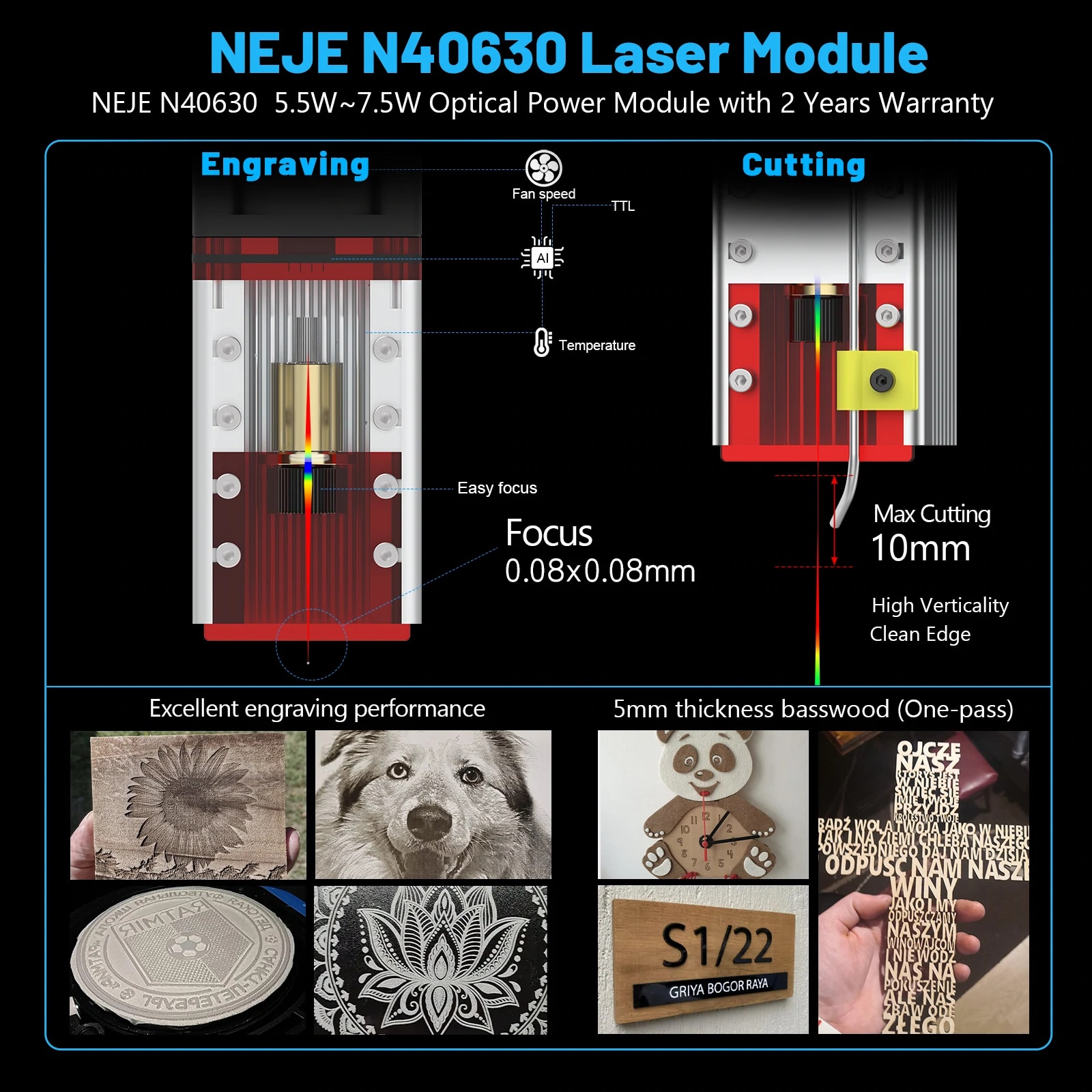

Model：N40630
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters
Module Input：20-30W
Optical power output：5.5W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on the wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours
ABOUT WARRANTY
Laser Module Warranty: | 2 Years |
Control system warranty: | 2 Years |
Hardware warranty: | 2 Year |
Statement: | The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment. If the wrong voltage is input, or the lens is damaged due to lack of maintenance, it is not within the scope of free after-sale; for maintenance instructions, please refer to NEJE.WIKI |
Please Note

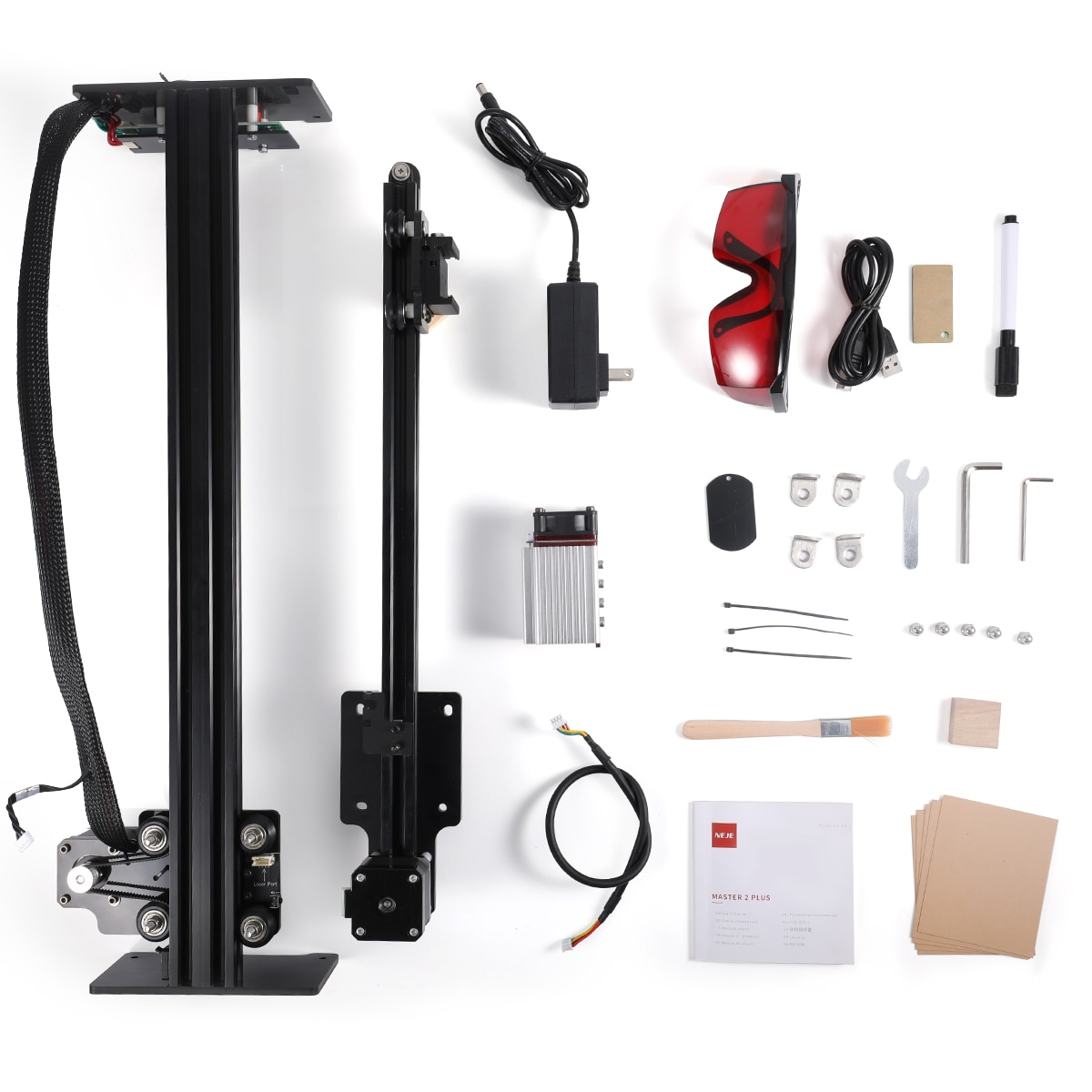

Package list: The actual purchase picture shall prevail
About NEJE
100% factory manufacturer located in China, welcome to visit our factory whenever you like!
We focus on the research, development, manufacturing and testing of NEJE laser engraving machines, provide customers with more professional and better products
You could rely on us for the consistent quality and service!
About Tax:
Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
About customs charging fee . no body can control , every country customs has different Import and export tariff system.
About Maintenancece:
All products have 12 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accpt return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised, pls feel free to contact us before opening a dispute or leaving us a negative feedback. We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees
- Is Smart Device: YES
- Model Number: NEJE 3 PLUS
- Condition: New
- CNC or Not: CNC
- Origin: Mainland China
- Certification: CE,FCC
