433 Mhz Universal Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module and RF Transmitter Electronic Lock Control Diy
4.8 (64 votes) | 427 orders
Price:
US $552.26 - 2242.52
/ piece
Discount Price:
US $
437.87 -
1773.22
/ piece
-21%
- Color
-
-
433 Mhz Universal Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module and RF Transmitter Electronic Lock Control Diy

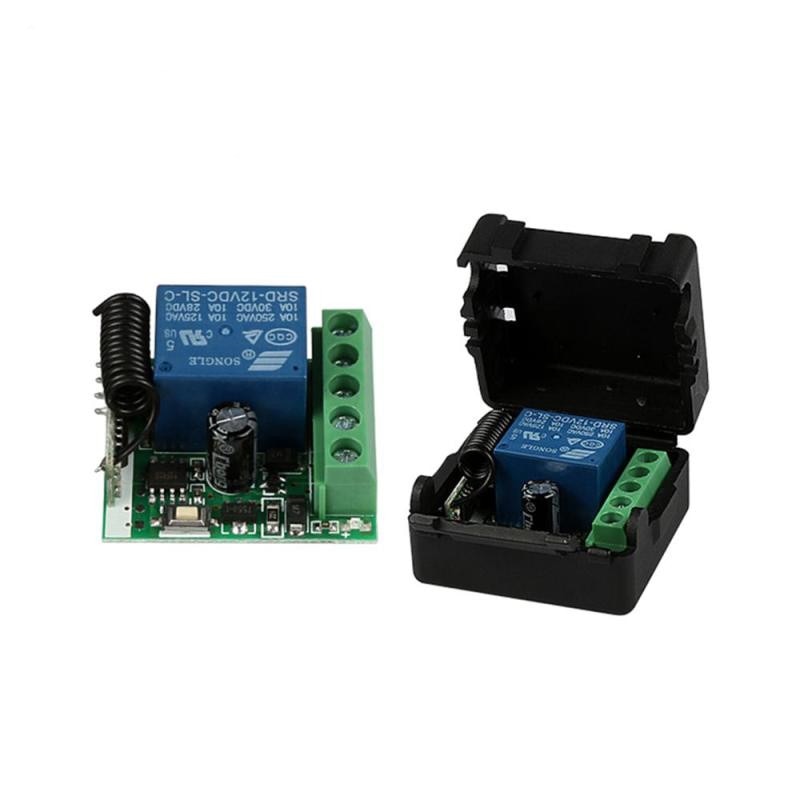

Technical Data Of Receiver:
Input Power:DC10V-14V
Standby Current:<5MA
RF Frequency:315M or 433M
RF working mode:superheterodyne
Receive sensitivity: >97dbm
Transmitting distance:>100m ( open space)
Decoding mode:MCU software decoding
Remote storage:25pcs
Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Wiring type:fixed terminal
Output Terminal :NO , NC , COM

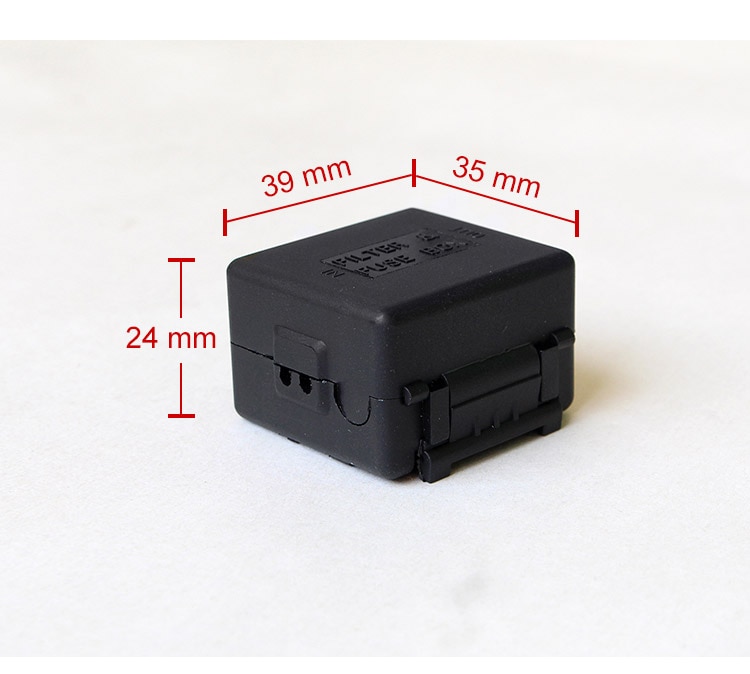

Dimension of PCB:35*30*18mm (L,W,H)

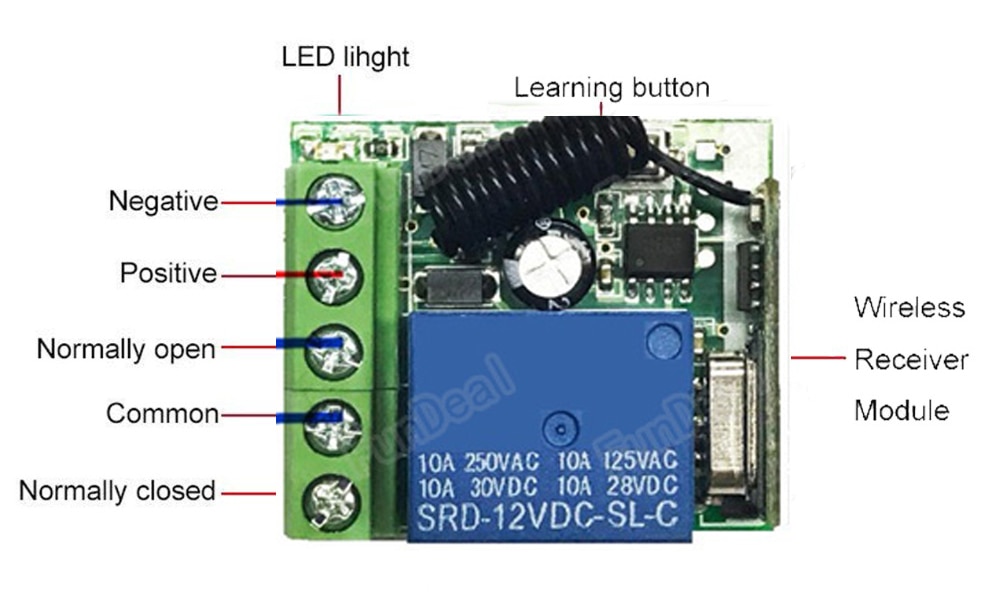

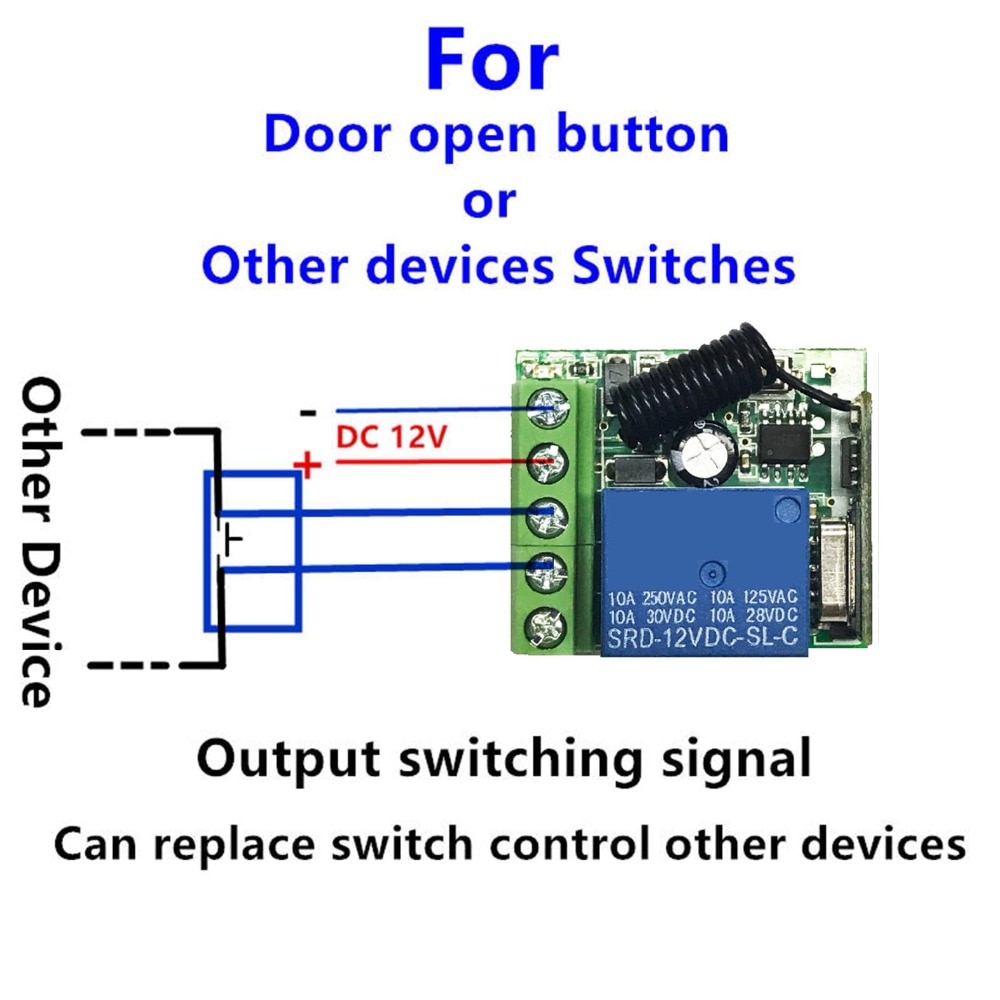

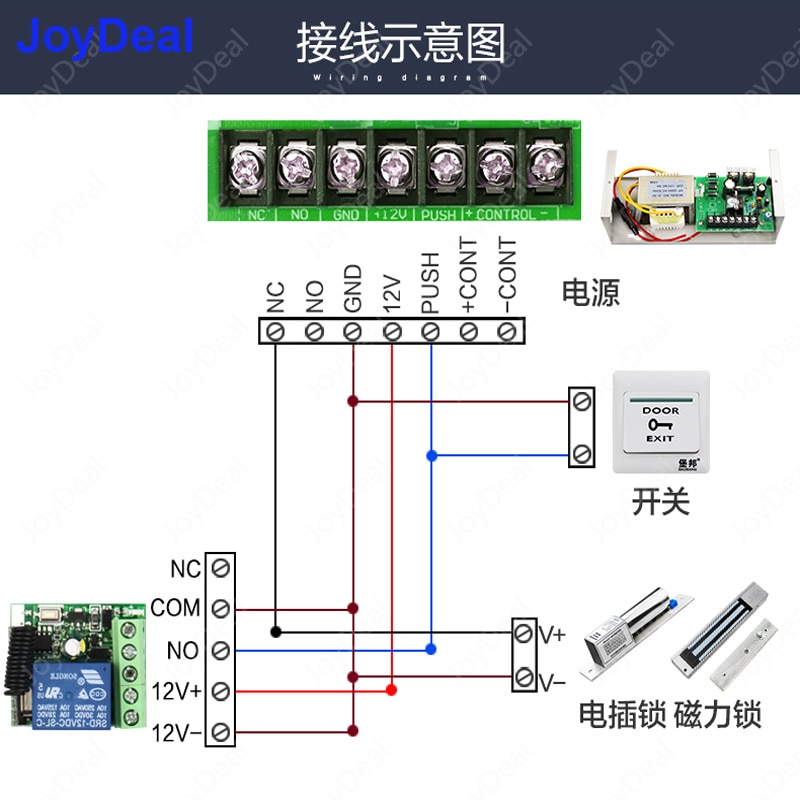

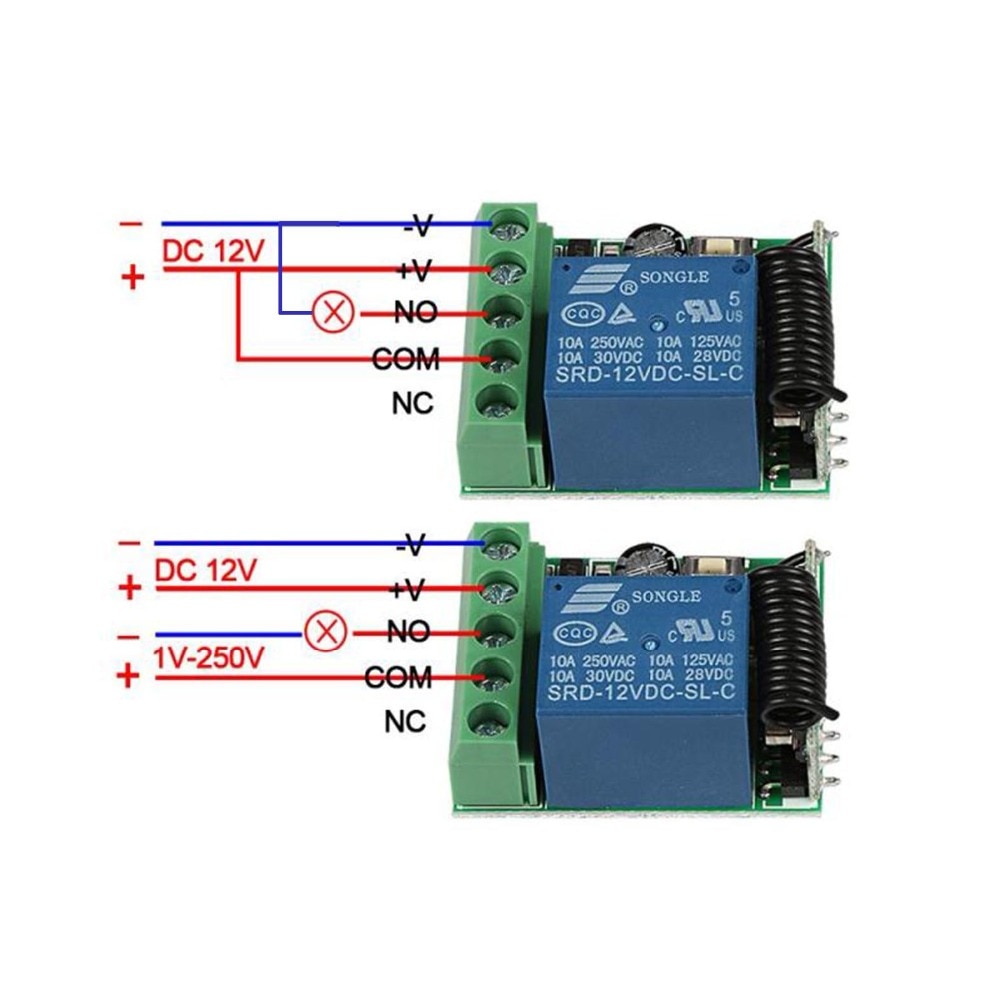

Wiring diagram 1:
+V : 12V + input ;
- V: 12V - input ;
NO: Output , normal open;
COM:Output , common ;
NC: Output , normal close.

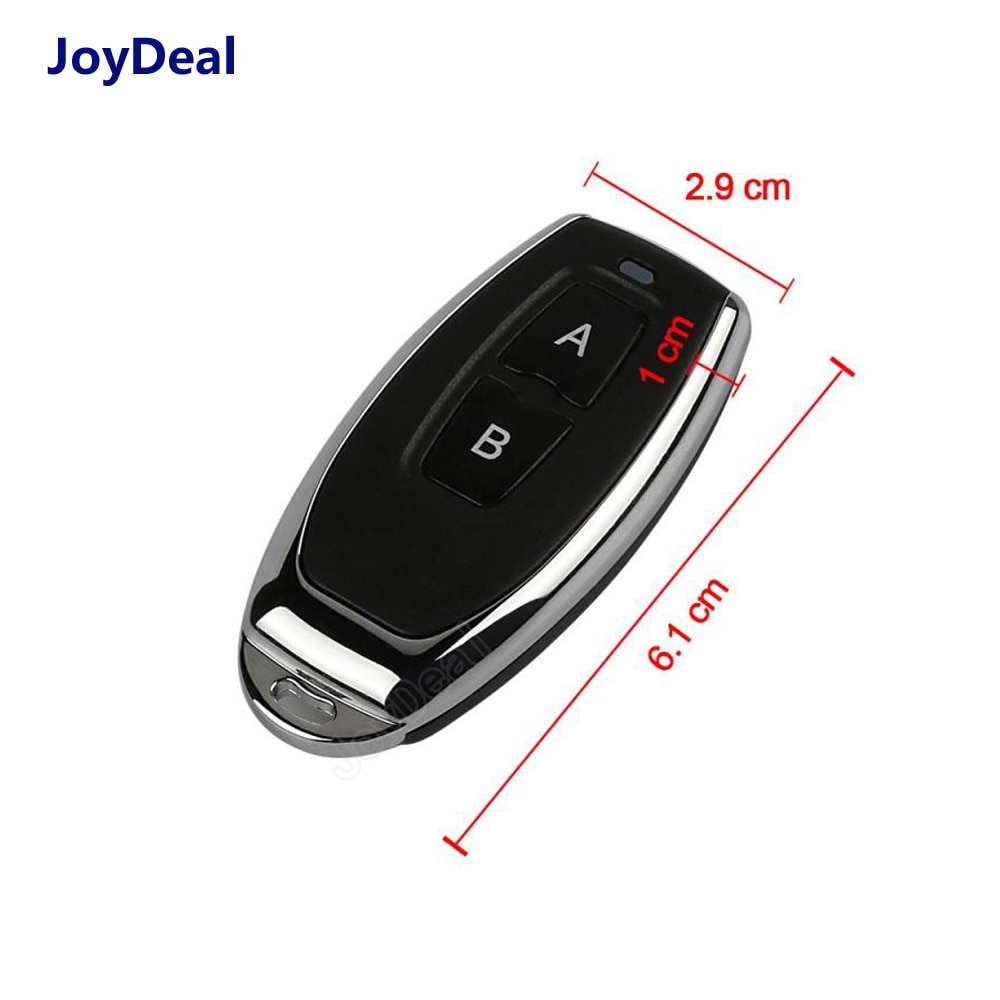

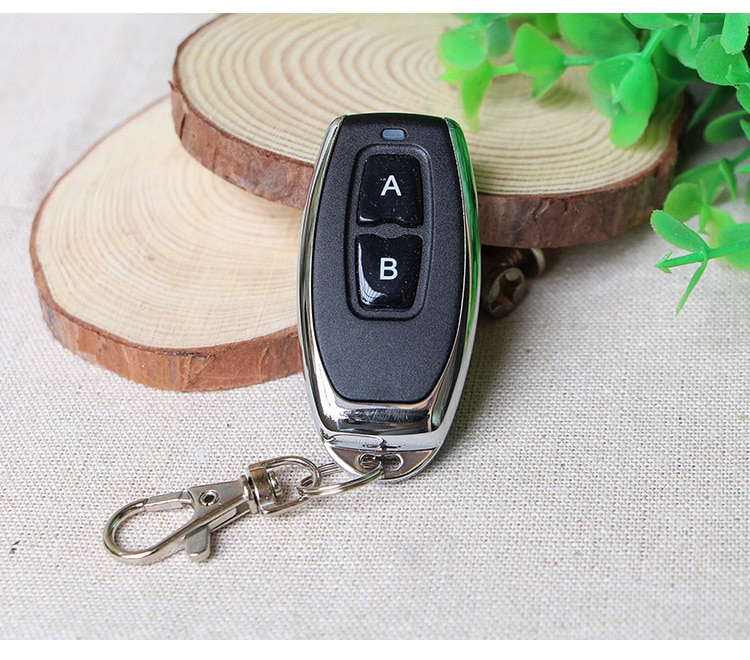

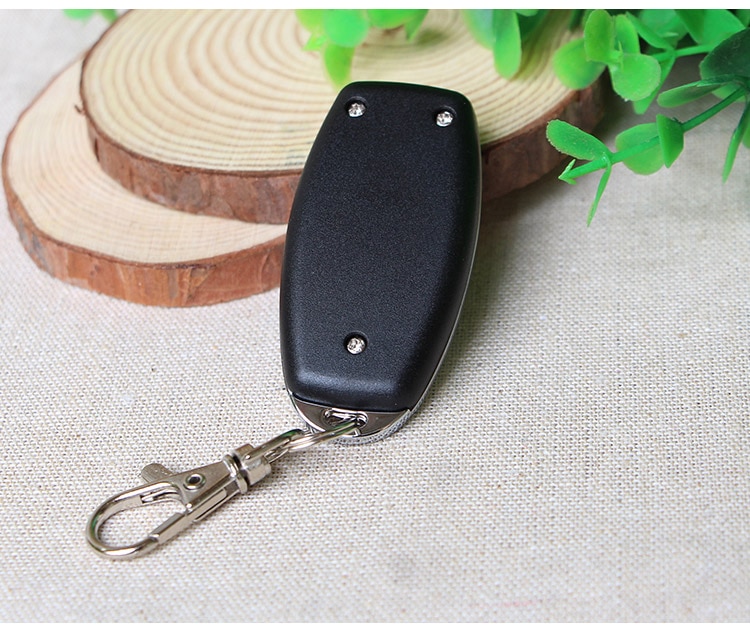

Specifications Of The Remote Control:
Operating frequency: 433.92MHz
Power by 2pcs 3V Coin Cell Button Battery (Battery included ),
Material: PVC.
Button: 2 buttons
Size: 59mm x 28mm x 8mm;
Operating voltage: 6V ;
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80m
Notice:
Different options include different packages:

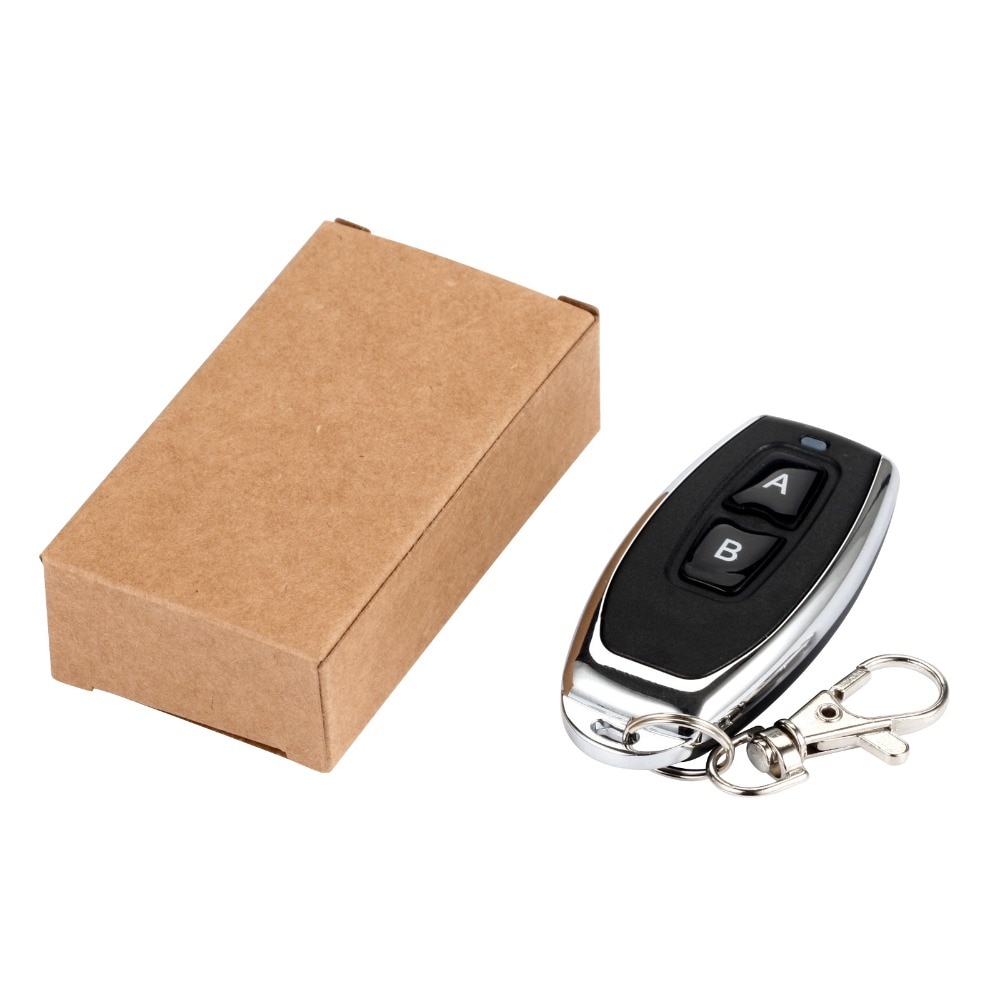

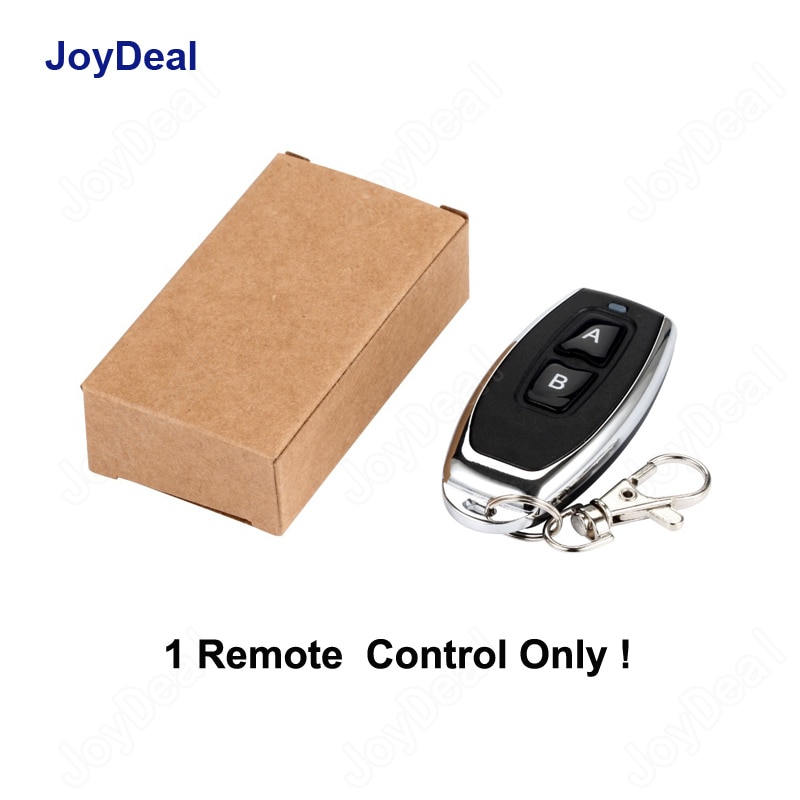

Package 1 Included: Only 1 EV1527 Learning codeRemote Control * 1pcs;

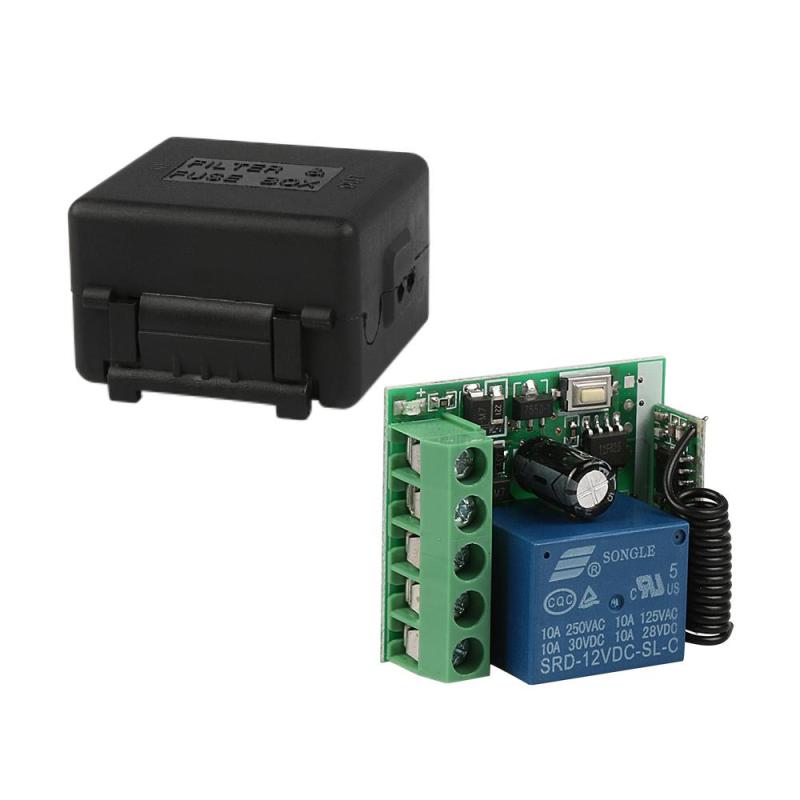

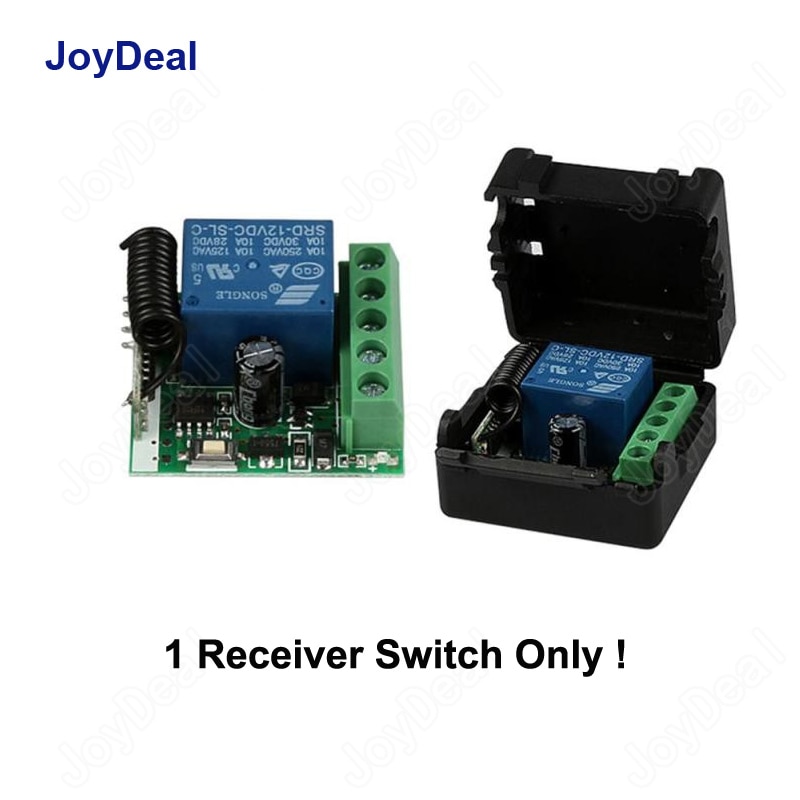

Package 2 Included:(Only 1 receiver) Receiver module (KR1201 ) *1pcs( include Shell );

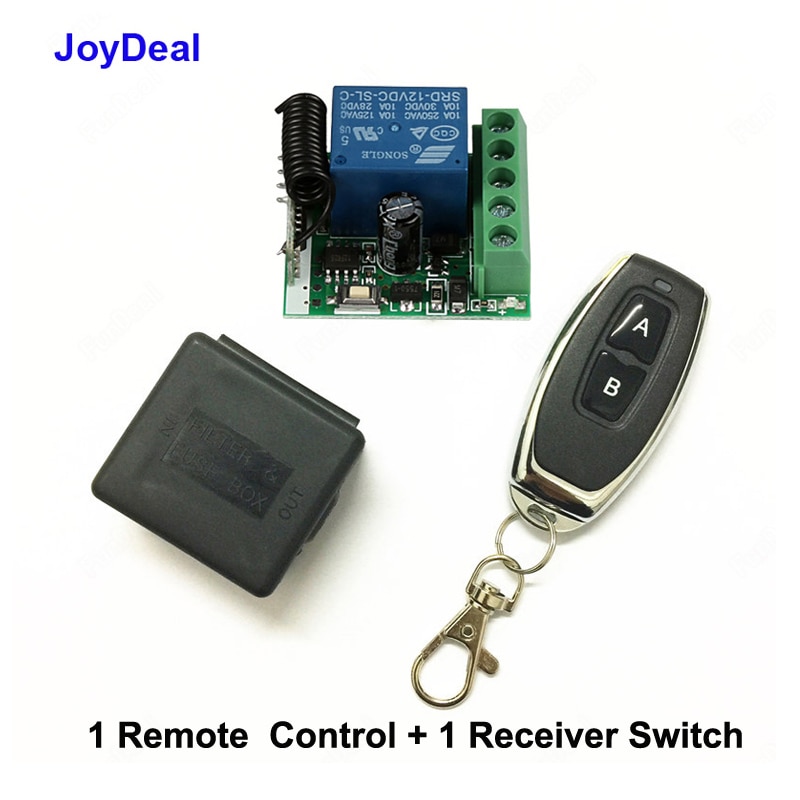

Package 3 Included:1 Pcs * Receiver module (KR1201) ( include Shell ),
1 Pcs * Remote Control (include battery );

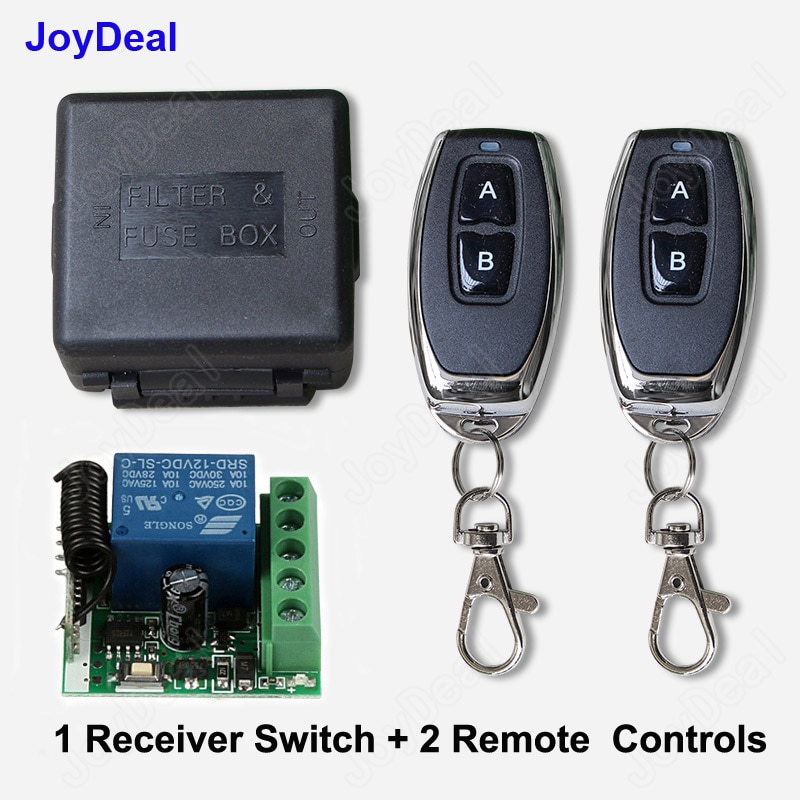

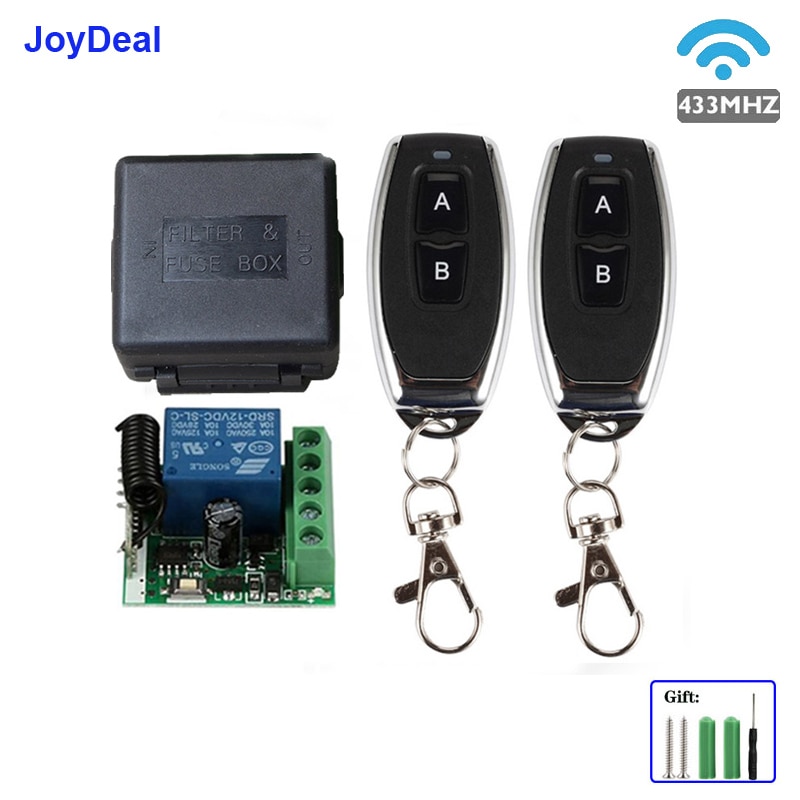

Package 4 Included:1 Pcs * Receiver module (KR1201) ( include Shell ),
2 Pcs * Remote Controls (include battery );

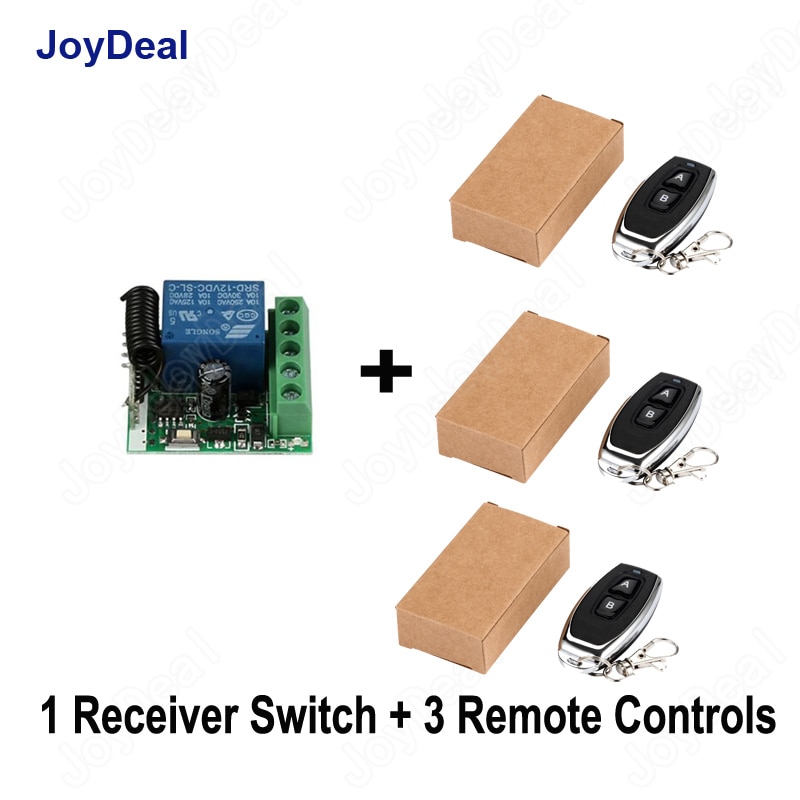

Package 5 Included: 1 Pcs * Receiver module (KR1201) ( include Shell ),
3 Pcs * Remote Controls (include battery );

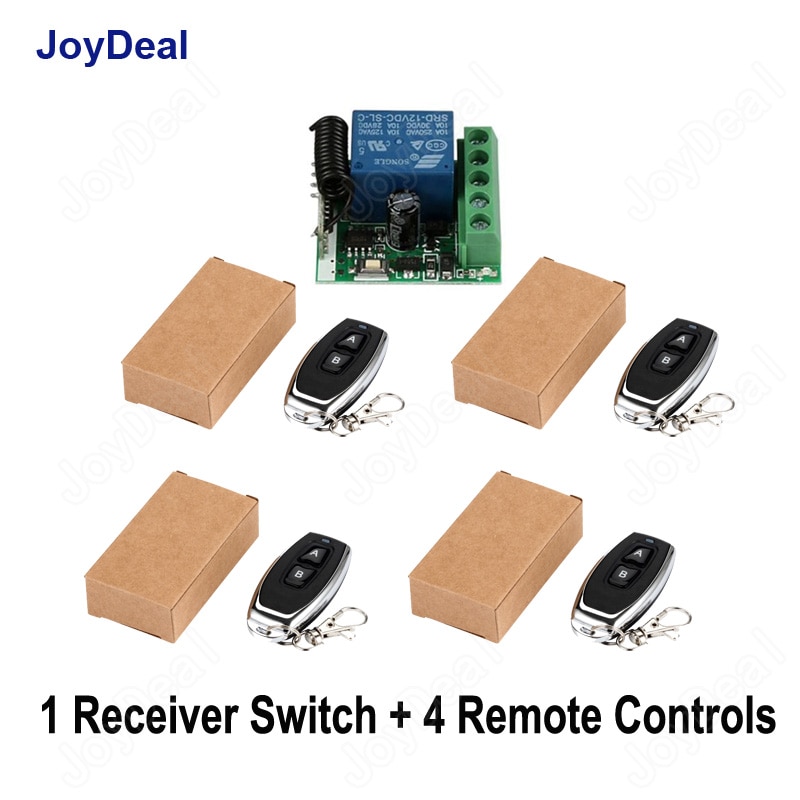

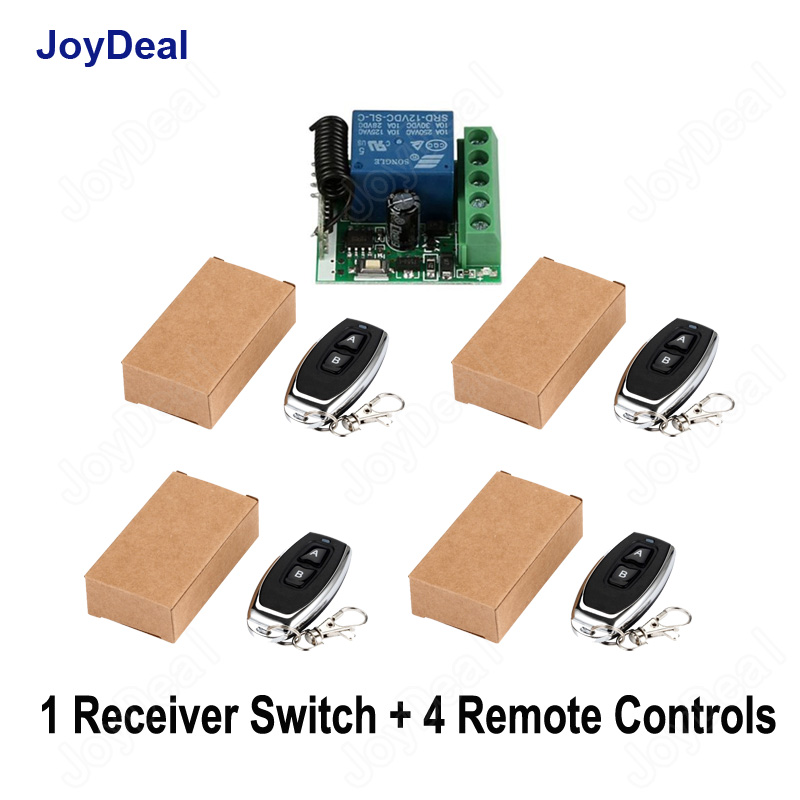

Package 6 Included: 1 Pcs * Receiver module (KR1201) ( include Shell ),
4 Pcs * Remote Controls (include battery ).

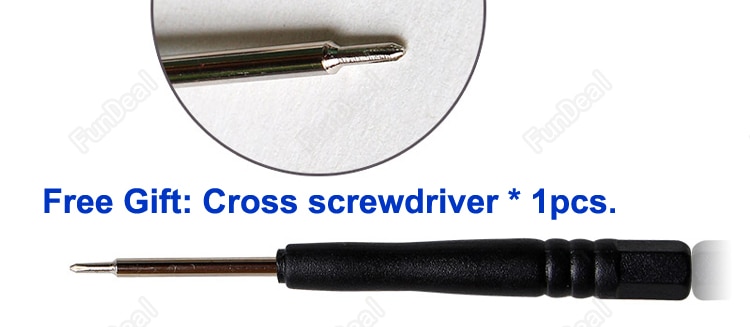

Free Gift: Cross screwdriver * 1pcs.
Attention Please:
Every parcel only get 1 pcs cross screwdriver as a free gift whatever how many you order.
About Working mode:
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Time delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.
Clearing the code :
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Time delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.
Clearing the code :

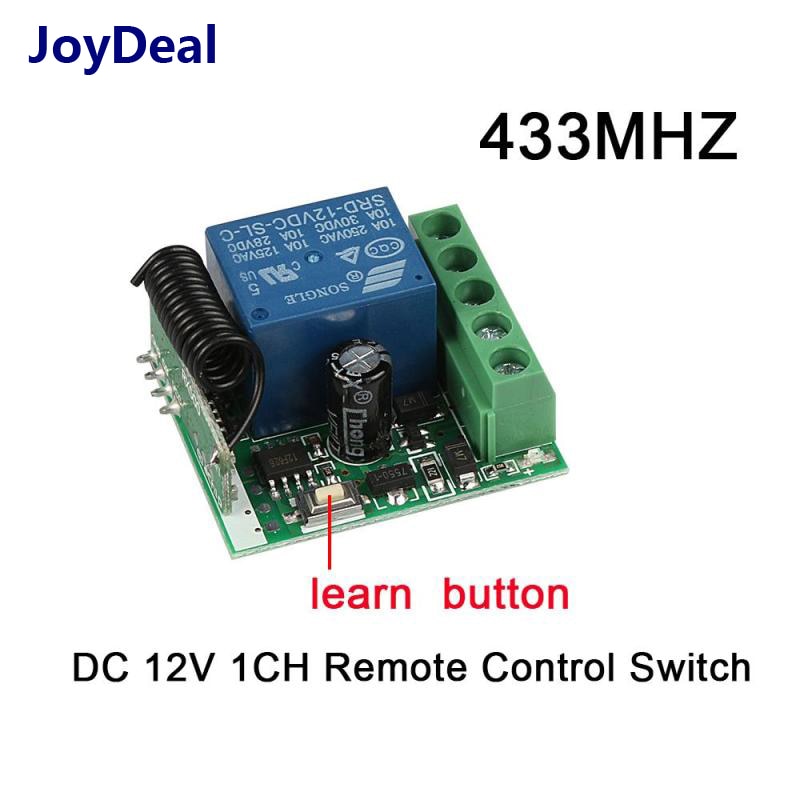

Push the learning button on the receivers for 8 times , the codes will be cleaned;
After clearing the code, all the remote control cannot work any more.
Learning the code :(momentary)

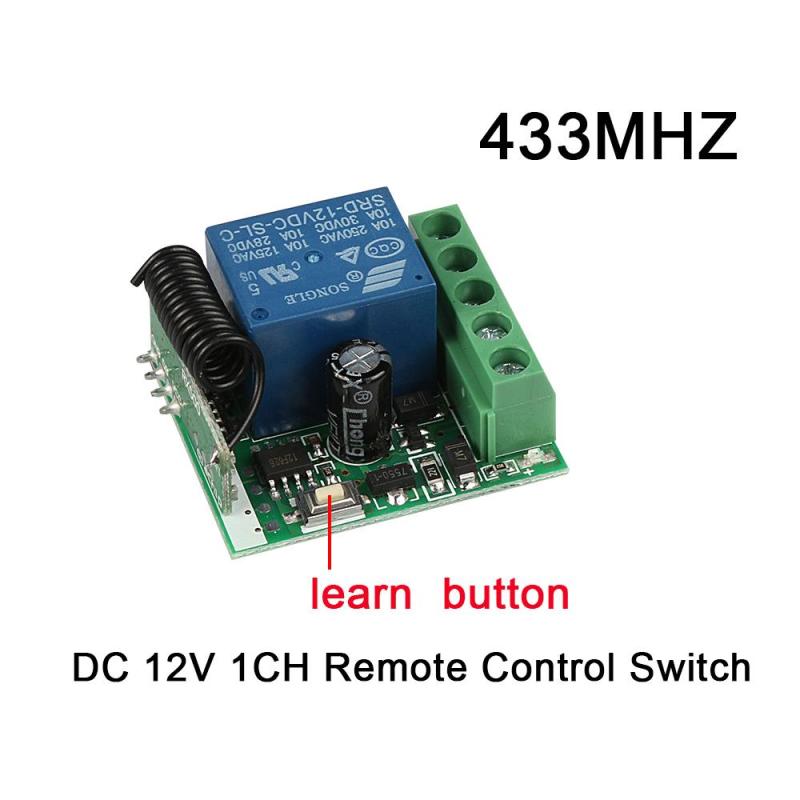

Push the learning key on the receiver once time , it comes into momentary setting mode .
Wait for a moment , the LED will be on, it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode
Wait for a moment , the LED will be on , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF
Push the learning key on the receiver triple time , it comes into latching mode .
Wait for a moment , the LED indicator on the receiver board will be on,
Push the remote button A,
LED flash for 3 times .
Push the remote button B .
Led indicator flash for 3 times and then come off,
learning successfully.
A = ON , B = OFF .
Learning the code :( Time delay mode )
Push the learning key on the receiver forth time , the time dealy for 5 seconds .
Push the learning key on the receiver fifth time , the time delay for 10 seconds .
Push the learning key on the receiver sixth time , the time delay for 15 seconds .
The LED indicator will be off .
Push the remote button , LED flashes and off .
After 3 seconds , the LED indicator will be on again , learning successfully .
NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
Learning the code :(momentary)
Push the learning key on the receiver once time , it comes into momentary setting mode .
Wait for a moment , the LED will be on, it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode
Wait for a moment , the LED will be on , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash 3 times and then come off,
learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF
Push the learning key on the receiver triple time , it comes into latching mode .
Wait for a moment , the LED indicator on the receiver board will be on,
Push the remote button A,
LED flash for 3 times .
Push the remote button B .
Led indicator flash for 3 times and then come off,
learning successfully.
A = ON , B = OFF .
Learning the code :( Time delay mode )
Push the learning key on the receiver forth time , the time dealy for 5 seconds .
Push the learning key on the receiver fifth time , the time delay for 10 seconds .
Push the learning key on the receiver sixth time , the time delay for 15 seconds .
The LED indicator will be off .
Push the remote button , LED flashes and off .
After 3 seconds , the LED indicator will be on again , learning successfully .
NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
- Is Smart Device: No
- Current: 5A
- Material: Alloy
- Remote Distance: 5 ~ 100 Meters for smart home interruptor touch switch DIY RF control
- Features: domotica 433MHz RF Car Door Lock Locking Vehicle Keyless Entry System
- Model Number: interruptor de luz micro push button wall smart remote control switch
- Switch Type: Remote Control
- Warranty: 1 year warranty DC 12V 10A Relay 1CH Wireless RF Remote Control Switch
- Certification: CCC,ROHS,ce
- Brand Name: joydeal
- Origin: Mainland China
- Item Type: Switches
- Certification: RoHS,CE
- Wireless Communication: RF
- Modulation Mode: ASK
- PCB dimension: 35*30*18mm
- Quiescent Current: 5mA
- Working temperature: -30 - 80 degrees
- Shell: Yes
- Receiving Sensitivity: >97dbm
- Application example: Light Switch Security Alarm System
- RF working mode: superheterodyne 1527 learning code remote control switch
- Output Terminal: NO COM NC
