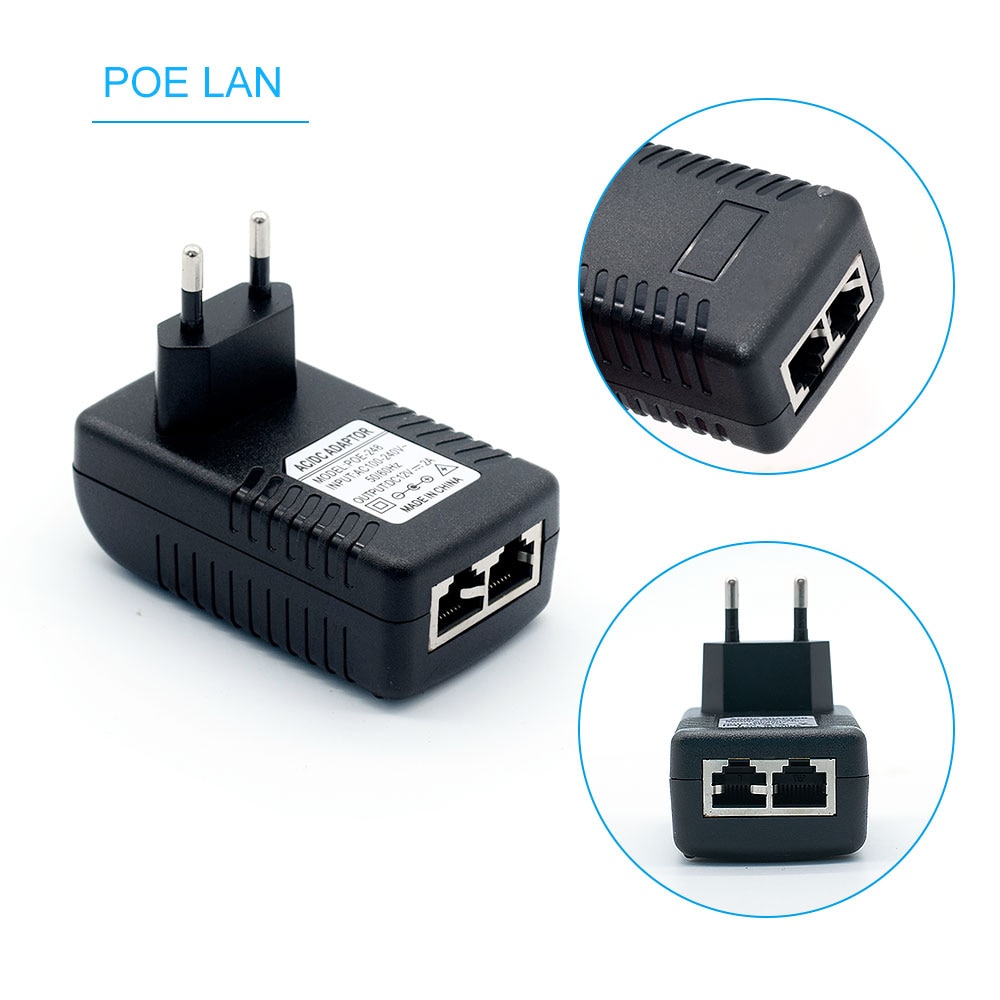

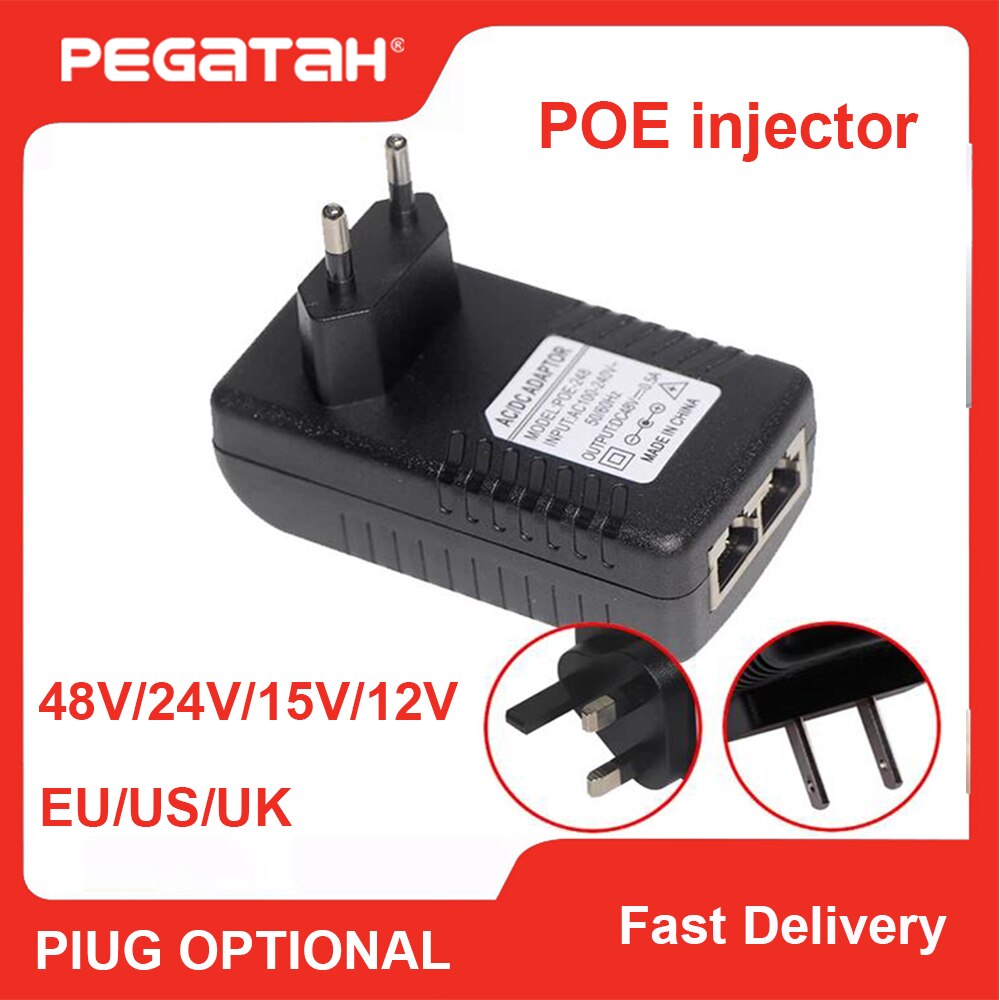

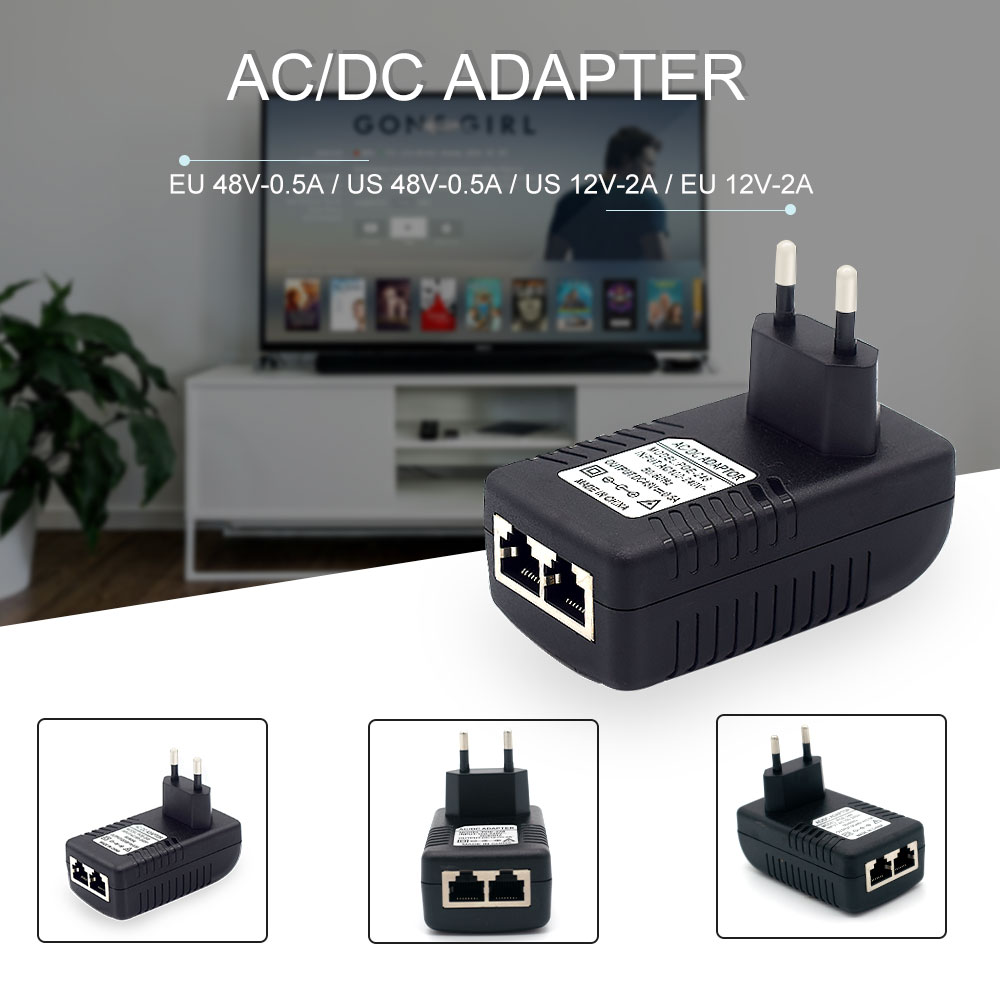

48V/12V POE injector Ethernet CCTV Power Adapter 0.5A /2A 24W POE for IP camera IP Phones POE Switch Power Adapter EU/US Option

4.7 (99 votes) | 571 orders
Price: US $20.75 - 24.26 / piece
Discount Price:
US $ 10.53 - 12.15 / piece
-49%
Quantity

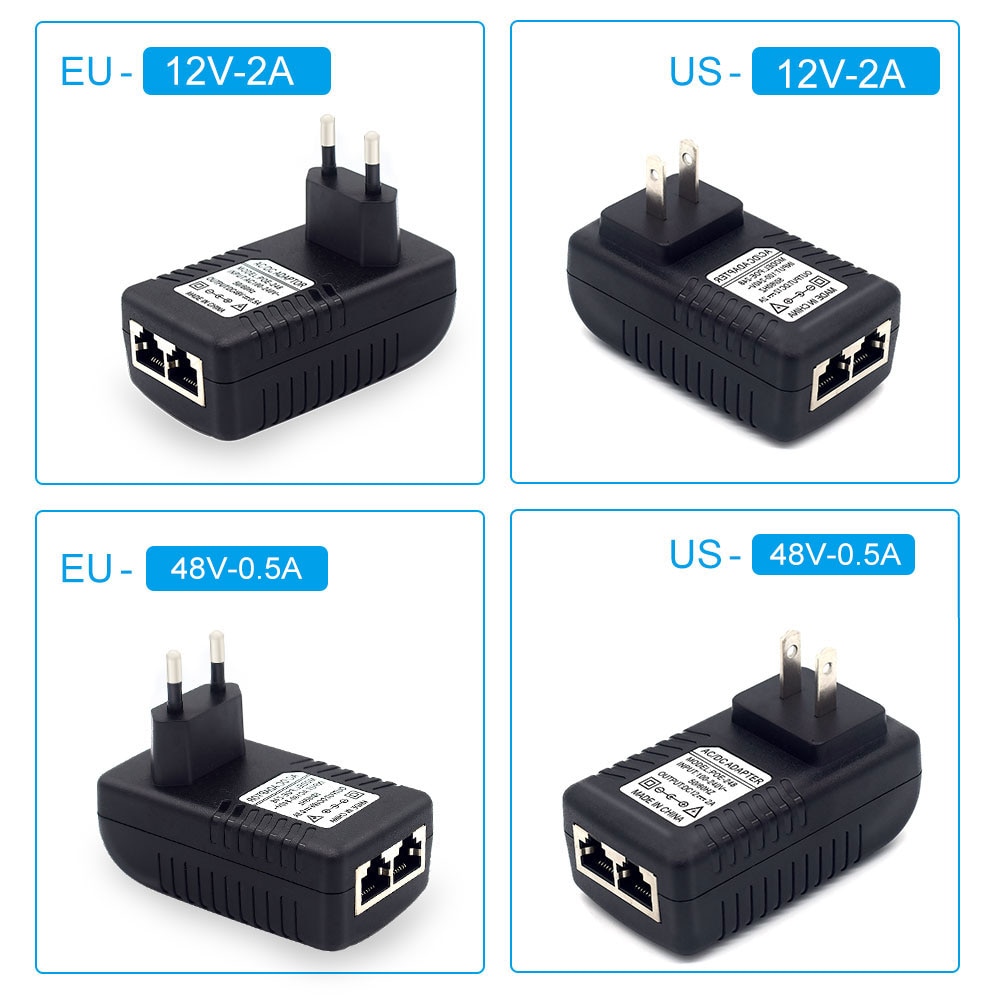

48V /12V/15V/24V POE injector Ethernet CCTV Power Adapter 0.5A /2A 24W POE for IP camera IP Phones POE Switch Power Adapter EU/US /UK Option

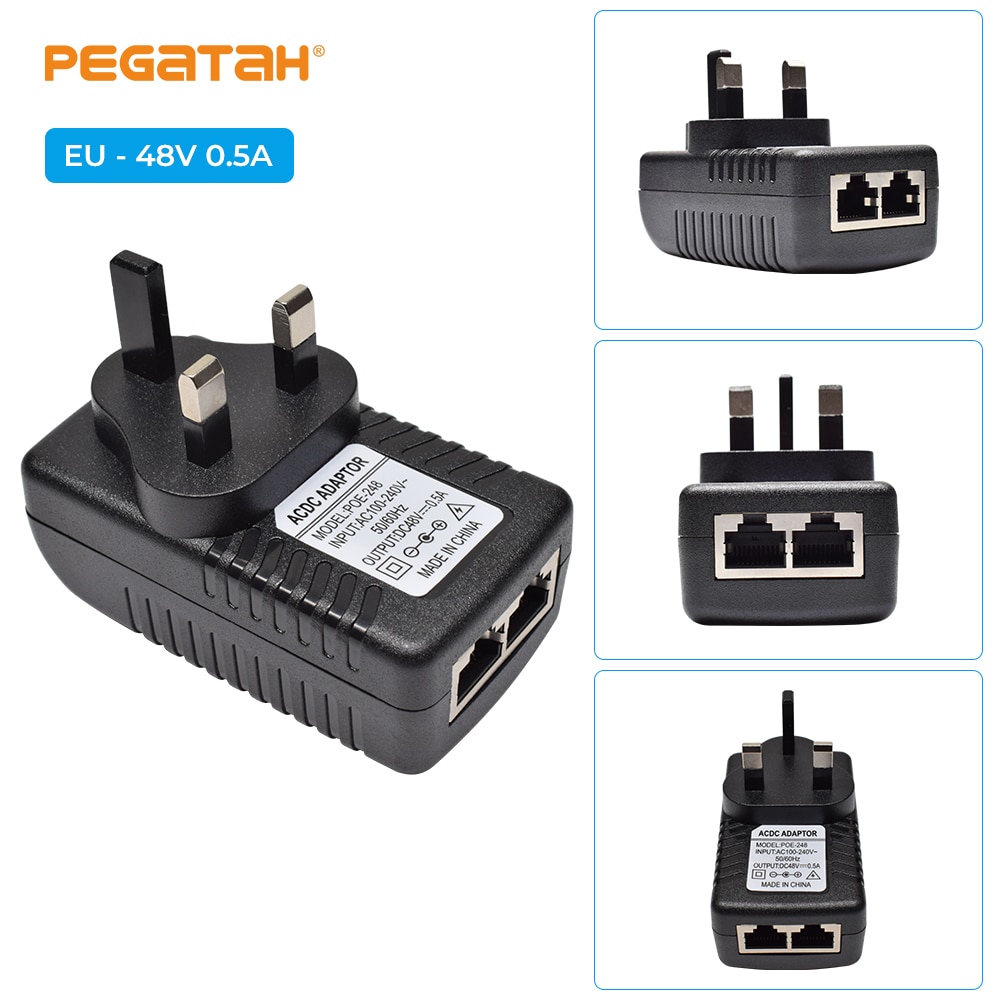

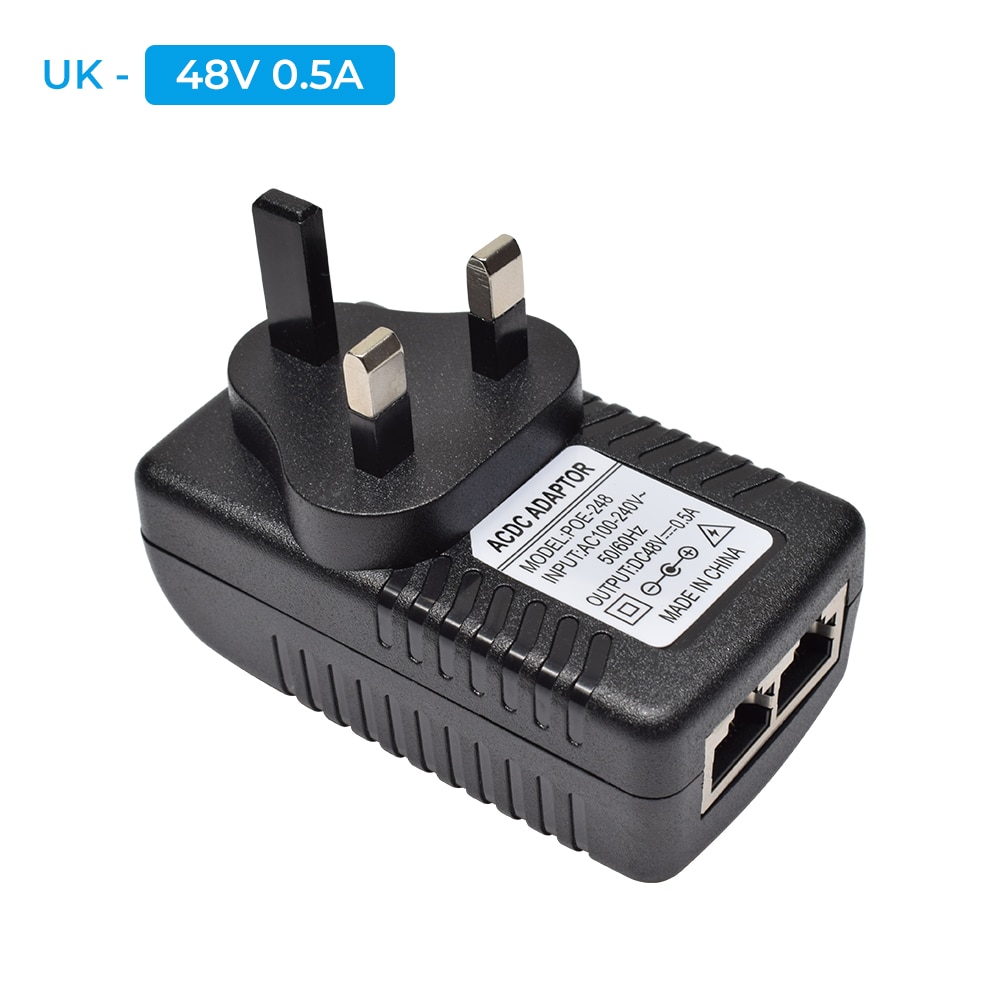

DC 48V 0.5A POE Injector Ethernet Adapter Specifications:

1.Output: 48V DC 500mA - Please do not order if your unit requires more than 500 mA
2.Input: 100-240V 50/60HZ
3.Output: 48V~52V 0.5A
4.Input Current: 1A
5.Efficiency: 80% Min
6.Line / Load Regulation: 3% / 5%
7.Ripple / Noise: 200mV p-p
8.Turn-On Delay: 2 Seconds Max
9.Rise Time: 40 mS Max
10.Protections: Auto Recover Over-Voltage, Short Circuit, Over-Current
11.Environmental Standards: RoHs
12.Network Connector Type: RJ45 Shielded
13.POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
14.Reliable 24W passive POE output

DC 12V 2A POE Injector Ethernet Adapter DC Power Supply

1.Input: 100-240V 50/60HZ
2.Output: 12V 2A
3.Efficiency: 80% Min
4.Line / Load Regulation: 3% / 5%
5.Ripple / Noise: 200mV p-p
6.Turn-On Delay: 2 Seconds Max
7.Rise Time: 40 mS Max
8.Protections: Auto Recover Over-Voltage, Short Circuit, Over-Current
9.Storage Temperature: -20 to +85°C (-4 to +185°F)
10.Network Connector Type: RJ45 Shielded
11.POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-)

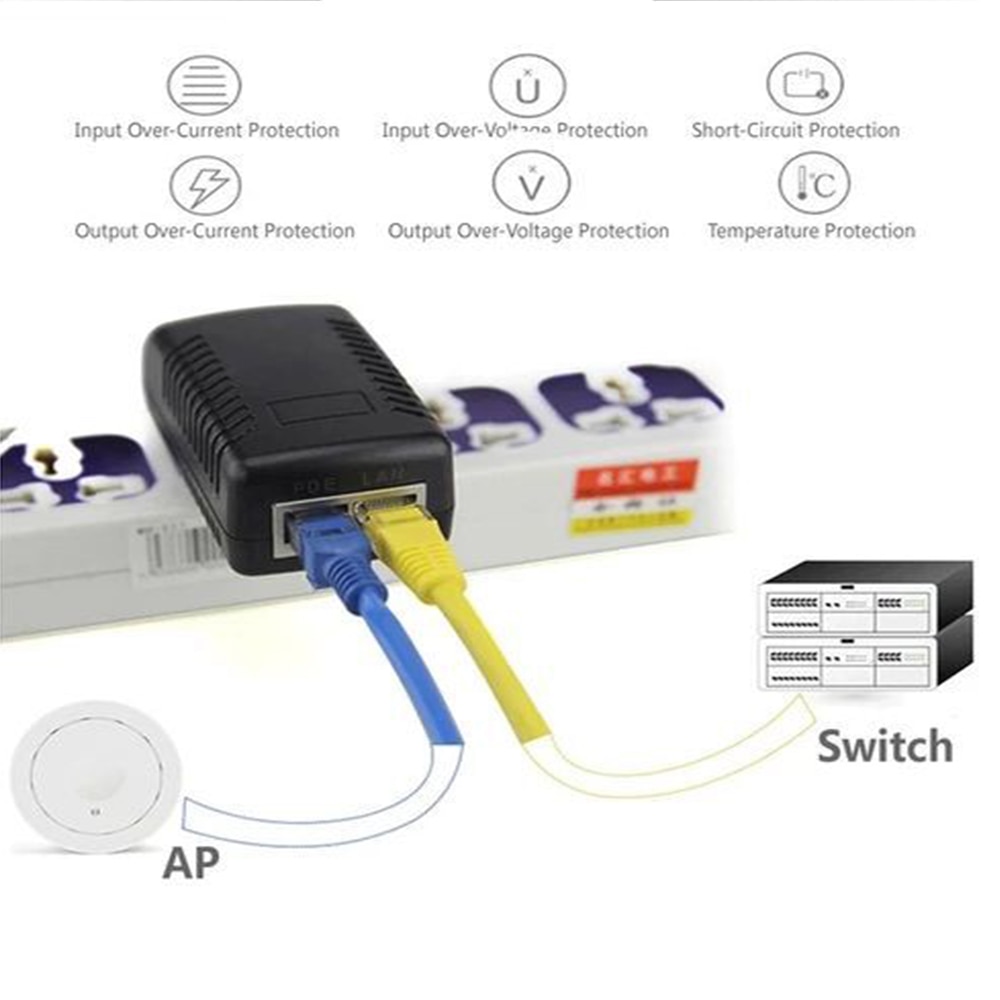

• Provides remote power to equipment through CAT 5 Ethernet cable up to 100M

• Autoranging switching power supply 100~240V AC

• Short circuit, over-current, and over-voltage protection

• Compact, portable size with convenient wall plug design

DC 24V 1A POE Injector Ethernet Adapter DC Power Supply

POE injector
24V-1A 100M POE power supply
Parameters: AC 100-240V
50/60Hz 0.6A Max
Output: DC 24V-1A with light
Link mode dual RJ45 POE+LAN
Power supply mode: 45+ 78-
Data network: 1236
802.3af standard

DC 15V 1A POE Injector Ethernet Adapter DC Power Supply

POE injector
15V1A 100M POE power supply
Parameters: AC 100-240V
50/60Hz 0.6A Max
Output: DC 15V1A with light
Link mode dual RJ45 POE+LAN
Power supply mode: 45+ 78-
Data network: 1236
802.3af standard

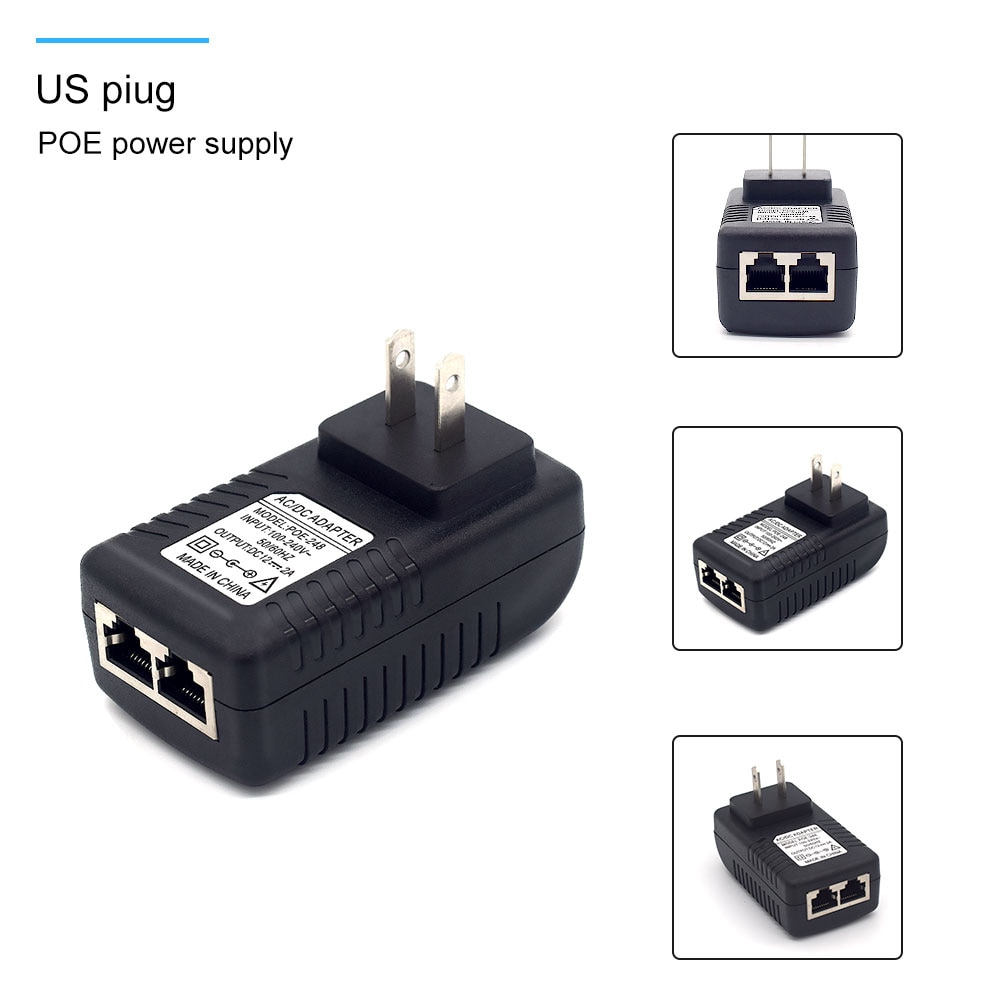

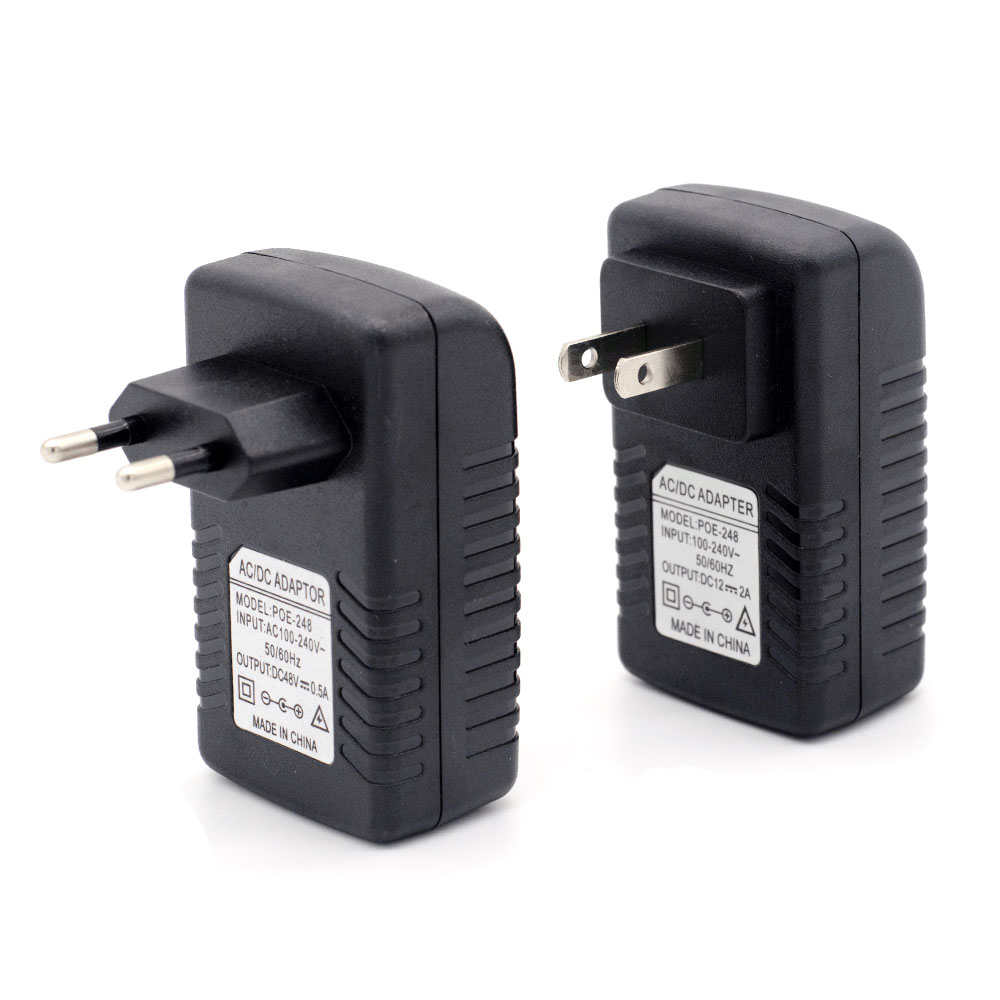

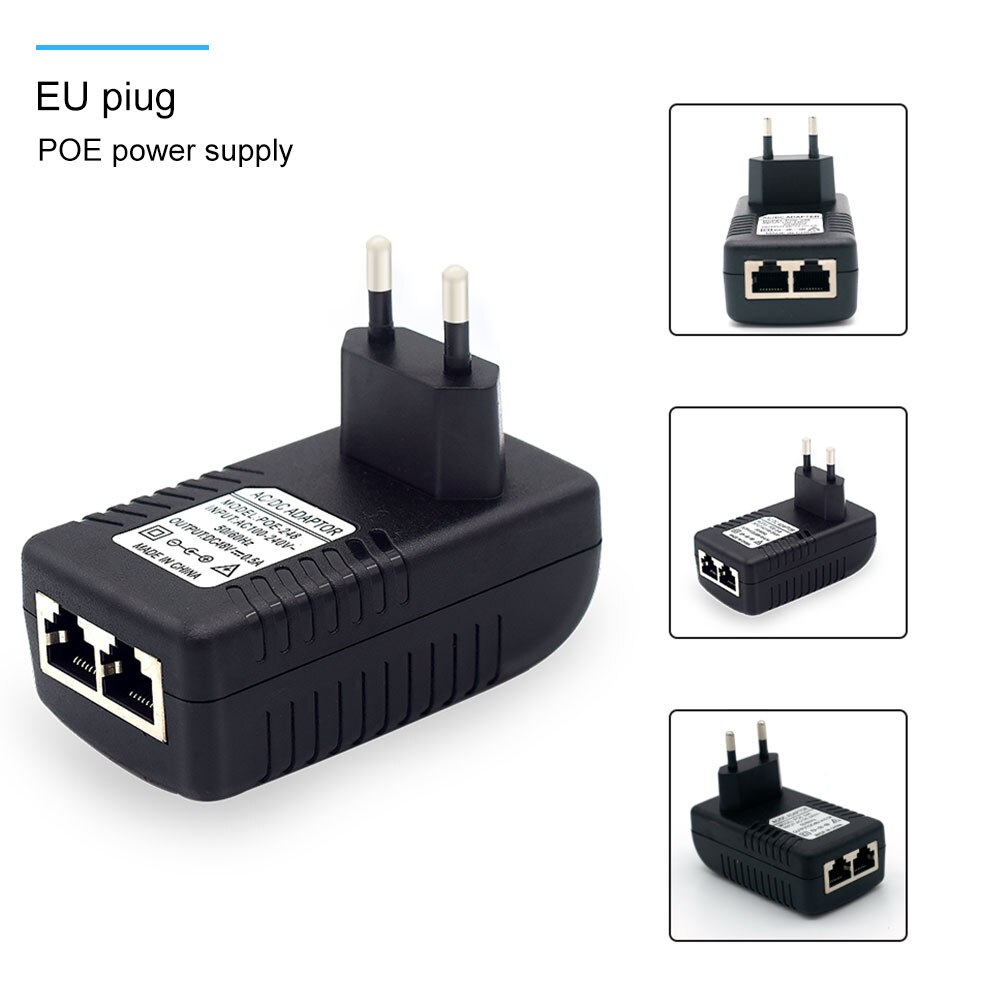

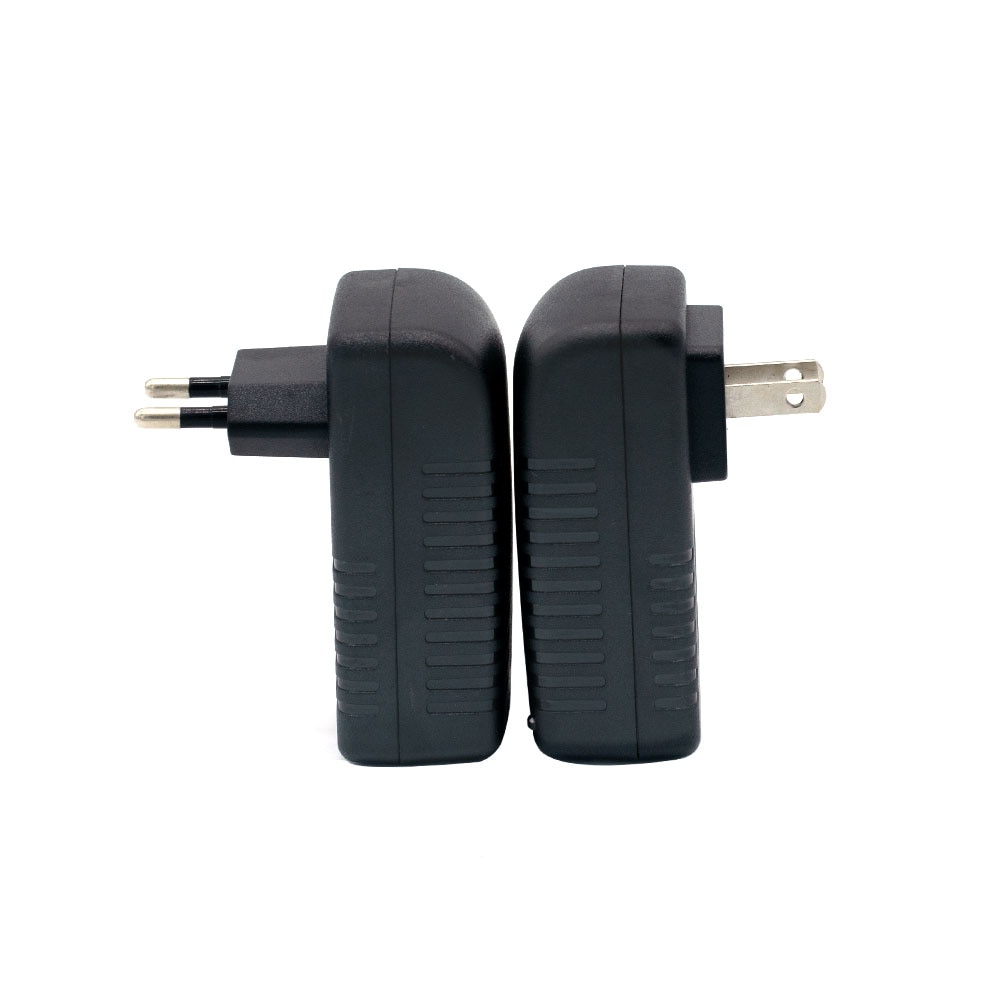

  • Plug Type: US,EU
  • Size: --
  • Model Number: TI-PI12V/15V/24V/48V
  • Item Type: POE Injector
  • Brand Name: PEGATAH
  • Origin: Mainland China
  • Certification: CE
  • Power input:: AC 100-240V
  • Link method:: Double-RJ45 POE+LAN
  • Power supply:: 45+ 78-
  • Data Network:: 1236 802. 3af Normal
  • Applications: Wireless Bridge, routers
  • Frequency: 50/60HZ
  • Feature: poe injector
  • Feature1: Video surveillance
  • Feature2: poe
  • Feature3: poe adapter
  • Feature4: poe injector for surveillance system
