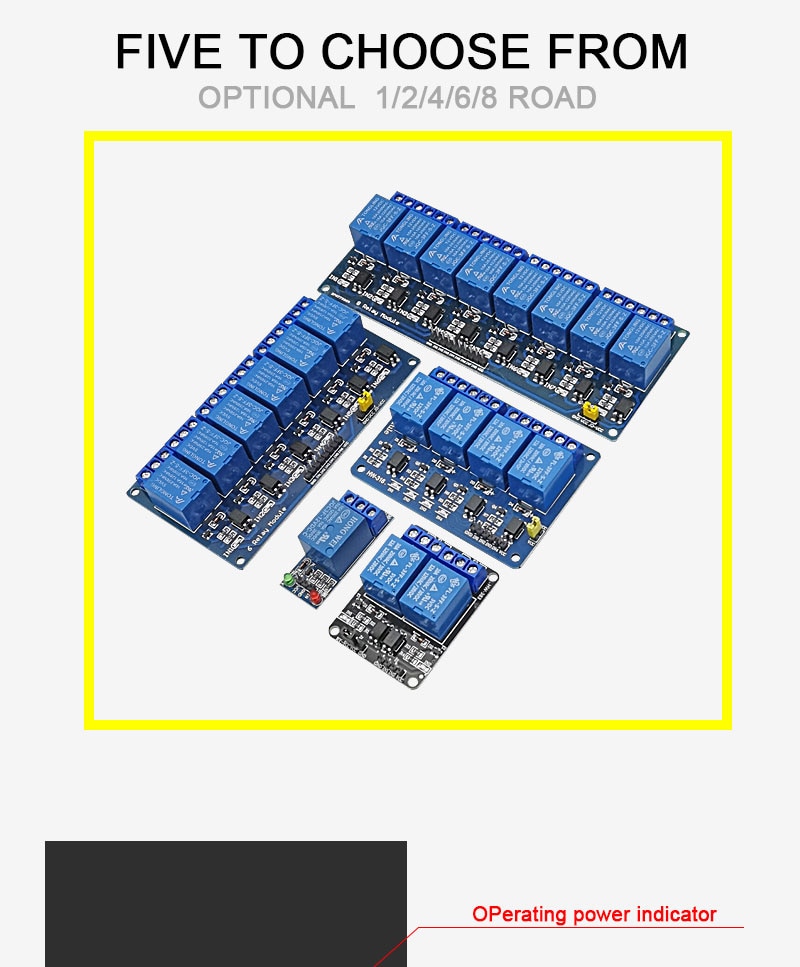

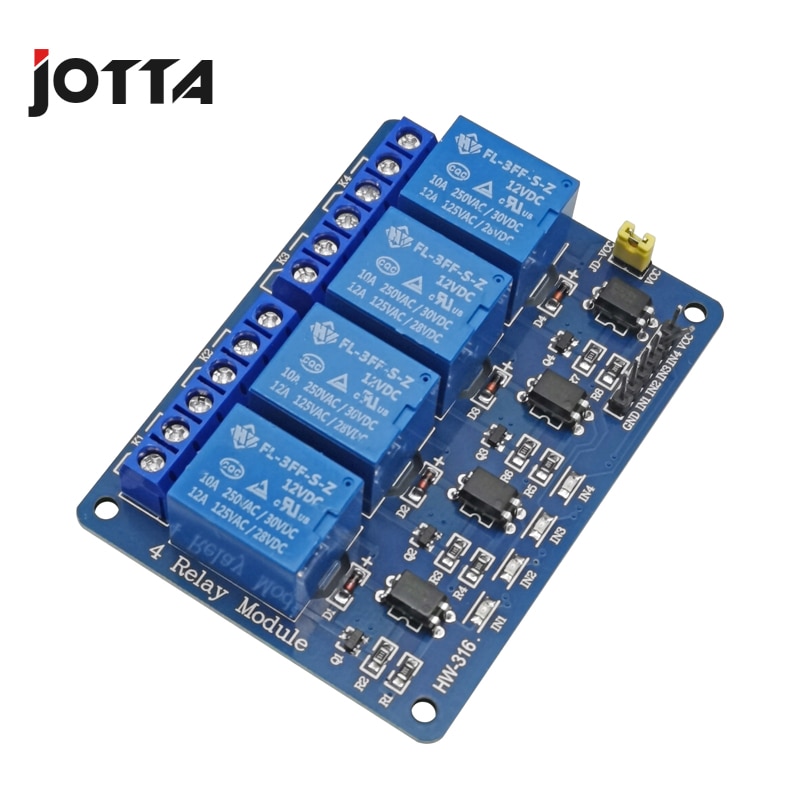

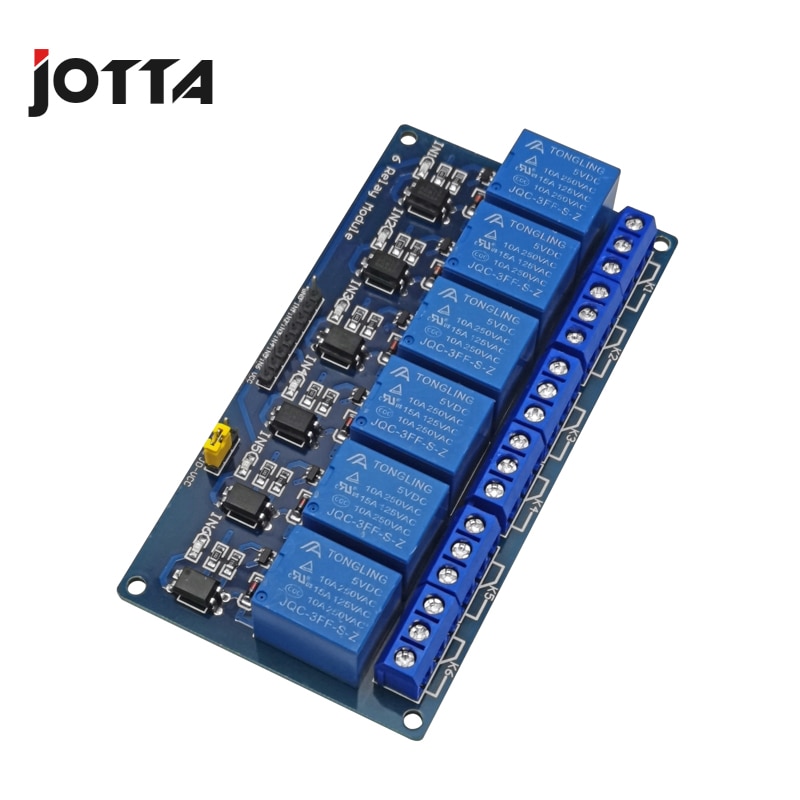

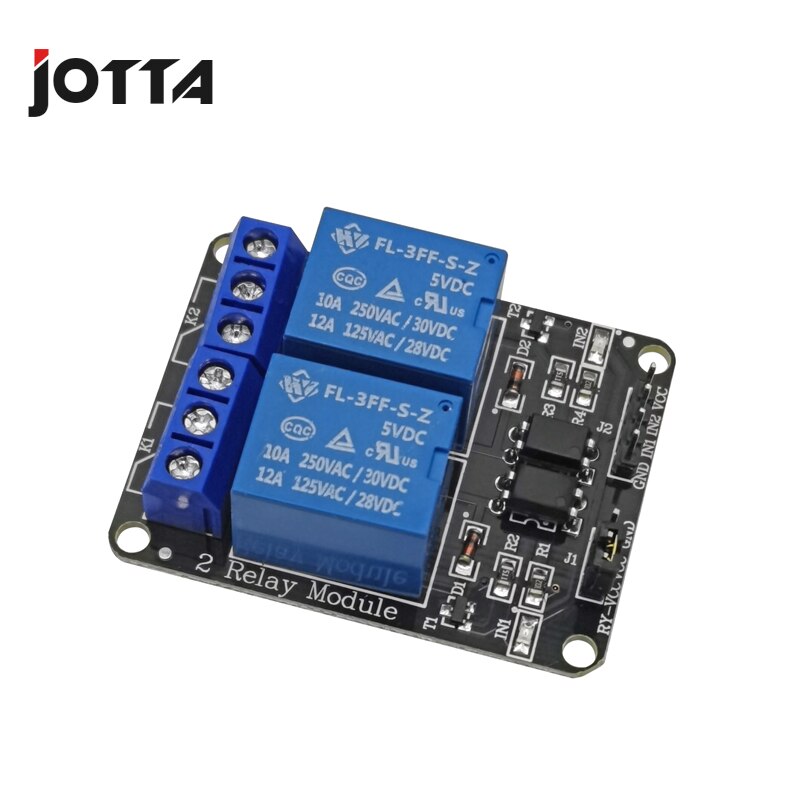

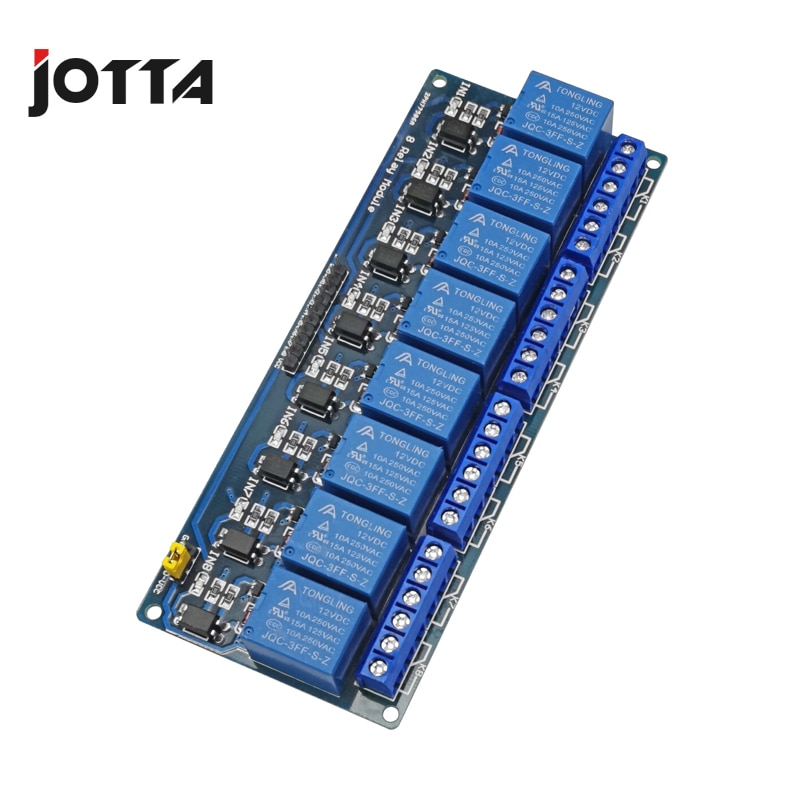

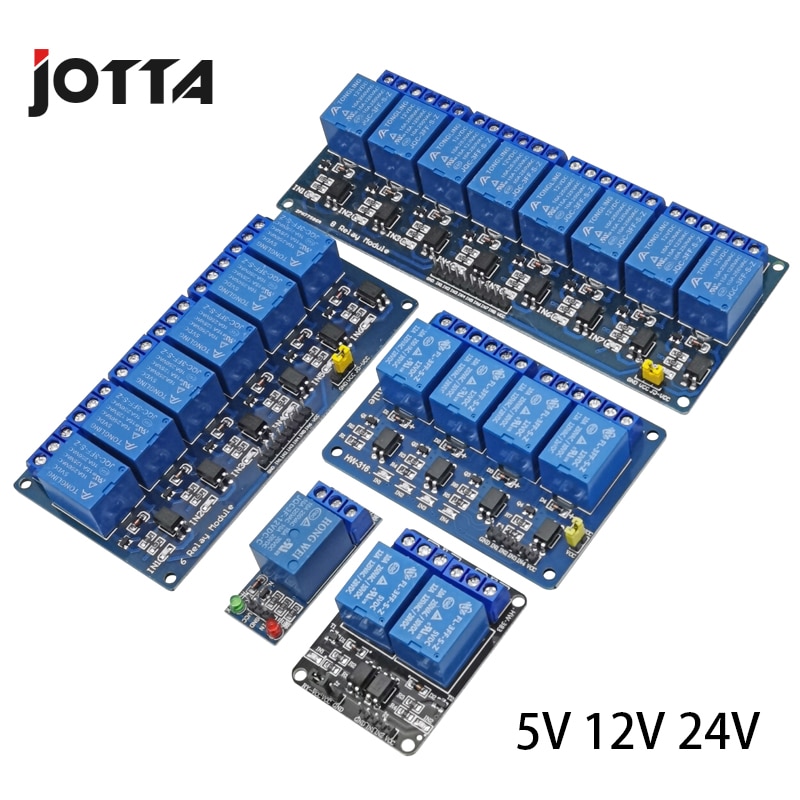

5V 12V 24V Relay Module With Optocoupler Relay Output 1 2 4 6 8 Way Relay Module For Arduino

4.9 (64 votes) | 651 orders
Price: US $15.33 - 27.96 / piece
Discount Price:
US $ 13.96 - 23.95 / piece
-9%
Size
Current Range
Quantity

Module Parameters:

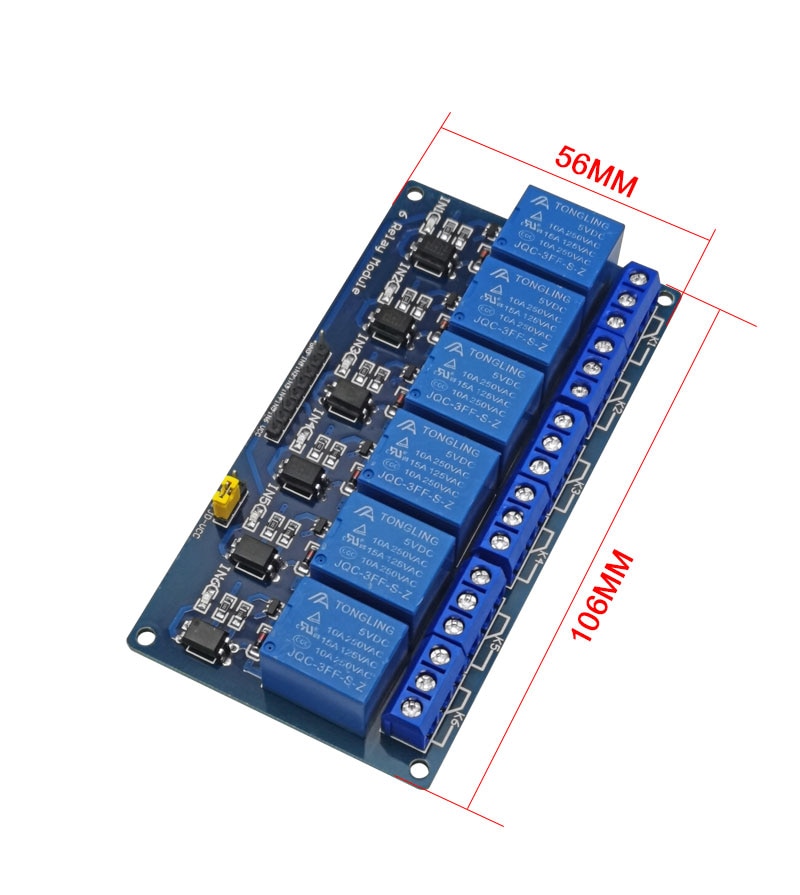

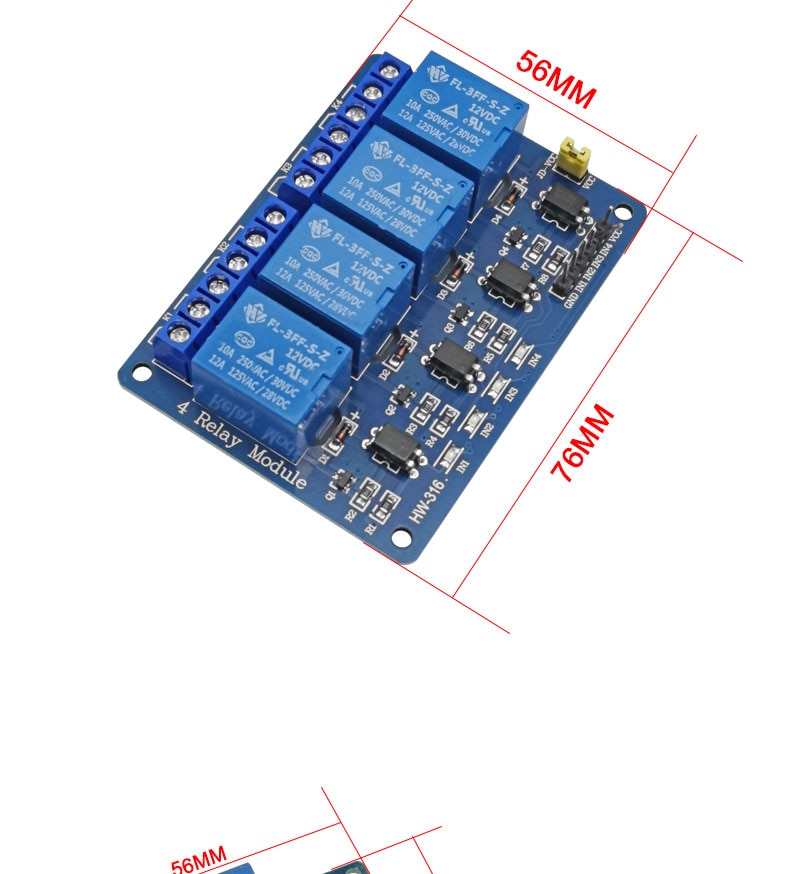

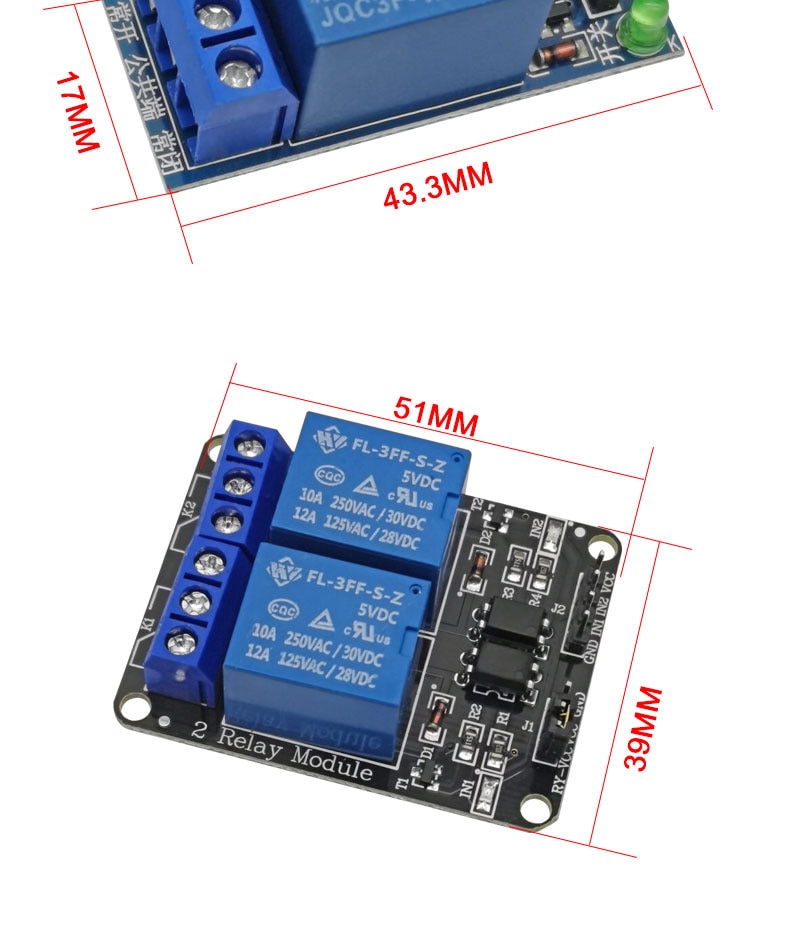

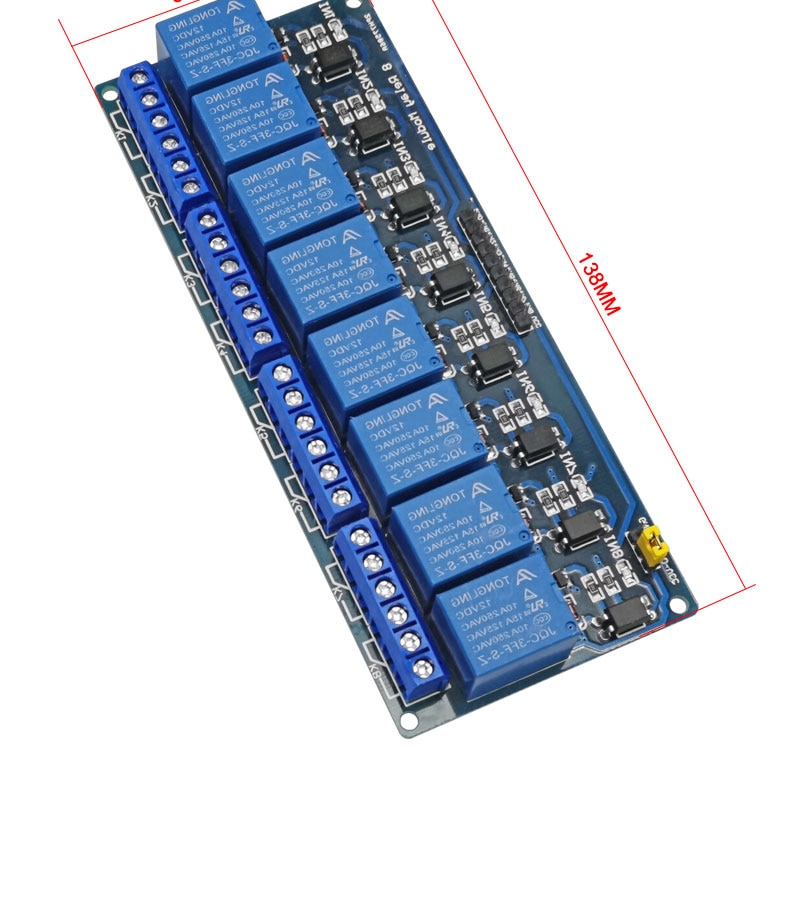

  • There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.

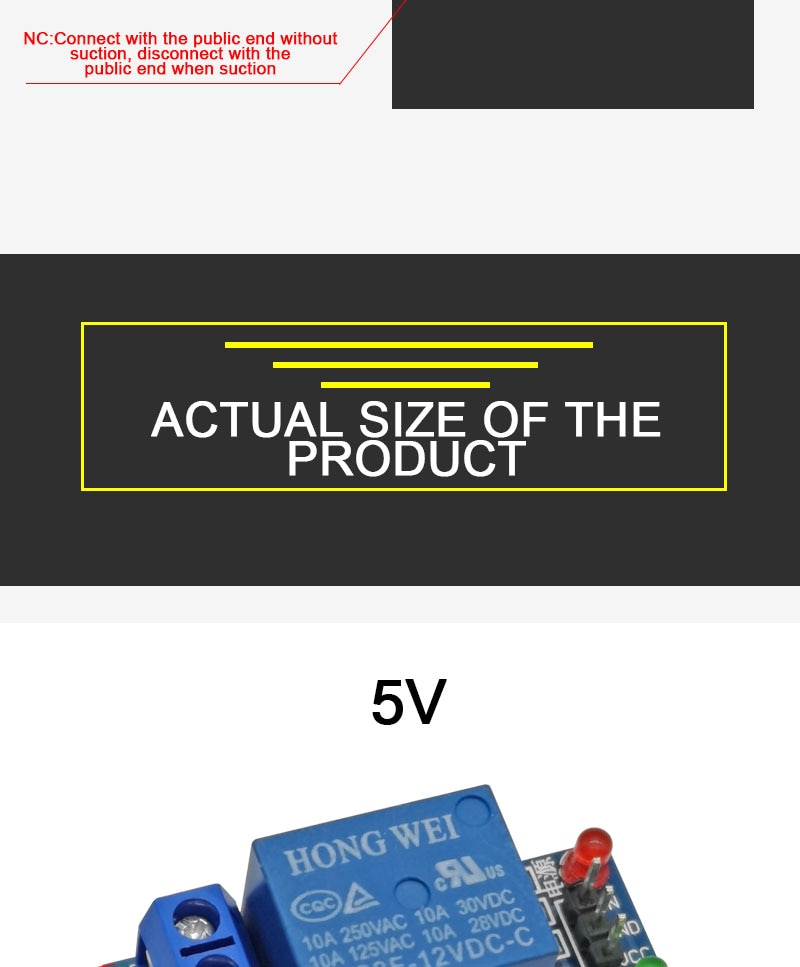

  • The relay uses high quality Songle relay, single pole double throw. a common end, a normally open end, and a normally closed end

  • Optocoupler isolation, good anti-interference

  • Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.

  • VCC is the system power supply, and JD_VCC is the relay power supply. Plug in the jumper cap

Electrical parameters:


  • Supply voltage: 5VDC/12VDC/24VDC

  • Current: greater than 100mA

  • Load: 250V 10A AC or 30V 10A DC

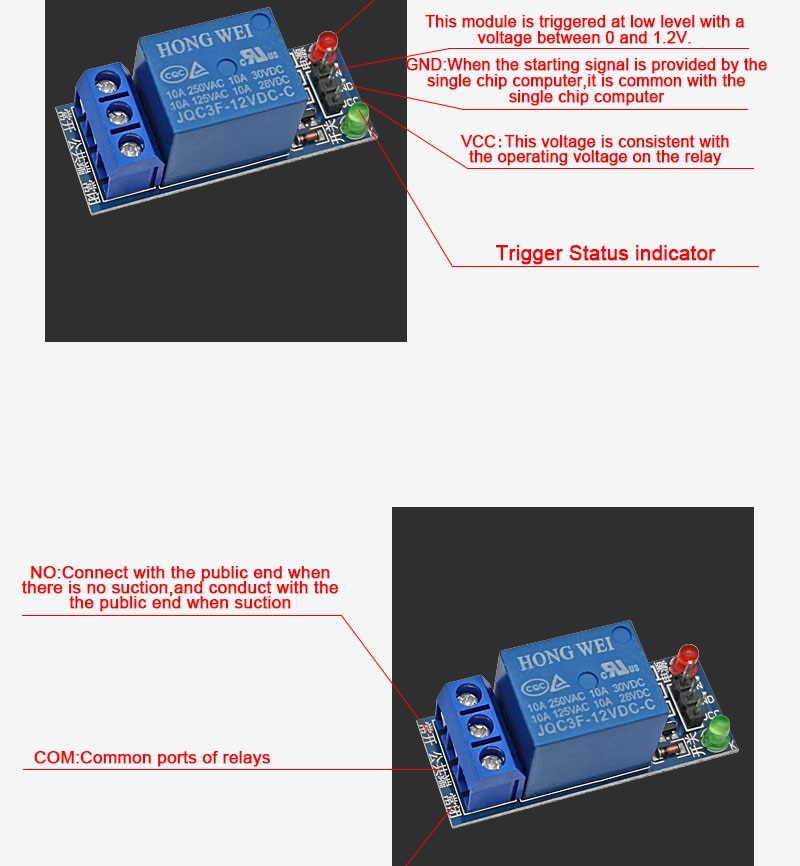

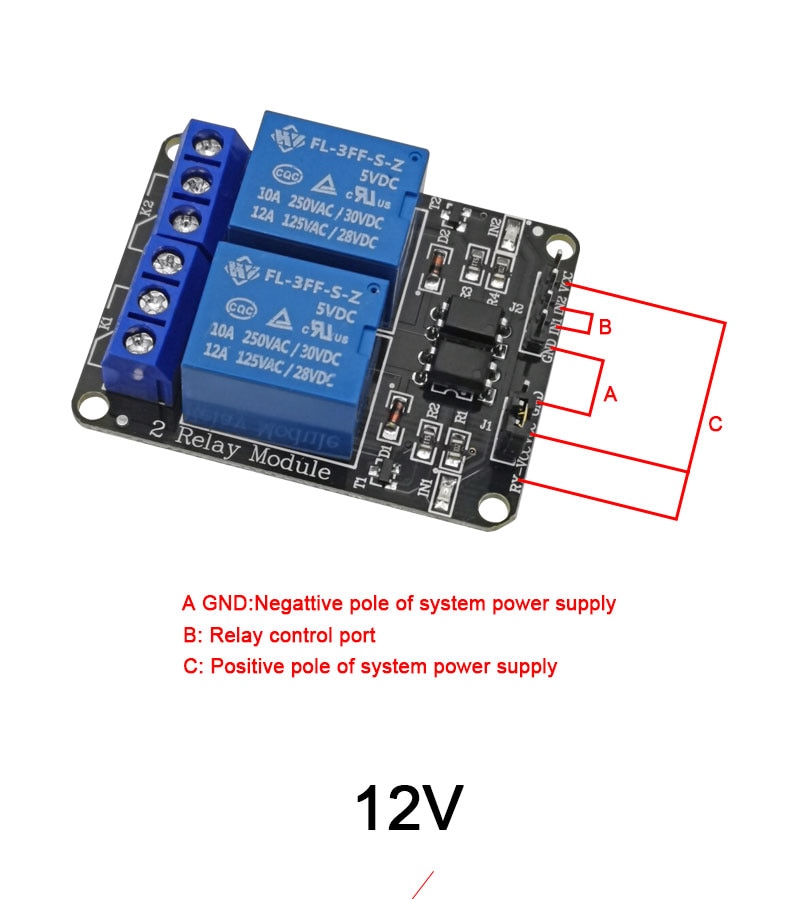

Wiring instructions:


  • VCC: system power supply positive

  • GND: system power supply negative

  • IN1--IN2: Relay Control Por






  • Power Source: DC
  • Voltage: 5V12V24V
  • is_customized: No
  • Usage: General Purpose
  • Model Number: 5V 12V 24V 1 2 4 6 8 way
  • Contact Load: Low Power
  • Protect Feature: other
  • Theory: Electromagnetic Relay
  • Brand Name: JOTTA
  • Origin: Mainland China
  • Certification: NONE
