9-24v 125Khz 13.56Mhz IC/ID RFID Embedded Access Controller Module With Wg26 In interface
SALE
ID: 64626

9-24v 125Khz 13.56Mhz IC/ID RFID Embedded Access Controller Module With Wg26 In interface

4.9 (36 votes) | 35 orders
Price: US $23.40 - 34.20 / piece
Discount Price:
US $ 19.89 - 29.07 / piece
-15%
Color
Quantity

ID Module is 125khz; IC Module is 13.56mhz



1: Electrical parameters:

Operating Voltage

Operating Voltage

DC 9-24V

Working current

60mA ~ 80mA

Reading distance

5 to 15 cm

Operating temperature

-40 ° ~ 60 °

User capacity

2000PCS

Support card type

EM4100 card or compatible cards(ID module)

S50 card or compatible cards(IC module)

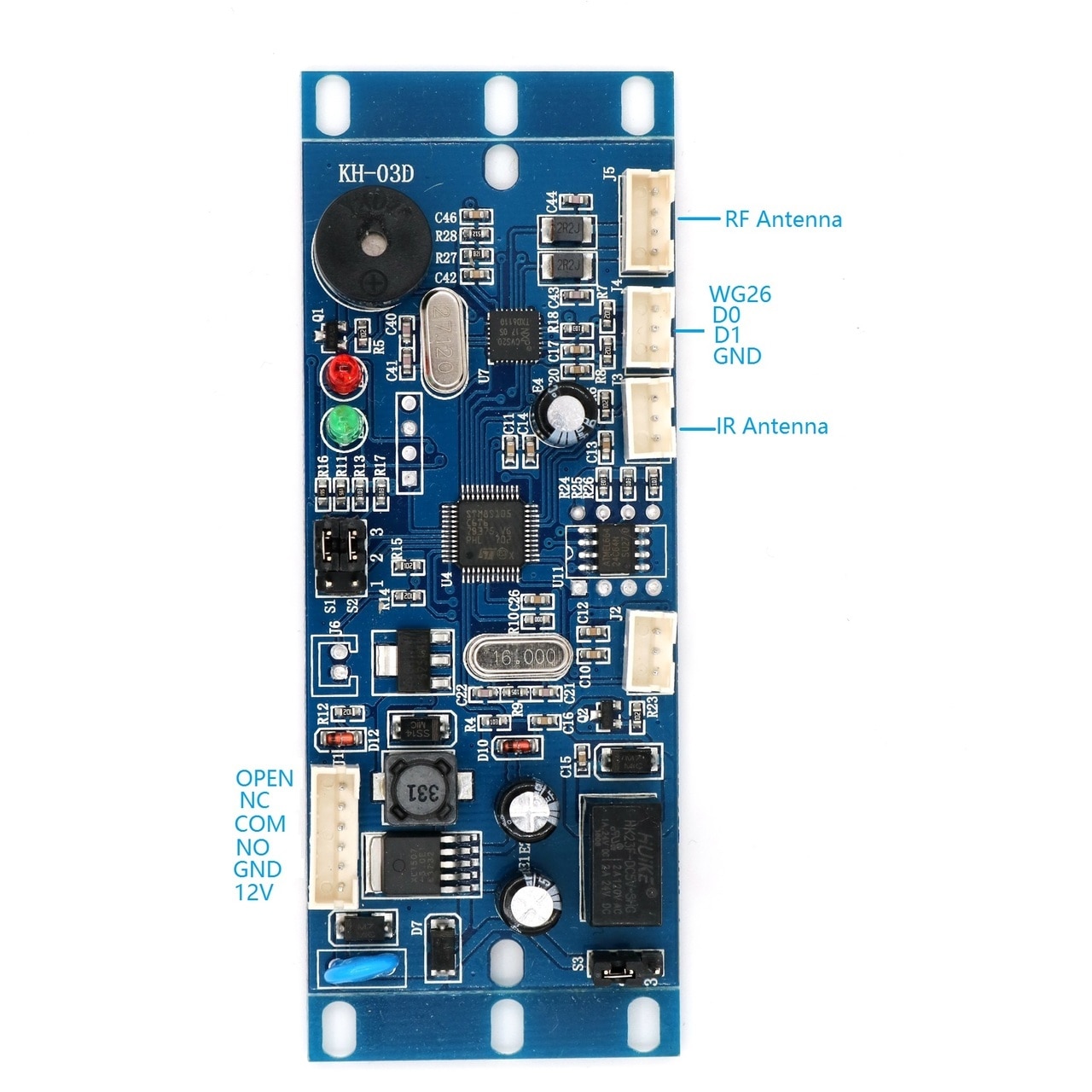

Reader interface: Wg26_in(max distance 100m)

Operating instructions
Add Admin card:
short-circuit S2 to the 0 end when power off, re-power up, red/green LED alternately flashing, continuous two card,
green light flashing means success, The first card is "add management card", second card is "delete management card".
Add user card:
In the working state, swip the "add management card", green LED flashing, swip user card, and then swip "add
management card" end of the adding card operation.
Delete user card:
In the working state, swip "delete management card", red LED flashing, swip the user card you need to delete, and then
swip "delete management card" to end the operation
Delete all cards:
In the working state, swip "delete management card", red LED flashing, and then swip "add management card", wait for 5S
green LED recovery, successfully




  • Model Number: E-22
  • Brand Name: Jedrek
