CO2 laser tube with red pointer--100w laser power for laser cutting machine with red light alignment

0.0 ( votes)
Price:
US $ 2455.08 / piece
Quantity

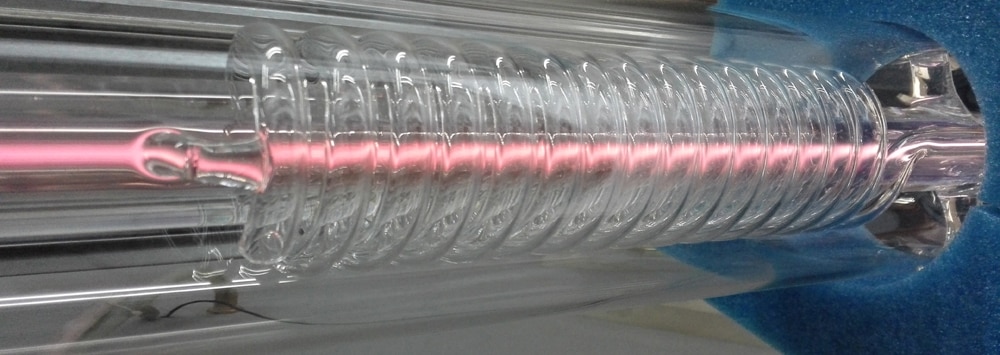

Catalyst laser beam inside of laser tube

CO2 laser tube is most important laser parts to a laser cutting machine, high stability and longer lifetime is key points for people to buy laser tube

Tr100 belong to red pointed laser tube, which is new generation co2 laser tube in the market, It can provide red dot, red preview, red light assistant alignment functions.

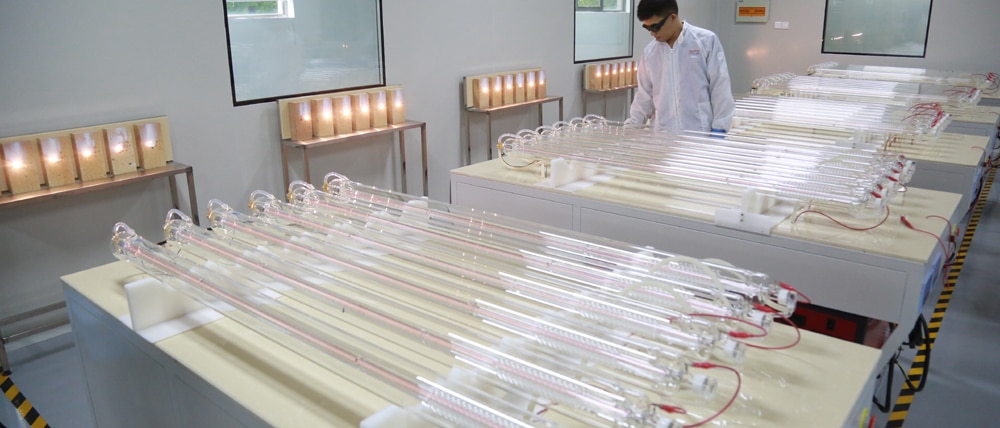

CO2 laser tube inspection workshop



Running-testing for co2 laser tube and Inspection workshop























SPT-TR-P

If you want to have red pointer for your laser cutting machine, just need to upgrade your laser tube to our Tr series red pointed laser tube directly. No need to install the old version red pointer separately with complex process

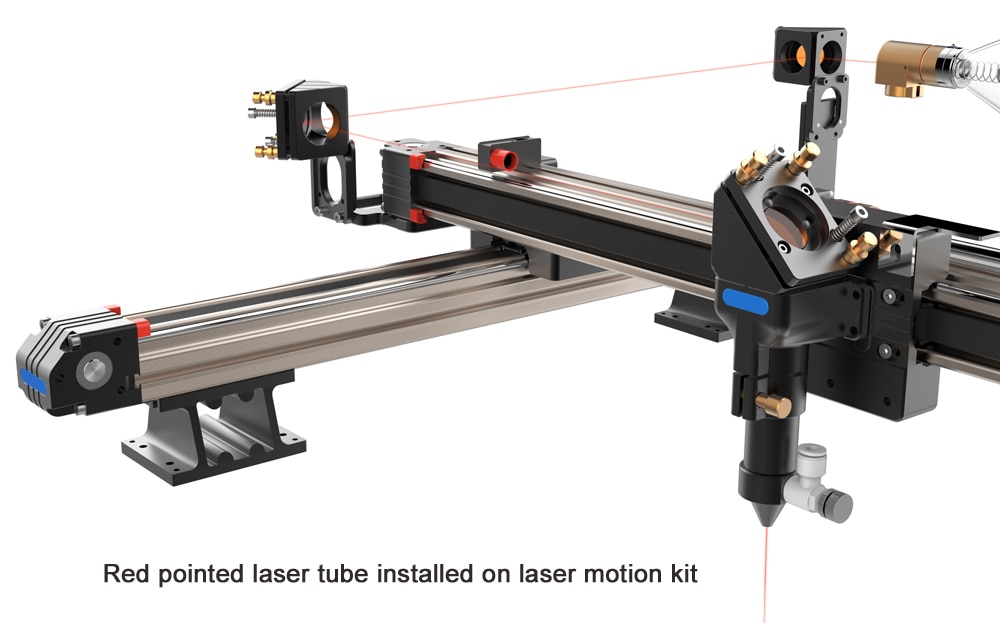

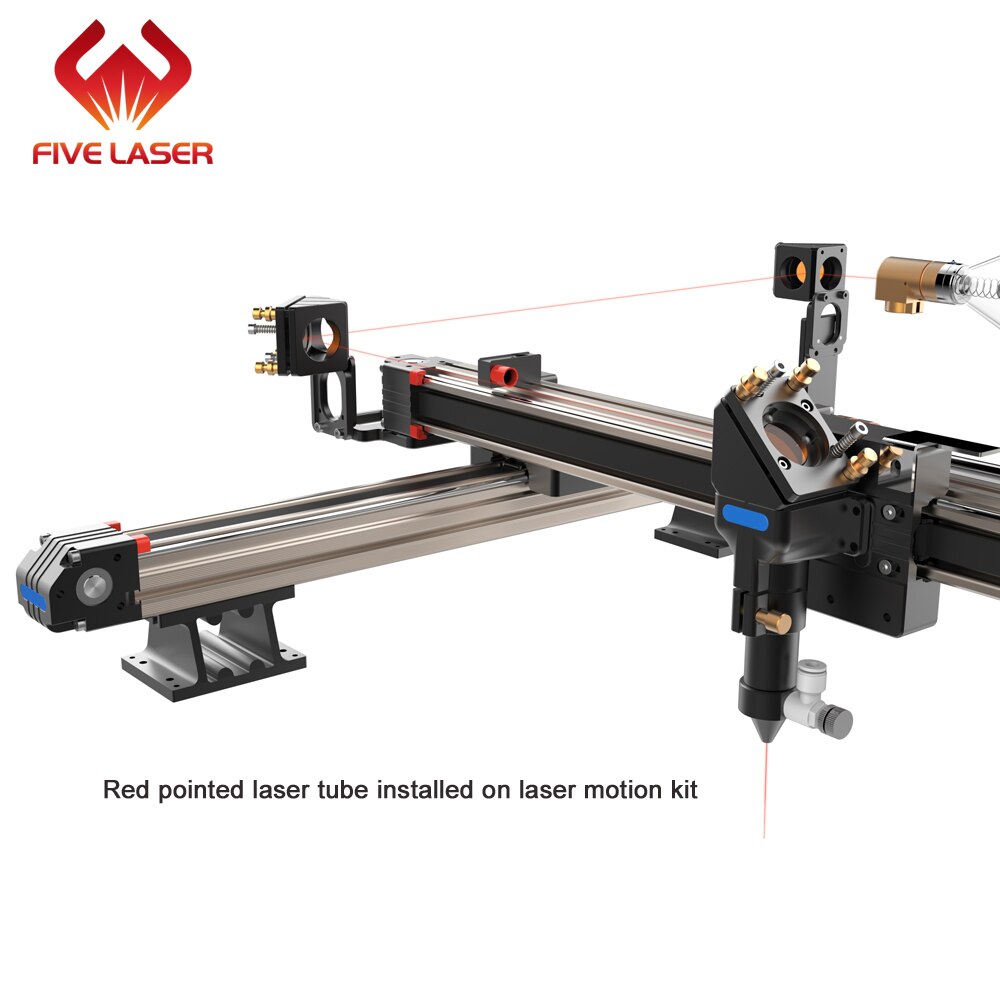

ATTENTION Red pointed laser tube after installation

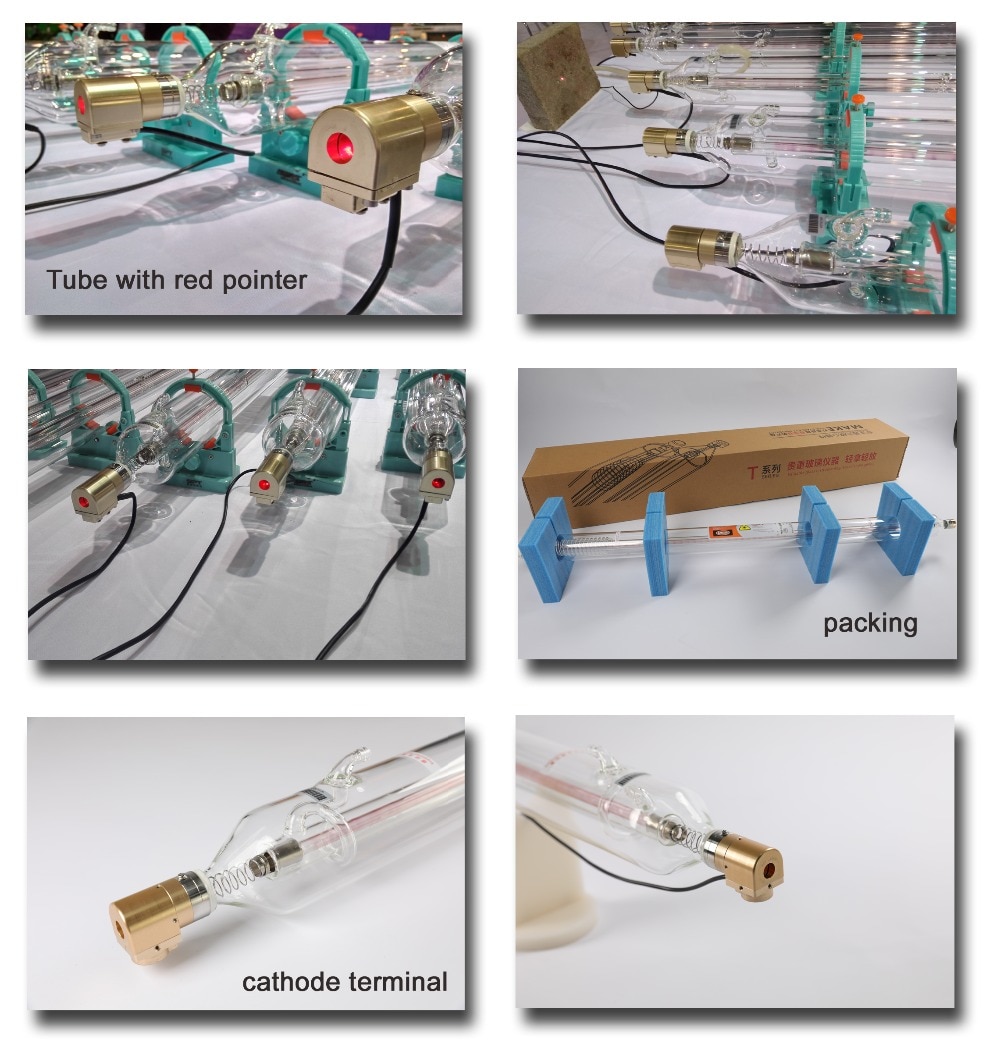

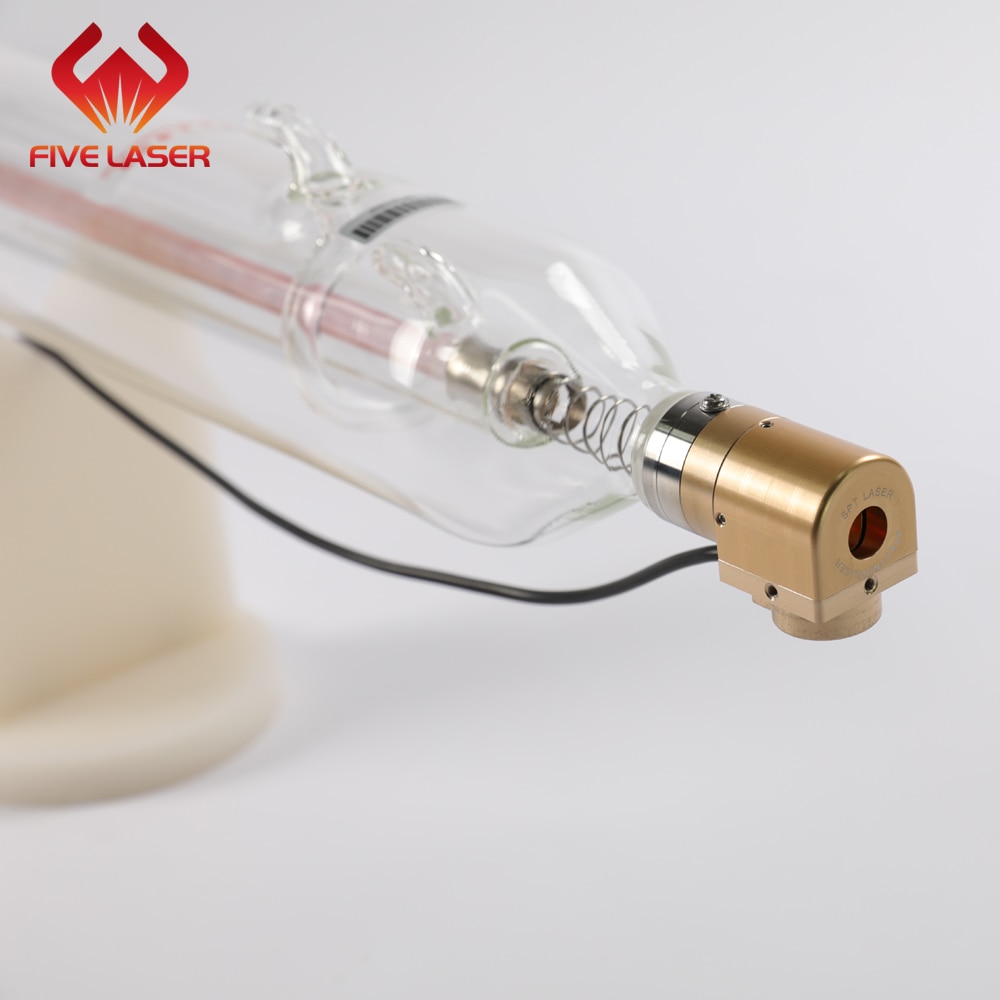

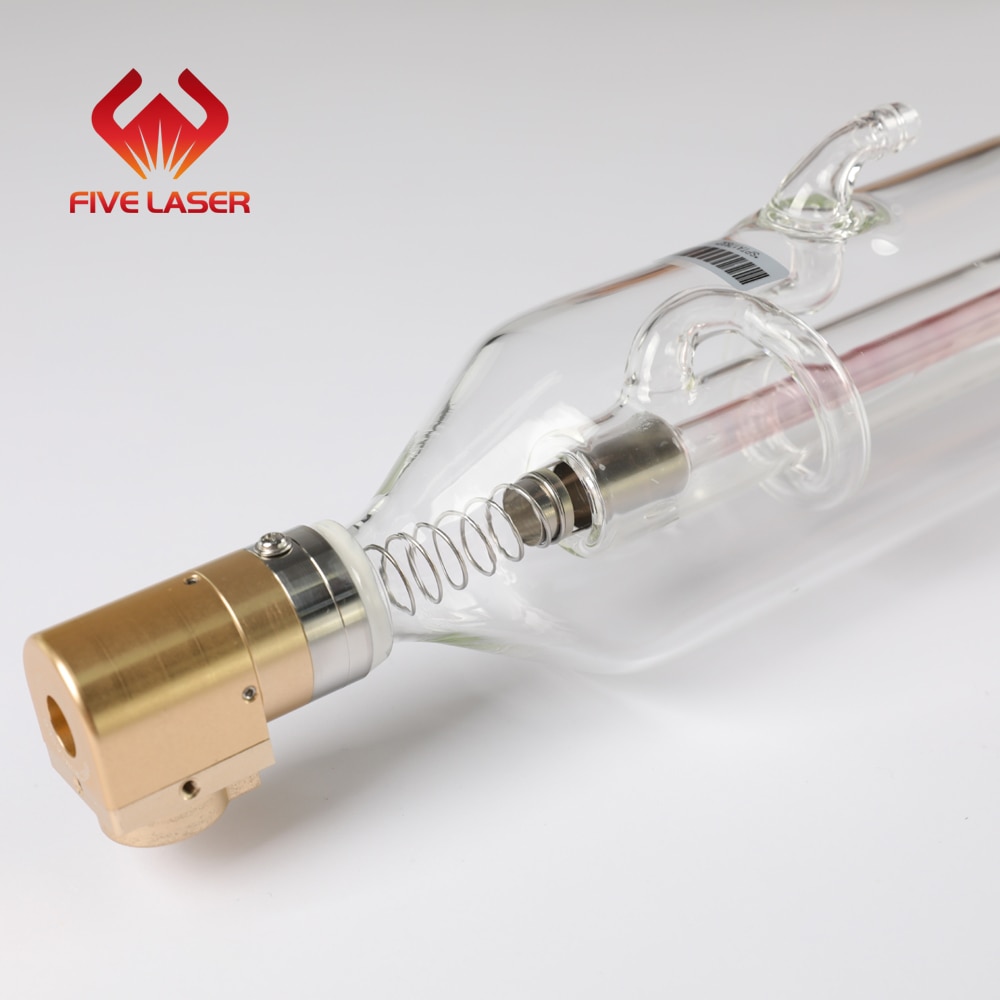

Red pointed laser tube





The red pointed laser tube is new R&D products in laser tube industry, which can bring red light preview & red light alignment functions to a laser cutting machine directly. Before the user have to assembly a separate red pointer for a laser machine to get the red preview function by combination of red pointer, bracket, power supply, combiner lens with complex alignment. Now the red pointed laser tube solve this problem from the original. The CO2 laser beam has been integrated with red pointer beam together and aligned before delivery. Especially for a old or second hand common laser machine without red light preview function, then you can update it by exchange a new laser tube with red pointer.

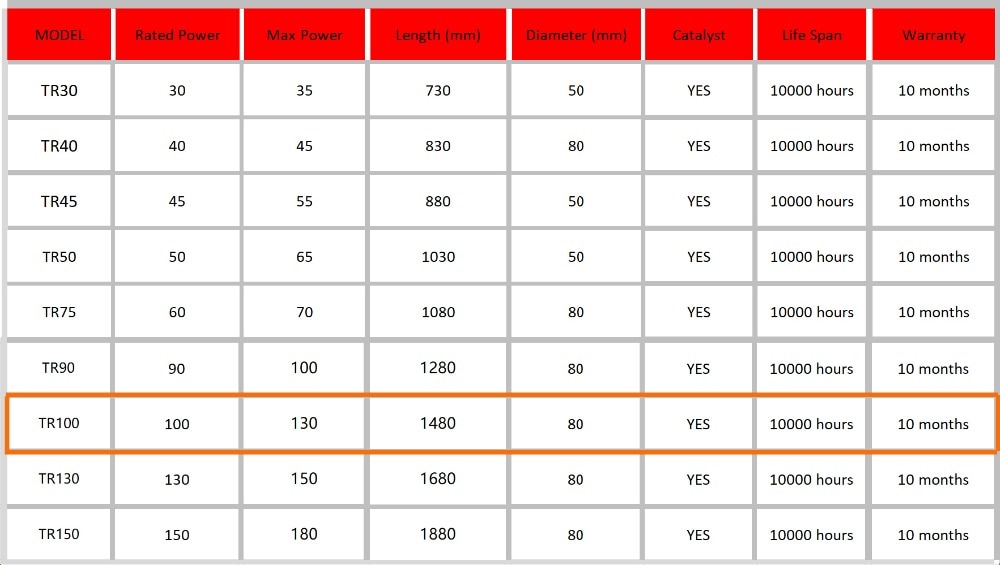

ATTENTION Model list of SPT Tr series laser tube



TR100



Laser tube power from 30w to 150w for optional, also higher power such as 220w-260w are available





















ATTENTION Matched laser power supply

Laser power supply T80 for 80w laser tube



The perfect laser power supply we recommended for Tr100 laser tube is W120 Hongyuan laser power supply

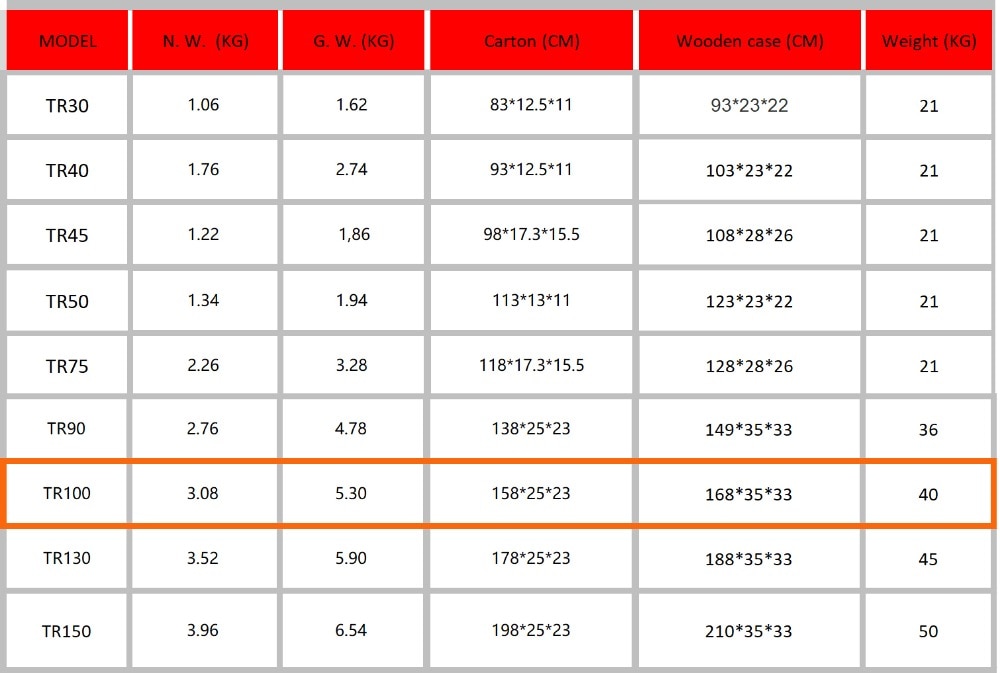

ATTENTION Packing size of co2 laser tube





PA-TR100

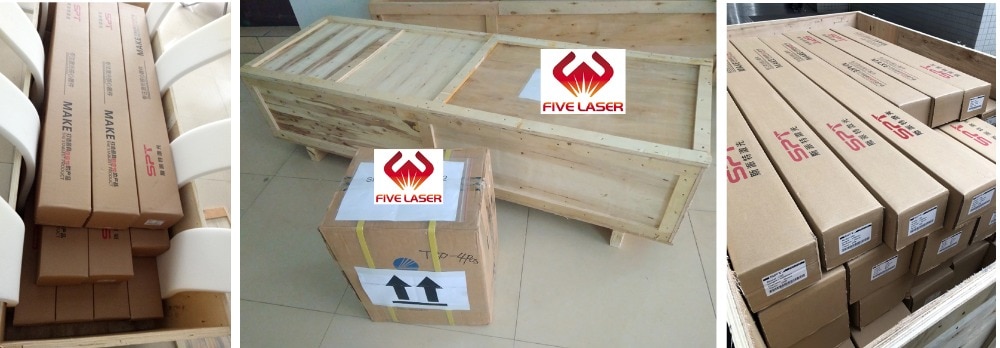

ATTENTION PACKING of laser tubes

SPT packing



The carton is basic packing for laser tube, but extermal packing should be wooden box for safe transportation and filled with sponges



























one-stop laser parts store

Five laser contacts













ATTENTION About Five Laser



Five laser focus on laser technology, which provide full solutions in laser machines and laser spare parts, We are the first company in the world to support customers to build their own laser cutting & engraving machine, laser marking machine, laser machine DIY and etc.


One-stop laser store in purchasing, service and warranty with our plenty of laser technology experience, which will save your purchase cost, shipping cost and higher efficiency. We also guide customers in R&D new products such as 3D laser marking machine and embossing laser engraving technology

Five laser located in Dongguan city of China, we insist on high quality laser spare parts and strict quality control, we chase to become the number one in the world in all laser spare parts field by bring more benefit to customers all over the world.

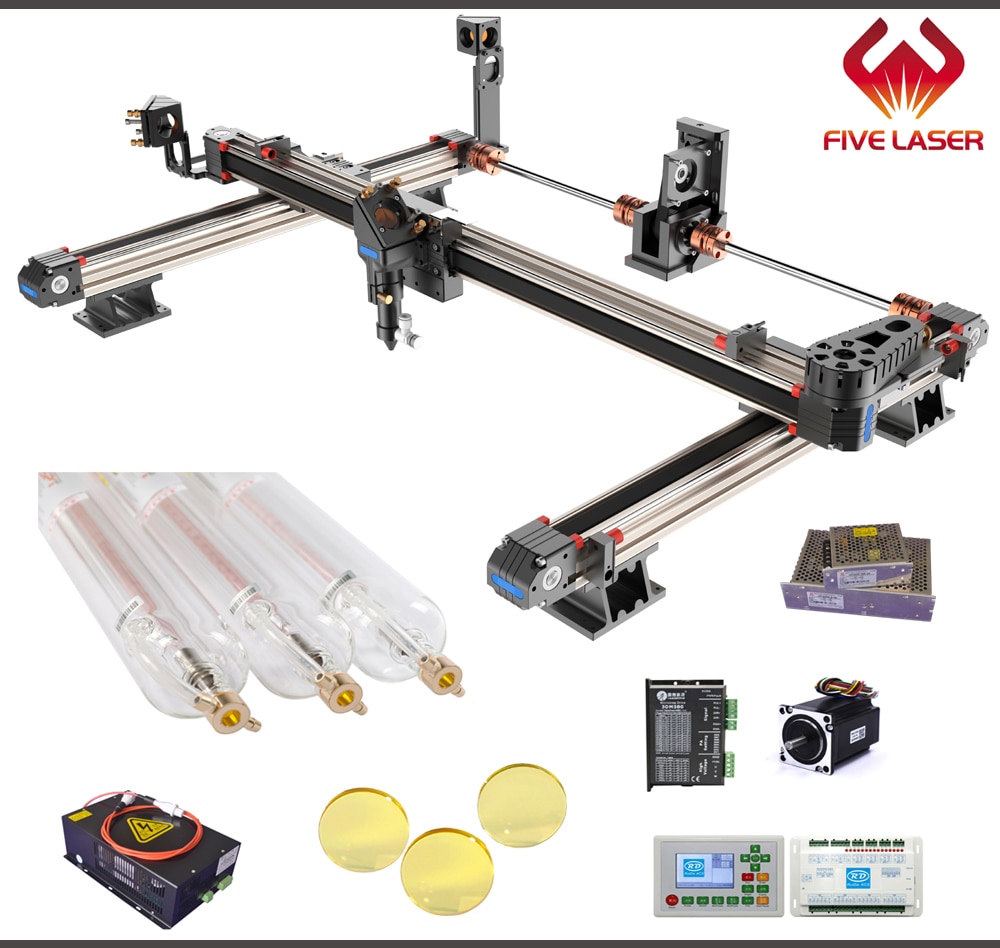

All laser parts together









ATTENTION Customs Duties

Please learn more about your country's import policy, all products shipping from China may cause tariffs. Five laser selling default FOB trading terms, the buyers will take his responsibility on all kinds of tax in their country. If you have special requests about declaration, please leave messages to us when you make an order.









ATTENTION Payment



Five laser payment









ATTENTION Shipment



Five laser shipment









ATTENTION Feedback

Five laser Feedback



  • Length (mm): 1450 mm
  • Laser Power: 100w
  • Cutting Speed: Depends on thickness
  • Engraving Area: 1400*1000
  • Operating Temperature: 15-25
  • Engraving Speed: Depends on motor
  • Brand Name: five laser
  • Model No:: TR100
  • Rated power: 100w
  • Peak power: 120w
  • Length: 1480mm
  • Diameter: 80mm
  • Life span: 10000 hours
  • Warranty: 10 months
  • Application: Laser DIY or 2nd hand Laser cutter/engraver
  • Red dot function: Yes
  • Red preview function: Yes
  • Red light assistant alignment: Yes
  • Power for red pointer requested: 3VDC
