DE Free VAT 1.5KW ER16 Air-cooled spindle Motor 80x200mm & 1.5KW Inverter VFD 220V & 80mm aluminium calmp for CNC Router Grind

0.0 (1 votes) | 1 orders
Price: US $774.06 - 982.94 / Set
Discount Price:
US $ 621.76 - 776.32 / Set
-20%
Quantity












Notice:


this item will delivery from our "Germany"warehouse,within European Union countries free shipping by UPS/DHL, the package will be not easy broken with delivery.




The free ship and free VAT Europe countries area:


Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France,

Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco,

Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

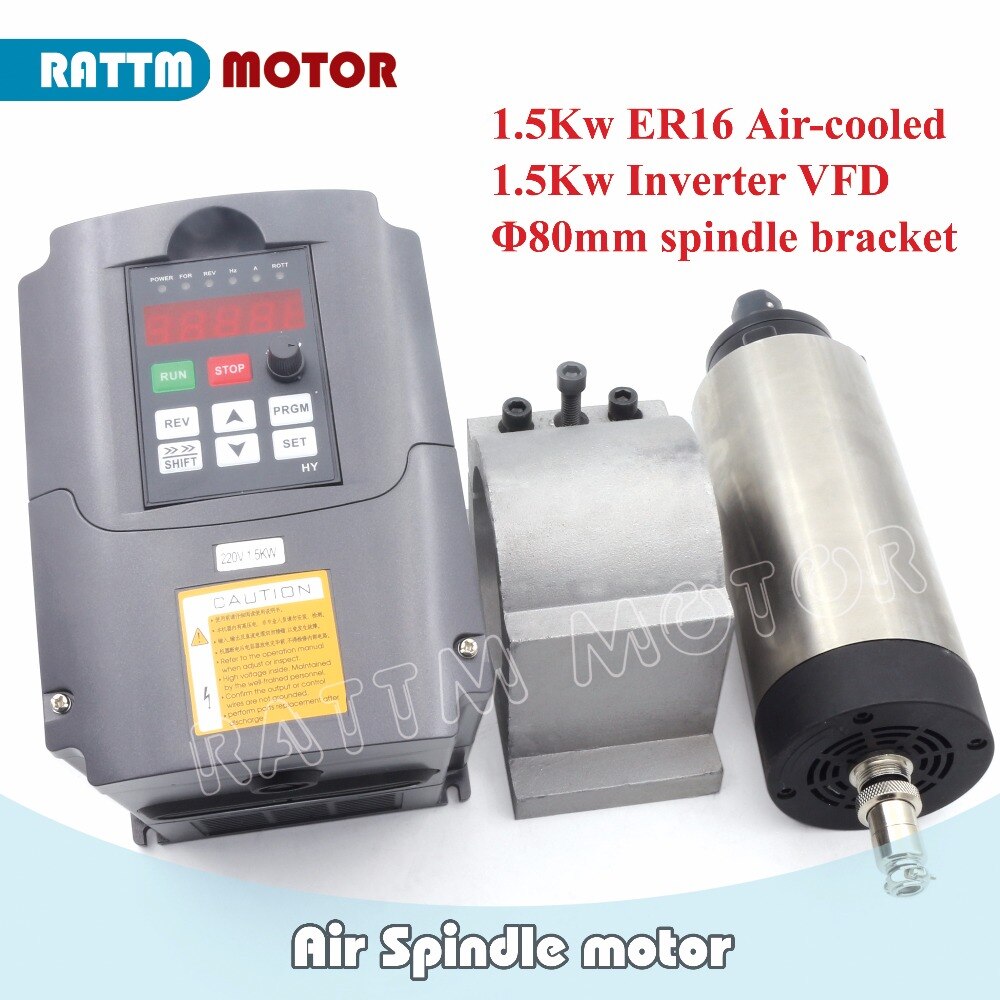

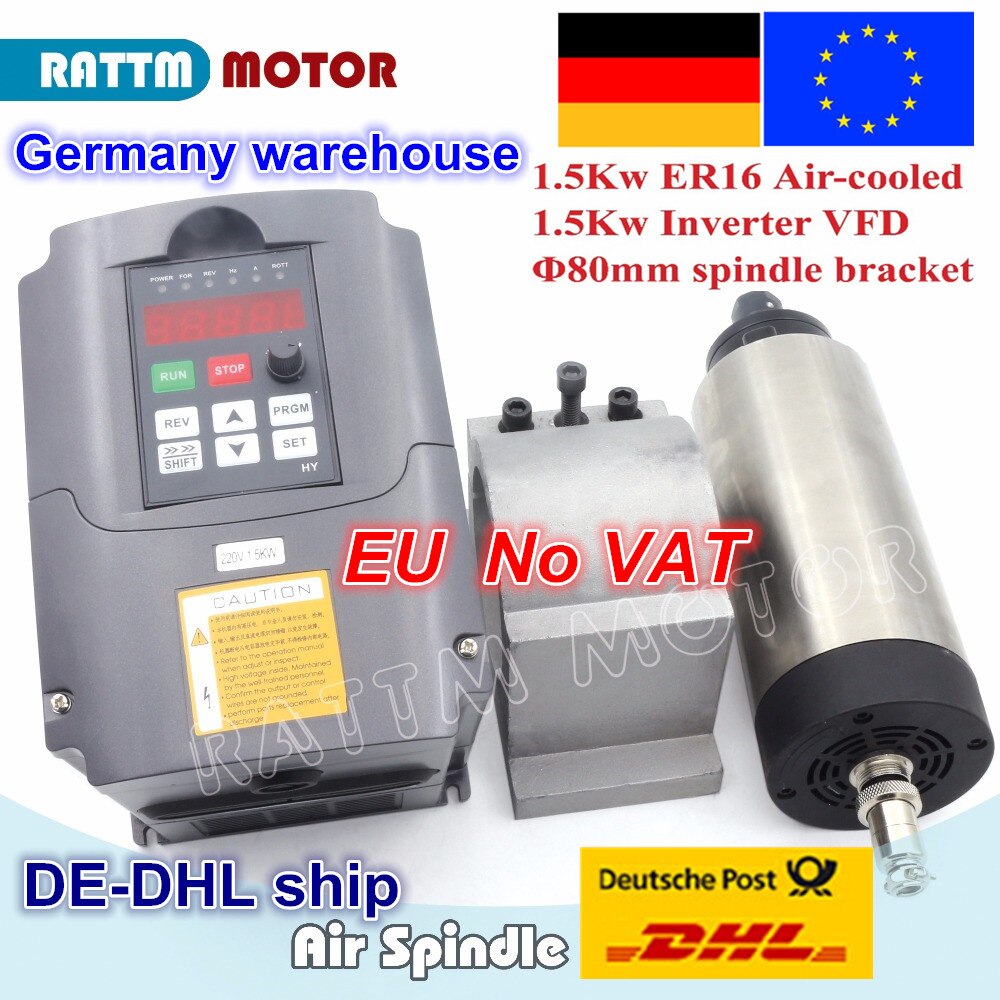

 Package include:

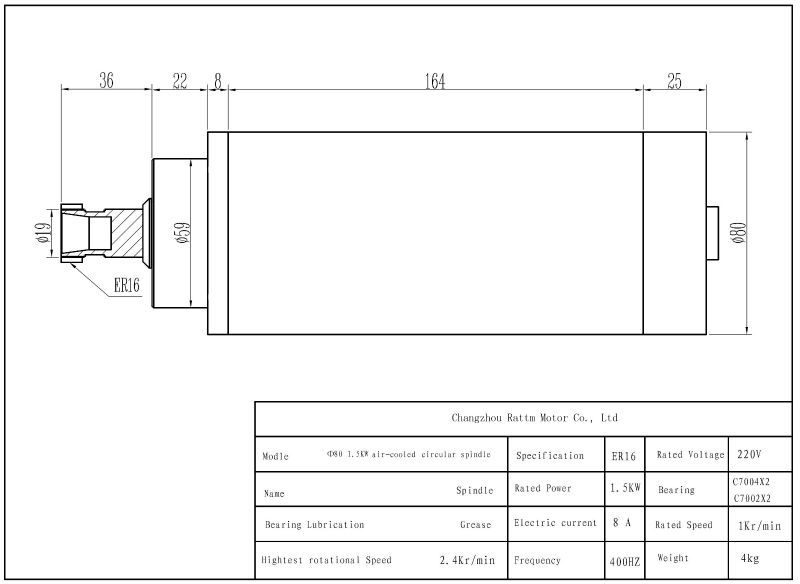

1x 1.5KW Air-cooled  spindle motor  ER16 80x200mm400Hz  24000rpm 4 bearings

1 x Inverter 1.5KW VFD 220V Input with 220V output

1x 80mm cast Clamp aluminium bracket

English user manual of inverter

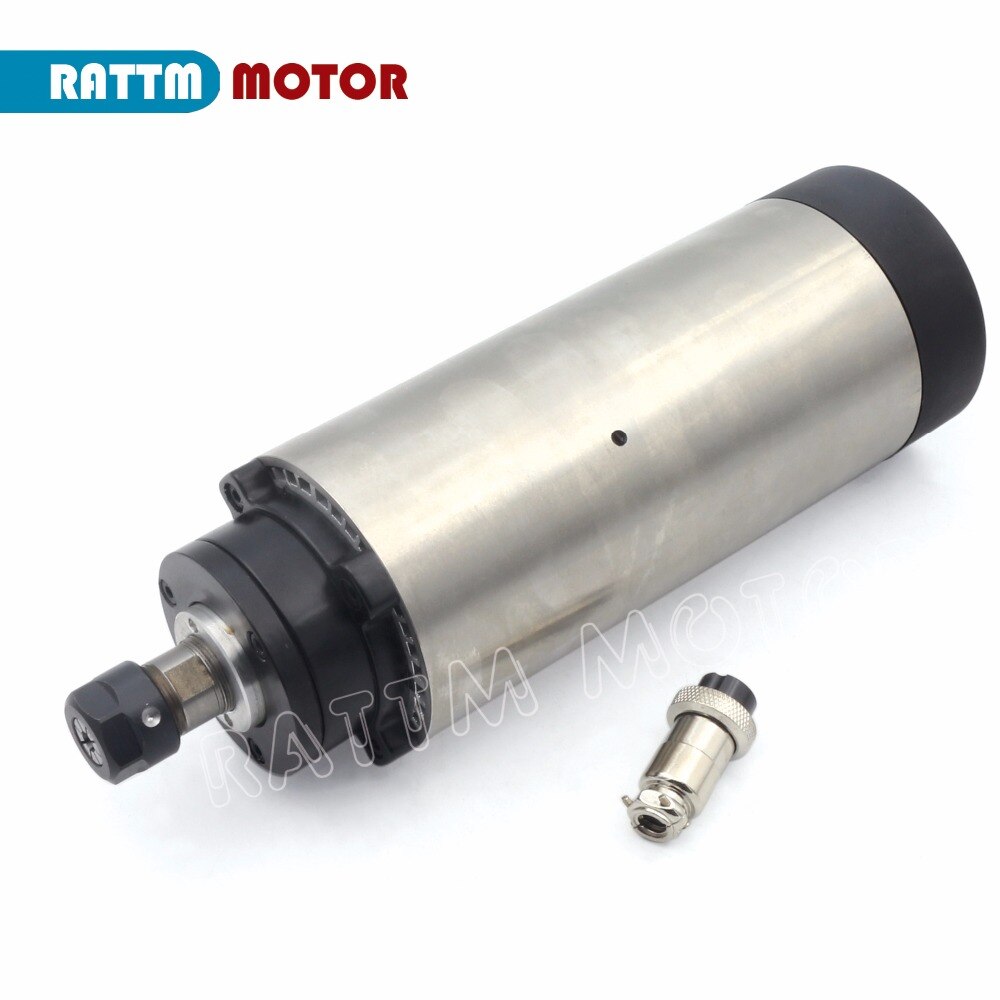

1.5KW AIR-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

Specification:

Material: Stainless Steel

Size: Φ 80mm

Power: 1.5Kw

Voltage: 220VAC

Current: 8A

Frequency: 400Hz

Speed: 24000rpm

Cooling: Air-cooled

Accuracy: 0.003--0.005

Runout off: Less than 0.05mm

Bearing Lubrication: Grease

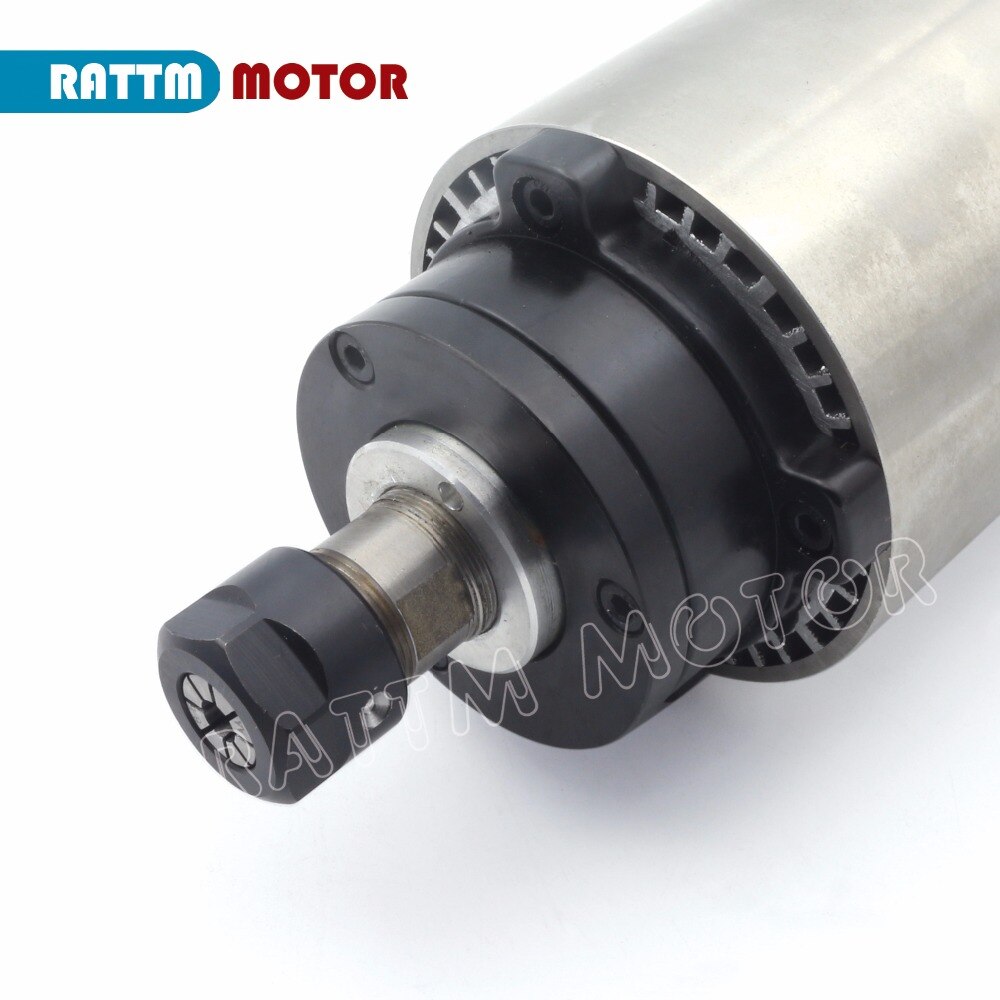

Collet size:ER16

Bearings: 4 bearings (C7004x2 + C7002x2),P4 class, Angular contact bearings

Weight: 4.8kg

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

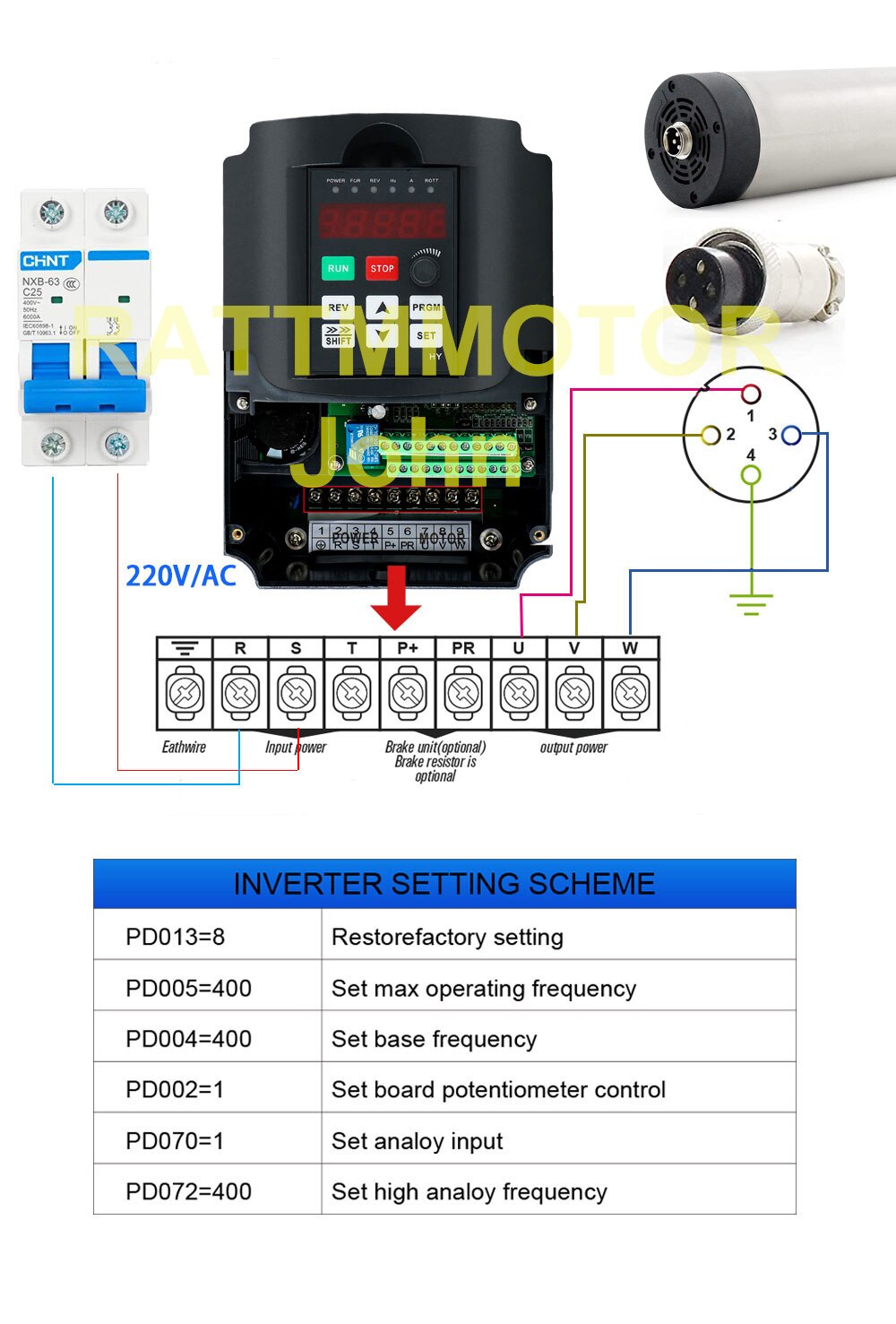

Power Interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.

1.1.5KW Air-cooled spindle motor engraing milling grind 80x200mm  ER16

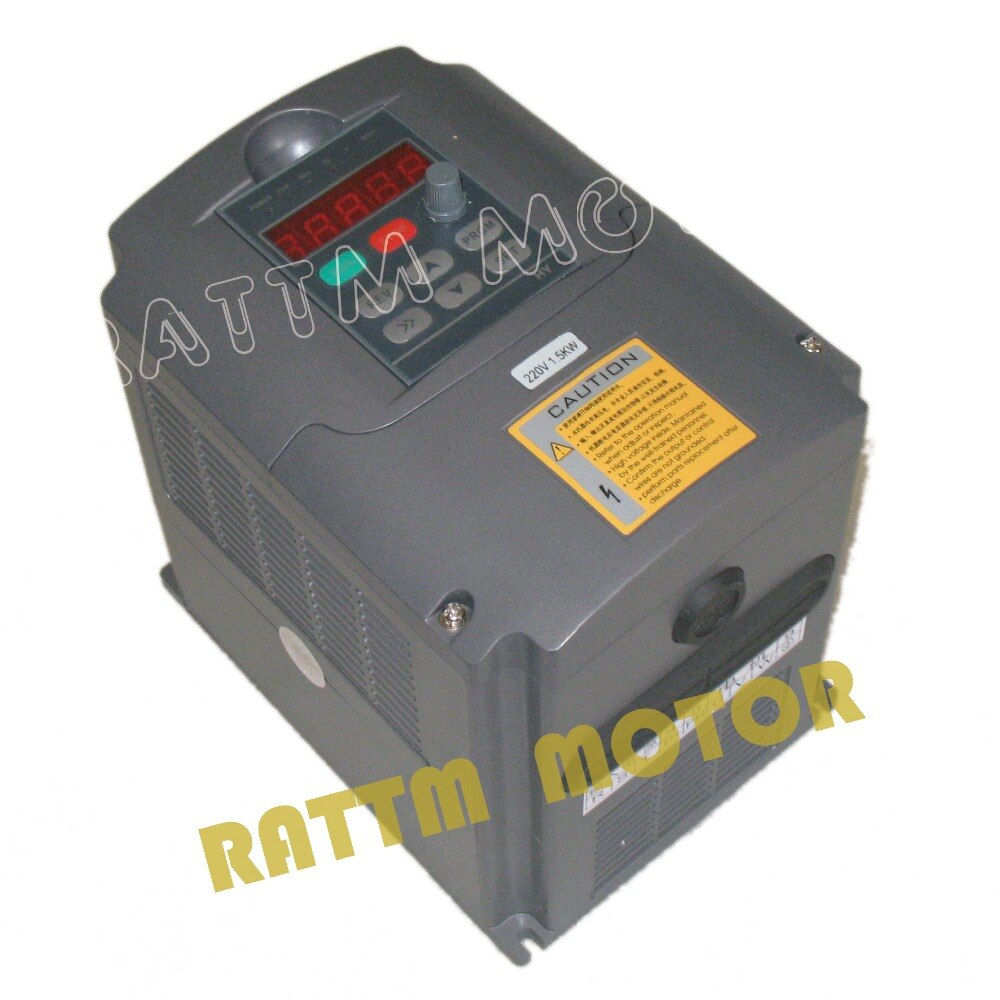

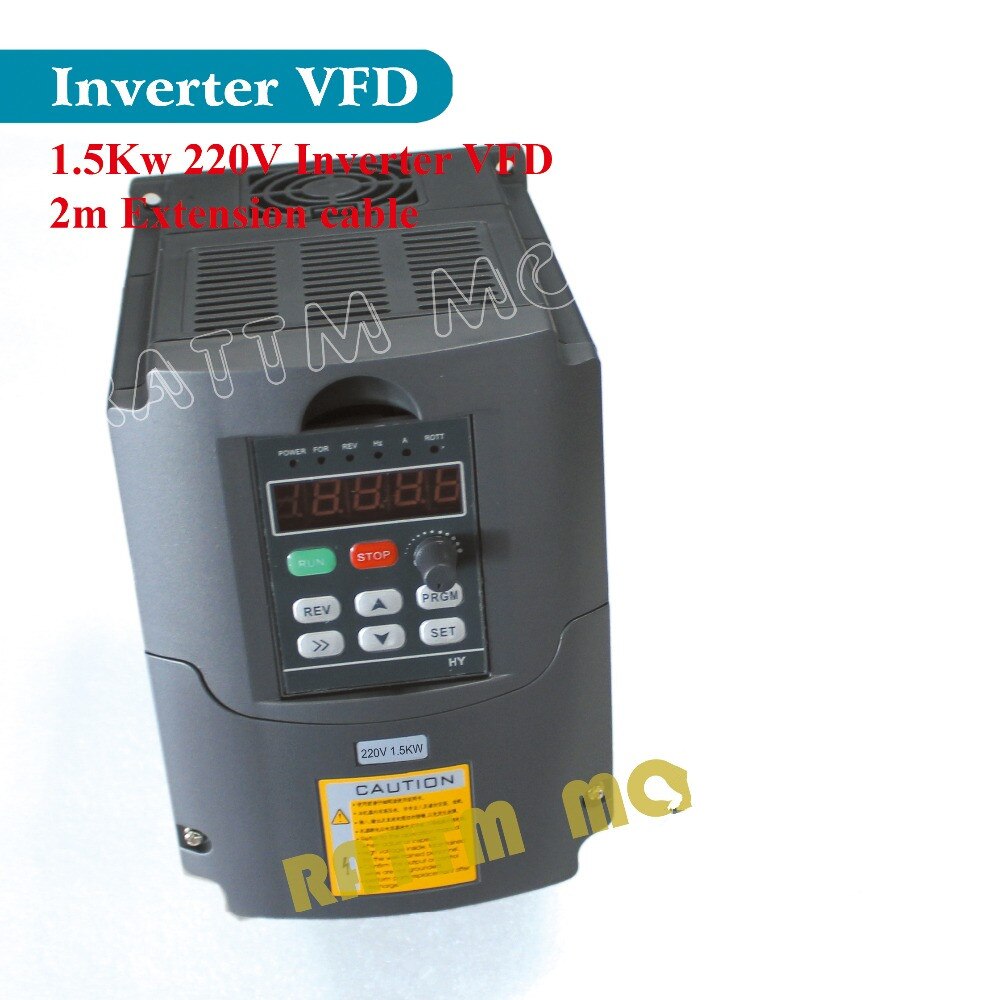

2.  Variable Frequency Drive VFD Inverter 1.5KW 3HP 220VAC

 ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;


Tech parameters:
1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us

for item stock.

2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

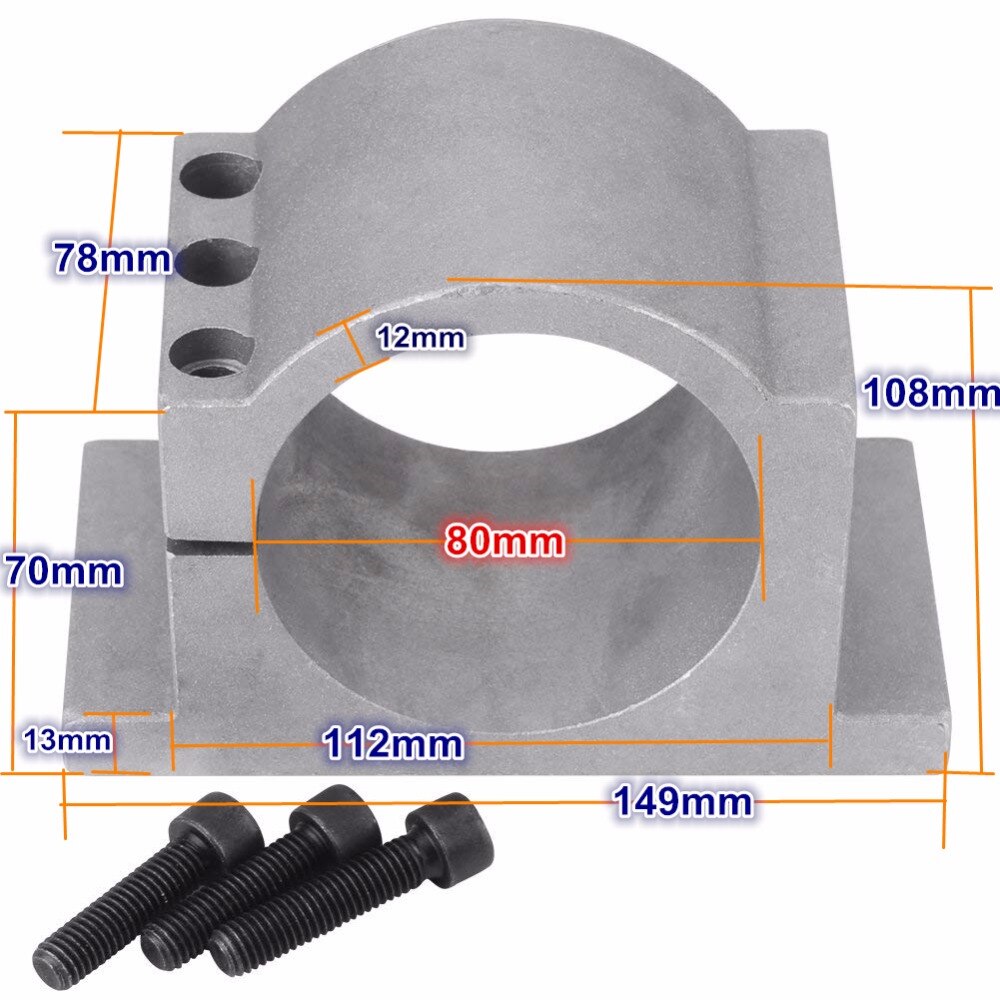

3.  80mm cast aluminium bracket




Shipping

===================================================================

This Item will ship within 1-2 business days by Germany DHL on payment received .

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By "Germany DHL" delivery 3-9 working days,

tracking web: www.dhl.de/en/paket/information/sendungsverfolgung.html

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.


Payment

===================================================================

1.Free VAT and free import duty (TAX ) within EU counties.

2.Before purchasing, pls confirm with us whether in stock.

3.Pls make payment within 3 days of the order if possible.

4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.


Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,


Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.


Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.




  • Operating Speed: 24000rpm
  • Application: Milling
  • Model Number: spindle + inverter+bracket
  • Drive: Motor
  • Origin: Mainland China
  • Certification: CE
  • Model Number: 1.5KW inverter & 1.5KW air-cooled spindle & cast aluminium bracket
  • Name: CNC spindle & inverter &80mm cast aluminium bracket
  • Spindle: 1.5KW Air-cooled Spindle motor ER16 220V
  • Inverter: 1.5KW Inverter VFD 220V input with 220V output
  • Clamp: 80mm
  • Voltage: 220VAC
  • Power: 1.5Kw
  • Frequency: 400Hz
  • Runout off: Less than 0.05mm
  • Collet: ER16
  • Bearings: 4pcs bearings C7004x2 + C7002x2
  • VAT and TAX: EU,USA,RU free VAT and free import duty
