DE Free VAT 800W 0.8kw ER11 Waterproof spindle motor 4 bearing 220V Water-cooled spindle CNC high torque high precision

0.0 ( votes)
Price: US $406.56 - 430.48 / Bag
Discount Price:
US $ 322.22 - 339.47 / Bag
-21%
Ships From
Quantity
















Notice:

this item will delivery from our "EU/Germany"warehouse,within European Union countries free VAT(import duty) and free shipping by UPS/DHL,   the package will be not easy broken with delivery.









The free ship and free VAT Europe countries area:



Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden,Switzerland.






Package include:

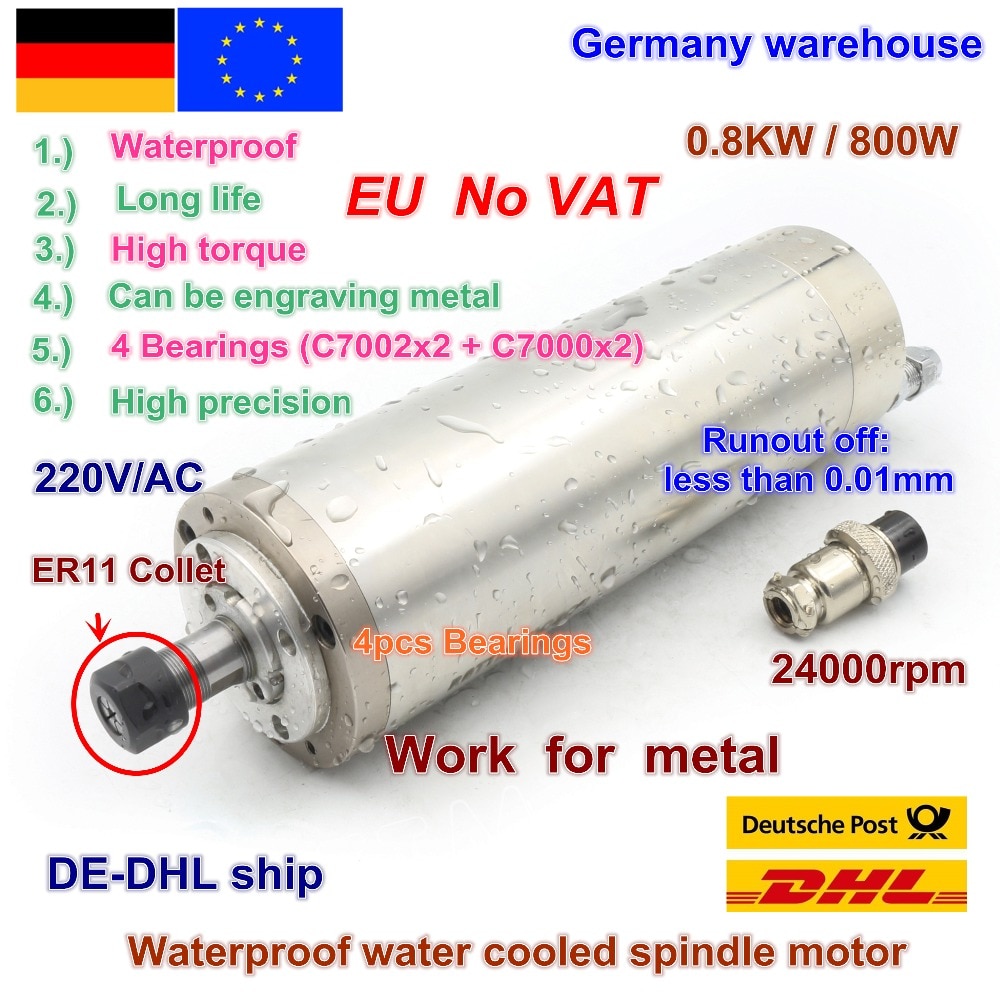

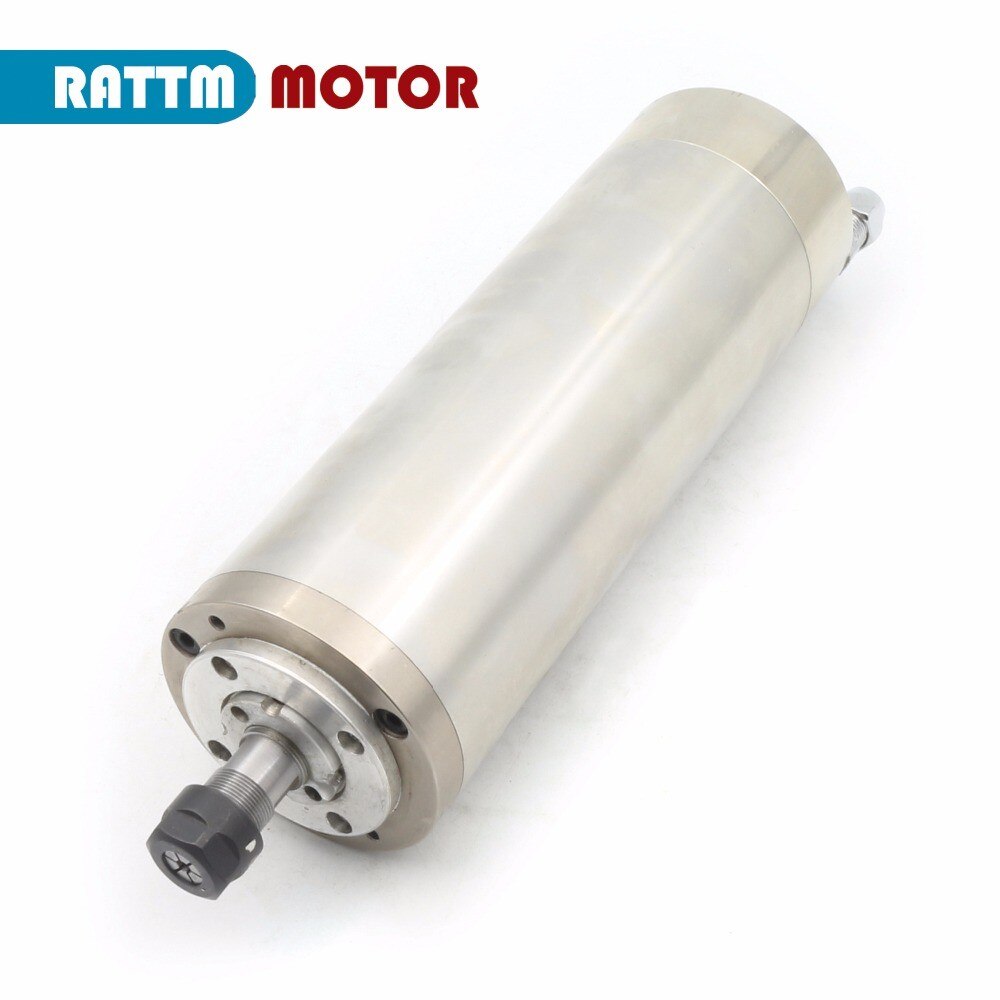

1 x 800KW ER11 Waterproof Water-cooled spindle motor 220V 24000rpm 5A runout off: Less than 0.01mm

 0.8kw -3

800W ER11 Waterproof spindle motor 220V Water-cooled ENGRAVING MILLING GRIND

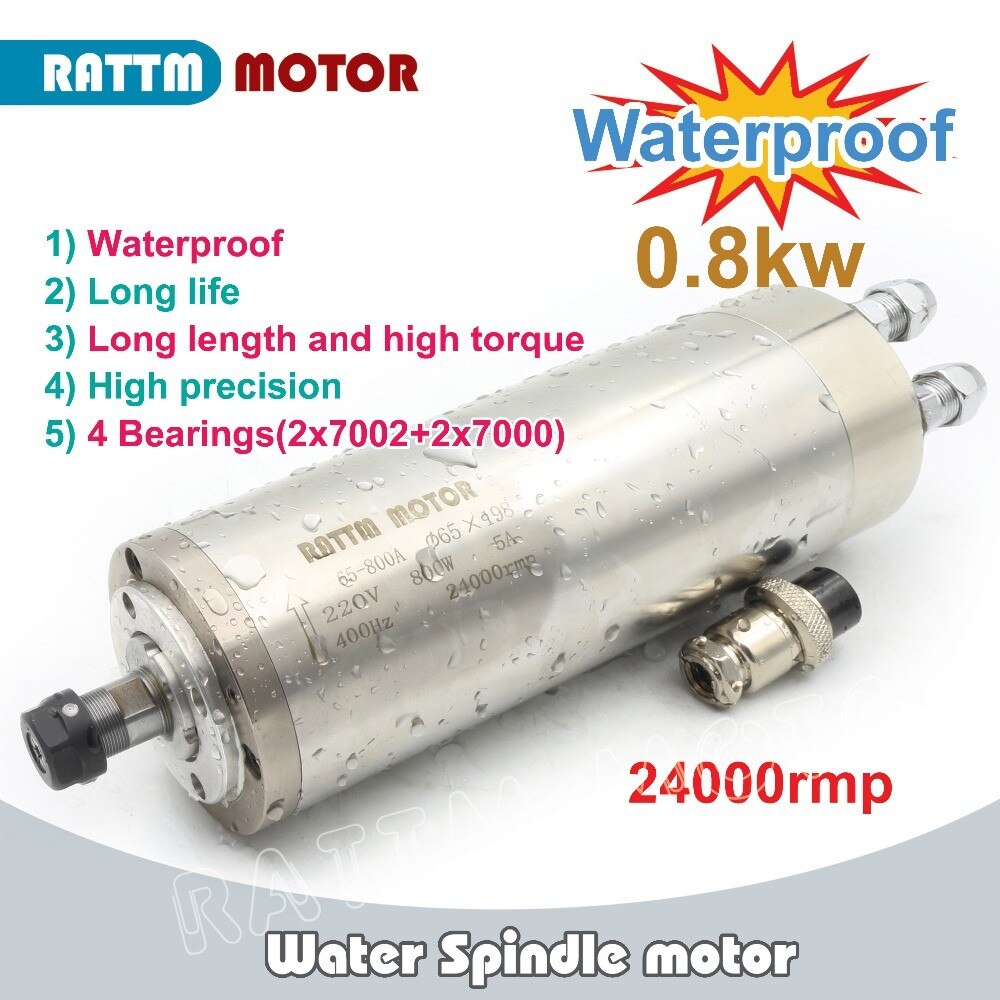

Features:

1) Waterproof

2) Long life

3) Long length and high torque

4) 4 Bearings(2x7002+2x7000)

5) High precision

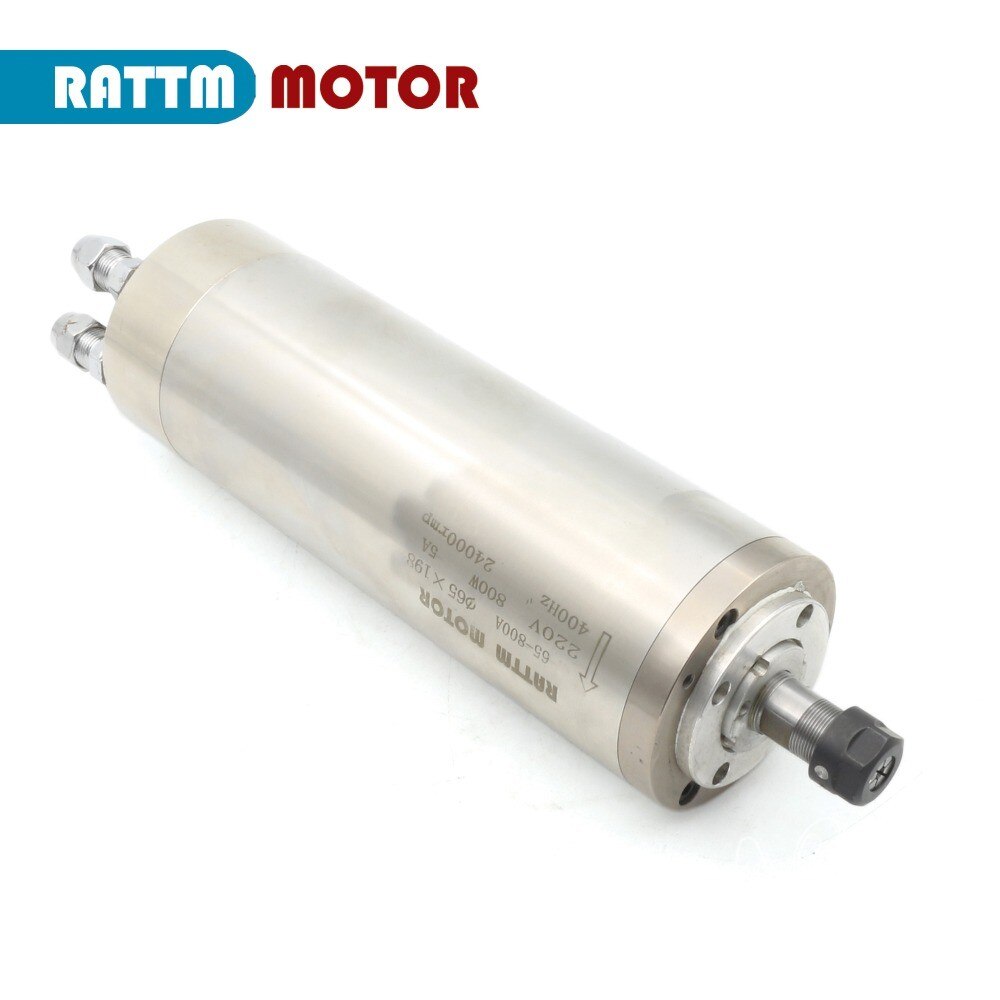

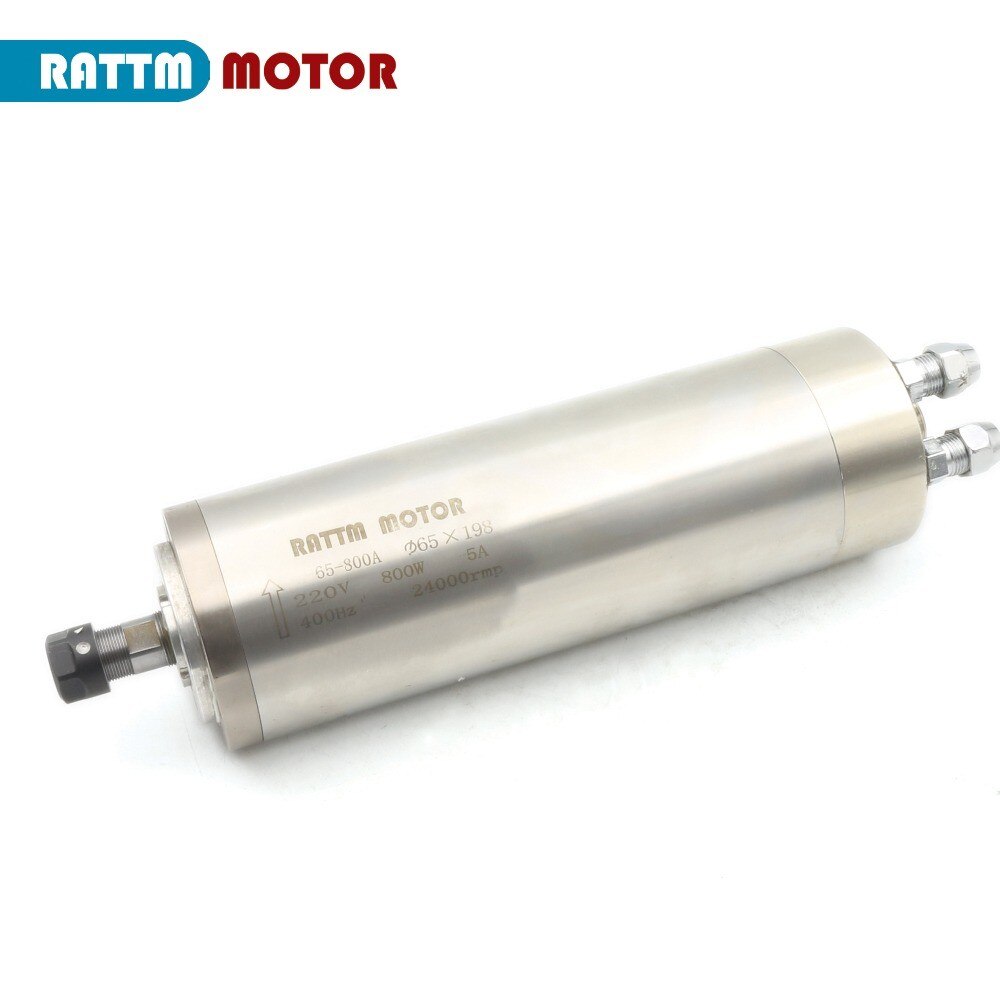

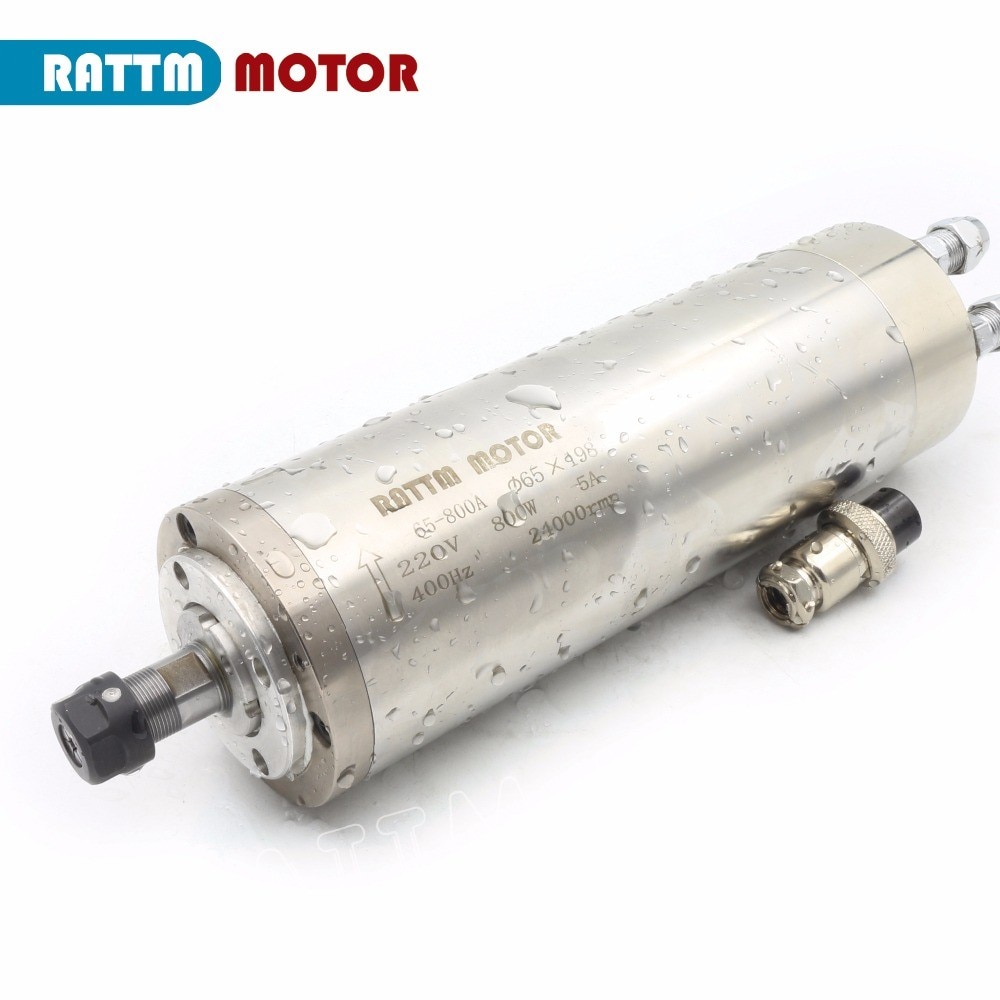

Specification:

Material: Stainless Steel

Size: Φ65x198mm (long length and high torque)

Power: 800W

Voltage: 220VAC

Current: 5A

Frequency: 0-400Hz

Speed: 10-24000rpm

Cooling: Water-cooled

Precision tapered bore: 0.01mm

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size: ER11

Bearings: 4 bearings(C7002x2 + C7000x2),P4 class

Net Weight: 2.95kg

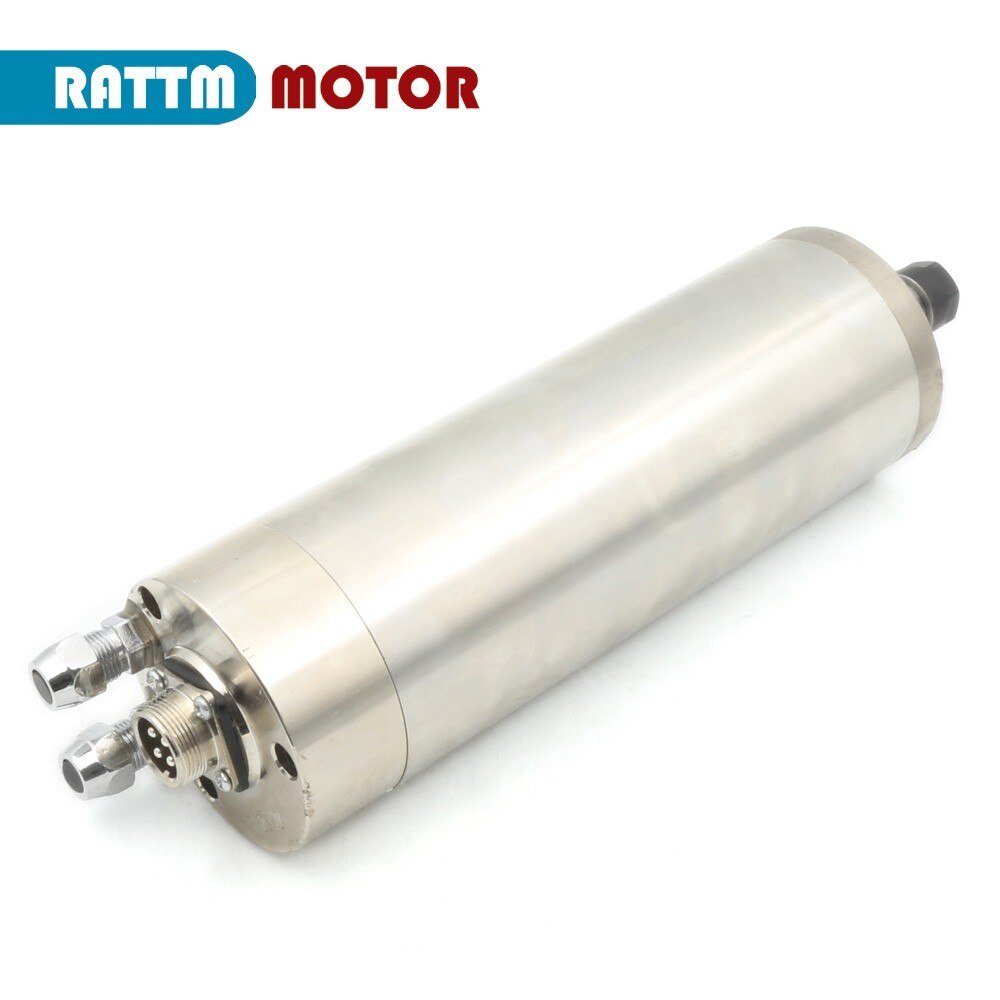

Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 is blank to avoid connection wrong to burnt the spindle.

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

0.8kw-40.8kw-5

 Shipping

===================================================================

This Item will ship within 1-2 business days by DE-Paket on payment received .

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By DE-Paket delivery around 3-14 working days

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.



Payment

===================================================================

1.Free of import tax within EU counties.

2.Before purchasing, pls confirm with us whether in stock.

3.Pls make payment within 3 days of the order if possible.

4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.



Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,



Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.



Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.




  • Operating Speed: 24000rpm
  • Maximum Torque: --
  • Application: Milling
  • Model Number: RTM-65-800A
  • Drive: Motor
  • Brand Name: RATTMMOTOR
  • Certification: CE
  • Origin: Mainland China
  • Cooling: Water cooled
  • Lubrication: Grease
  • Bearing: 4pcs C7002x2C7000x2 bearings
  • Frequency: 400Hz
  • Collet: ER11
  • Voltage: 220V
  • Size: 65x198mm
  • Current: 5A
  • Speed: 24000rpm
  • VAT: EU free shipping and free VAT
