DIN-rail GSM 4G SMS Single Relay Gate Opener ON/OFF Switch For Sliding Swing Opener Power Failure Alarm

0.0 ( votes)
Price: US $63.43 - 105.89 / piece
Discount Price:
US $ 54.13 - 80.98 / piece
-15%
Color
Quantity


Attention:
1, This device only support 2G/4G, don't support 3G.
2, This product can't work in USA and Canada, so if you from USA and Canada, please don't buy this product.


GSM Gate, Barrier, Shutter, Garage Door and Door opener

Open gate or garage door with a FREE call from your mobile phone!

Remote switching machines with a FREE call from your mobile phone!

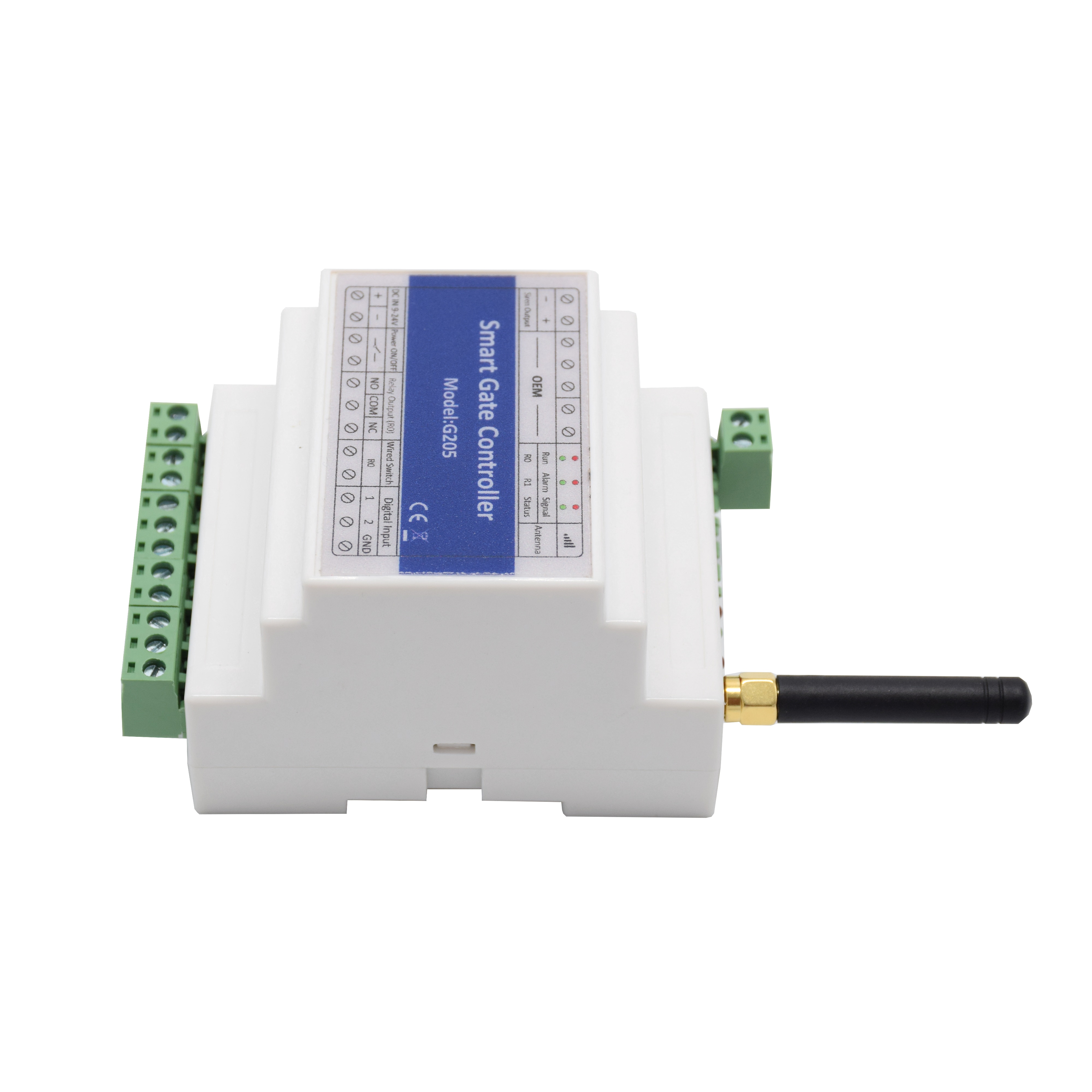

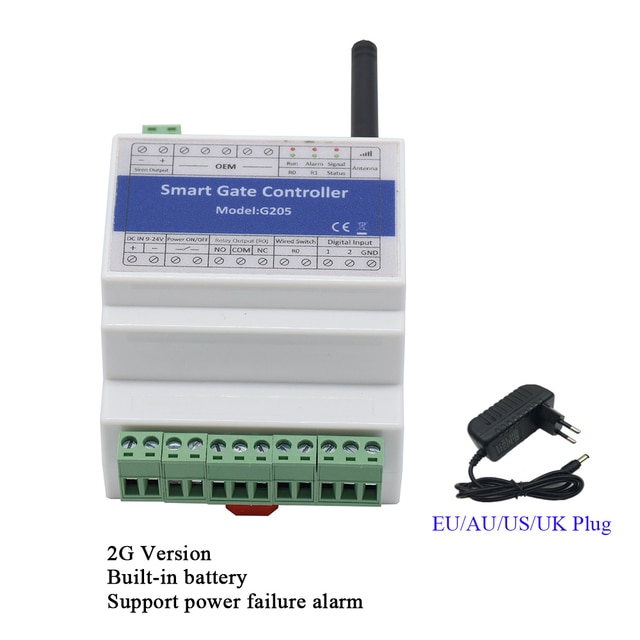

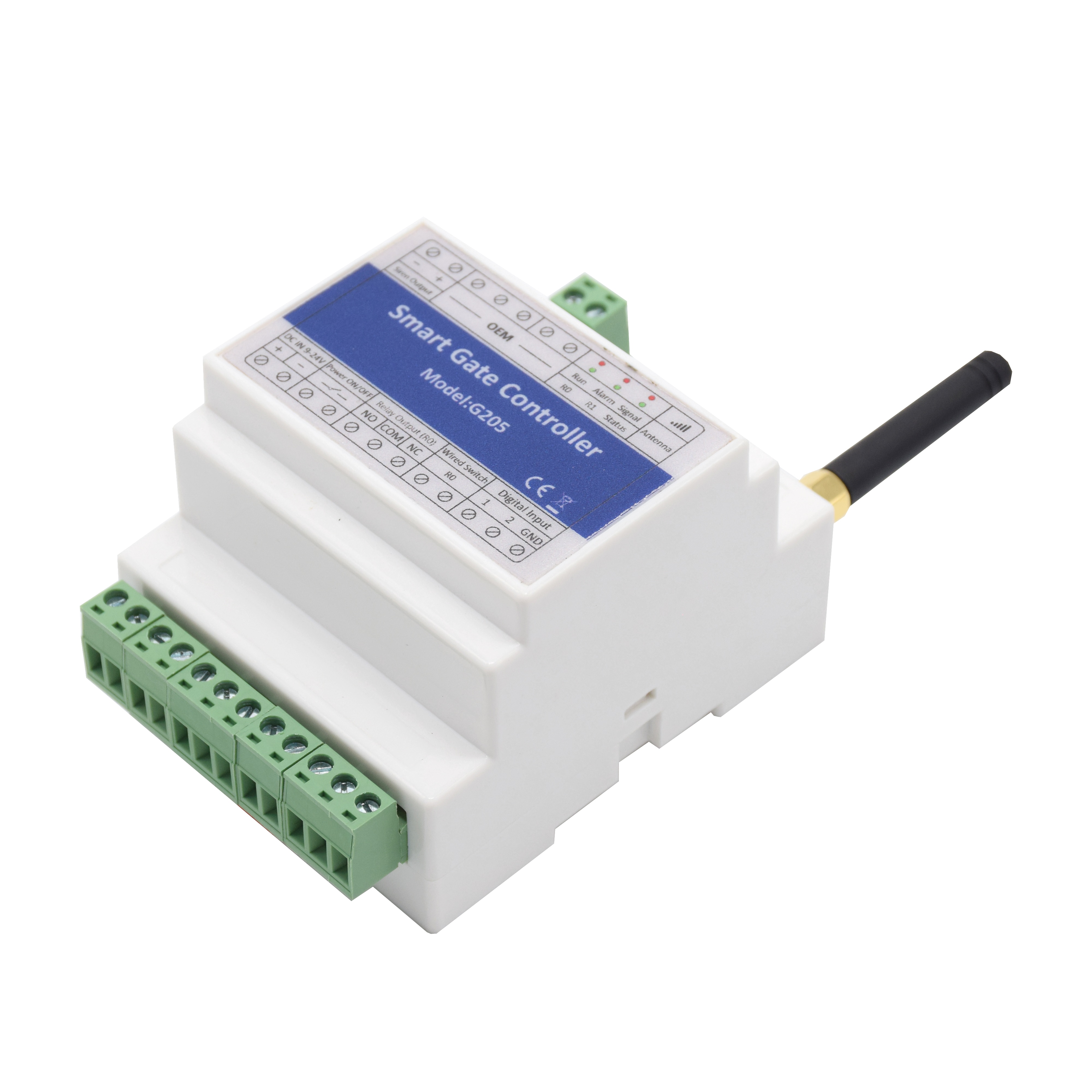

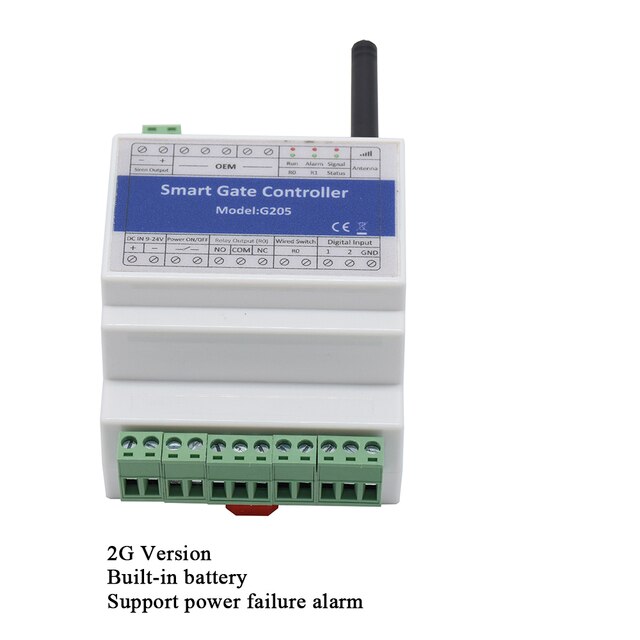

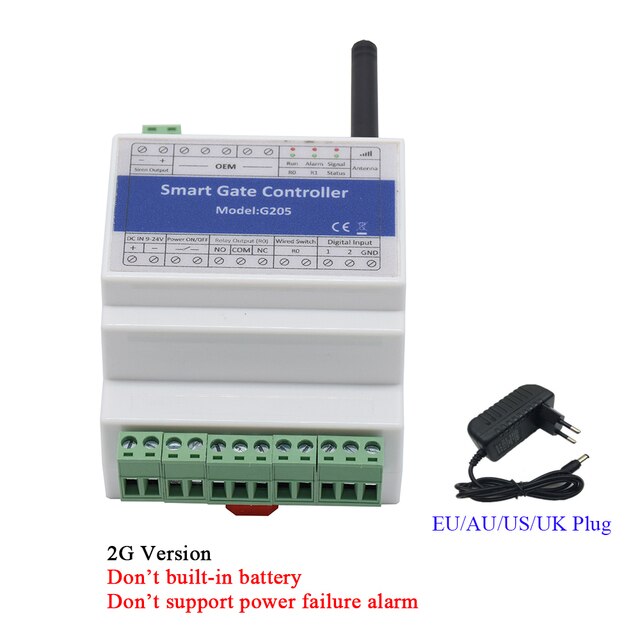

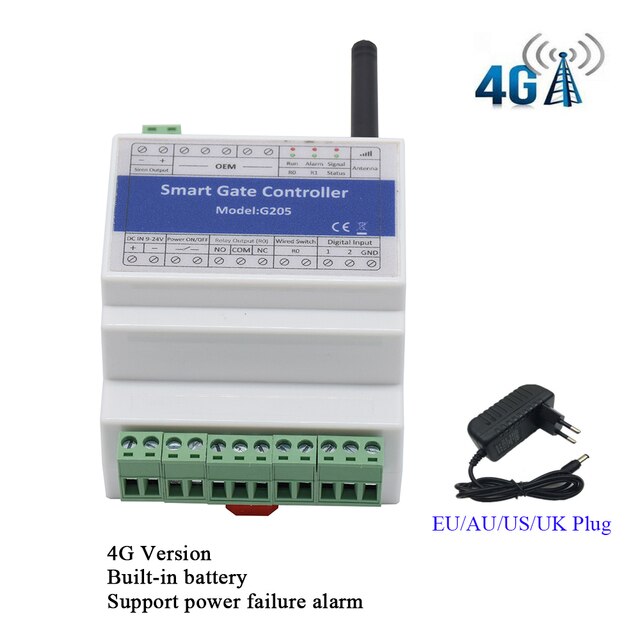

The GSM Gate Opener G205 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the GSM Gate Opener G205 can be used in places which requires turning ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets.

   Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.

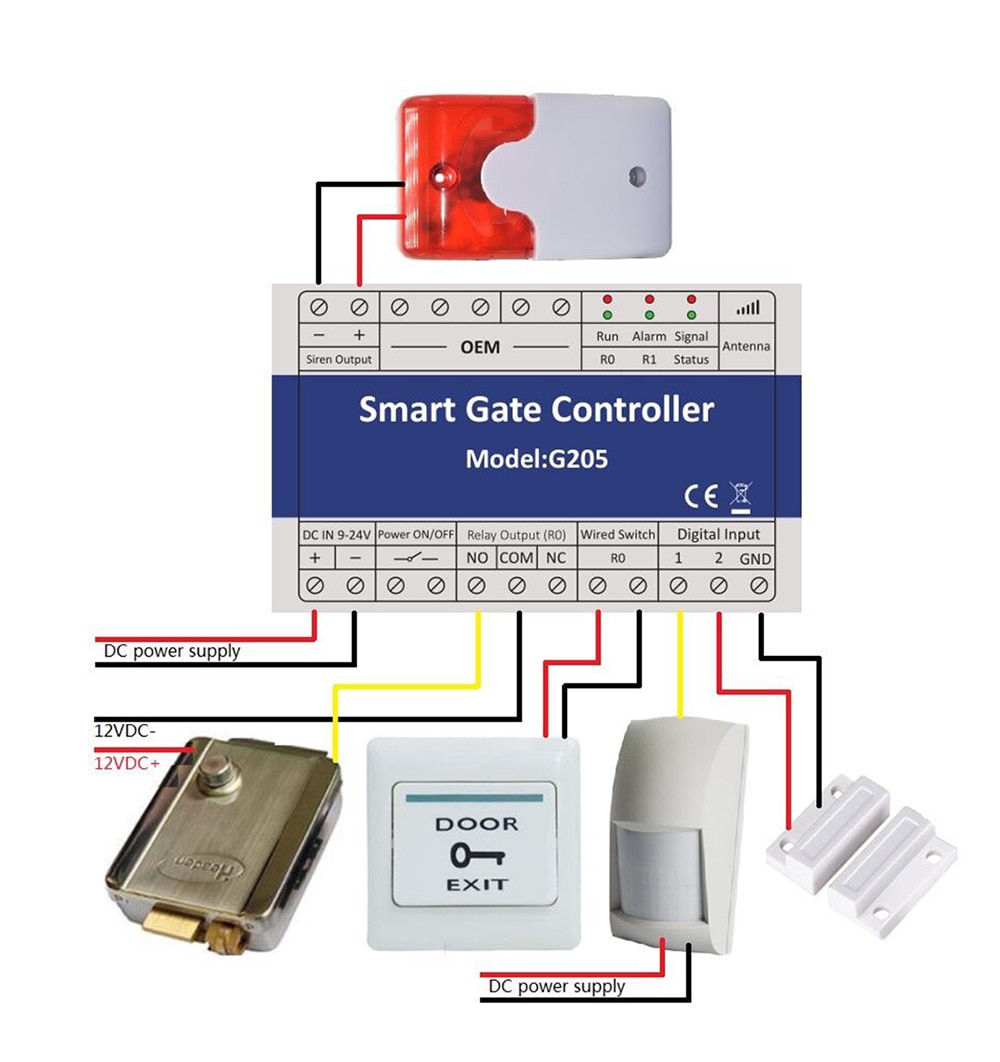

Moreover, the G205 has 2 digital inputs, when any one of the inputs triggered, will start the siren or switch on the light, in the meanwhile, the G205 will send the Alert SMS to owners immediately. This is very useful if you need protect your assets with low cost solution.

External AC/DC Power status monitoring, AC/DC On/OFF will send SMS to authorized phone numbers.

Inbuilt MCU monitoring the DC input Voltage value, no need additional sensor to save cost.



Features

  1. No call charges. The GSM Gate Opener rejects the call from authorized number, then the relay will turn ON/OFF on the first ring.

  2. It is no longer traditional to open the door, but it is more interesting to shake the mobile phone to unlock the door.

  3. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or  machines).

  4. Secure - Using caller ID for identification, unknown callers are ignored.

  5. Can be operated from anywhere, no distance limit.

  6. Add or remove users by SMS Text command.

  7. No need to provide a remote control for different users.

  8. Up to 200 authorized phone numbers can be configured.

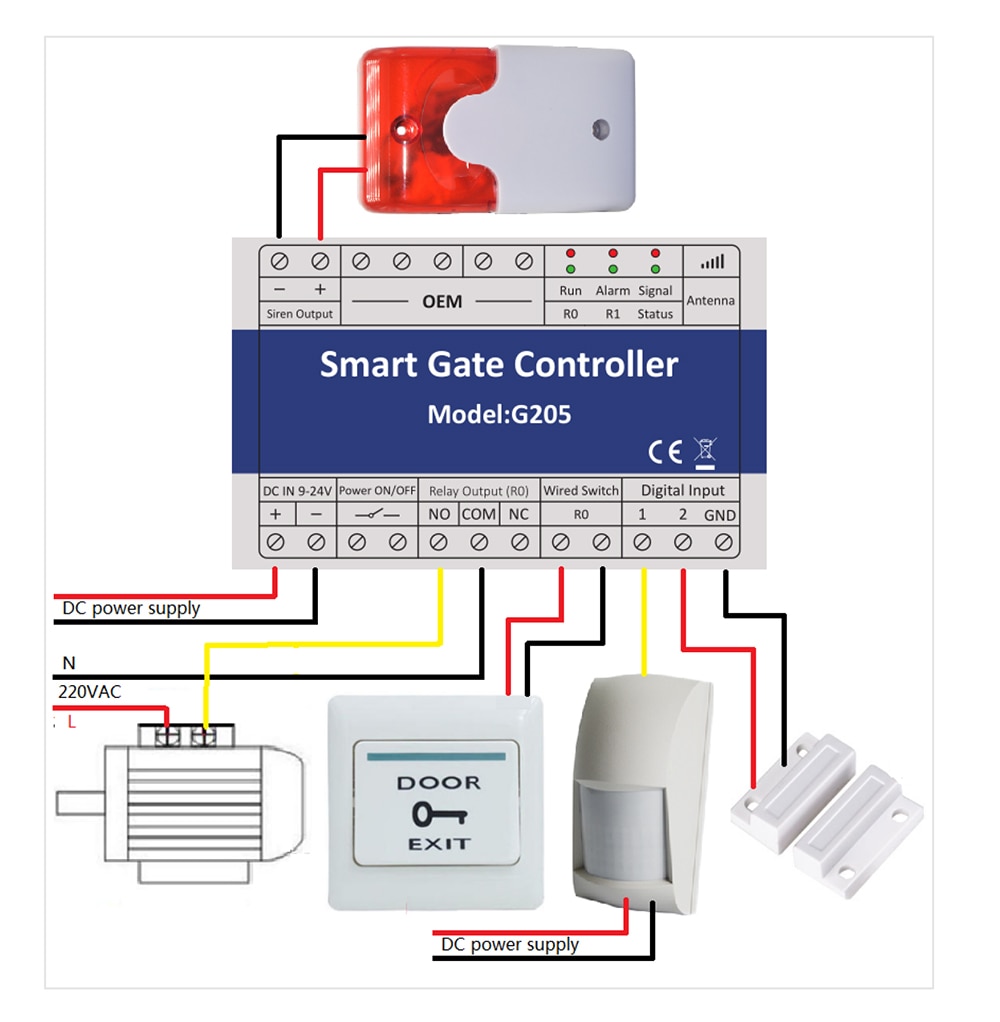

  9. One output with relay (3A/240VAC)for connecting the switch of the door or machines.

  10. The relay action will return a SMS confirmation to the owner, this function is editable by user.

  11. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message and start the siren  immediately.

  12. External AC/DC Power status monitoring, AC/DC On/OFF will send SMS to authorized phone numbers.

  13. Inbuilt MCU monitoring the DC input Voltage value, no need additional sensor to save cost.


  14. Based on GSM Network, applied to many applications.

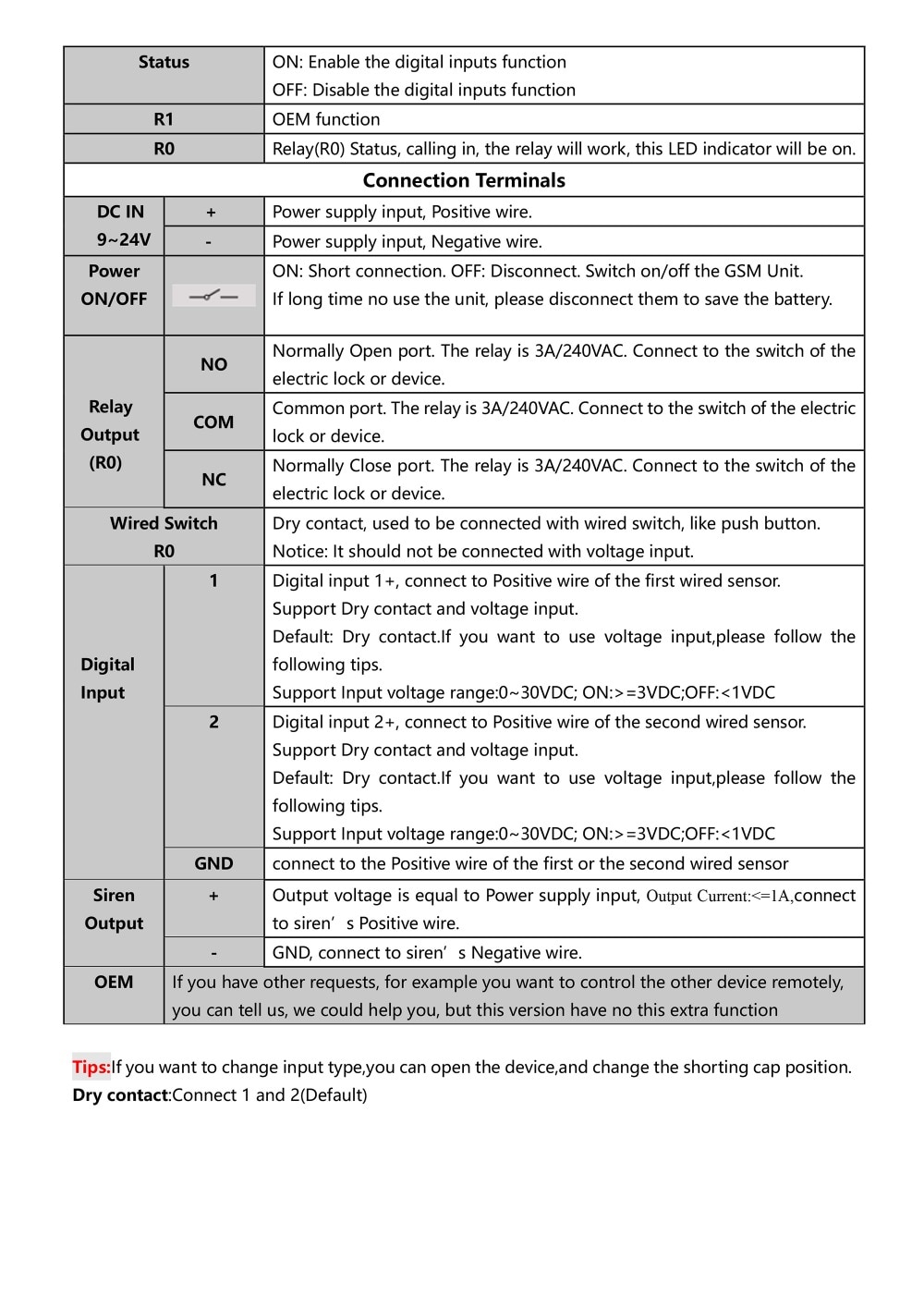

Technical specifications

Rated Voltage: DC 9V~24V/1A

Working temperature: -10℃~+60℃

Storage temperature: -20℃~+60℃

Relative humidity: 10-90%, No condensation

Work frequency:

GSM: 850/900/1800/1900MHz

4G:

4G-C:GSM/4G:900/1800, LTE-FDD  B1/B3/B5/B8      LTE-TDD:B34/B38/B39/B40/B41

4G-E:GSM/4G:900/1800,LTE-FDD   B1/B3/B5/B7/B8/B20( Default version, if you need 4G-C or 4G-SA,please contact the seller )

4G-SA:GSM/4G: 850/900/1800/1900MHz    LTE-FDD B1/B3/B5/B7/B8/B28/B66

Communication protocol: GSM PHASE 2/2+ (include data service)

Related Voltage of the Output Relay: 3A/240V AC

SIM Card:Nano type, 3V

Antenna: 50 Ω SMA

Wired Switch: Supports

Wired Zones: 2

Dimension: 96.5*72*59mm








  • Model Number: G205
  • Brand Name: BADODOSECURITY
  • Origin: Mainland China
  • Certification: NONE
  • Smart home platform: NONE
