EASUN POWER Solar Hybrid Inverter 6KW 48V 4KW 50Hz/60Hz Hybrid Inverter 230VAC Pure Sine Wave 120A MPPT NO Battery Work inversor
0.0 (13 votes) | 98 orders
Price:
US $2250.60 - 2657.50
/ piece
Discount Price:
US $
1414.02 -
1621.54
/ piece
-37%
- Color
-
-

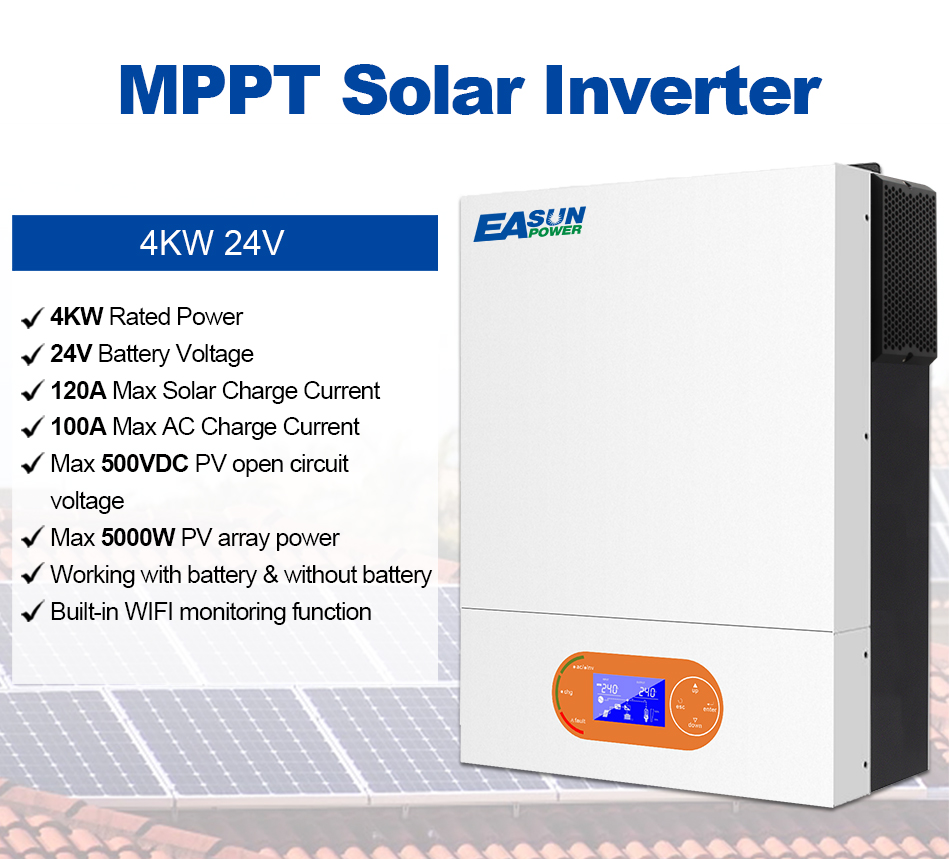

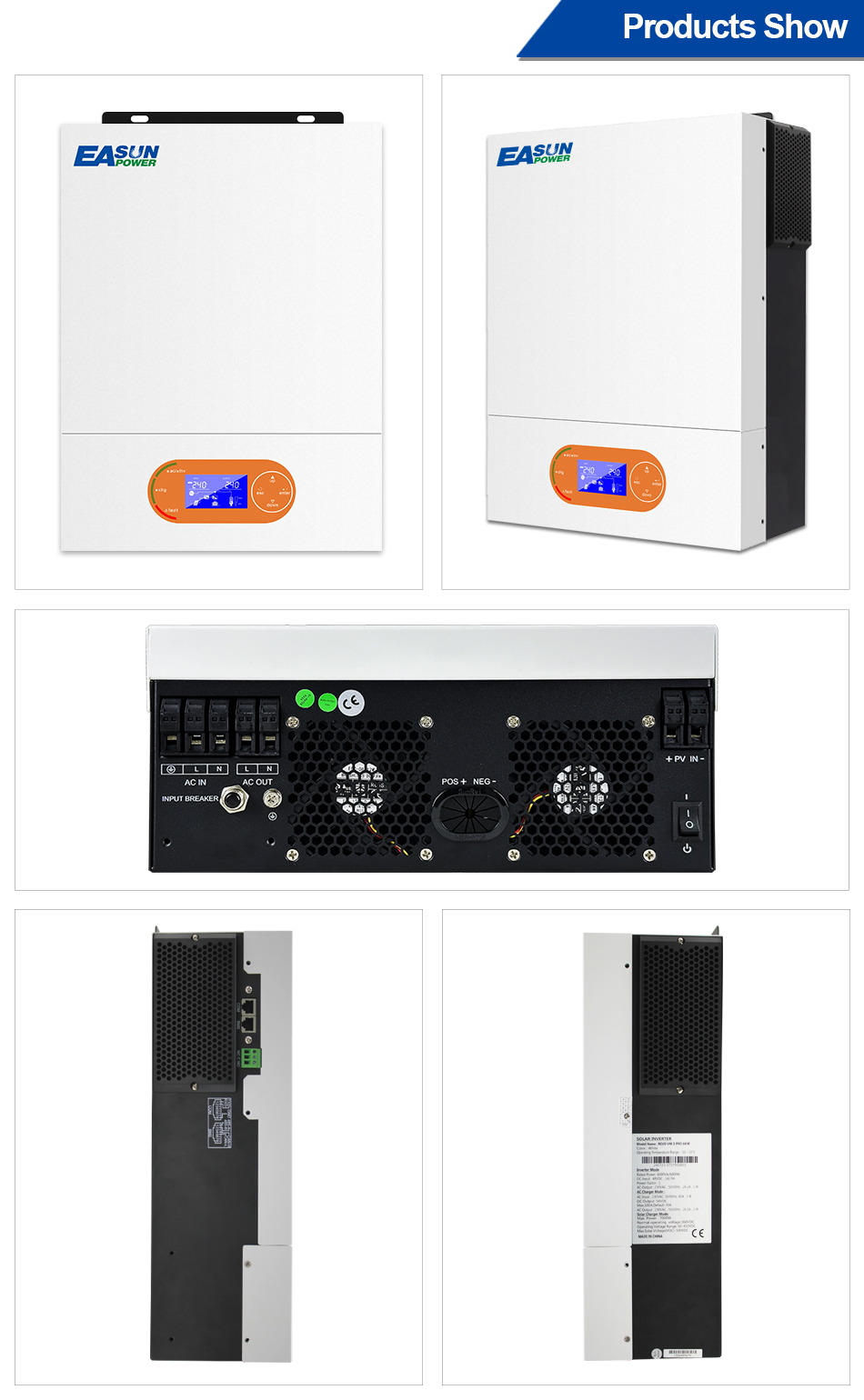

EASUN POWER 6KW 4KW solar inverter 48VDC 24vDC hybrid mppt 4000W 6000W pure sine wave hybrid charge controller 120A off grid On Grid

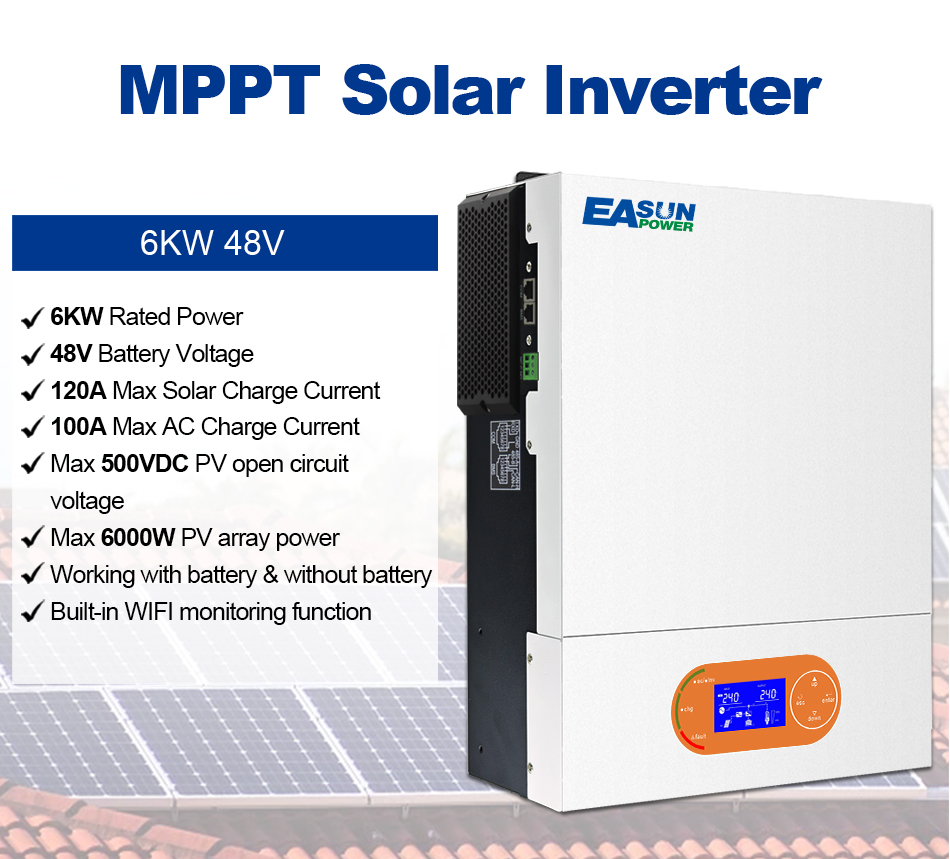

Feature Of SMR-II-4KW/6KW PRO Hybrid Solar Inverter
1.Pure Sine Wave Solar Inverter
2.Max 120A MPPT Solar Charger
3.Max 500VDC PV Input
4.2 Loads Output To Guarantee your important equipment always running
5.High PV input voltage range(60~450VDC)
6.Output power factor 1.0
7.Real Hybrid Solar inverter for 24V/48V system
8.Wifi Module for easily connection
9.Efficiency work with or without battery
10.Bundled monitoring & setting software
11.Supports 50hz or 60hz (program adjustable)
12.Able to use ac grid or generator power
13.Built-in anti-dusk kit for harsh environment
14.Optional DC output for DC fan, LED bulb,router and so on
15.PC online monitor support

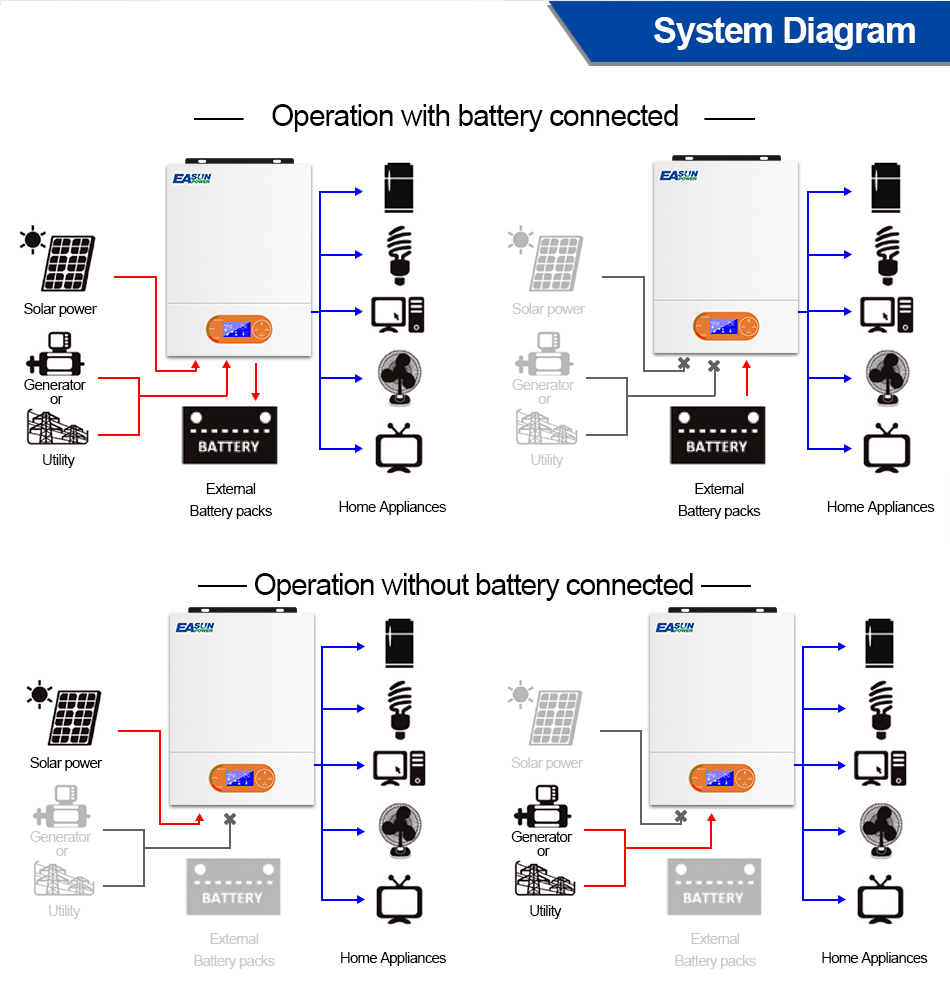

What is 2AC out function?
when there is no Main/AC IN/GRID INPUT ,and the battery lower than the setted voltage .
the main AC out will cut off automatically, the battery or pv only offer power for the second AC out
To Guarantee your important equipment always running
DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER
What is the BMS model?
Difference between BMS and without BMS:
If the battery has BMS, after plugging in the BMS, the inverter and the battery will communicate and automatically adjust the charging voltage cut-off voltage and other parameters, and various parameters will be adjusted at any time according to the condition of the battery, which will be a higher level for the life of the battery and the safety of use.
The inverter and battery need to have BMS functions at the same time to communicate with each other.
Note:

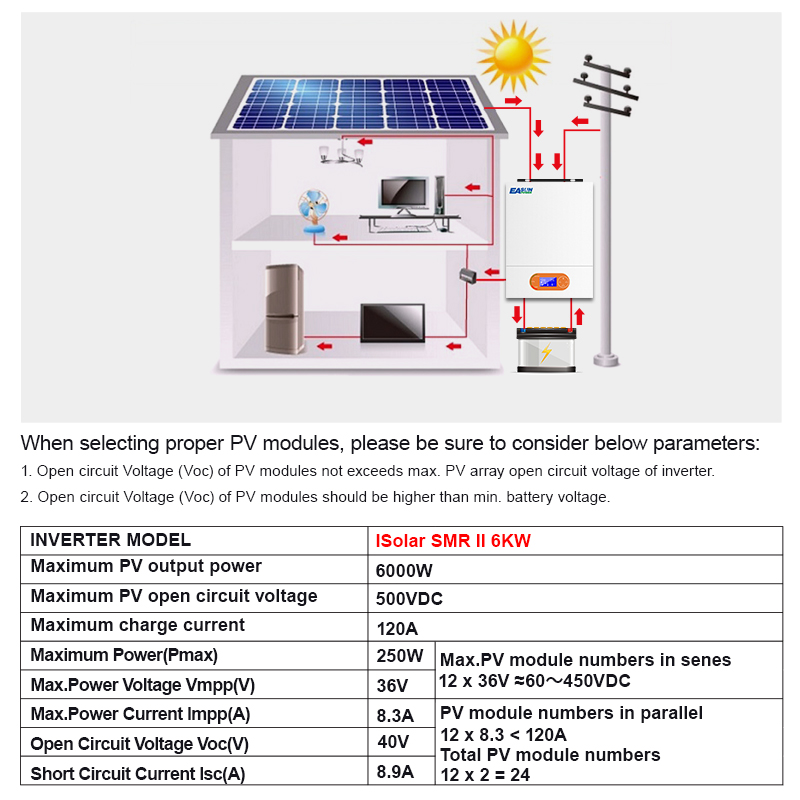

This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 90V for the inverter to work normally, if with external battery 60V is working.
model |
Isolar-SMR-II-4KW |
Isolar-SMR-II-6KW |
RatedPower |
4000VA/4000W |
6000VA/6000W |
ACINPUT |
||
ACVoltage |
230VAC |
|
VoltageRange |
170-280VAC（ForPersonalComputers）；90-280VAC（ForHomeAppliances） |
|
Frequency Range |
50/60Hz（Autosensing） |
|
ACOUTPUT |
||
SurgePower |
8000VA |
12000VA |
ACVoltageRegulation(BatteryMode) |
230VAC土5% |
|
Ratedfrequency |
50/60Hz |
|
Efficiency(Peak) |
93% |
|
TransferTime |
10ms(ForPersonalComputers);20ms(ForHomeAppliances) |
|
BATTERY |
||
BatteryVoltage |
24VDC |
48VDC |
FloatingChargeVoltage |
27VDC |
54VDC |
OverchargeProtection |
33VDC. |
63VDC |
Batterytype |
Lithium/Lead-acid |
|
SOLARCHARGER&ACCHARGER |
||
MaximumPVArrayOpenVoltage(V) |
500VDC |
|
MaximumPVArrayPower |
5000W |
6000W |
MPPTvoltagerange(V) |
60~450VDC |
|
Maximuminputcurrent |
27A |
|
MPPTtracker/strings |
1 |
|
Maximumsolarchargecurrent |
120A |
|
MaximumACchargecurrent |
100A |
|
Maximumchargecurrent |
120A |
|
PROTECTION&FEATURE |
||
ACovercurrent |
Yes |
|
ACovervoltage |
Yes |
|
Overtemperatureprotection |
Yes |
|
Smartloadmanagement |
Yes(optional) |
|
OnGrid |
Yes(optional) |
|
GENERALPARAMETERS |
||
Operationtemperature |
-10°C~50°C |
|
Relativehumidity |
5%~95%(Non-condensing) |
|
Altitude |
(2000mDerating) |
|
DimensionsDxWxH(mm) |
400*300*115 |
|
Net Weight(KG) |
8.5 |
9 |
COMMUNICATION |
||
Interface |
Standard:RS232,USB;CAN&RS485;Optional:WiFi,Bluetooth |
|
Safetystandard |
EN/IEC62109-1,EN/IEC62109-2 |
|
Packaging Details
- Unit Type: piece
- Package Weight: 10.500
- Package Size: 39x19x42
- Brand Name: POWLAND
- Hign-concerned Chemical: None
- Type: DC/DC Converters
- Origin: Mainland China
- Size: 400*300*115mm
- Output Frequency: 50/60HZ
- Output Type: SINGLE
- is_customized: Yes
- Output Current: 120A
- Output Power: 1 - 200KW
- Weight: 10.5KG
- Model Number: ISolar-SMR-II-6KW-Wifi
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Model: ISolar-SMR II 6KW Wifi
- Model: ISolar-SMR II 4KW Wifi
- Hybrid inverter: Can't Selling Electricity
- Hybrid Solar inverter: Can't Sell POWER
