High Precision 1.3/1.5 Inch Right Angle Vise Grinder CNC Vise Gad Tongs For Surface Grinding Machine Milling Clamp Edm Machine
4.9 (35 votes) | 144 orders
Price:
US $75.40 - 81.32
/ piece
Discount Price:
US $
54.29 -
58.55
/ piece
-28%
- Ships From
- Color
-
-

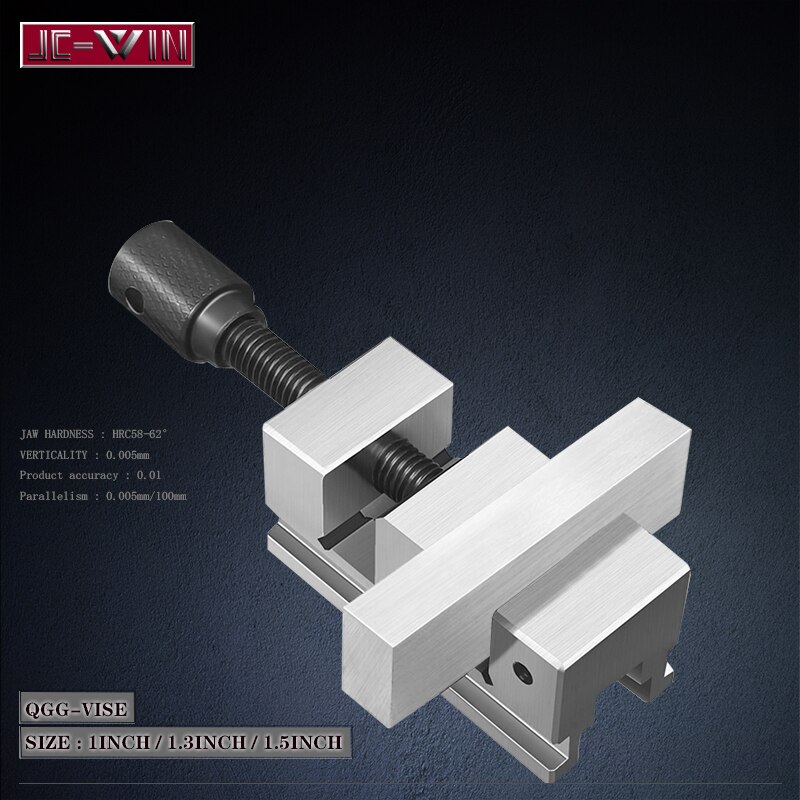

Product name : precision flat-nose pliers 0.005
Specation : 1inch / 1.3inch / 1.5inch
Product material : Alloy Carbon TOOL Steel
Product accuracy : 0.01
Jaw hardness : HRC58-62°
Parallelism : 0.005mm/100mm
Verticality : 0.005mm
Package Included ：1 x Vise
FRIENDIY REMINDER :If the product model you need is not in the link, you can contact customer service at any time! We will contact you as soon as we receive the information!
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
QGG-VISE
PRECISION FLAT NOSE PLIERS

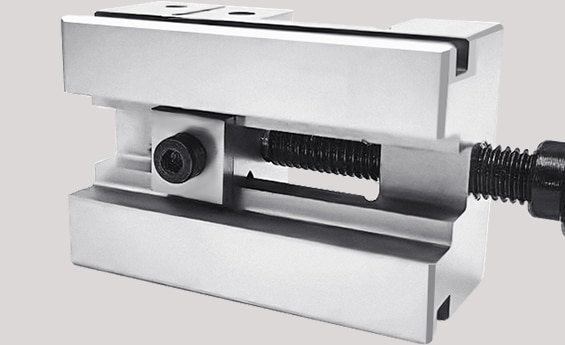

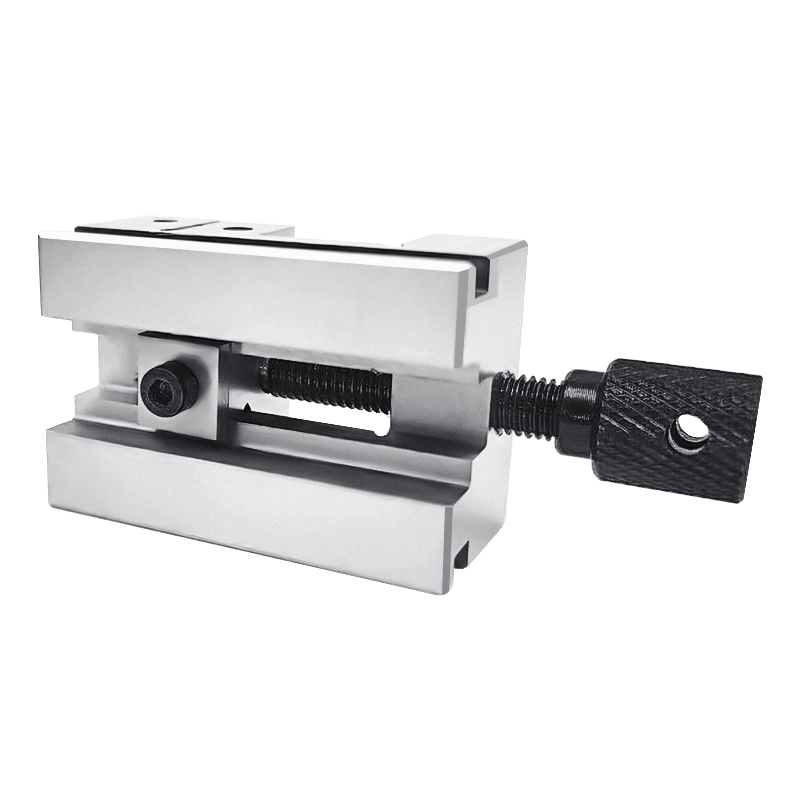

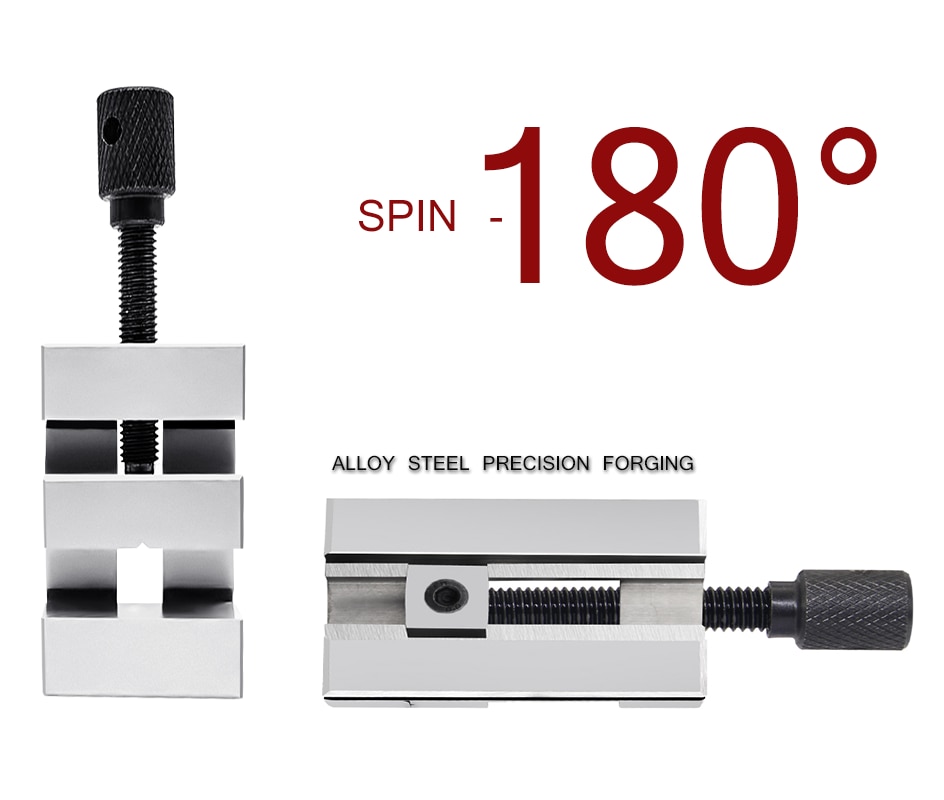

CAN BE USED UPRIGHT AND SIDEWAYS
Performance/Features:
1. High accuracy can be maintained for both side and upright use Simple product structure,
wide adjustment range
2. It is an ideal tool for precision measurement and inspection, suitab
for precision grinding,milling and cutting machine tools

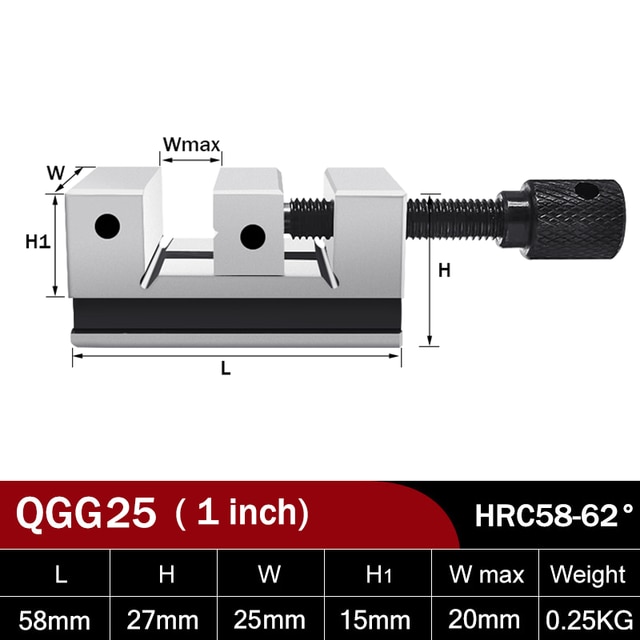

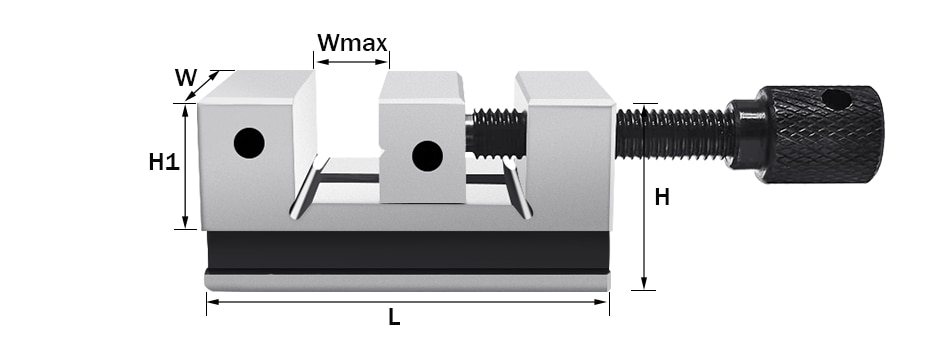

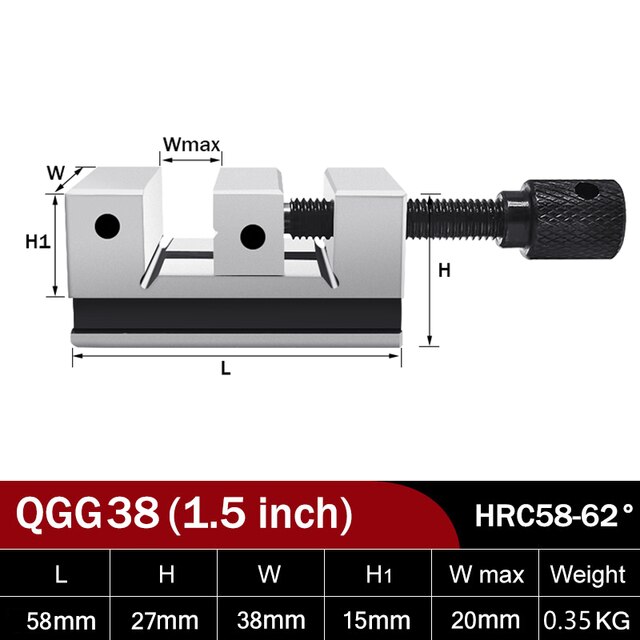

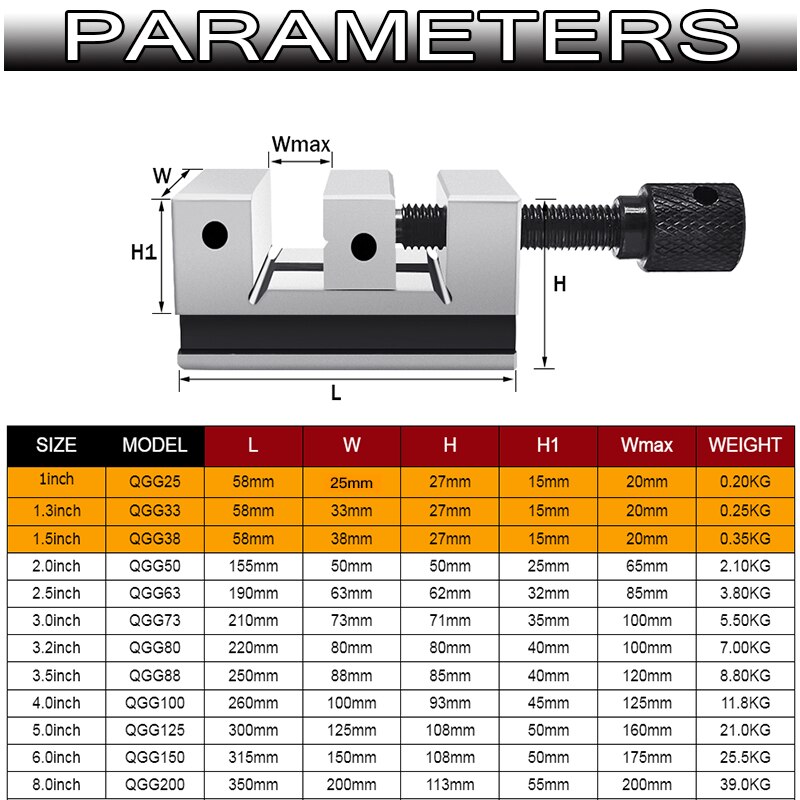

PARAMETERS
SIZE | MODEL | L | W | H | H1 | Wmax | WEIGHT |
1inch | QGG25 | 58mm | 25mm | 27mm | 15mm | 20mm | 0.20KG |
1.3inch | QGG33 | 58mm | 33mm | 27mm | 15mm | 20mm | 0.25KG |
1.5inch | QGG38 | 58mm | 38mm | 27mm | 15mm | 20mm | 0.35KG |
2.0inch | QGG50 | 155mm | 50mm | 50mm | 25mm | 65mm | 2.10KG |
2.5inch | QGG63 | 190mm | 63mm | 62mm | 32mm | 85mm | 3.80KG |
3.0inch | QGG73 | 210mm | 73mm | 71mm | 35mm | 100mm | 5.50KG |
3.2inch | QGG80 | 220mm | 80mm | 80mm | 40mm | 100mm | 7.00KG |
3.5inch | QGG88 | 250mm | 88mm | 85mm | 40mm | 120mm | 8.80KG |
4.0inch | QGG100 | 260mm | 100mm | 93mm | 45mm | 125mm | 11.8KG |
5.0inch | QGG125 | 300mm | 125mm | 108mm | 50mm | 160mm | 21.0KG |
6.0inch | QGG150 | 315mm | 150mm | 108mm | 50mm | 175mm | 25.5KG |
8.0inch | QGG200 | 350mm | 200mm | 113mm | 55mm | 200mm | 39.0KG |
QGG200max | 370mm | 200mm | 113mm | 55mm | 220mm | 40.0KG | |
SHOW DETAILS
PRODUCT DESCRIPTION

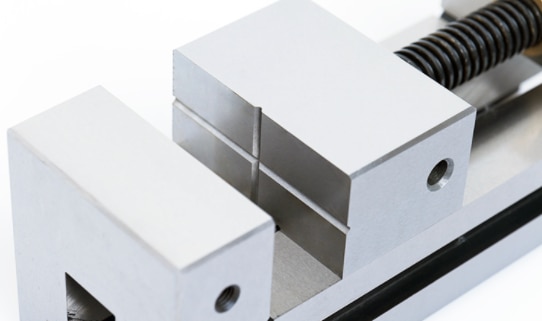

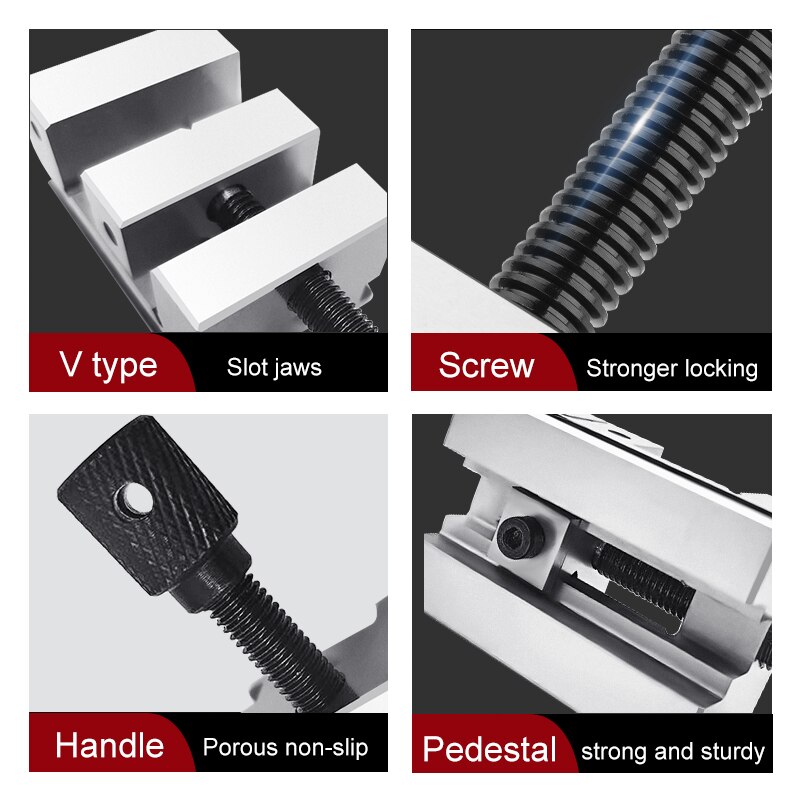

| V TYPEDEEP GROOVE | ||||
The jaws adopt a V-shaped cross design | |||||
Increase clamping force and stability | |||||
Porous design, no special wrench needed | |||||
Rotate to step up | |||||
High hardness 58~62° | |||||
CHigh precision of one-piece molding |
| BOTTOM PAD | ||||
Use high-hardness steel | |||||
Durable and wear-resistant | |||||
Ensure product stability | |||||
The work can be erected and placed horizontally | |||||
Simple and quick operation | |||||
Really material, refuse to cut corners |

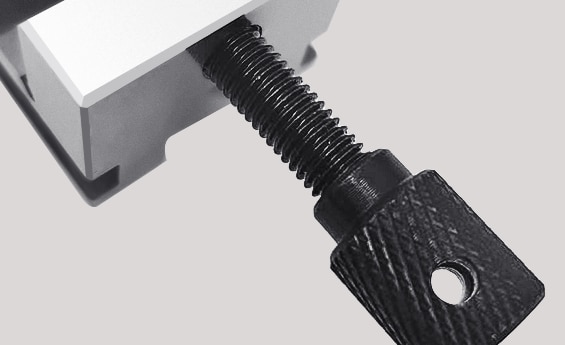

| PRECISION SCREW ROD | ||||
Using turning processing | |||||
The lines are clearly visible | |||||
The screw rod adopts hard processing | |||||
Long service life | |||||
Increase smoothness | |||||
Provide stronger clamping force |
BUYING TIPS
◆1. Feel free to contact us for the datasheet or specification if needed.
◆2. Any question about the product, just let us know. We are always ready and will try our best to help you!
◆3. The images shown are for your reference only.
◆4. Please leave your full name and ensure your phone number address and postal code are detailed, correct and available for contacting. If you need to
change to anew address, contact us as soon as possible.
PAYMENT
◆1. We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
◆2. Payment must be confirmed within 3days.
SHIPMENT AND TRACKING
◆1. WORLDWIDE SHIPPING,（Except some countries and APO/FPO）
◆2. We process orders timely after payment verification.
◆3. We only ship to the confirmed order address. Your order address MUST MATCH you shipping address.
◆4. SERVICE TRANSIT TIME is provided by the carrier, excluding weekends and holidays. Transit times may vary per different countries and regions,
particularly during the holiday season.
◆5. If you don’t receive the product you purchased within 30days, please contact us in time. We will track the order and reply you as soon as possible.
TAX AND CUSTOMS
Buyers pay for your local import duties and tax.
We do not cover any tax and customs, or duties in price and shipping fee.
If you need any help, just feel free to contact us.
GUARANTEE and RETURN and REFUED
Upon/After transaction, it is deemed that you have accepted and agreed to the following terms.
◆1. We provide 12-month Manufacturer's limited Warranty for defective items (excluding items damaged and/or misused after receipt).
◆2. Defective items Must Be reported and returned within the warranty period and n the original package.
◆3. All products are checked and packaged well before our shipment. In case it is defective, please inform us within 3 days after receiving it.
If this item is in your possession more than 3 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT.
◆4. All returned items must be in the original packaging and you must provide us with the shipping tracking number,
specific reason for the return, and you order number.
◆5. We will arrange the replacement for you when the situation is confirmed, and the shipping cost is bear by both seller and buyer in half.
- Drive Mode: Manual
- Type: Bench Vise
- Model Number: QGG Vise
- Origin: Mainland China
- Certification: CE
- Material: Alloy carbon tool steel (20rMnTi)
- hardness: HRC58-62°
- Precision: 0.005/100mm
- Type: Angle Vise
- specification: 1"/1.3"/1.5"
- Features: V-shaped cross design
- Manufacturing process: One-batch forming
