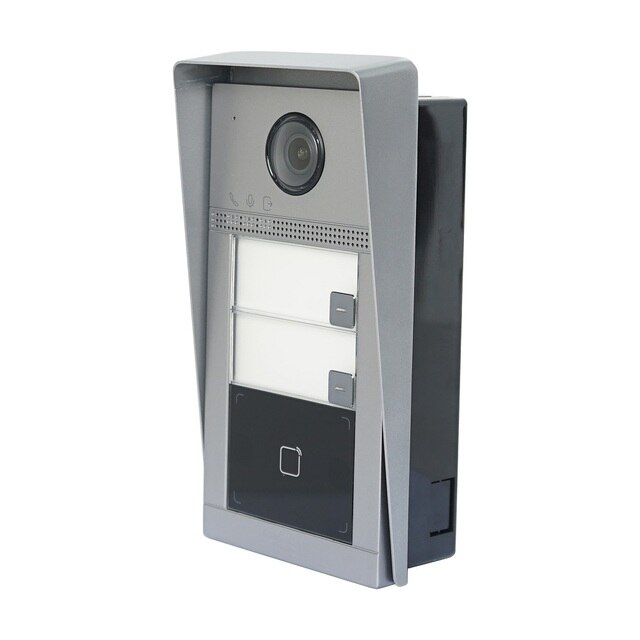

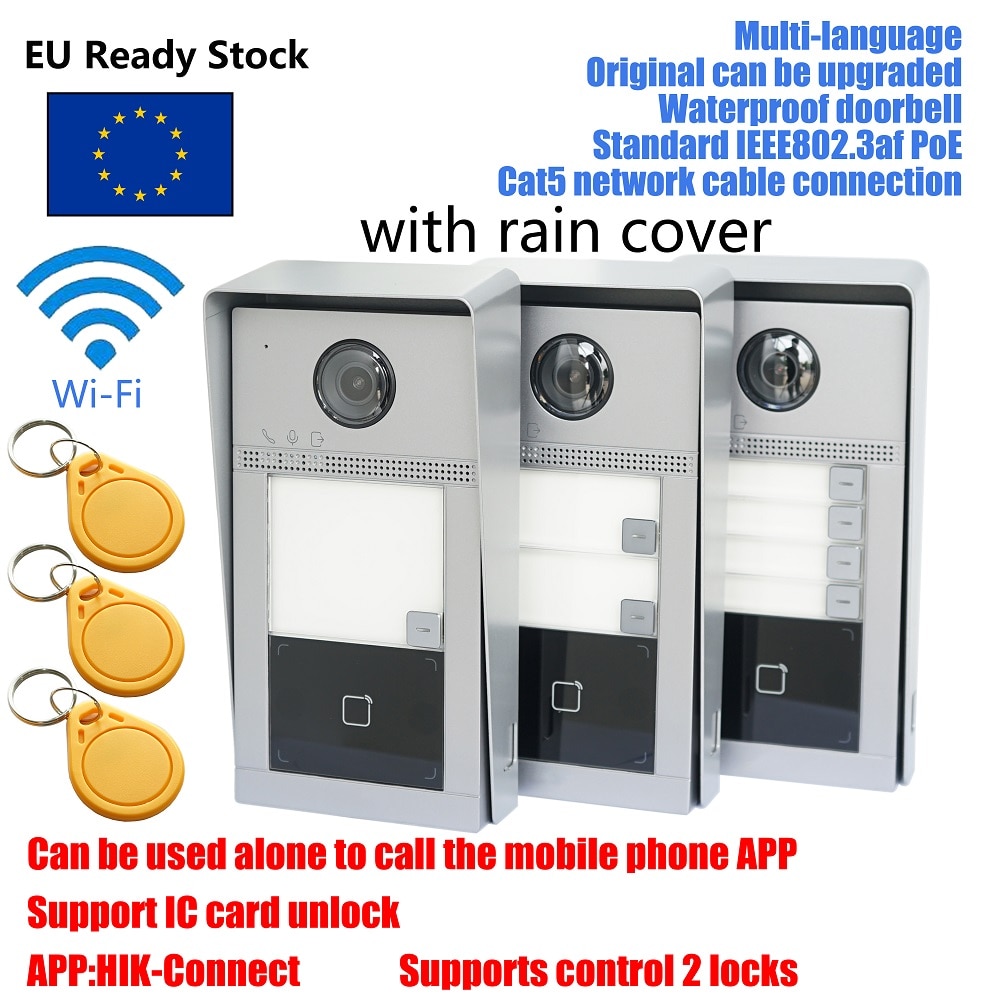

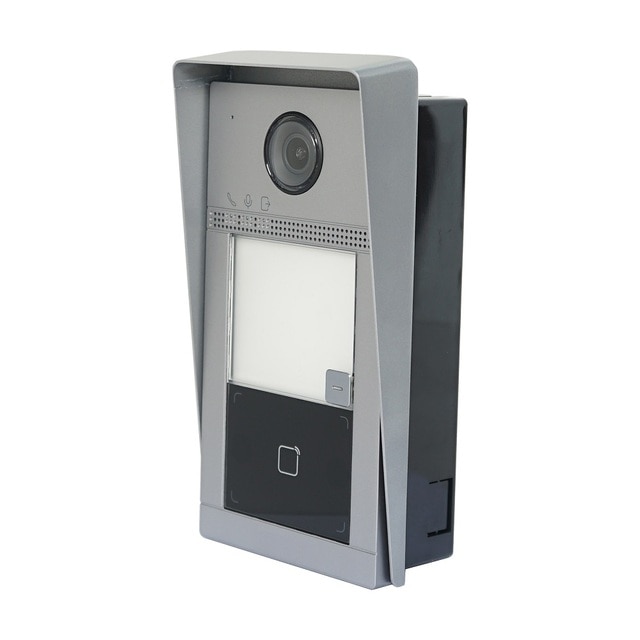

HIK 1-4 button DS-KV8113/8213/8413-WME1(C) IP Doorbell,WiFi Doorbell ,Door phone, Video Intercom,waterproof, support Card
5.0 (3 votes) | 40 orders
Price:
US $296.40 - 380.00
/ piece
Discount Price:
US $
251.94 -
323.00
/ piece
-15%
Important:
If you have any questions about EU Tax, Please chat with me
NOTE:
This link is only sell a Door station,
not include monitor、PoE Switch
monitor need buy from other link.
Support official firmware upgrade.
If you need a indoor monitor, press this photo to buy:

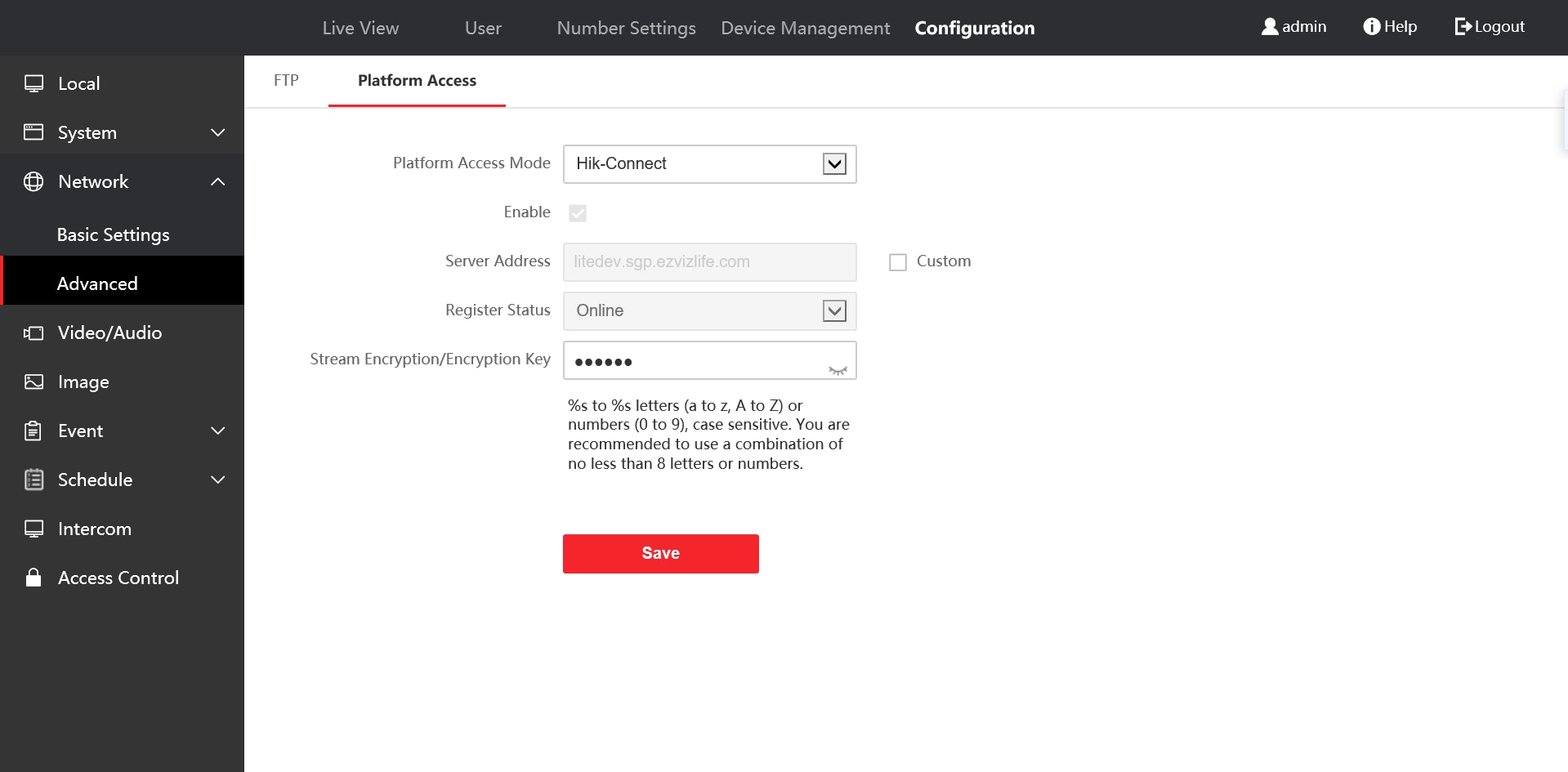

Only model KV8113 support call Hik-Connect without indoor station, KV8213 and KV8413 don’t support, they must work together with indoor station and add indoor station to Hik-Connect.
The same hik-connect account can log in to multiple different mobile phones at the same time, all apps can receive calls, but only the first app that picks up the answer can make video calls, and other apps will not be able to answer at this time.

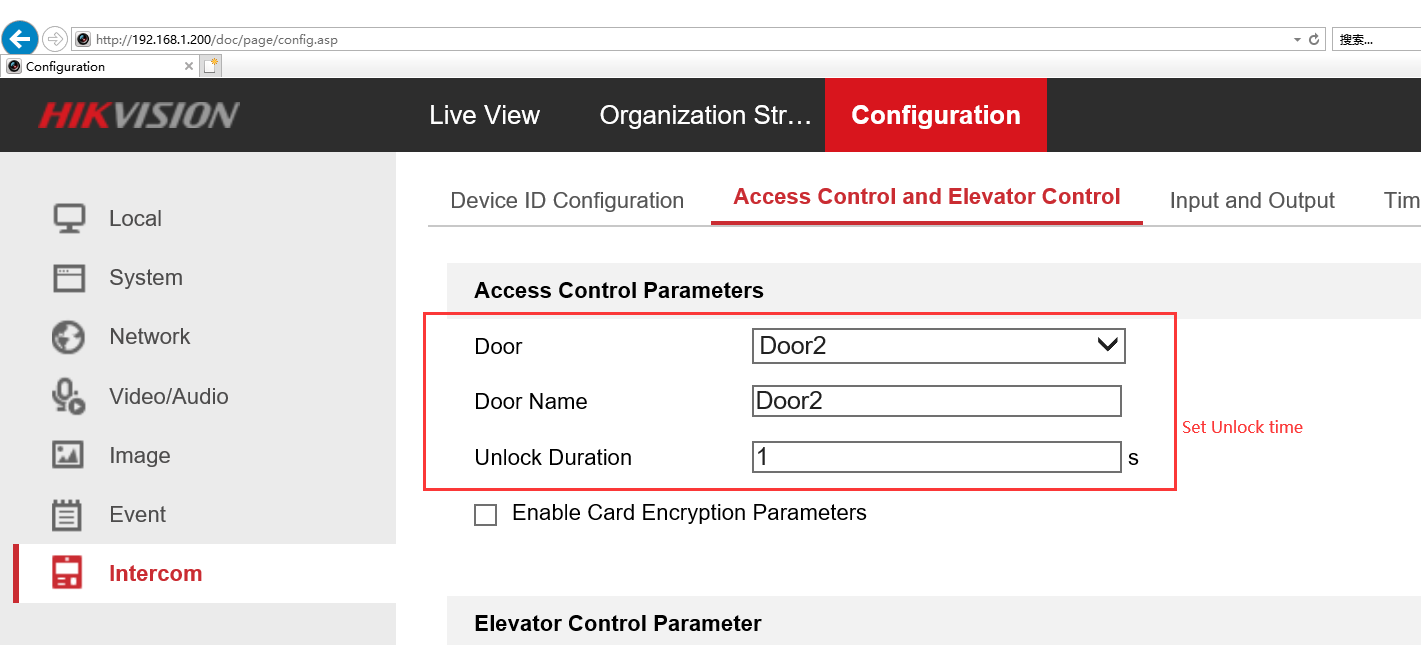

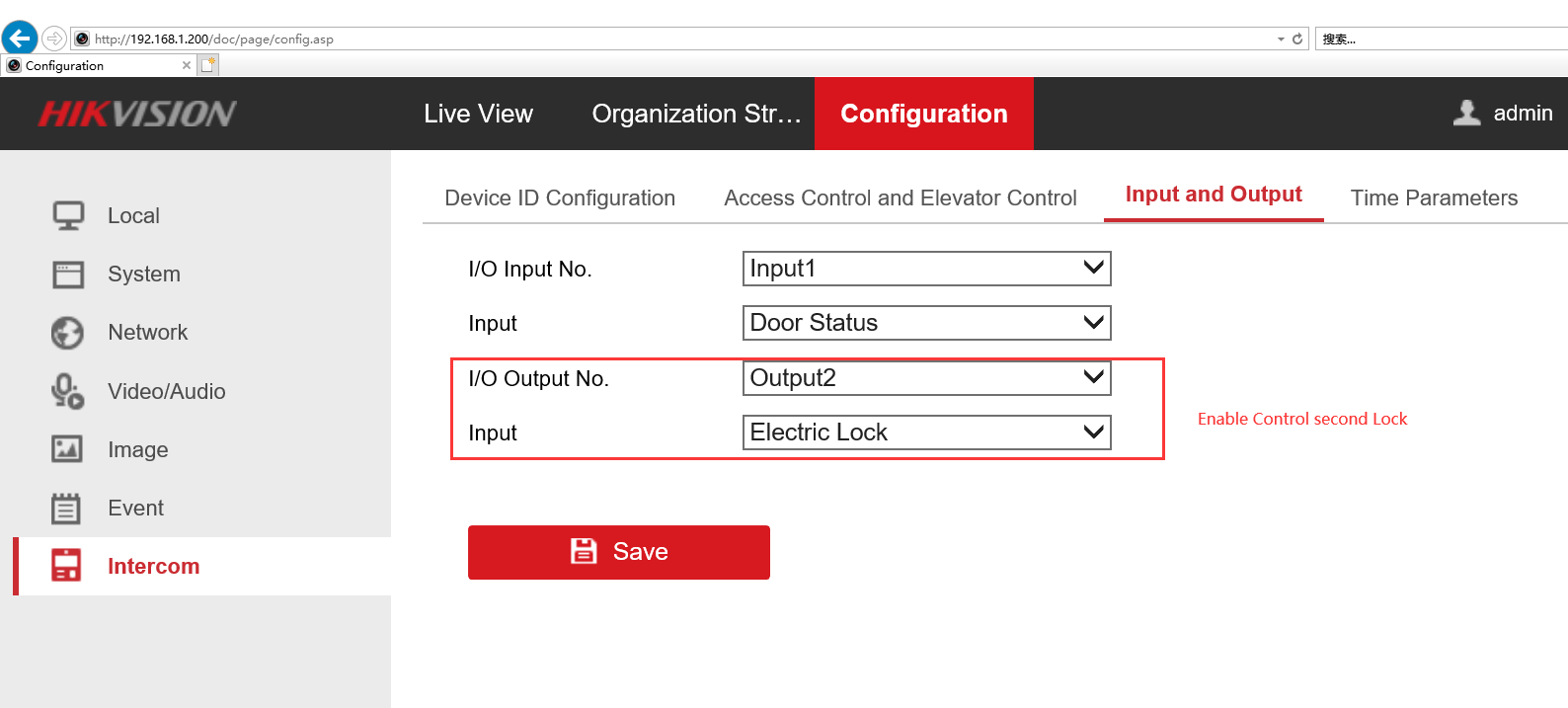

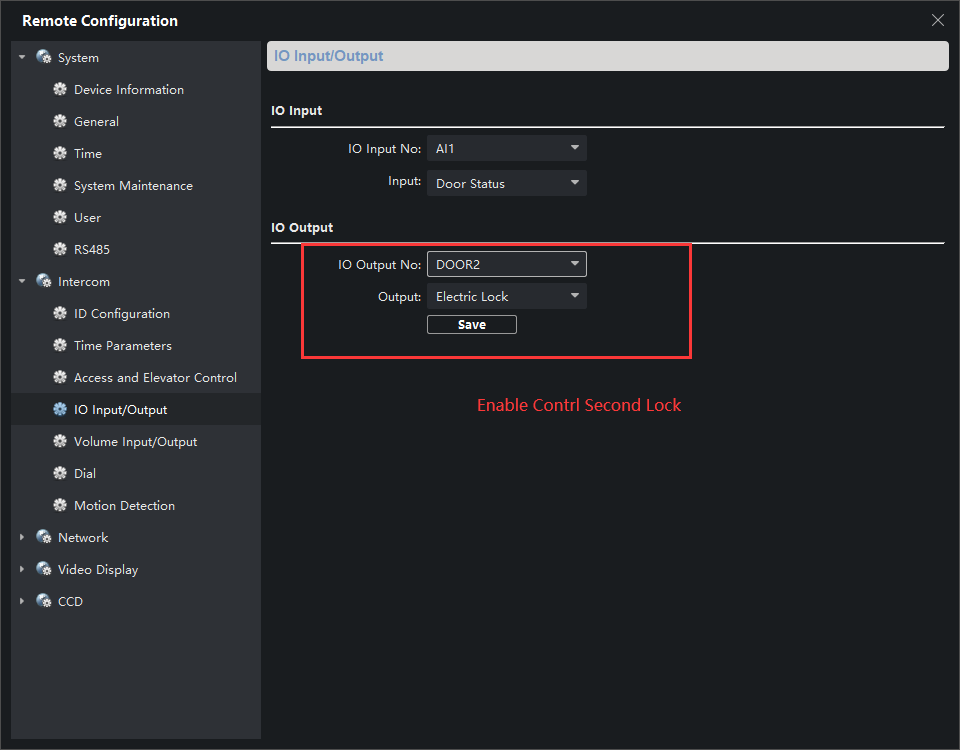

It has two relays,It can control two locks direct, no need Access module DS-K2M080
Support language:
English, French, Portuguese (Brazil),Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch,Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian

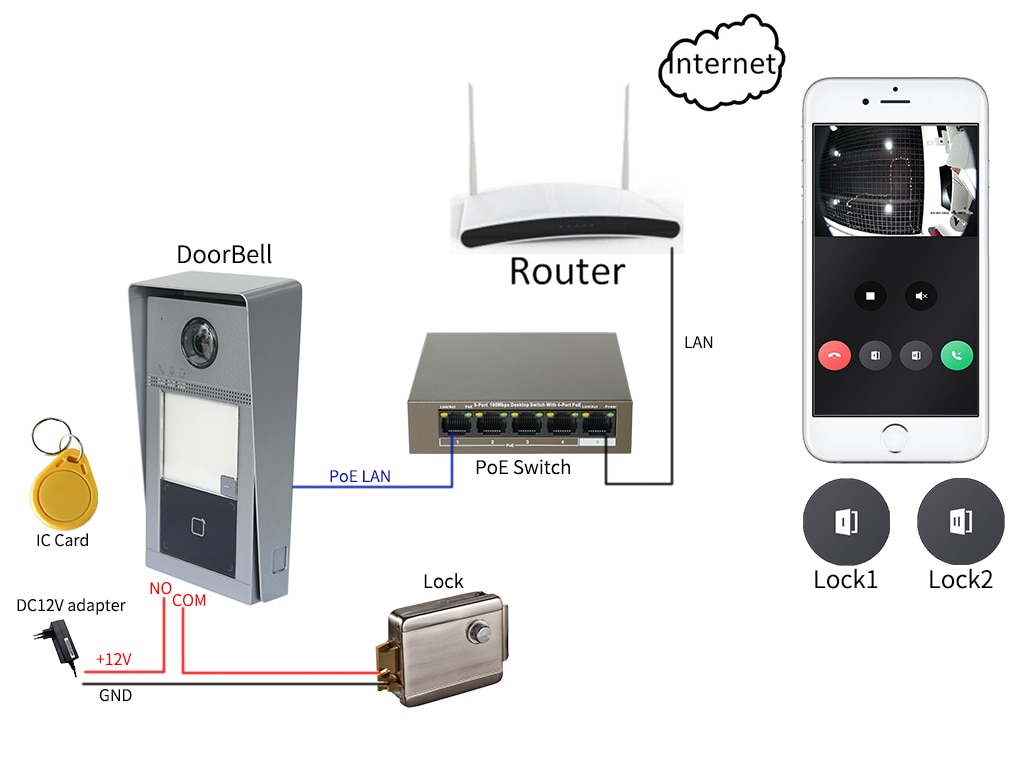

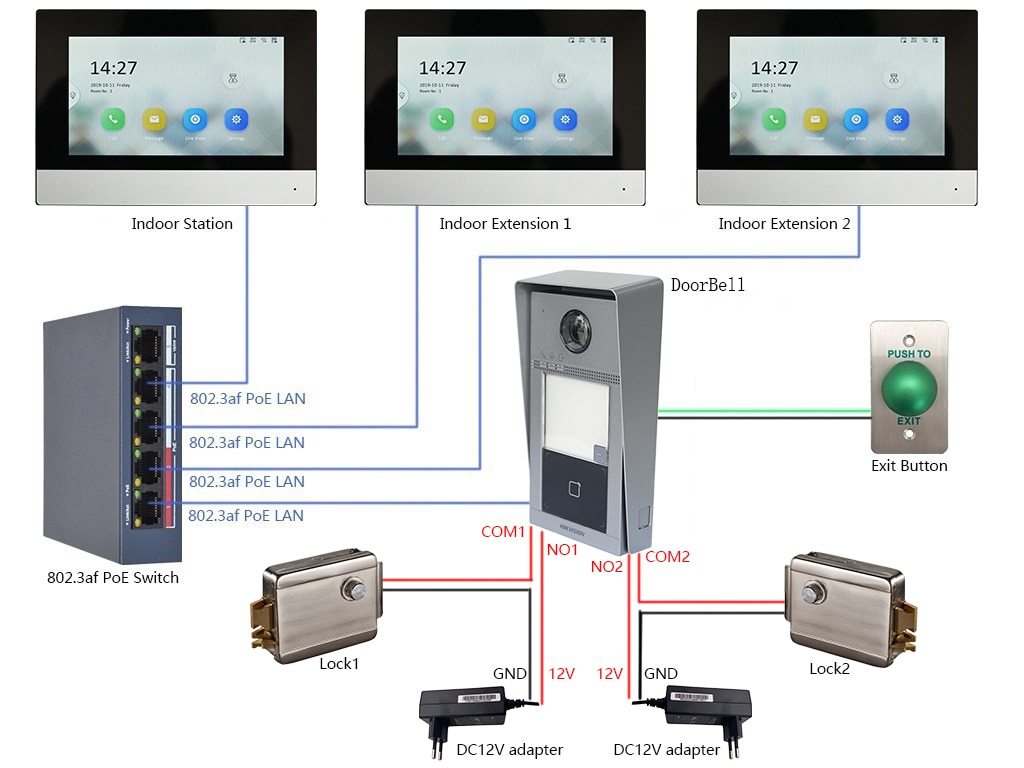

Scenes 1: multiple monitors
Scenes 2: use alone
Scenes 3: use alone
If you need a compatible PoE switch, press this photo to buy:
System Parameters | |
Operating System | Embedded Linux operation system |
ROM | 32 M |
RAM | 256 M |
CPU | Embedded MCU Processor |
Display Parameters | |
Screen Size | / |
Operation Method | / |
Type | / |
Resolution | / |
Video Parameters | |
Lens | 1 |
Resolution | Main stream : 1920*1080 |
Sub stream : 640*480 | |
FOV | Horizontal: 124° Vertical: 75° |
WDR | Support |
Supplement Light | IR supplement |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression Standard | G.711 U, G.711 A |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker (more than 80 dB within 30 cm) |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
User Capacity | 2000 |
Card Capacity | 10000 |
Linked Indoor Station Capacity | Max6(1main indoor station,5sub indoor station) |
Sub Door Station Capacity | 16 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | 10/100 Mbps self-adaptive Ethernet |

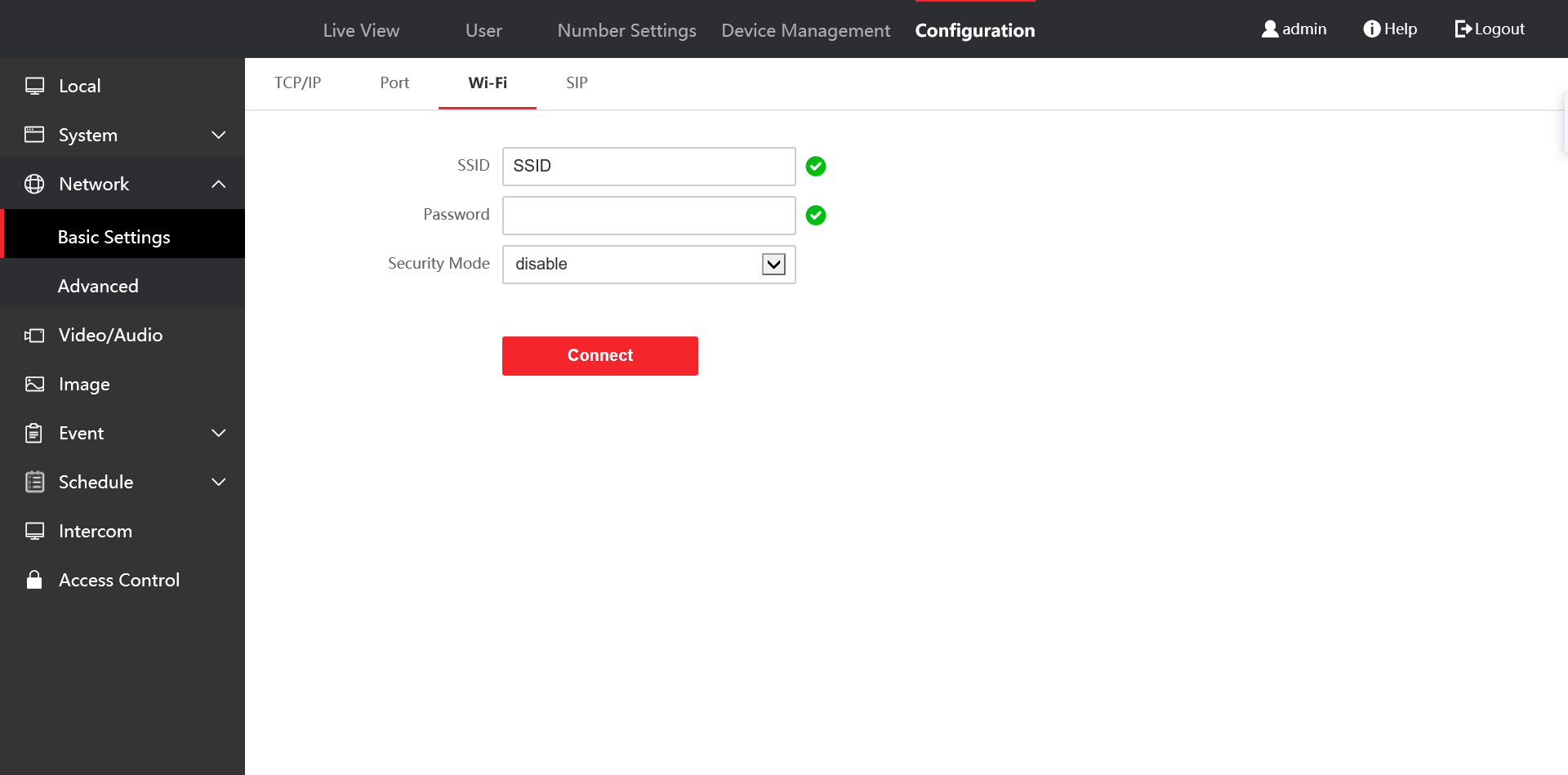

Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
Bluetooth Version | / |
3G/4G Standard | / |
Received Frequency | 2.4 to 2.4835GHz |
Transmitted Frequency | 2.4 to 2.4835 GHz |
Bandwidth | 20/40 MHz |
Frequency Power | 802.11b:15 dBm +/- 1.5 dBm |
802.11g:15 dBm +/- 1.5 dBm | |
802.11n(ht20):14 dBm +/- 1.5 dBm | |
802.11n(ht40):12 dBm +/- 1.5 dBm | |
Authentication | |
Card Reading Frequency | 13.56 MHz |
Device Interfaces | |
Alarm Input | 4 |
Network Interface | 1 |
TAMPER | 1 |
Exit Button | 2 Max. |
RS-485 | 1 |
USB | 0 |
Wiegand | 0 |
TF Card | 1(Reserved) |
Alarm Output | 0 |
Lock Control | 2 |
Door Contact Input | 2 |
Power Interface | 1 |
General | |
Button | 1 |

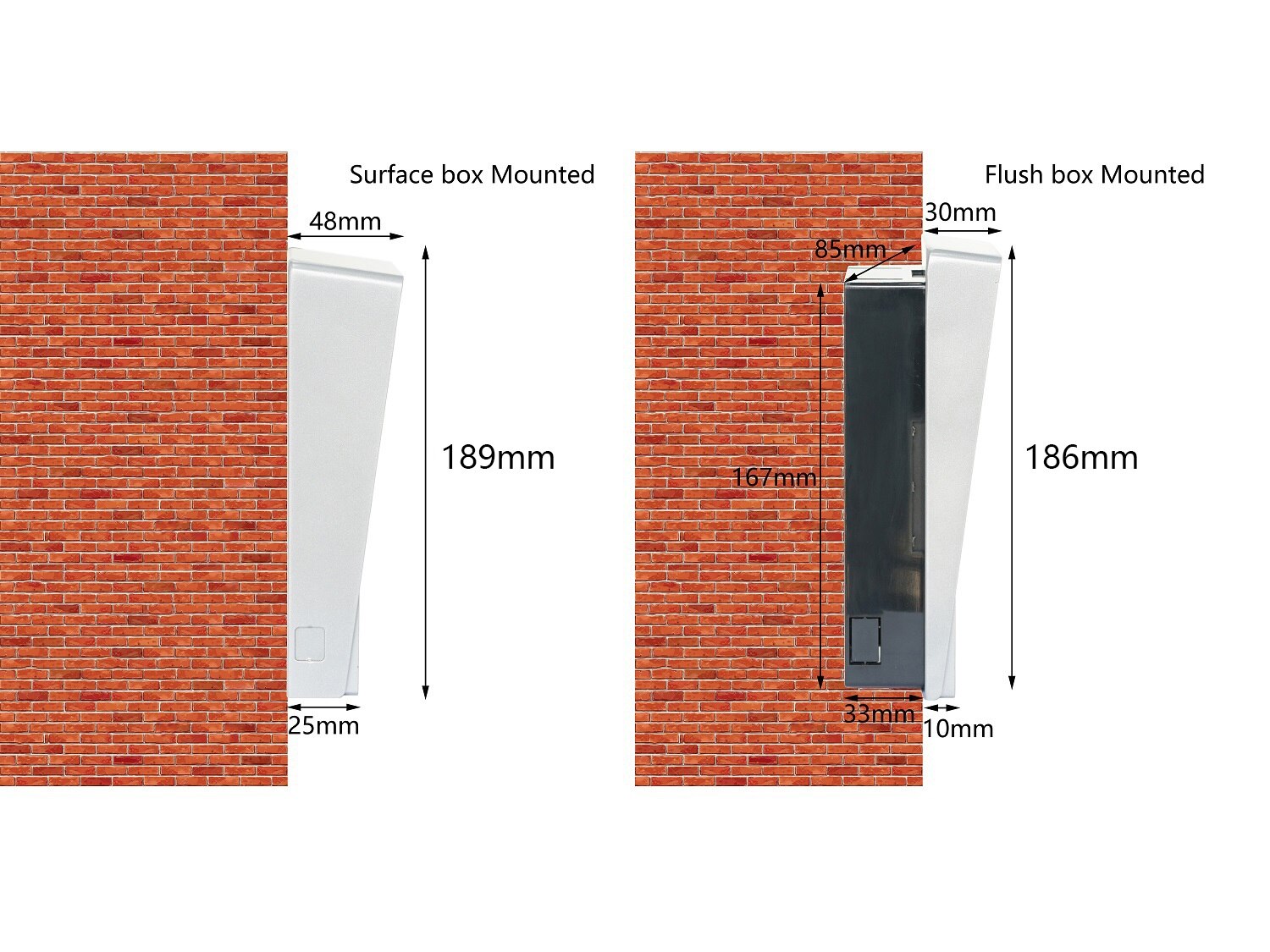

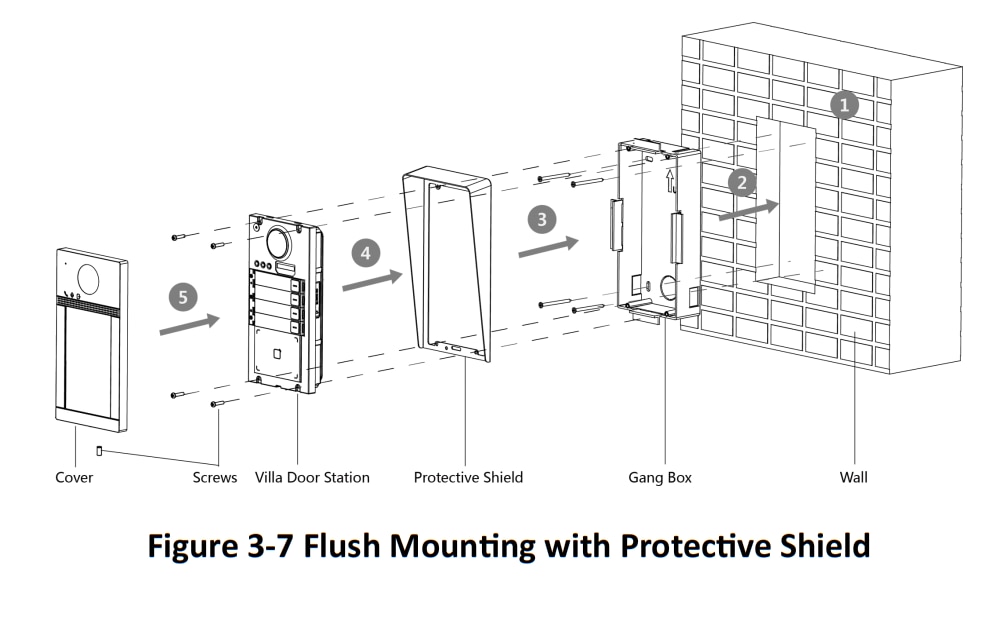

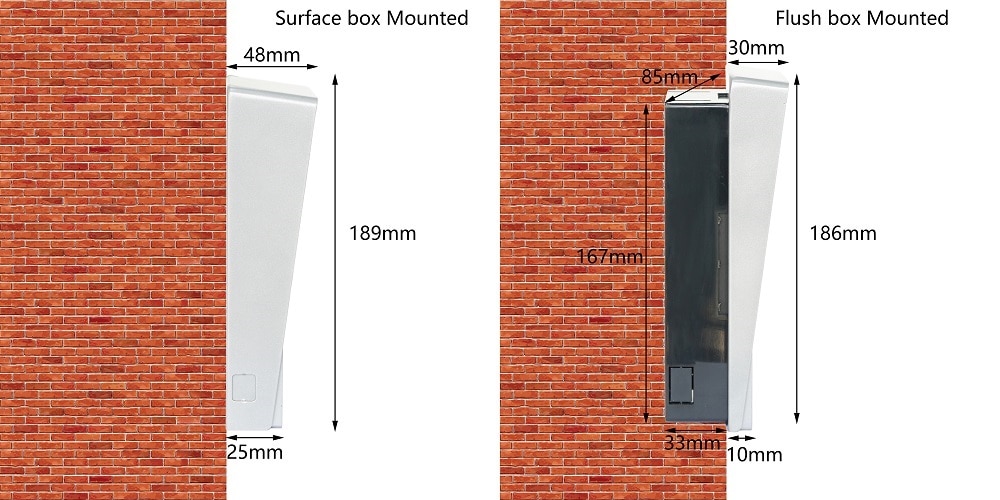

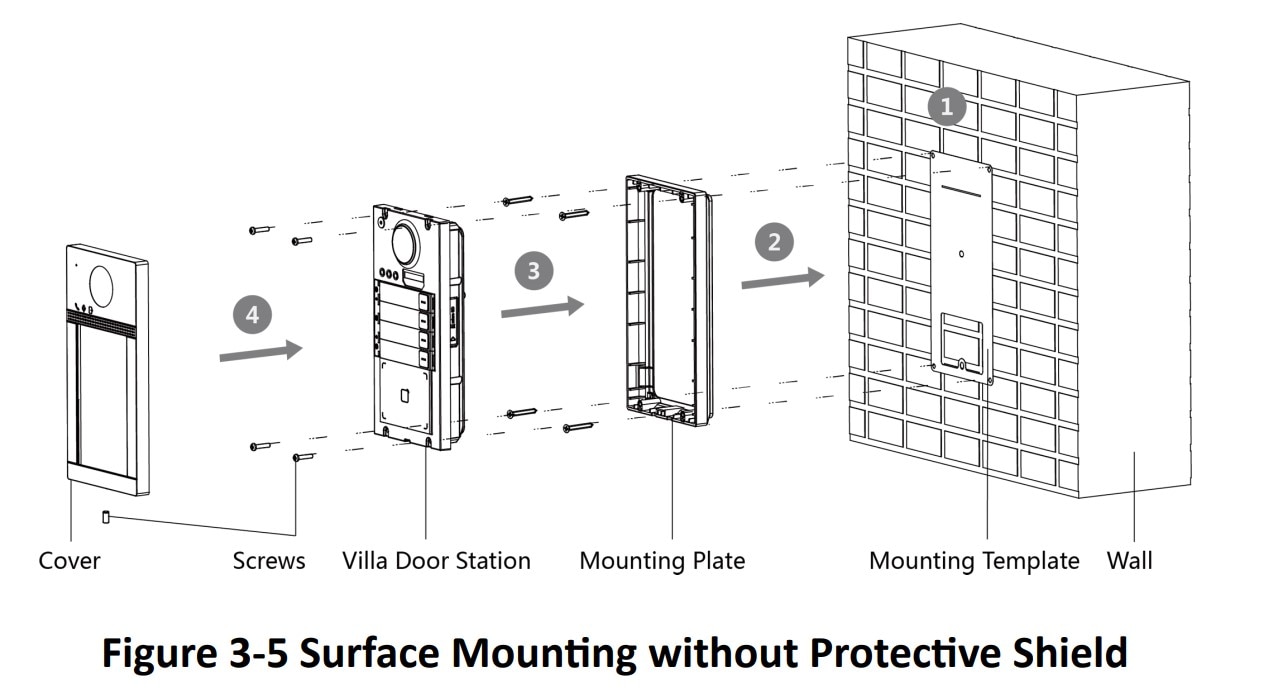

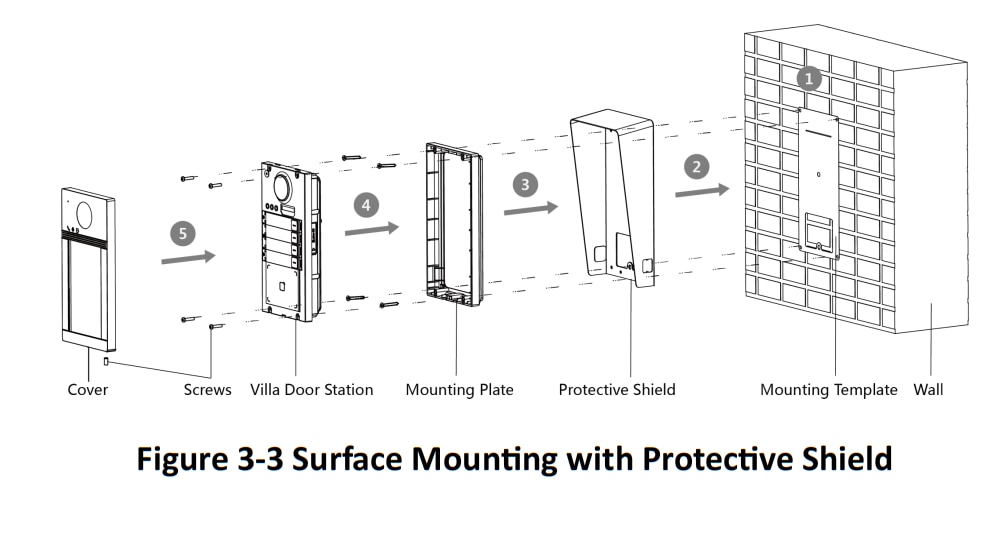

Installation | Surface mounting/Flush mounting |
Indicator | 3 |
380 g | |
Protective Level | IP65, IK08 |
Working Temperature | -40°C to 53°C (-40°F to 127.4°F) |
Working Humidity | 10% to 95% |

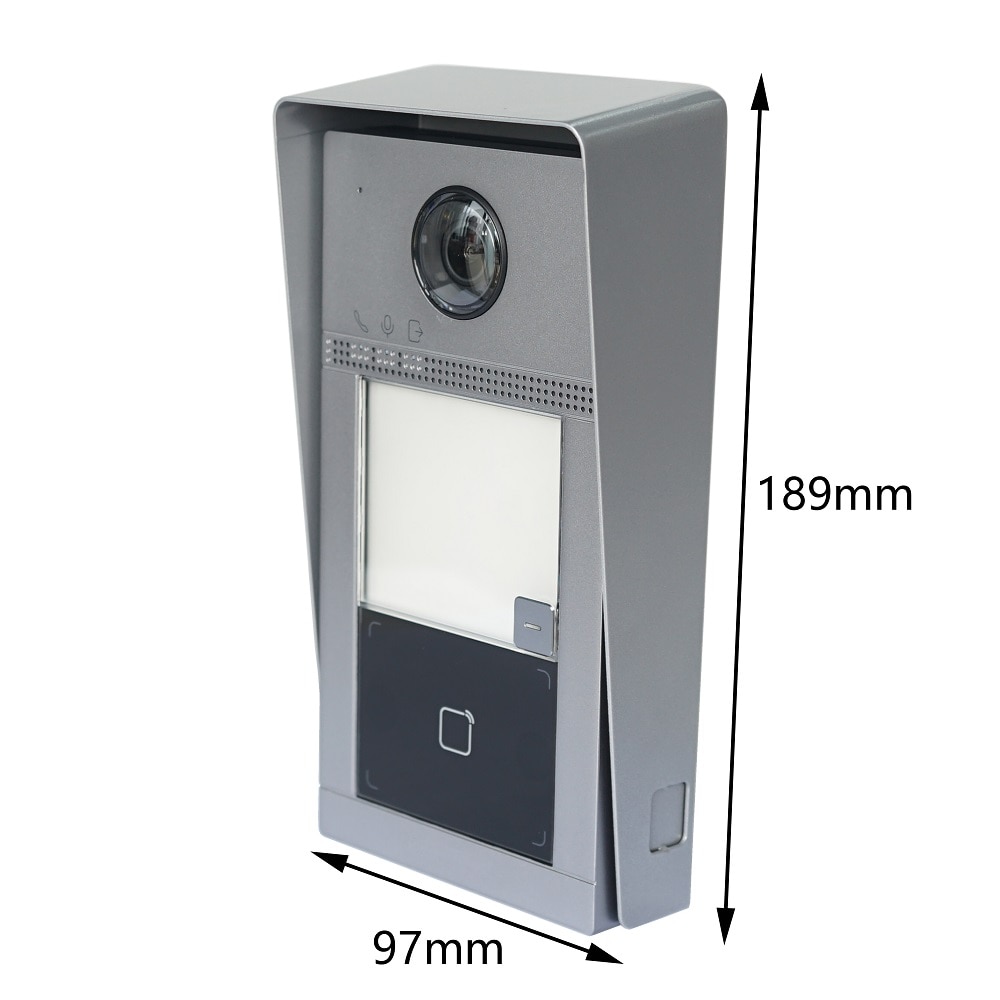

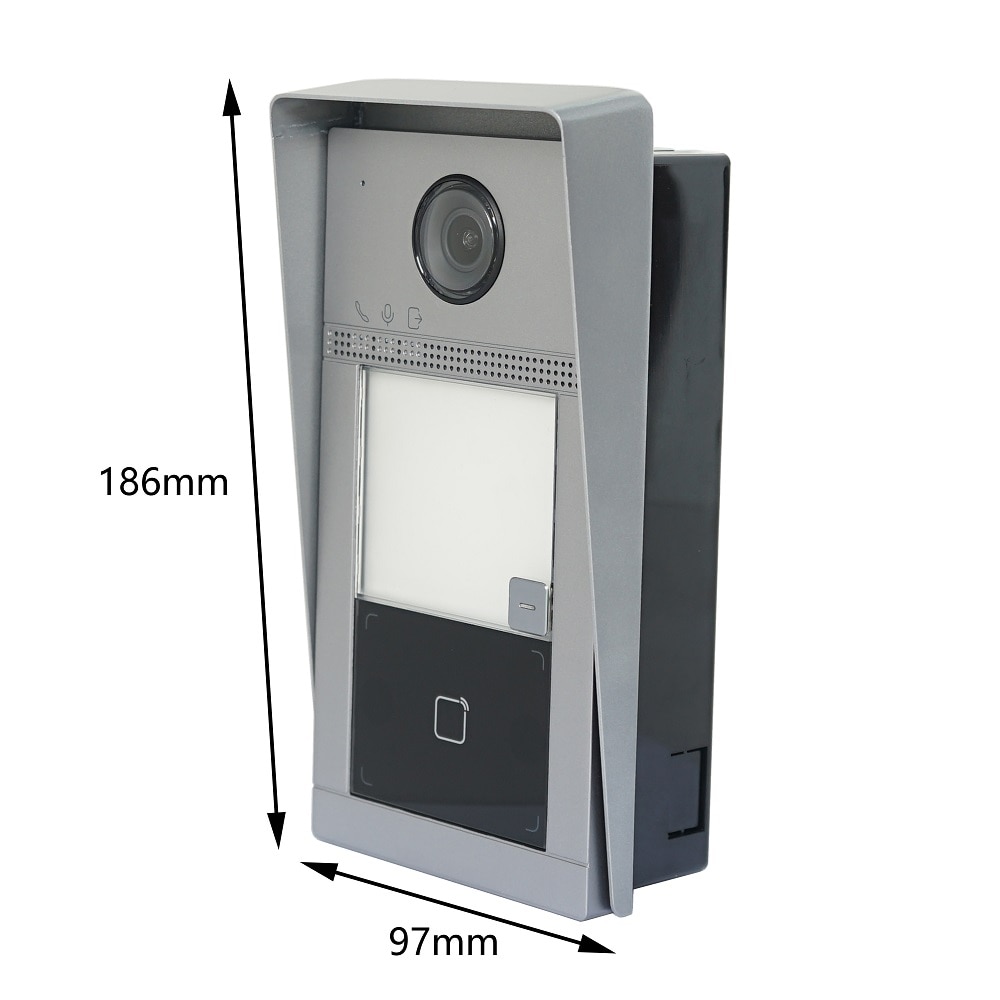

Dimensions | 174mm * 91mm * 29mm |
Battery | / |
Application Environment | Outdoor |
Power Consumption | ＜10 W |

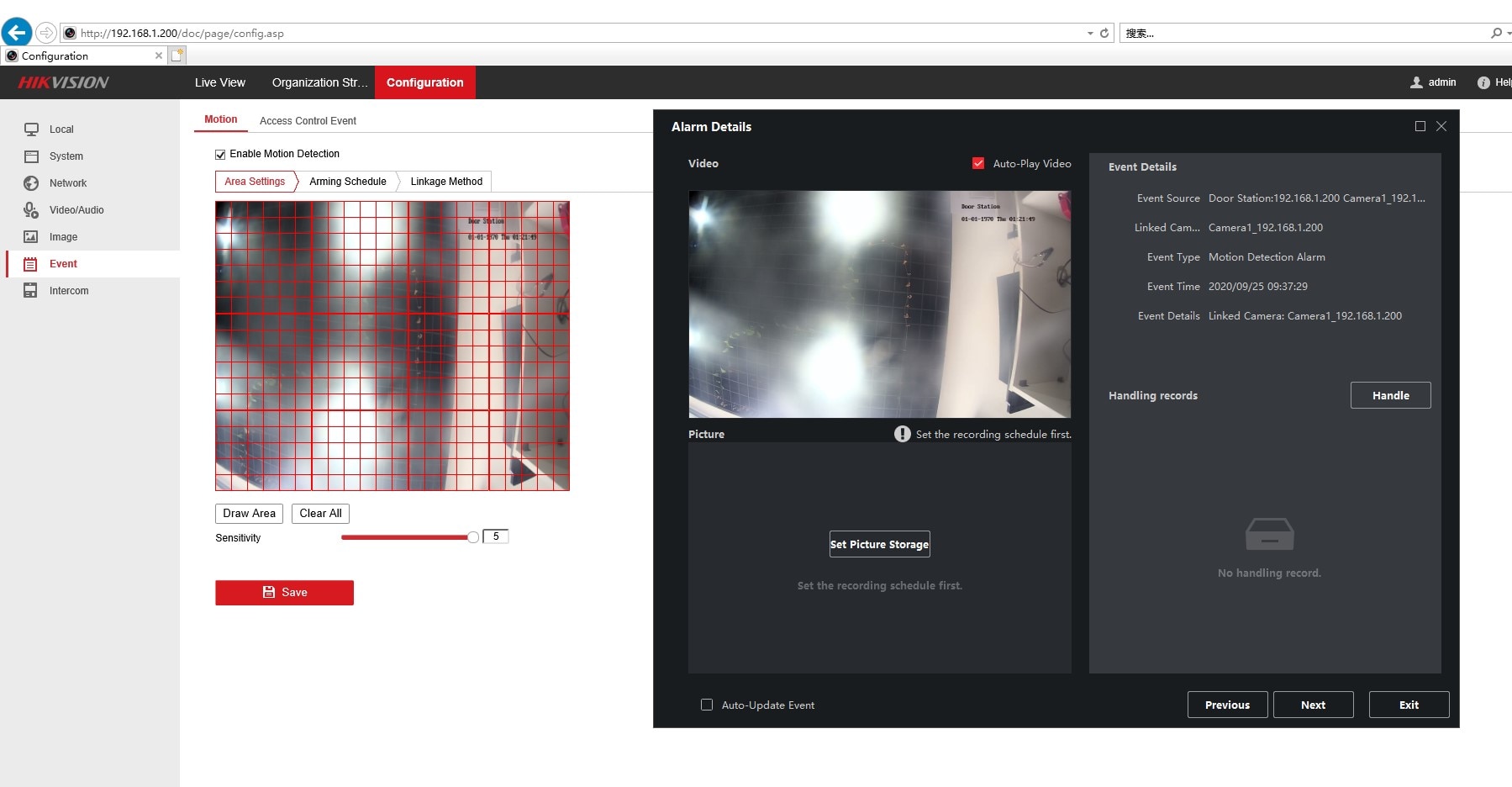

Support motion detection alarm to client software

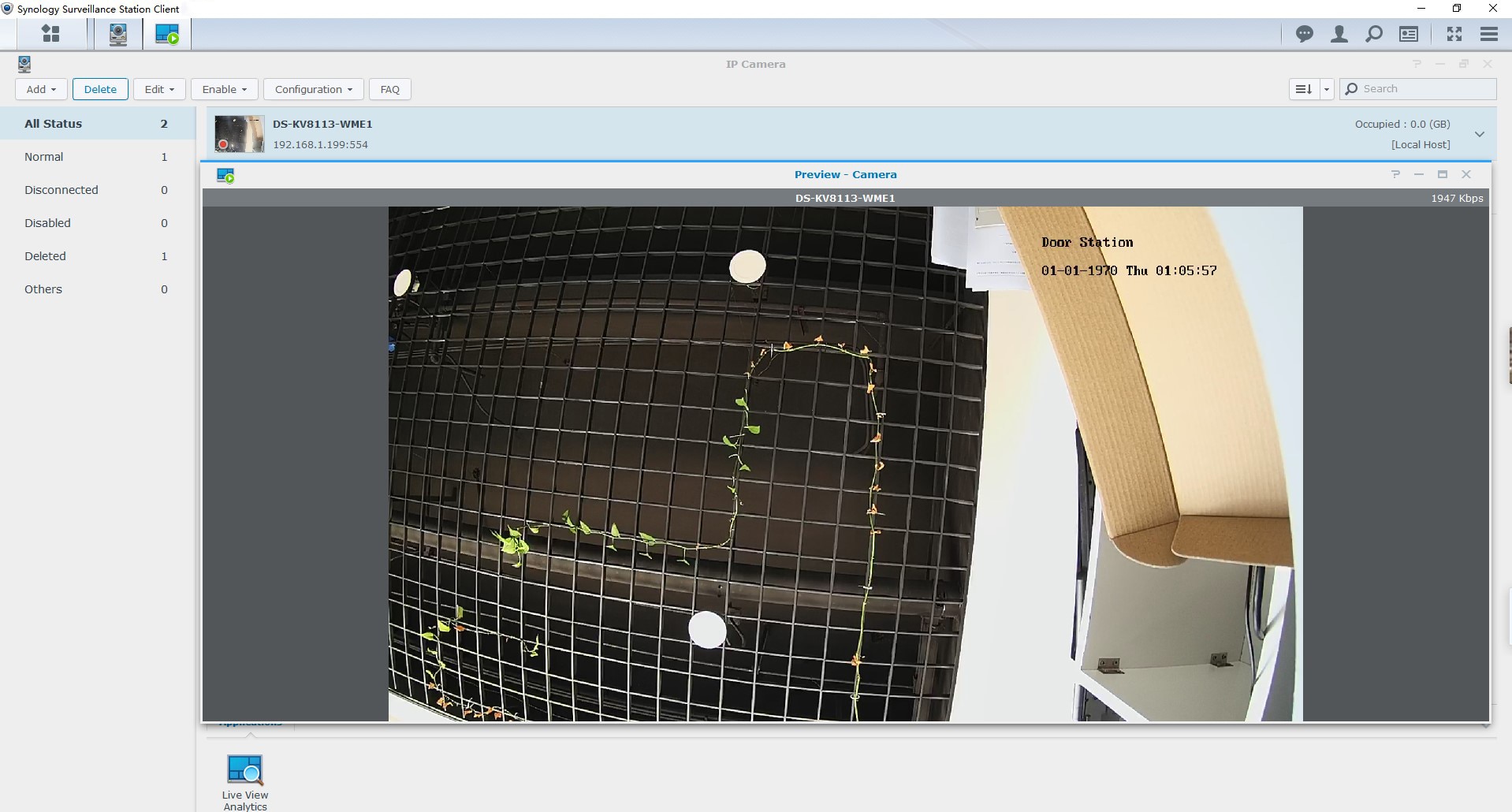

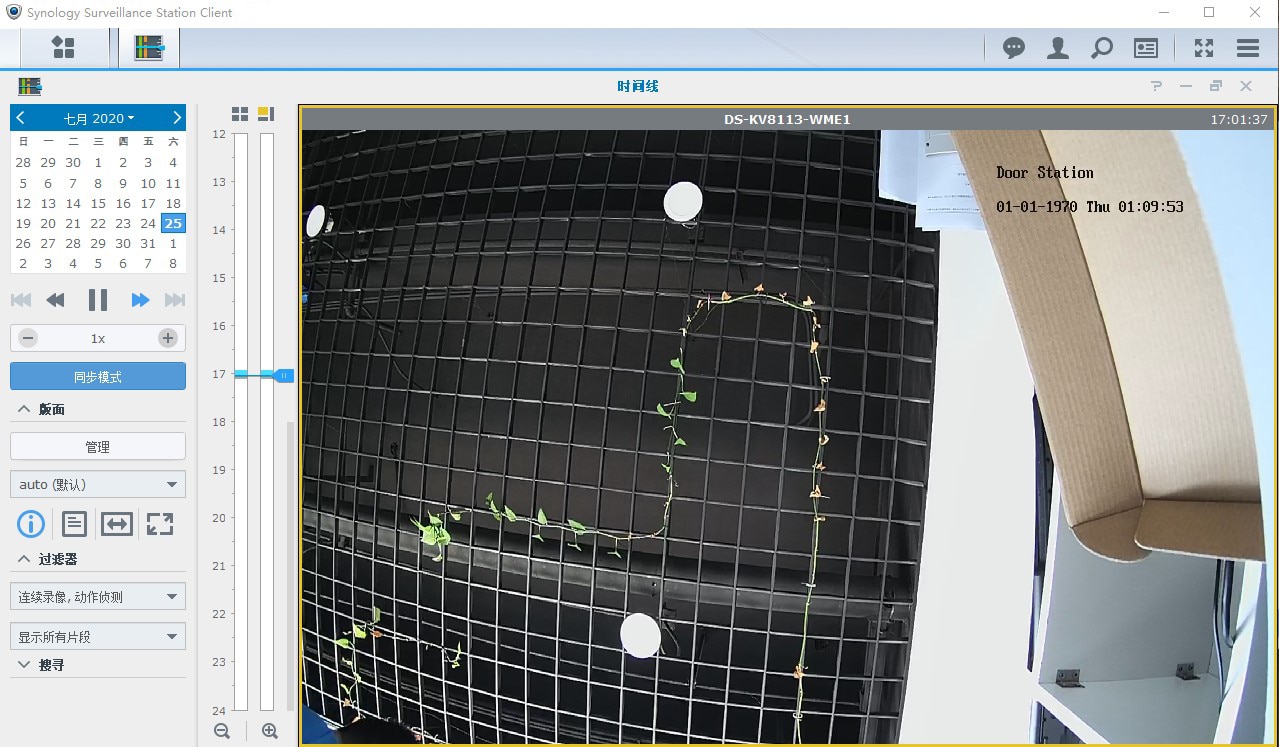

Support for adding outdoor stations to Synology NAS recording and playback
- Plug Type: AU Plug,EU plug ,US plug,UK plug
- Size: 174mm*91mm*29mm
- Doorbell: Yes
- Material: Front:aluminum alloy wire drawing; Back: engineering plastics;
- Power: IEEE802.3af, standard PoE 12 VDC
- Sensor Size(Inch): 1/3
- Power: 10 W
- Camera: color

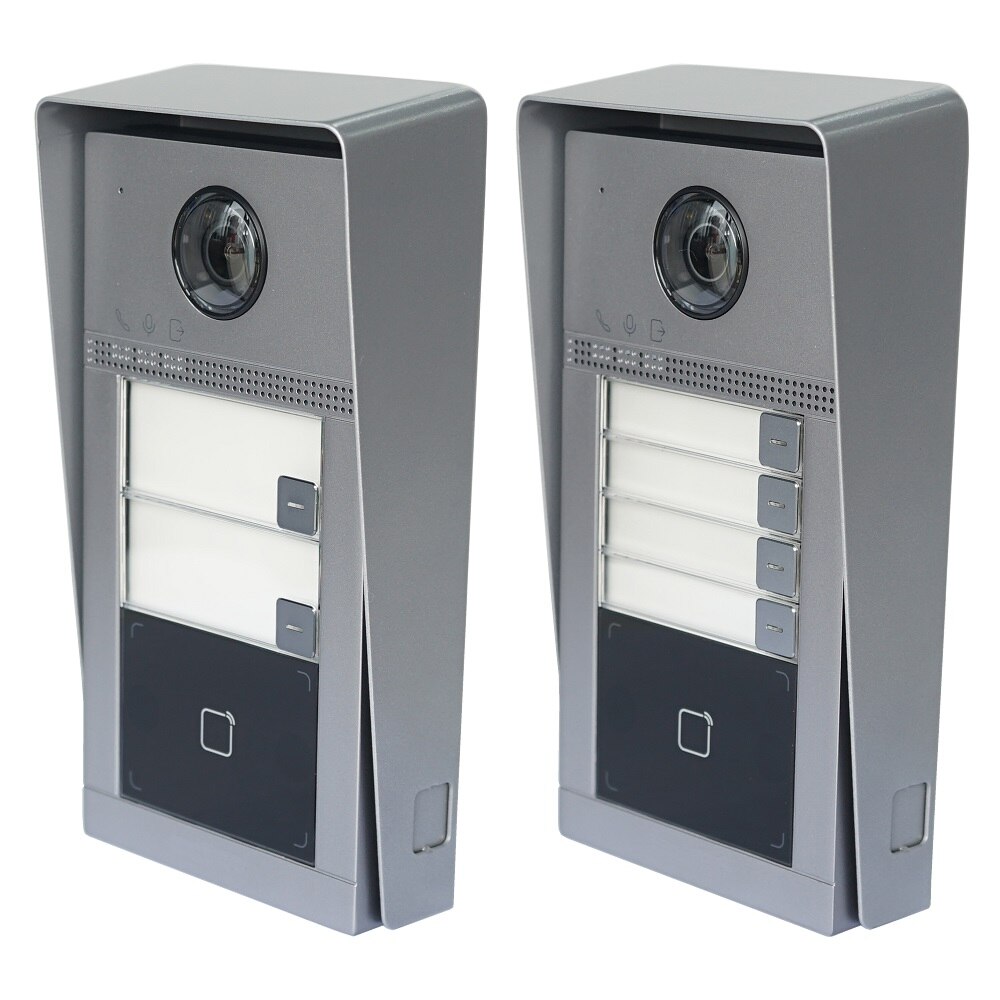

- Model Number: DS-KV8113-WME1 DS-KV8213-WME1 DS-KV8413-WME1
- IP Camera Interface: No
- Access Control: Inductive Card
- Waterproof: Yes
- Samrt Home Interface: Yes
- Technology: Digital
- Installation: Surface or Flush
- Connection Type: WIRED
- Zone Input: 4
- Type: Entrance Machine
- Viewing Angle (°): Horizontal: 124°; Vertical: 75°;
- Display Size: NONE
- Answering Mode: Hands-free
- Camera Sensor type: CMOS
- Connection Method: Wired
- Brand Name: XHJYVISION
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE
