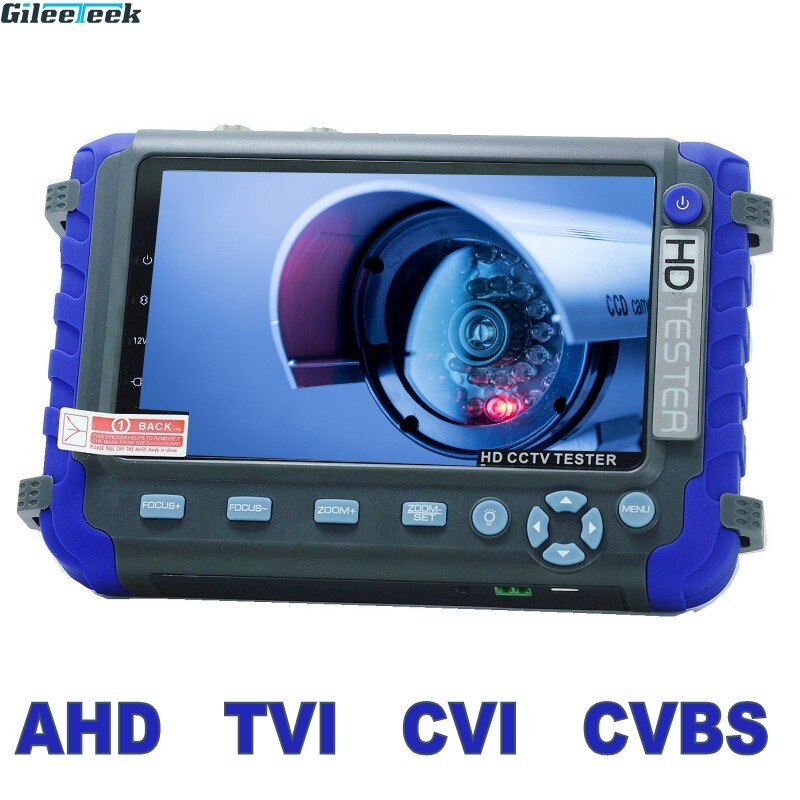

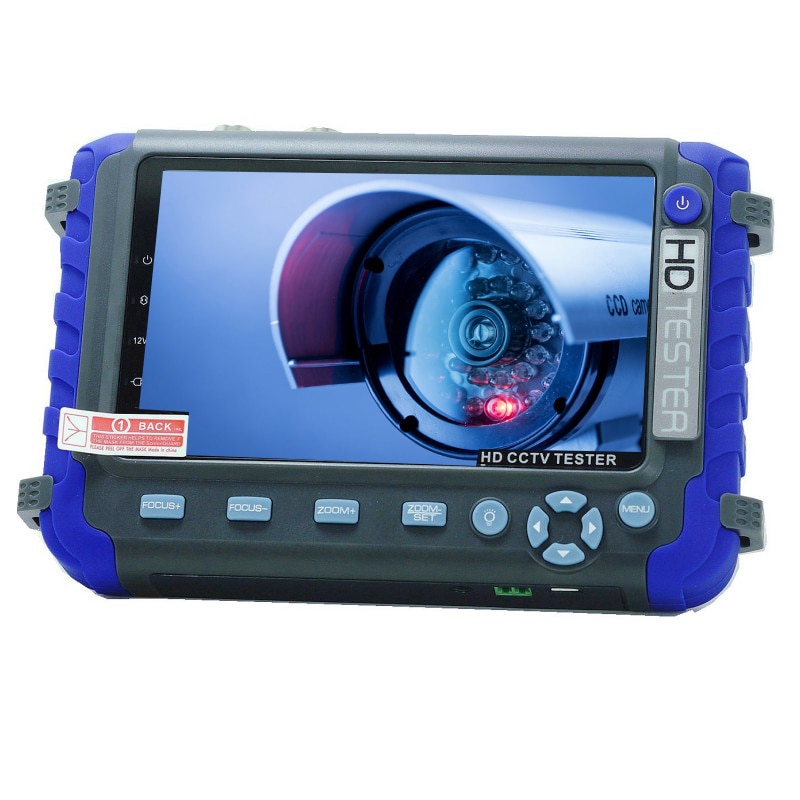

IV8C Professional CCTV camera monitor CCTV testing tool 5 Inch display 8MP AHD TVI 8MP CVI CVBS CCTV Camera Tester Monitor PTZ

0.0 ( votes)
Price: US $201.55 / piece
Discount Price:
US $ 156.47 / piece
-22%
Quantity

IV8C CCTV TESTER

5 Inch 4IN1 CCTV camera tester  Professional CCTV testing tool TFT LCD 5MP AHD TVI 4MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test ( not support VGA/HDMI input)

IV8C support  CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:

(1) AHD Signal test: 8MP

(2) TVI Signal test: 8MP

(3) CVI Signal test: 8MP



Product overview:

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.



Main Features:

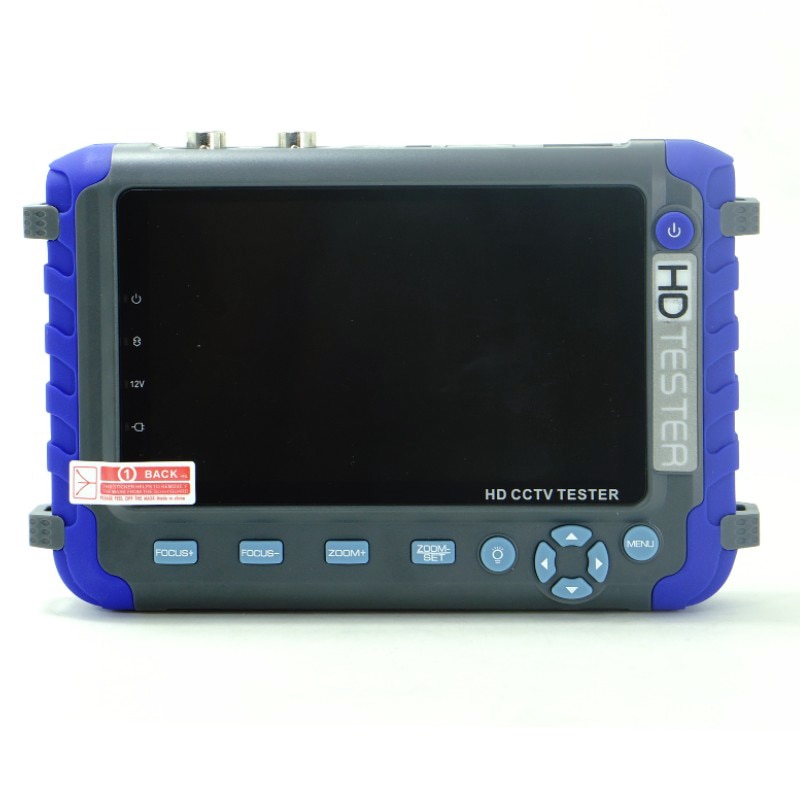

* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

*  Support PAL/NTSC standard video signal. CVBS testing.

* PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

* Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

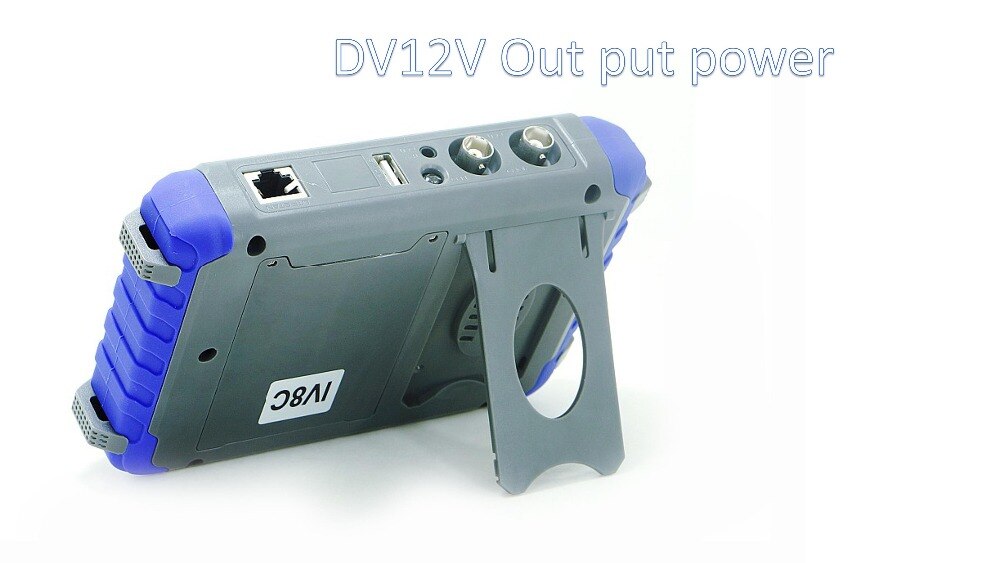

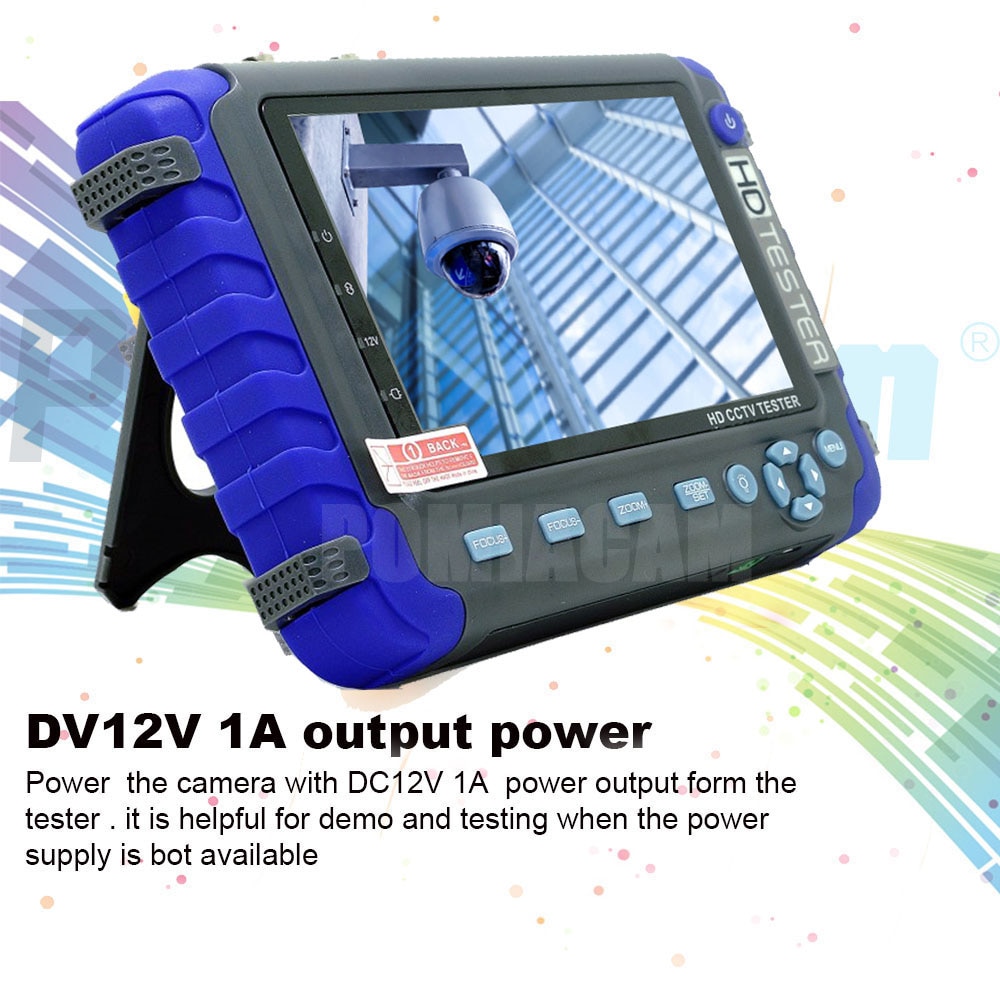

* DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

* Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

* Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

* TVI camera test

HD TVI video surveillance testing, support 8MP. When TVI signal input, the tester will display HD TVI camera image.

* CVI camera test

HD CVI video surveillance testing, support 8MP. When CVI signal input, the tester will display HD CVI camera image.

* AHD camera test

HD video surveillance testing, support 8MP. When AHD signal input, the tester will display the AHD camera image.

* LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.



Specifications:

Model

IV8C

LCD screen

5.0 inch TFT-LCD, 800(RGB)x 480 resolution

Video test

NTSC/PAL (Auto adapt)

LCD adjustment

Brightness, Contrast, Saturation adjustable

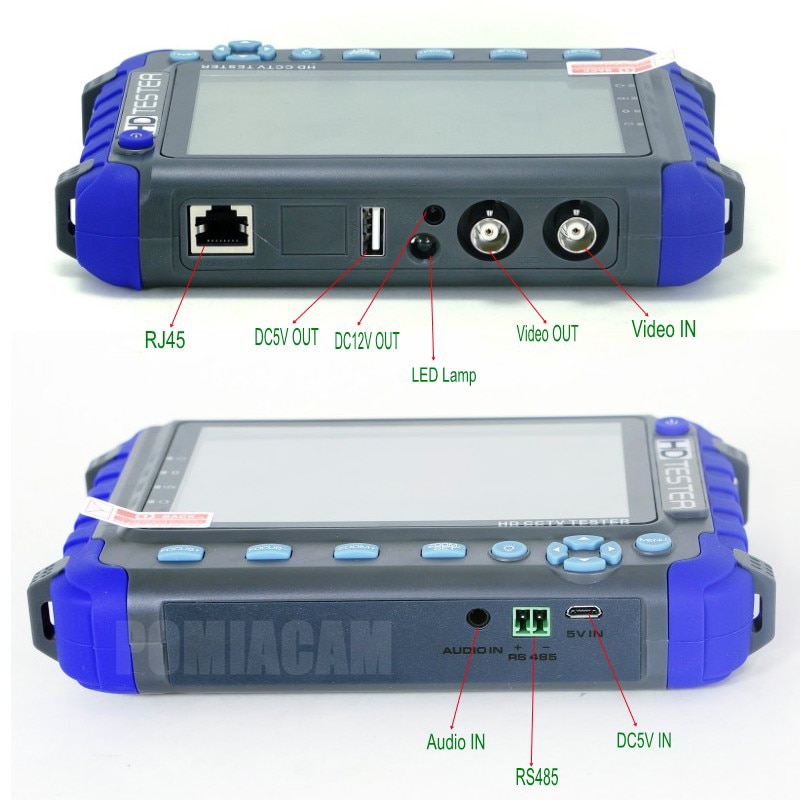

Video IN/OUT

1 channel BNC Input & 1 channel BNC Output

VGA/HDMI input

NOT Support

PTZ Controller

Support RS485

PTZ Protocol

Compatible with protocols PELCO-D/P,

Baud Rate

Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps

Color bar generator

Support both PAL / NTSC format’s standard color bar output

(Red, Green, Blue, White, Black, Grey) and testing image output

UTP Cable Test

Display UTP cable connection status , cable type and

the sequence of wires as well as read the number of the test box.

DC12V power output

Output DC12V1A power for camera

Audio input test

1 channel audio signal input

Coaxial HD test

TVI test

1 channel TVI input(BNC interface),

support 8MP



CVI Test

1 channel TVI input(BNC interface),

support 8MP



AHD Test

1 channel AHD input (BNC interface),

support AHD 2.0 version, 8MP



POWER

Power Adapter

DC 5V(1.5A)

Battery

Built-in 18650 2600mA battery X 2,

After charging 3-4 hour, working time lasts 11 hours

General

 Language

 English and Chinese optional

Working Humidity

30%-90%

 Dimension

194mm x 112mm x 48mm / 540g



Packing list:

  •  HD coaxial tester
  • Adapter DC5V 1A(with USB cable)
  • International Standard 18650 2600ma battery
  • BNC cable
  • RS485 connector
  • Power output conversion cable
  • Audio cable
  • Lanyard
  • Tool bag
  • Instruction Manual

IV8C_01IV8C_02IV8C_03IV8C_04IV8C_05IV8C_06IV8C_07

  • 1234567HTB1cpphsv1TBuNjy0Fjq6yjyXXajHTB1h8_zj5OYBuNjSsD4q6zSkFXayHTB1XkNesASWBuNjSszdq6zeSpXa3HTB13NrYsgaTBuNjSszfq6xgfpXayHTB1CL7LskCWBuNjy0Faq6xUlXXaiHTB1rQbQsXmWBuNjSspdq6zugXXaZHTB19AMnfVooBKNjSZPhq6A2CXXa0






  • Plug Type: EU plug
  • Sensor Type: AHD TVI CVI Camera Tester
  • Model Number: IV8C
  • Maximum IR Distance(m): Camera Monitor Tester
  • Sensor Size: Security Camera Tester
  • Lens: camera monitor
  • Brand Name: POMIACAM
  • Certification: CE
  • Origin: Mainland China
  • Plug Type:: UK ,US , AU, EU
  • LCD screen:: 5.0 inch TFT-LCD, (RGB) 800x 480 resolution
  • PTZ Controller:: Support RS485
  • VGA/HDMI input:: not support
  • Battery:: Built-in 18650 2600mA battery X 2
