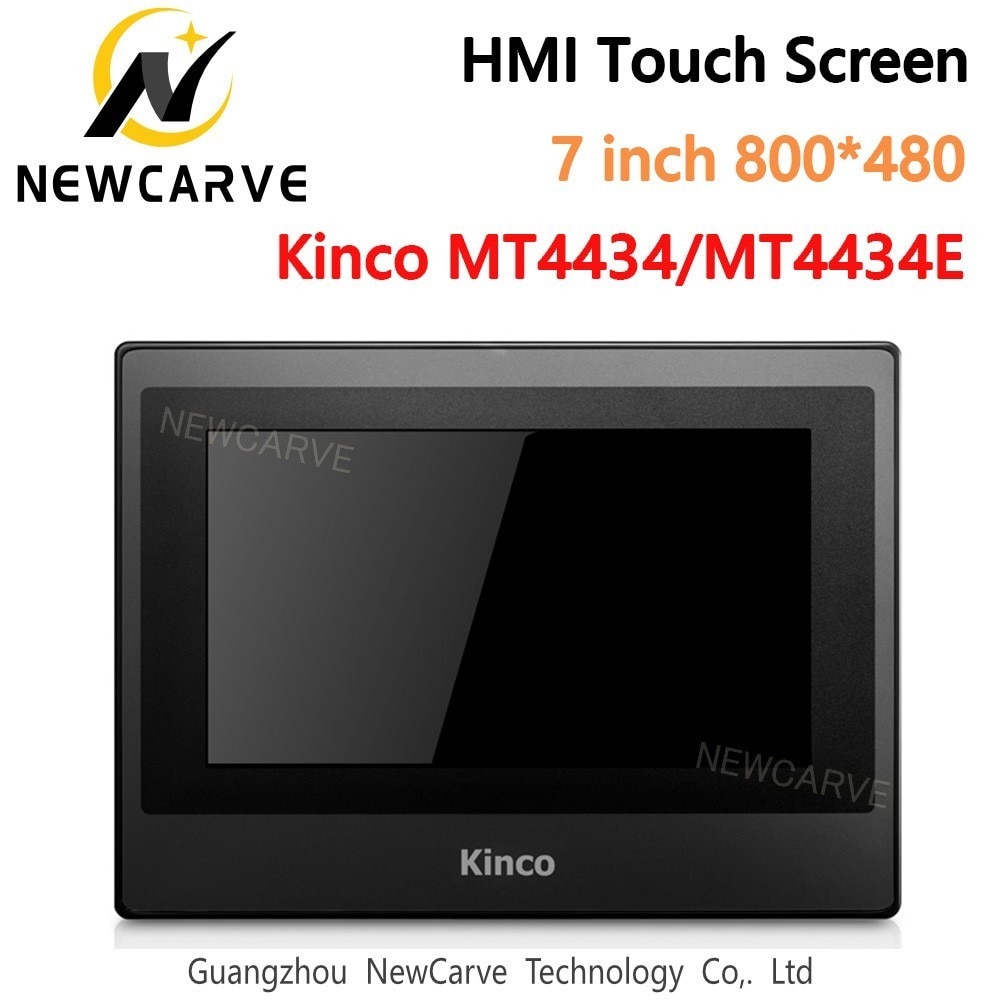

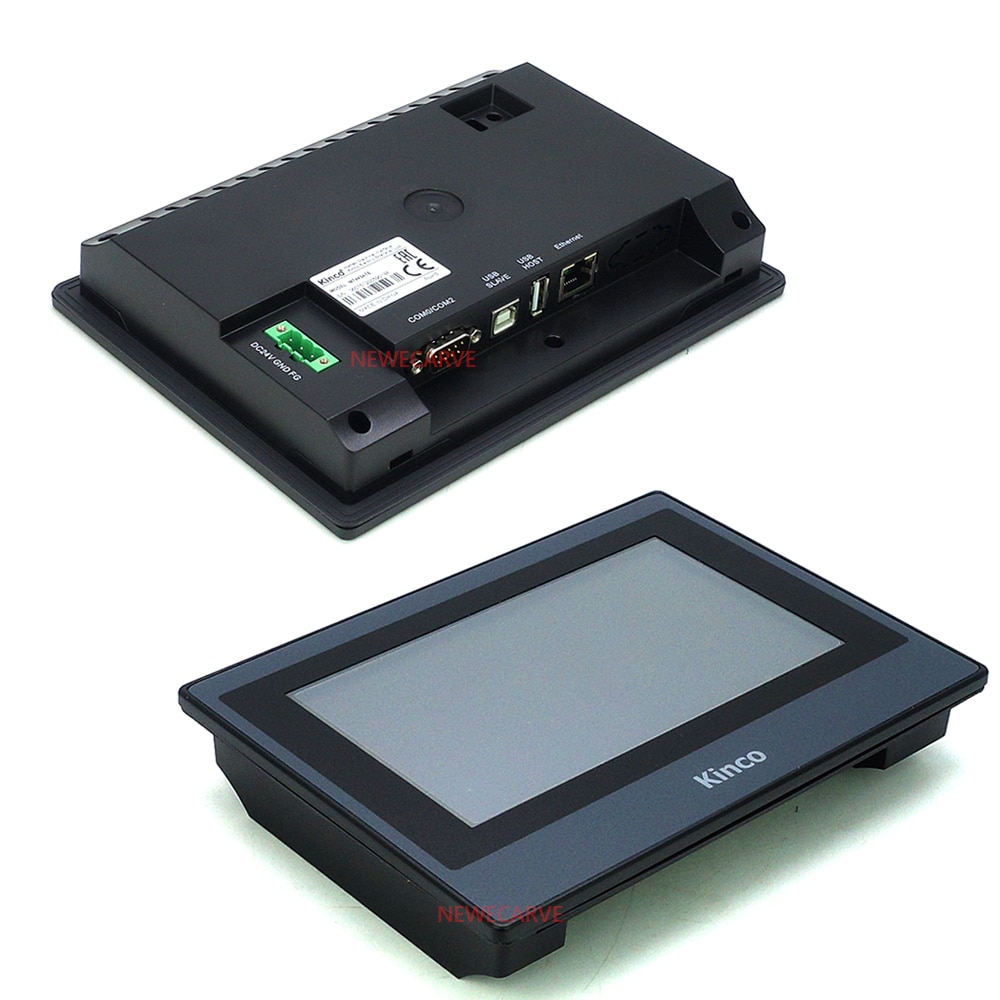

Kinco MT4434T MT4434TE HMI Touch Screen 7 Inch 800*480 Ethernet 1 USB Host New Human Machine Interface Newcarve

4.0 (1 votes) | 8 orders
Price: US $197.09 - 281.41 / piece
Discount Price:
US $ 168.31 - 244.53 / piece
-15%
Quantity

WELCOME TOSTORE

Following NewCarve Store, you will get extra Discounts and Coupons every week!

 |  |  |  |

 Popular Tags

 :  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |   |  |  |  |  |  |  |  |  |  |  |  |  |



Kinco MT4434T MT4434TE HMI Touch Screen 7 Inch 800*480 Ethernet 1 USB Host New Human Machine Interface Newcarve

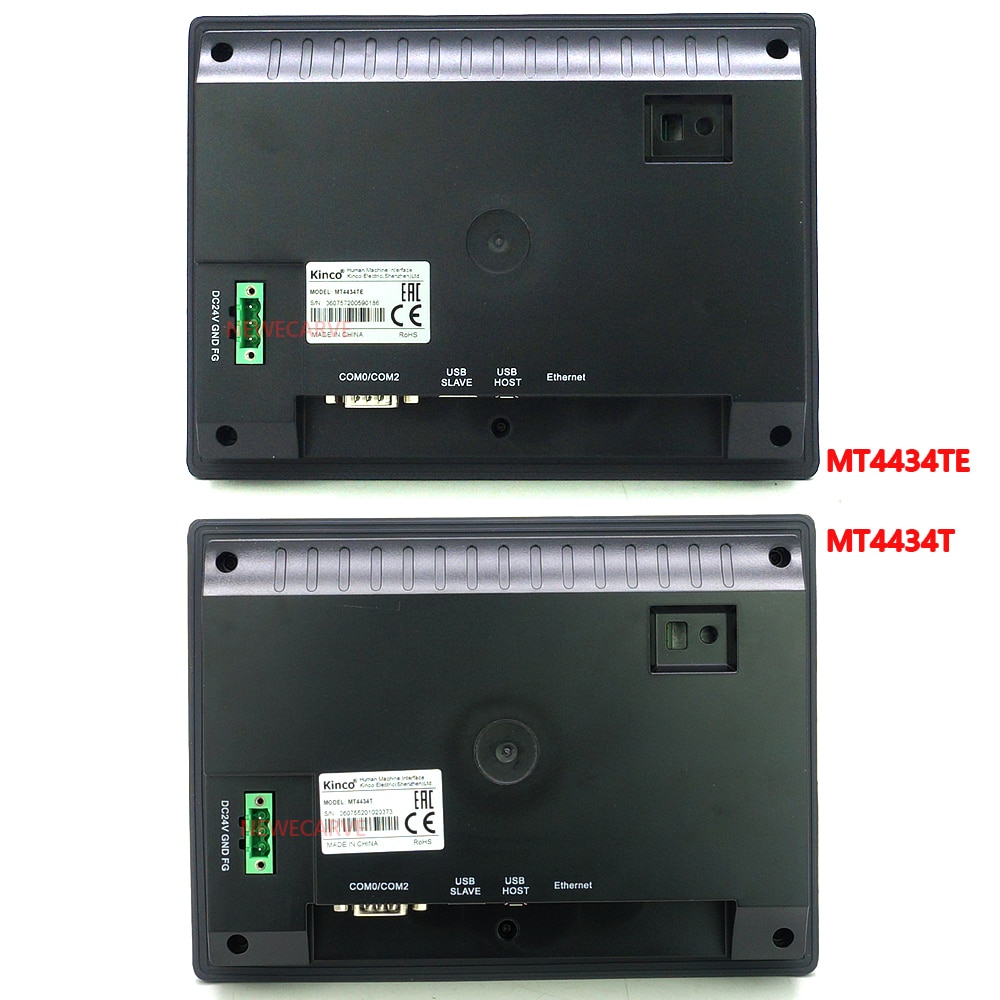

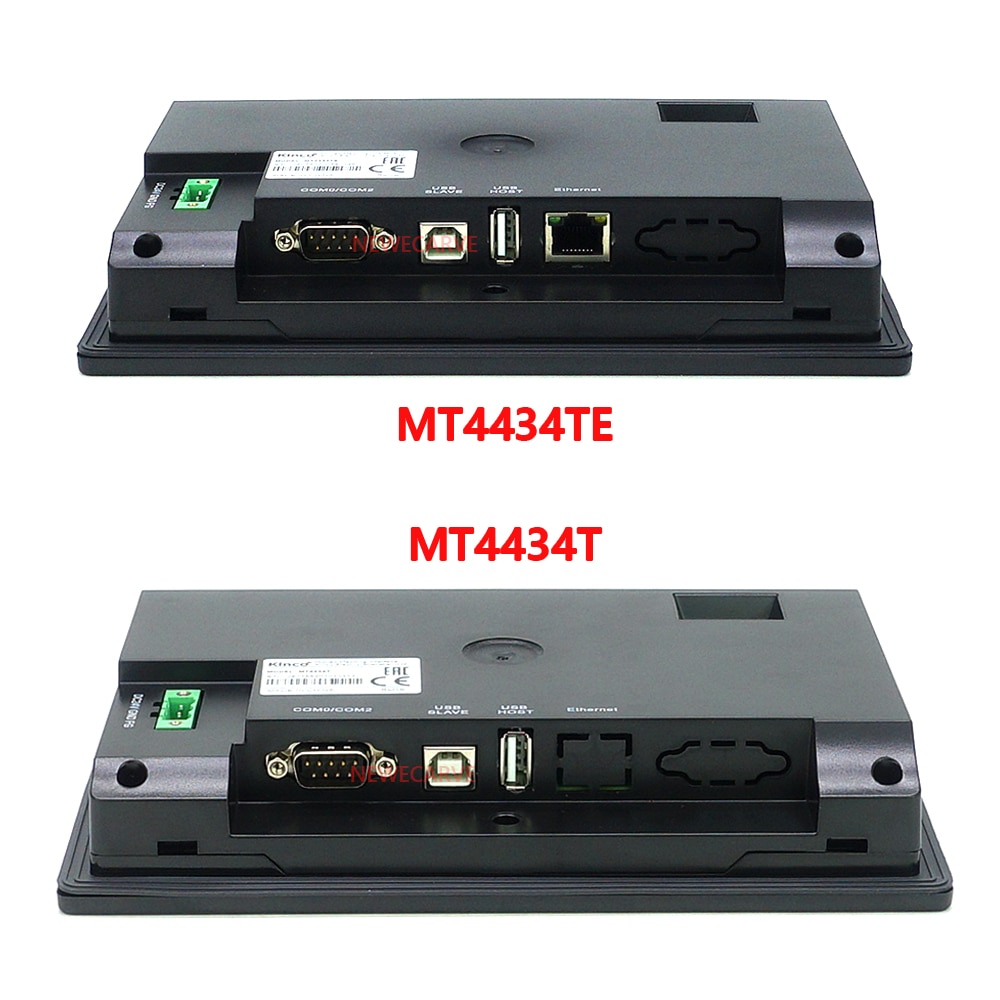

What`s the difference between MT4434T and MT4434TE ?

doesn't support Ethernet

supports Ethernet

doesn't support Ethernet, it is the updated version of MT4434T, has the same function.

supports Ethernet,  it is the updated version of MT4434TE, has the same function.

Package included:

1 X


If you need Download Cable and Communication Cable, please click the link as below :

To buy


The software is free(it will be sent by E-mail)


Main Features:

Display:7Prime16:9 TFT

Color:65536 Colors

Memory:128M FLASH + 64M SDRAM

Performance specification

Display

7"
TFT

Resolution

800*480

Color

65536

Backlight

LED

Brightness

250cd/m2

Backlight life

50000
hours

Touch Panel

4-wire
precision resistance network

Processor

32-bit
800MHz RISC

Memory

128MB
FLASH + 64MB RAM

Expandable memory

1
USB Host(≤16G)

Recipe memory & RTC

512KB
+ RTC

Printer port

USB
Host/Slave/Serial port

Ethernet

None

Program download

USB/Serial
port

COM port

COM0:RS232/RS485-2/4,
COM2:RS232

Electrical specification

Rated power

5W

Rated voltage

DC24V

Input range

DC12V~DC28V

Power down allowed

<3ms

Insulation resistance

Greater
than 50MΩ@ 500V DC

Dielectric strength test

500V
AC 1 minute

Structure specification

Shell color

Black

Shell material

ABS

Dimensions(mm)

204×150×37mm

Cutout size(mm)

192×138mm

Weight

0.5 Kg

Environment specification

The temperature of the working environment

0~50℃

The humidity of the working environment

10~90%
non-condensing

Storage temperature

-10~60℃

Storage humidity

10~90%
non-condensing

Shockproof test

10~25Hz
(X, Y, Z direction, 2G, 30 minutes)

Cooling method

Natural
air cooling

Certification

Panel protection grade

IP65
(front panel)

CE certification

Comply
with EN61000-6-2:2005 and EN61000-6-4:2007standards

FCC compatibility

Complies
with FCC Class A

Dimensions(mm)





PAYMENT


We accept PayPal, Escrow, Credit Card, T/T, Western Union, WebMoney Qiwi wallet and Brazil Boleto.

We send goods within 1-7business days after receiving the payment.

Orders will be canceled if payment is not received within 10 days of purchase.



ATTENTION


All the products NEWCARVE selling default FOB trading terms. If you have special requests about the declaration, please leave messages to us when you make an order.

All packages to Brazil need CPF number by DHL/UPS/FedEx/EMS.

All packages to Argentina need CUIT number by DHL/UPS/FedEx/EMS.

All packages to Chile need RUT number by DHL/UPS/FedEx/EMS.

All packages to Russia need the Full Name(First name + Mid name + Last name).


SHIPPING


Please make sure your address is correct to avoid paying extra shipping costs.

RETURN


1. All items sold are brand new.

2. Received a wrong item/Defective item: please give us the photo and e-mail us within 7 days from the date you receive the product.

3. Exchanitem: please returned within 7 days from the date you receive the product, the buyer pays shipping fees. Items must be in their original condition, not worn, or altered. We will not reimburse the return shipping.



FEEDBACK

Once you have received your item, please leave feedback for us as this will inform us that you have received your items.

1. Your positive feedback and 5 Star ratings: after you receive your order, we will give you positive feedback.

2. Before giving neutral or negative feedback: please contact us immediately, so that we can satisfactorily address your concerns.




  • Application: Grinder
  • Model Number: M4434T MT4434TE
  • Brand Name: NEWCARVE
  • Origin: Mainland China
  • Certification: NONE
  • Application: General
  • Display: 7" TFT
  • Resolution: 800*480
  • Processor: 32 -bit 800MHz RISC
  • MEMORY: 128M FLASH + 64M DDR2
  • Expandable memory: 1 USB Host
  • Recipe memory RTC: 512KB + RTC
  • COM port: RS232 /RS485
