Large Frame CNC DIY Engraving Cutting Marking Machine, 46X81cm, 40W/80W Power Laser Module, Cut 10mm Wood RU/Poland Warehouse

4.5 (15 votes) | 145 orders
Price: US $660.00 - 1762.00 / piece
Discount Price:
US $ 546.98 - 1497.70 / piece
-17%
Ships From
Color
Quantity


ZBAITU is a professional manufacturer that is concerned with the design, development and production of DIY Laser Engraver Printer. All of our products comply with international quality standards and are greatly appreciated by customers all over the world.

We would like to provide the best Laser Engraver Equipment and Service for you.

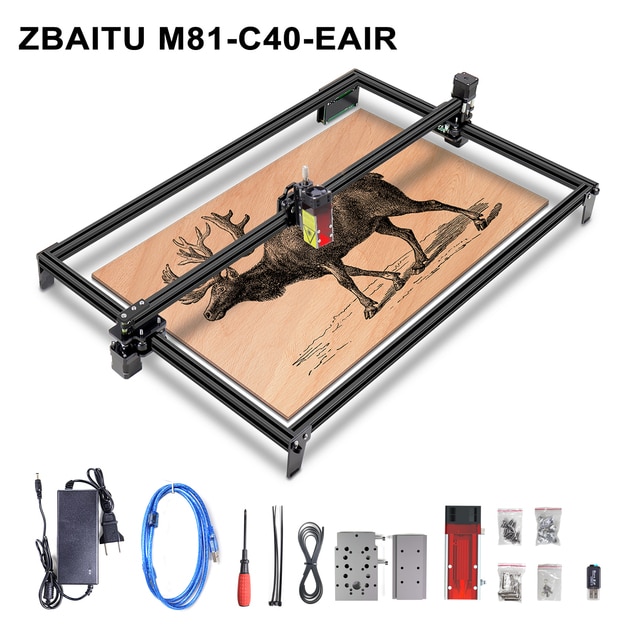

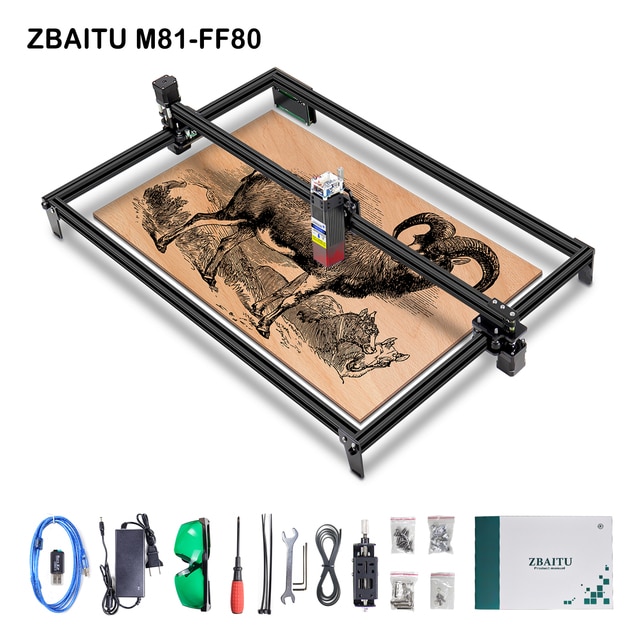

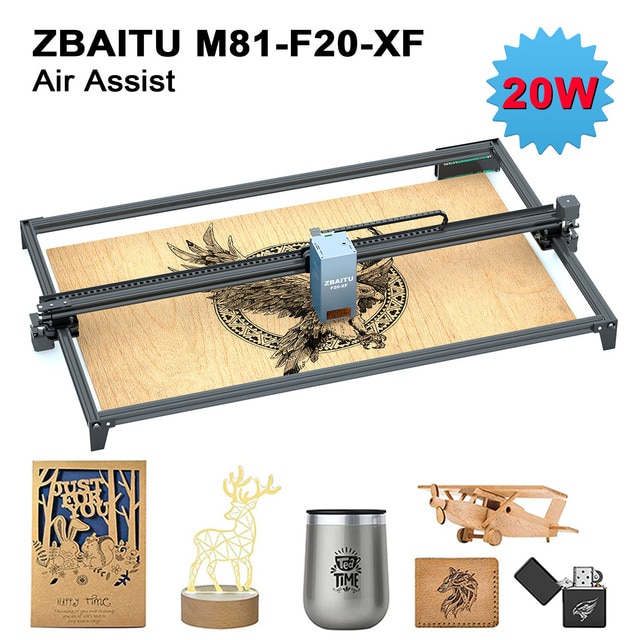

ZBAITU M81 Large Frame CNC DIY Engraving Cutting Marking Machine, 46X81cm with 40W 80W 130W Laser Diode Module

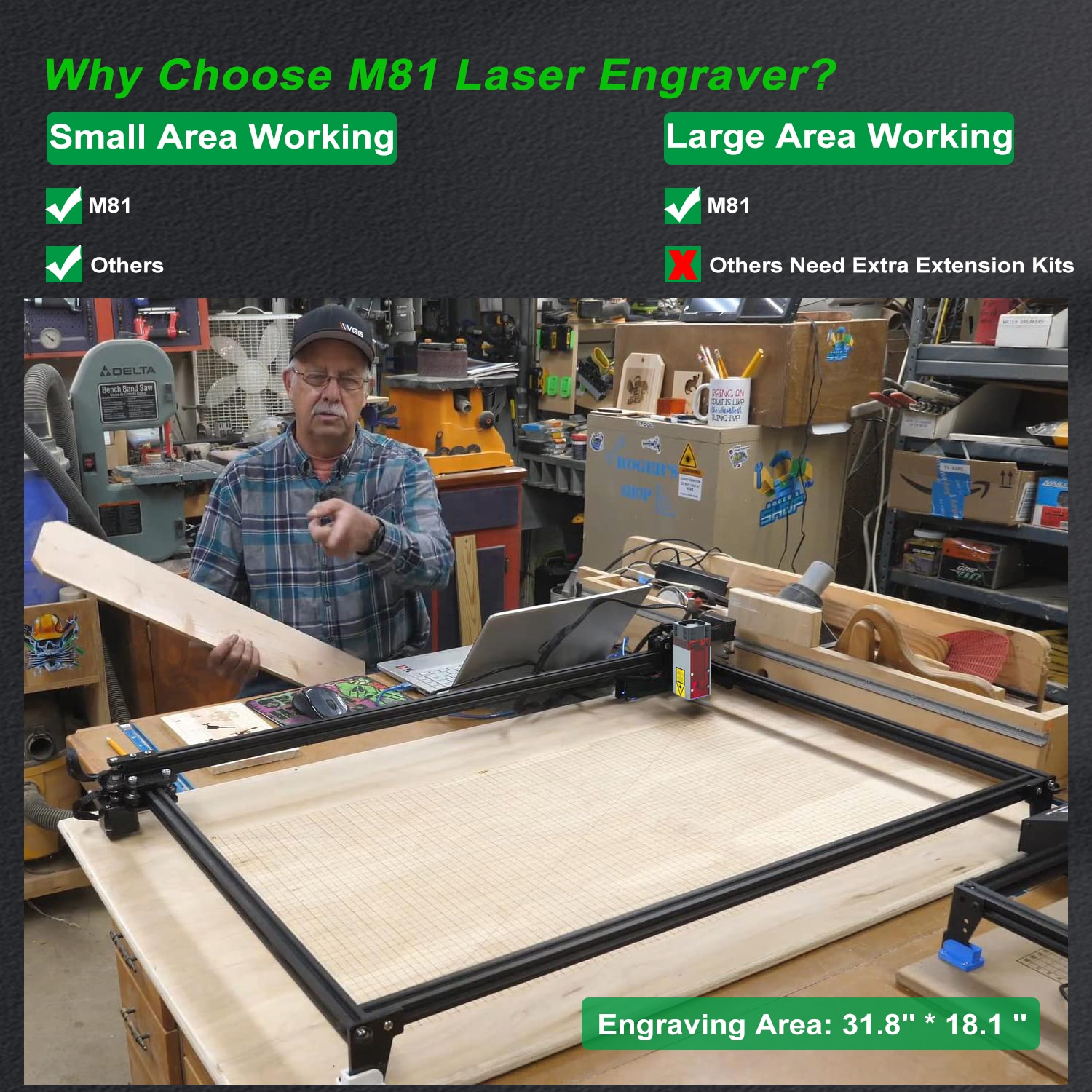

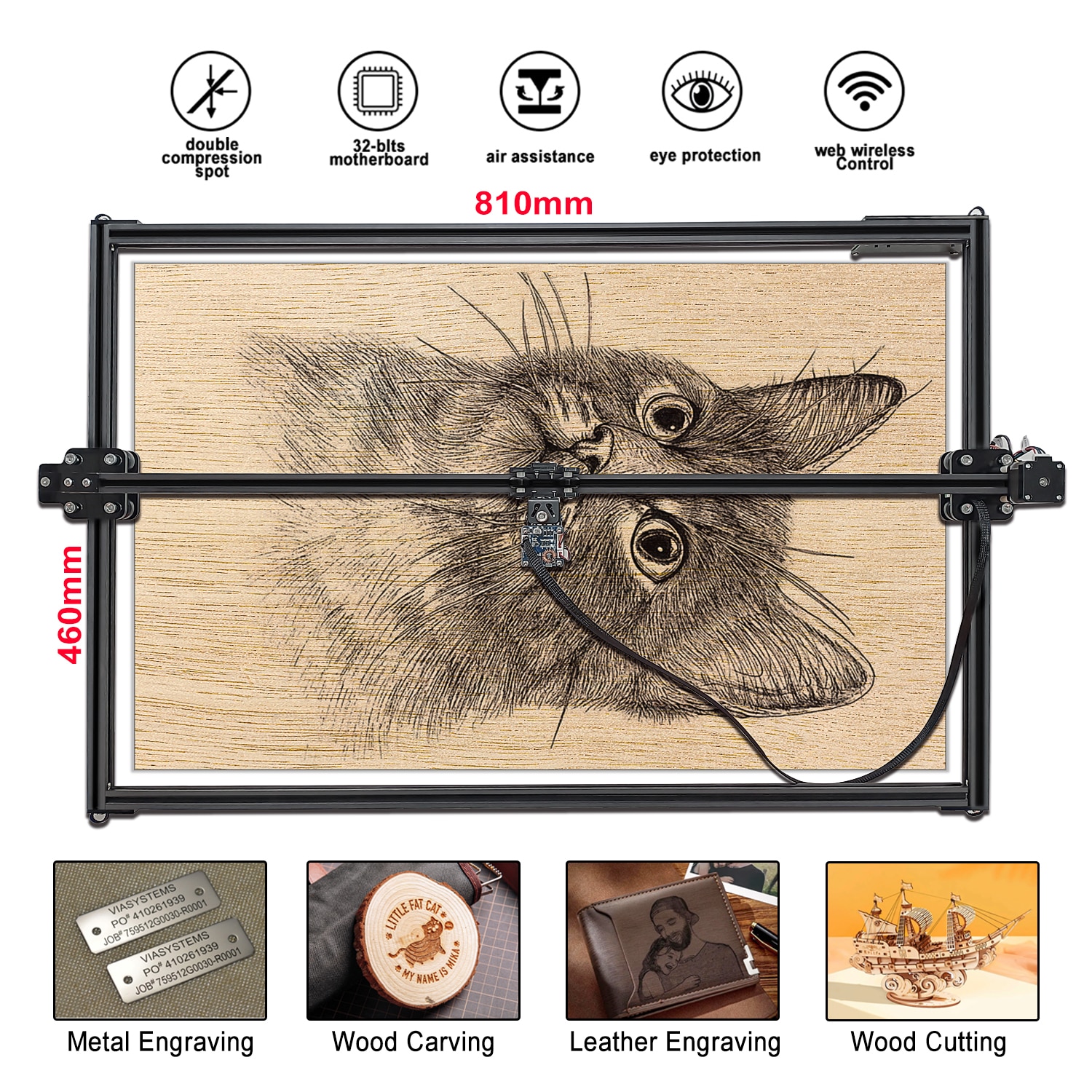

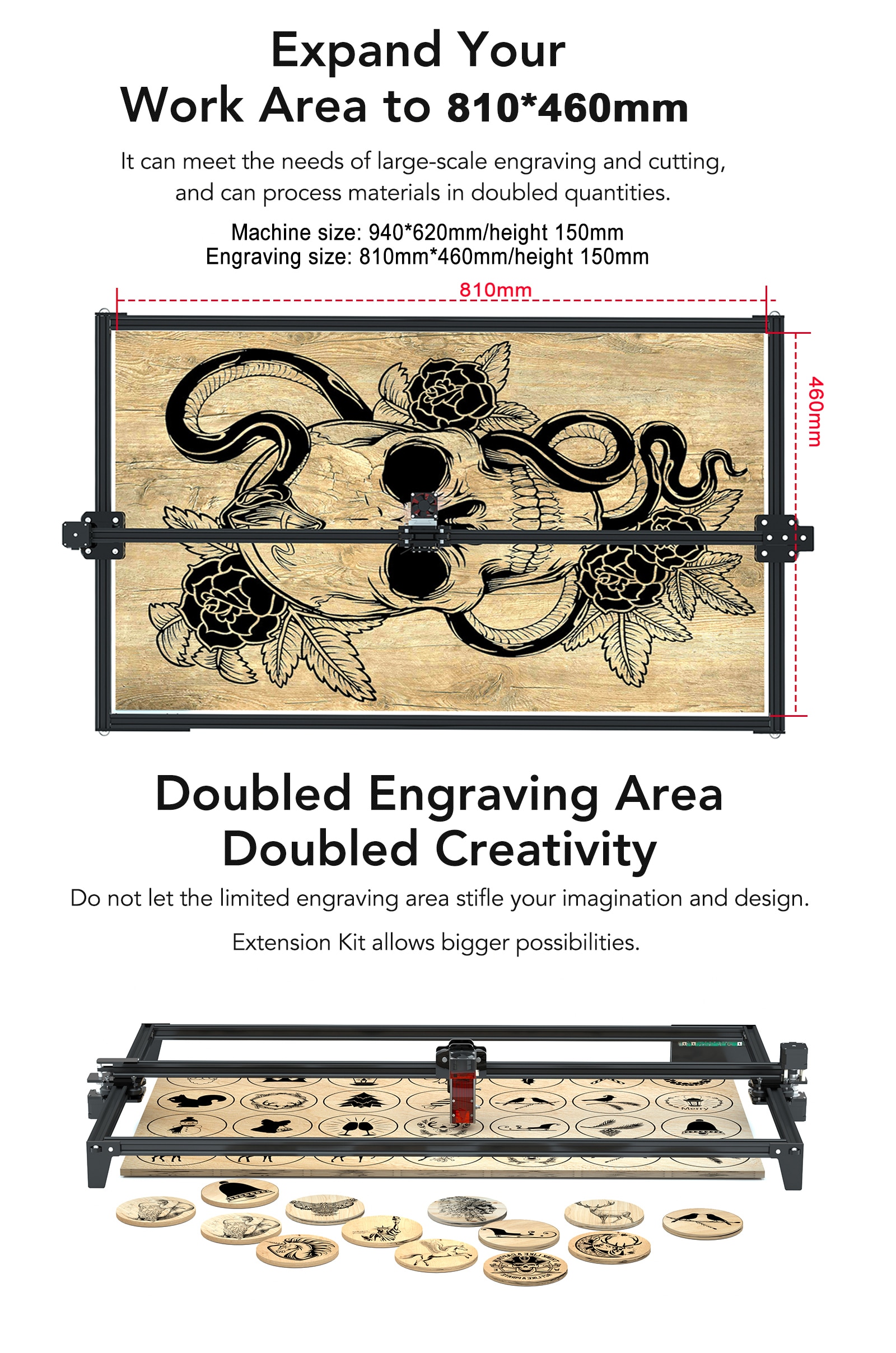

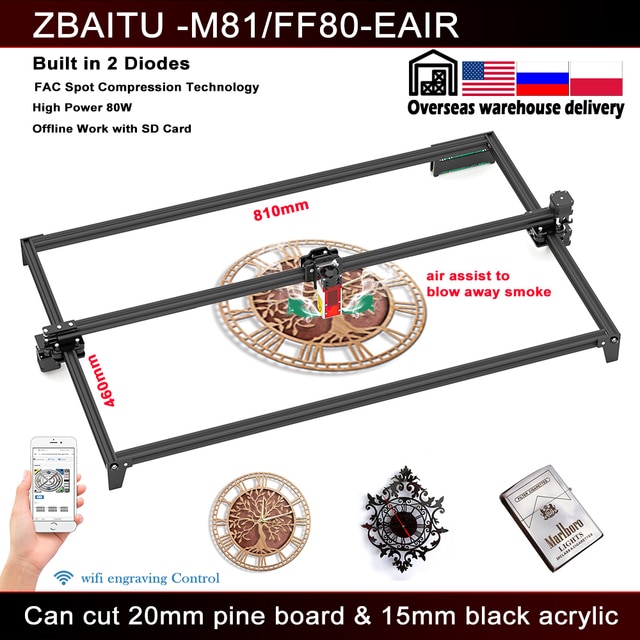

The Engraving Area is 81X46cm, the larger area means engraving/marking/carving larger picture, cut larger stuff.

2 Y-axis Motor Control

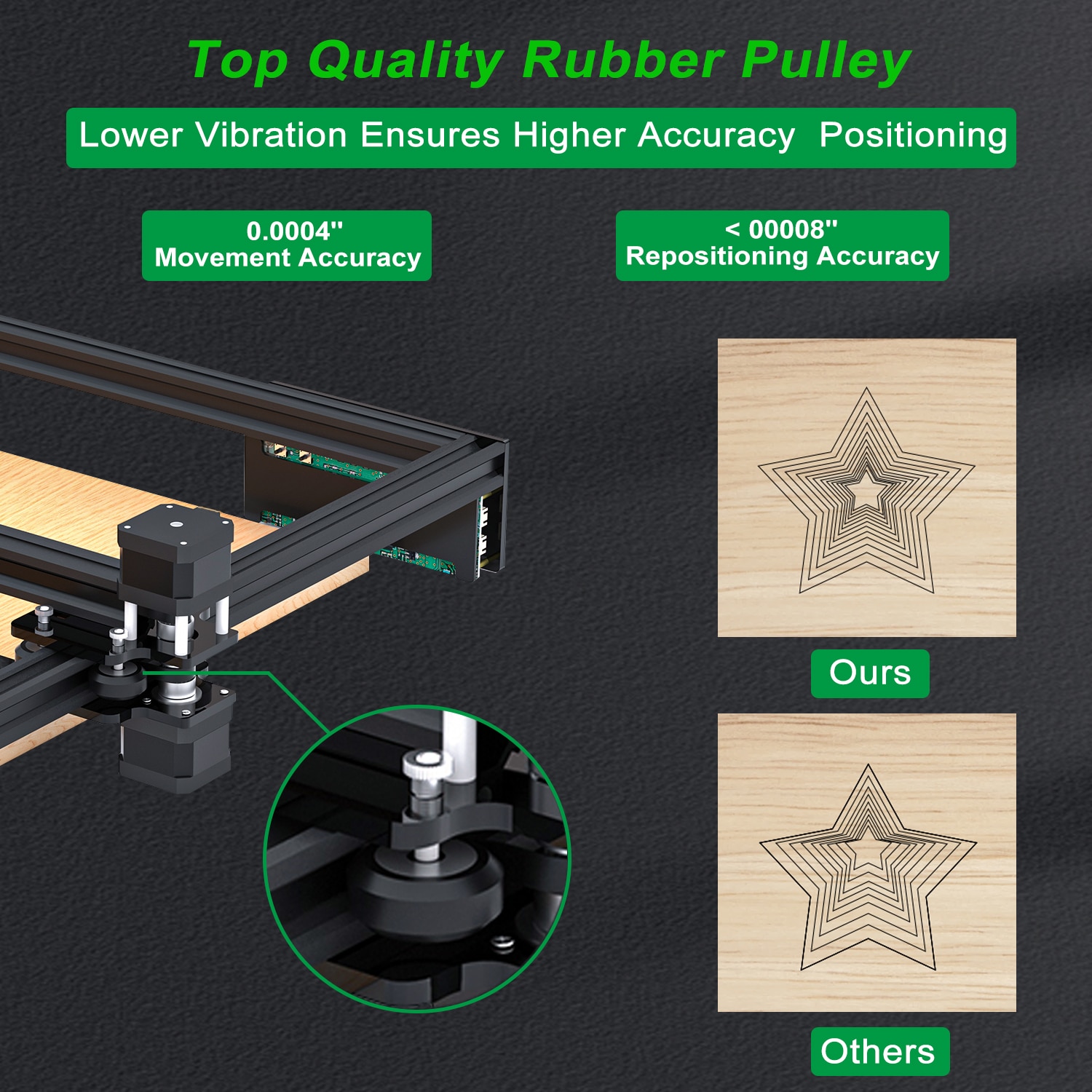

The Y-axis operation of the machine is controlled by 2 stepping motors, which can make the Y-axis operation perfectly synchronized, more stable, more precise engraving, and reduce errors. At the same time, it also increases the stability of the machine and improves safety. In a word, 2 step motors is better than 1 motor in Y-axis.


Support SD Card Offline Working

To solving the problem of connection breaking off suddenly, we add the offline working function, you can put the file to the SD card, then start engraving or cutting without keeping the equipment connect with PC.

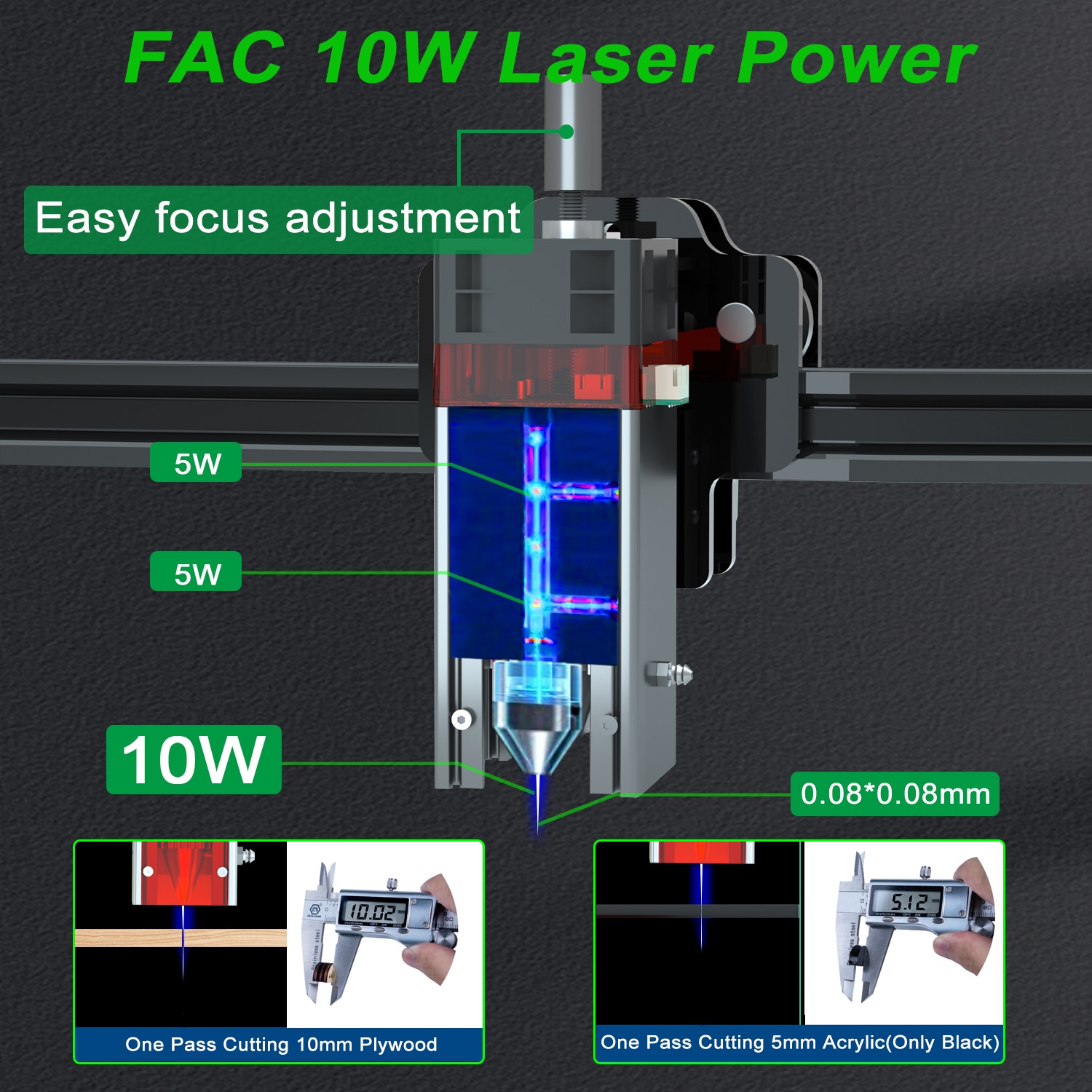

Ultra-fine Compression laser

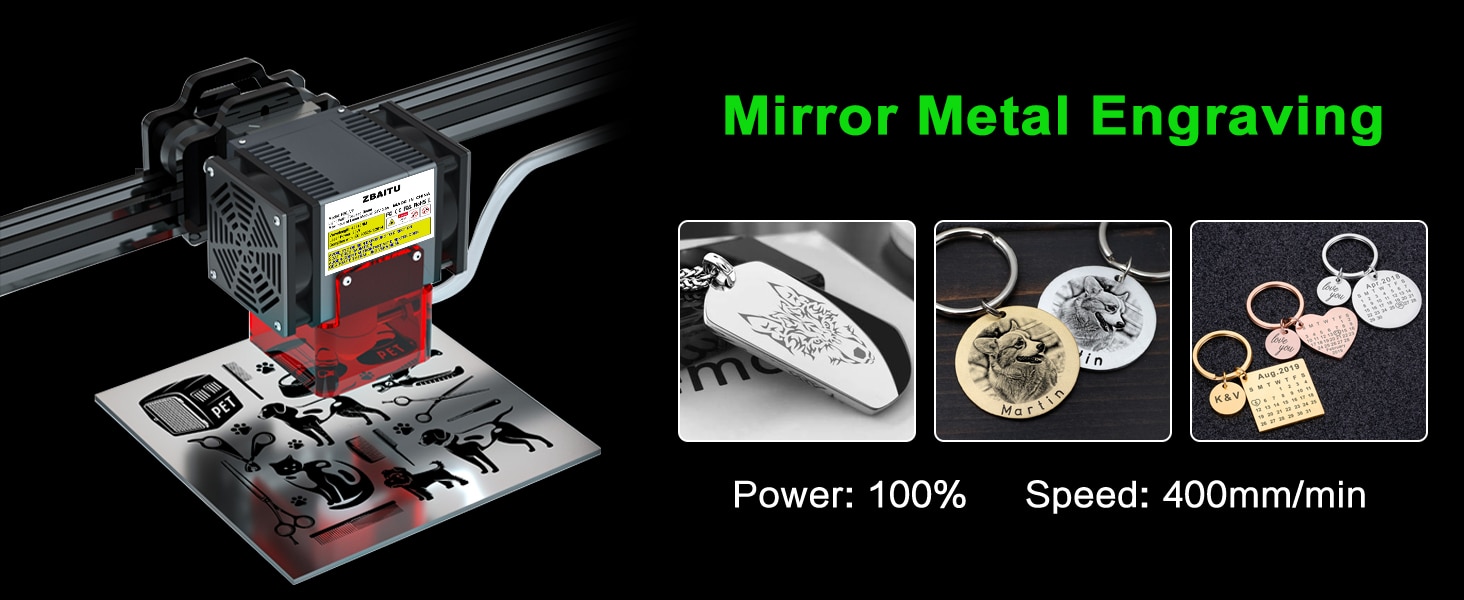

The focal area of the ultra-fine laser is reduced to 0.08*0.08mm. The high-density laser can easily cut 8mm plywood and 6mm black acrylic at one time; it can directly engrave smooth mirror stainless steel metal and deep engraved ceramic materials.

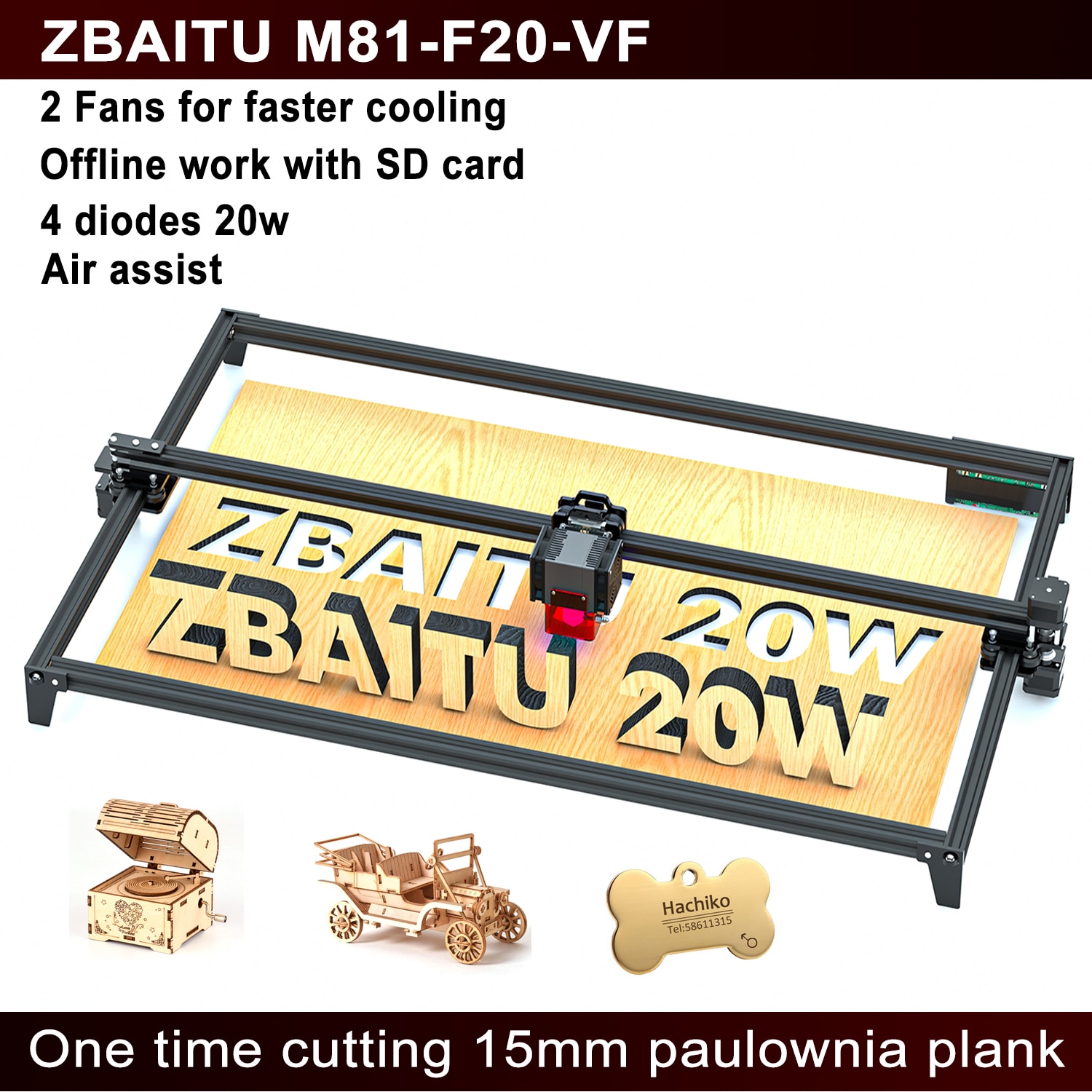

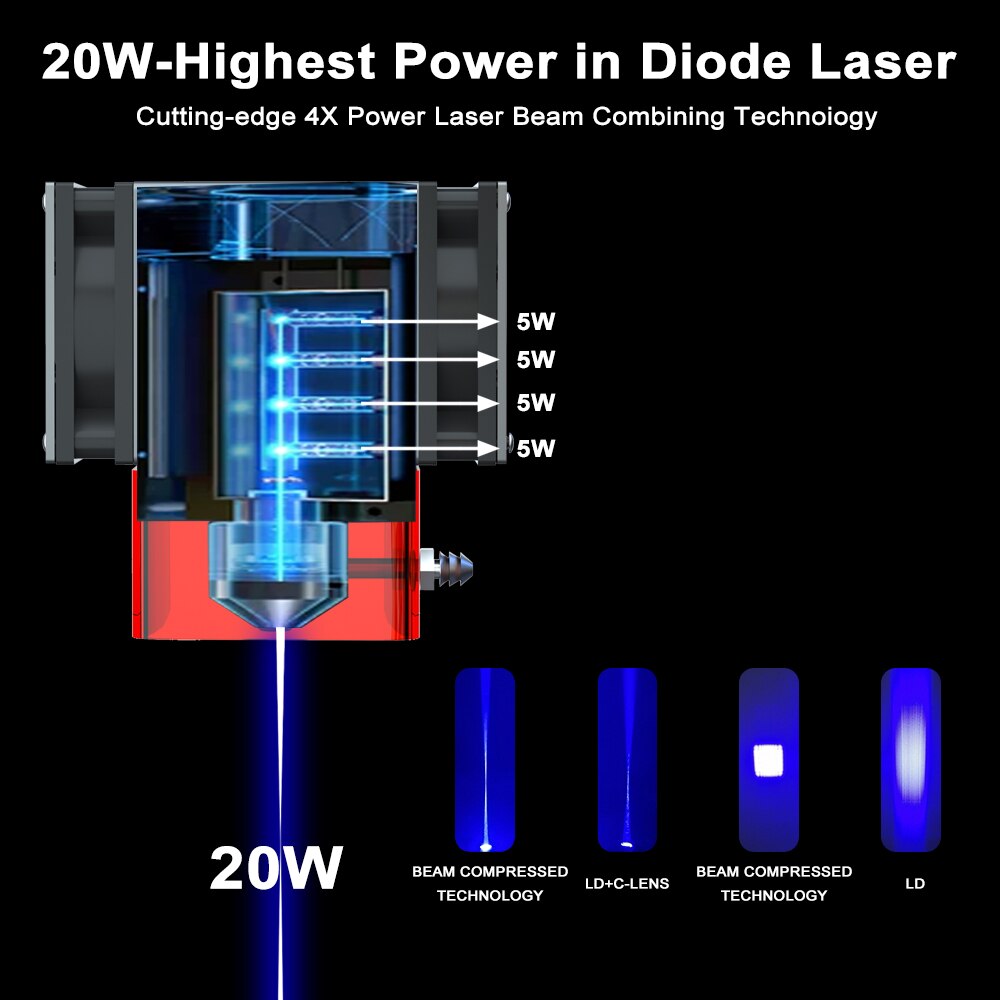

The VF20 The laser output power soars up with the latest generation of four 5W laser diode coupling technology, which is able to cut off 12-15mm thick plywood, the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.

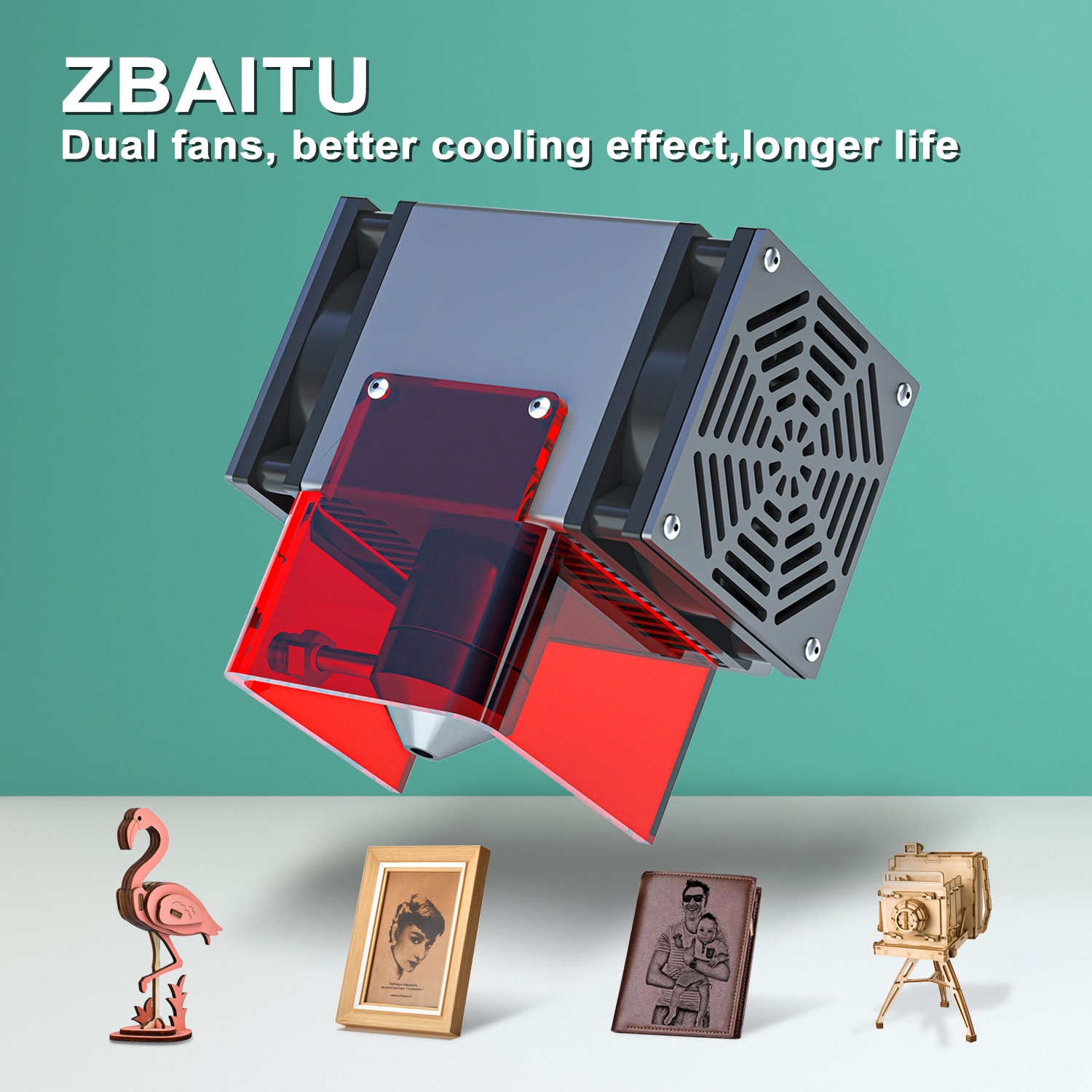

The Protective Cover with Nozzle

The laser protective cover plays a very good role in protecting the glasses. At the same time, a blower nozzle is added to the protective cover, and the laser blows away the smoke and debris when working, making your engraving work more perfect.


Sturdy Structure and Easy Installation

The structural design of aluminum alloy and acrylic makes the machine more durable and improves the accuracy of engraving. The whole structure is designed for rapid assembly, and the assembly can generally be completed within 10-20 minutes.

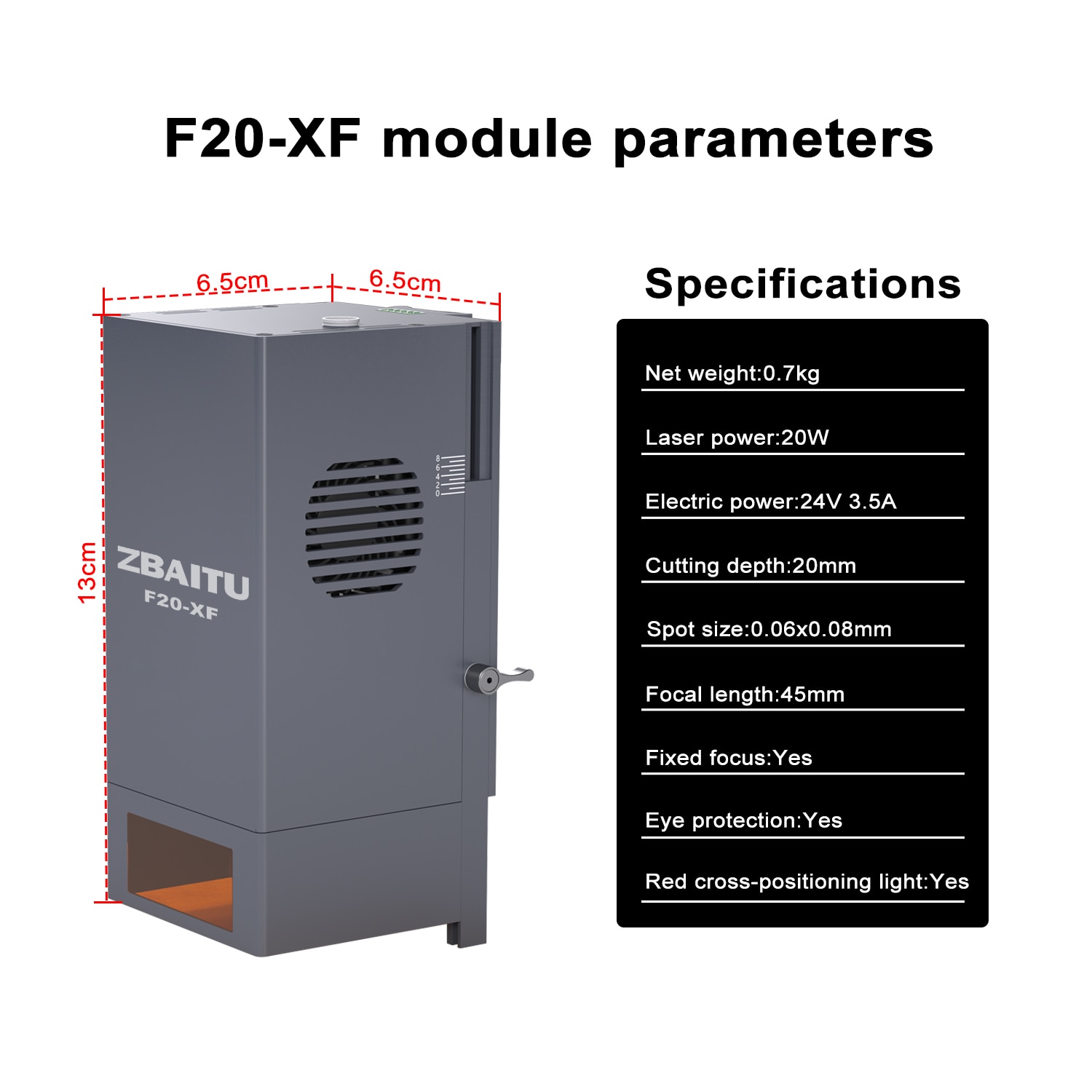

Enhanced Fixed Focus Laser

Engraving can be done without focusing; if you are tired to adjust the focus or not so professional, the fixed focus module is the best one for you. The power of fixed focus laser is more stable than adjustable laser.

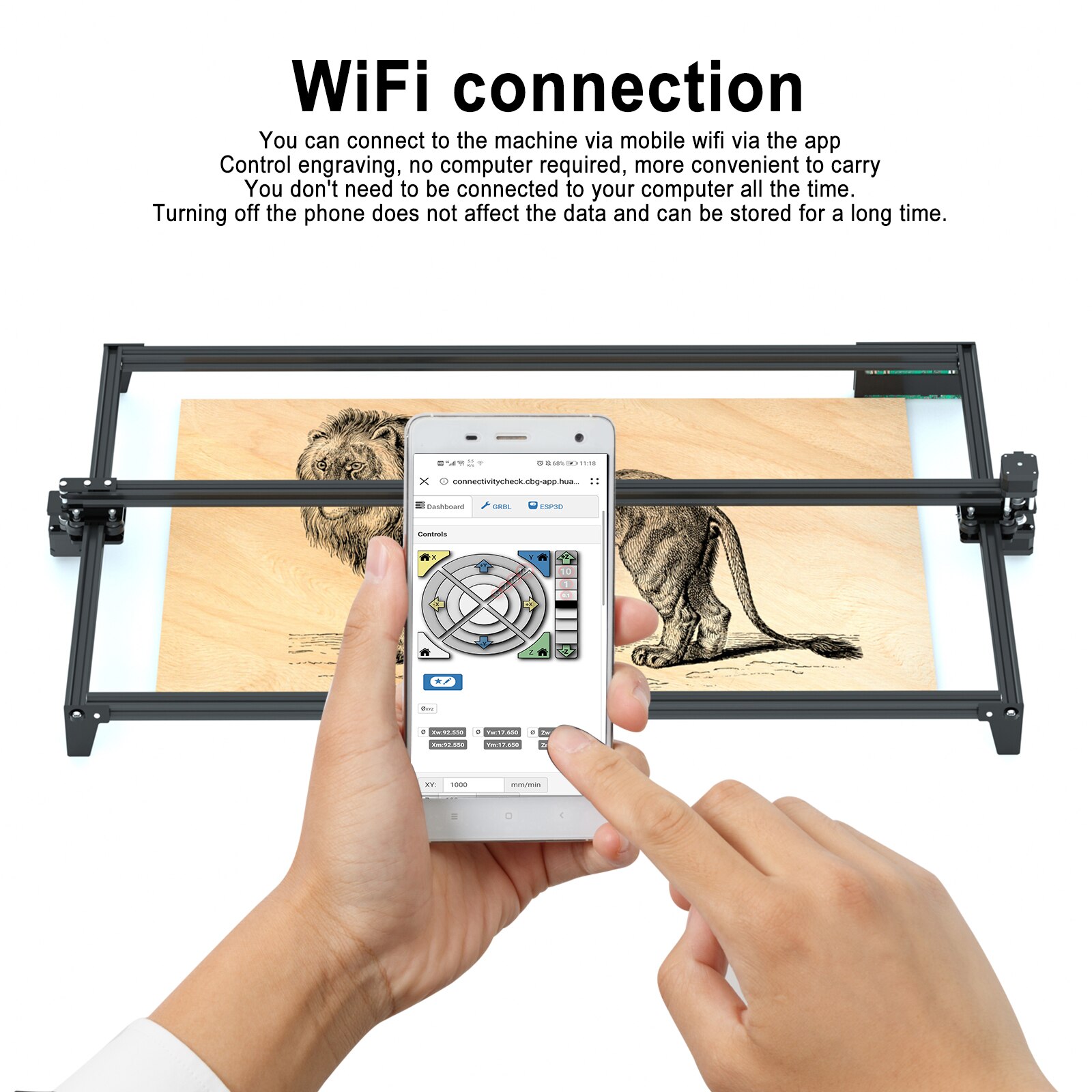

Wide Compatibility (WIFI/AP/USB)

This machine is compatible with various mature engraving software, such as Laser GRBL, Light Burn, compatible with Windows XP/7/8/10/11, and also compatible with Mac system (Light Burn), compatible with file format engraving with NC, BMP, JPG, PNG , DXF, etc.

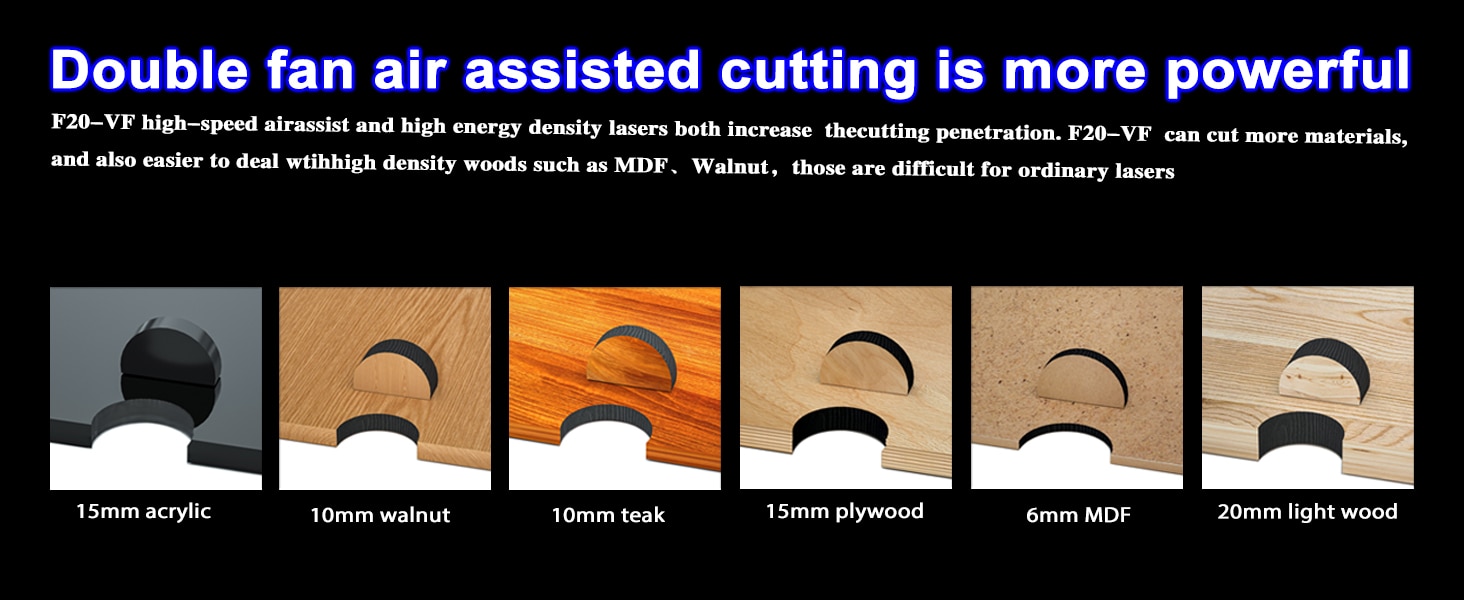

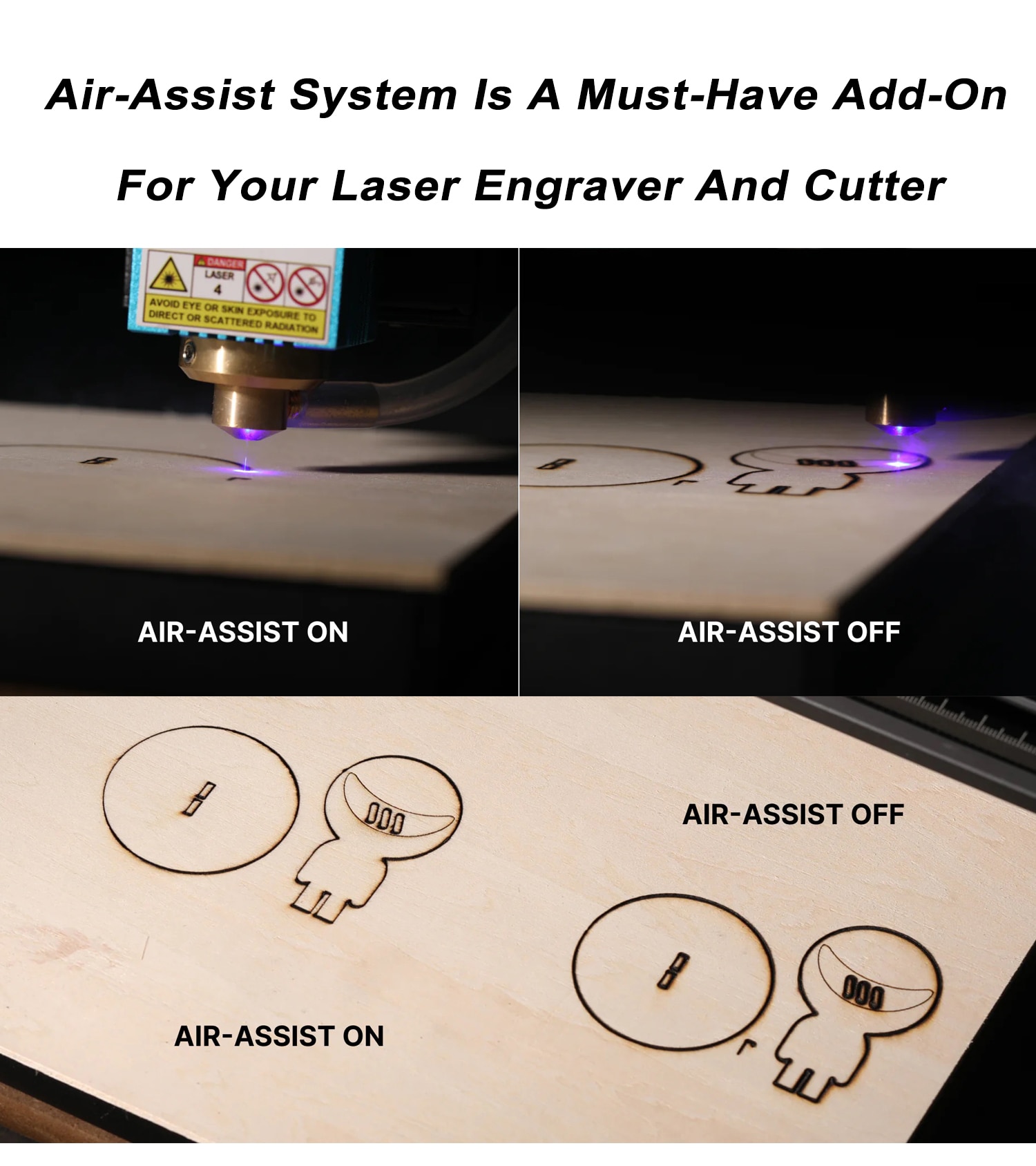

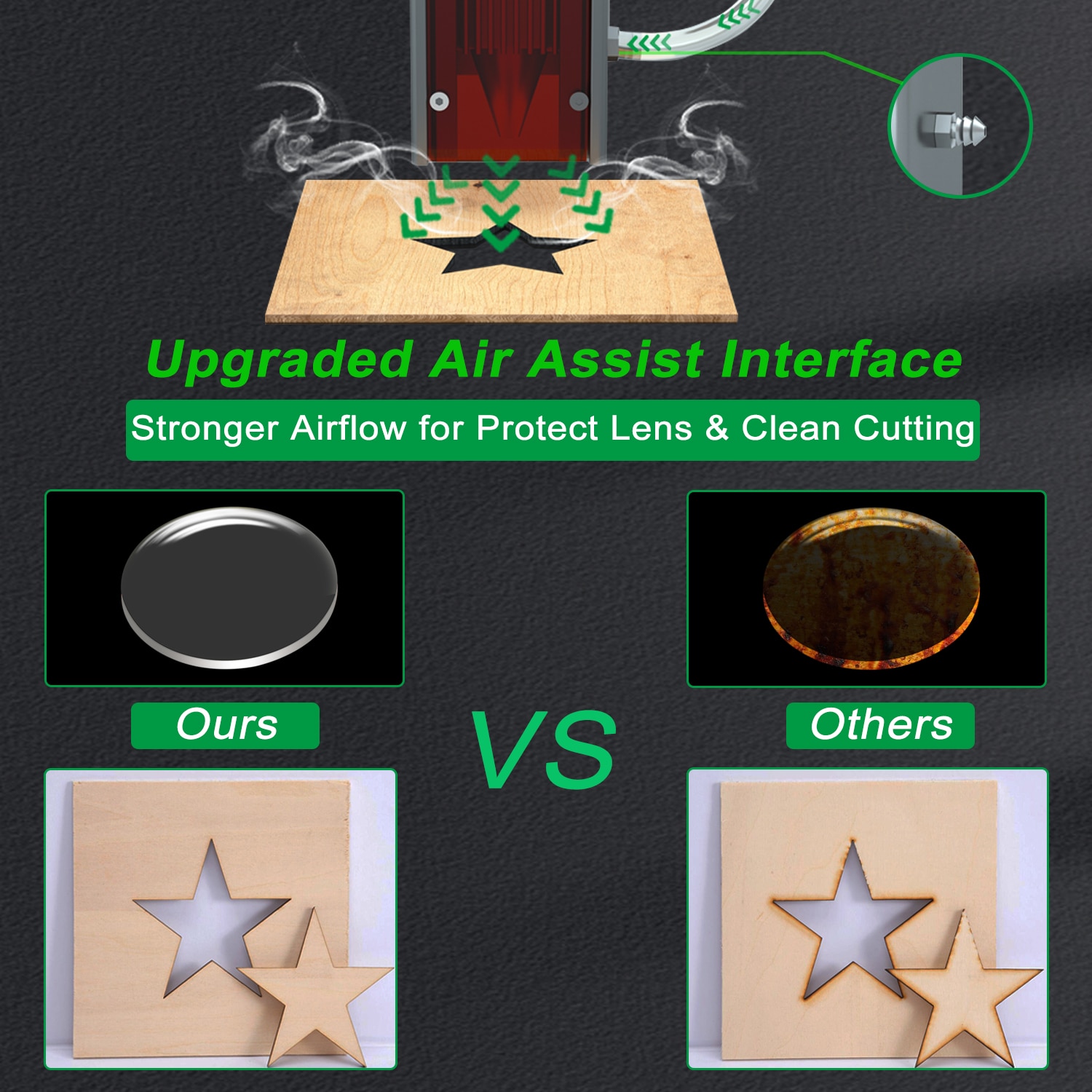

Why Air-Assist System Is A Must-Have Add-On For Your Laser Engraver And Cutter?
1.It regulates the laser beam to be more precise and keeps your workpiece cool, so your engraving and cutting jobs will have a cleaner finish.

2.It reduces the laser power loss by pushing smoke and residues away from the material, so your laser work can be done faster with an enhanced finish.

3.It also protects your laser from residue buildup and overheating, improving the service life of your laser module.




1. What is the difference between the 40W / 80W / 130W models? How should I choose the device power?

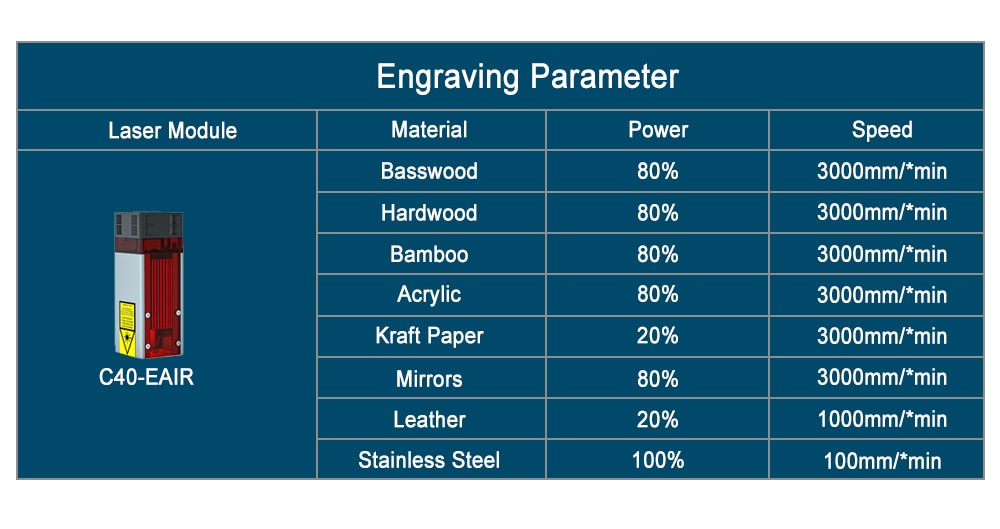

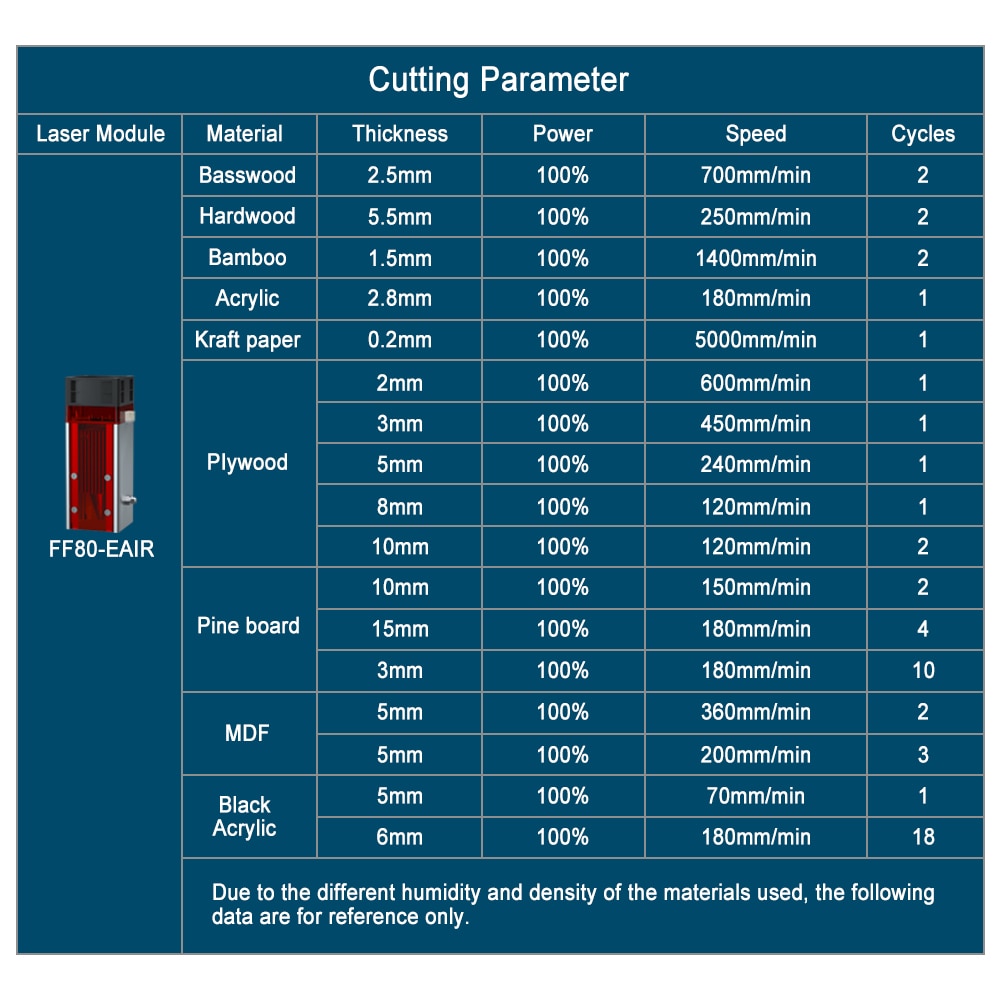

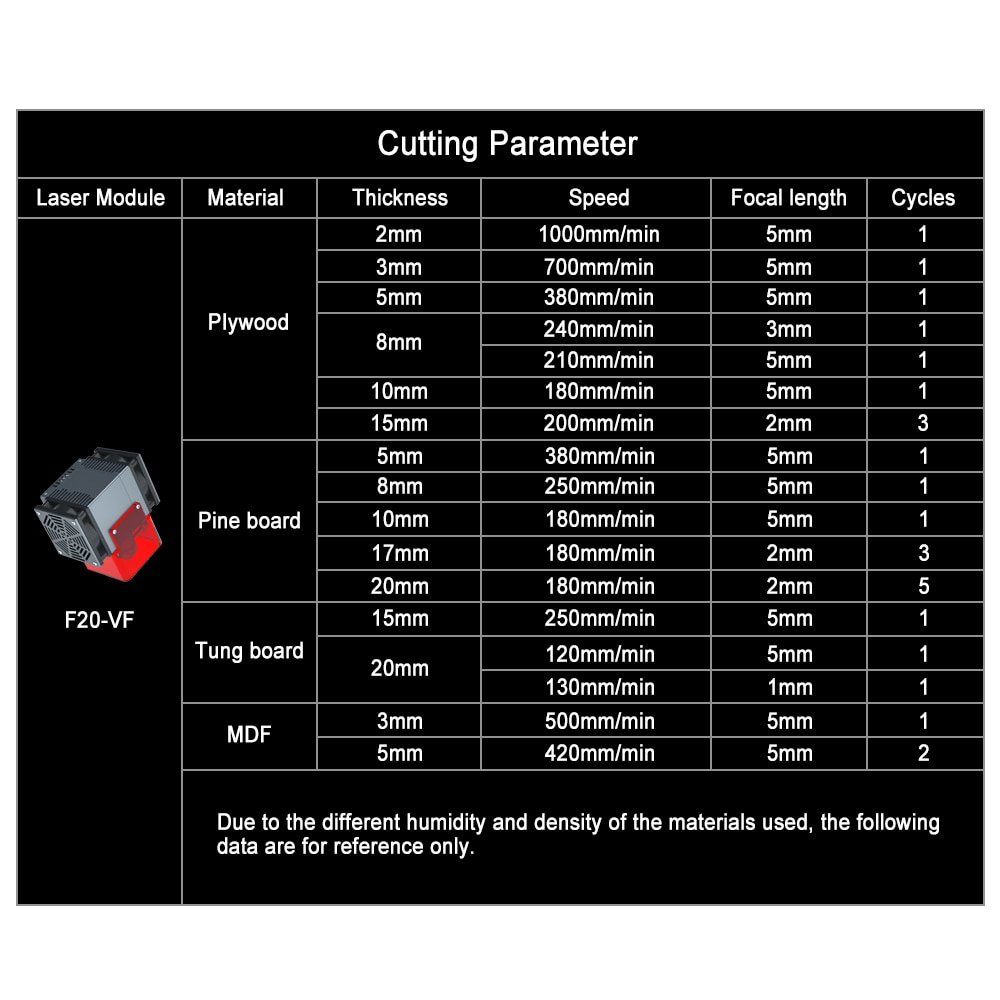

.80W model (10W laser output) supports more engraving and cutting materials, has finer engraving, and faster engraving speed compared to the 40W model(5W Laser output). They have different cutting and engraving speed, pls look at the cutting parameter below.


2. Why is the title says 130W, 80W, 40W, but the Laser is  20W ,10W or 5W?

130W, 80w, 40W is the effective power of Laser machines, its actual laser output power should be 20W, 10W, 5W.

3. Is it possible to engrave metal?

Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.

4. Is it possible to engrave glasses cups?

Yes, it can engrave glasses.

look at our video: https://youtu.be/3TnwUb8cIc8Q


5. Can this machine only cut dark acrylic?

Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.


6. Is there user manual?

Yes, there are user manual in paper in the box, also some assembly videos.


7. Has any warranty?

ZBAITU laser engraving machine has 1 year warranty, the parts can be replaced free, you just need pay for the shipping cost.


8. Do I have to pay for tax?

We have warehouses in Europe, Russia, Brazil, USA choose to ship from oversea warehouse will not need to pay customs duties.


Kindly understand that the Customs Duties is out of our control, if you have doubt about it, pls check with local customs.

Usually, we shipping out your order within 48 hours by Hogaki Standard Shipping, if you need fast shipping, pls message us with your country and city, we will check and find an economy shipping way for you.


Please Note!!!!! Make sure your address is correct and full before payment!


Service: All our items have 1 year warranty, 15 days no reason return, feel free to contact us if you have other question.

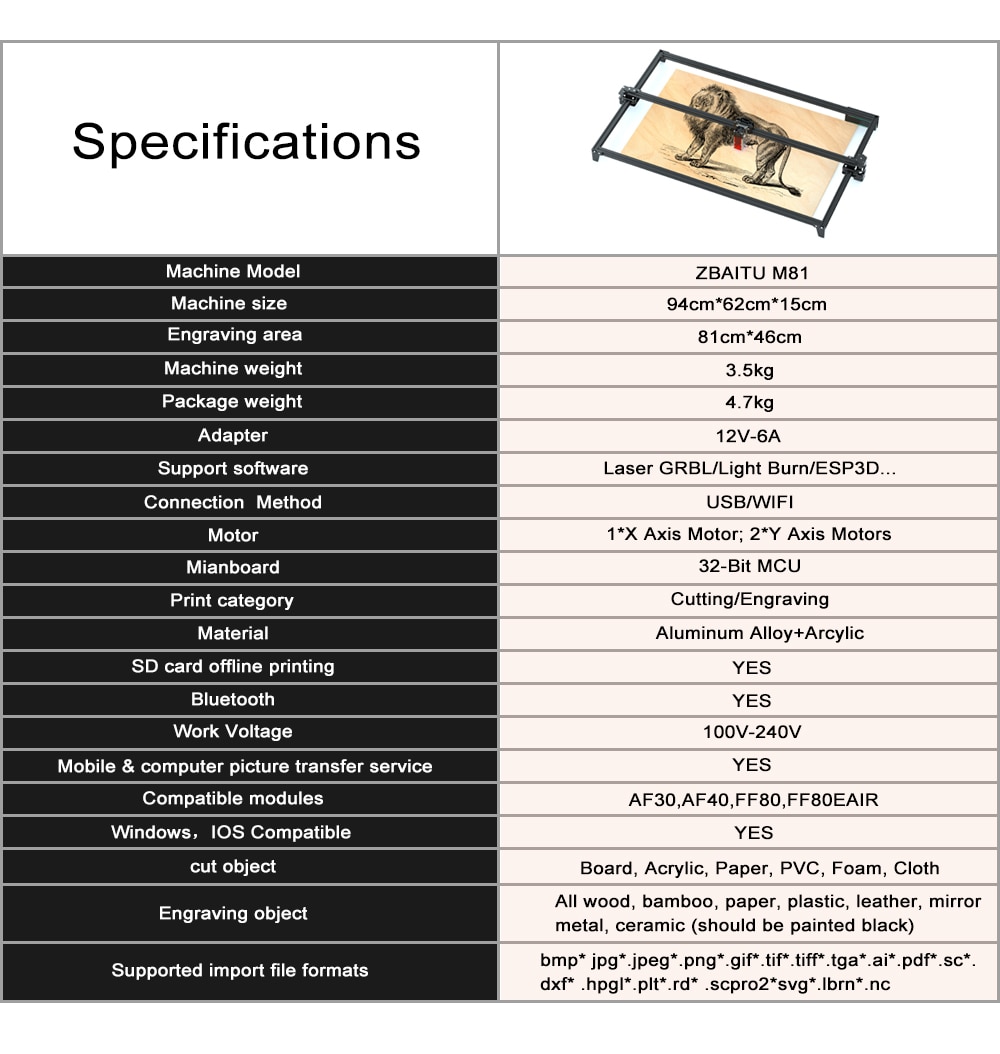

  • Is Smart Device: YES
  • Model Number: ZBAITU M81
  • Condition: New
  • CNC or Not: CNC
  • Brand Name: ZBAITU
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • Effect Power: 80W/40W/100W/150W
  • Output Optical Power: 10W/5W
  • Support Offline Work: Yes
  • Wavelength: 450nm
  • Spot Size: 0.08*0.08mm
  • Focal Length: 45mm/40mm
  • Adapter: 12V/24V--5A
  • Package size: 100*16*17cm
  • Package Weight: 5kg
  • Machine Weight: 3.5kg
  • Machine Size: 94*64*15cm
  • Connection Method: USB/WIFI/AP
  • Support Software: lightBurn\laser GRBL\ESP3D
  • Motor: 1*X axis motor/2*Y axis motor
  • Engraving Area: 81X46cm
  • Material: Aluminum Alloy
  • Focus Adjust: No
  • Laser Cutting Depth: 0-20mm
  • Fit CNC: Yes
  • Application Material: plastic/paper/bamboo/leather/glass/stone/wood/plywood/mdf
  • Application: Laser Engraving/Cutting/Carving
  • Laser Engraving Speed: 10000mm/min
