LASER TREE 450nm Laser Engraver Head 40W 80W TTL Blue Light Module for CNC Engraving Cutting Machine DIY Woodworking Tools
5.0 (18 votes) | 314 orders
Price:
US $299.25 - 1045.00
/ piece
Discount Price:
US $
116.55 -
407.55
/ piece
-61%
- Ships From
- Color
-
-

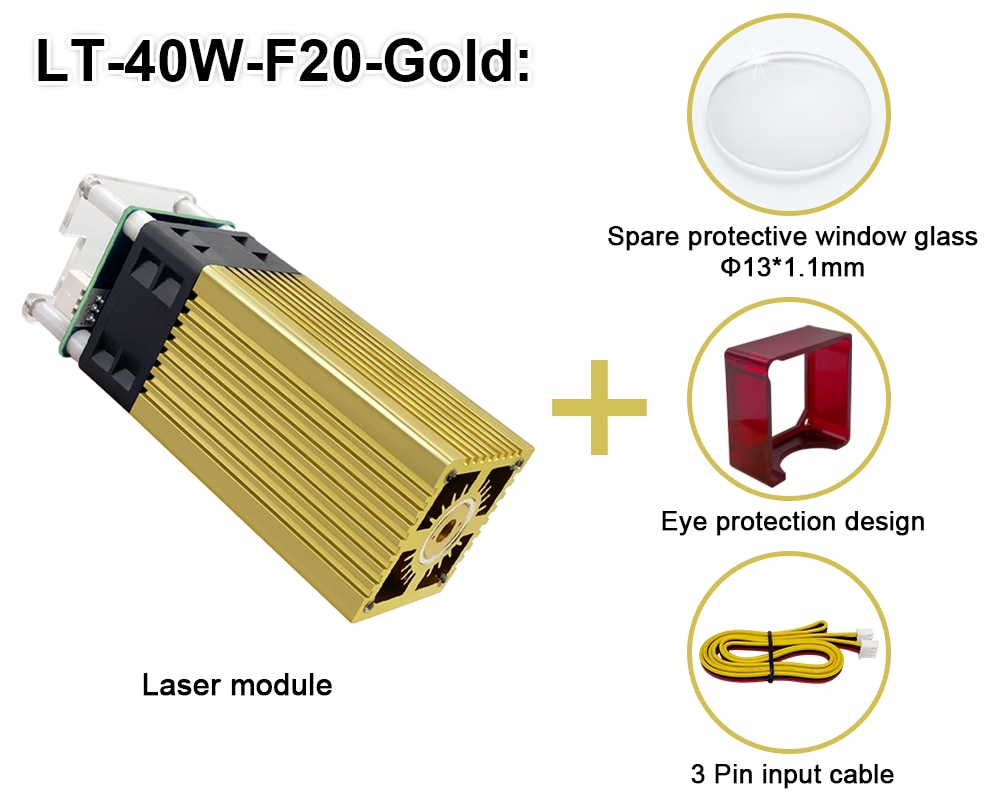

LT-40W-F20-GOLD

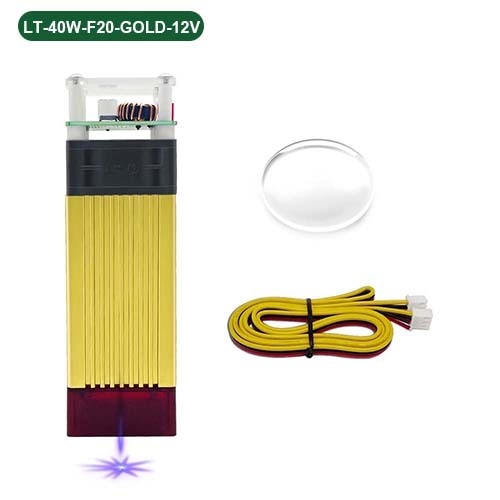

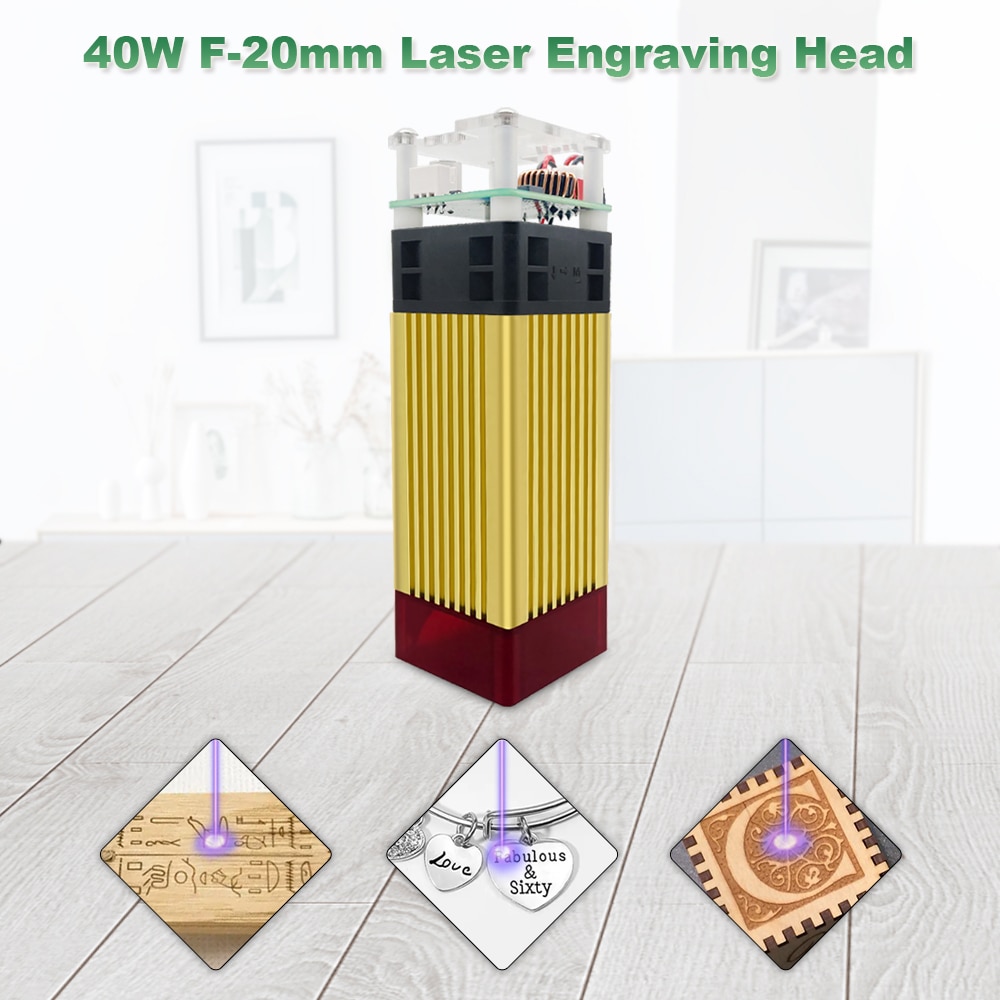

Product Description
[Product Features]

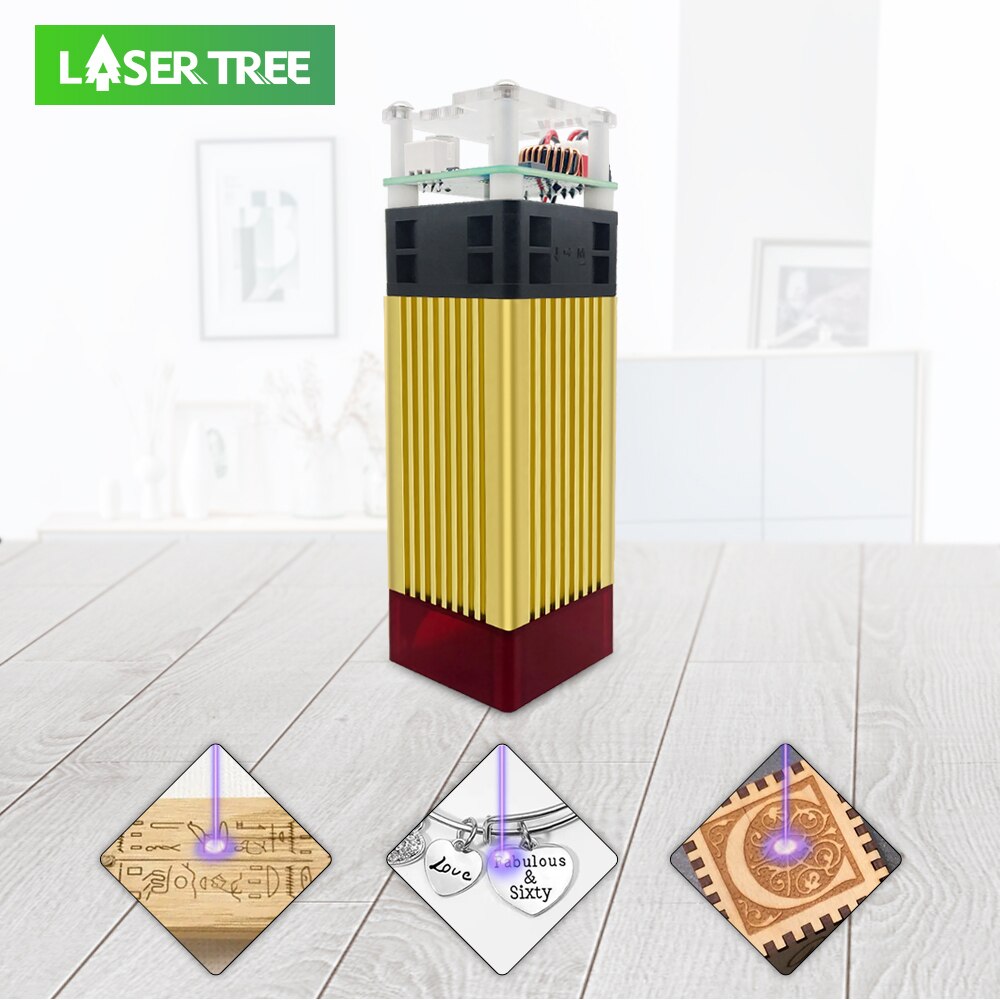

1.Blue laser module, a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

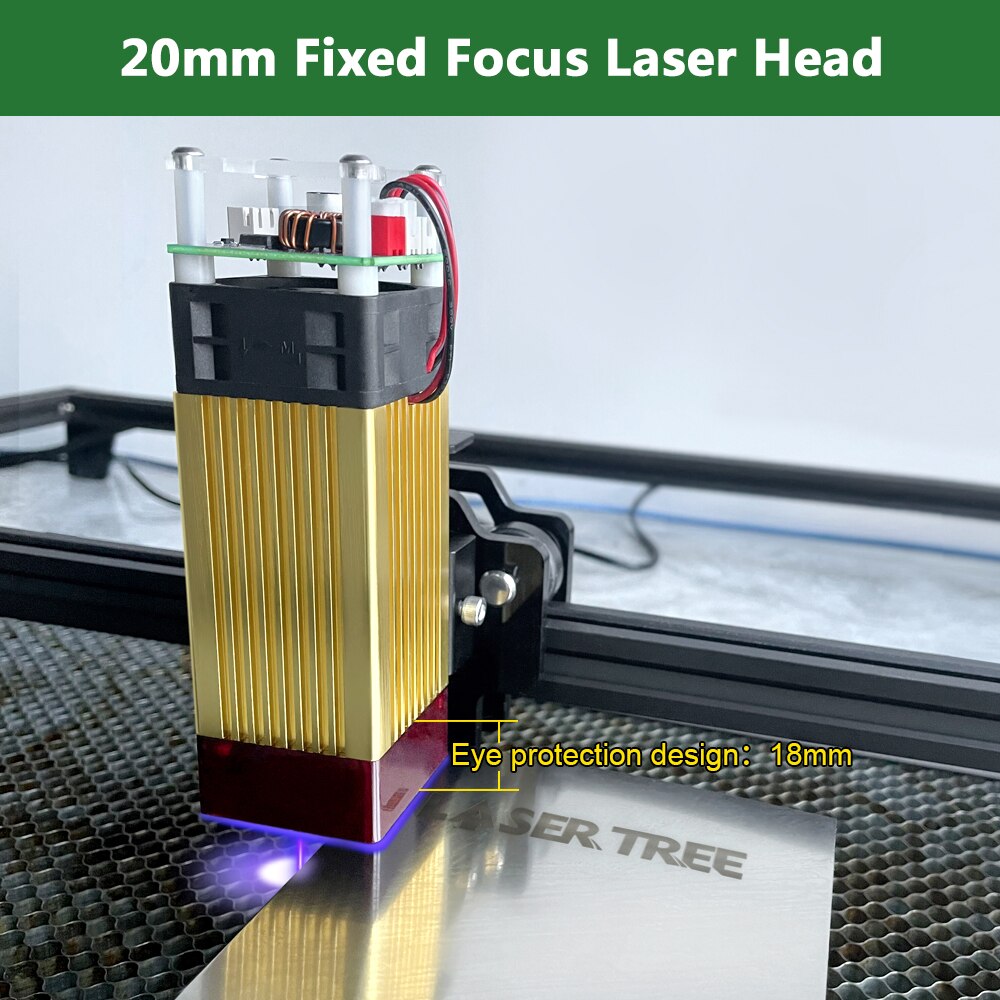

2.Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

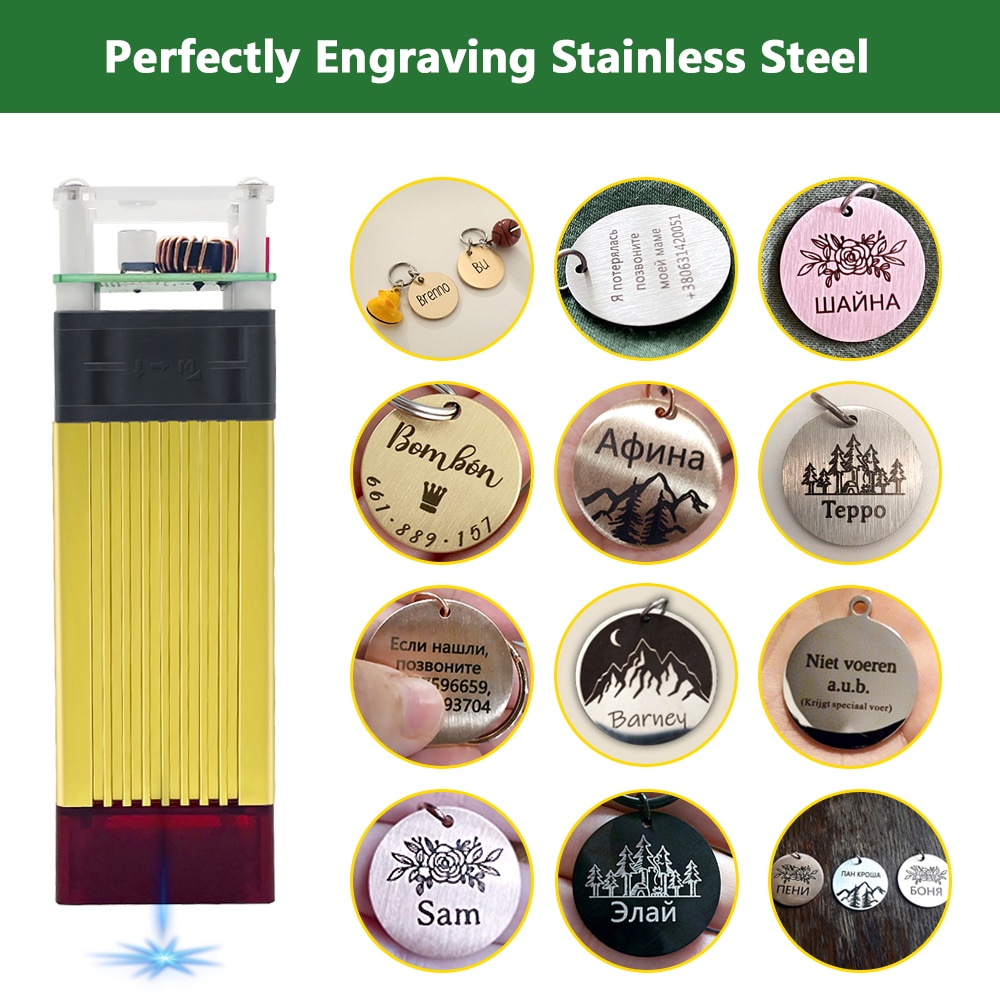

3.Directly engrave mirror stainless steel: no need painting black;

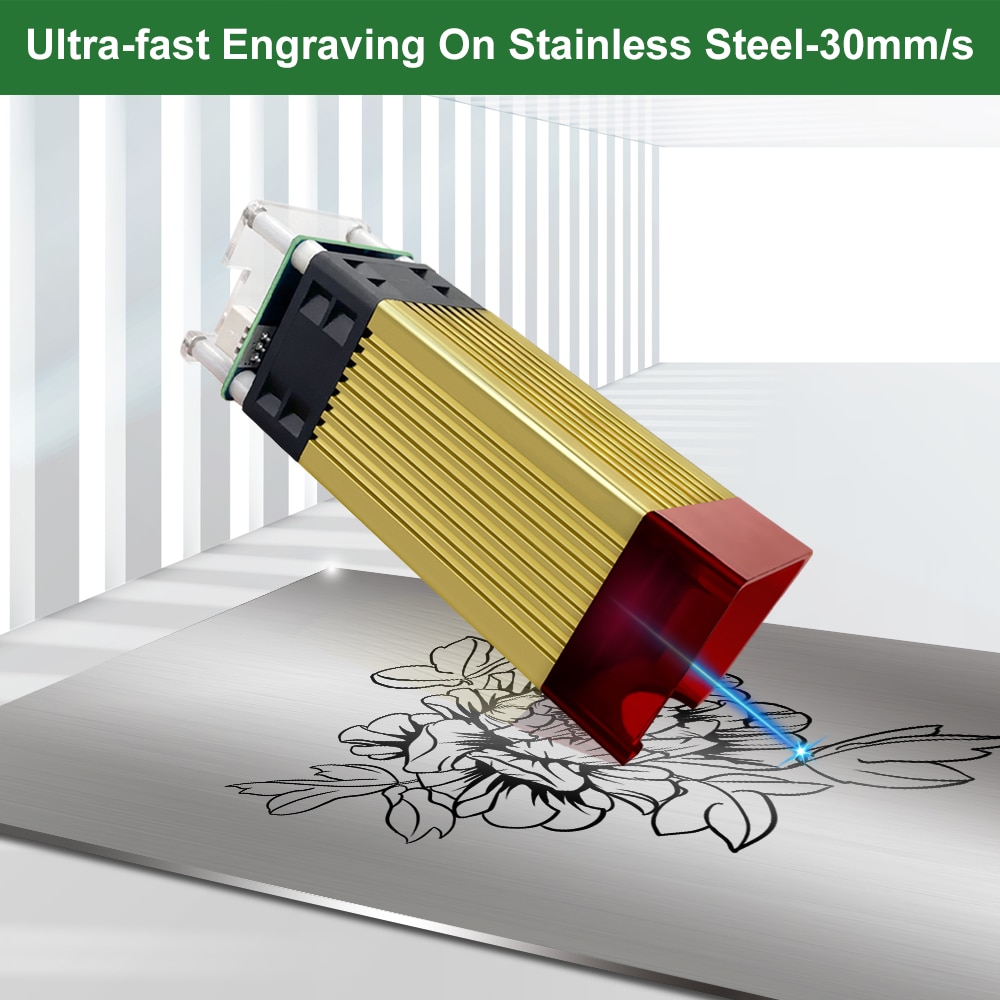

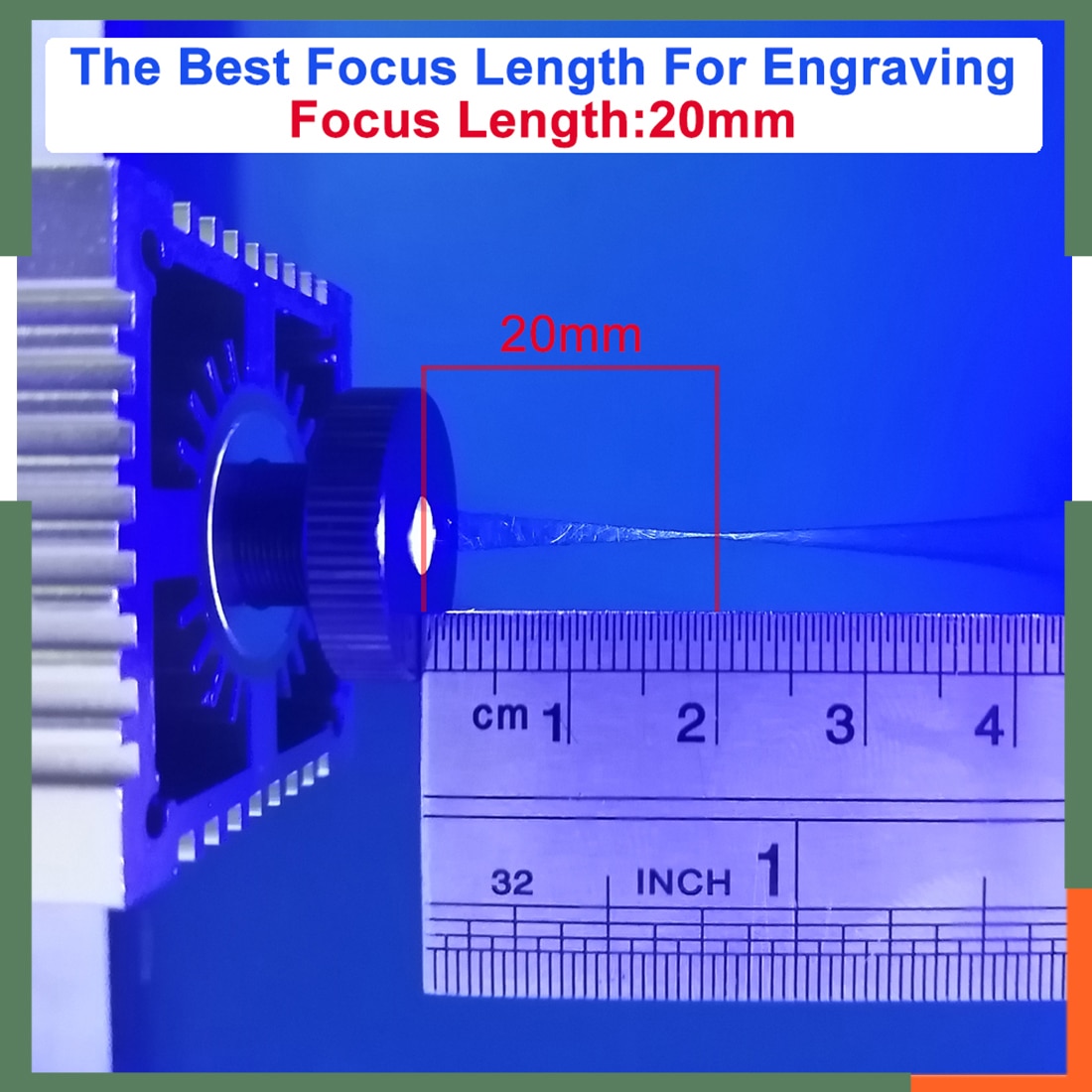

4. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;

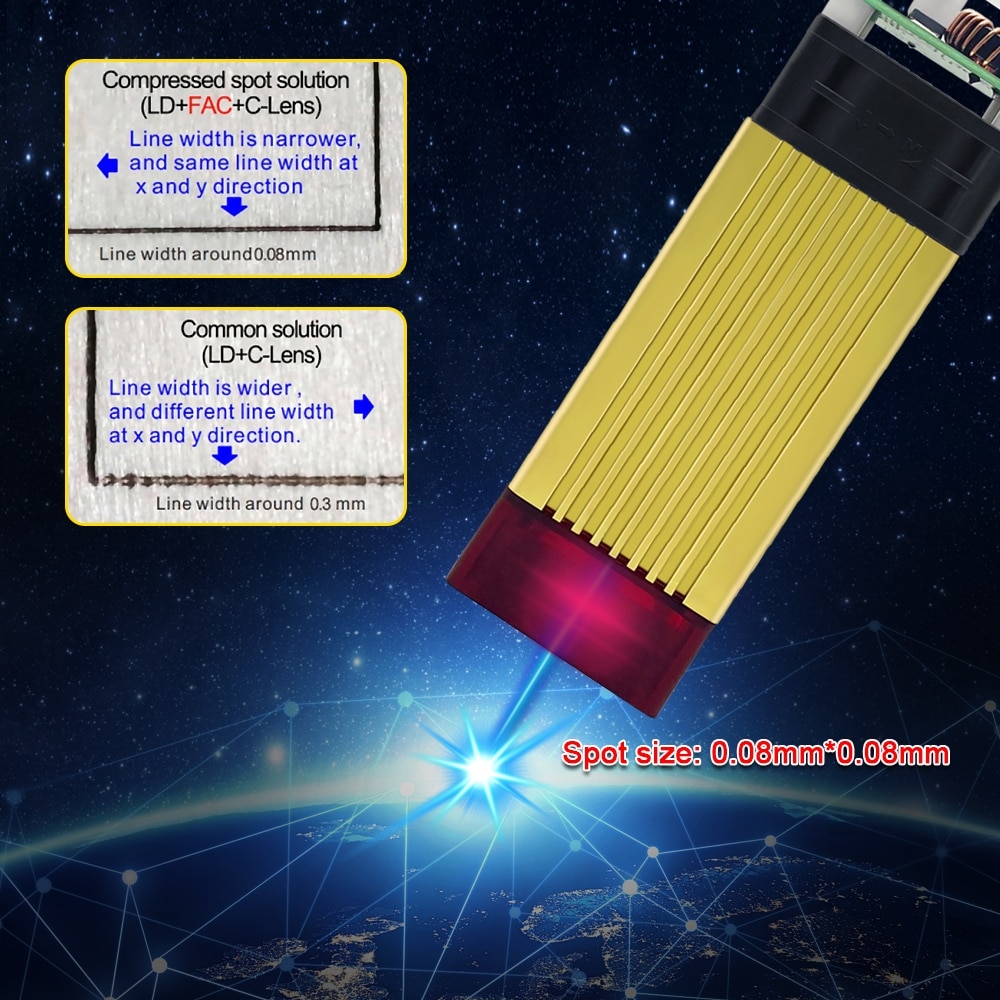

[Original diode with FAC] Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.

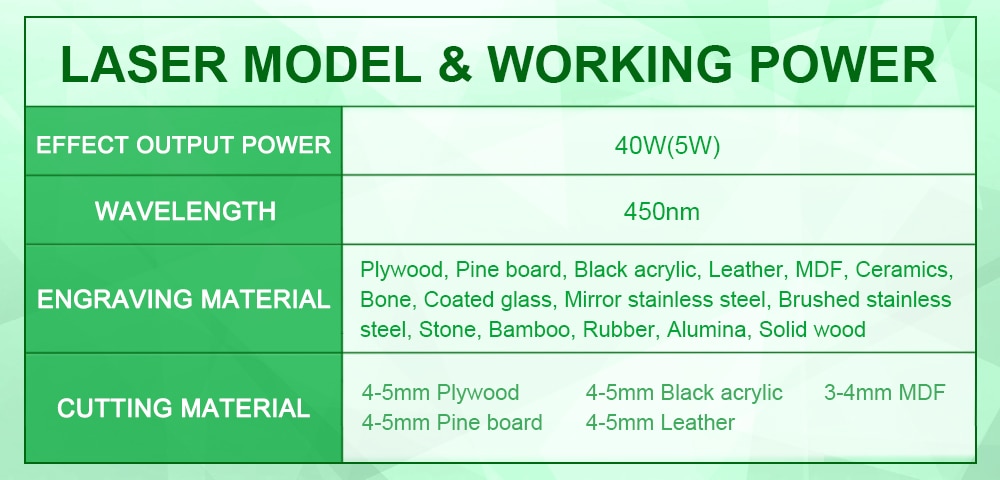

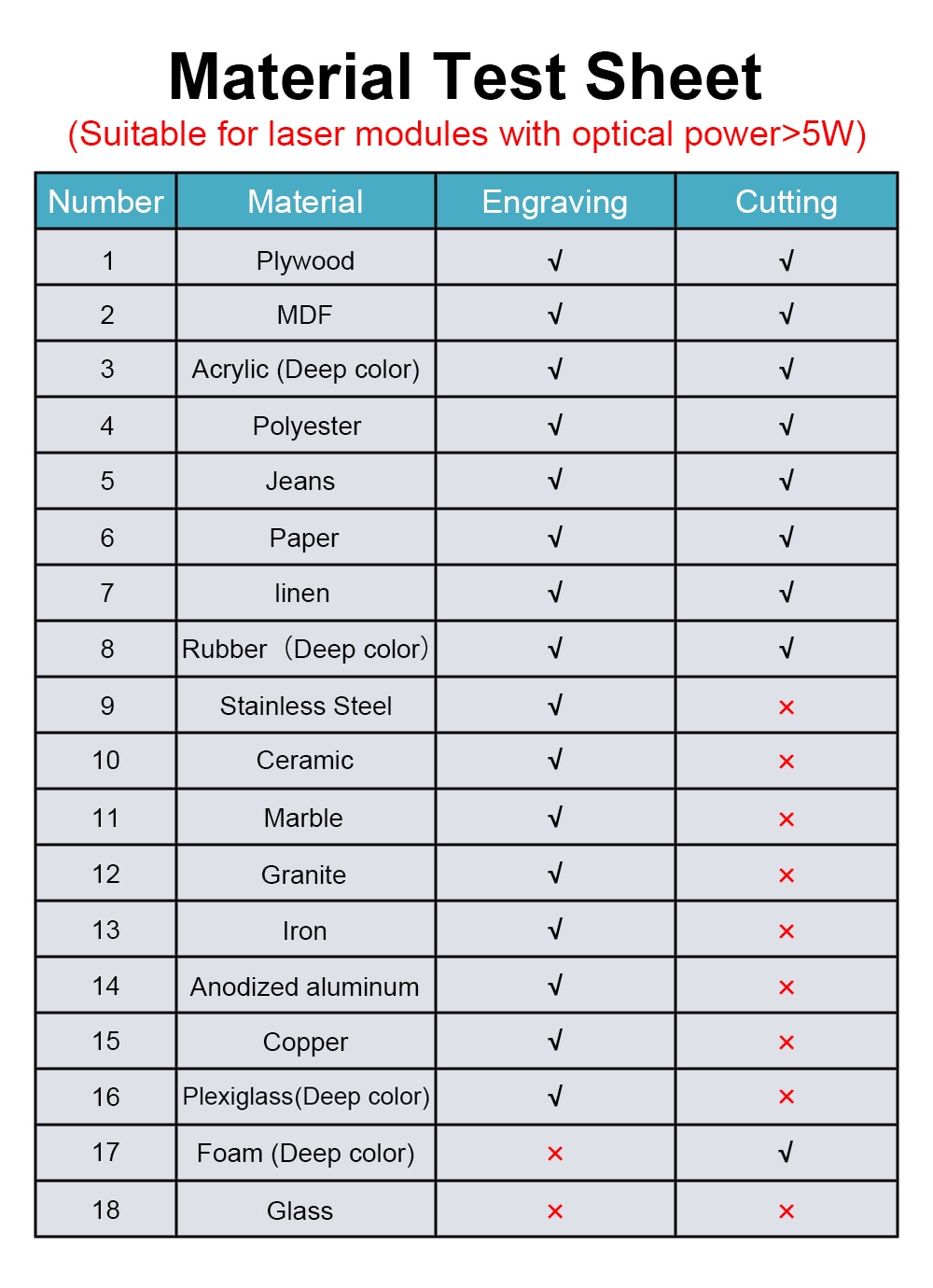

[Applicable Materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Mirror stainless steel, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

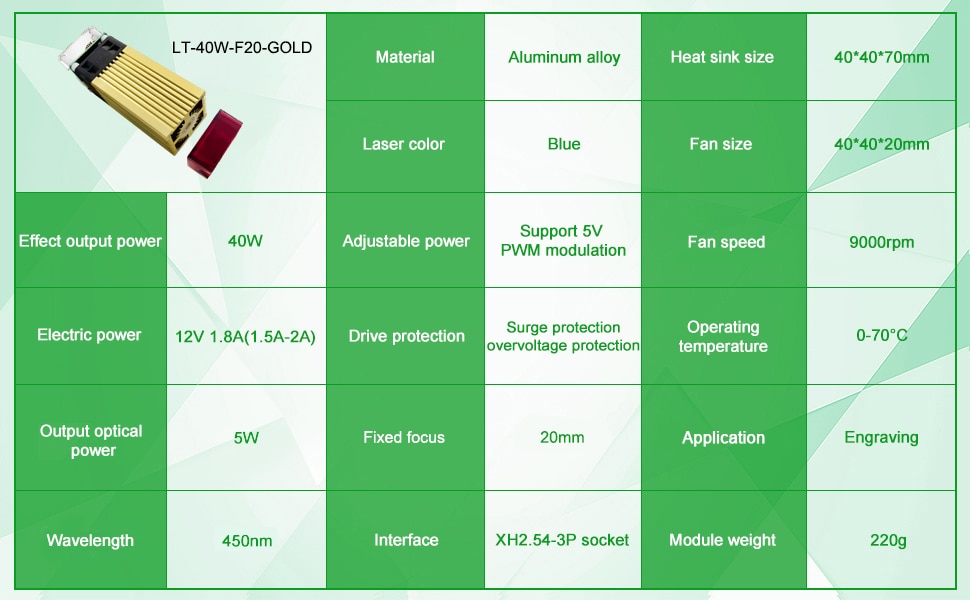

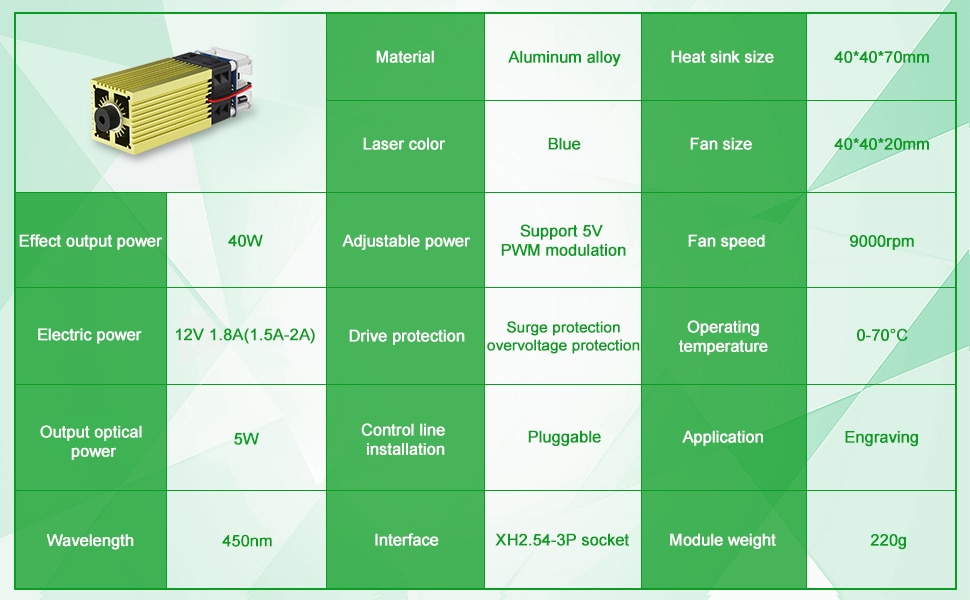

Specification:
Effect output power: 40W
Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/5-12V 0-5kHz TTL/PWM
Item size: 12 * 4 * 4cm
Packing size: 14 * 6.2 * 6.2cm
Product weight: 300g

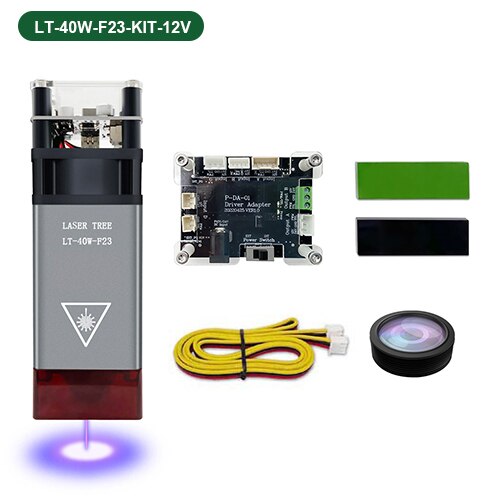

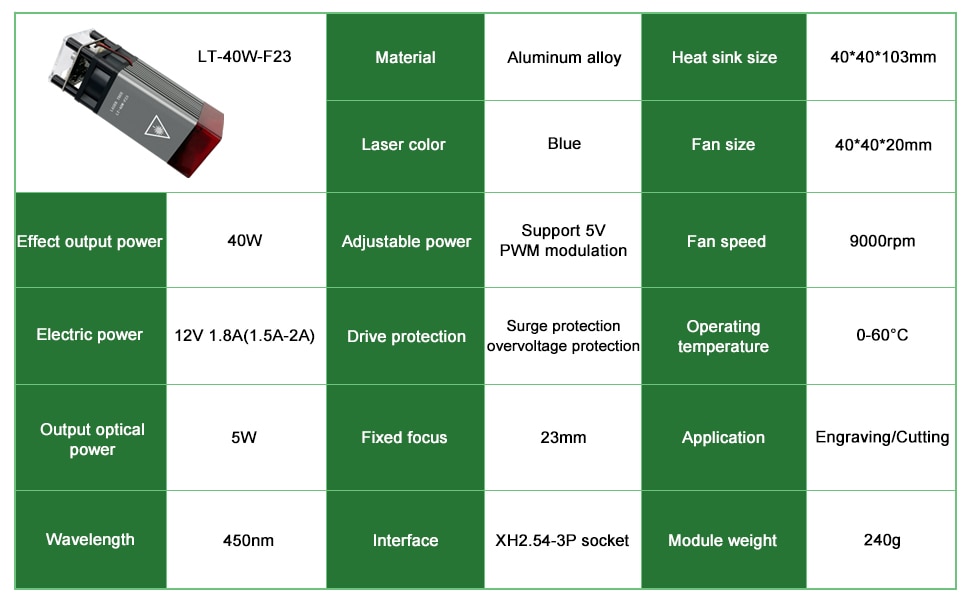

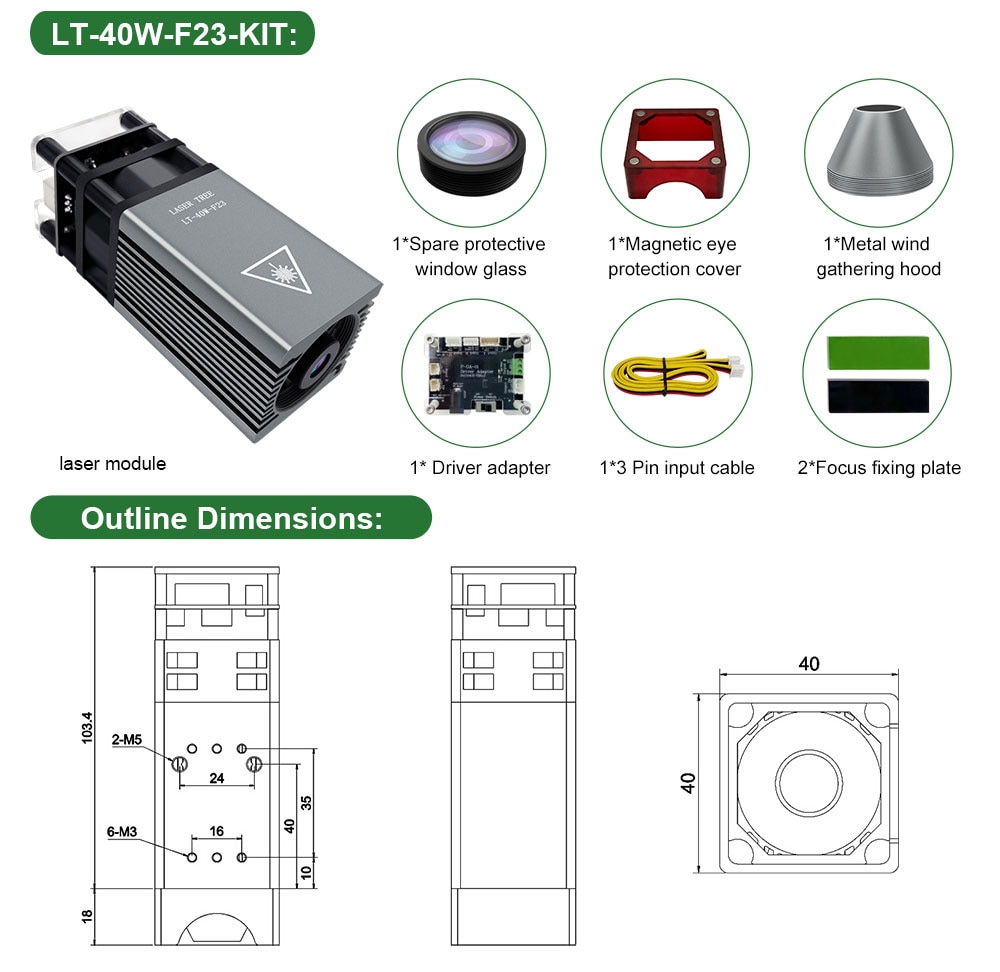

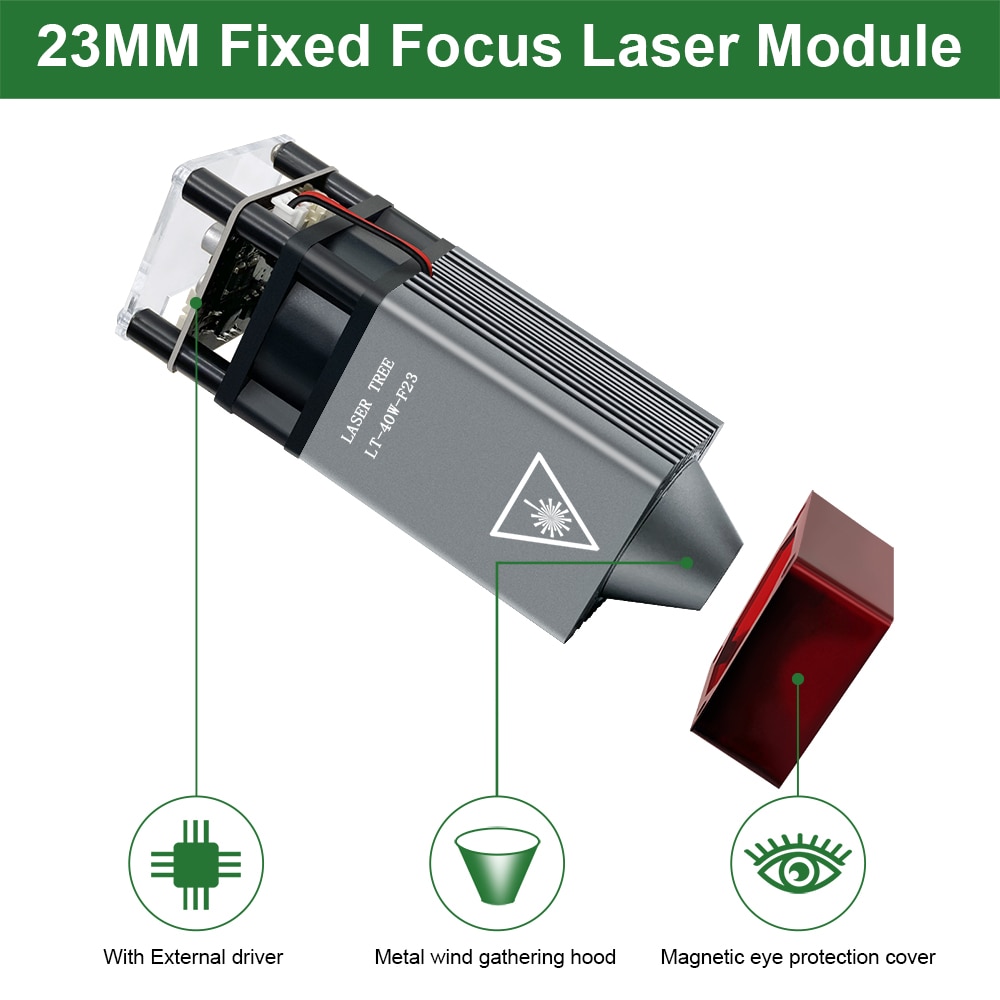

LT-40W-F23
Product Description

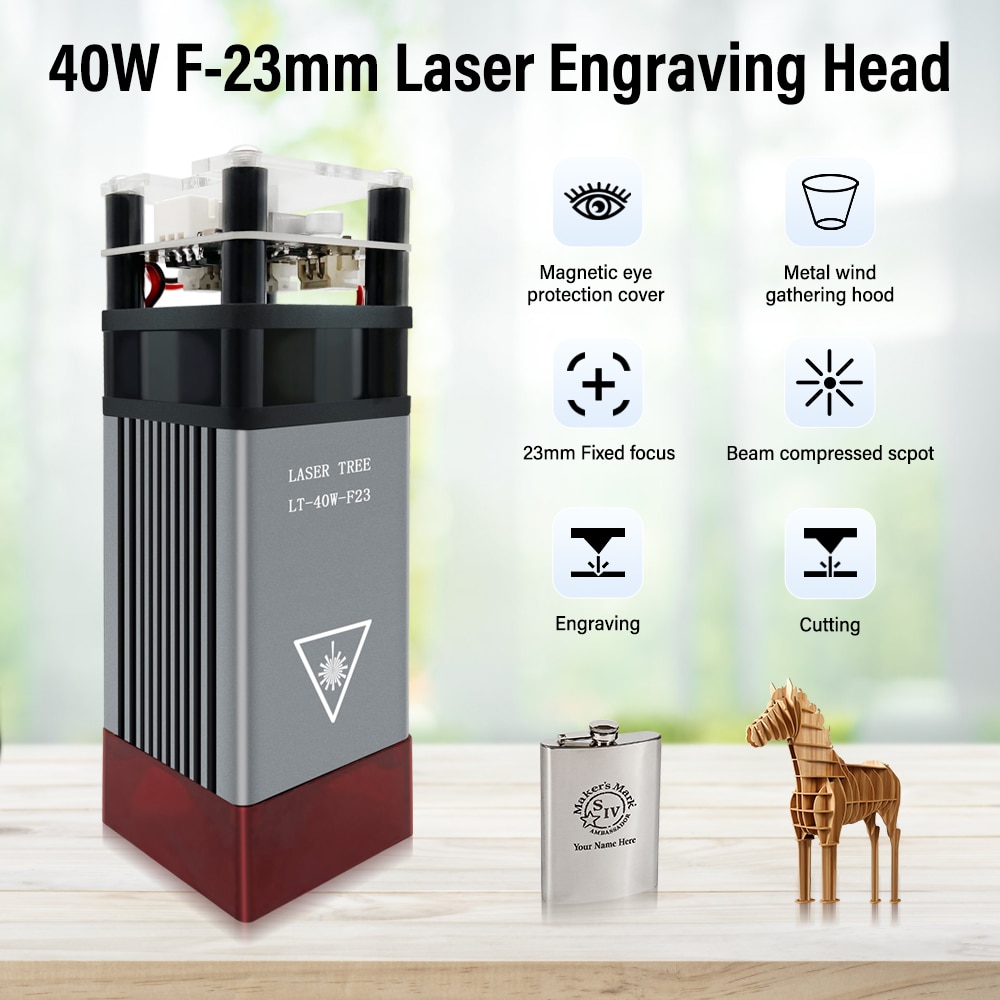

Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine
Product Features:
1.Engraving Mirror Stainless Steel, no need to Paint Black.

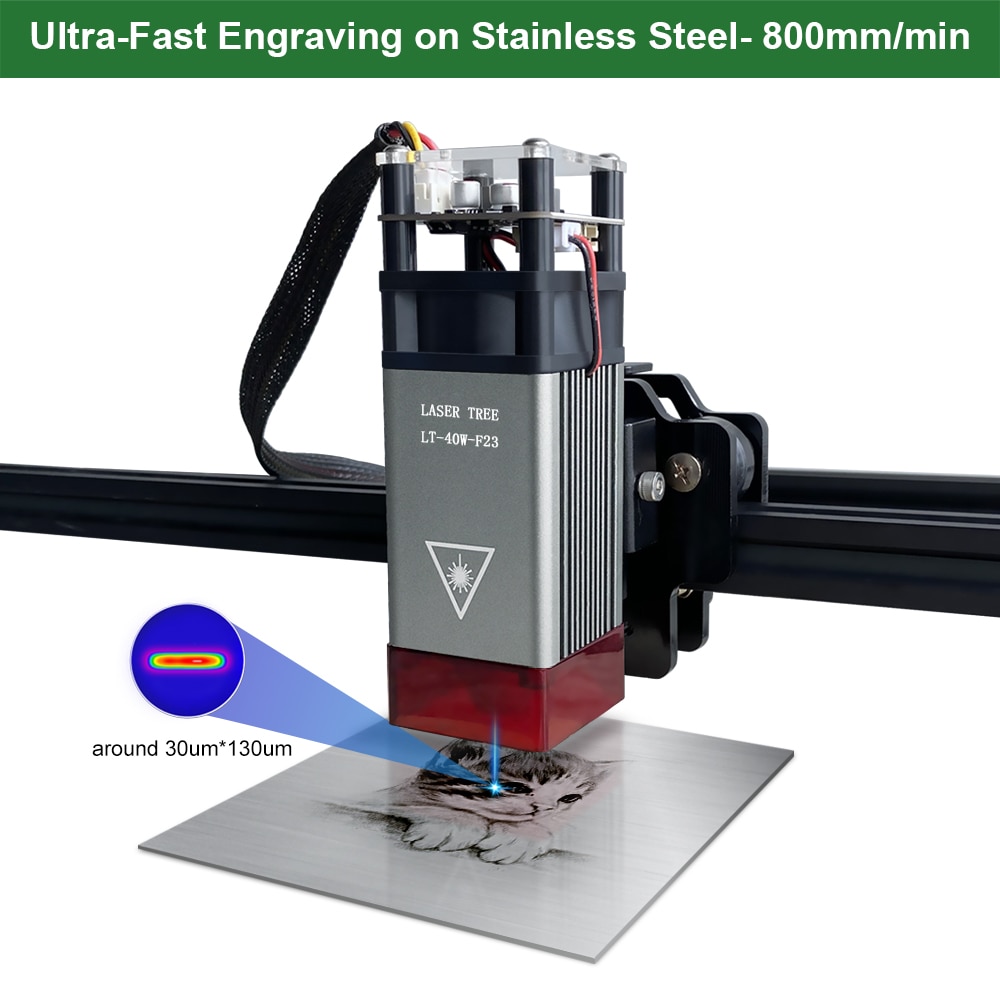

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

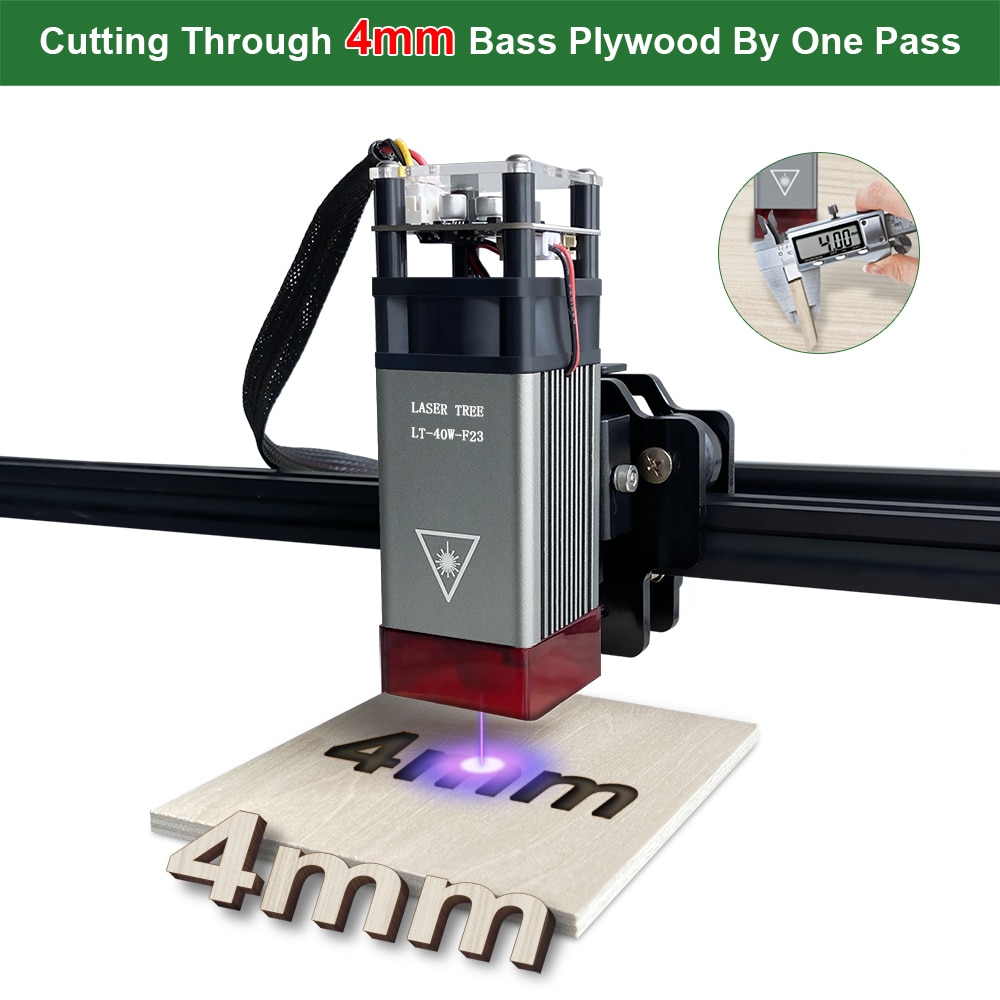

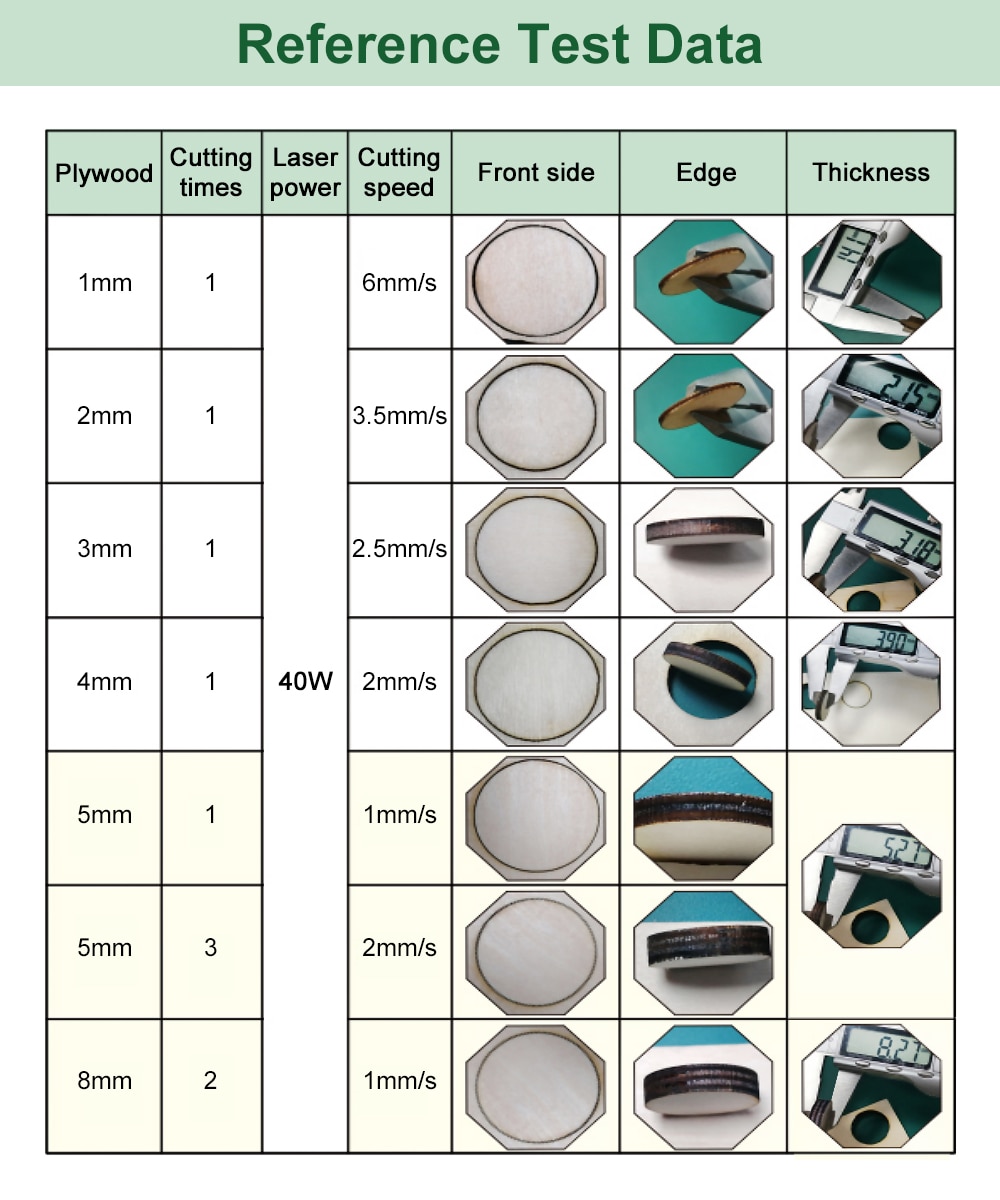

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.
4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.
5.Metal cutting air outlet: Which does not generate heat and can resist flames.
Specification:
Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Modulation: 0/5-12V 0-5kHz TTL/PWM
Function: Engraving/Cutting
Module Size: 40*40*121mm
Module Weight: 240g

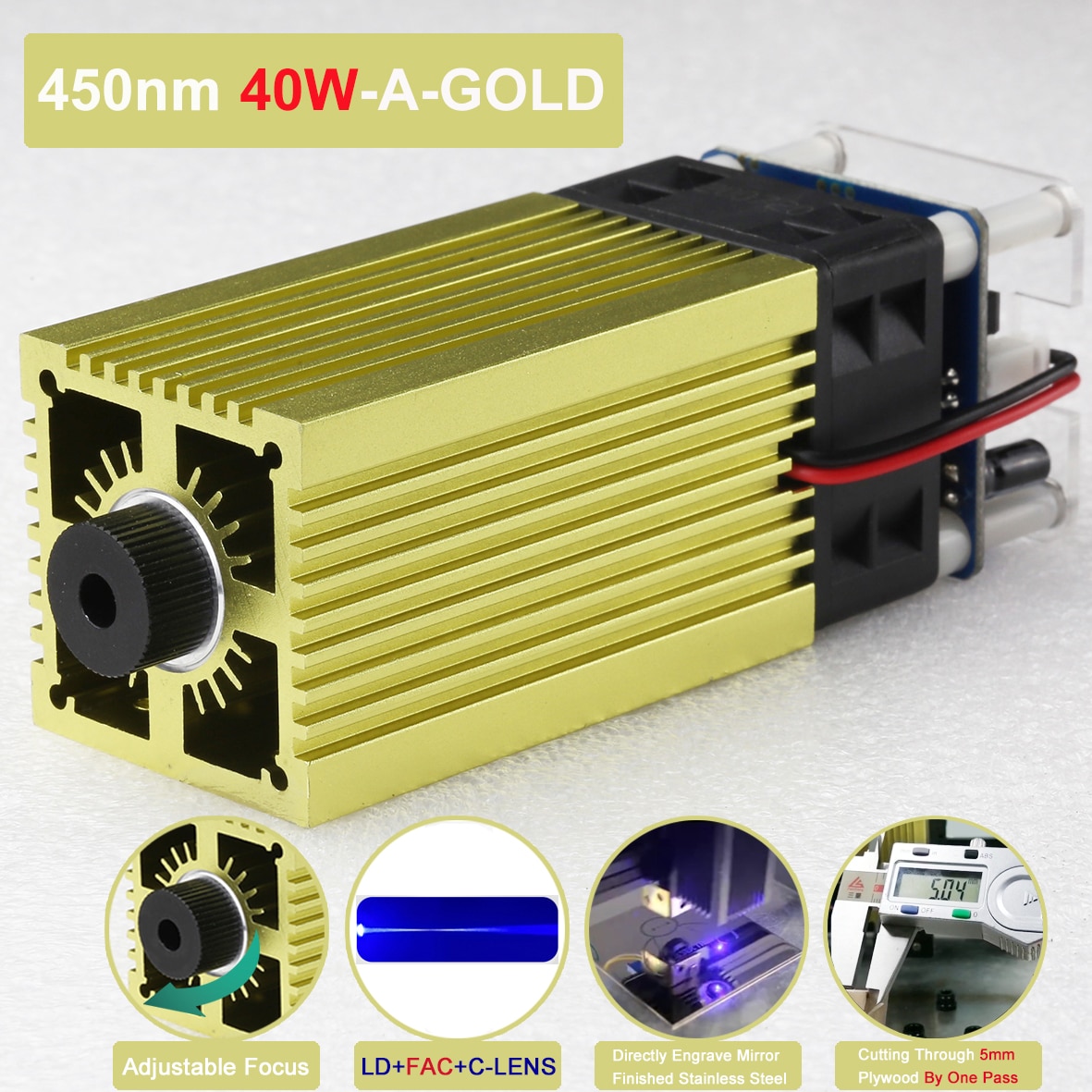

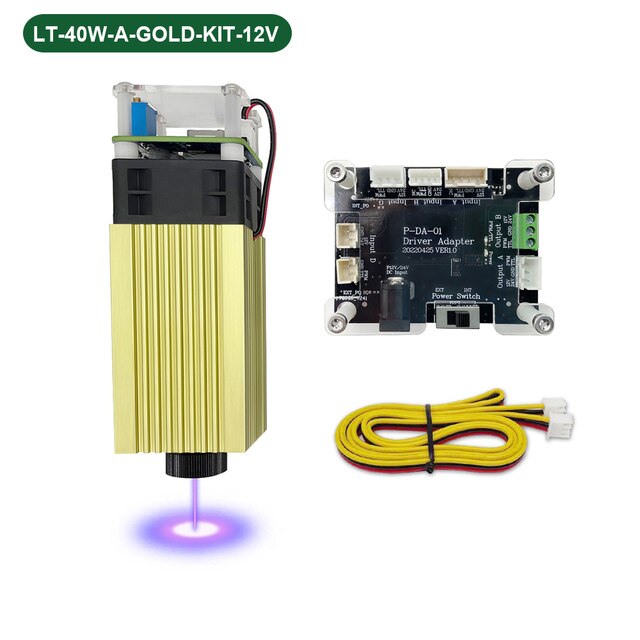

LT-40W-A-GOLD
Features:
Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

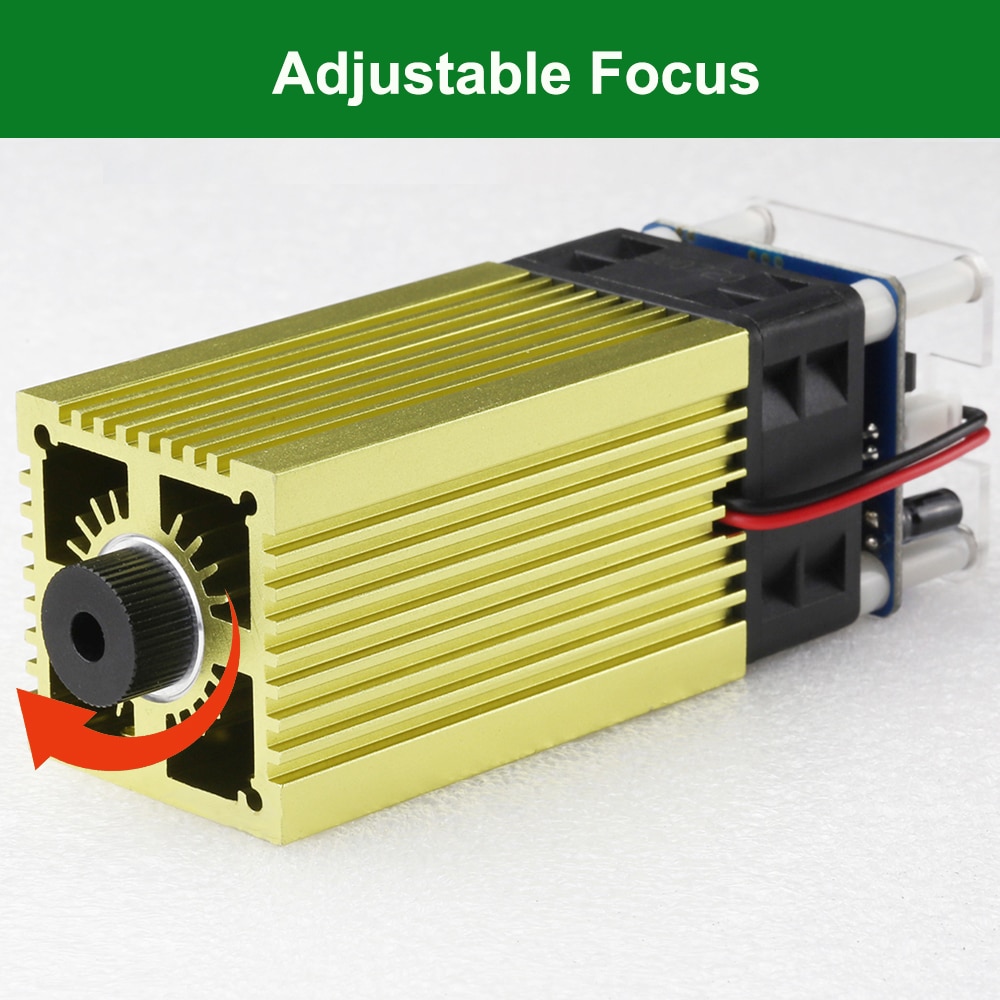

Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

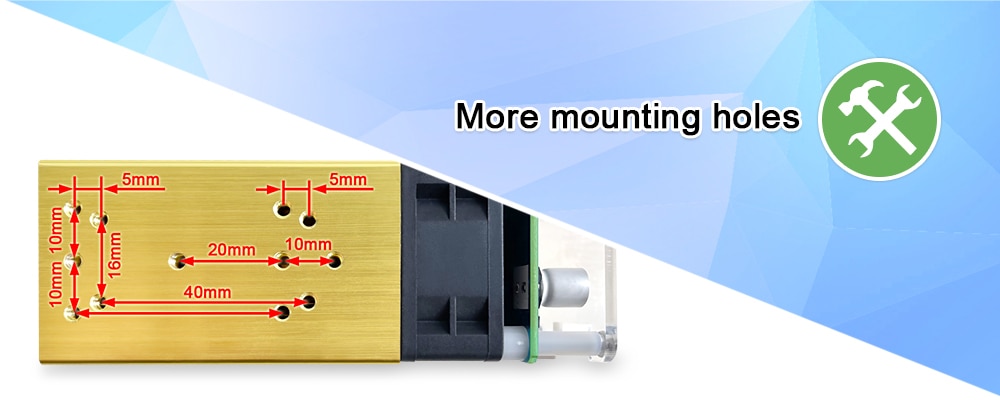

Easy to Assemble --- More mounting holes design, small and compact
Carving Material ---Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, copper,etc.
Specifications:
Effect output power: 40W
Output optical power: 5W
Material: Aluminum Alloy + Plastic
Light Color: Blue
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus
Input Voltage: 12V 1.8A(1.5A-2A)
Interface: X2.54-3P Socket
Modulation: 0/5-12V 0-5kHz TTL/PWM
Item Size: 12*4*4cm
Package Size: 14*6.2*6.2cm
Item Weight: 300g

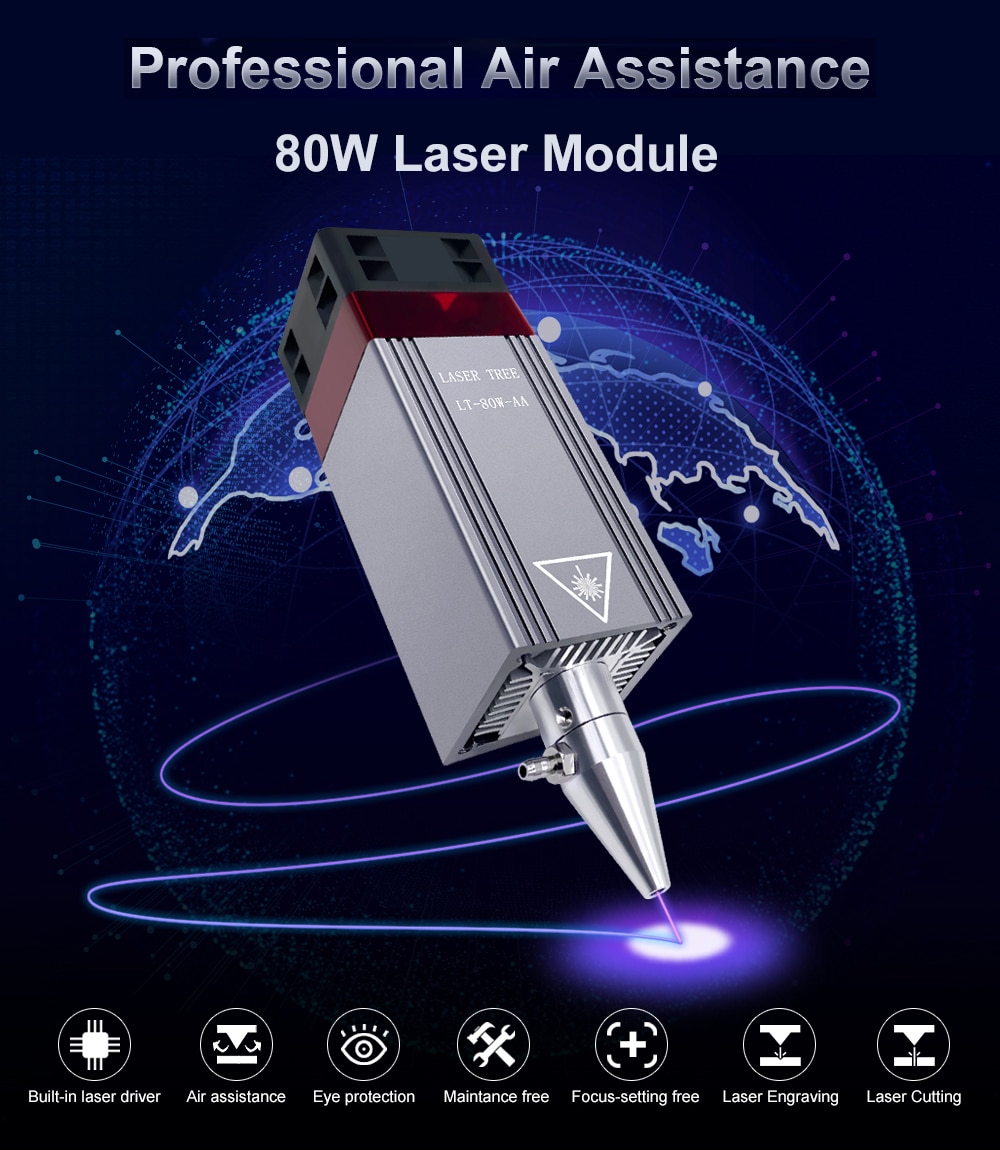

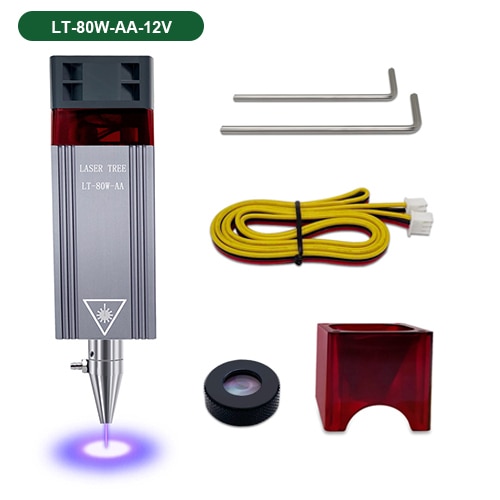

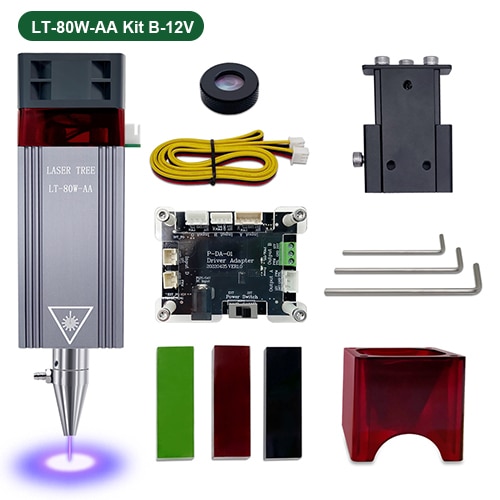

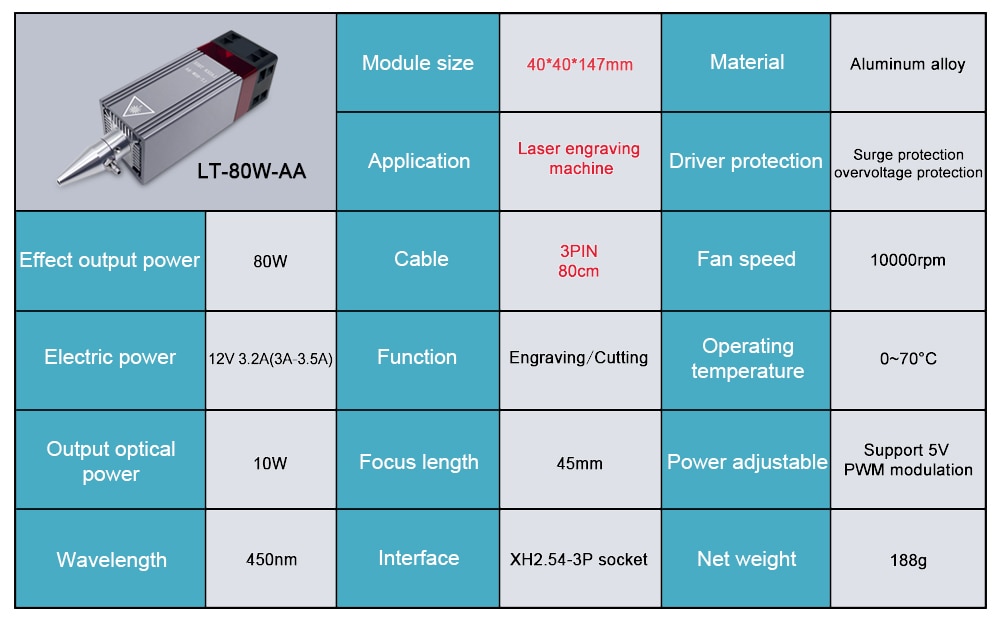

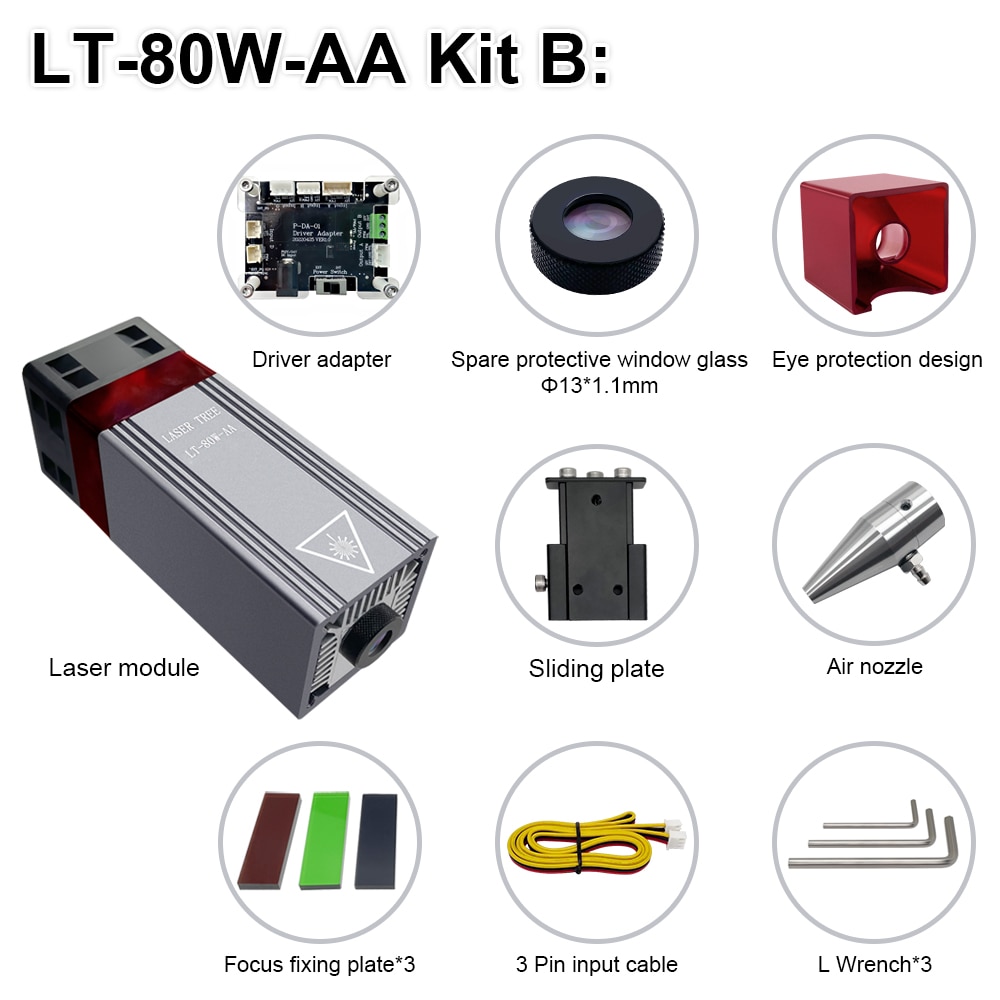

LT-80W-AA
Features:

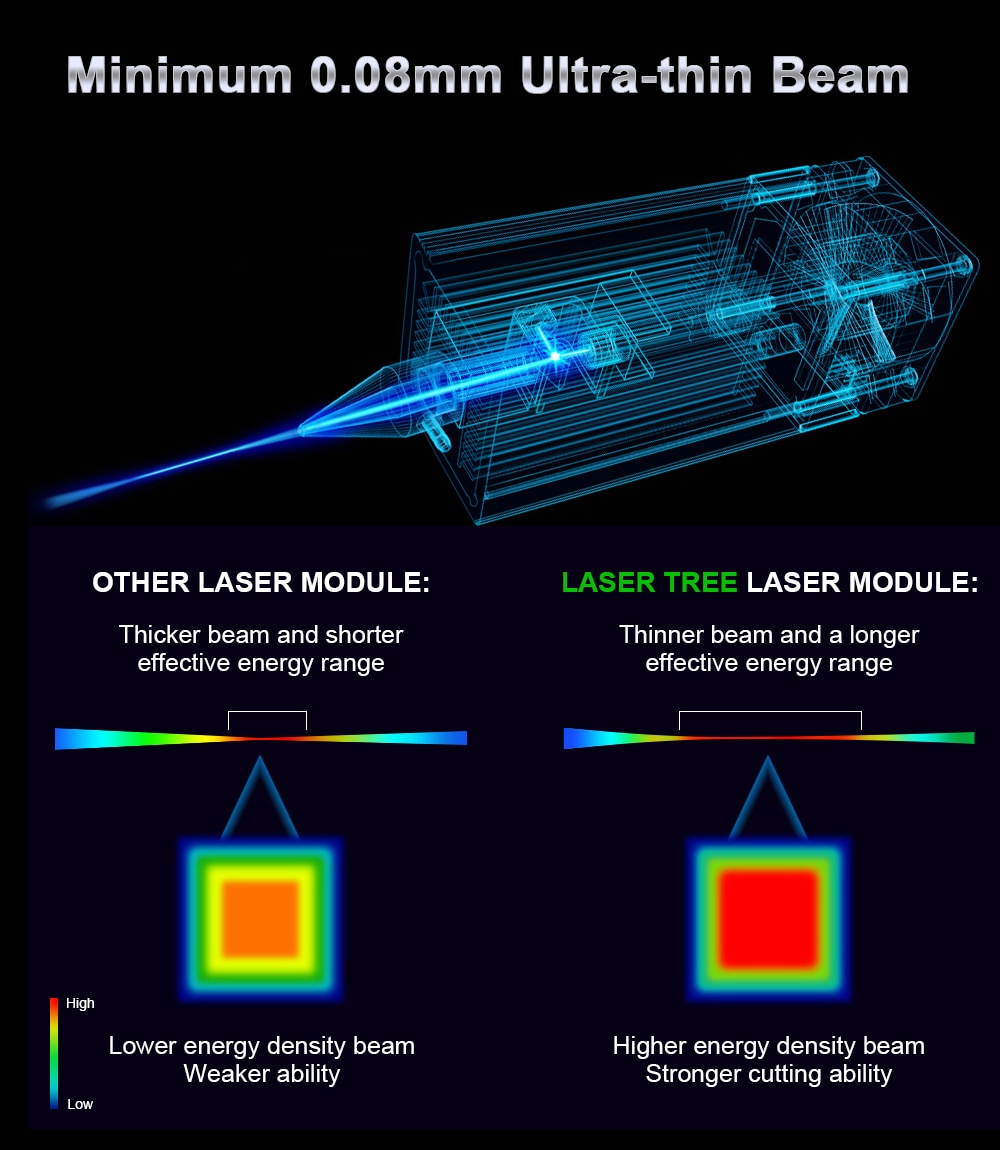

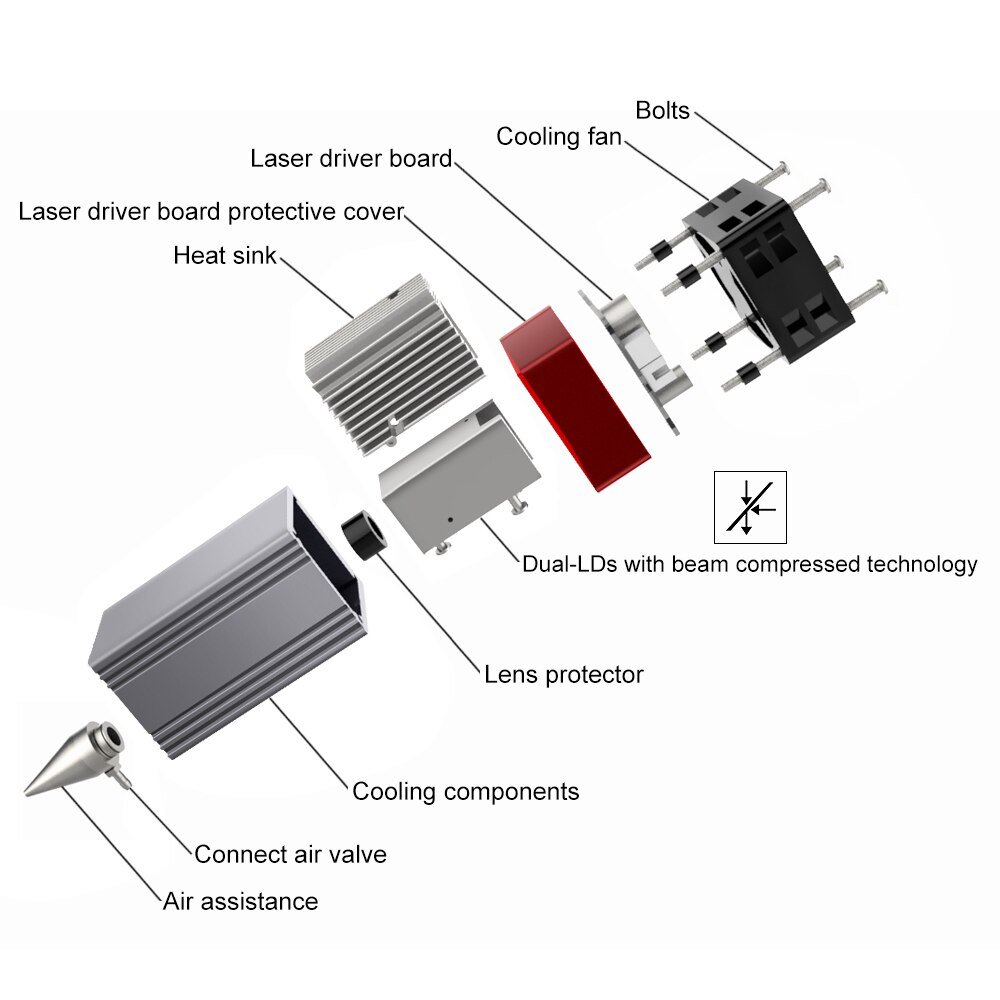

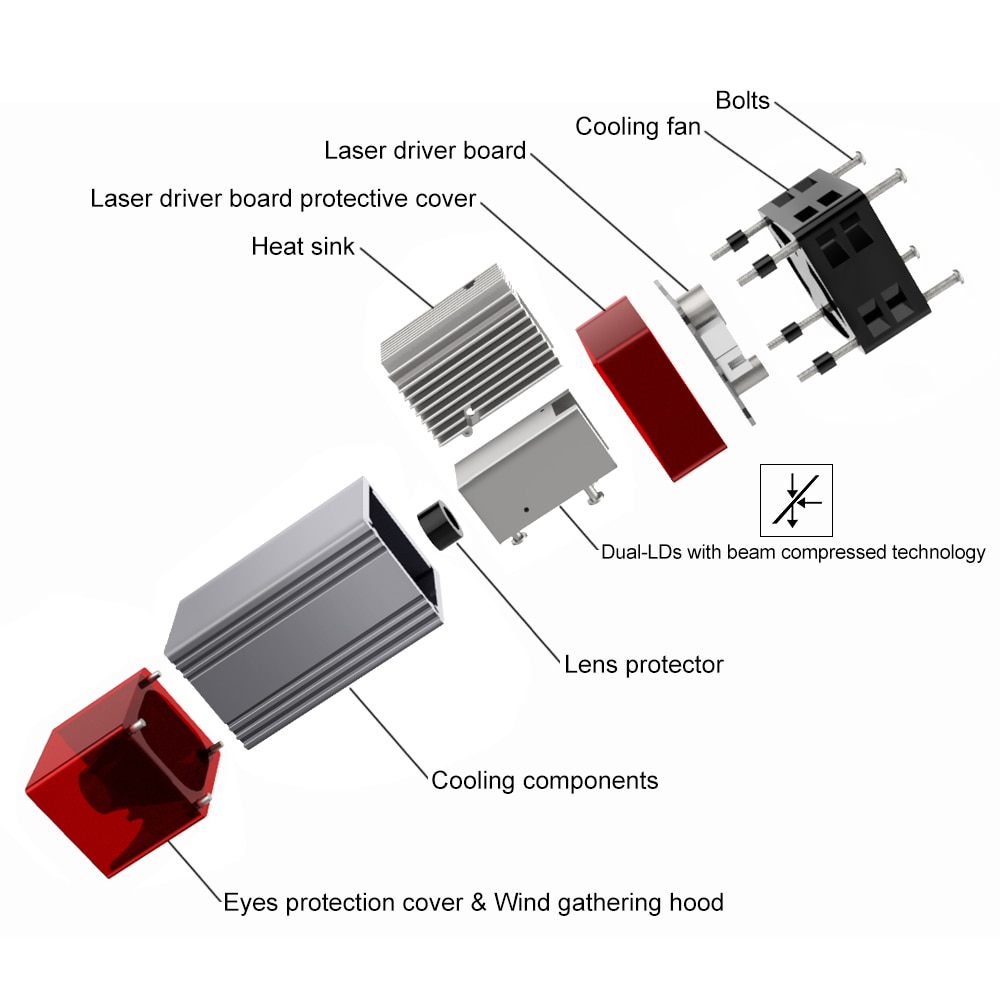

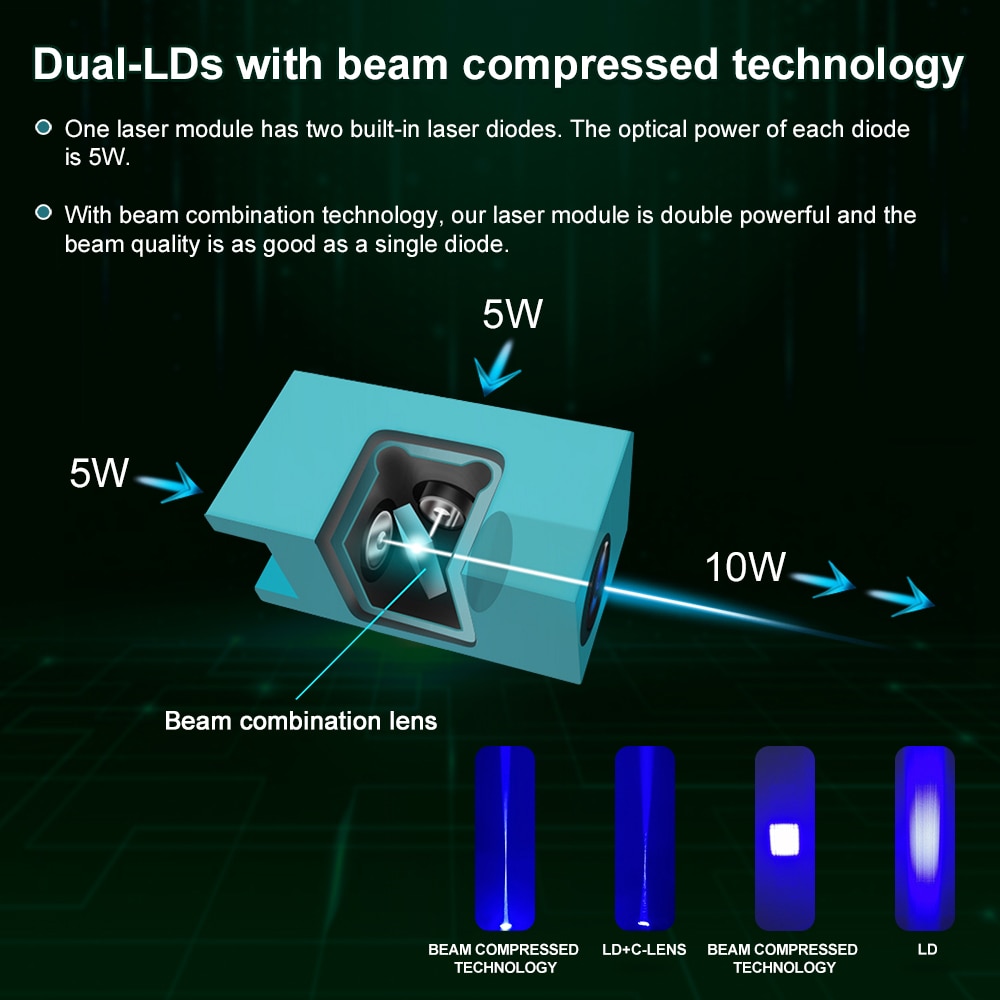

1. 2-Beam compression technology, 10W optical power laser module

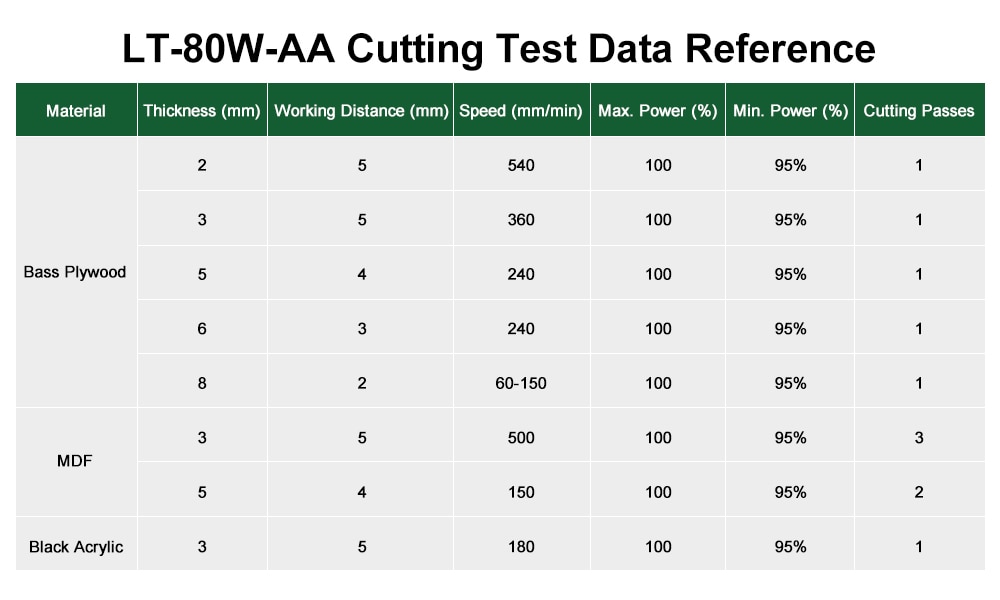

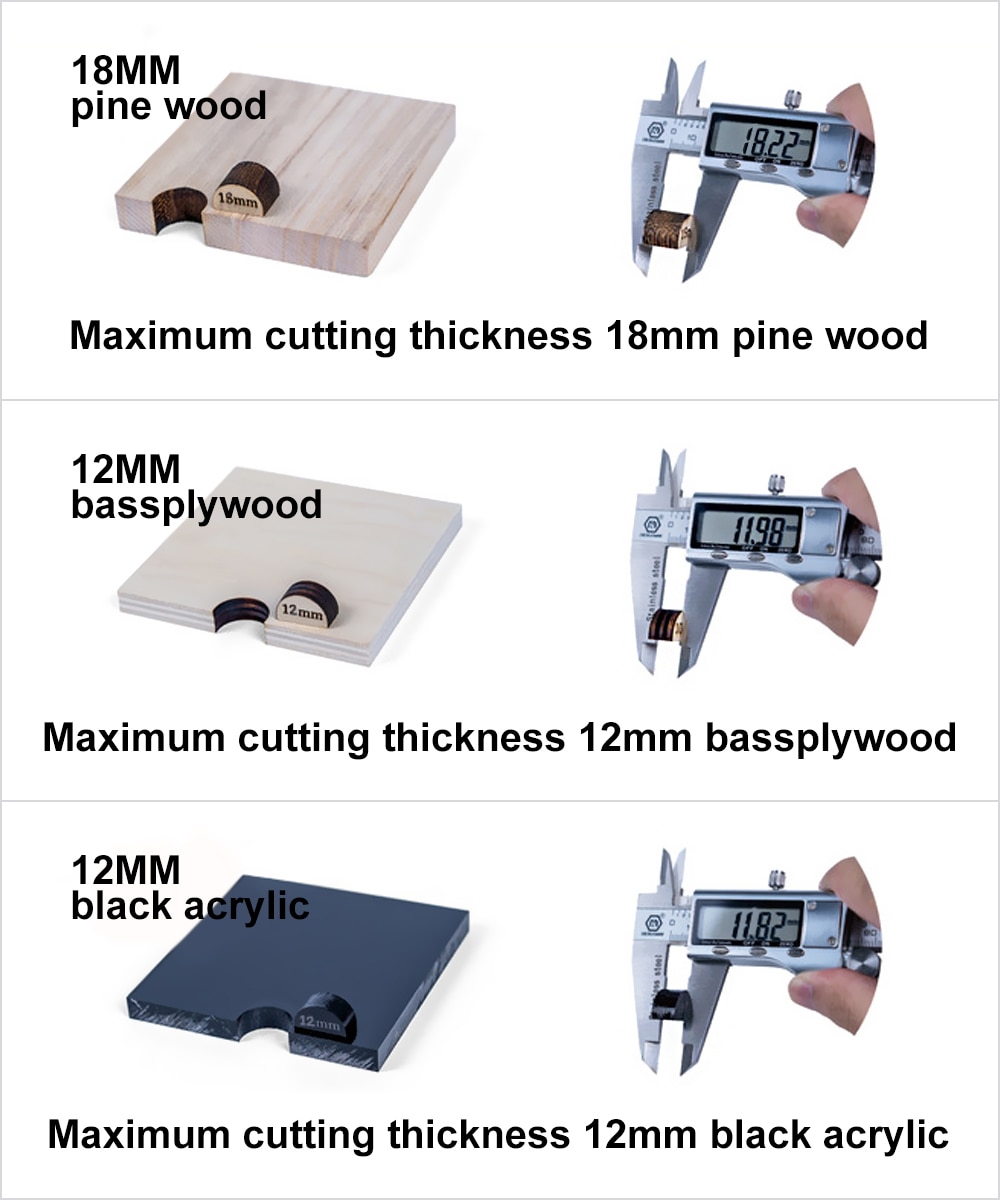

2. Cut through 8mm bass plywood by one pass

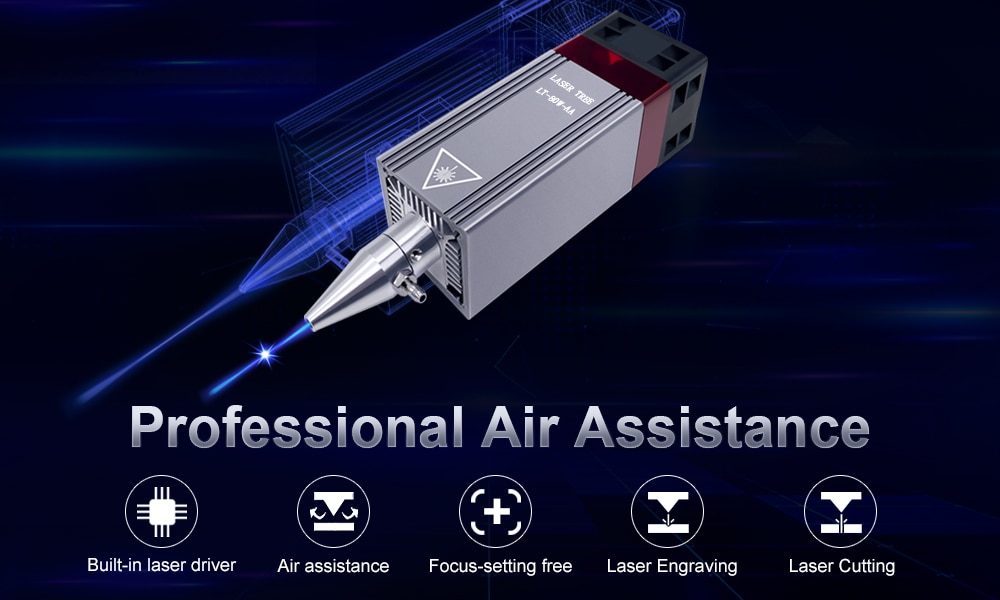

3. With professional air assist
4. Suitable for various types of DIY laser engraver

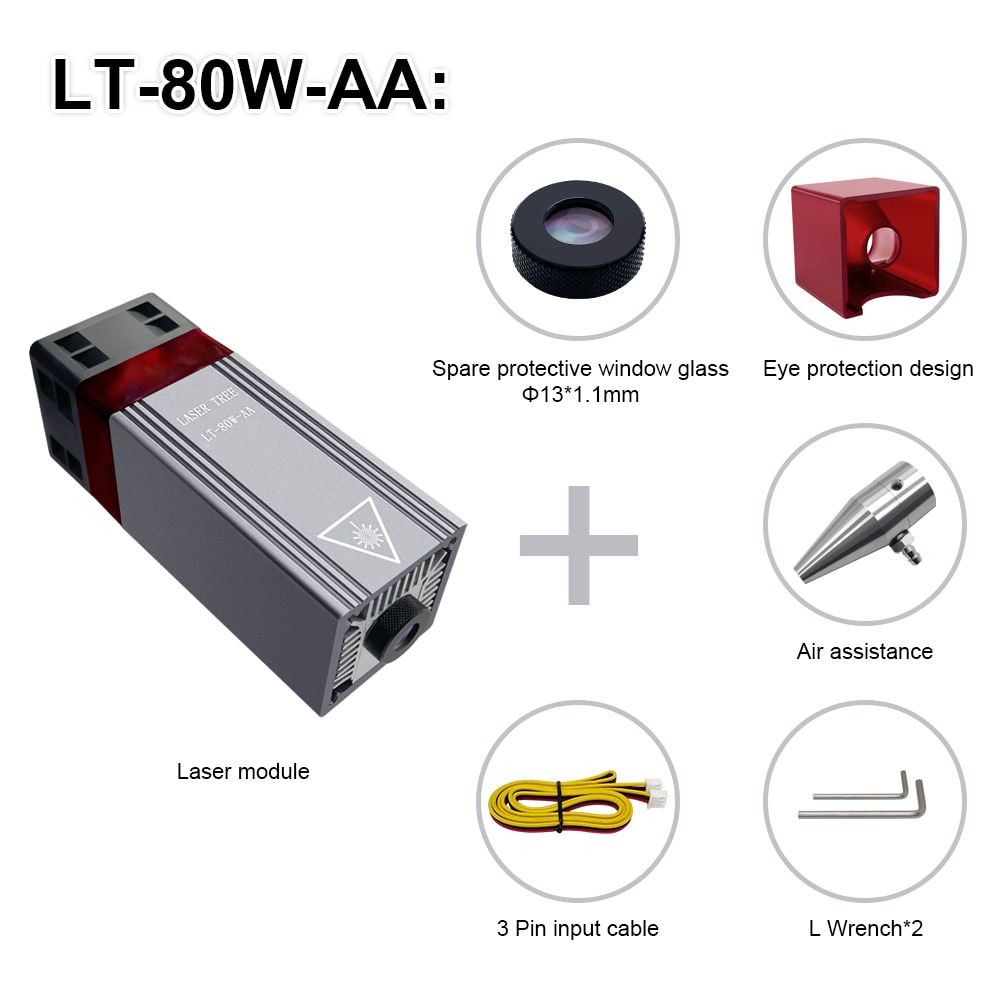

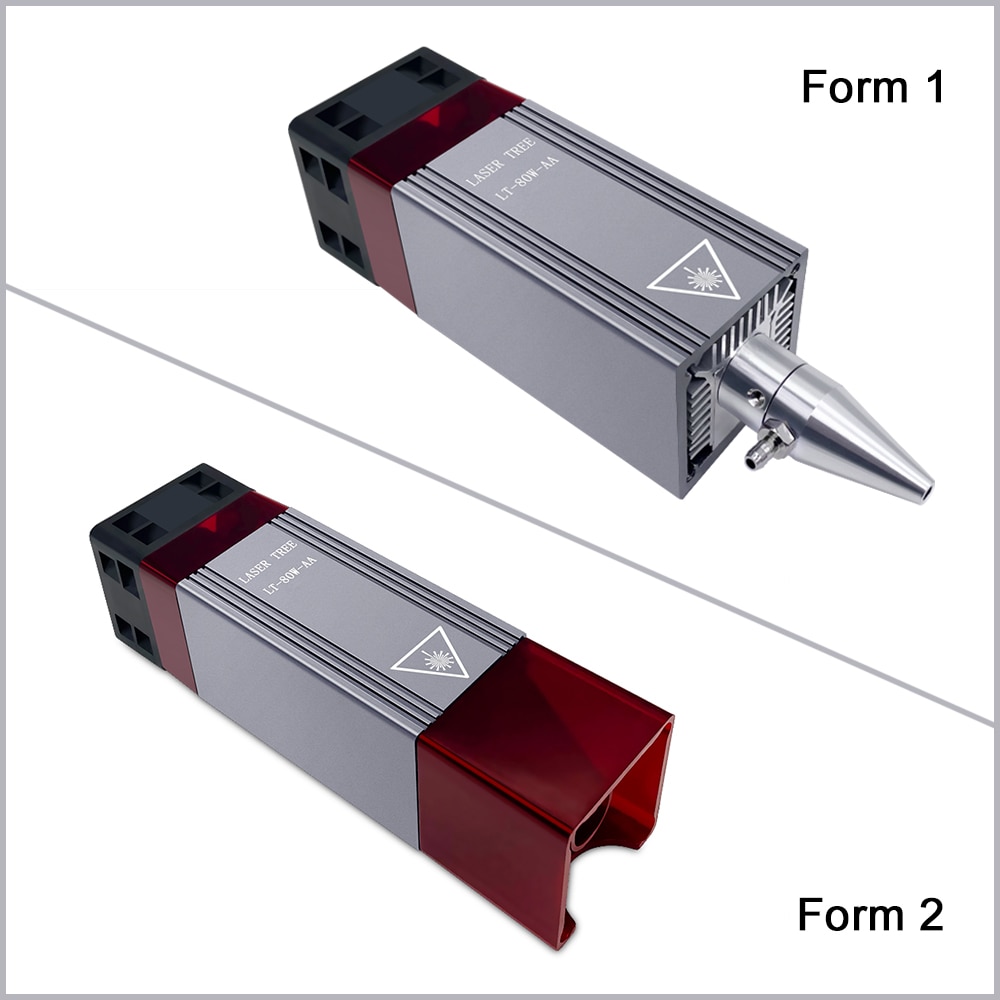

Two Forms of LT-80W-AA:

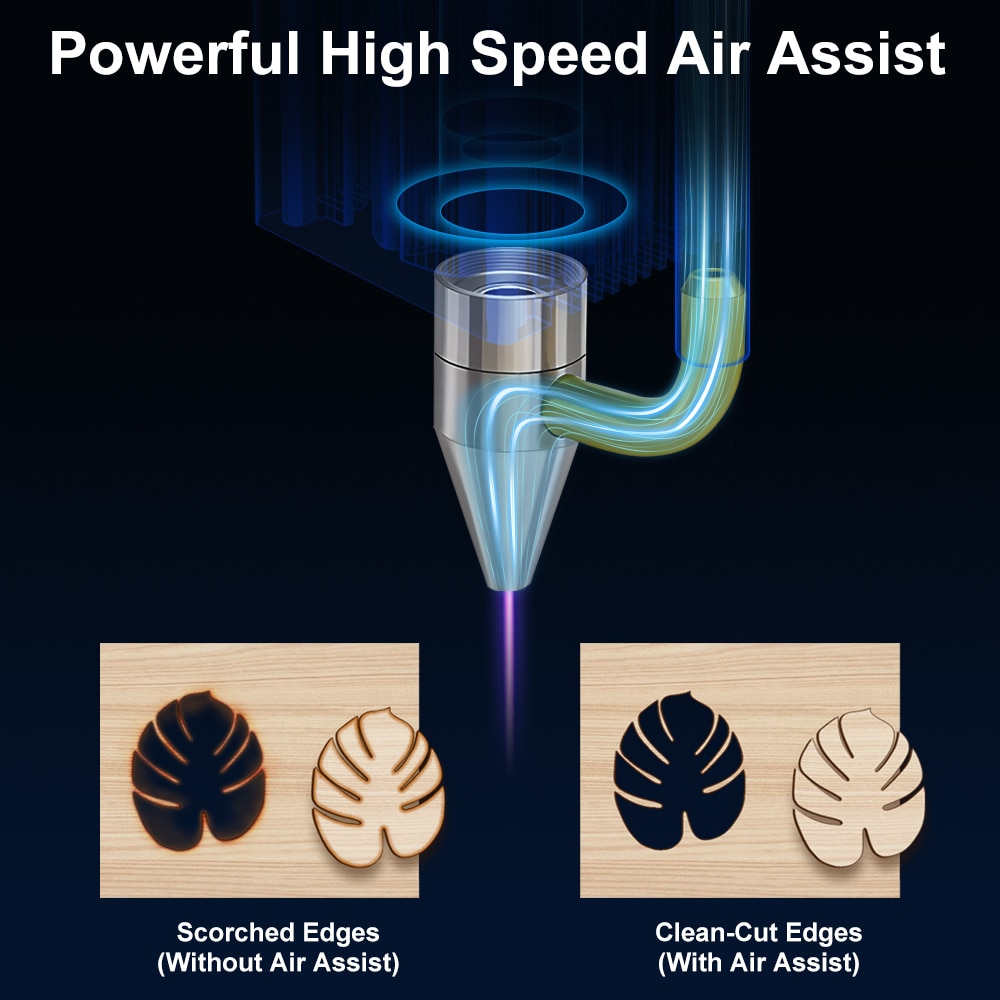

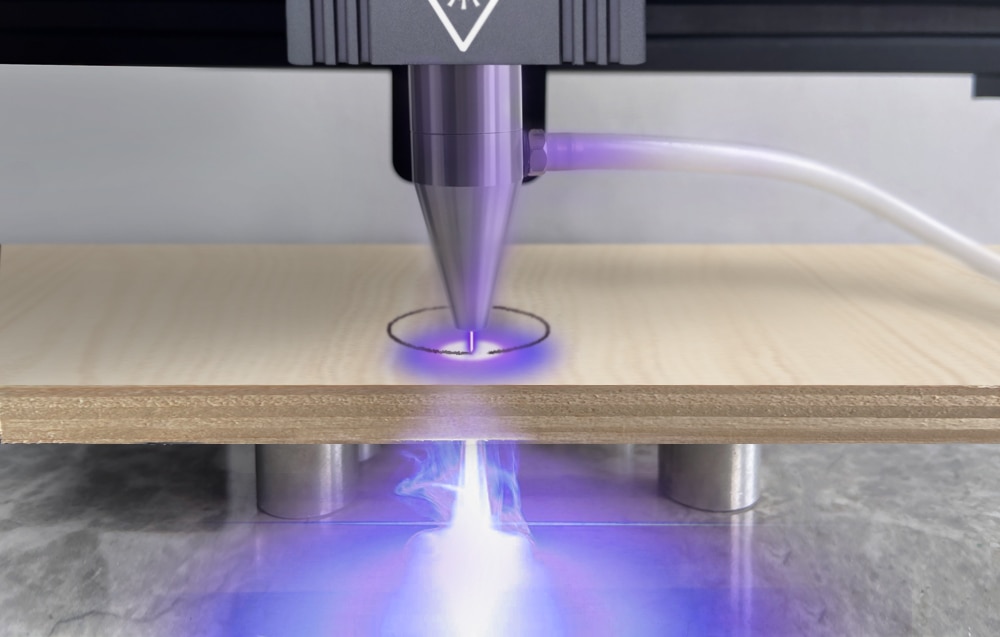

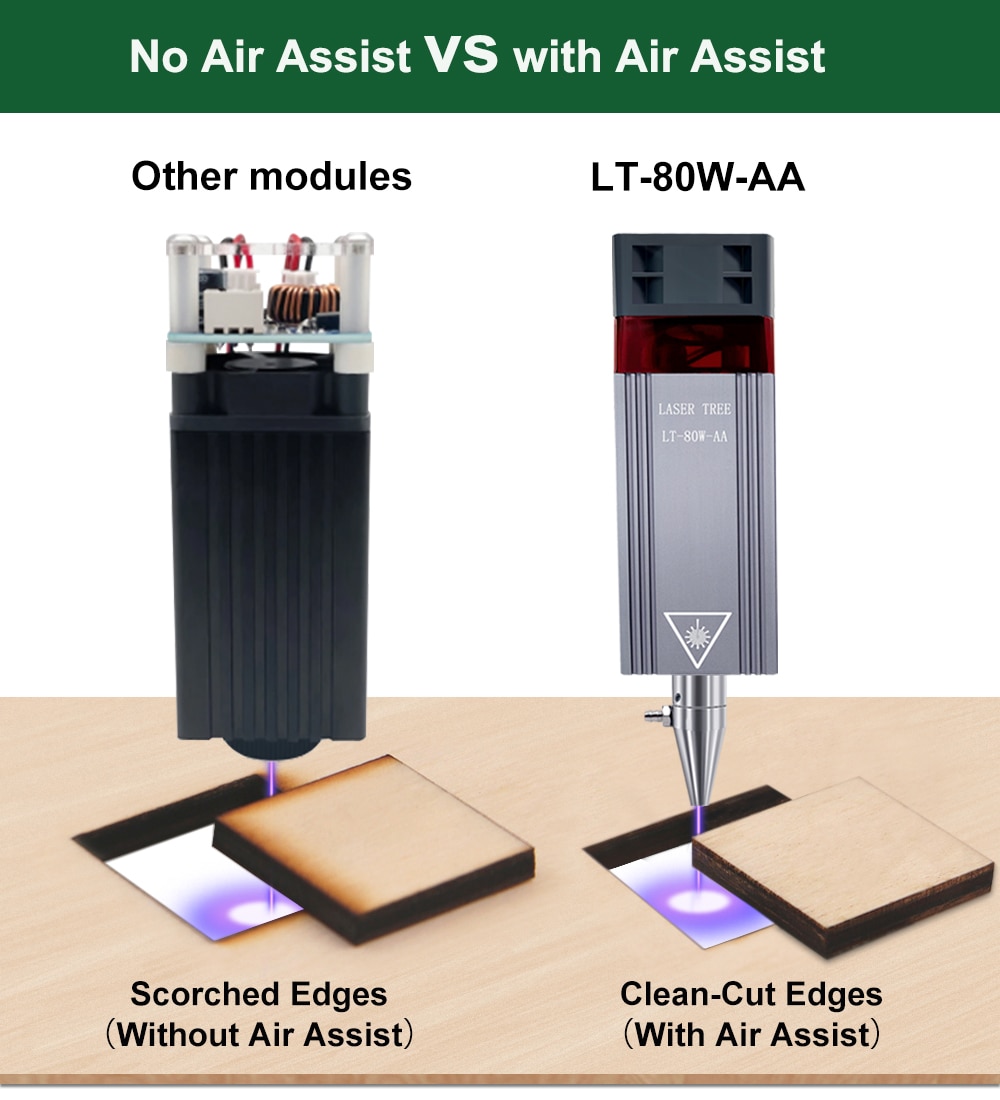

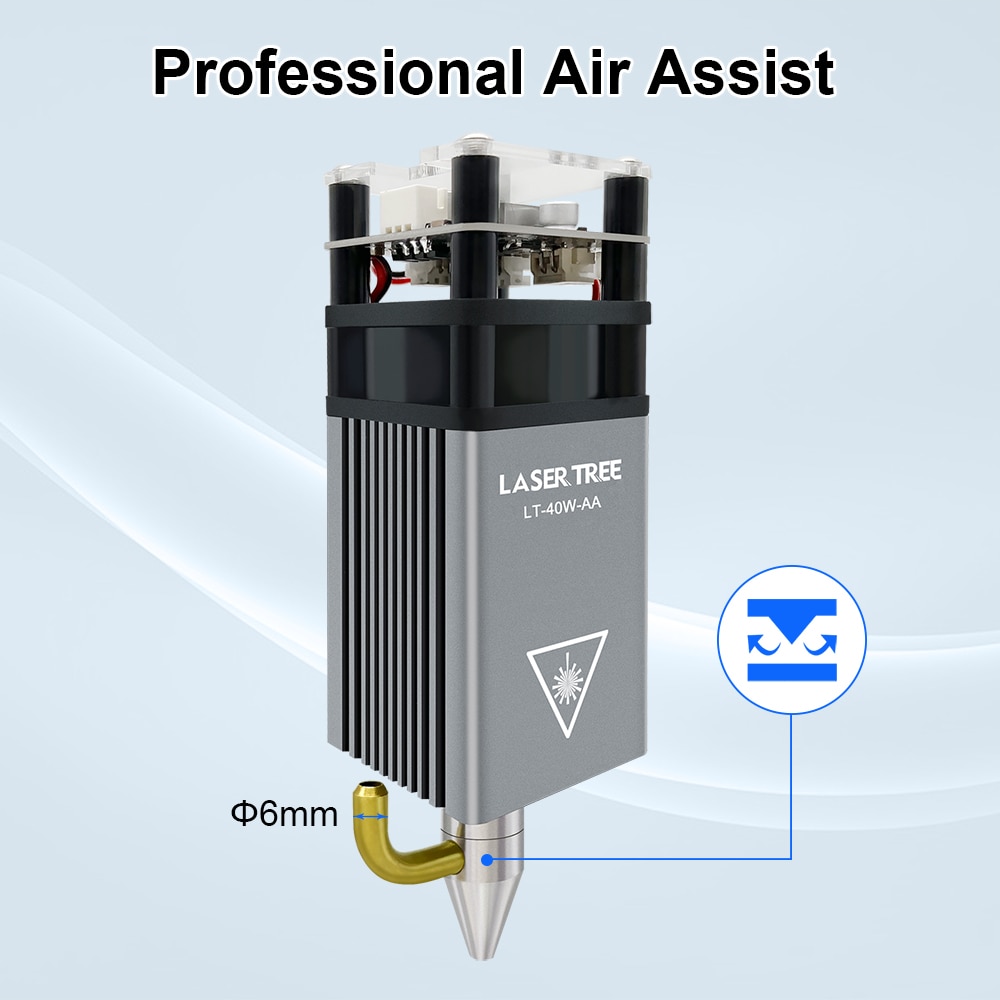

Form 1: with the air assist nozzle. The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assist system will blow air through the air nozzle. That will greatly reduce burned marks and bring you excellent cutting experience.
Recommended Air Tubing inner diameter: Φ4-6mm
Recommended air pump pressure: 150kPa
Form 2：with the laser protective cover. When engraving with this laser head, please use this protective cover that can effectively filter blue light. For convenience, you can engrave without wearing laser goggles.

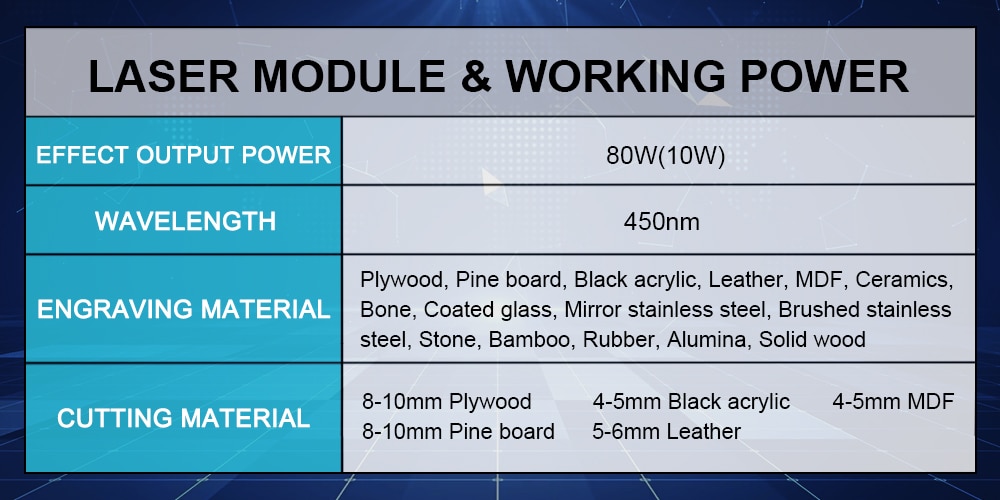

Specification:
Effect output power: 80W
Output optical power: 10W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V (If you need 24V, please contact us)
Input port: XH2.54-3P socket
Modulation: 0/5-12V 0-5kHz TTL/PWM
Item size: 15 * 4 * 4cm
Packing size: 20 * 12 * 8cm
Laser module net weight: 250g

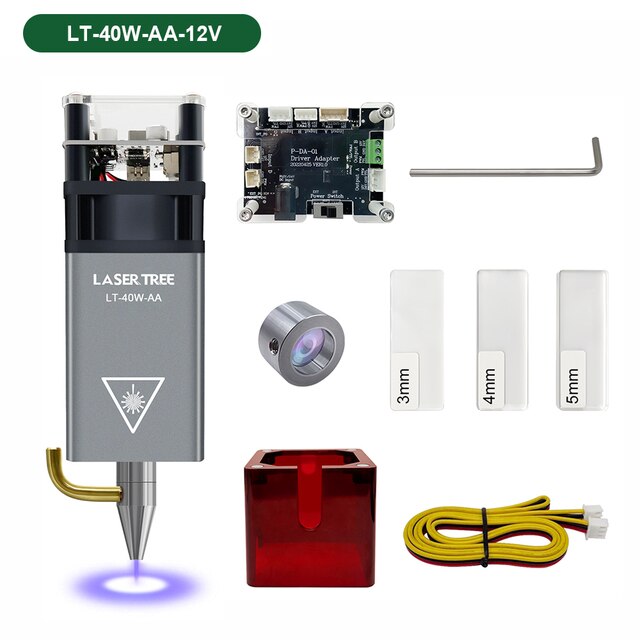

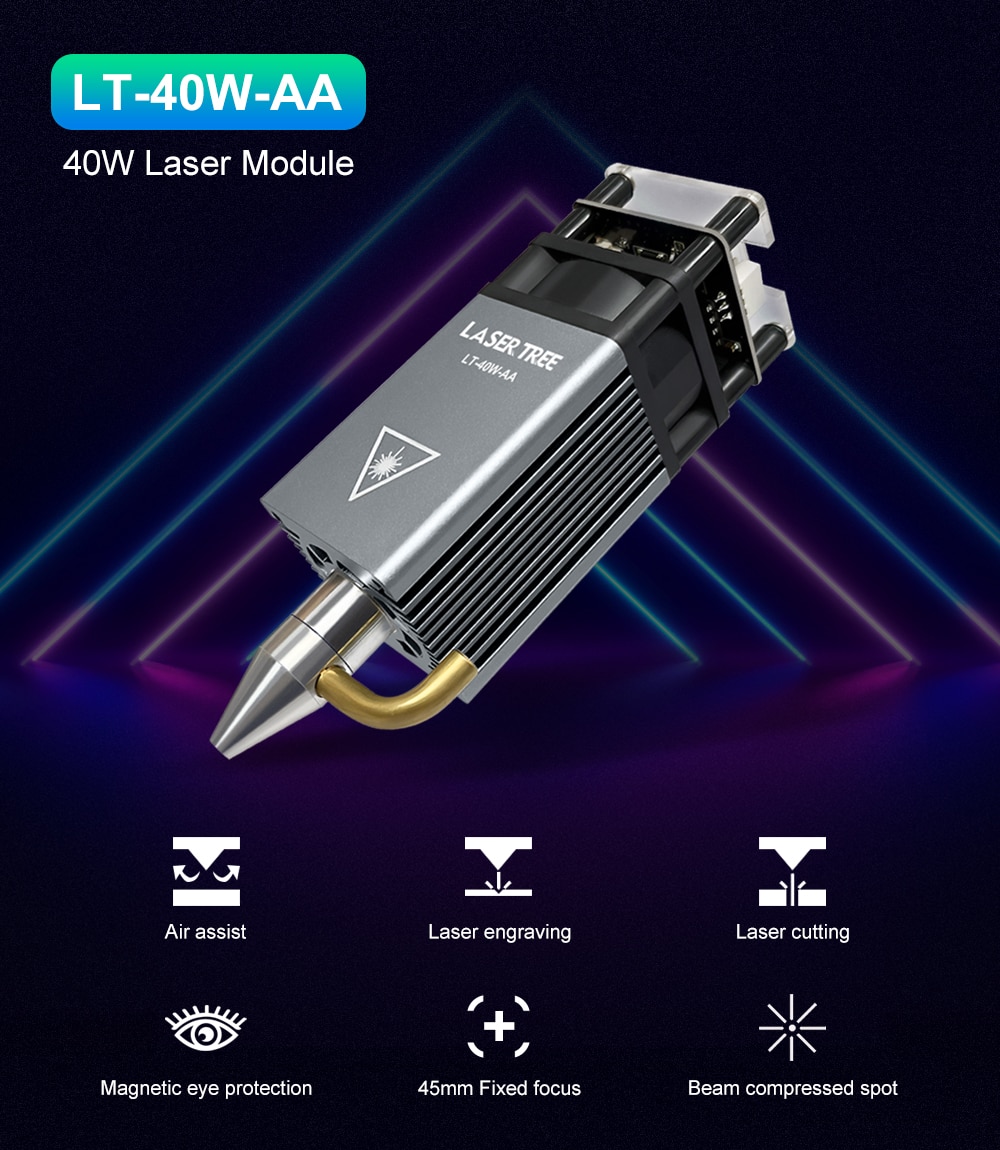

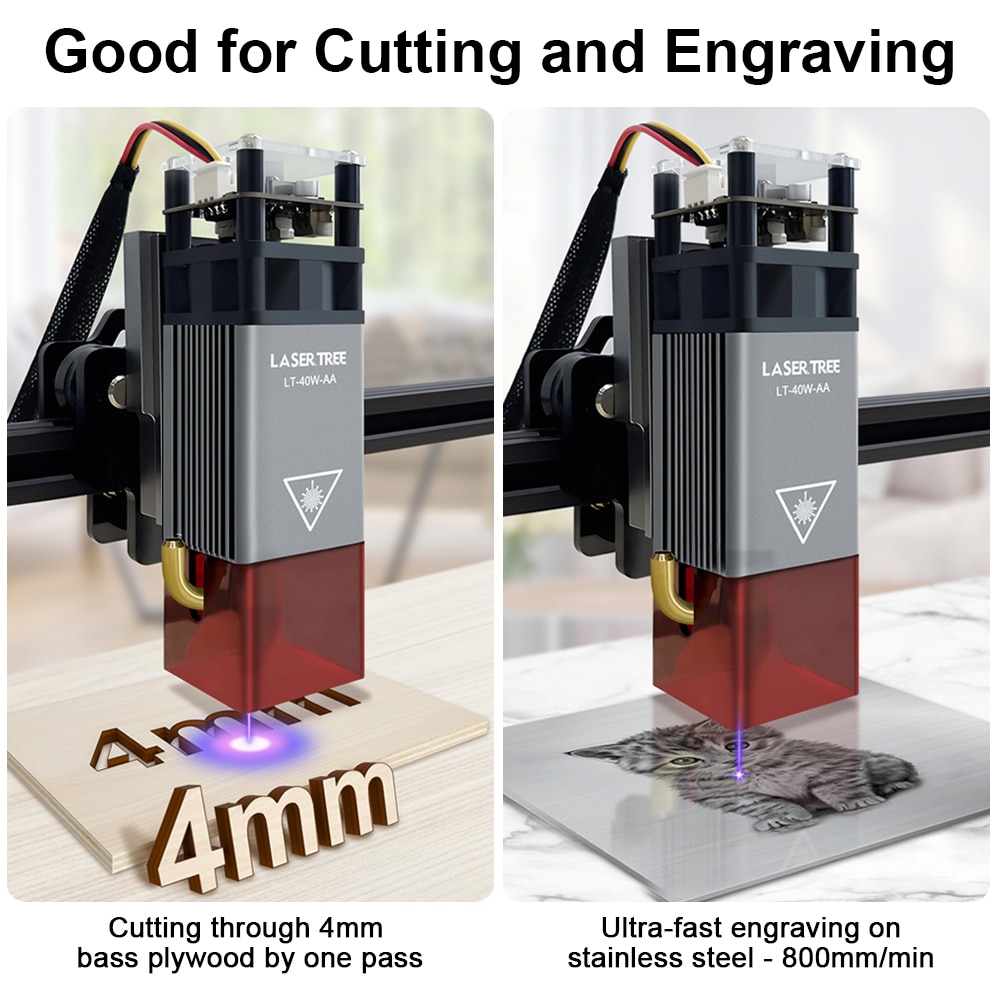

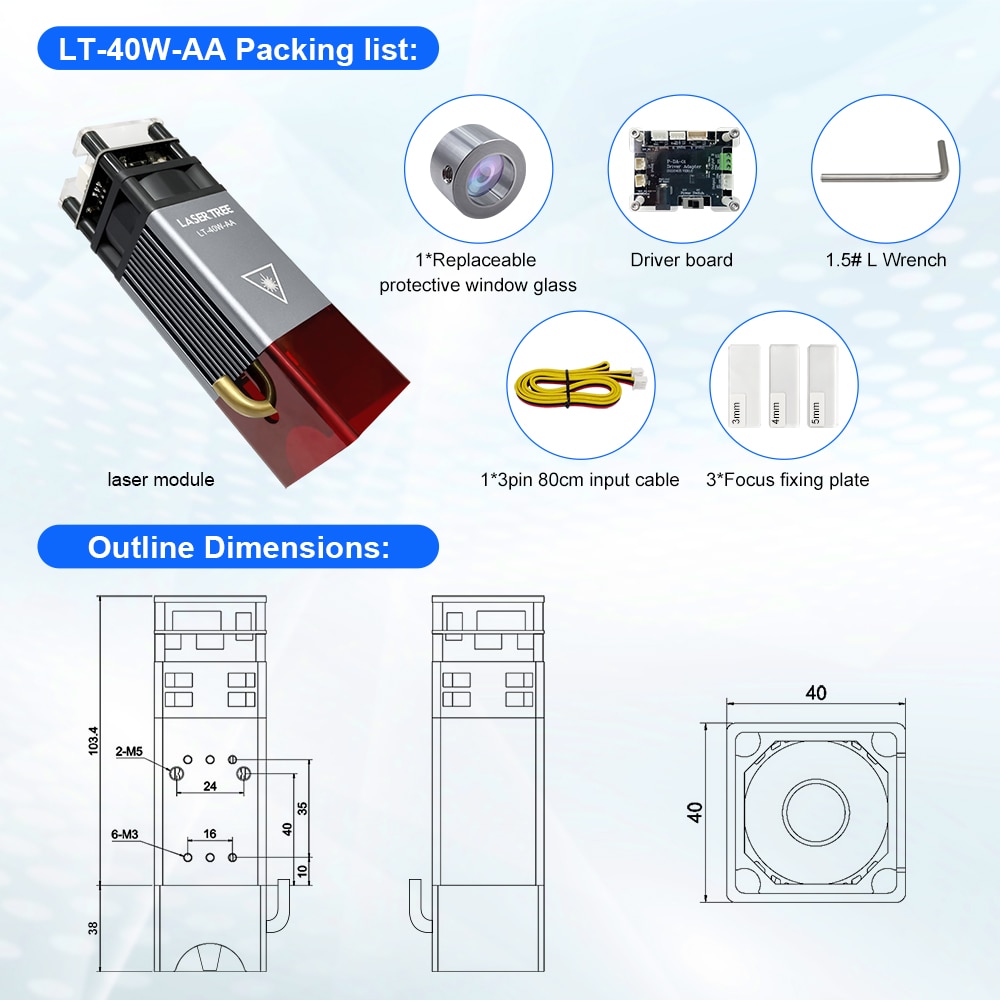

LT-40W-AA:
Product Features:

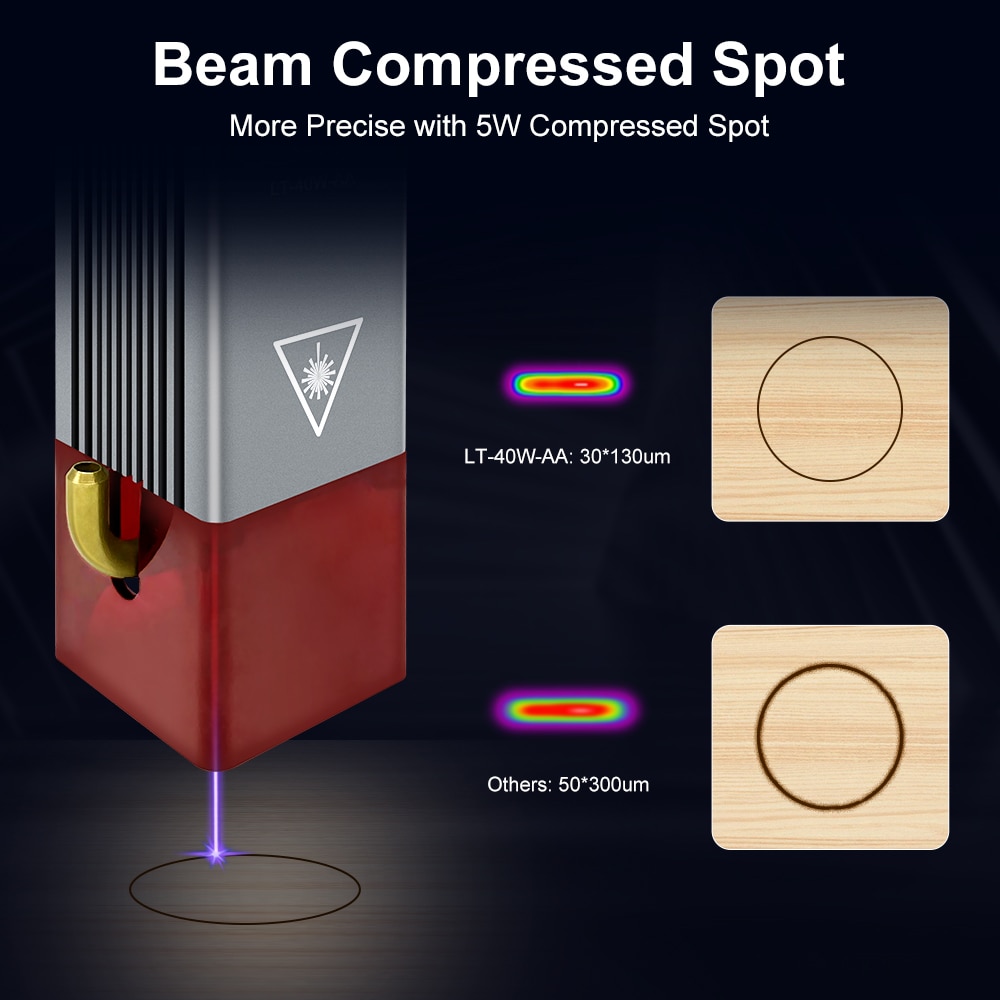

1.Beam compression technology, 5W optical power laser module.

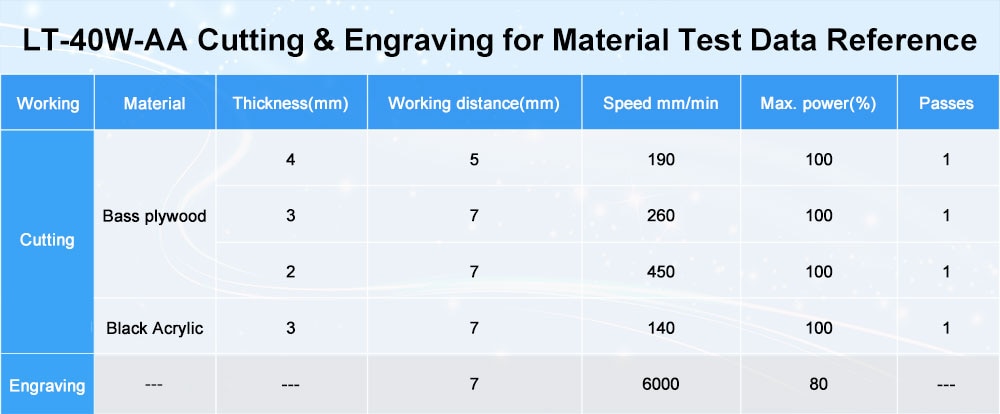

2.Excellent Cutting Ability: Cutting 4mm plywood by one pass at a Speed of 190mm/s.
3.Very Fast Engraving Speed: 45mm focal length, engrave 304 stainless steel at speeds up to 6000mm/min.
4.Magnetic eye protective cover: Eye protection and easy disassembly.

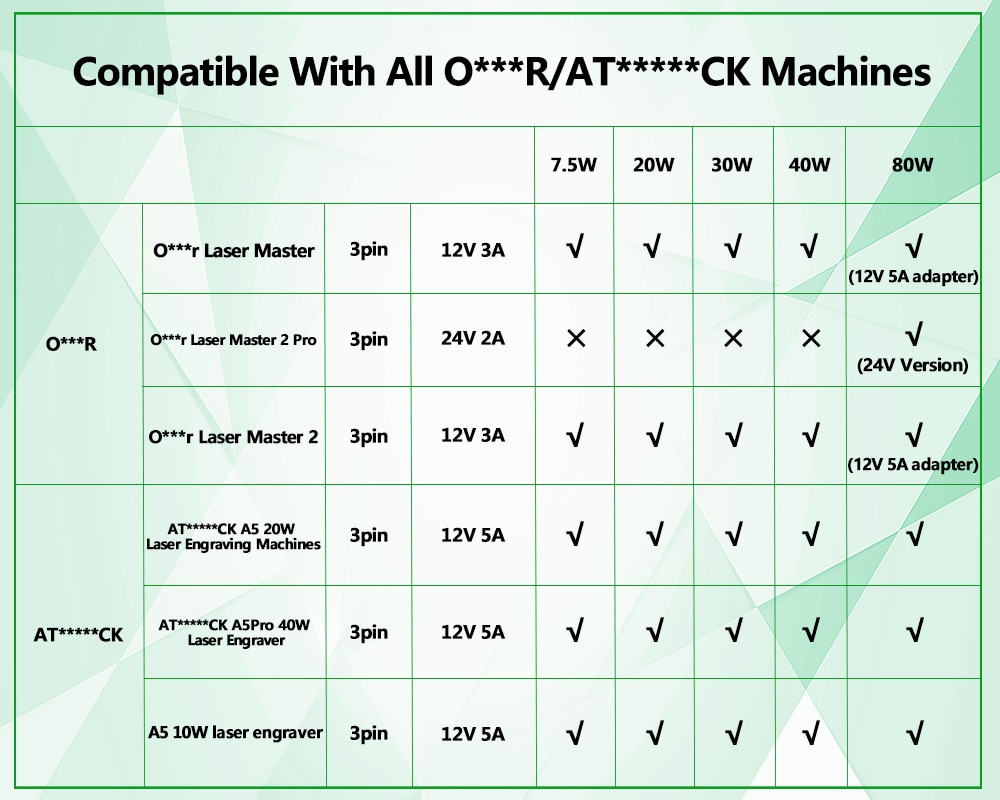

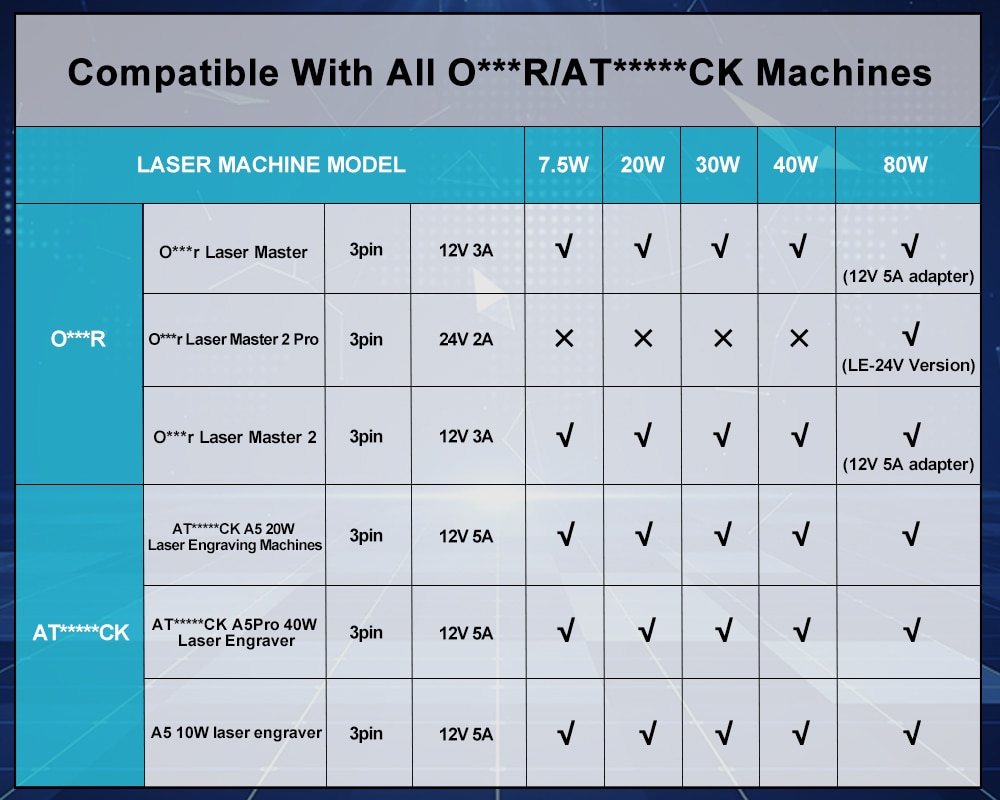

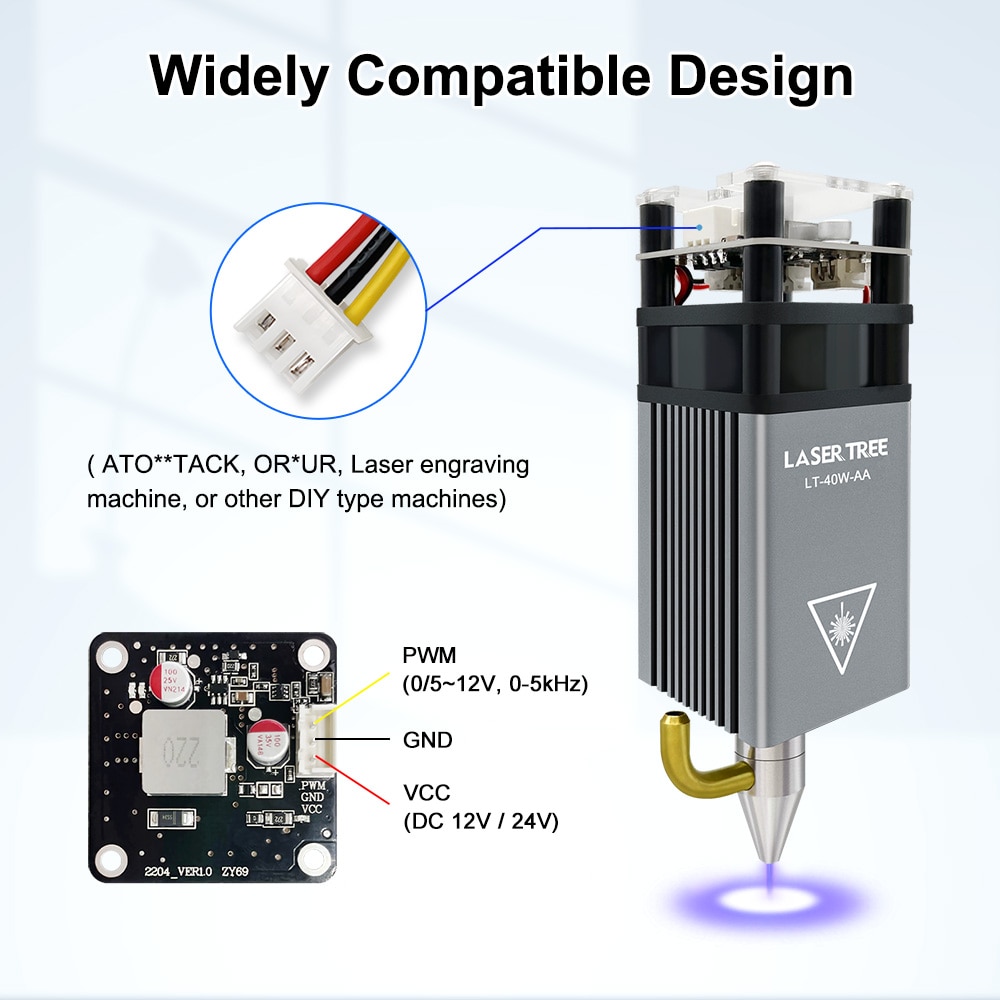

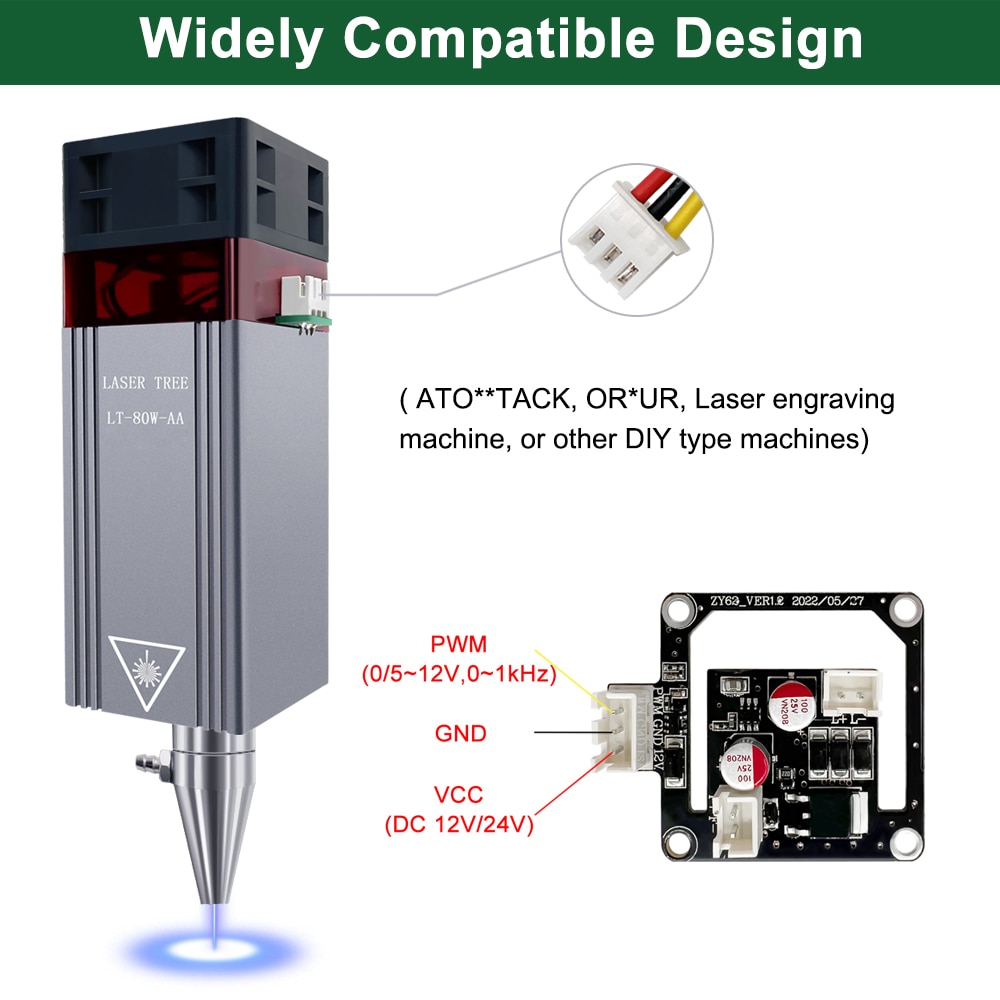

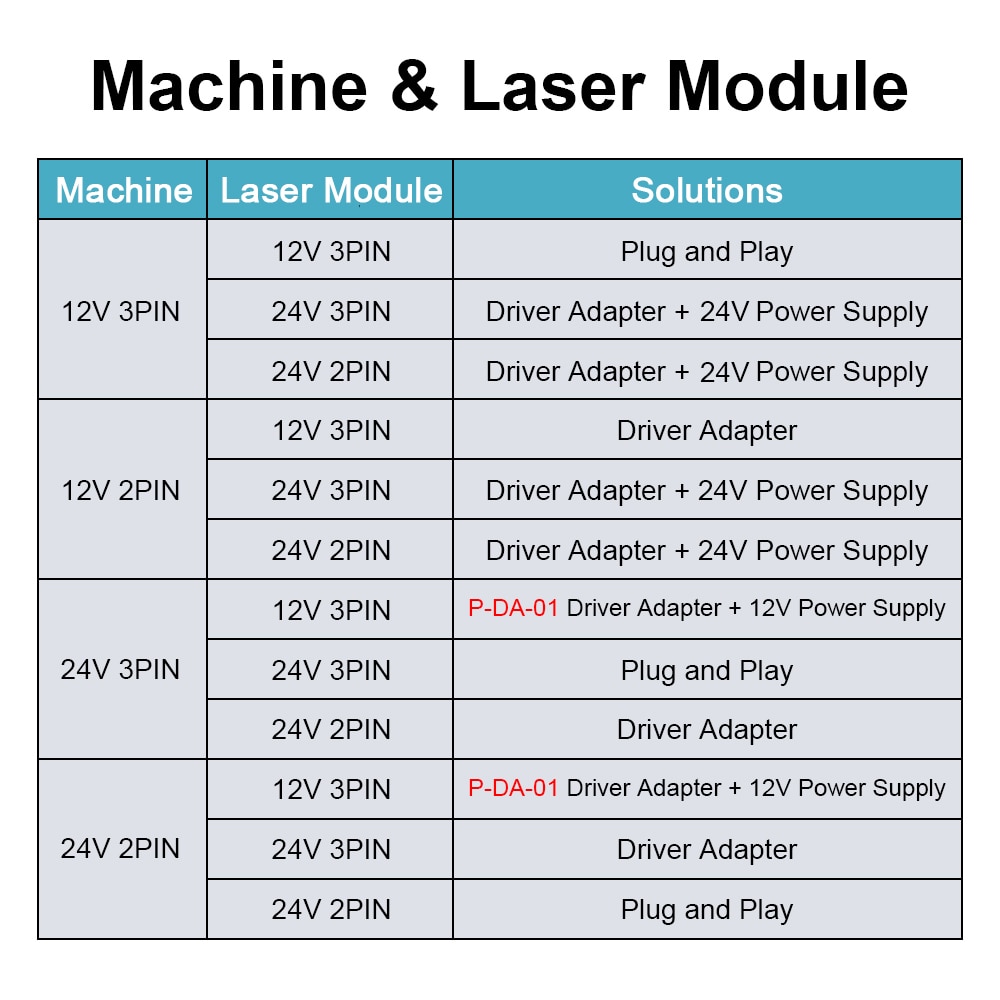

5.For various 12V 3PIN laser engraving machines, plug and play. For 12V 4PIN machines, just use the driver adapter to connect.
- Model Number: 40W 80W Laser Module for Laser Engraver Accessories
- Brand Name: Laser Tree
- Certification: CE
- Origin: Mainland China
- Material: Aluminum Alloy
- Wavelength: 450nm
- Modulation: 0/5-12V TTL/PWM
- Interface: XH2.54-3P socket
- Electric Power: 12V 1.8A(1.5A-2A)
- Laser Color: Blue
- Cable: 3pin 80cm

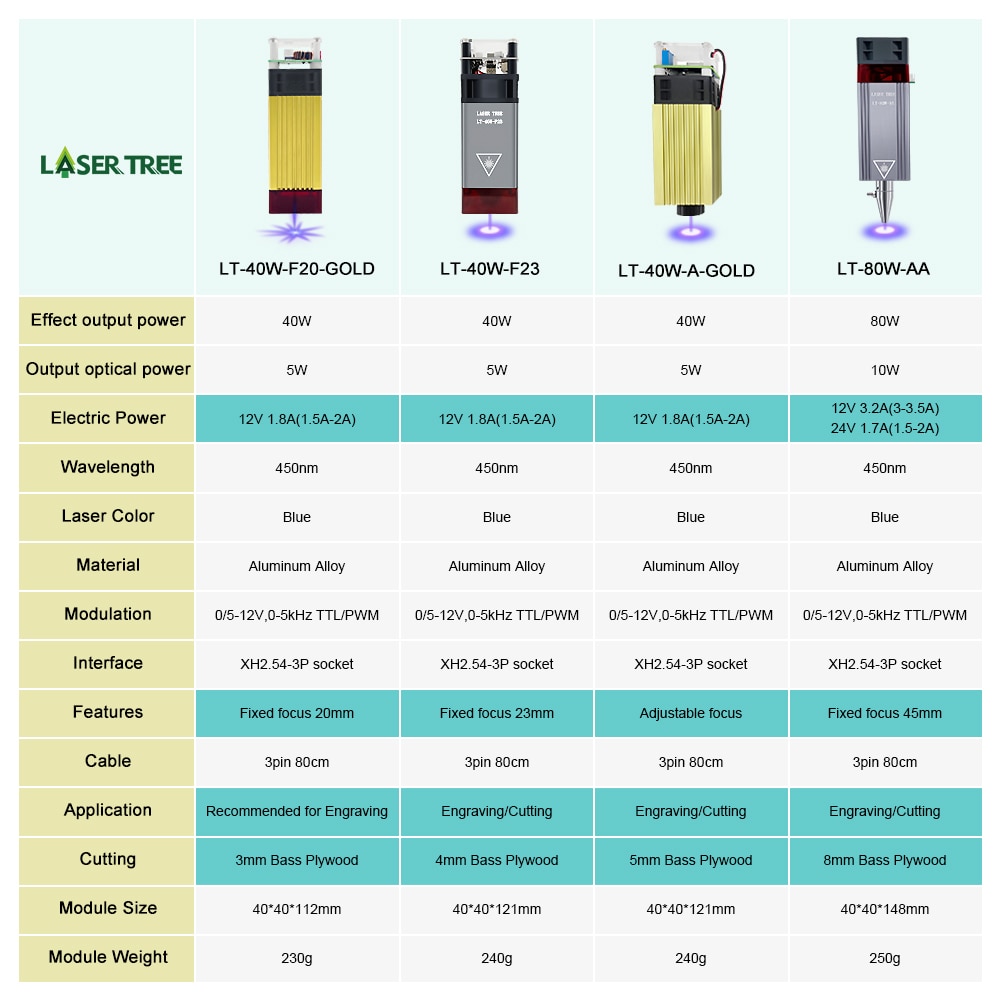

- Application 1: Good for engraving (LT-40W-F20-GOLD)
- Application 2: Good for cutting and engraving (LT-40W-F23, LT-40W-A-GOLD, LT-40W-AA, LT-80W-AA)
- Service: Dropping Shipping Service
