LASER TREE 80W 40W Laser Module with Air Assist 20W 450nm Blue Laser Head for CNC Laser Cutting Machine DIY Laser Engraver Tools

4.8 (38 votes) | 497 orders
Price: US $166.13 - 823.60 / piece
Discount Price:
US $ 75.98 - 367.75 / piece
-54%
Ships From
Color
Quantity

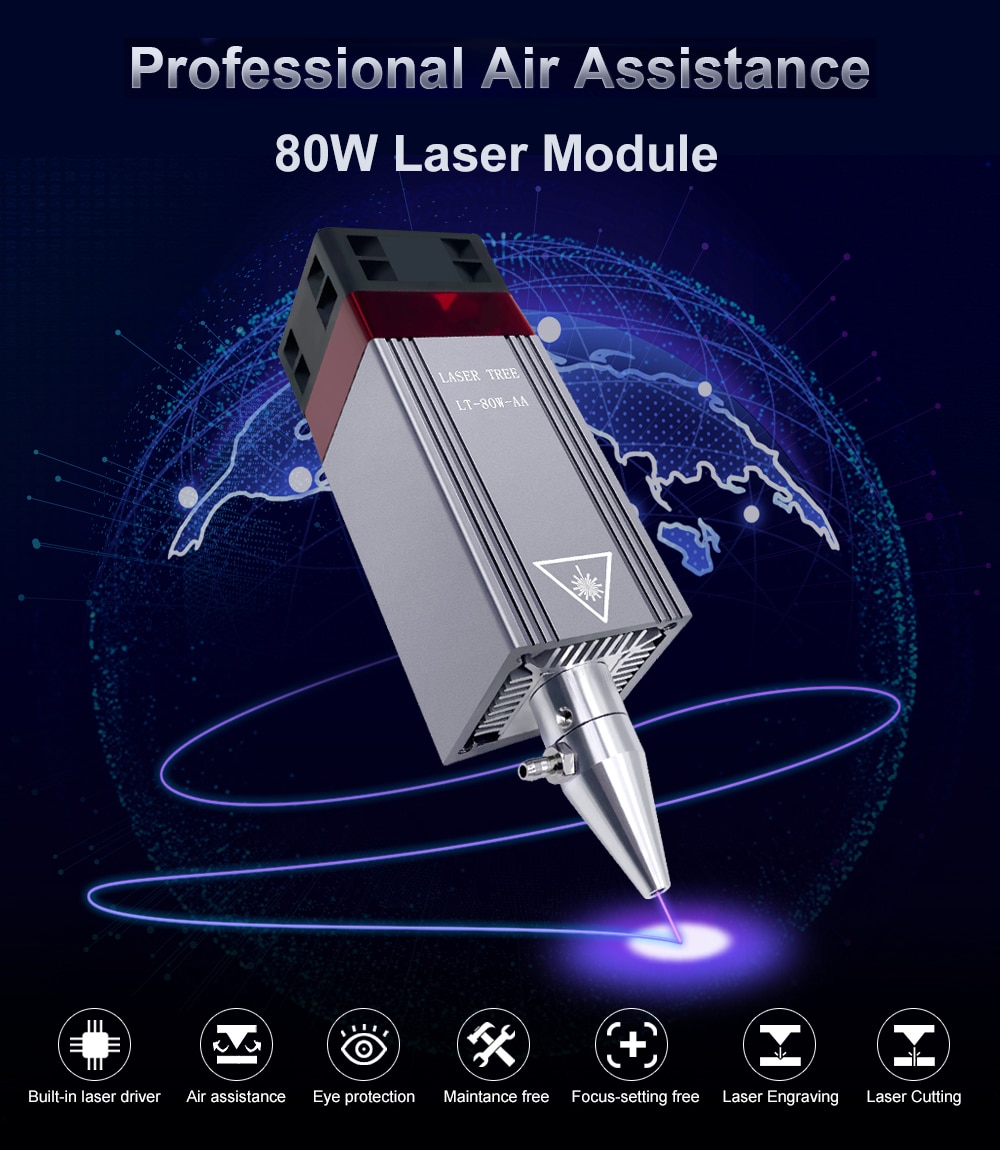

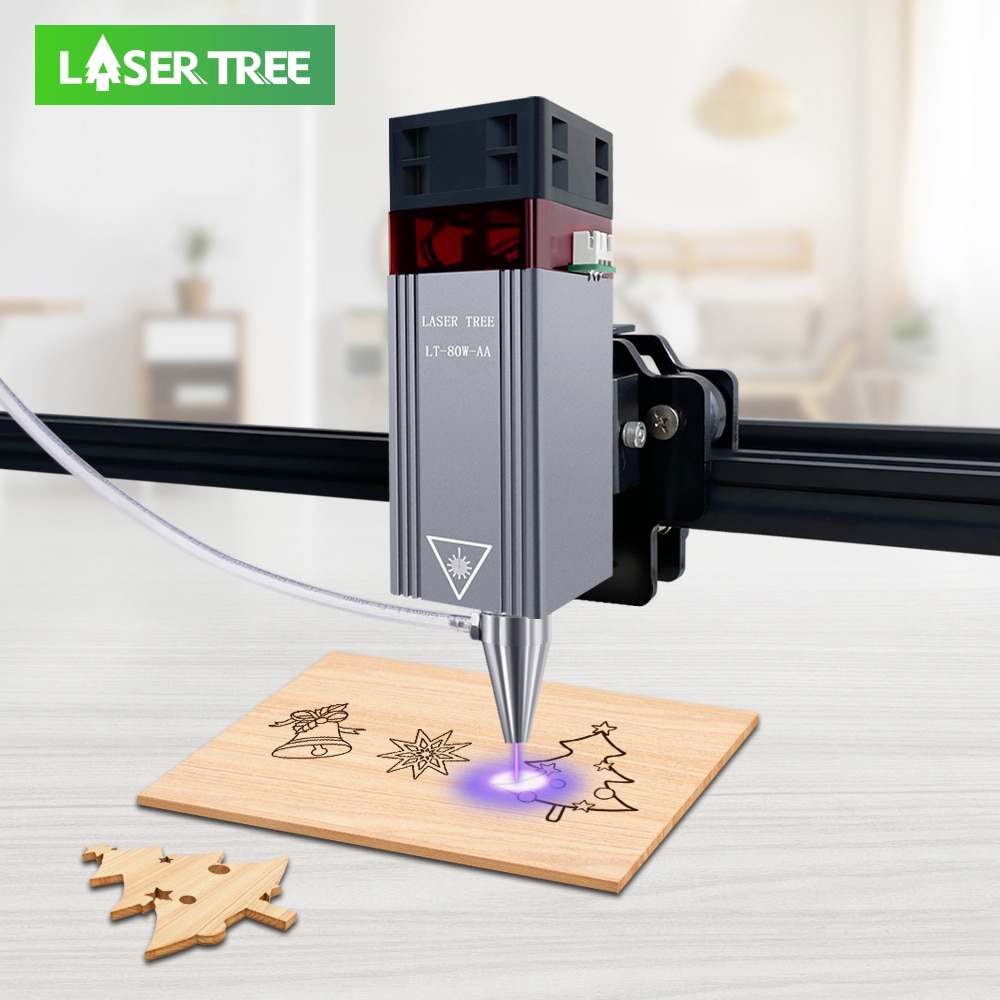

80W Air Assist Laser Module

By LASER TREE


LT-80W-AA:


Product Description

Blue laser module with air assist, high speed, high stability, excellent cutting effect, bright blue light, easy positioning when engraving.


Features:

1. 2-Beam compression technology, 10W optical power laser module

2. Cut through 8mm bass plywood by one pass

3. With professional air assist

4. Suitable for various types of DIY laser engraver

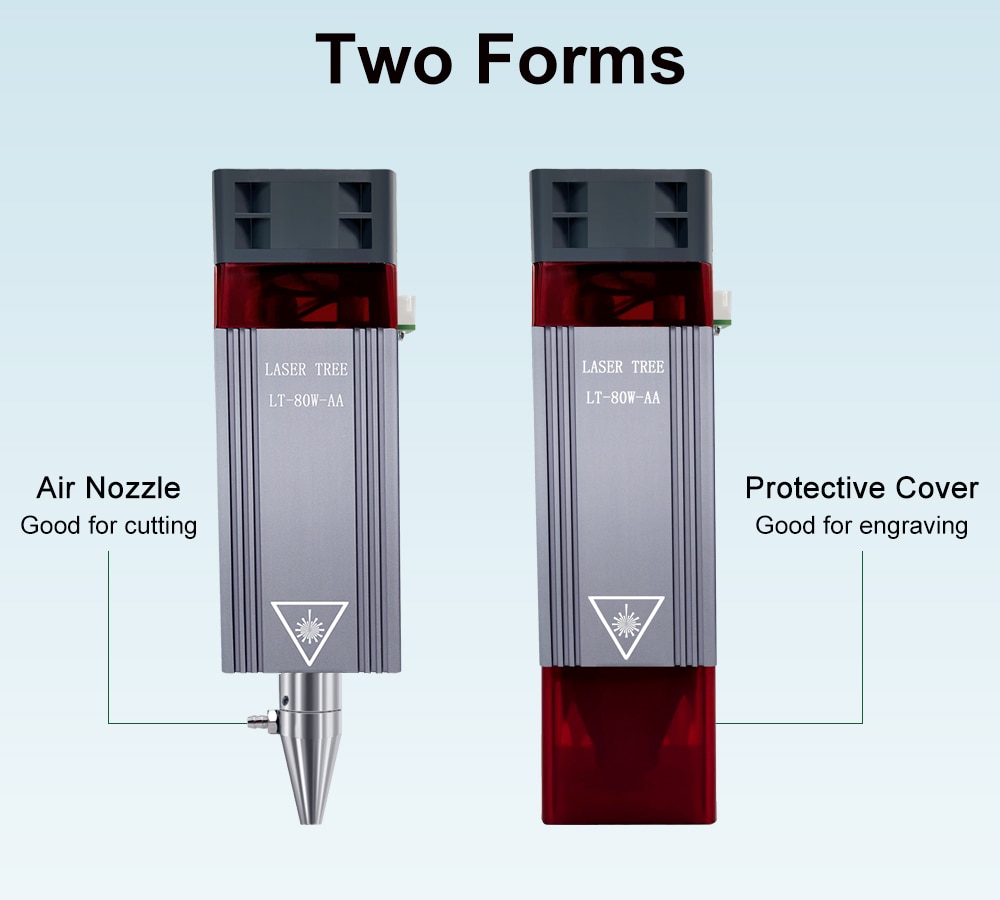

Two Forms of LT-80W-AA:

Form 1: with the air asssit nozzleThe laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will greatly reduce burned marks and bring you excellent cutting experience.

To make full use of the air assist, please prepare an assist pump and air tubing by yourself.


Recommended Air Tubing inner diameter: Φ4mm

Recommended air pump pressure: 150kPa


Form 2: with the laser protective cover. When engraving with this laser head, please use this protective cover that can effectively filter blue light. For convenience, you can work without wearing laser goggles.

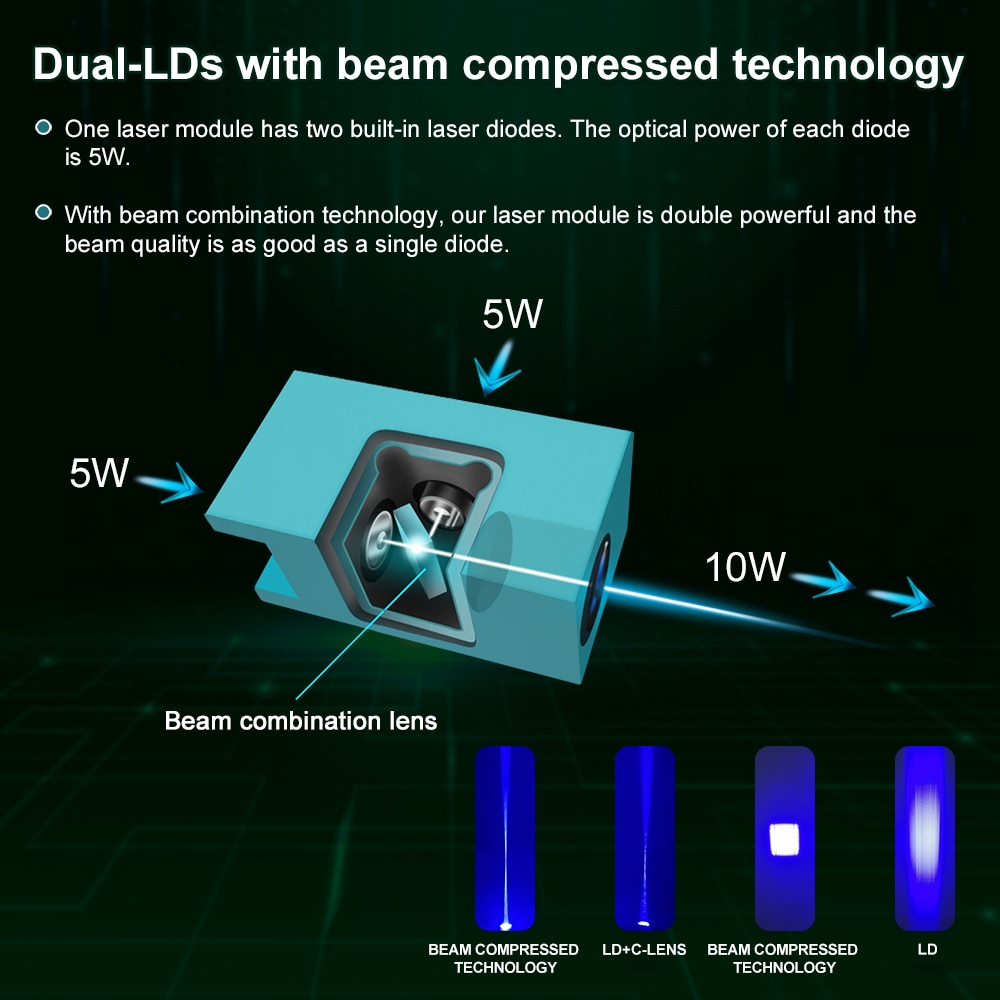

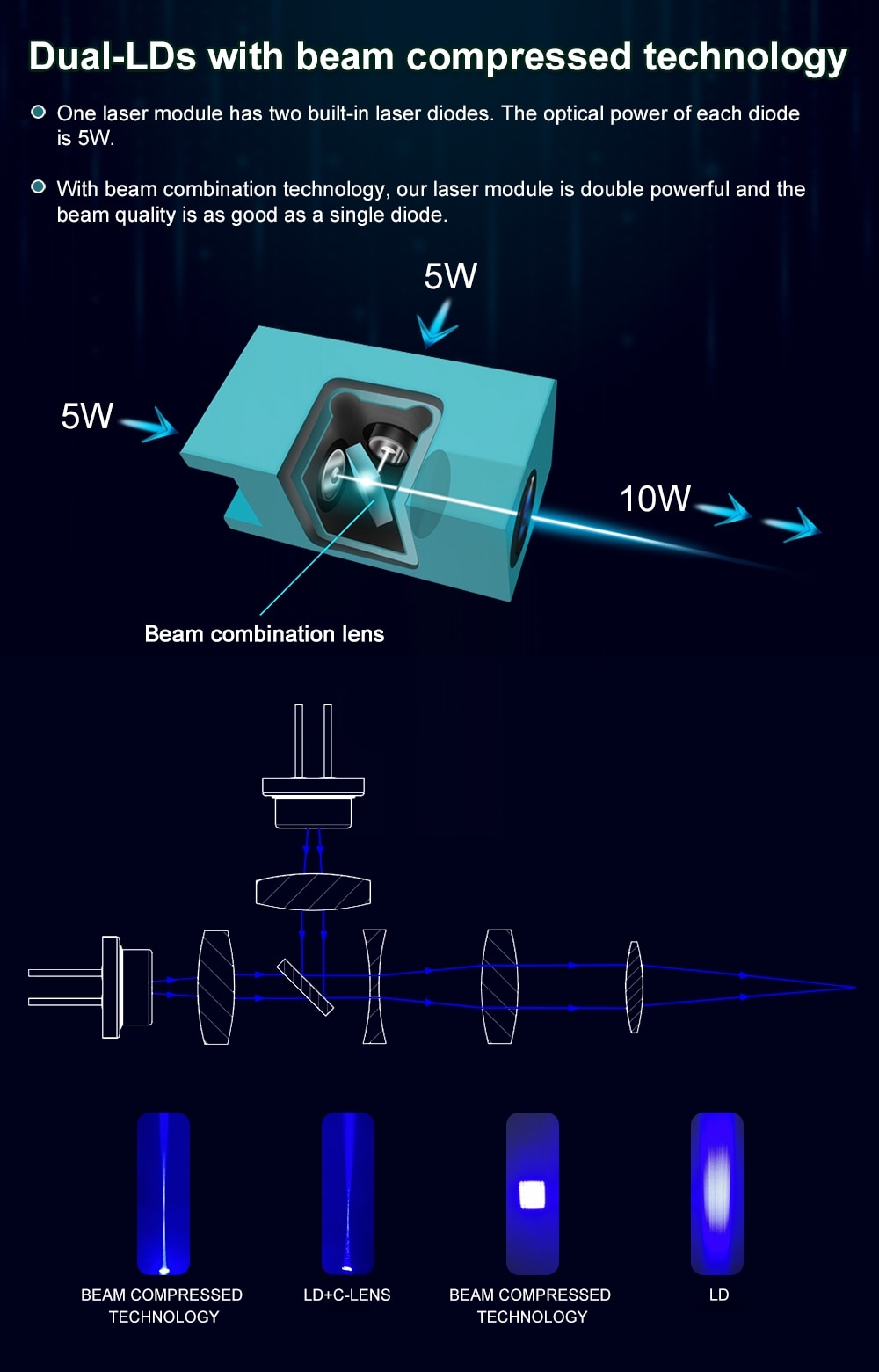

Dual-LDs with Beam Compressed Technology


One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.


Minimum 0.08mm Ultra-thin Beam

Thinner beam and a longer effective energy range

Higher energy density beam, stronger cutting ability

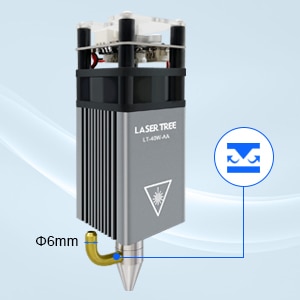

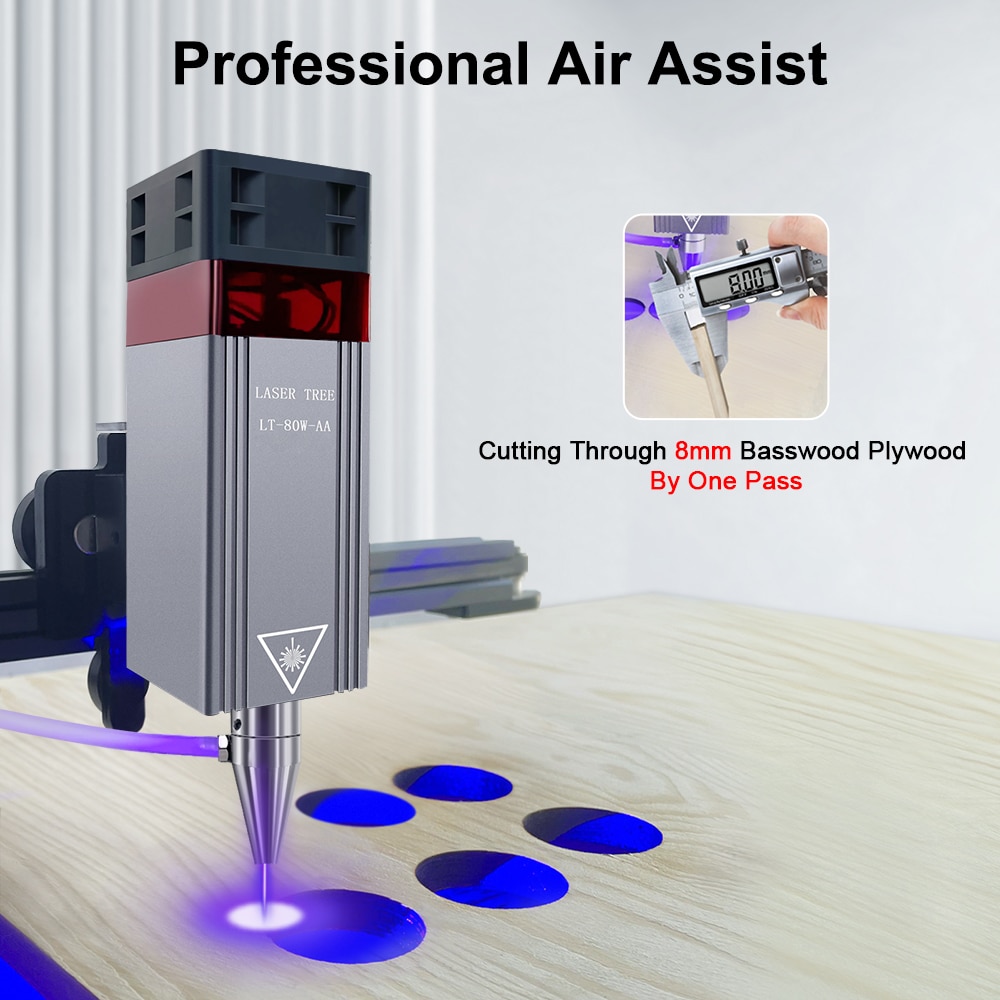

Professional Air Assist

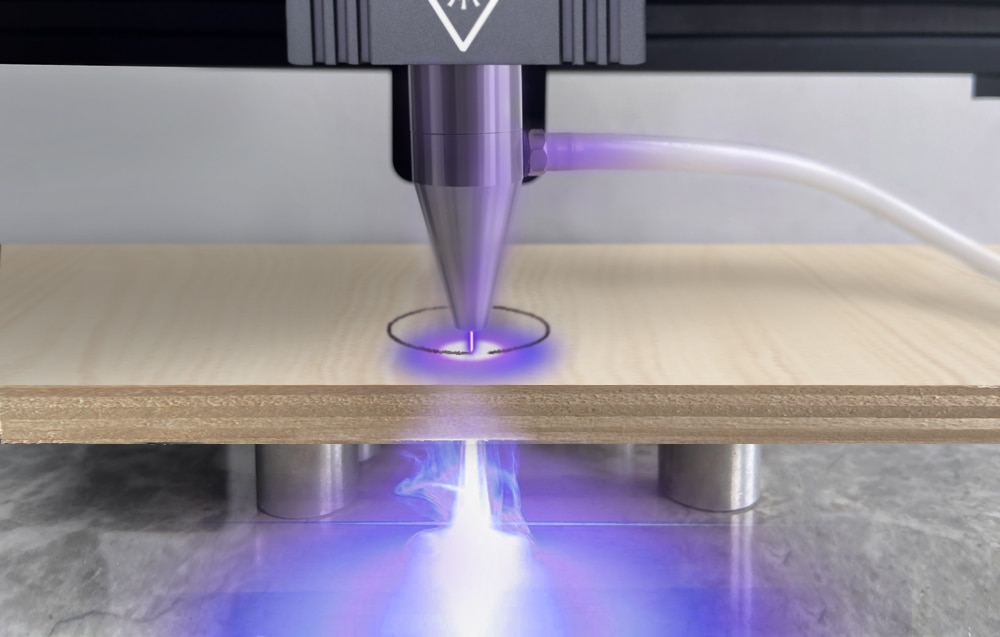

Cutting through 8mm plywood by one pass

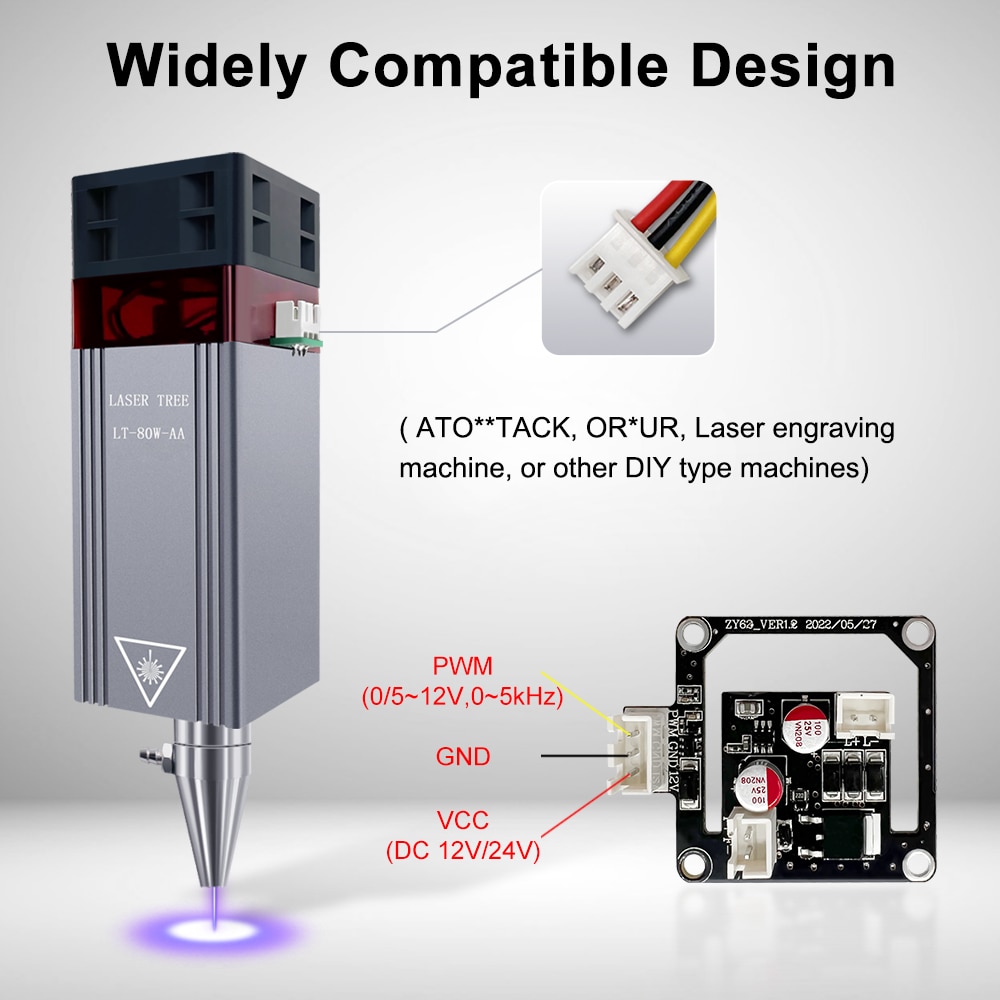

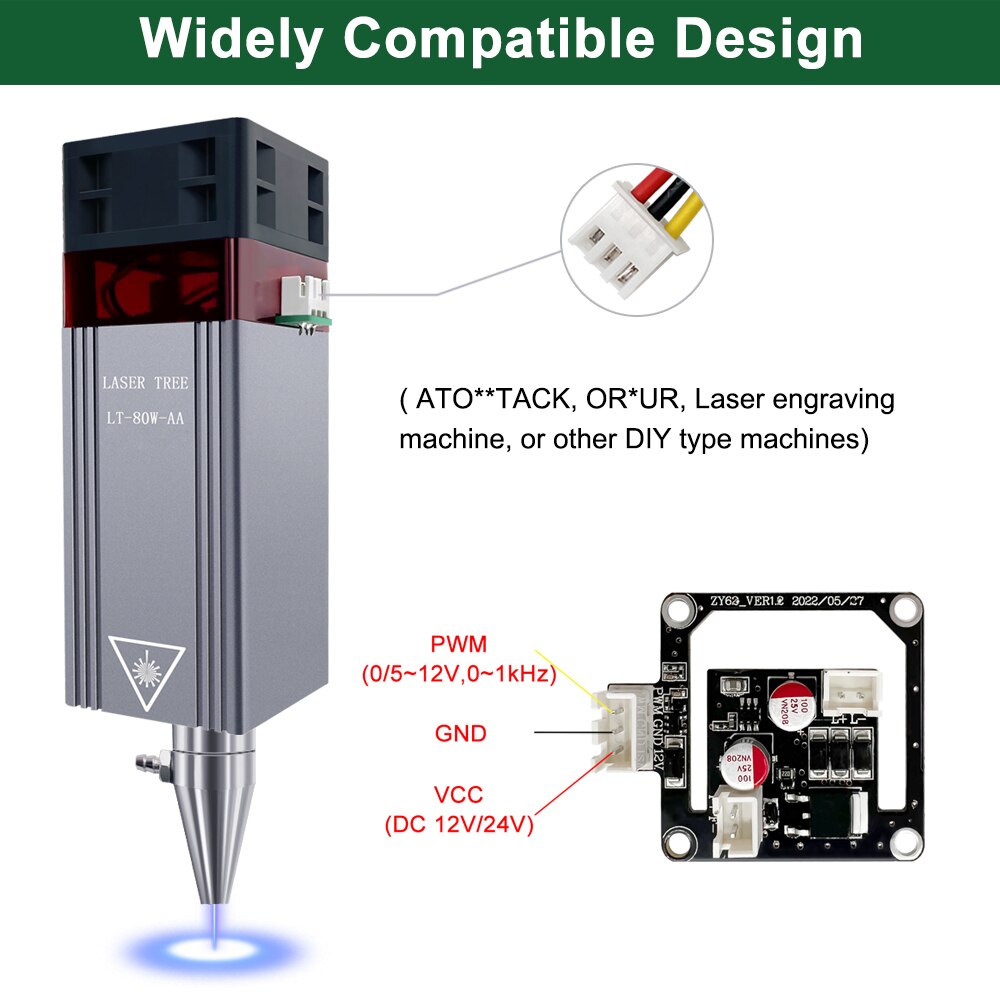

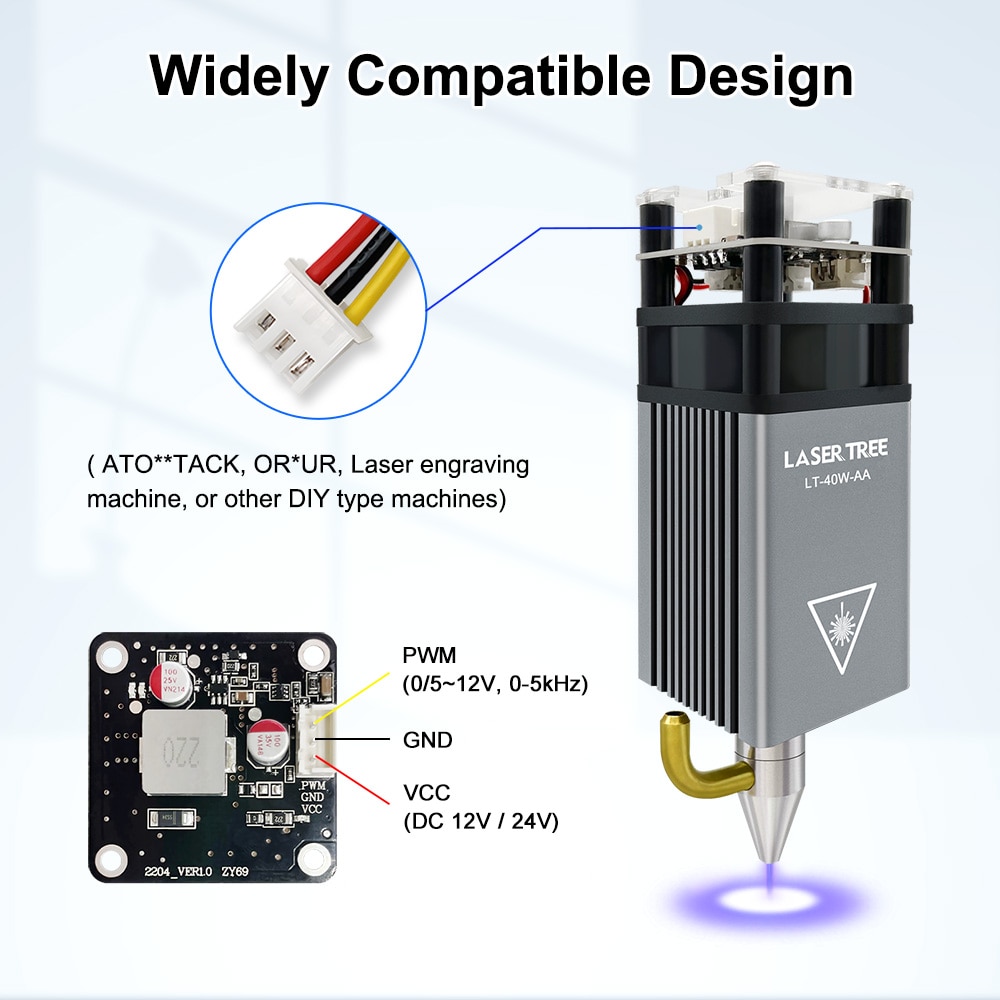

Widely Compatible Design

Suitable for ATO*TACK, OR&UR laser engraving machine, or other DIY type machines



With the Air Asssit Nozzle

Greatly reduce burned marks, good for cutting
(In order to have a better cutting effect, it is recommended to use an air pump)

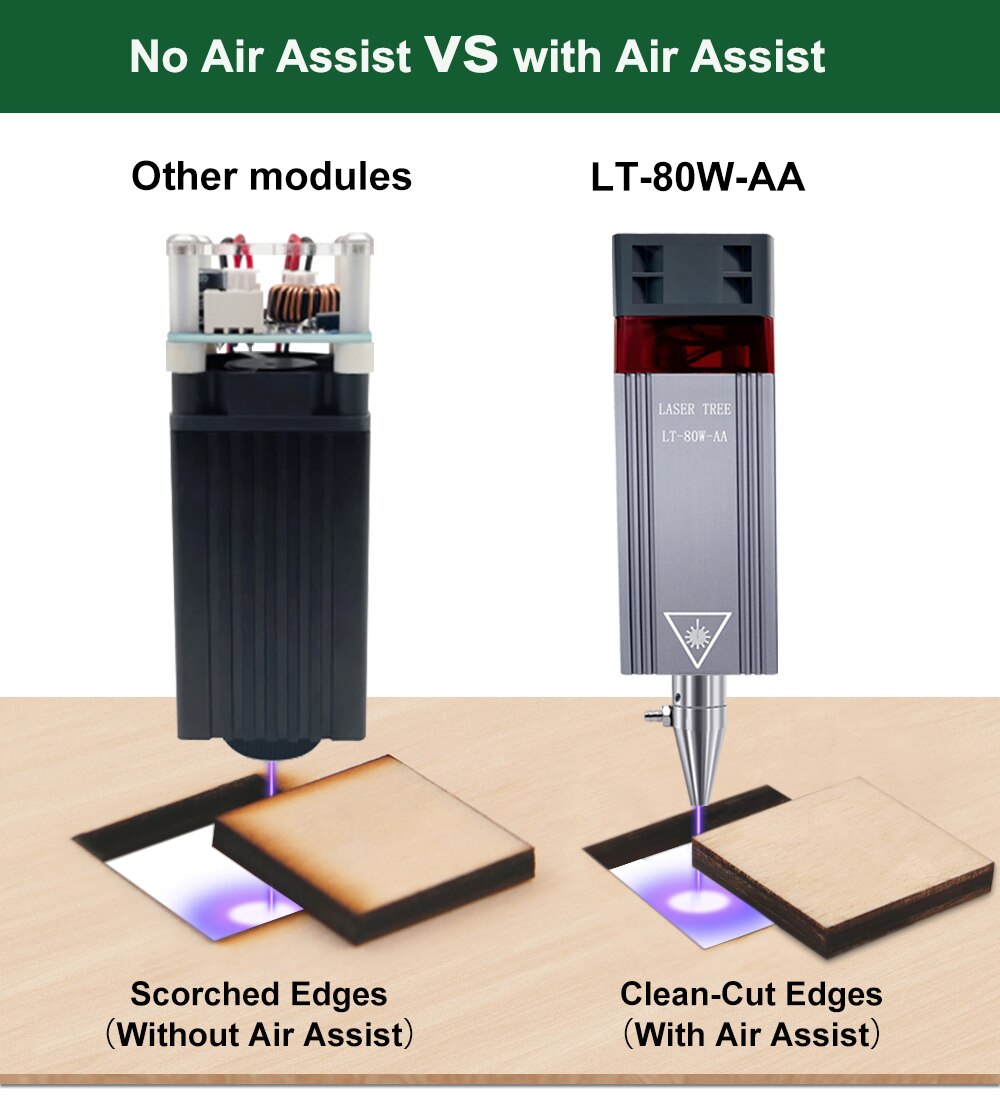

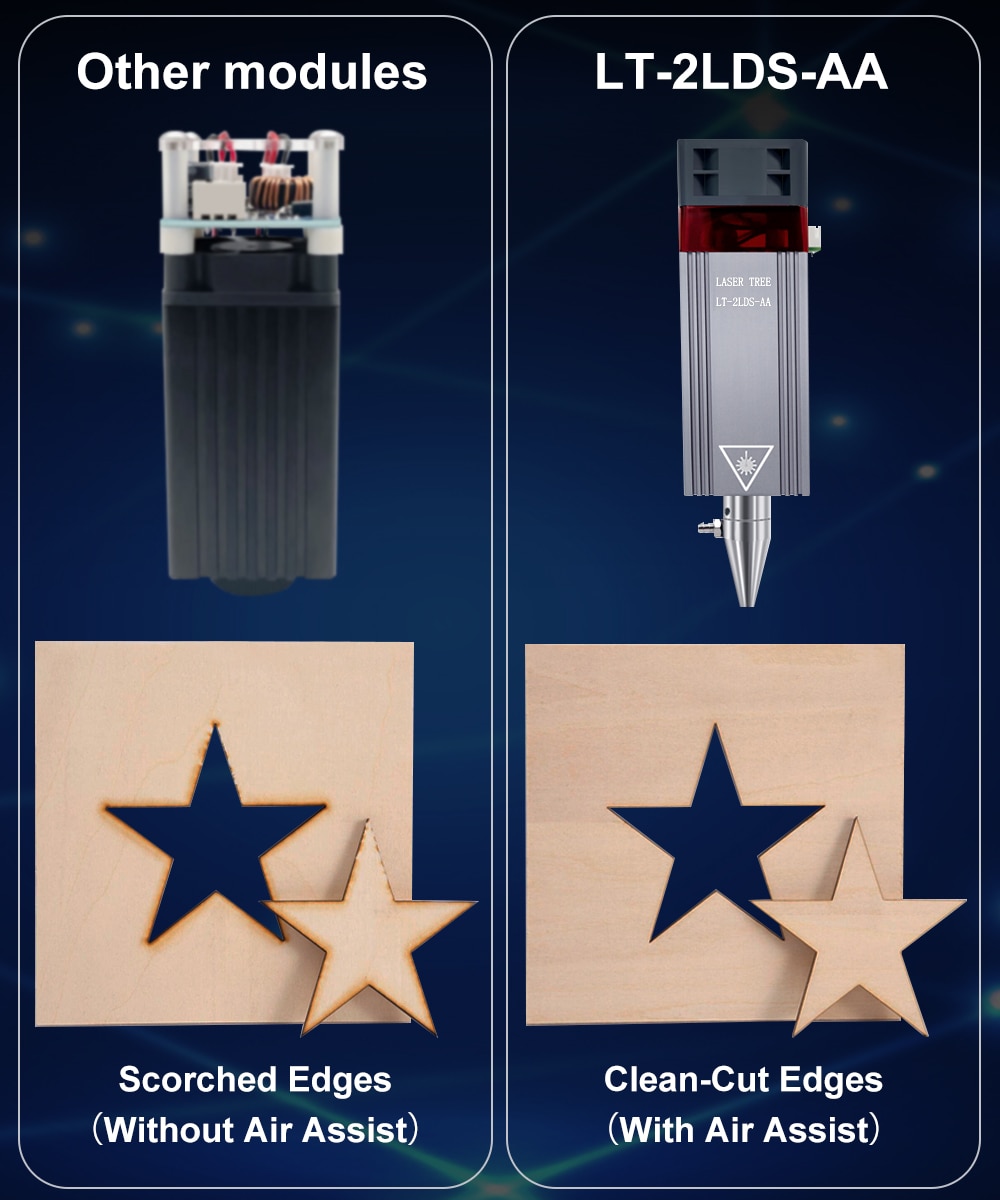

No Air Assist VS with Air Assist

Scorched Edges(without Air Nozzle)

Clean-Cut Edges(with Air Nozzle)


With the Laser Protective Cover

Effectively filter blue light, suitable for engraving

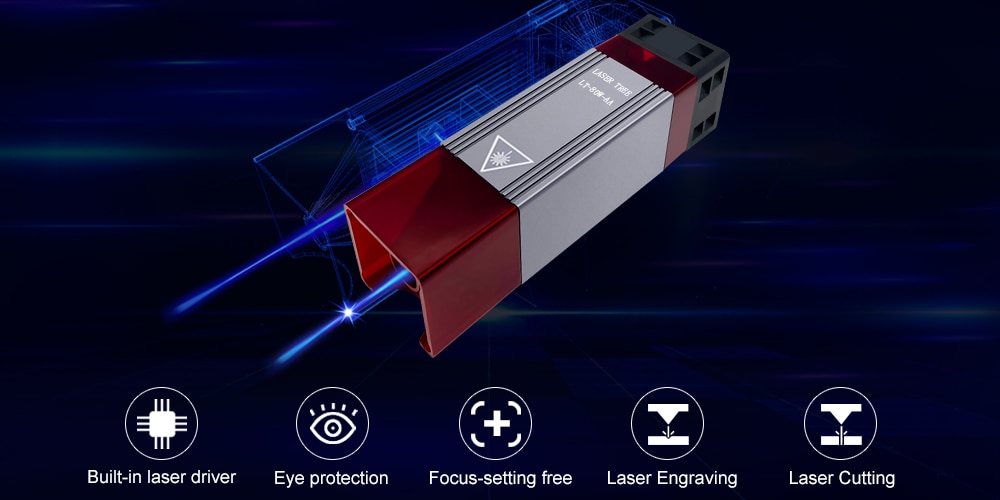

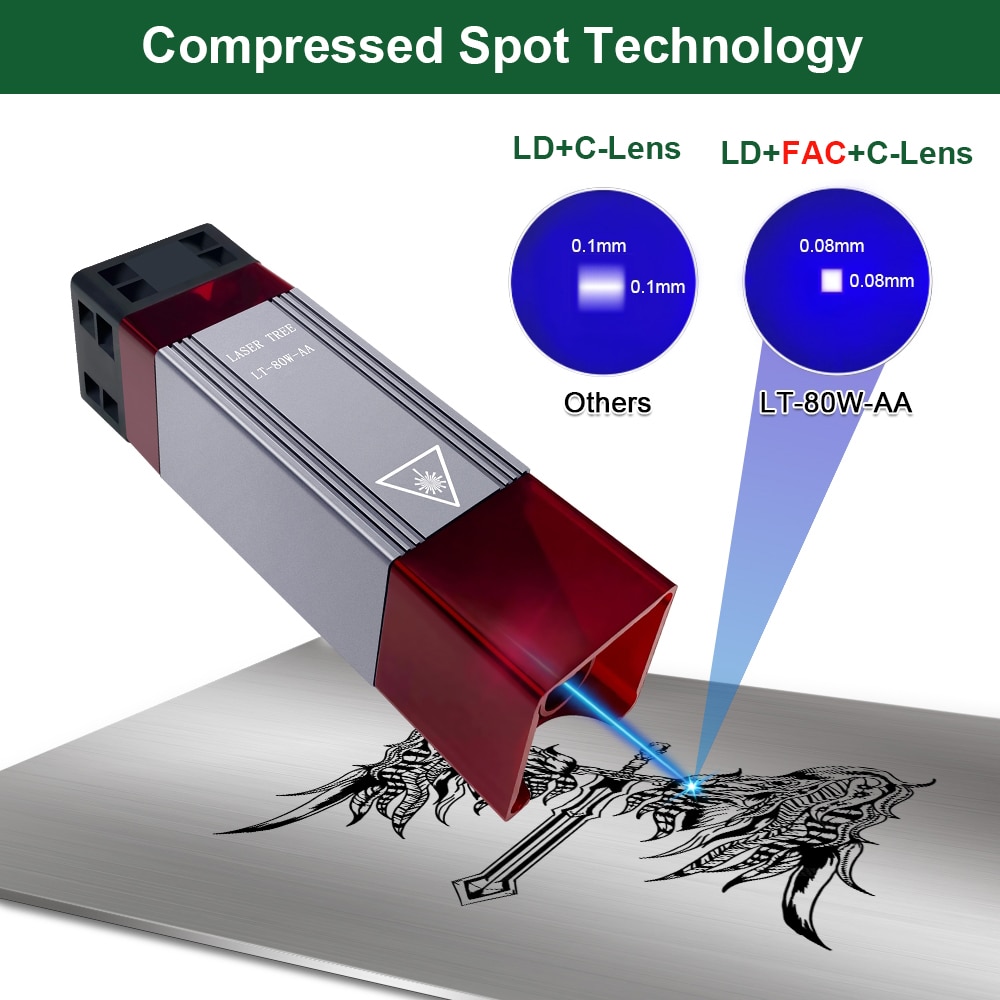

Compressed Spot Technology

LD+FAC+C-Lens


Note:


If you need the LT-80W-AA instruction manual, please contact us, thank you!

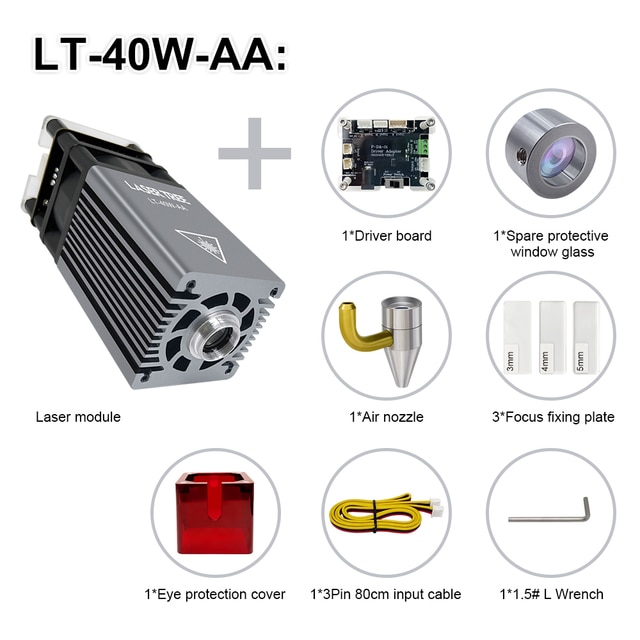

40W Air Assist Laser Module

By LASER TREE

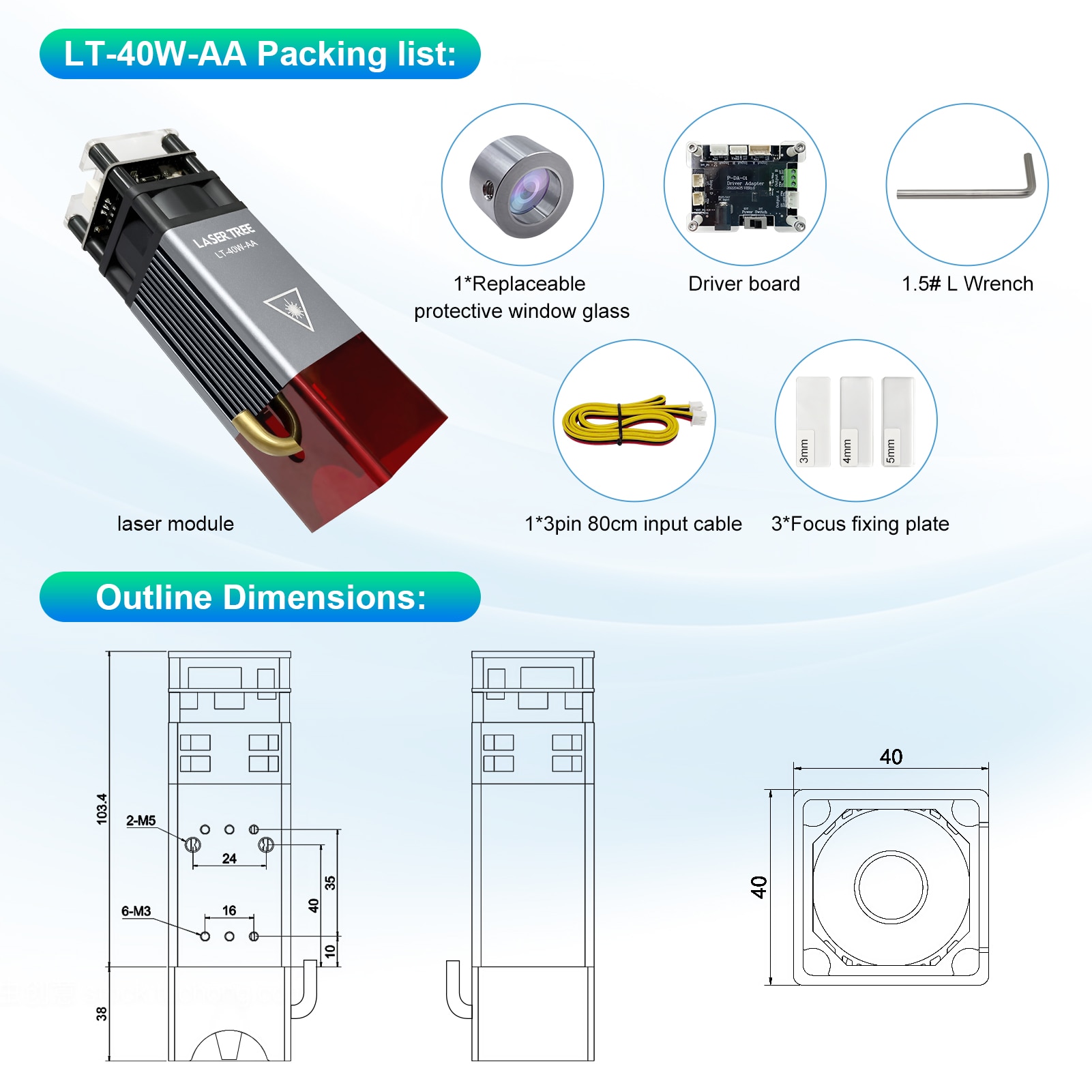

LT-40W-AA:


Product Features:

1.Beam compression technology, 5W optical power laser module.

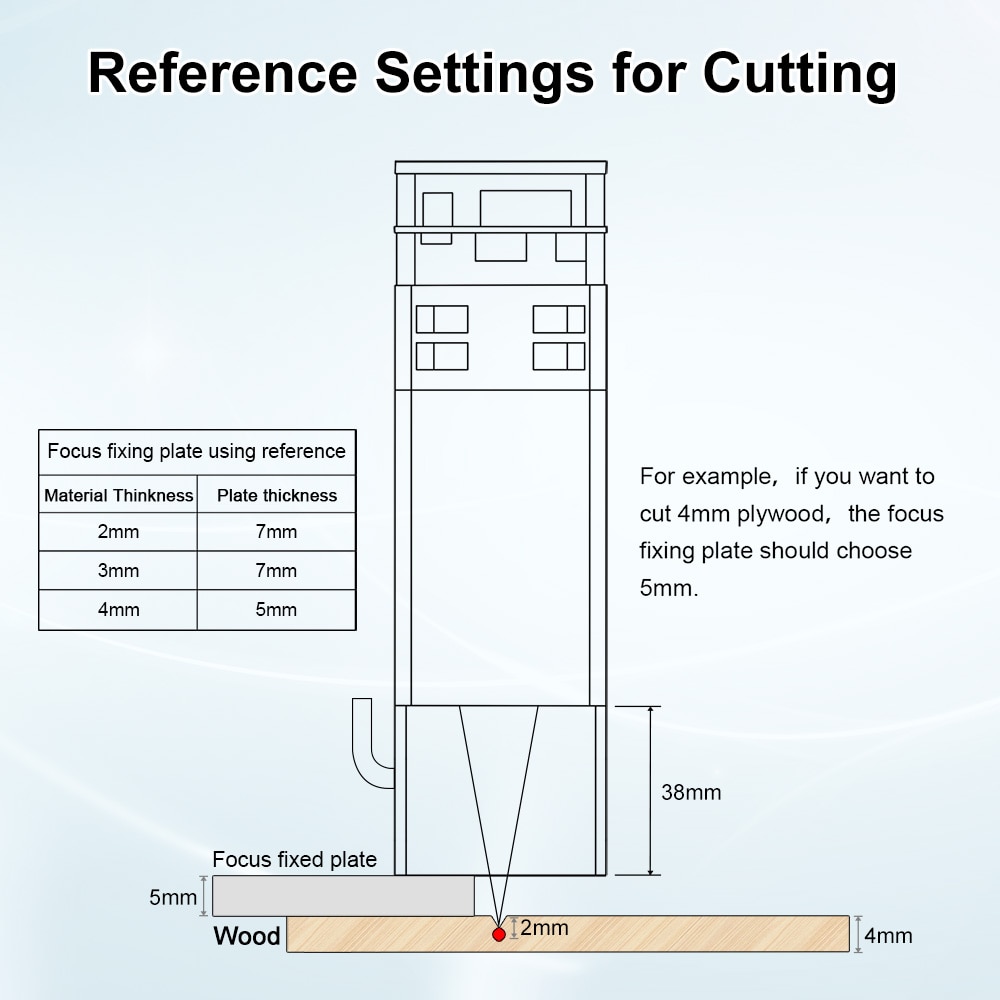

2.Excellent Cutting Ability: Cutting 4mm plywood by one pass at a Speed of 190mm/s.

3.Very Fast Engraving Speed: 45mm focal length, engrave 304 stainless steel at speeds up to 6000mm/min.

4.Magnetic eye protective cover: Eye protection and easy disassembly.

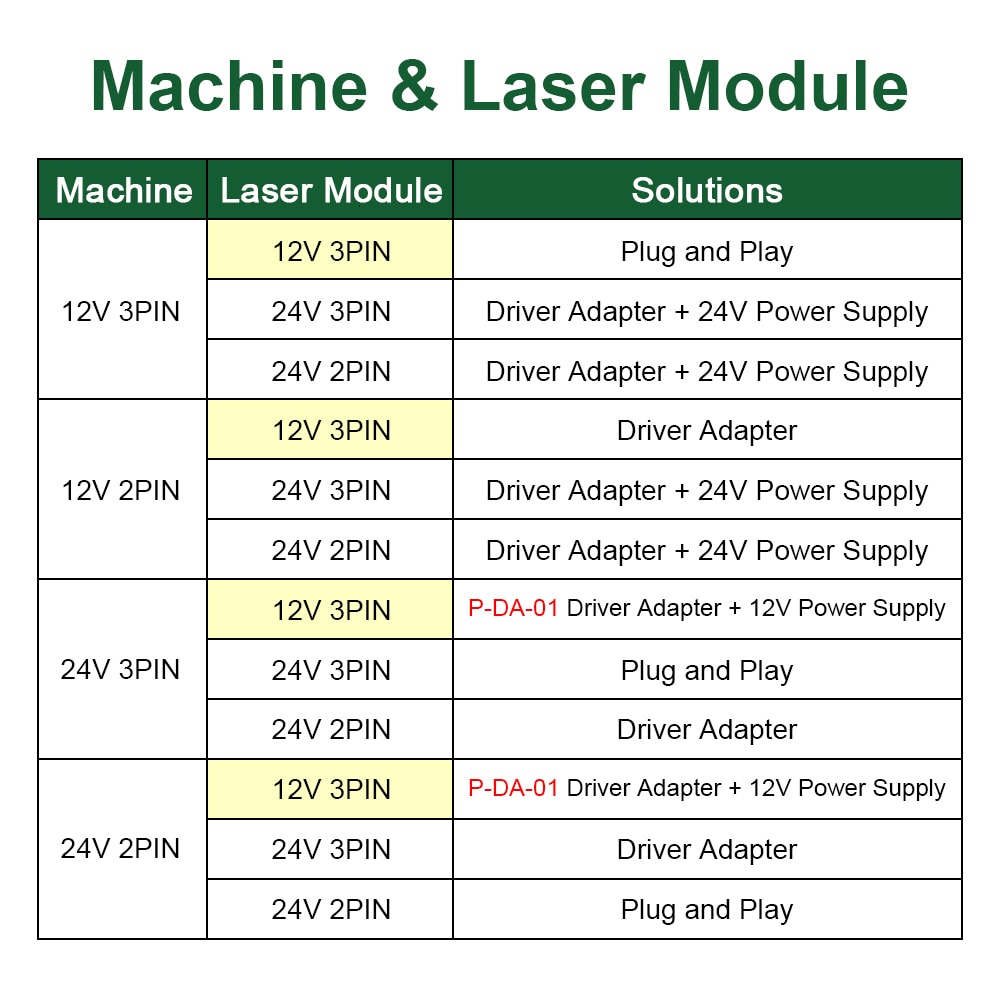

5.For various 12V 3PIN laser engraving machines, plug and play. For 12V 4PIN machines, just use the driver adapter to connect.

40W Fixed Focus 20mm Laser Module

By LASER TREE


LT-40W-F20-GOLD:


Product Description

1.Blue light laser module, easy to locate when carving

2.Fixed focus laser head, suitable for three-axis engraving machine, easy to install

3.Directly engrave mirror stainless steel: no need painting black

4. Super fast engraving speed: up to 30mm/s

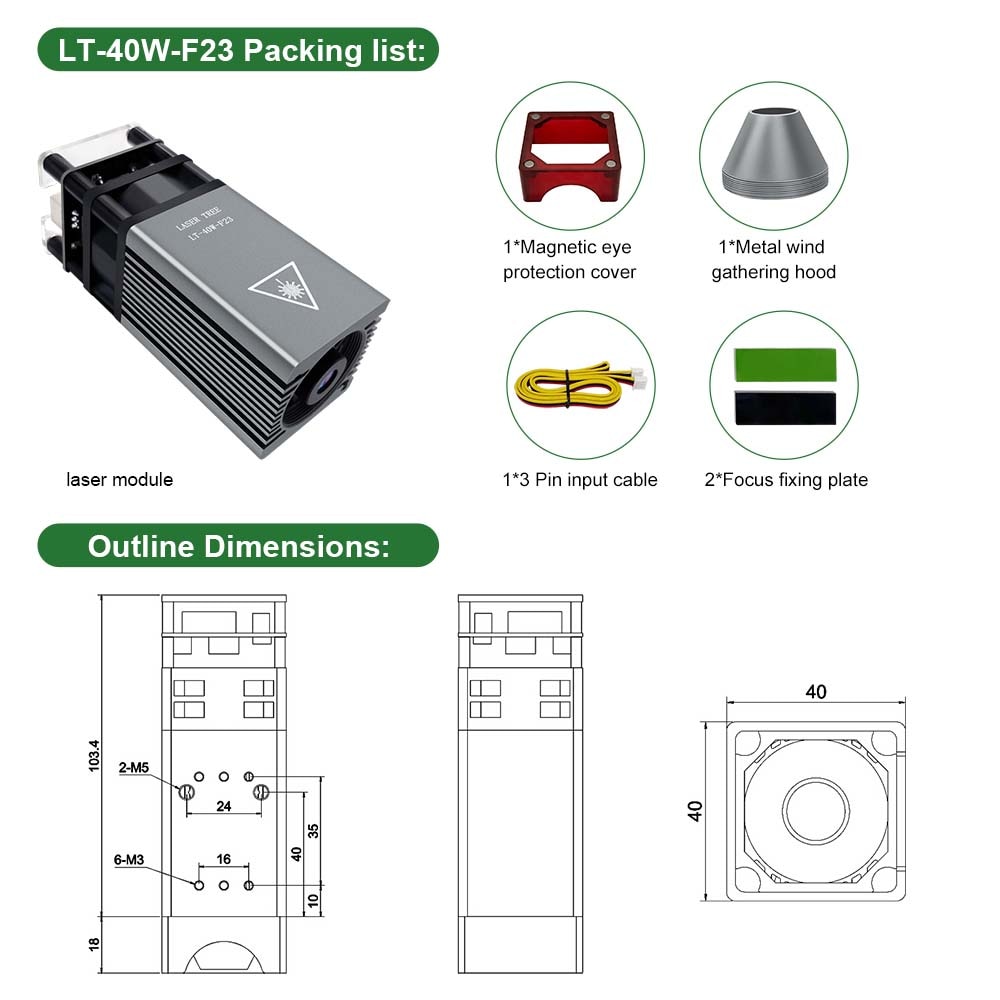

40W Fixed Focus 23mm Laser Module

By LASER TREE

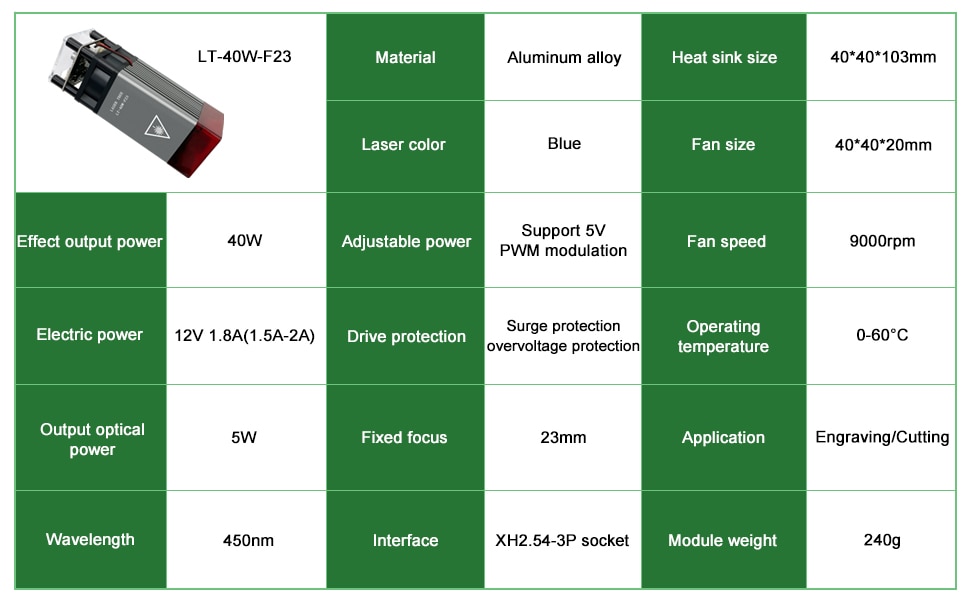

LT-40W-F23:


Product Features:

1.Engraving Mirror Stainless Steel, no need to Paint Black.

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.

4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.

5.Metal cutting air outlet: Which does not generate heat and can resist flames.

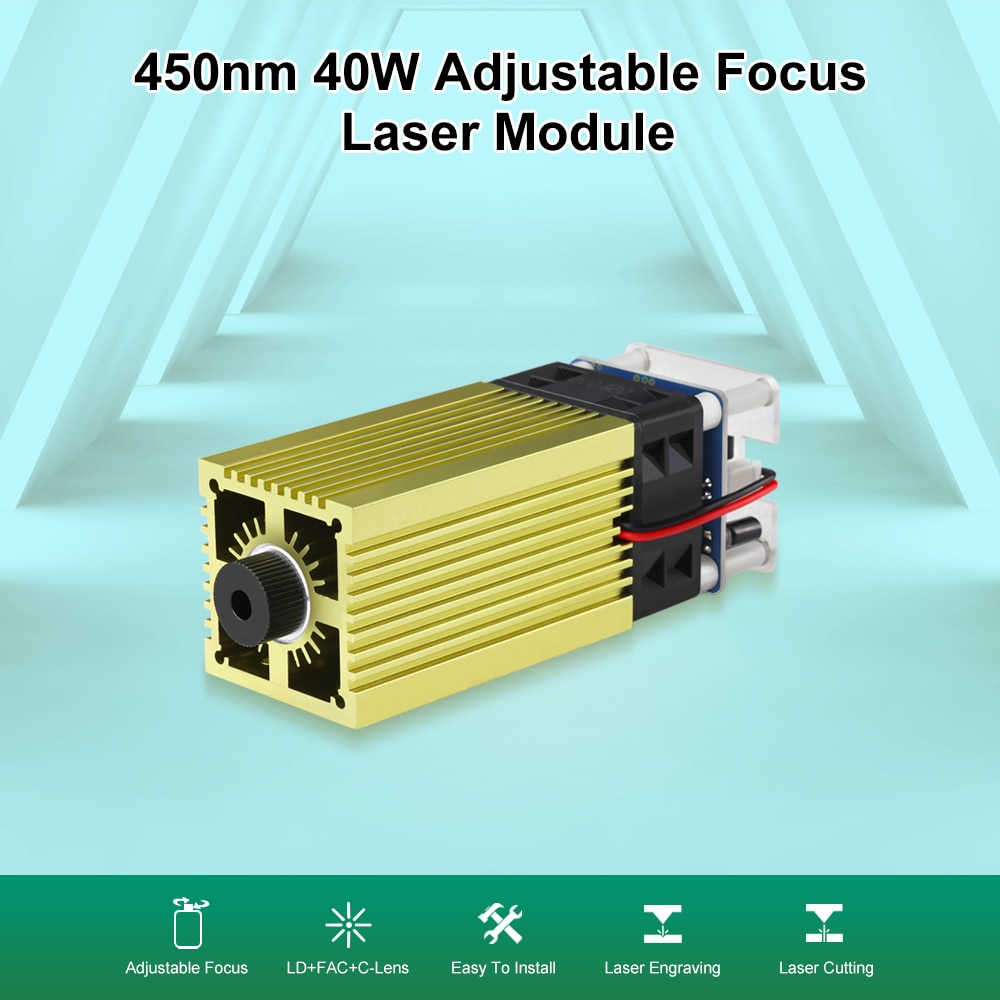

40W Adjustable Focus Laser Module

By LASER TREE


LT-40W-A-GOLD:


Features:

Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving

Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency

Easy to Assemble --- More mounting holes design, small and compact

Widely Compatibility--- 12V laser head, compatible with kinds of laser engraving machines


Packing List:

1 * Laser head

1 * Cable

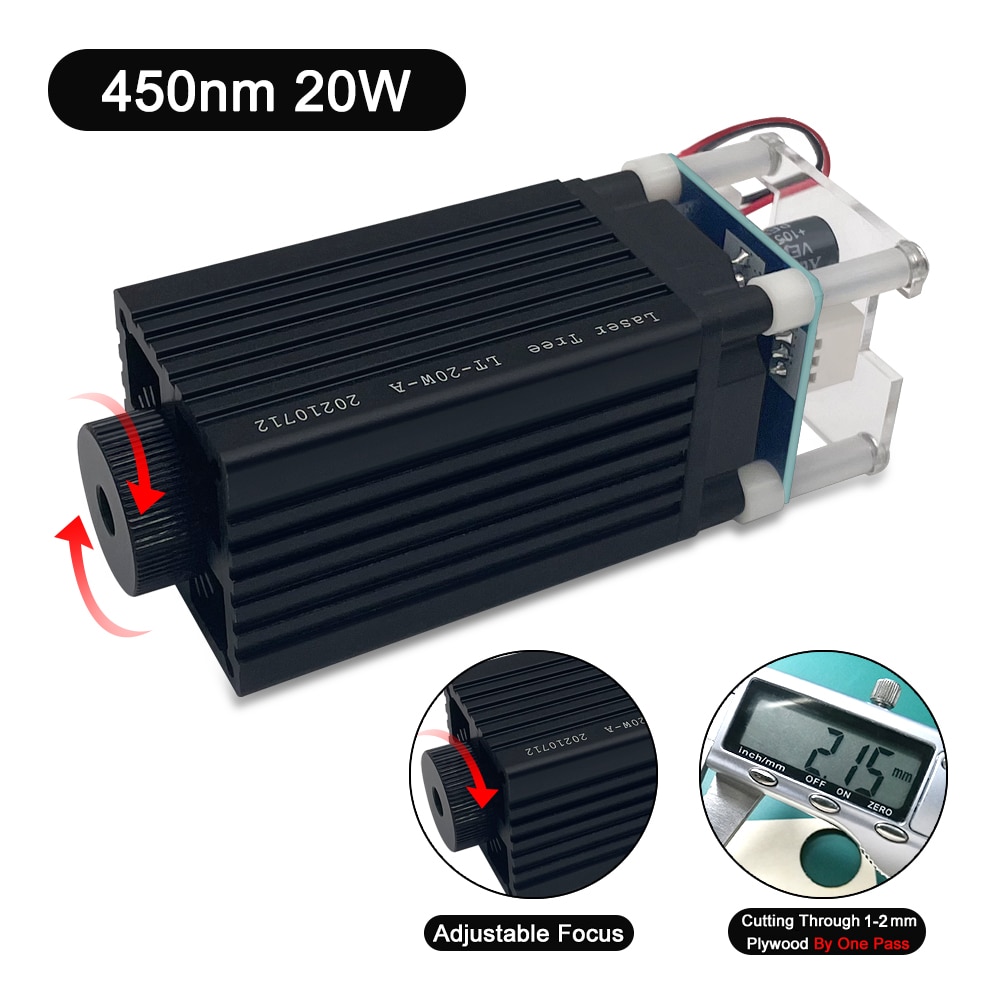

20W Adjustable Focus Laser Module

LT-20W-A:


Features:

Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focuse --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to assemble---small, compact, convenient and easy to install.


Packing List:

1 * Laser head

1 * Cable



















  • Model Number: 80W Air Assist Laser Module
  • Brand Name: Laser Tree
  • Certification: CE
  • Origin: Mainland China
  • Wavelength: 450nm
  • Input: 12V
  • Adjustable power: Support 0/5-12V 0-5kHz TTL/PWM modulation
  • Input port: XH2.54-3P socket
  • Control line installation method: Pluggable
  • Feature 1: with air assist (LT-80W-AA, LT-40W-AA)
  • Feature 2: Adjustable laser head (LT-40W-A-GOLD, LT-20W-A)
  • Feature 3: 20mm fixed focus, suitable for DIY engraving (LT-40W-F20-GOLD)
  • Feature 4: 23mm fixed focus, suitable for DIY engraving/ cutting (LT-40W-F23)
  • Service: Dropping Shipping Service
