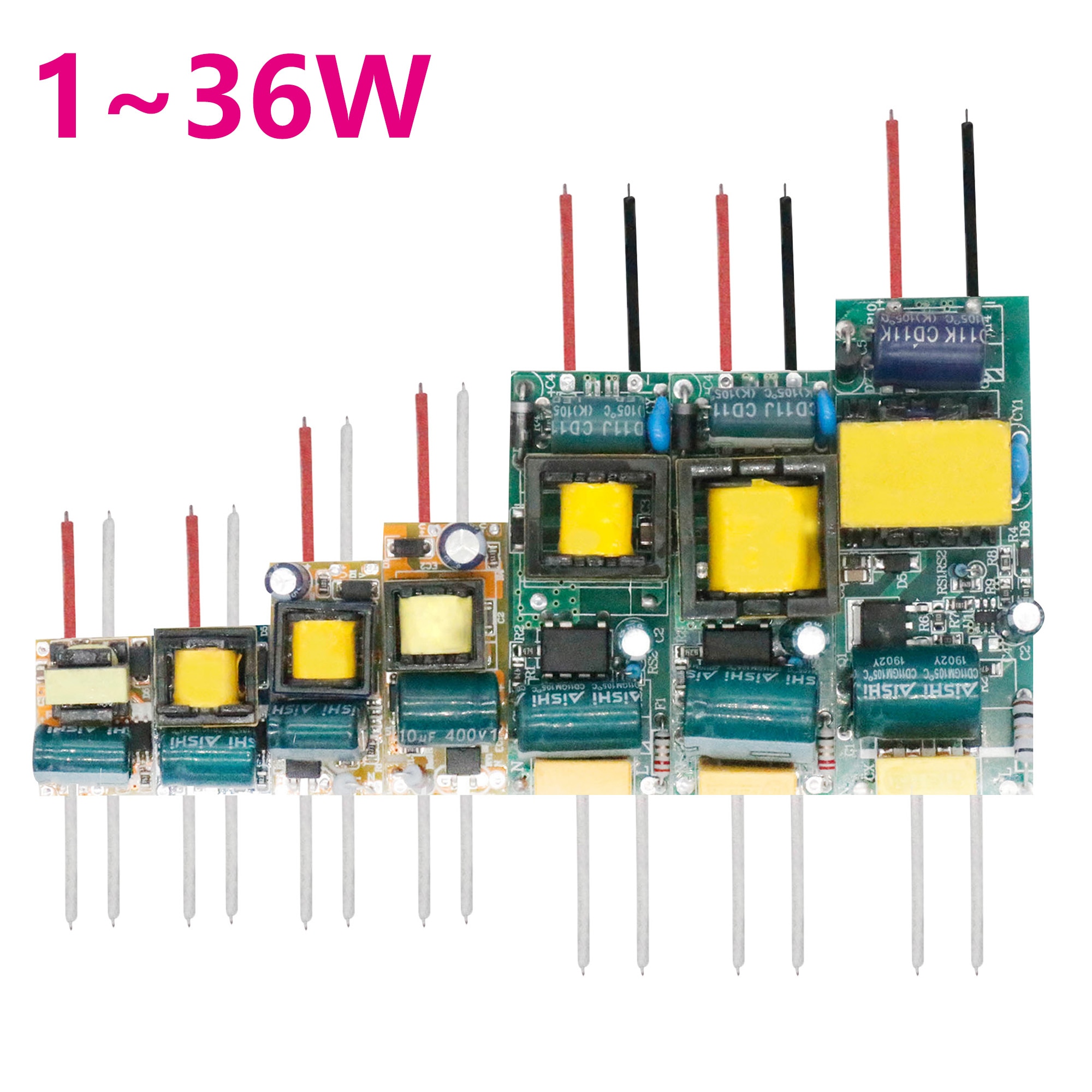

LED driver 1-3W 3-5W 4-7W 8-12W 12-18W 18-25W 25-36W power supply built-in constant current led 95-265V Transforme driver Lights

4.8 (213 votes) | 390 orders
Price: US $11.43 - 16.36 / piece
Discount Price:
US $ 9.95 - 13.86 / piece
-13%
Color
Voltage
Current
Quantity

Tip 1: How to choose the right driver for the LED?
        I met a lot of buyers and didn't know how to choose the right LED driver.
First, you need to determine the lamp's input voltage and input current by 100%, then select the matching voltage and current of the LED driver.
Example: We detected a bulb voltage of 40V and a current of 290mA.
So we should choose the 8-12W 280-300mA option.

Tip 2: Dear buyer, if you need a full power LED driver, please choose 280-300 current product, this is a full power LED driver.

Tip 3: The no-load test is forbidden. The voltage is too large and the data is inaccurate, so be sure to enter the bulb load test.
All Isolated Driver
The lamp is automatically lit by balancing the voltage according to the lamp performance
All driver Output Current:  280-300mA/240-260mA/180-200mA
All driver Input Voltage : AC90-265V

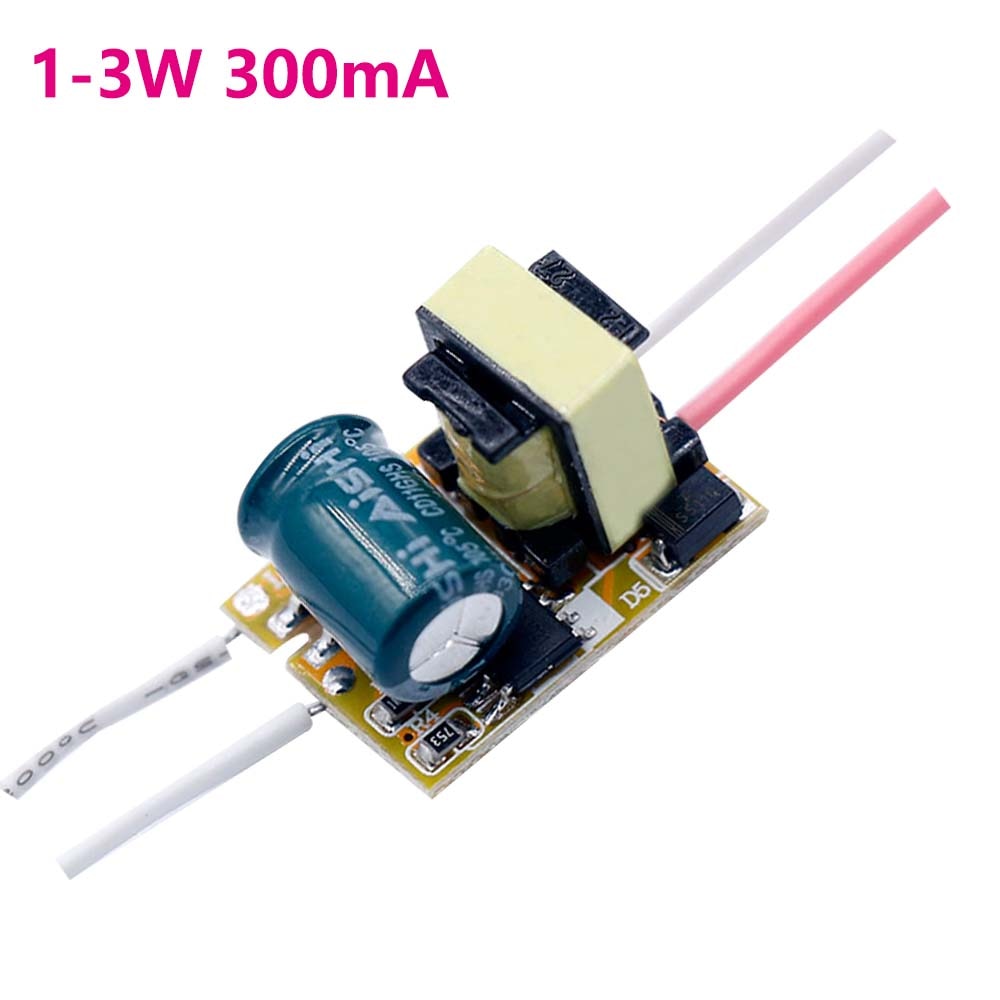

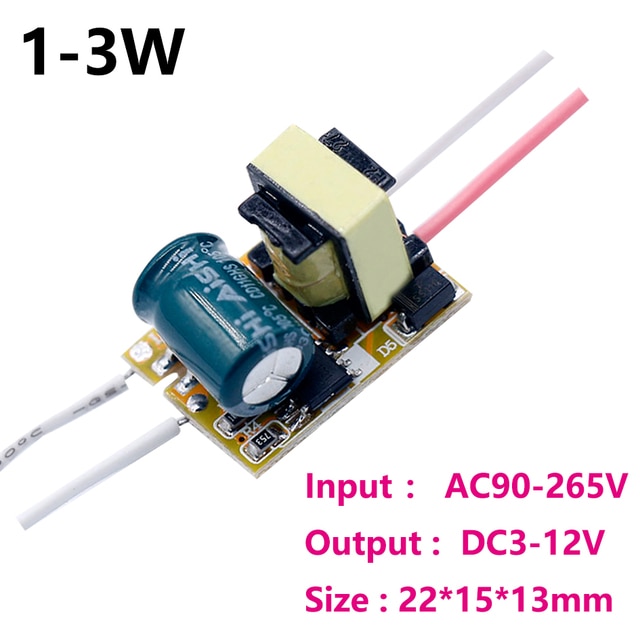

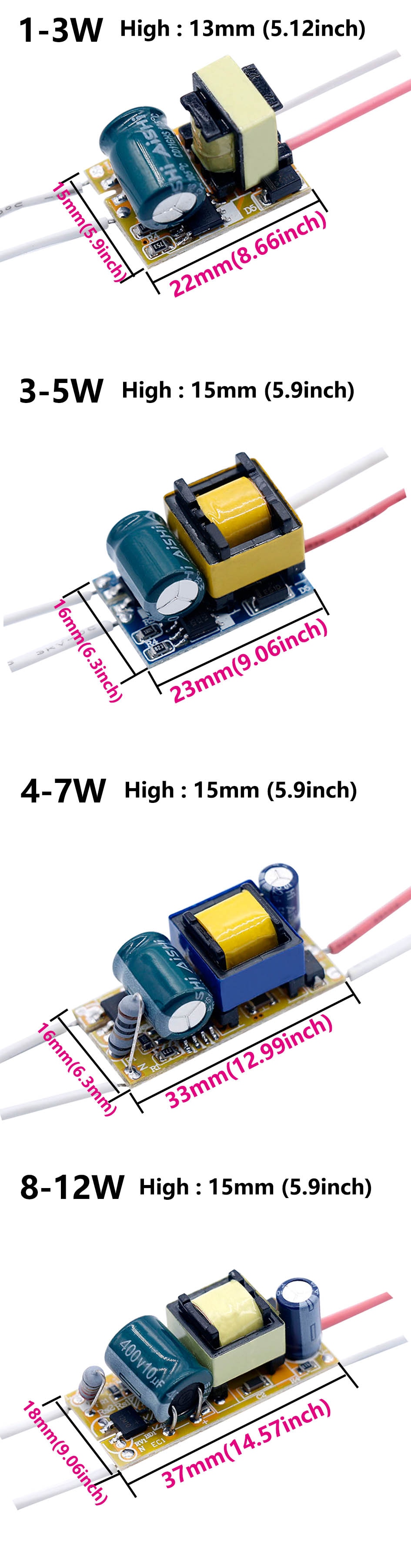

1-3W LED Driver(Use 3 years)
Output Voltage : 3-12V

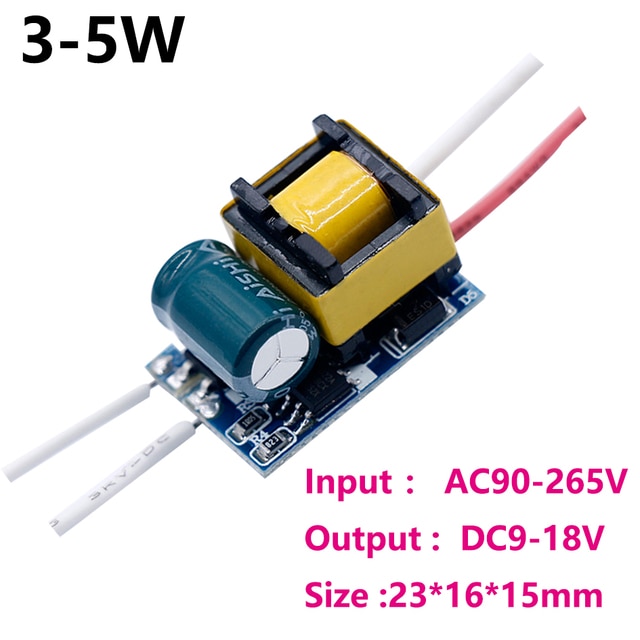

3-5W LED Driver(Use 3 years)
Output Voltage :9-18V

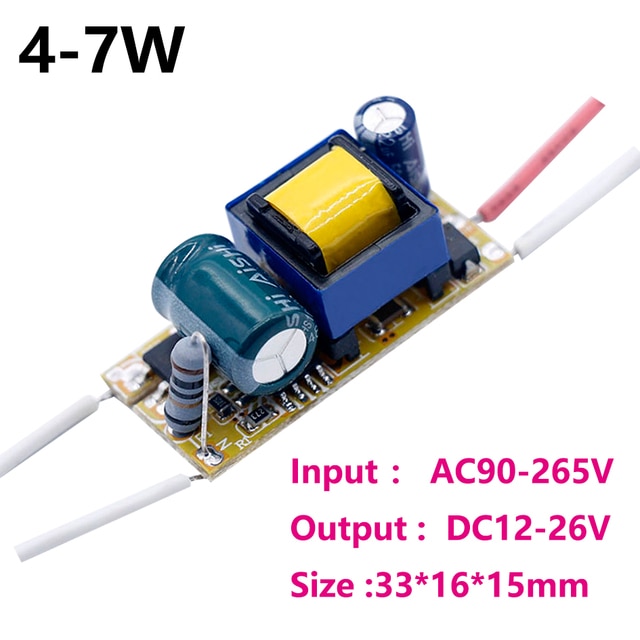

4-7W LED Driver(Use 3 years)
Output Voltage : 12-26V

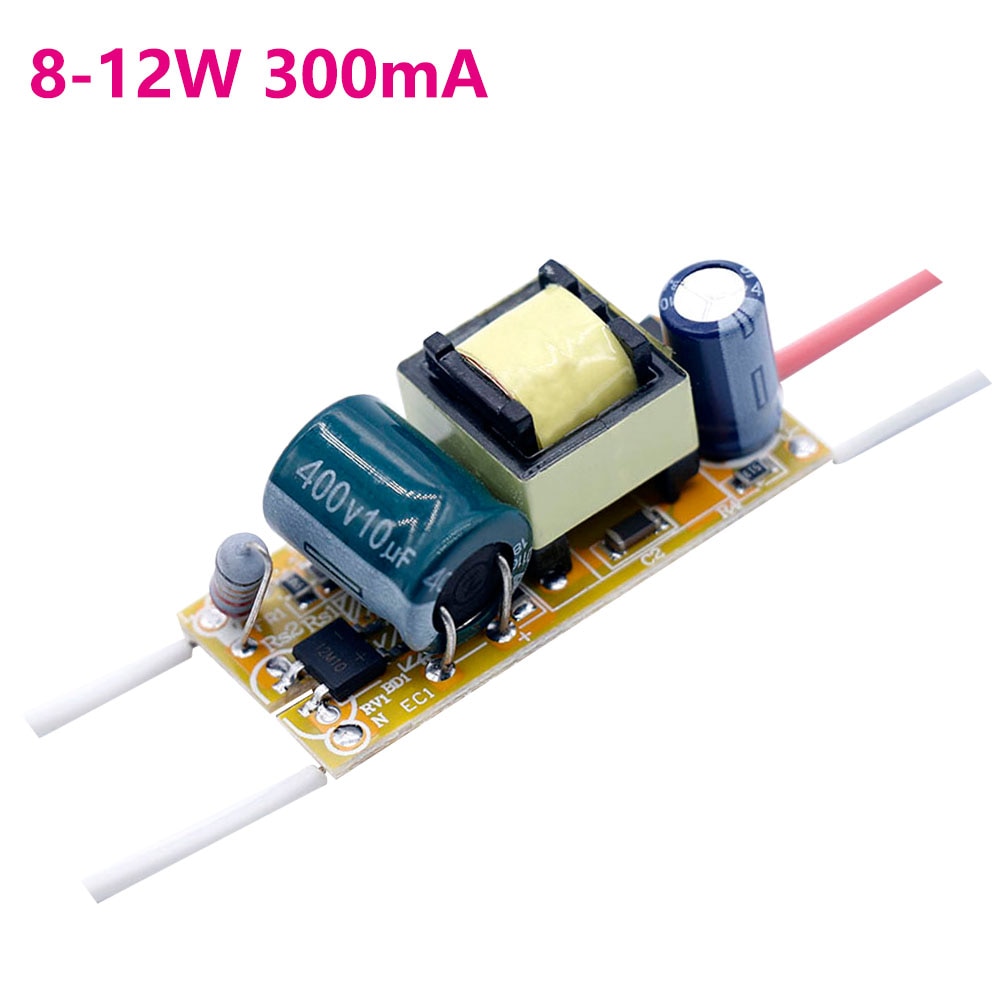

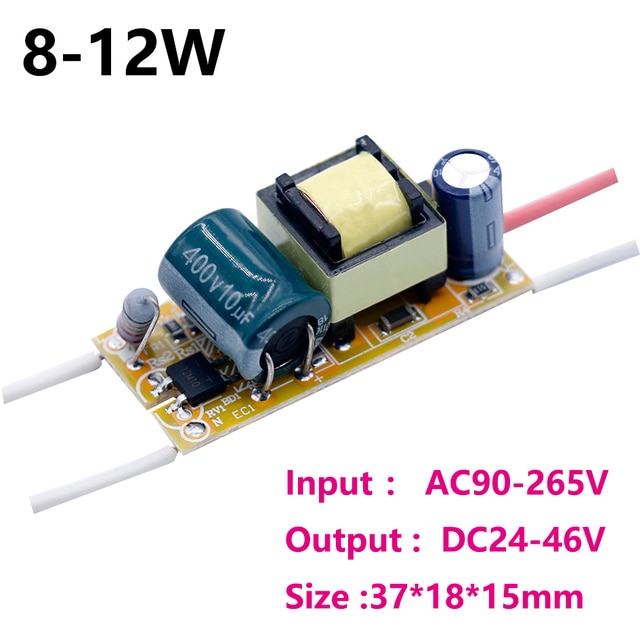

8-12W LED Driver(Use 3 years)
Output Voltage : 24-46V

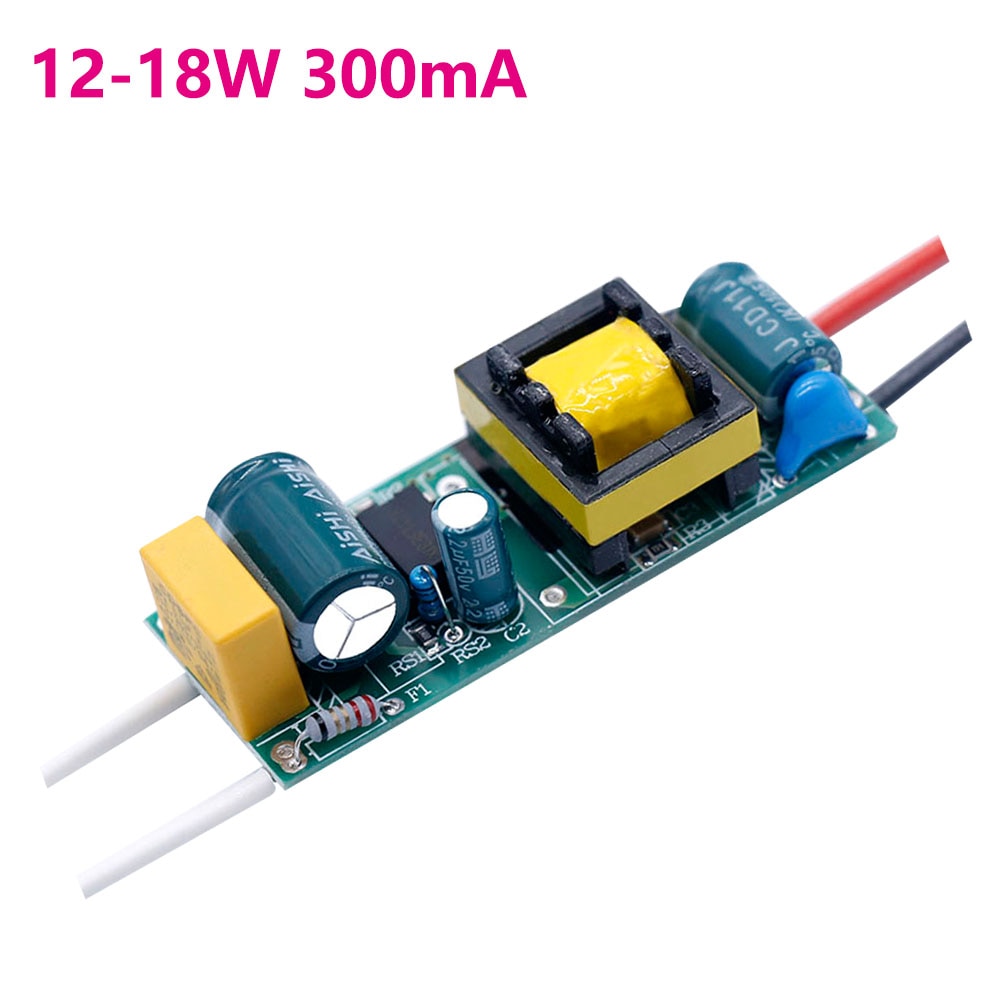

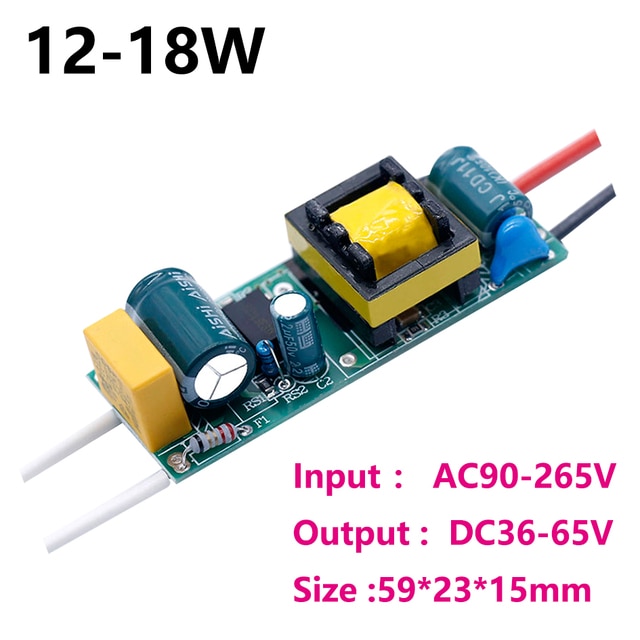

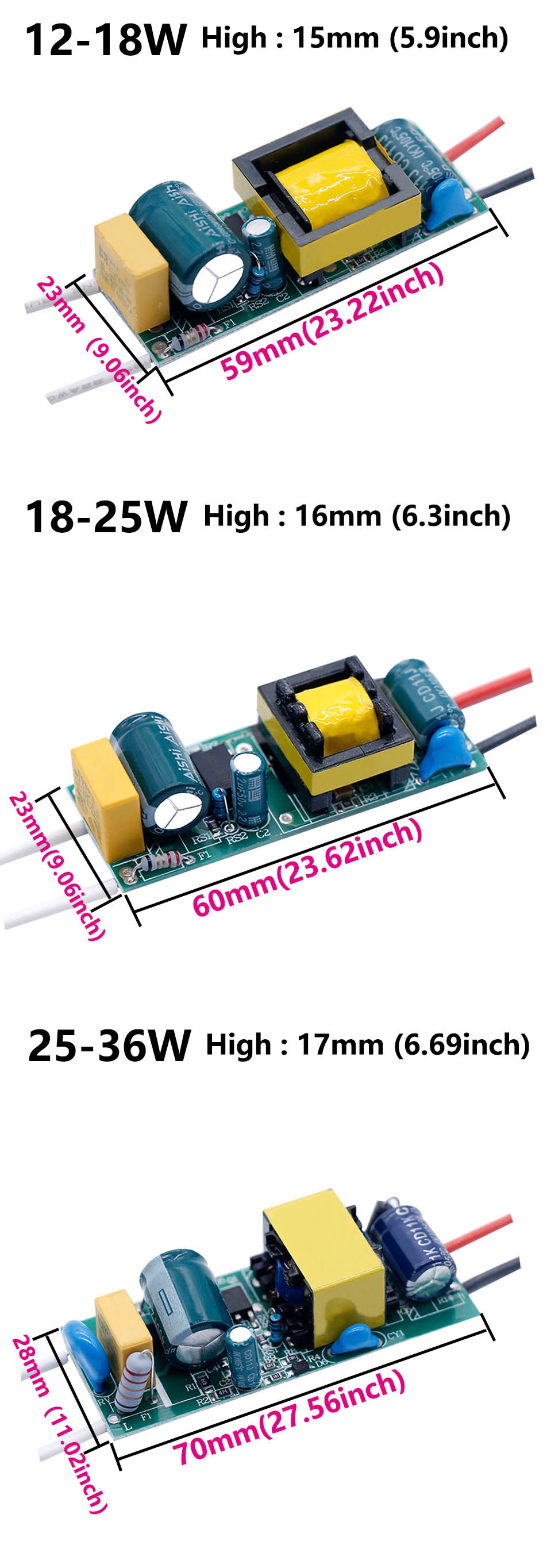

12-18W LED Driver(Use 3 years)
Output Voltage : 36-65V
18-25W LED Driver(Use 3 years)
Output Voltage : 54-87V

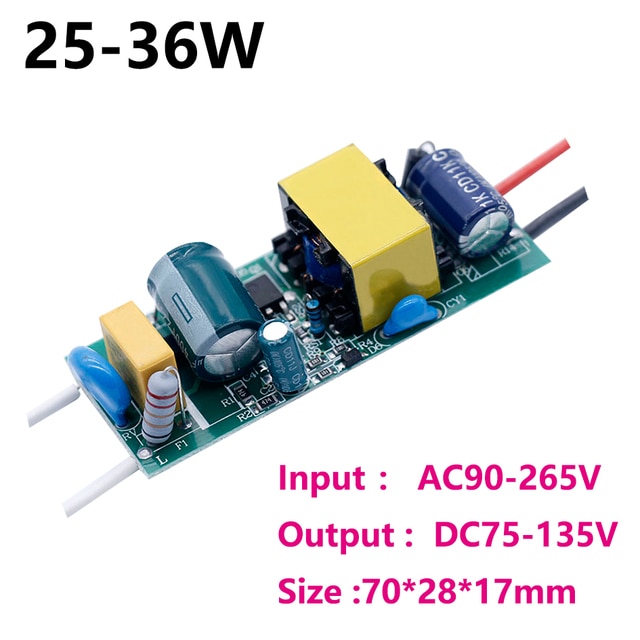

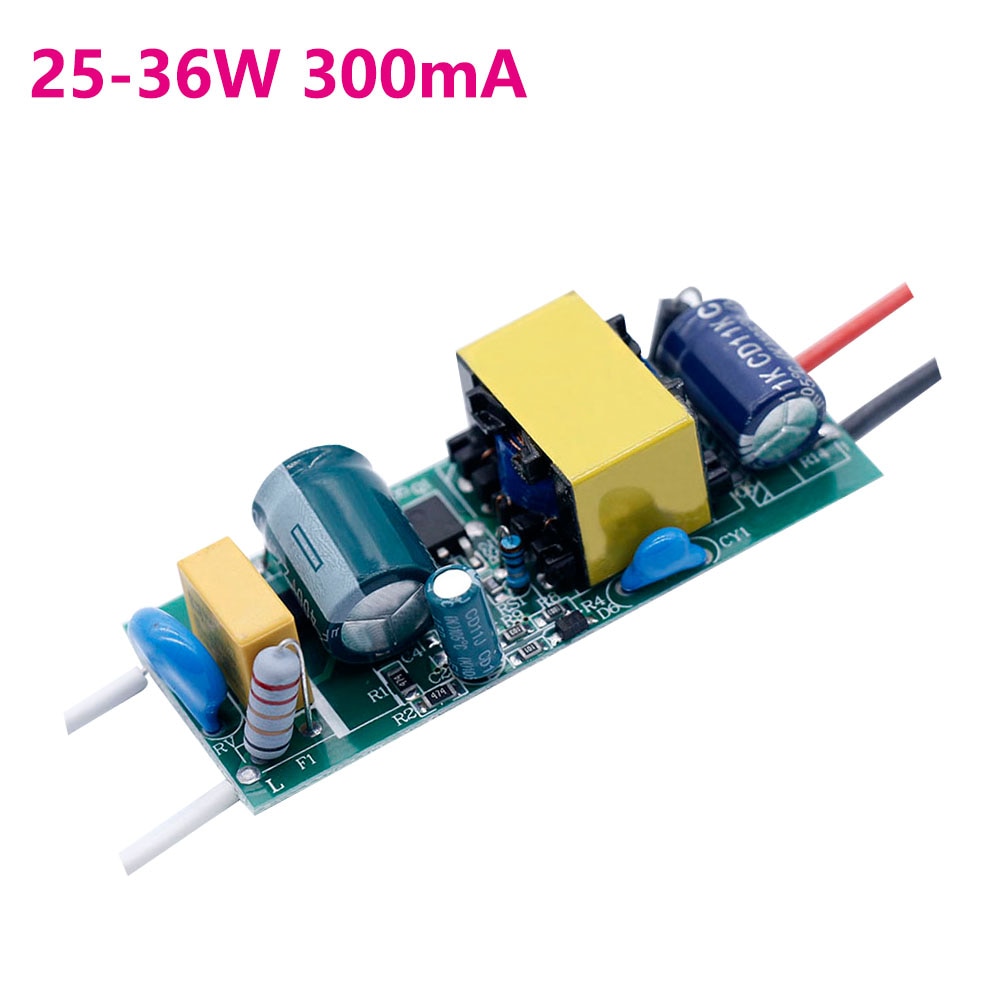

25-36W LED Driver(Use 3 years)
Output Voltage : 75-135V
Advantage :
1-Transformer
Bold copper wire
Power is sufficient and temperature is low.
2-Chip
Adopting the first-line brand IC-Aishi
High quality intelligent constant current
Overvoltage protection, overload protection,
overheat protection, short circuit protection
No flicker
3-Electrolytic Capacitor
High frequency low resistance capacitor
In theory, if the LED driver is used for 8 hours a day, it can be used for 3 years.
If the LED driver uses a temperature below 70 ° C, it can even be as long as 5 years.
4-Processing Technology
All use mechanized patches, efficient and stable.
Eliminate manual soldering and lead to poor contact of electronic components.
5-Application Place
LED track light / LED bulb
LED Spotlight / LED Bulb / LED Corn Light
LED Strip Light / LED Tube Light / LED Table Lamp
LED panel light / LED chandelier / living room lamp




  • Plug Type: None
  • Features: Isdated driver
  • Weight: 10g
  • Model Number: BS015
  • Output Signal: DC
  • Input Signal: AC
  • Output Voltage: 3-12V/12-18V/24-46V/36-65V
  • Input Voltage: 90V-265V
  • Certification: CQC,CCC,ce,FCC,EMC
  • Warranty: 3 Years
  • Material: Plastic Alloy
  • Brand Name: warm and happy
  • Origin: Mainland China
  • Item Type: Lighting Transformers
  • Output Current: 250mA/300mA/180mA
  • Power: 1-3W/3-5W/4-7W/8-12W/12-18W/18-25W/25W-36W
  • Input Voltage: AC90V-265V
  • 1-3W Output Voltage: DC3-12V
  • 3-5W Output Voltage: DC9-18V
  • 4-7W Output Voltage: DC12-26V
  • 8-12W Output Voltage: DC24-46V
  • 12-18W Output Voltage: DC36-65V
  • 18-25W Output Voltage: DC54-87V
  • 25-36W Output Voltage: DC75-135V
