NEW 4000W ZVS Induction Heater Induction Heating Machine Metal Smelting Furnace High Frequency 0-1000℃ temperature control
0.0 ( votes)
Price:
US $2124.14 - 2199.70
/ piece
Discount Price:
US $
1684.84 -
1742.26
/ piece
-21%

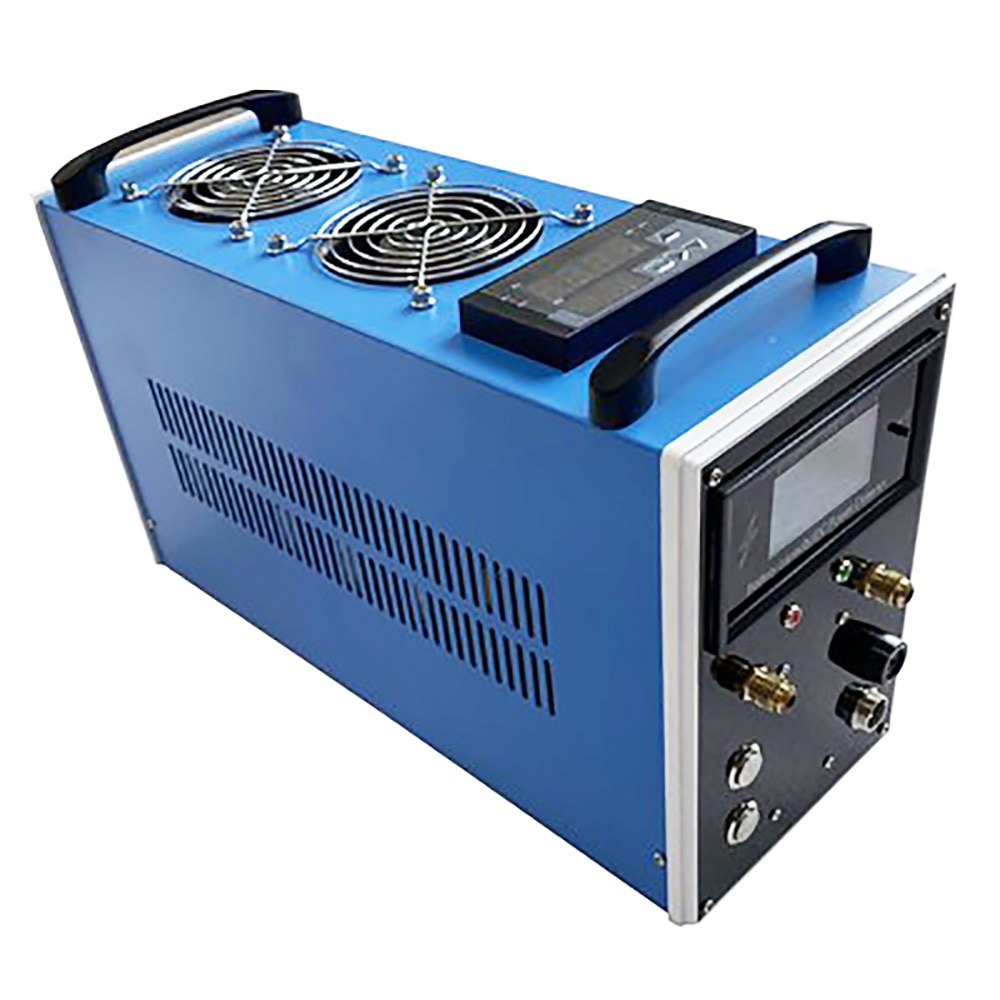

4000W ZVS Induction Heater Induction Heating Machine Metal Smelting Furnace High Frequency 0-1000℃ temperature control
This product is a small power induction heating machine with 220V power supply. It can
be used for heating and quenching of small iron metal materials. It can be used with 70mL or
150mlgraphite crucible to reach a maximum temperature of 1600 degrees Celsius. It can
easily meltiron, gold, silver and aluminum. metal.
Feature：
1. It adopts integrated metal shell design, which is convenient to use and carry, and has good
heat dissipation;
2. Integrated power supply to avoid complicated wiring;
3. The heating ring is wrapped with high temperature insulation material to prevent short
circuit during heating, and the heating ring can be removed and replaced to customize a
specific heating ring;
4. Integrate the internal water cooling circulation system to prevent the heating coil from
overheating;
5. The top two high-power fans are used for heat dissipation;
6. Add a current overload protection switch to trip the protection circuit in case of overload;

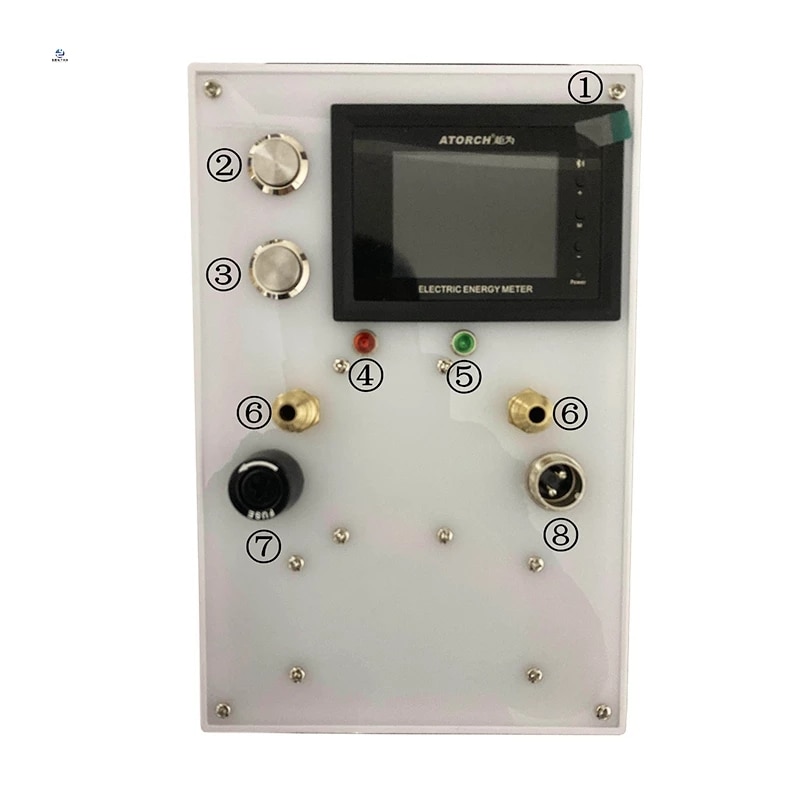

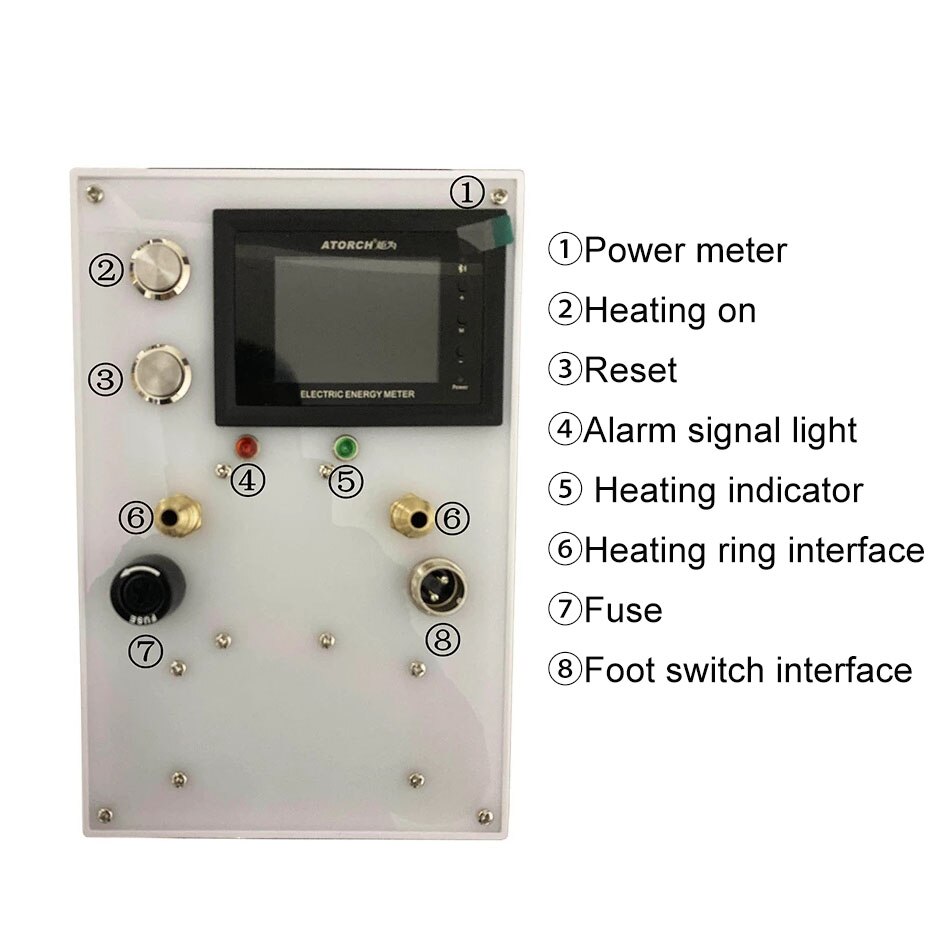

7. Large LCD screen display system's various operating parameters, including voltage,
current,power, motherboard temperature, etc., and can be easily switched in Chinese and
English.
8. Provide 0-600 degrees or 0-1000 degrees infrared temperature controllable version.

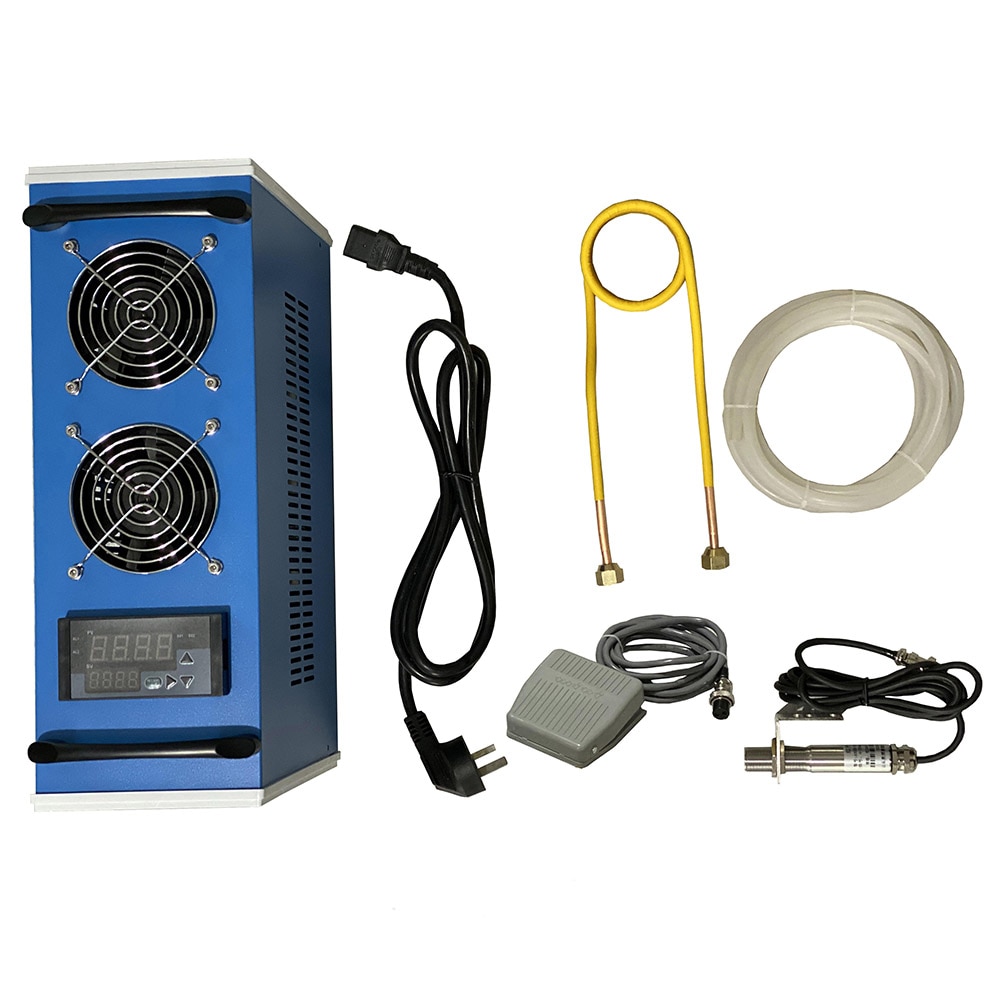

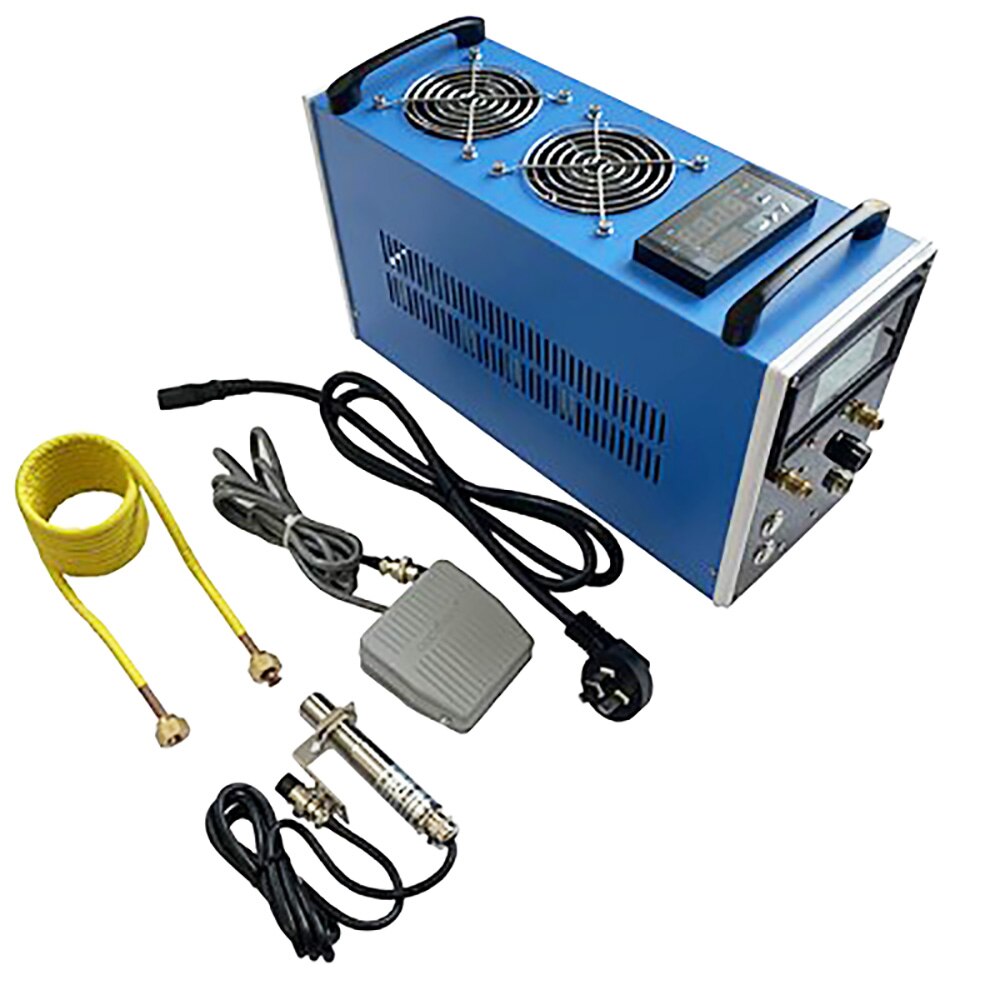

9. Metal button switch and foot control are added, which is convenient for different scenes.
10. Water cooling system water shortage protection
Parameter:
Dimensions: 380*140*210mm;
Heating ring size: 60*70*73mm or 70*80*73mm(inner* outer* high);
Input voltage: 220V 18V;
DC working voltage: 53.5 or 48V (internal power supply voltage is the apparent voltage);
Maximum DC operating current: 80A
Direct heating of metal iron up to 1000-1200 degrees Celsius
Use crucible maximum temperature 1600 degrees Celsius
Precautions:
1. The boot sequence should follow the first turn on the main power switch on the back, wait a
few seconds to see the fan and pump work normally, and then see the voltage and voltage
display as 48V or 53.5，then turn on the induction heating switch on the panel. Do not
operateincorrectly, otherwise it will be directly Burn out the motherboard and no protection.
Turn off the heating switch and then turn off the power switch when shutting down. If the
shutdown is not used for a period of time, the total power supply should be turned off after
the heating switch is turned off for one minute, so that the cooling system will cool the system
and increase the service life;
2. Work must be water-cooled and air-cooled at the same time. If any one of them does not
work,immediately disconnect the power supply and contact the manufacturer for a solution;
3. If the conditional water cooling can be directly discharged by using cold water and hot
water, the circulation method is not adopted, so that the heat dissipation effect is better;
4. Long-term use of antimony should be prepared, graphite high-temperature heating will
react with oxygen to form carbon dioxide and gradually consume it;
5. Always pay attention to the changes of various parameters of the display, especially the
voltage and current and the temperature of the motherboard. Whenever an abnormality is
found, the power must be disconnected immediately.
6. When using at high power, it is normal for the operating noise of the heat dissipation
system to be relatively large.

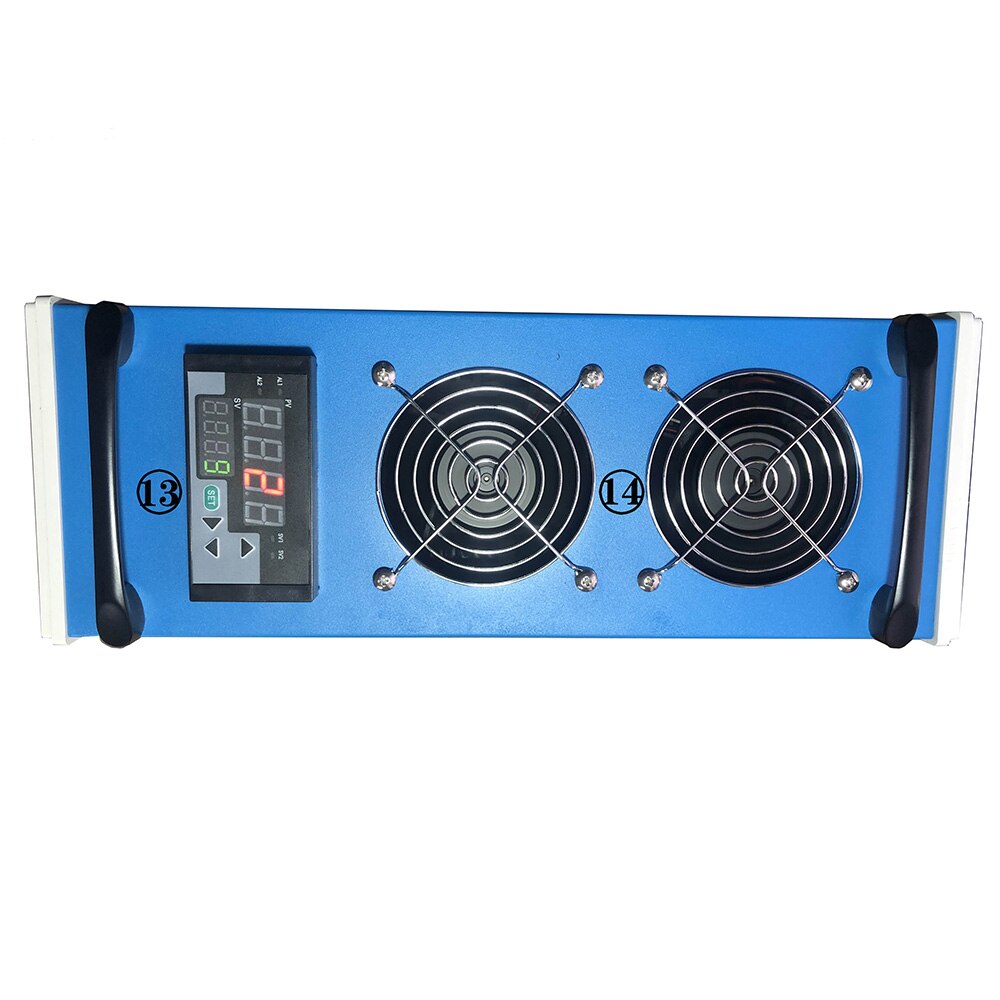

13 thermostat
14 cooling fan
One year warranty
We are not responsible for any custom duty or import tax, it is buyer’s responsibility.
- Power: 4000W
- Voltage: 220V
- Model Number: ZVS
- Origin: Mainland China
- Certification: NONE
