NVEM Mach3 control card 200KHz Ethernet port for CNC controller 3 4 5 6 axis nvem v2.1

0.0 ( votes)
Price: US $180.80 - 269.84 / piece
Discount Price:
US $ 130.85 - 193.29 / piece
-28%
Voltage
Quantity

Introduction:

NVEMv2.1 is a 3-axis-6-axis motion controller;
The control cycle of each position is 2 milliseconds, and the control accuracy is high. The highest single-axis output pulse is 200KHz, the pulse width is adjustable, and it supports common stepper motors and servo motors.
NVEMv2.1 supports mach3 control, perfectly supports standard electronic handwheels, and communicates with the computer using Ethernet, which can be directly connected to a network cable or transited by a router, and is not limited by the length of the network cable.
NVEMv1.1 CNC system adopts ARM design architecture, and ARM completes parts including communication, code analysis, underlying algorithm and control pulse generation. Reasonable design, reliable control and convenient operation.

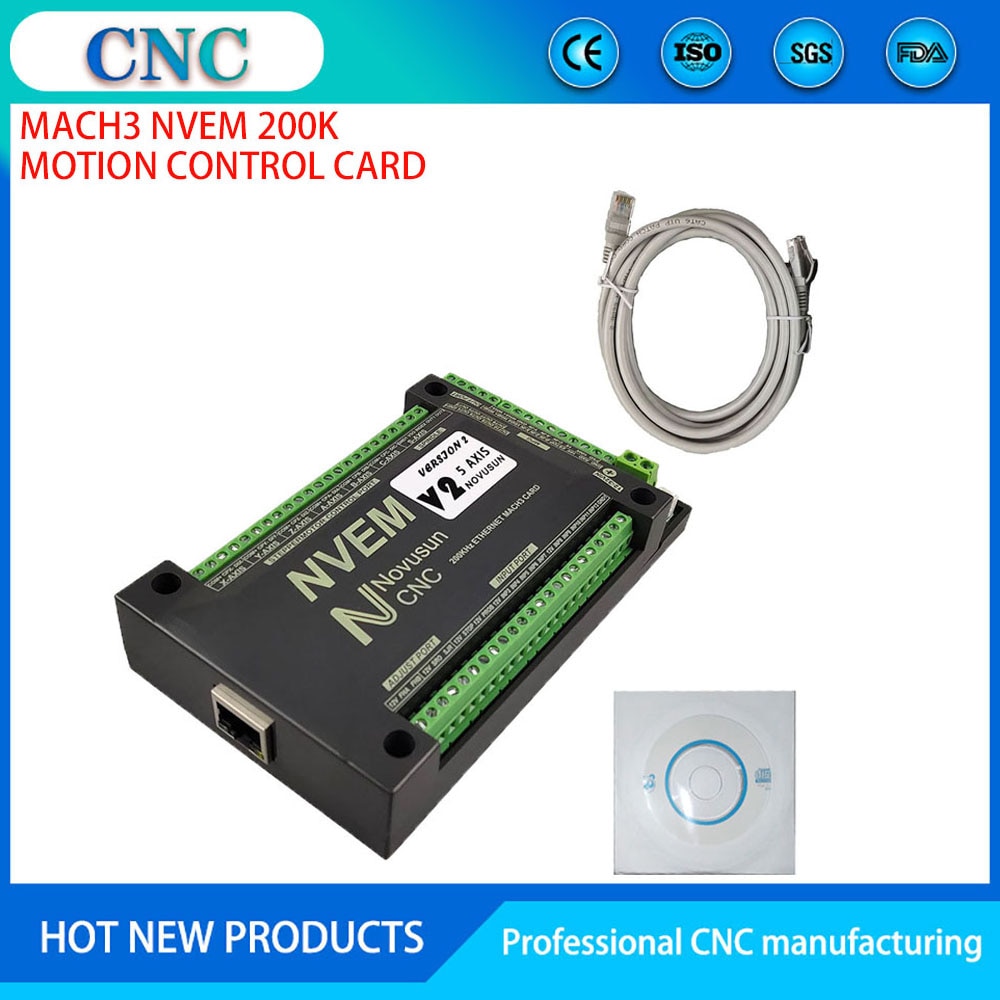

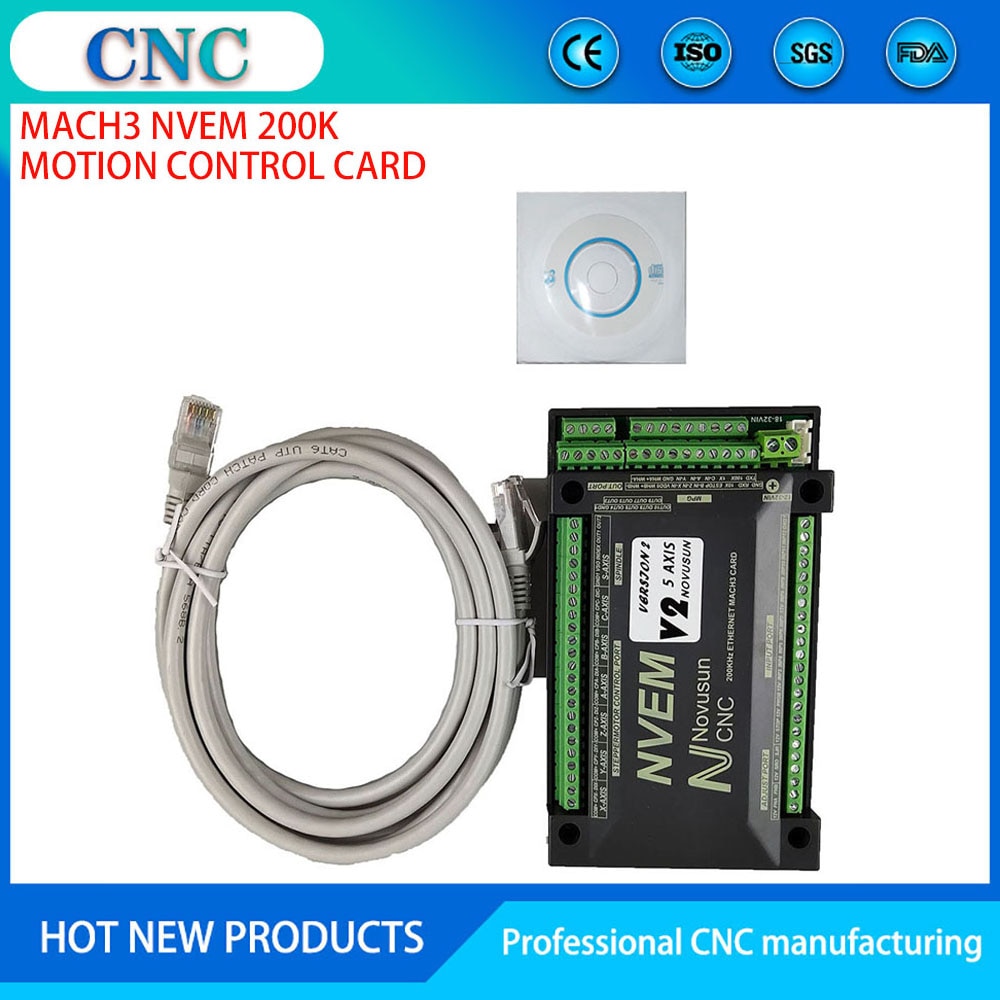

product content:

Control card*1
One meter cable *1
CD*1

Performance parameters:

Support Ethernet;

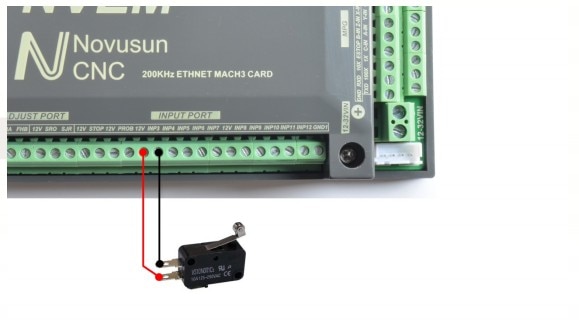

 12 ports photoelectric isolated input interface for ordinary digital data;
 10 ports photoelectric isolated output interface for ordinary digital data;

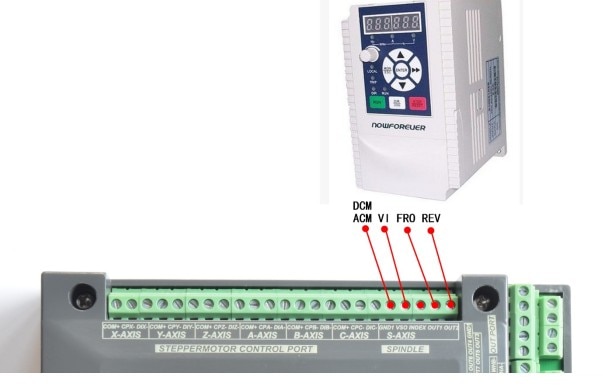

 1 port 0-10V spindle speed analog output interface(can change to PWM output);

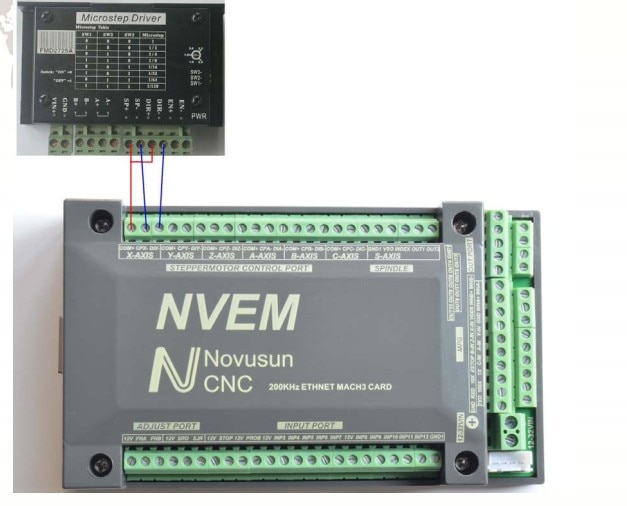

 can support 3-6 axis stepper systems,200KHz pulse output for every axis;
 ARM motion control chip;
 main device is 12V-32VDC power supply input,current should higher than 0.5A;

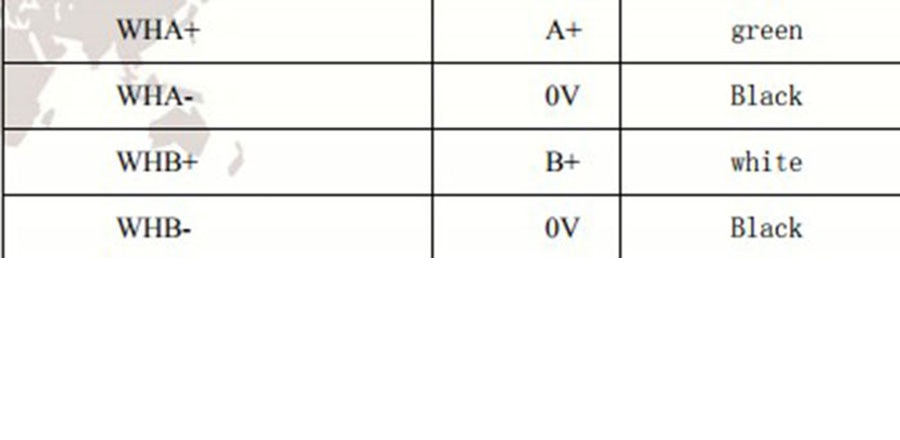

 Compatible with MPG input,support the digital display MPG from our company。

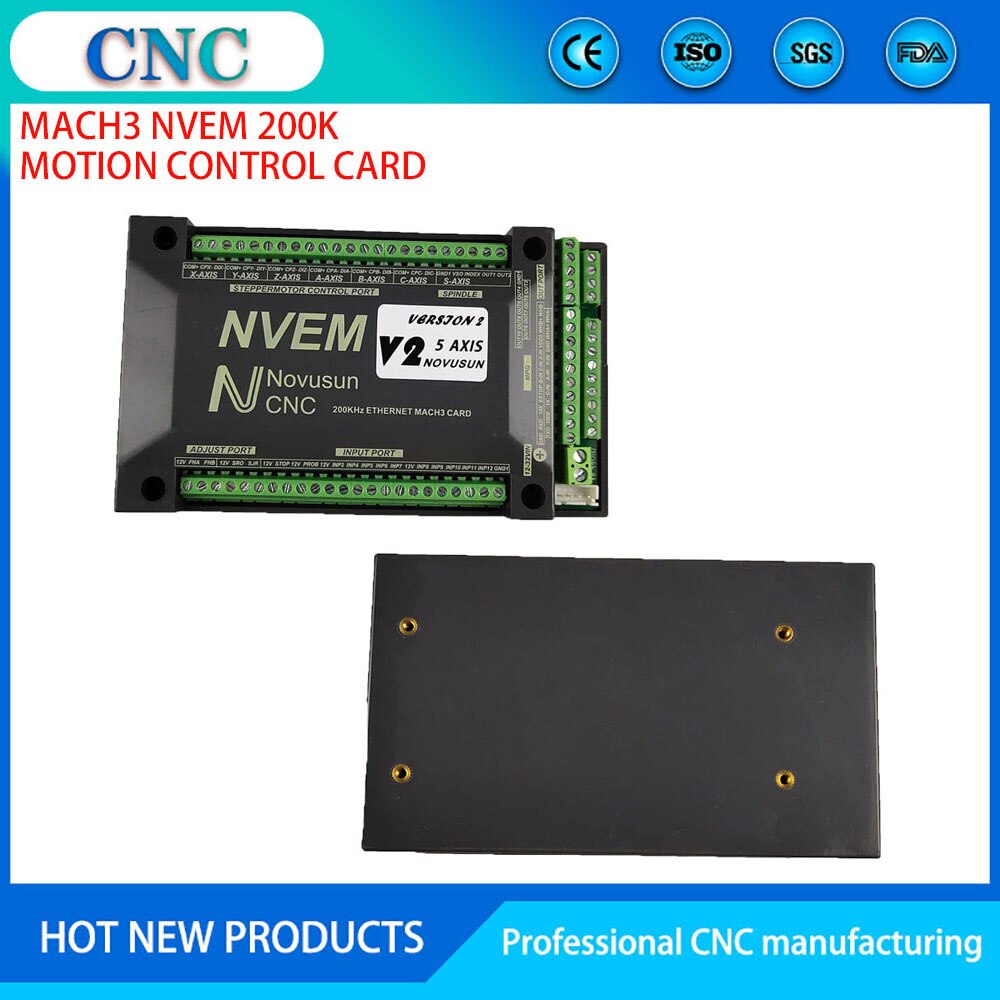

Appearance and size:

NVEMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes
at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into

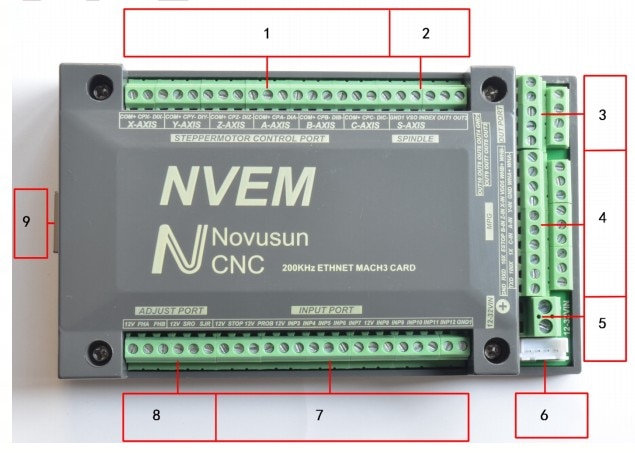

the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:
The products overall size is 163.1mm*80.8mm*27.8mm;
The bottom install size is 101.4mm*39.5mm。



  • Is Smart Device: No
  • Application: Milling Machine
  • Model Number: nvem
  • Origin: Mainland China
  • Certification: NONE
