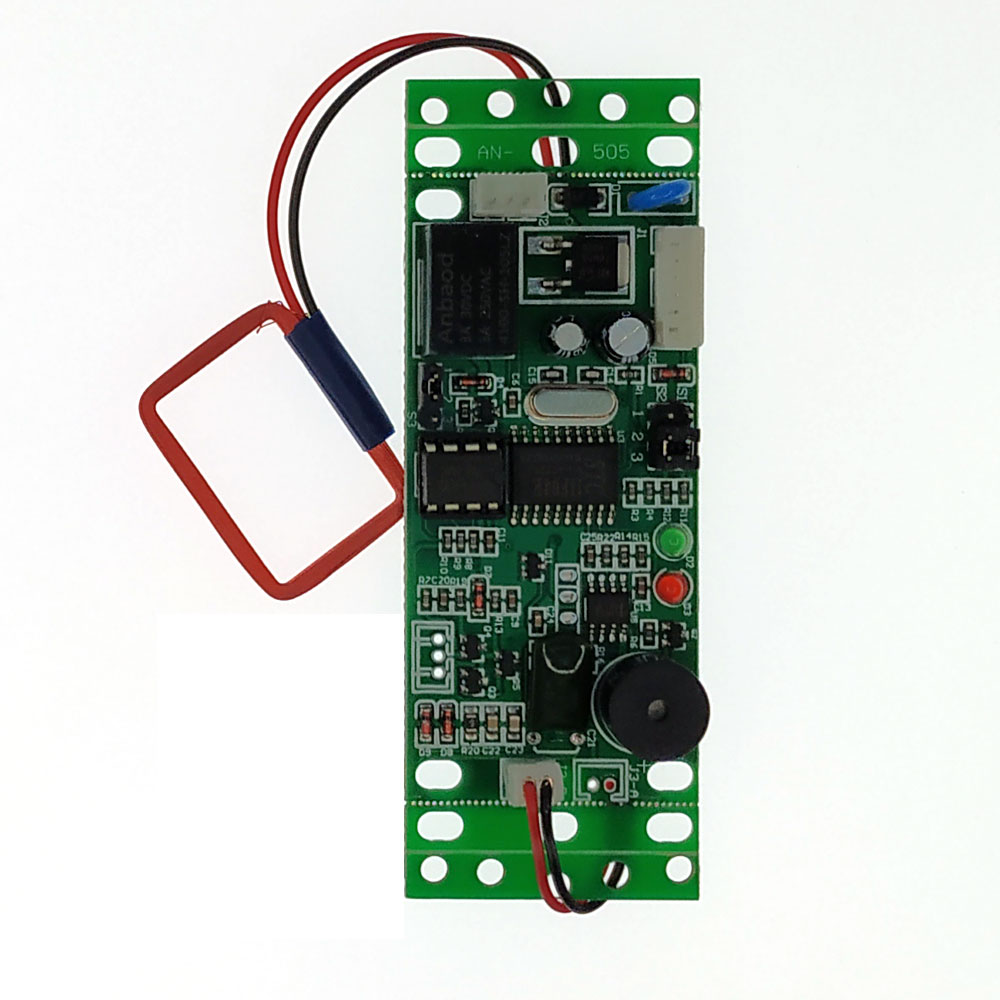

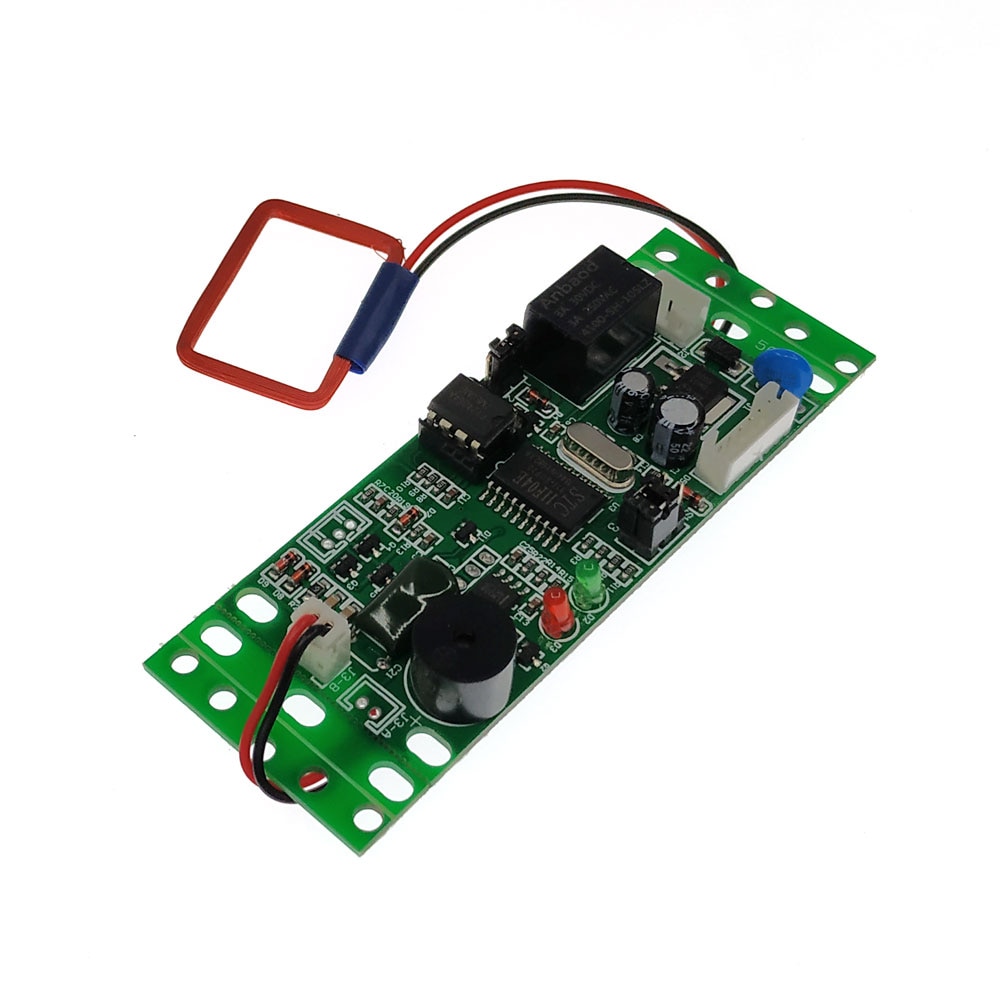

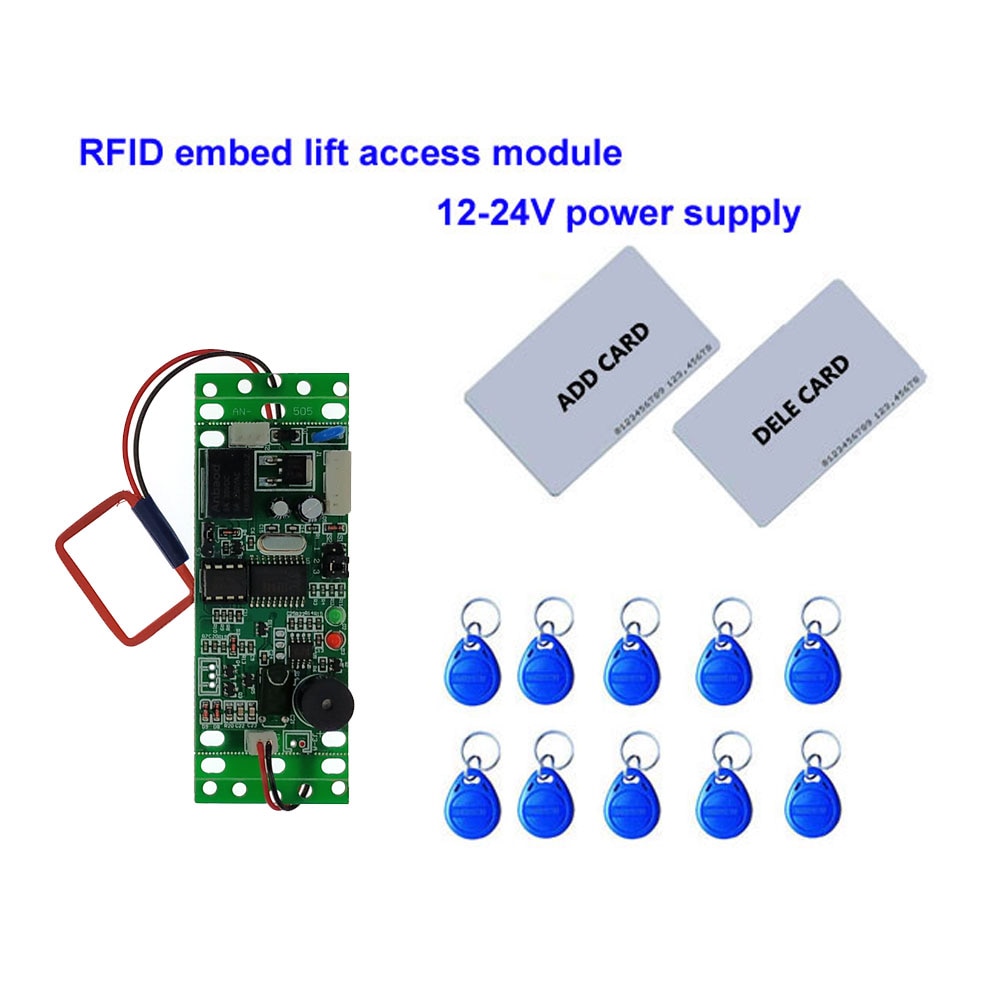

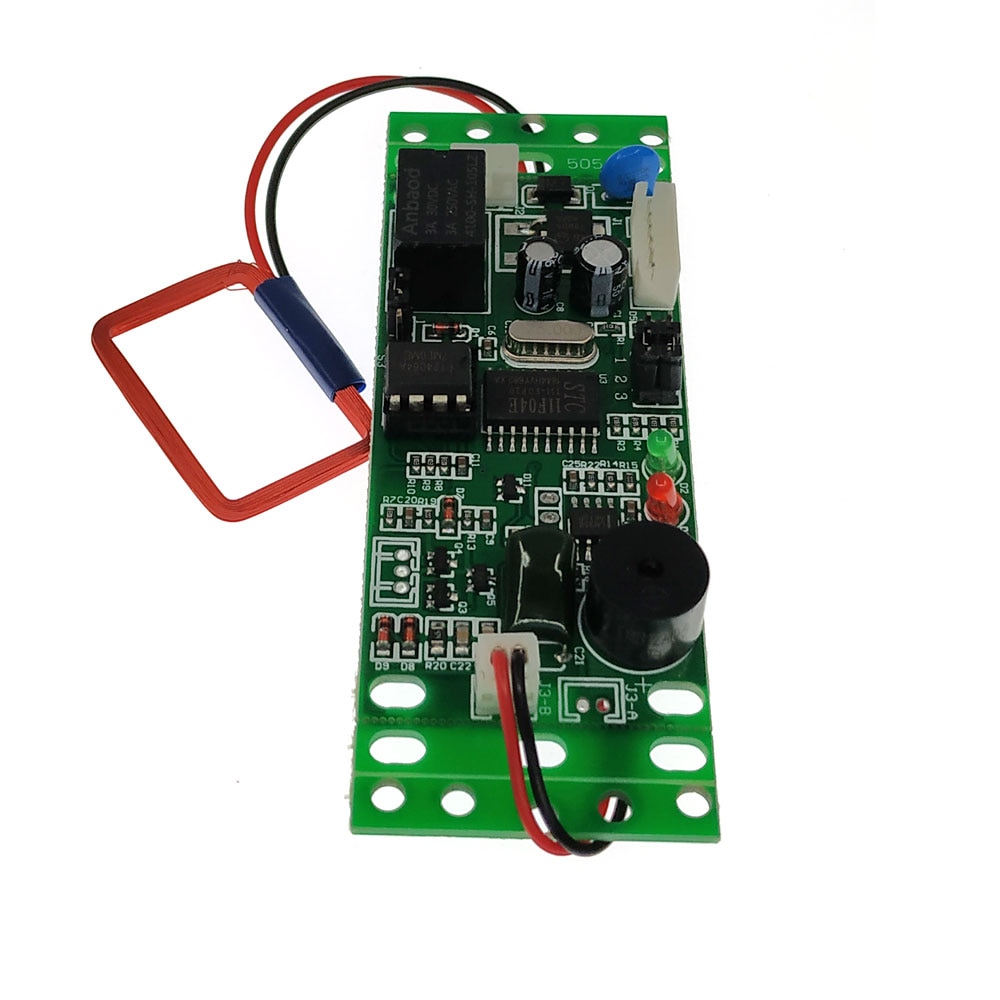

RFID Embed Control module,intercom access ,Elevator access control 9-24V DC power 2pcs mother card 10pcs em key fob

4.7 (69 votes) | 150 orders
Price:
US $ 9.95 - 23.15 / piece
Color
Quantity

Specifications:

.Working Frequency:125KHz

.Power Supply: DC 9~24V

.Current: 60mA~80mA

.Rated Power: ≤ 1W

.Read Range: 3~5cm

.Card Capacity: 2000

.Temperature: <60 degree

.Humidity: 10% ~ 95% R.H

.Size: 100*37*12mm

.Outdoor Button: 1

.Sensor Input: 1

.Electric Lock Output: 1

.With manage card to add or delete users card

.with remote switch add or delte user card (option)

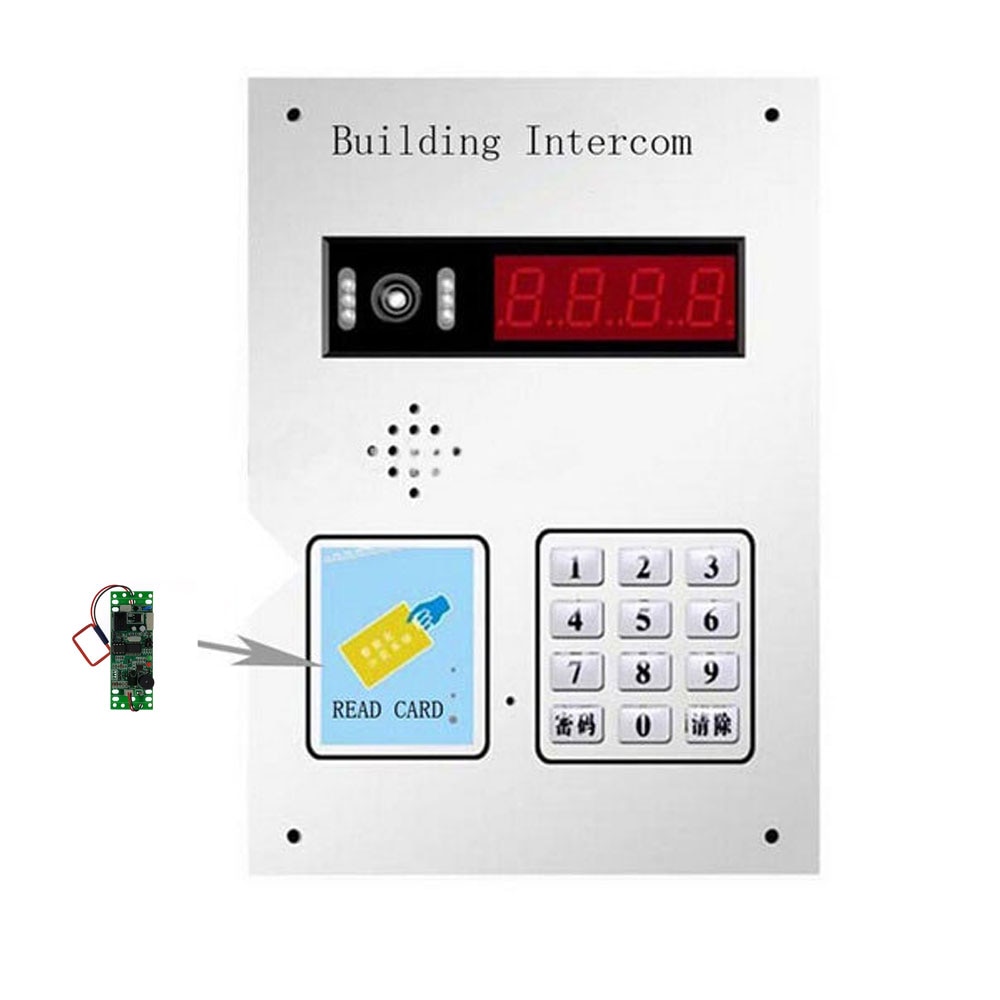

.Application Field:building intercom,Lift



****************************************************************************************************************************************************************

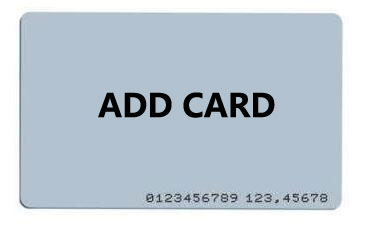

Add card:

1.swipe the add card, enter add mode ,

2.then swipe the user card one by one,

3.swipe the add card again, quit 'add mode' , add user card succefully.

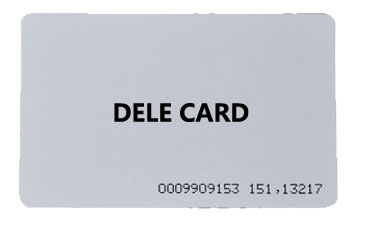

Delete card:

1.Dele the add card, enter delete mode ,

2.then swipe the user card one by one,

3.swipe the delete card again, quit 'delete mode' , add delete card succefully.




****************************************************************************************************************************************************************

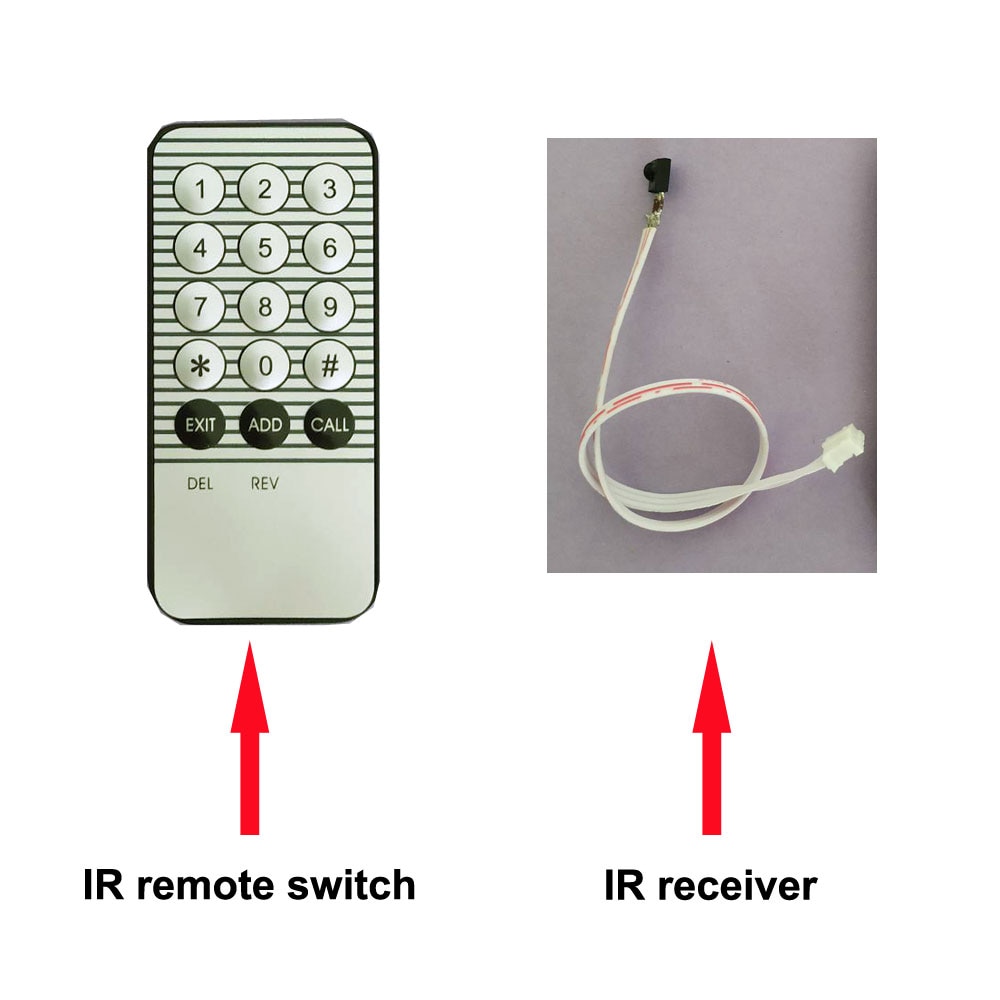

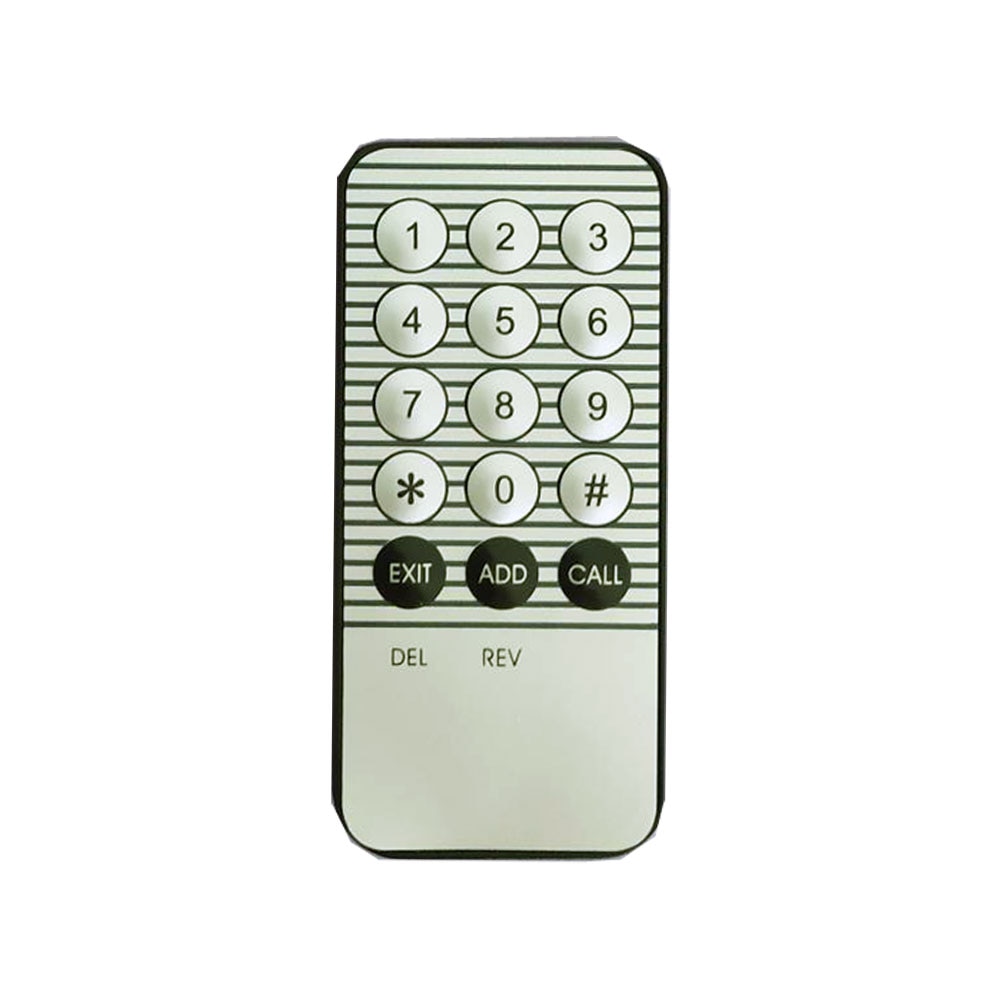

IR Remote control operation instructions (optional)

Enter program: press “1234” then press “CALL”.

 Continuously add cars: press “1”+“CALL”, green LED will blink, then read cards continuously.

 Continuously clear cards, press “3” +“CALL”, red LED will blink, then read cards continuously.

 Add Card with number: press “0”+XXXXXXXXXX (10bit card chip number)+“CALL”.( while press “0”,the green LED will light on, then press 10bit card chip number)

 Clear card with number: press “2”+XXXXXXXXXX (10bit card chip number)+“CALL”,(while press “2”,the red LED will light on, press 10 bit card chip number.)

 Clear all cards: press “4” +“CALL”, after several second, will hear “B” sound, clear finished.

 Door normal open start: press “5” +“CALL”

 Door normal close start: press “6” +“CALL”

 Open door once time: press “7” +“CALL”

 Change password: press “8” +XXXX (4bit password)+“CALL”.

 EXIT program: press “EIXT”, or do not any operating, it will be auto-exit after 10s.

****************************************************************************************************************************************************************

RFID 10pcs ID tags (optional)



****************************************************************************************************************************************************************

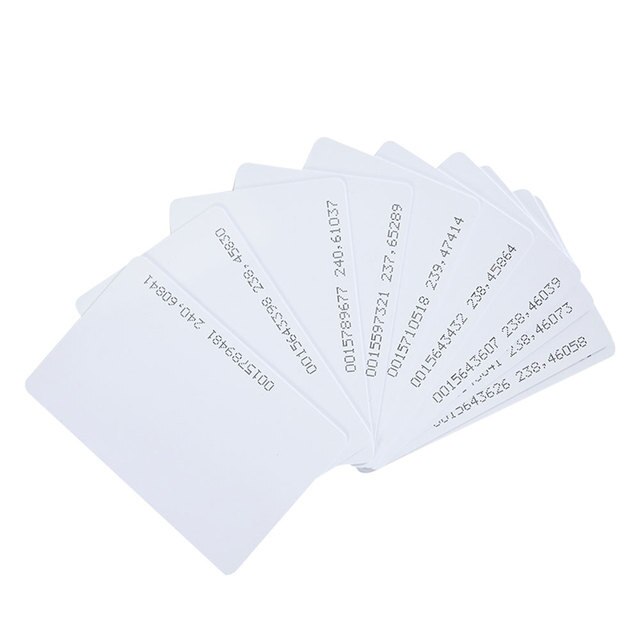

RFID  10pcs ID card (optional)


****************************************************************************************************************************************************************

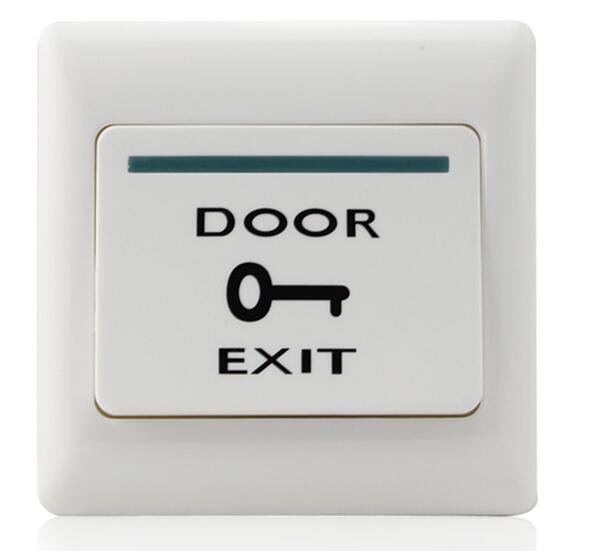

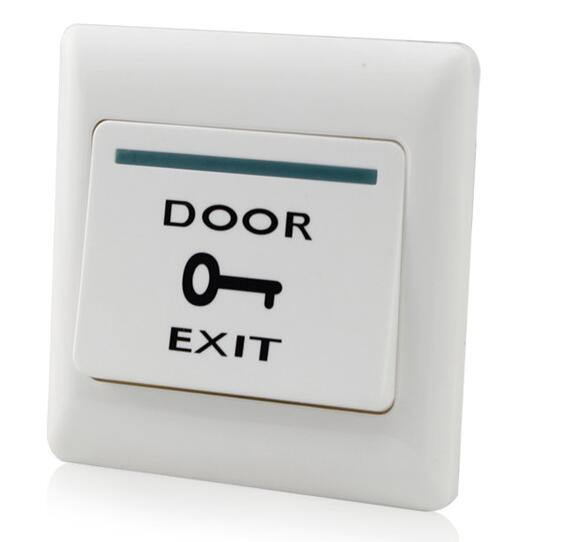

1pcs exit button (optional)


Specifications:

Current: 3A, 36V DC
Applied temperature: -10~+55 Degree14-131F)
Applied humidity: 0~95% (relative humidity)
Material: plastic  Item size: 86 * 86*20mm (L*D* H)
Item weight: 100g
Package size: 9 * 9 * 2cm
Package weight: 110g



****************************************************************************************************************************************************************

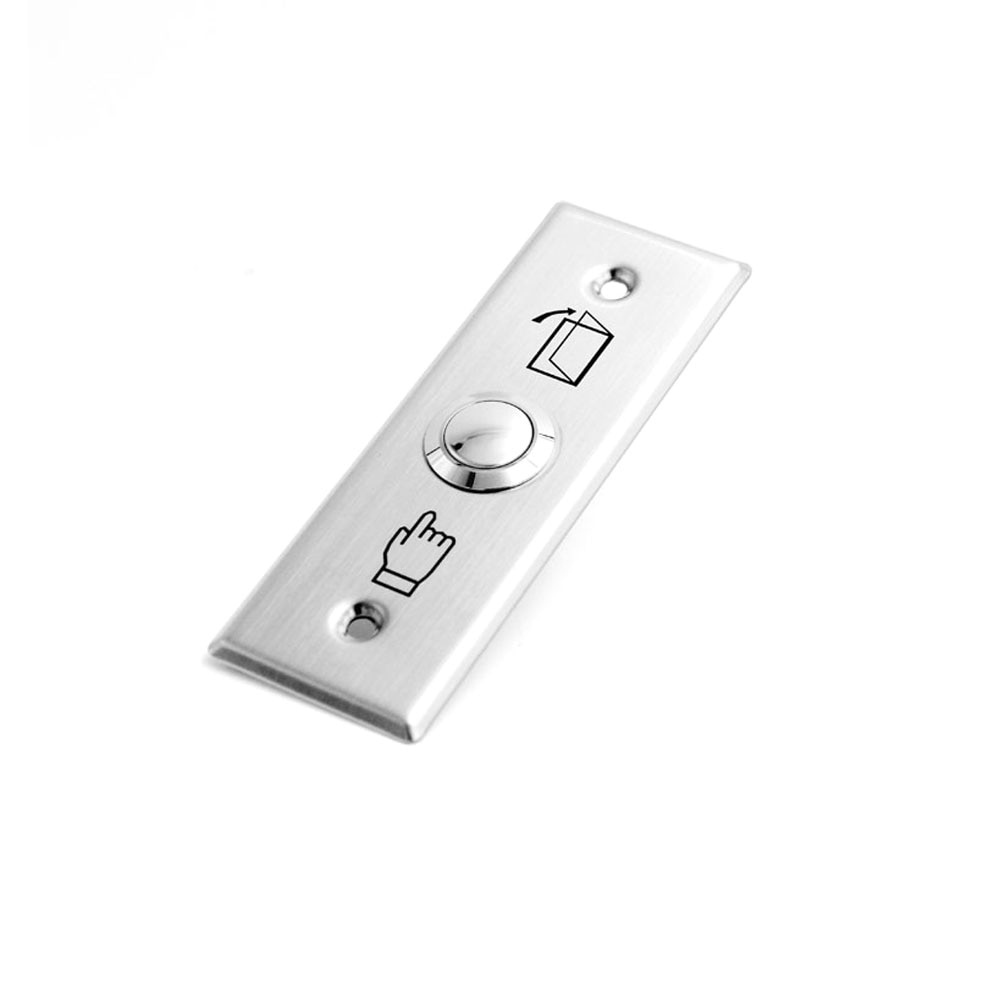

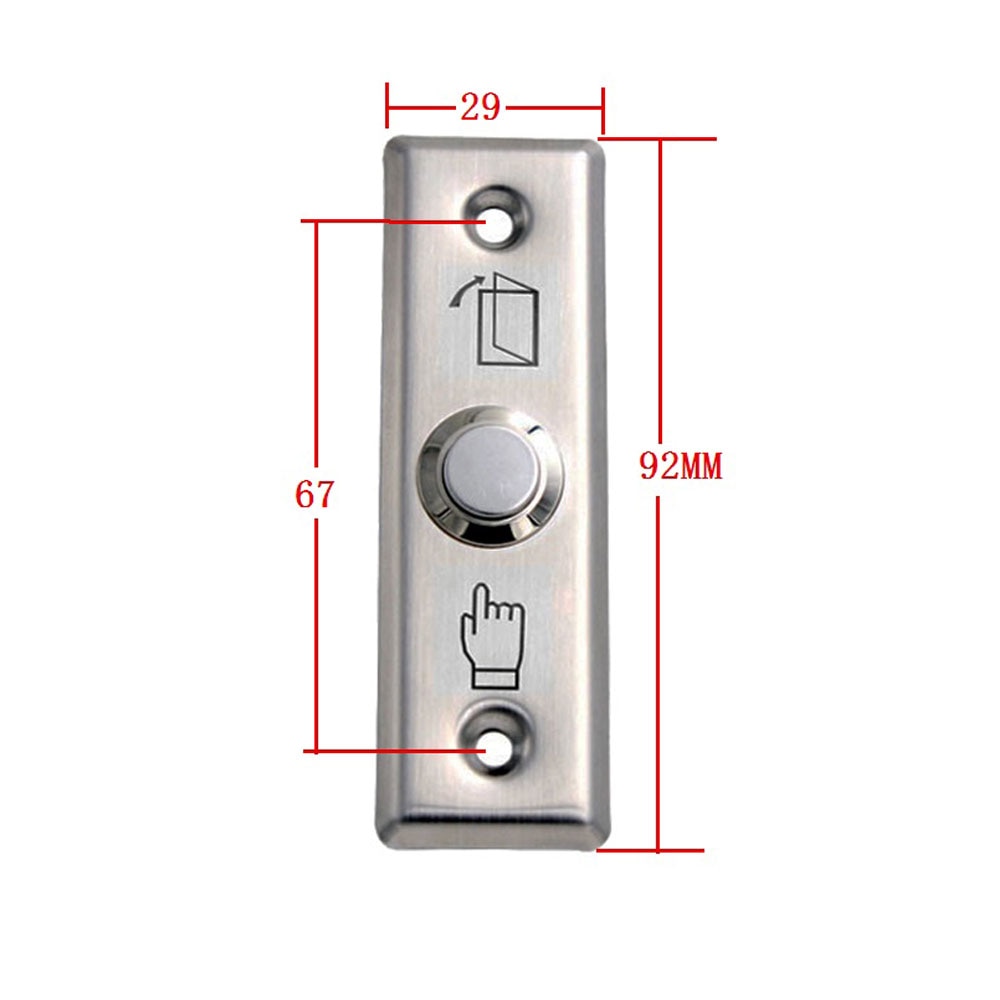

1pcs metal exit button (optional)


Specifications:

Current: 3A, 36V DC
Contact output: NC\COM
Applied temperature: -10~+55 Degree14-131F)
Applied humidity: 0~95% (relative humidity)
Material: Stainless steel
Item size: 9 * 2.5cm (L*D)
Item weight: 31g
Package size: 10 * 9 * 4cm
Package weight: 59g


****************************************************************************************************************************************************************

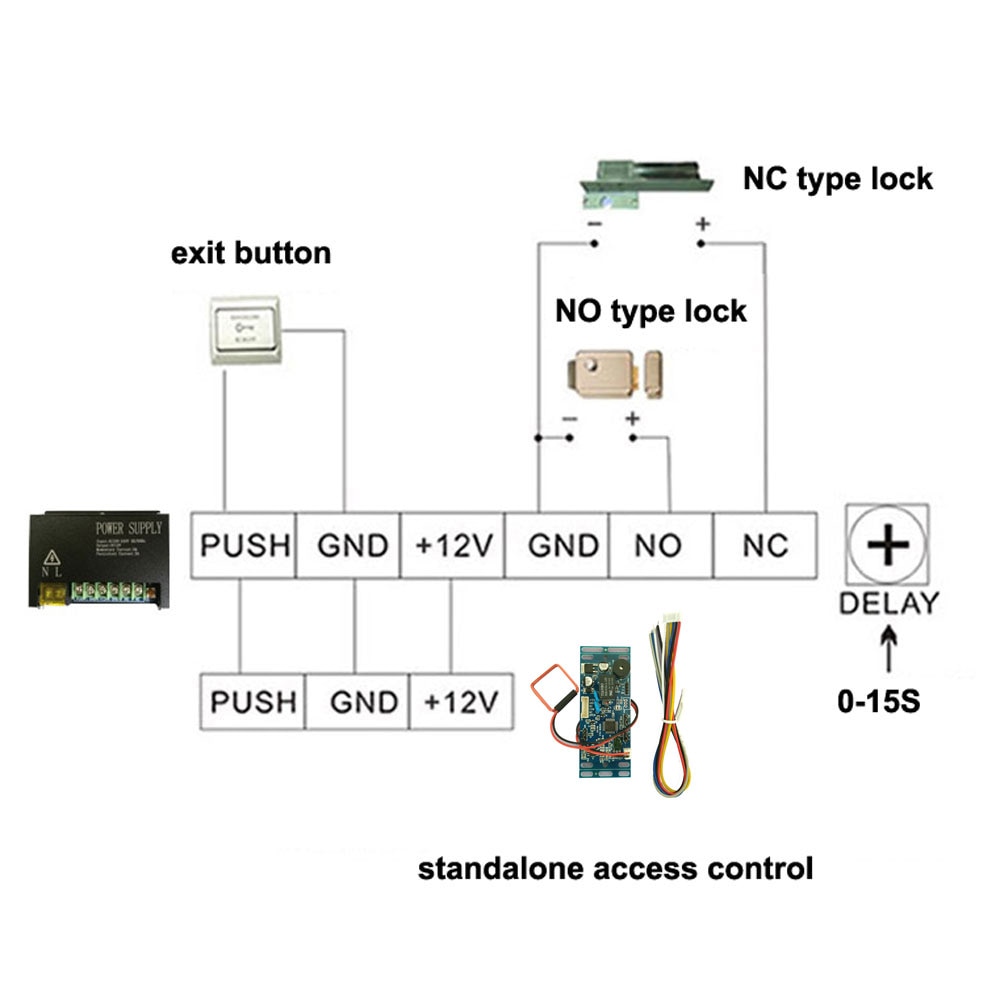

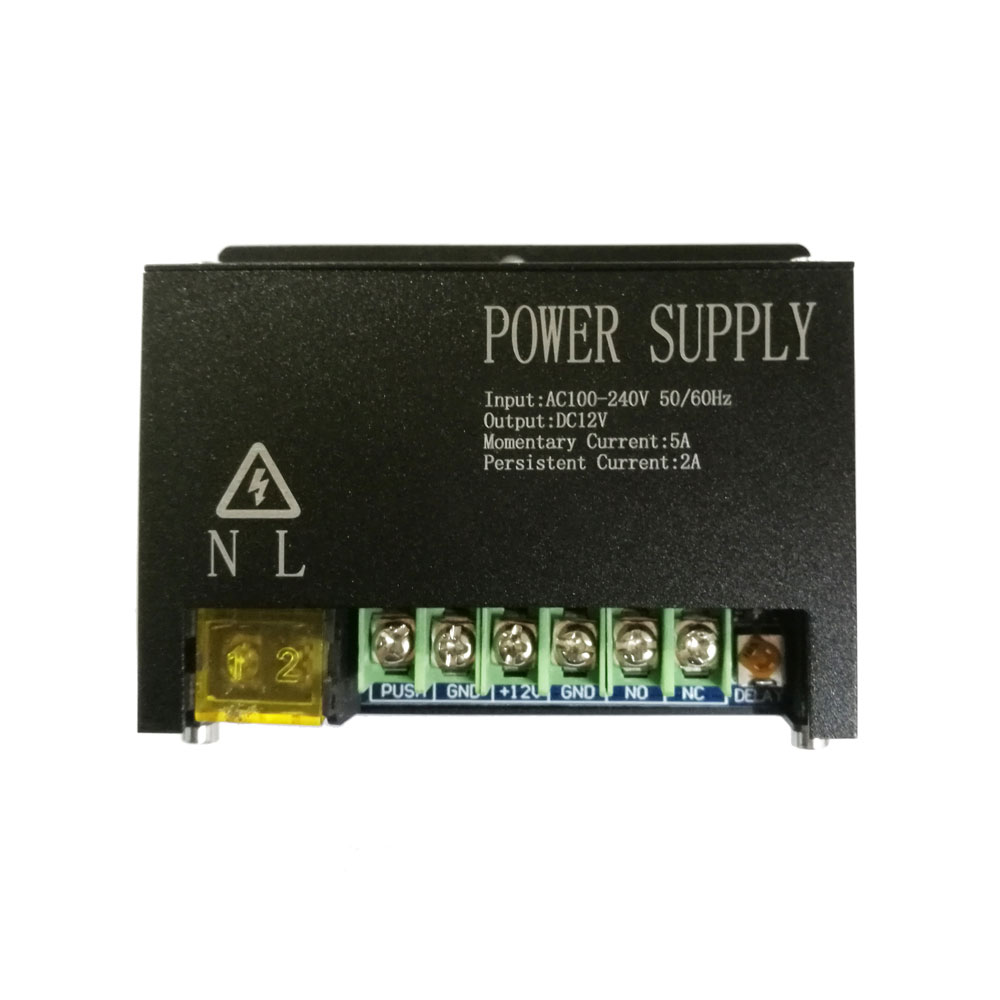

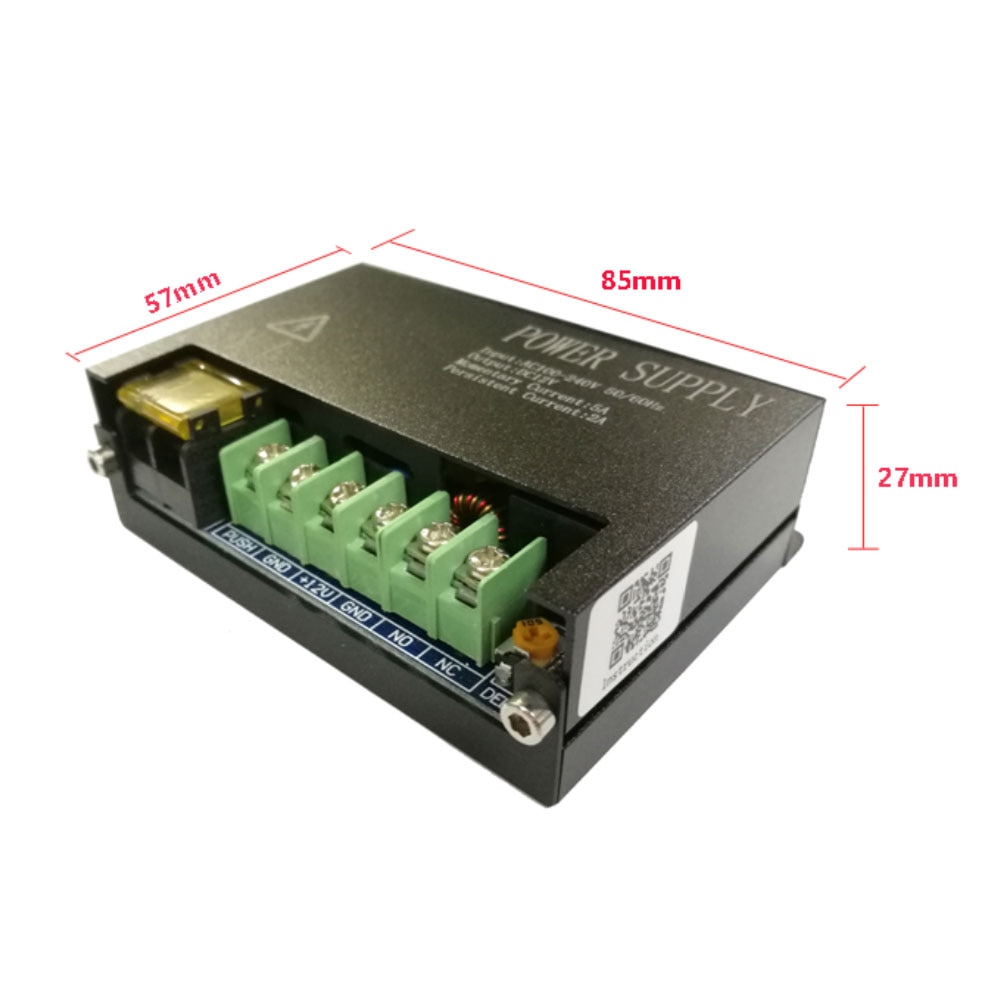

1pcs access power supply (optional)


If there is not access power supply ,you can add an accesss power supply to connect lock.

1. NC / No output, pure copper high-quality transformer;

2. Built in reverse current circuit to prevent electric lock inductance, built-in unlocking time adjustment knob;

3. Over voltage and over current protection, wrong connection protection, international advanced power chip solution, anti ripple interference

It is especially suitable for the access control system with high voltage stability requirements. It is small in size and convenient for installation and carrying. Compared with the linear transformer power supply, it has small heating, high efficiency and small power consumption, and supports 90 ~ 260V voltage

****************************************************************************************************************************************************************

this access control kit congiture Two master card, one add user card,another dele user card,you can use these super cards to add new users or dele old users. so this access control system is very easy to manage!

1pcs Package Included:

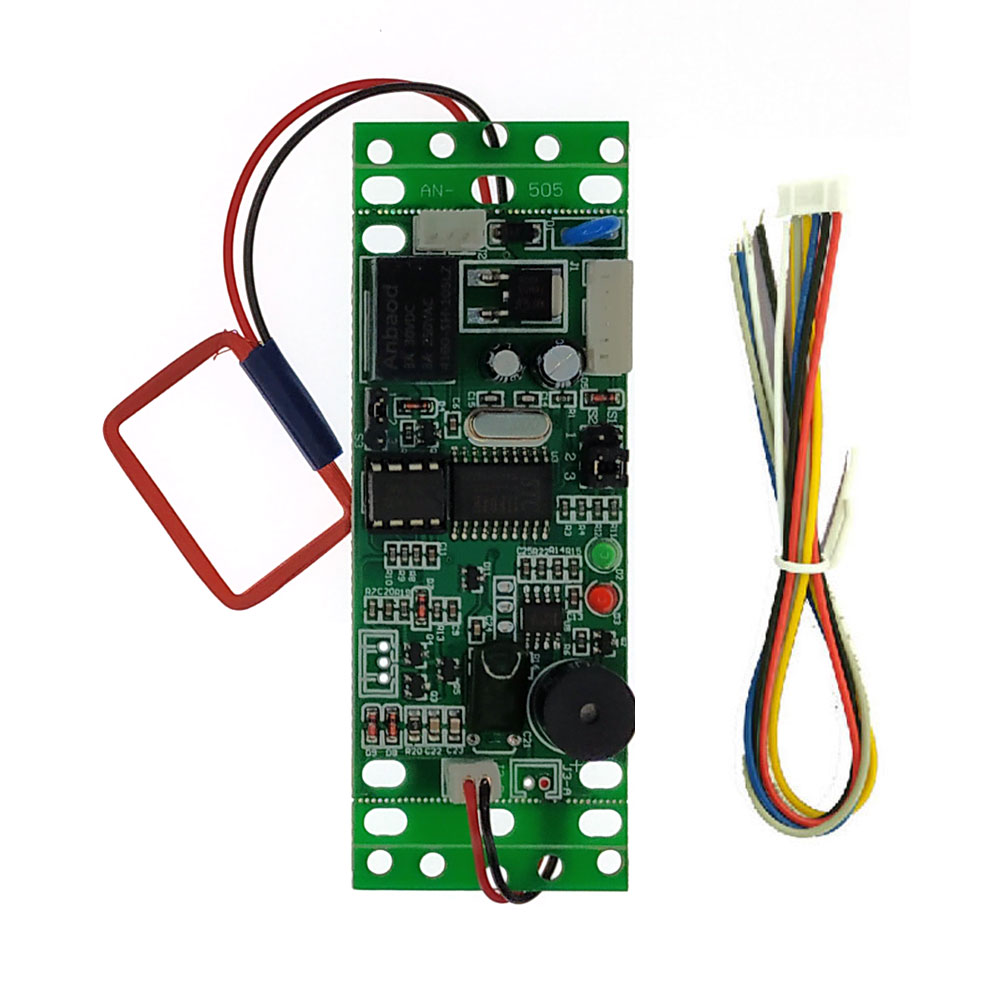

.1x Access Controller

.2x Master Cards

.1x Cable

.1x Handbook

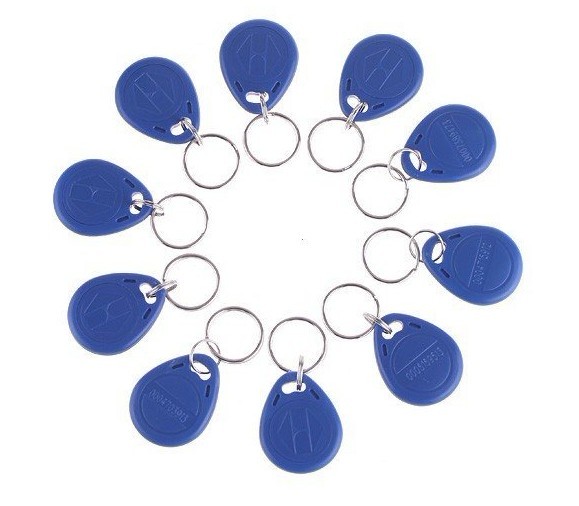

.10x em key fob

.1 x IR remote control (option)

.10x em card (option)

.1 x exit button (option)
.1 x metal exit button (option)
.1 x access power supply (option)


****************************************************************************************************************************************************************



  • Model Number: A08D
  • Brand Name: FENGLIANSECURITY
  • Certification: NONE
  • Smart home platform: Other
  • Origin: Mainland China
