Watch buckle accessories silica gel watchband ring color random selection of parts
8.99 $
Due to the large price fluctuation of electronic components and components, the display price cannot be used as the final transaction price. Please refer to the customer service for inquiry. Because our company has a large number of sales models, the products that cannot be put on the shelf in time, if you cannot find the materials you need, please contact the online customer service or thank you
Configuration4:1Number of channels (#)2Power supply voltage - single (V)1.8, 2.5, 3.3, 5ProtocolsAnalog, LVDSRon (Typ) (Ohms)59CON (Typ) (pF)11ON-state leakage current (Max) (µA)0.8Bandwidth (MHz)500Operating temperature range (C)-40 to 125Features1.8-V compatible control inputs, Break-before-make, Fail-safe logic, Injection current controlInput/output continuous current (Max) (mA)100RatingAutomotiveSupply current (Typ) (uA)0.003

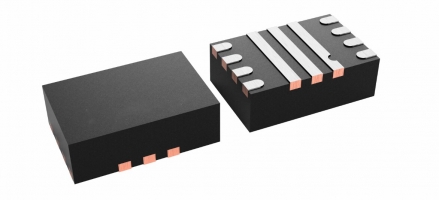

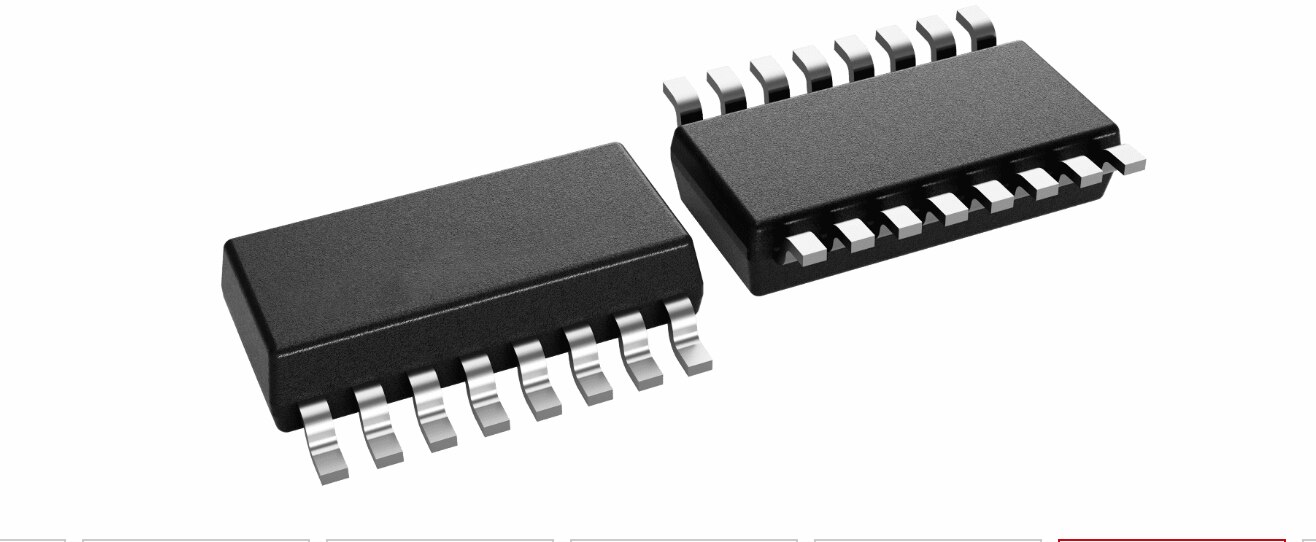

The TMUX1308-Q1 and TMUX1309-Q1 are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX1308-Q1 is an 8:1, 1-channel (single-ended) mux, while the TMUX1309-Q1 is a 4:1, 2-channel (differential) mux. The devices support bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from GND to VDD.
The TMUX13xx-Q1 devices have an internal injection current control feature which eliminates the need for external diode and resistor networks typically used to protect the switch and keep the input signals within the supply voltage. The internal injection current control circuitry allows signals on disabled signal paths to exceed the supply voltage without affecting the signal of the enabled signal path. Additionally, the TMUX13xx-Q1 devices do not have an internal diode path to the supply pin, which eliminates the risk of damaging components connected to the supply pin or providing unintended power to the supply rail.
All logic inputs have 1.8 V logic compatible thresholds, ensuring both TTL and CMOS logic compatibility when operating with a valid supply voltage. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.
- Origin: Mainland China
- Type: Hand Dryer Parts
