Yunombo YNB-220/220B/220U coating thickness gauge LED/UV Light Car Paint thickness gauge Metal Zinc Fe /NFe /Fe+Zn
4.9 (12 votes) | 34 orders
Price:
US $99.88 - 121.56
/ piece
Discount Price:
US $
63.16 -
76.88
/ piece
-37%
- Ships From
- Color
-
-
Yunombo YNB-220/220B/220U coating thickness gauge LED/UV Light Car Paint thickness gauge Metal Zinc Fe /NFe /Fe+Zn
Note:
1.The batteries(2pcs 1.5V AAA batteries) will not come with the package.
2.Please check and choose the right package when you place order.
3.Before you use the device to measure on the car,please make sure that the car engine has been turned off and the car body has returned to normal temperature
4.After a long period of use in a sub-zero environment, it may get stuck,it is not quality problem.You only need to restart the device and calibrate it again under same temperature.
5.There is a protective film on the screen,you can remove it before using.
6.If you order it with rubber case,the rubber case will be a little wrinkled in the package, it is normal situation,not quality problem.It will be back to normal in some days after you take out from the package.If the temperature is low, the rubber case will get harder than when put it in the temperature high, you can use something to press the rubber case to make it recover faster.
This device can make a quick and effective measurement of the thickness of the non- metallic coating on the nonmagnetic metal substrate and the thickness of the nonmagnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and nonmagnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

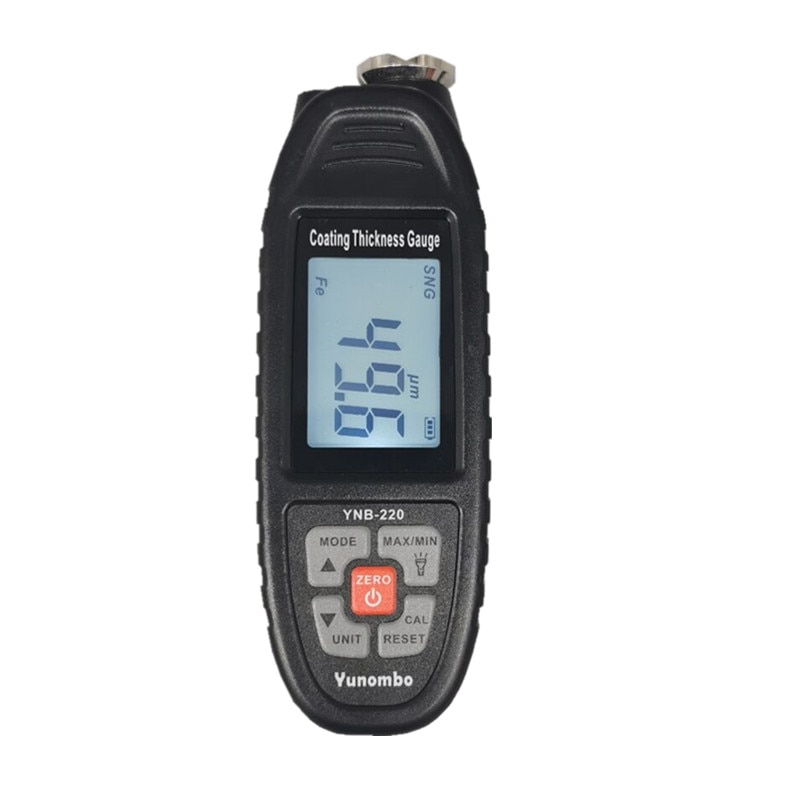

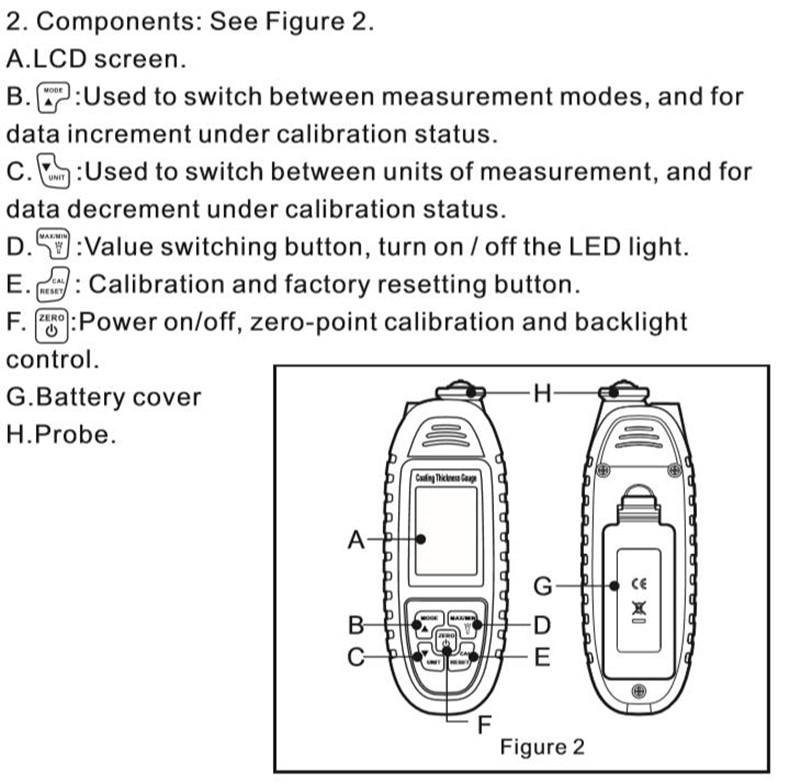

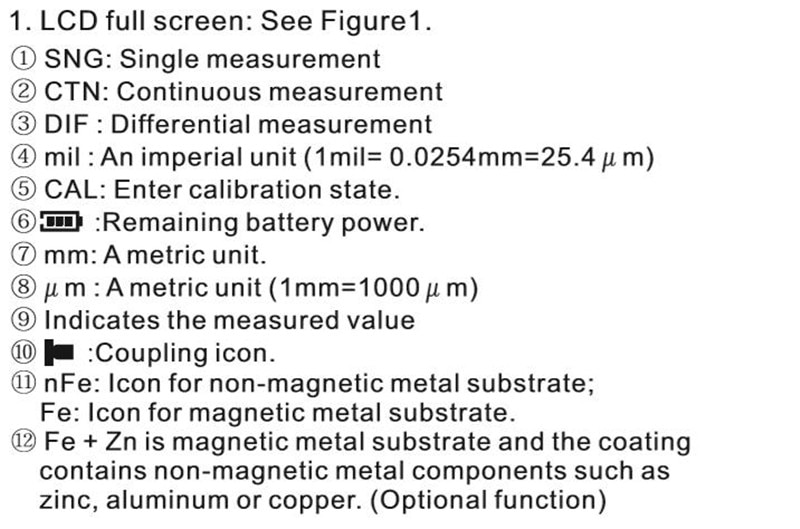

LCD display and buttons functions
Product Functions

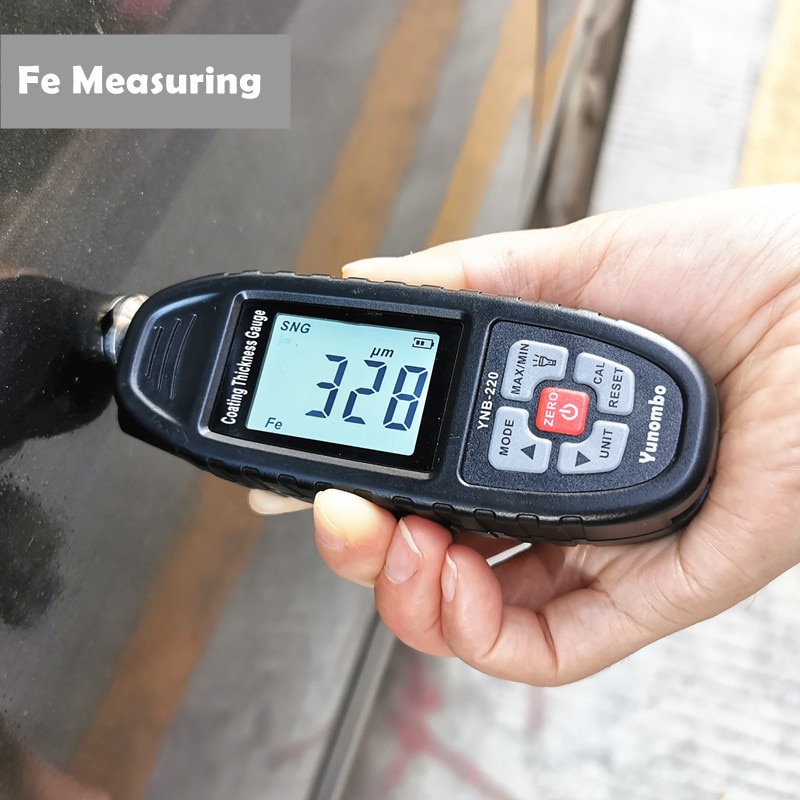

*1.Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
*2.Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
*3.Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
*4.The instrument can automatically recognize whether the magnetic metal substrate is covered with non-magnetic metal coating (usually zinc), and this function is optional.
*5.Single measurement, continuous measurement and differential measurement available.
*6. With maximum, minimum and average value viewing function.
*7.Zero-point calibration, 2-point calibration and basic calibration available.
*8.Metric and imperial units of measurement optional.
*9.LCD backlight.

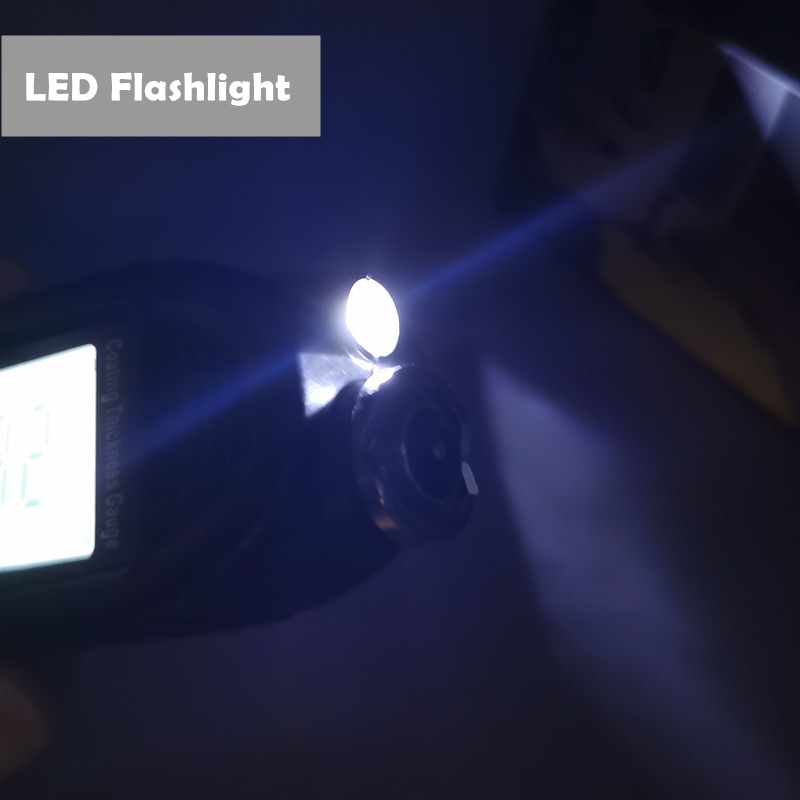

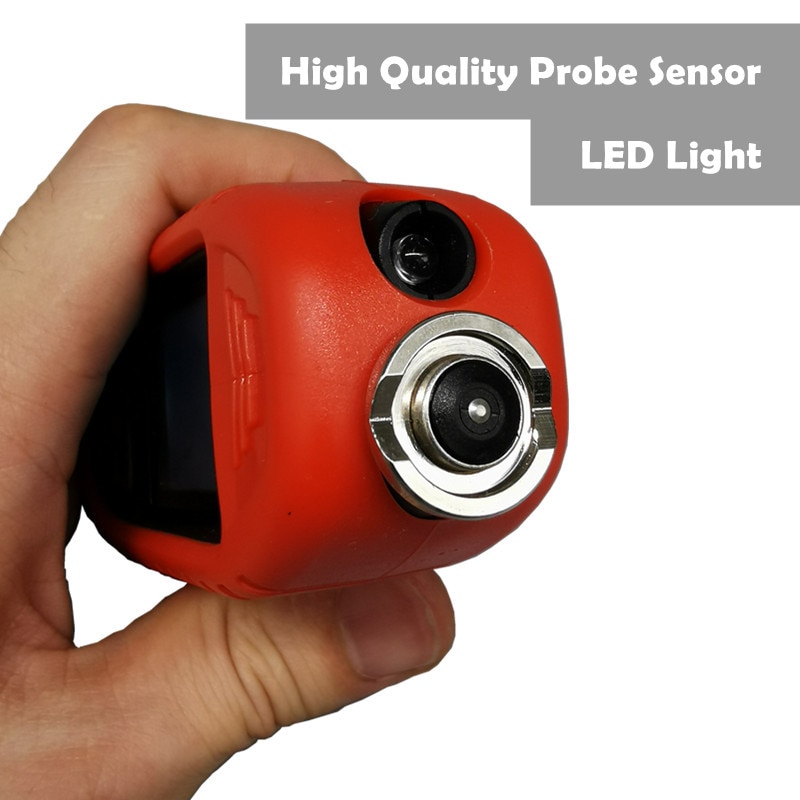

*10. LED lighting.
*11. Automatic shutdown.
Different Packages:
Package A
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films

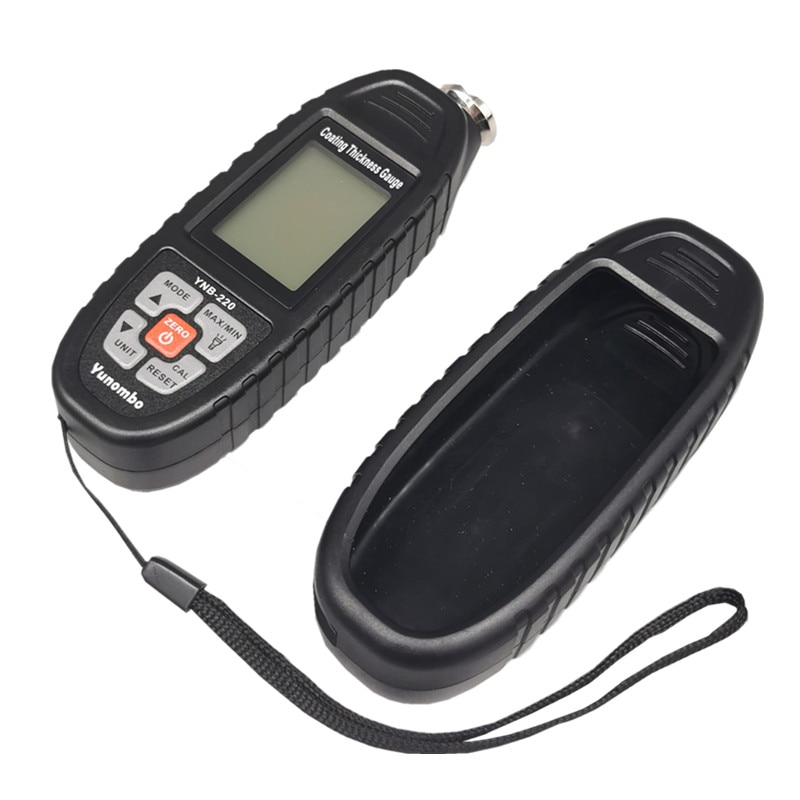

1pc Black rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

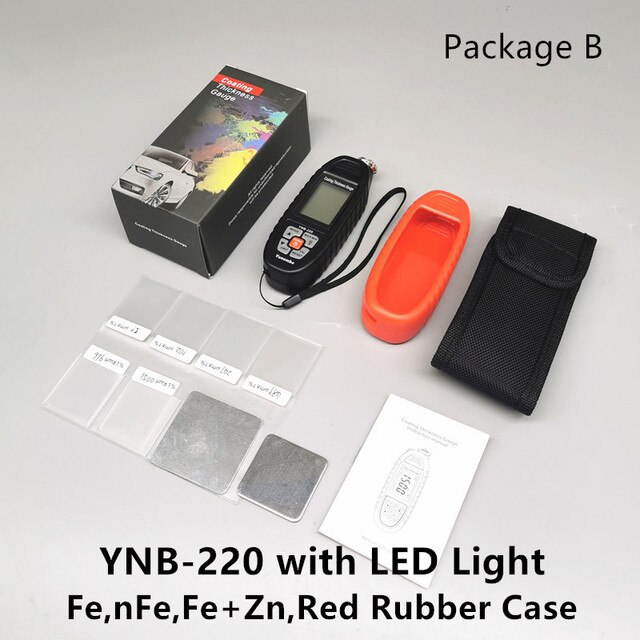

Package B
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films

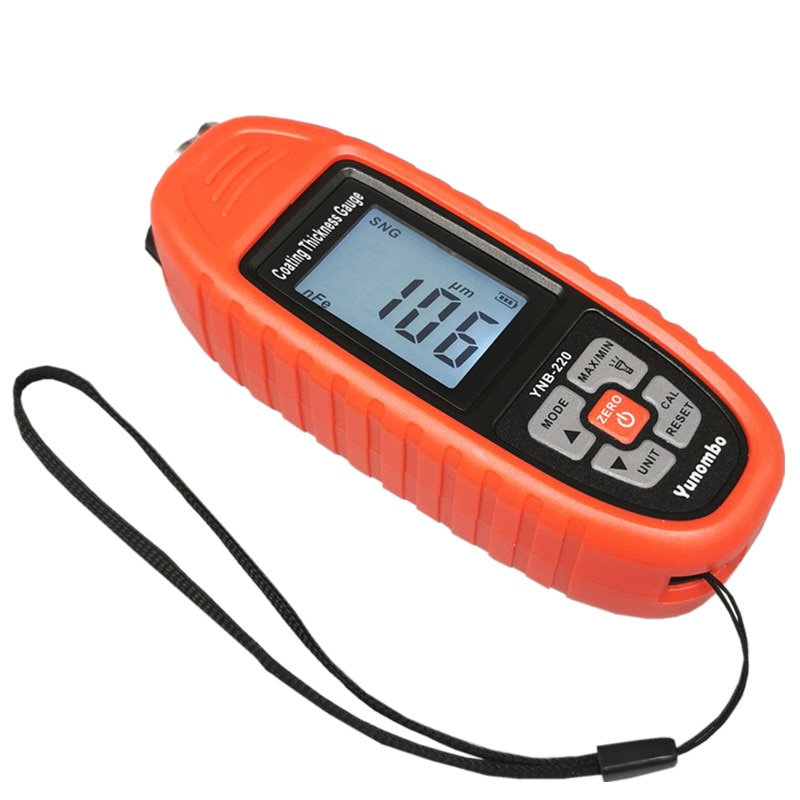

1pc Red rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
Package C
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Gift pouch
1pc Hanging rope
1pc English&Russian manual
1pc Retail box

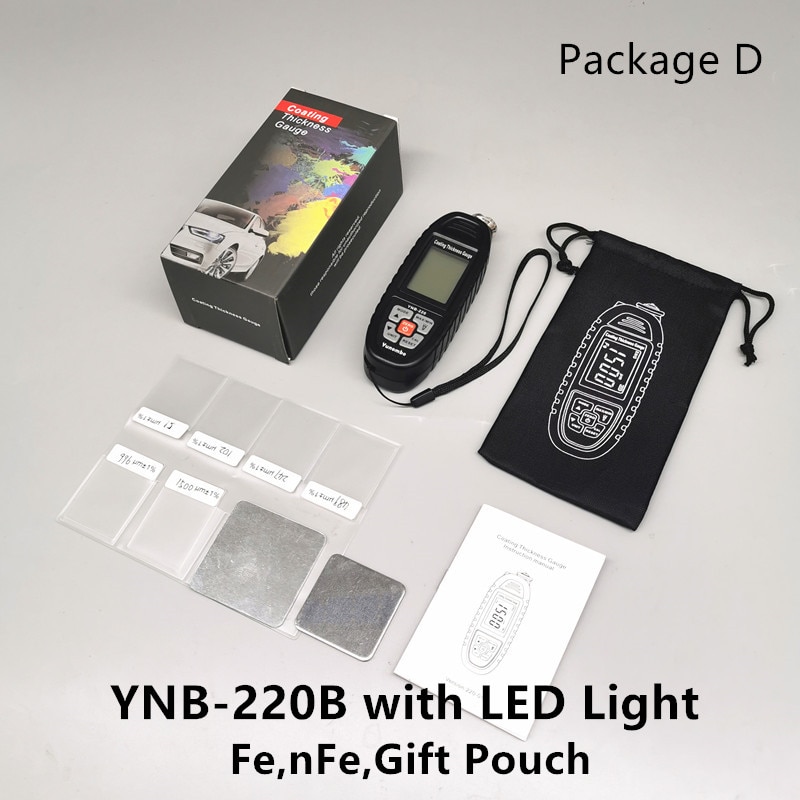

Package D
1pc YNB-220B coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Gift pouch
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
Package E

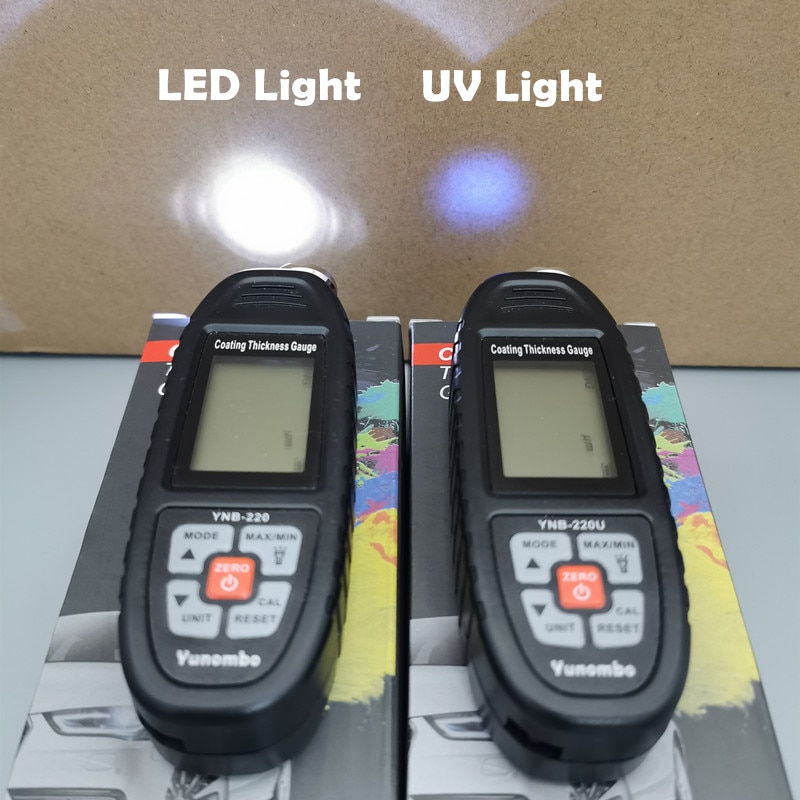

1pc YNB-220U coating thickness gauge with UV light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Black rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
Package F
1pc YNB-220U coating thickness gauge with UV light
1pc Steel plate
1pc Aluminum plate
1set Films
1pc Red rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
Photos
- Model Number: YNB-220
- With Backlight Or Not: YES
- Brand Name: Yunombo
- Origin: Mainland China
- Certification: CE
- Measurement ranges: 0~1500μm/0~59mil/0~1.5mm
- Resolution: (0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
- Operating temperature range: -20~40℃

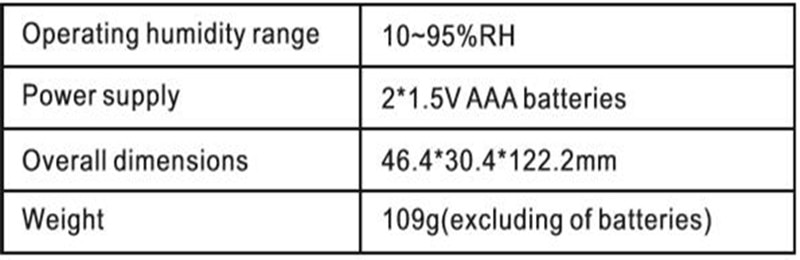

- Operating humidity range: 10~95%RH

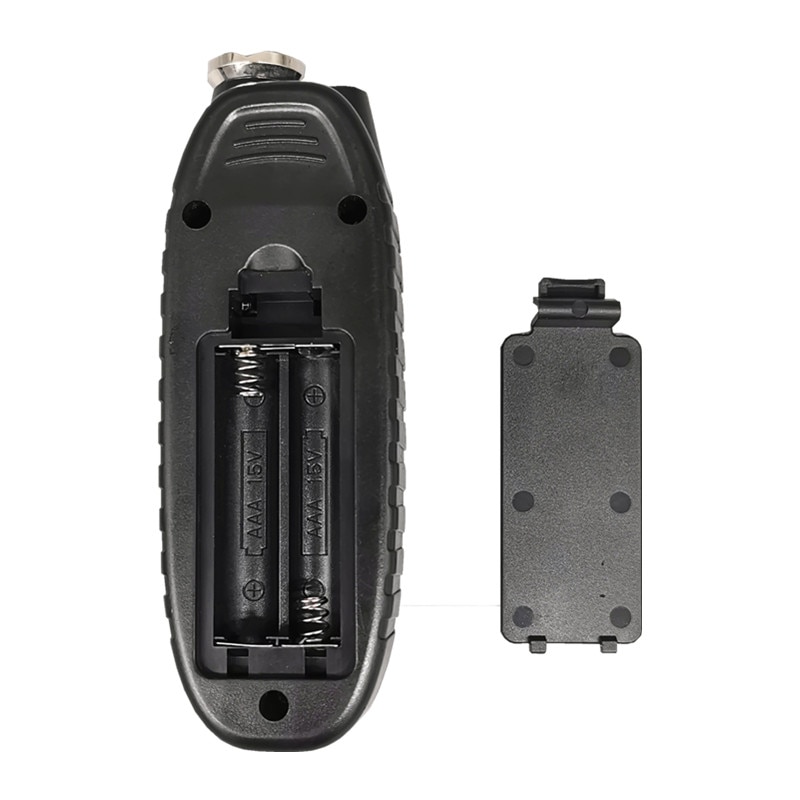

- Power supply: 2*1.5V AAA batteries(not include)
- Overall dimensions: 46.4*30.4*122.2mm(with rubber case)
- Weight: 109g(excluding of batteries)
