Modbus MQTT CoAP wifi ethernet web server 4 channel relay rs485 can bus rfid relays
5.0 (9 votes) | 26 orders
Price:
US $49.93 - 55.73
/ piece
Discount Price:
US $
36.99 -
41.52
/ piece
-26%
- Color
-
-

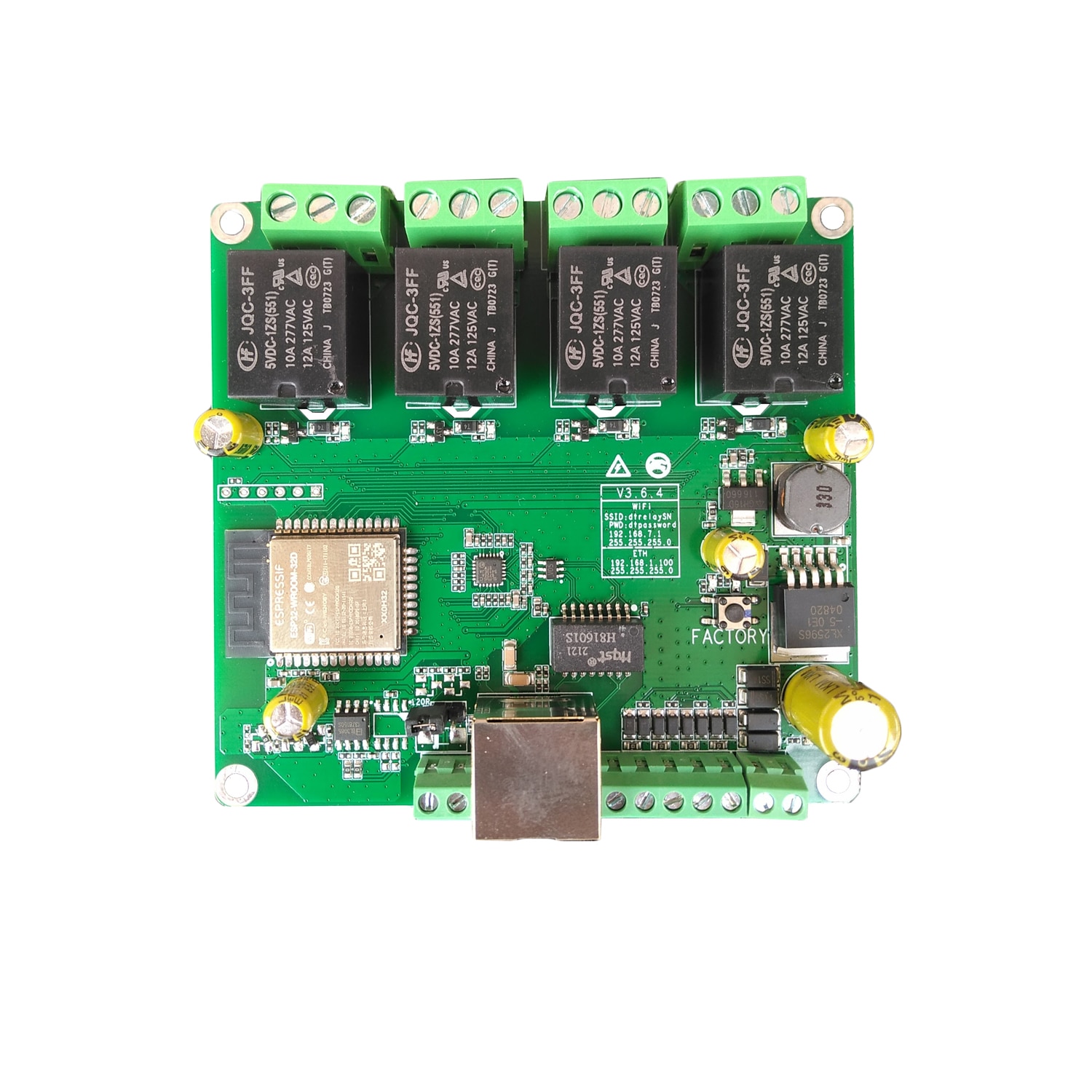

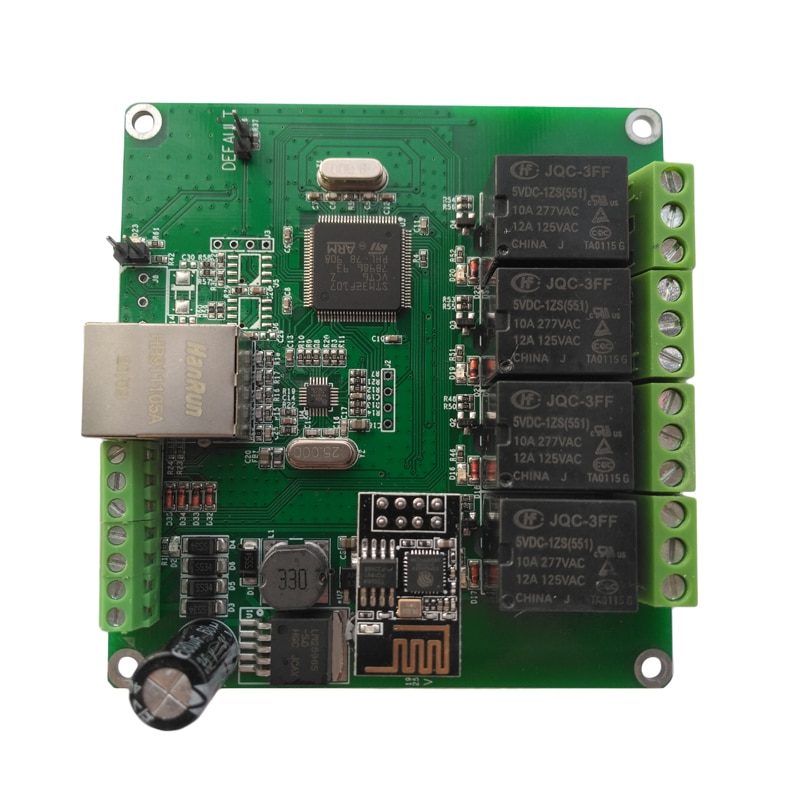

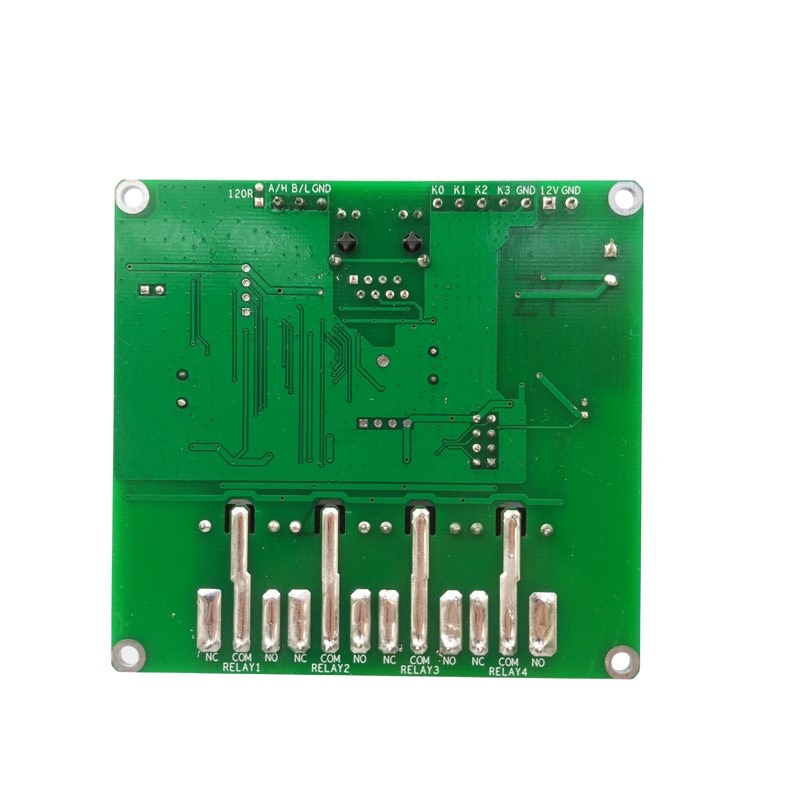

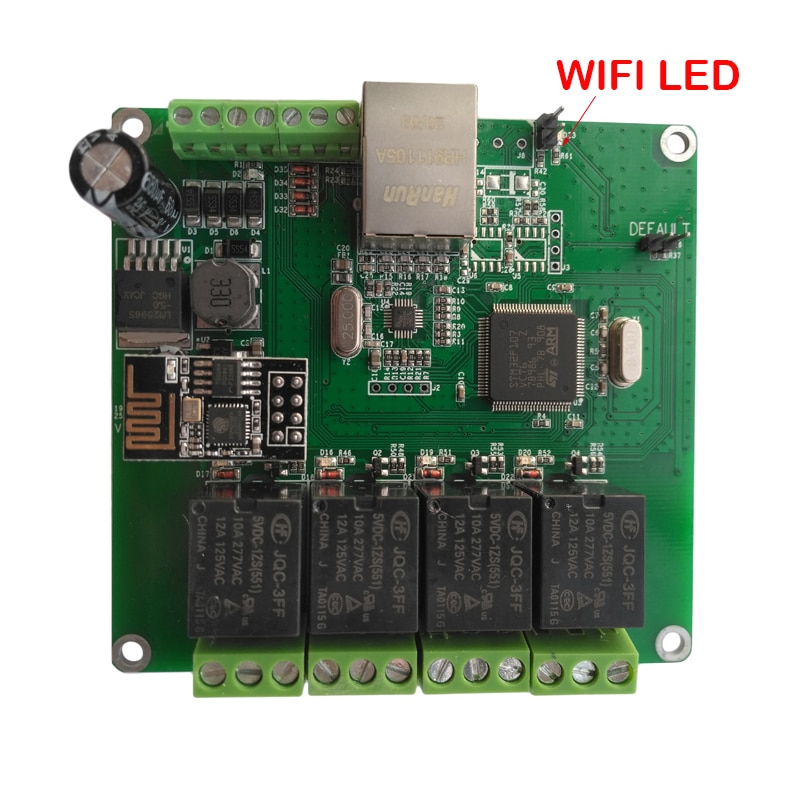

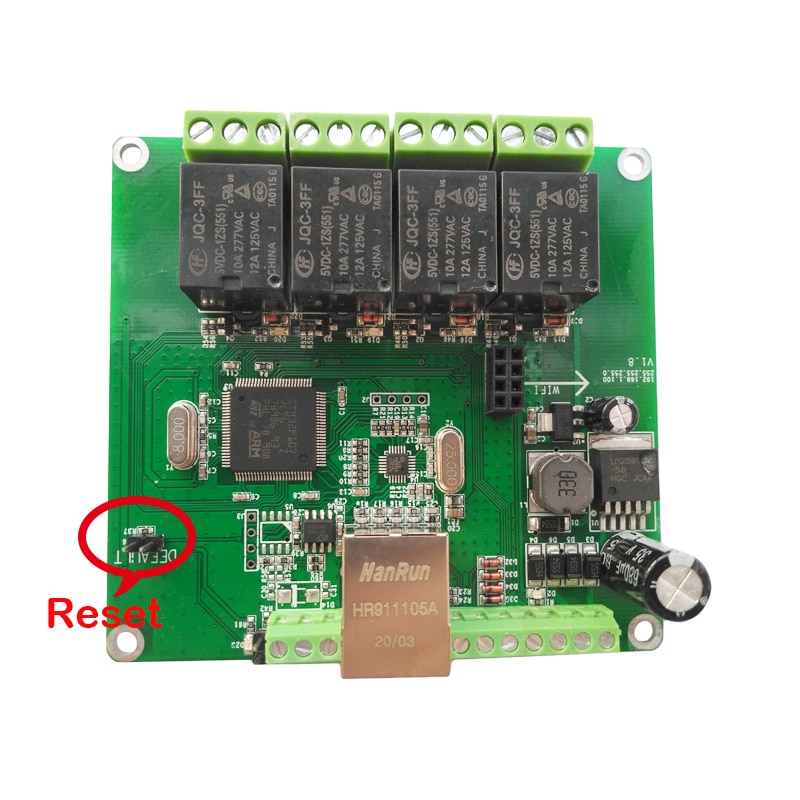

Relay board function instruction as below, any questions, please contact us

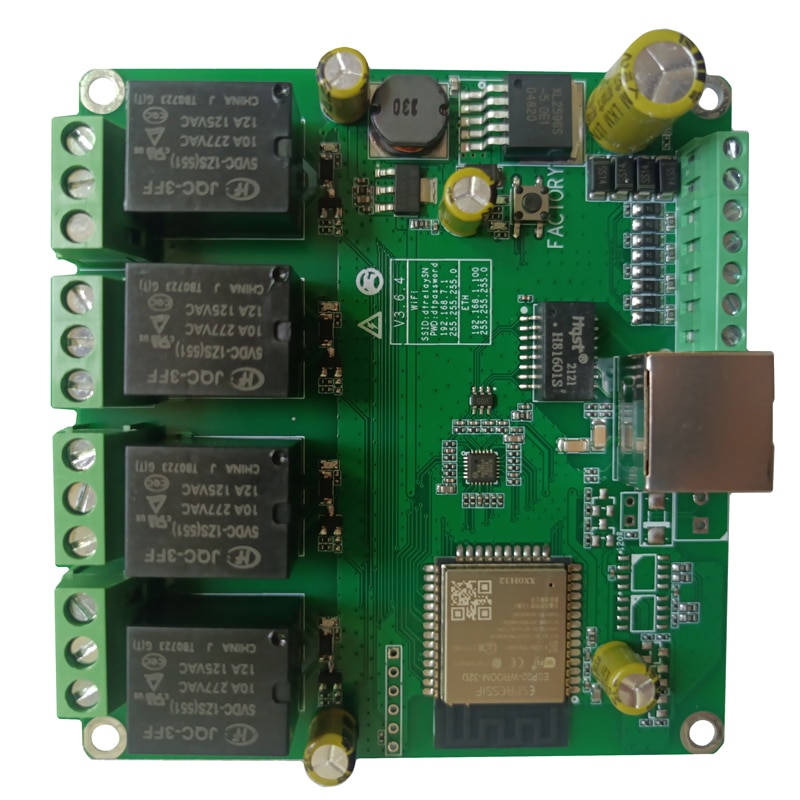

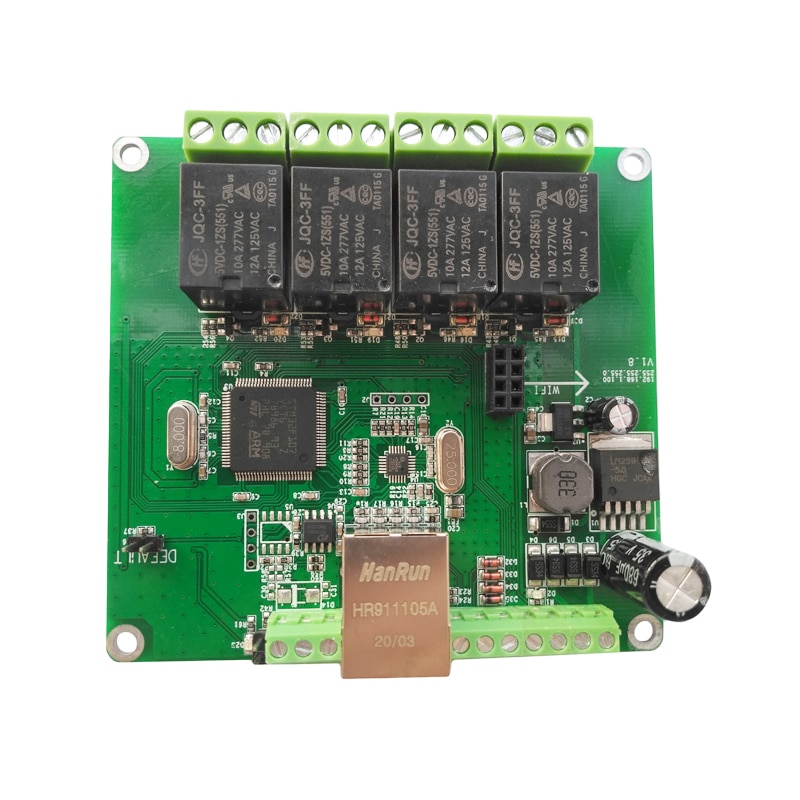

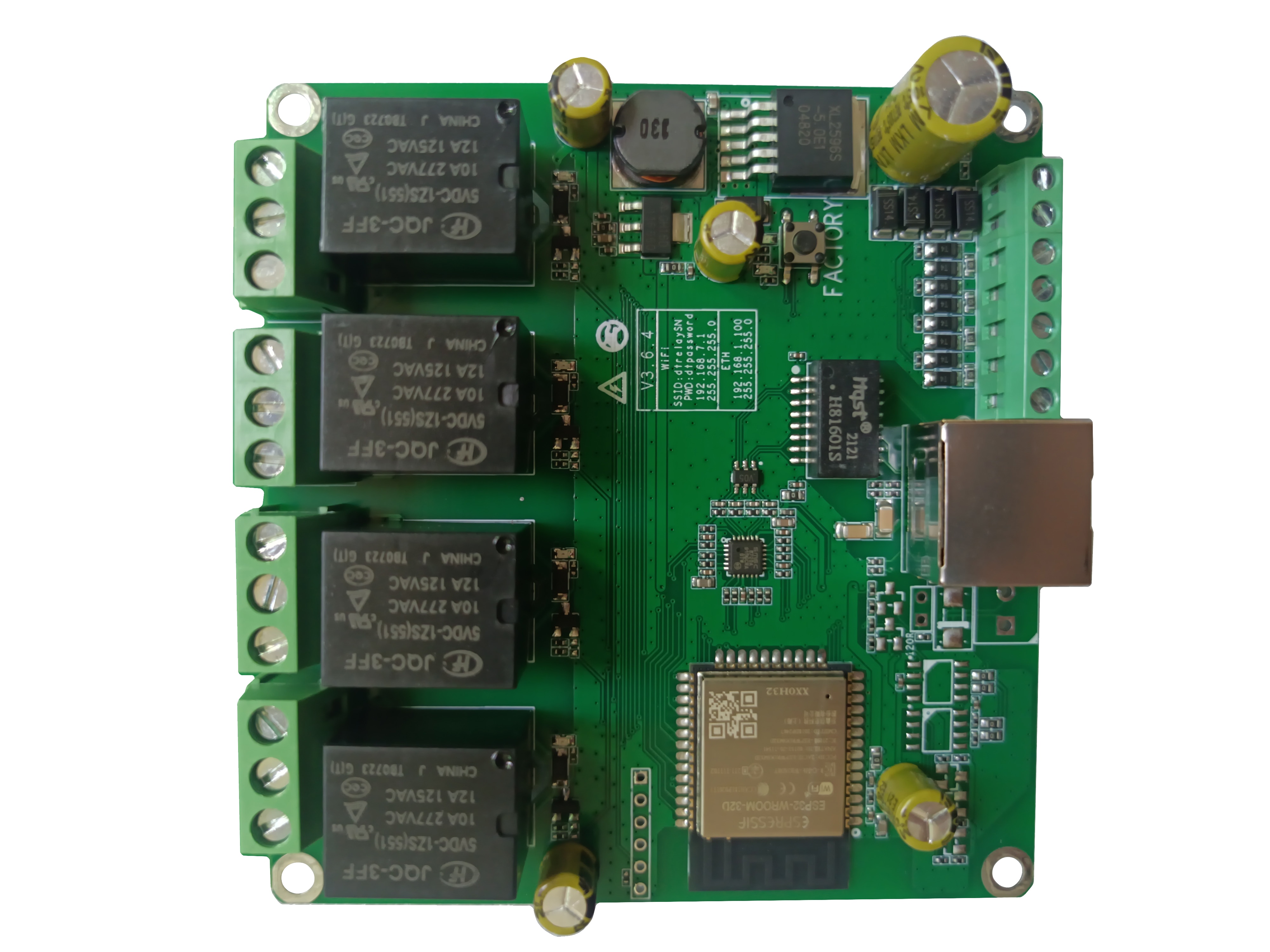

1.ETH WIFI means support Ethernet and WIFI

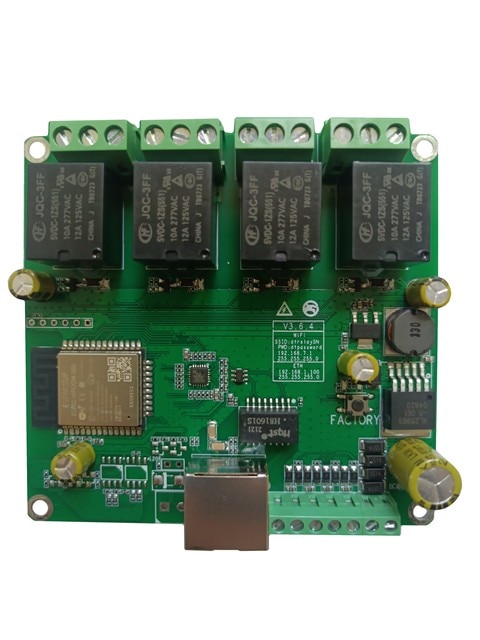

2.ETH WIFI RS485 means support Ethernet, WIFI and RS485

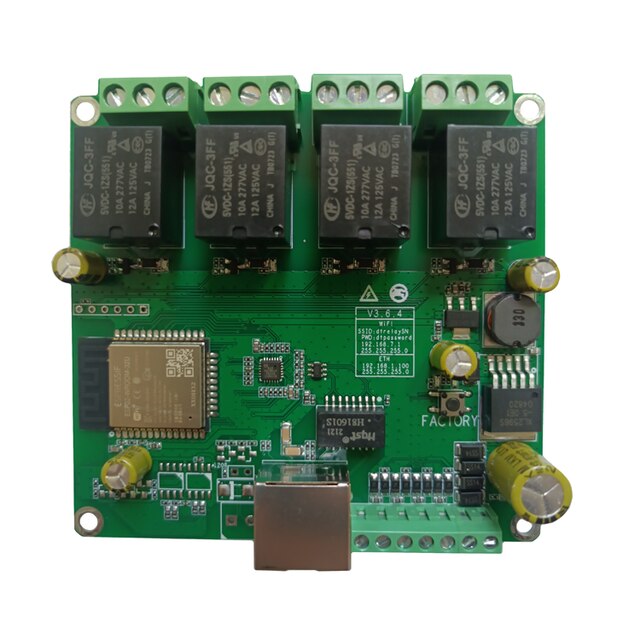

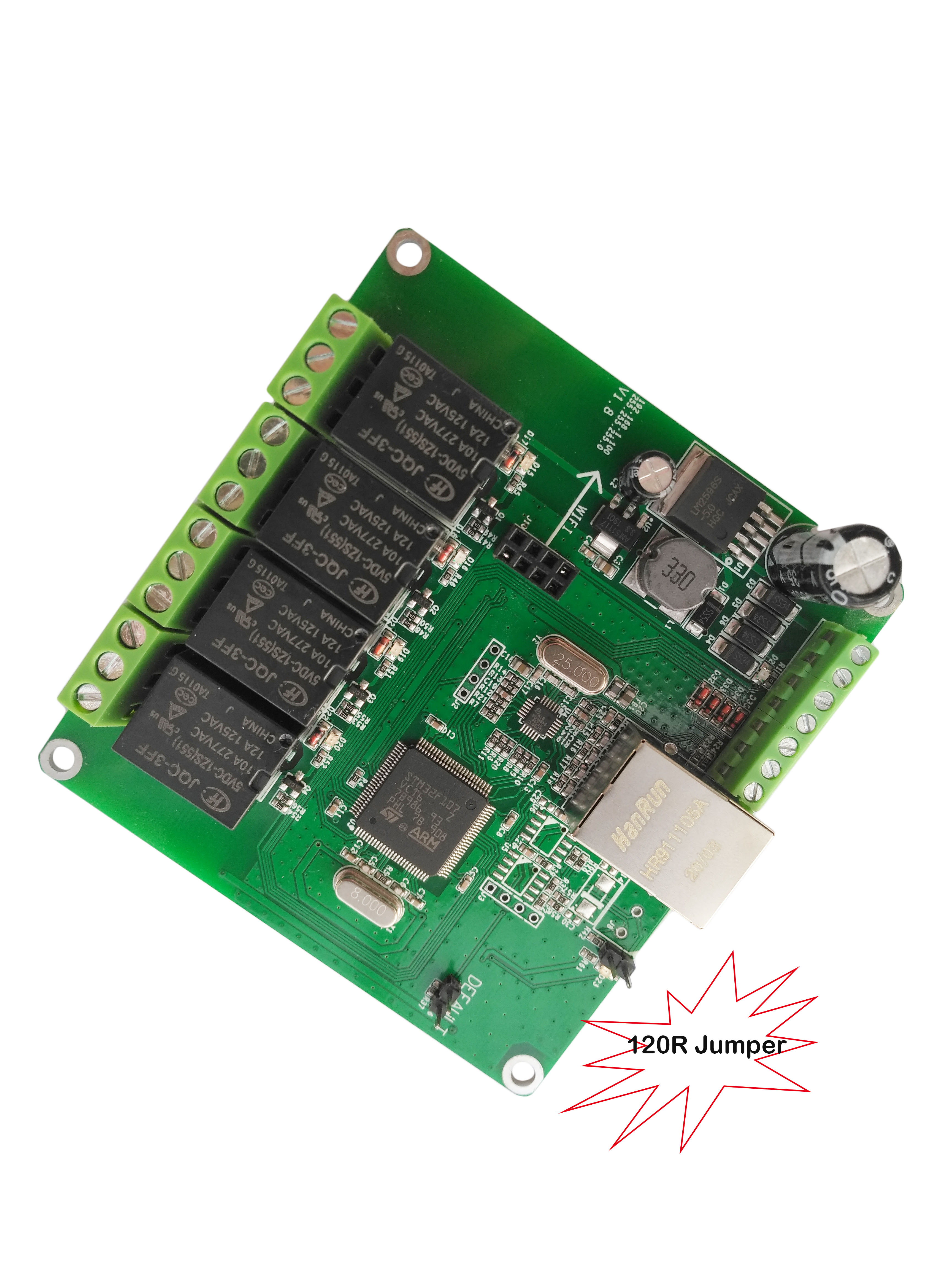

3.ETH WIFI CAN means support Ethernet, WIFI and CAN bus

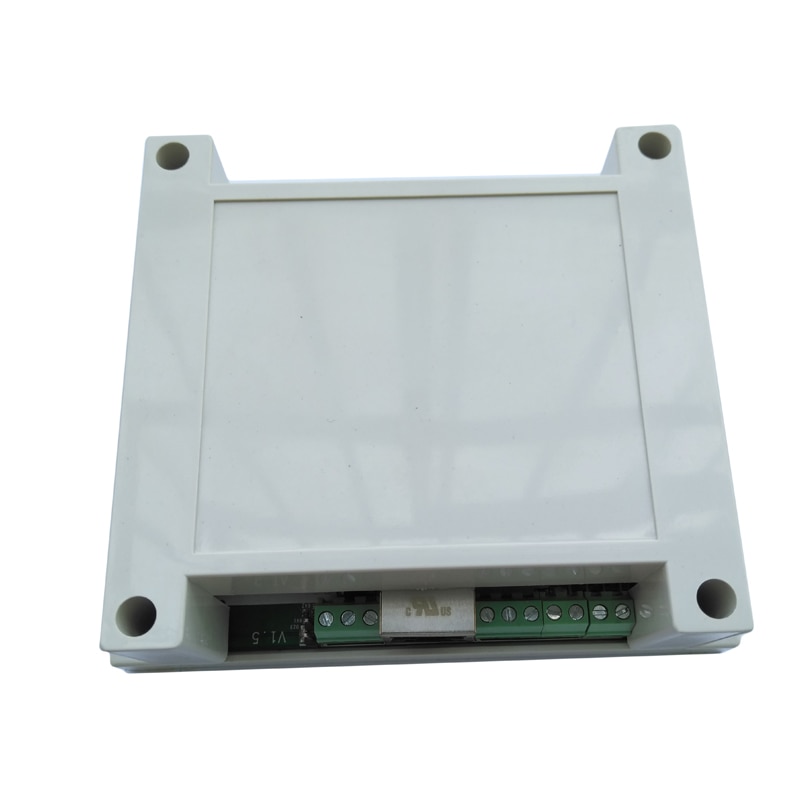

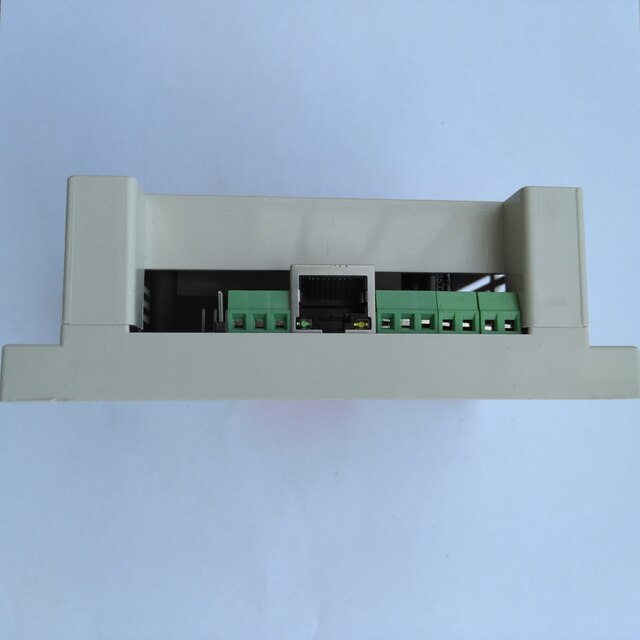

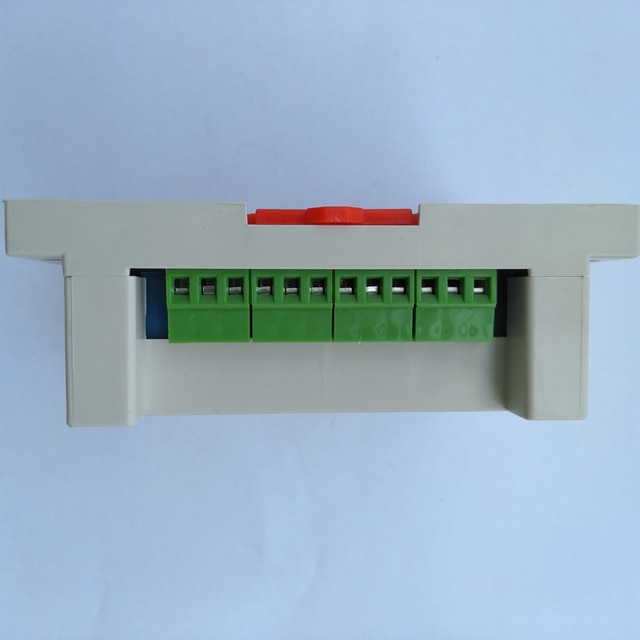

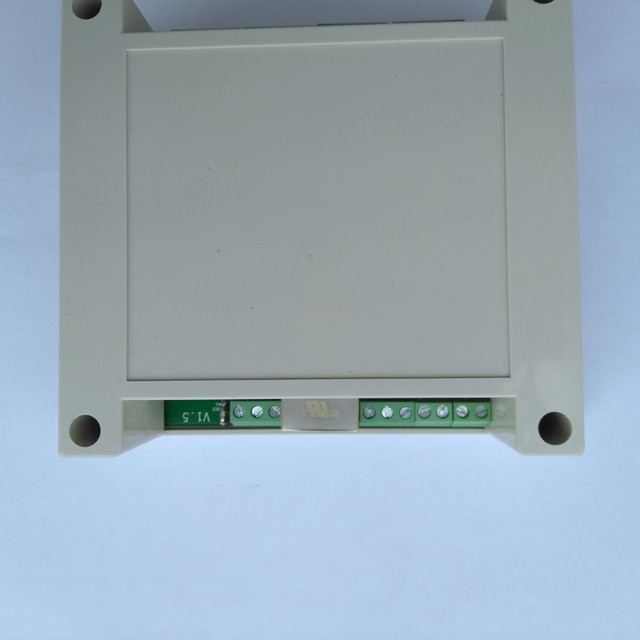

4.CASE means DIN35 rail
 Specification | |||||
Parameter | DT-R002 | DT-R004 | DT-R008 | DT-R016 | DT-R032 |
Photo |
|
|
|
|
|

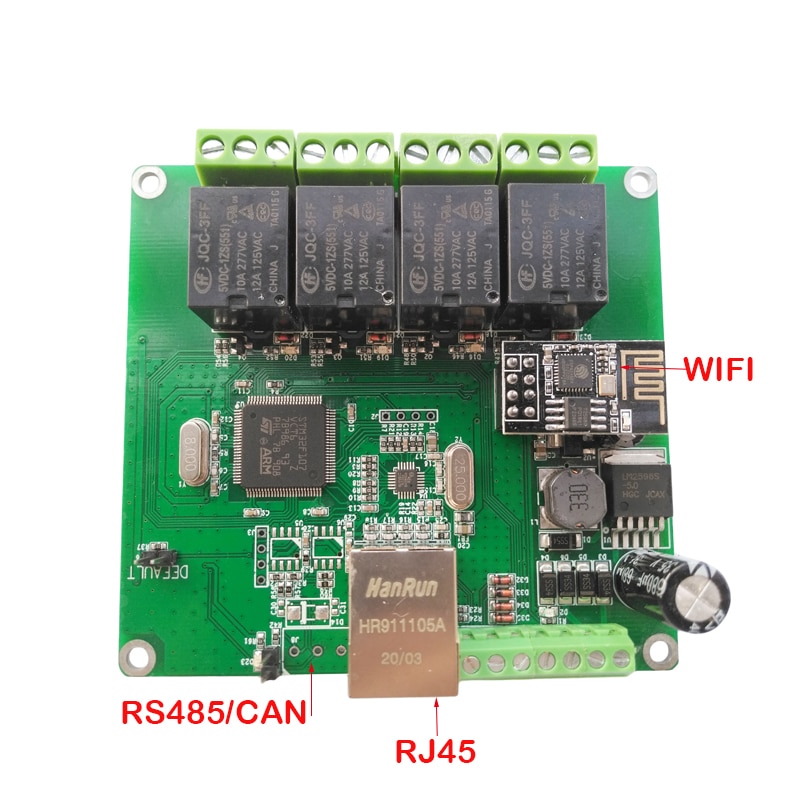

Interface | Ethernet, WiFi, RS485(optional), CAN Bus(optional), Wiegand(optional) | ||||

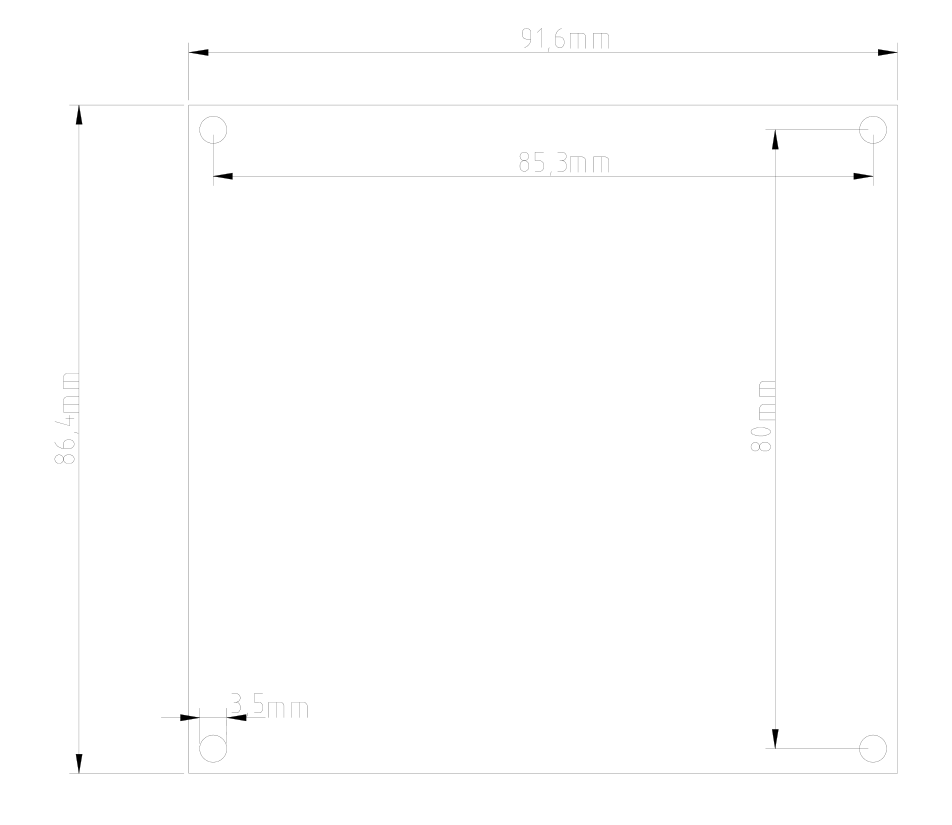

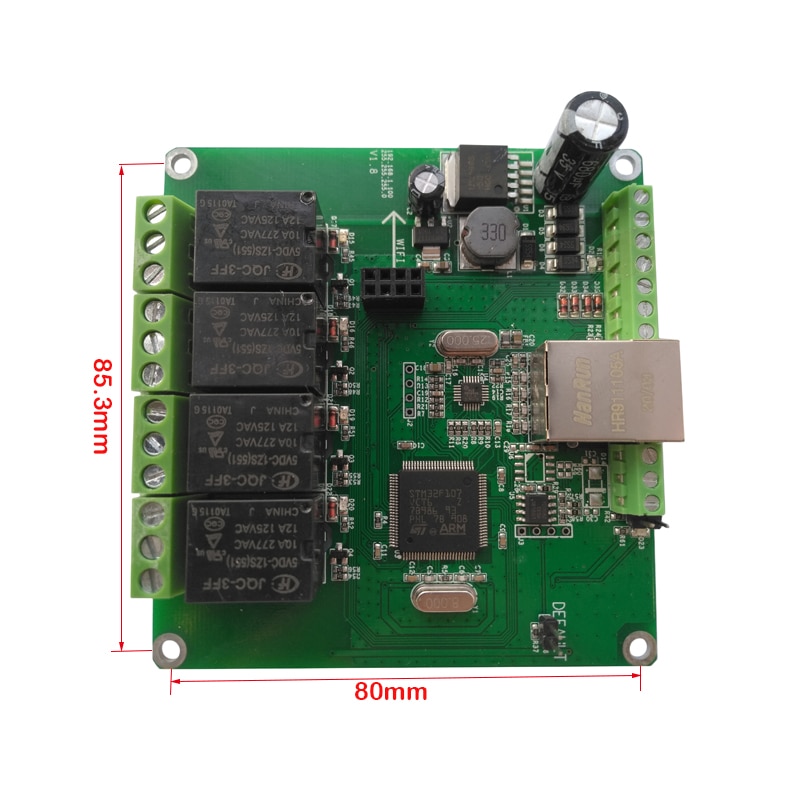

Size(Relay Board) | 87*68mm | 91.6*86.4mm | 122*87mm | 250*107mm | 370*107mm |
Size(DIN35 Case) | 90*90*40mm | 115*90*40mm | 145*90*40mm | 252*123*43mm | 373*123*43mm |

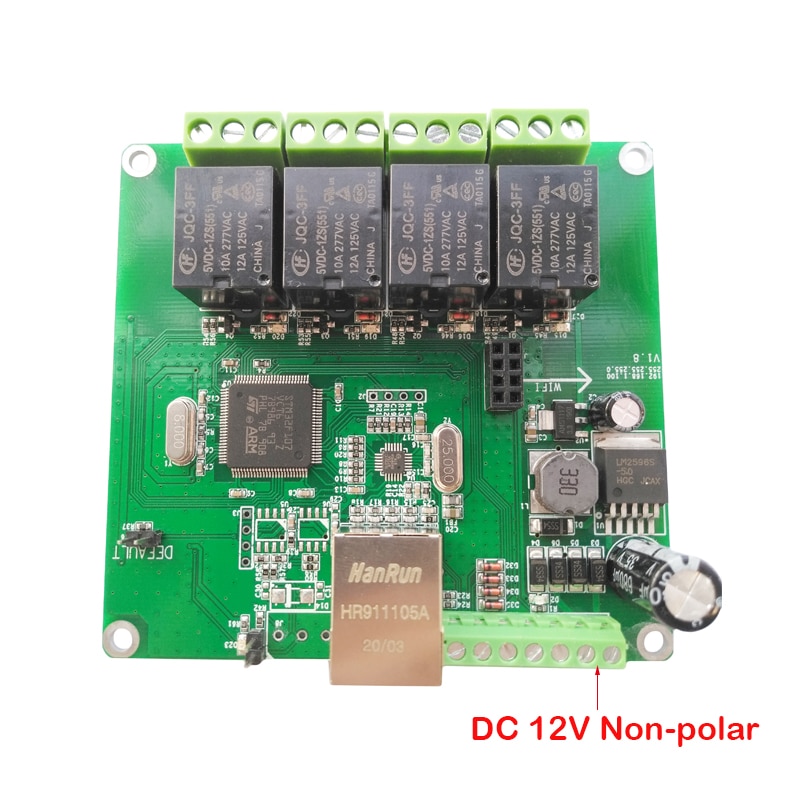

Power Supply | 12V/24VDC, 5V/24VAC | ||||
Power Adapter | 12VDC/1.5A | 12VDC/1.5A | 12VDC/1.5A | 12VDC/2A | 12VDC/3A |
Power Consumption | 2W | 3W | 5W | 9W | 16W |
Working Temperature | -20~75℃ | ||||
Storage Temperature | -40~80℃ | ||||
Protocol | MQTT/MQTTS, Modbus-RTU/TCP/ASCII/UDP, TCP, UDP, HTTP GET CGI, CoAP | ||||
Quantity Relays | 2DO | 4DO | 8DO | 16DO | 32DO |
Quantity Digital Input | 2DI | 4DI | 8DI | 16DI | 32DI |
Quantity Wiegand | 1(optional) | 1/2(optional) | 0 | 1 | 1 |
RTC | NO | NO | NO | Optional | Optional |
Home Automation | Domoticz, Home Assistant, openHAB, Red-Node | ||||
Function | Relay Task(Schedule), Input Status, Input Link Relay, Input Link URL, Input/Relay Alias(Name), | ||||
Ethernet IP | 192.168.1.100 | ||||

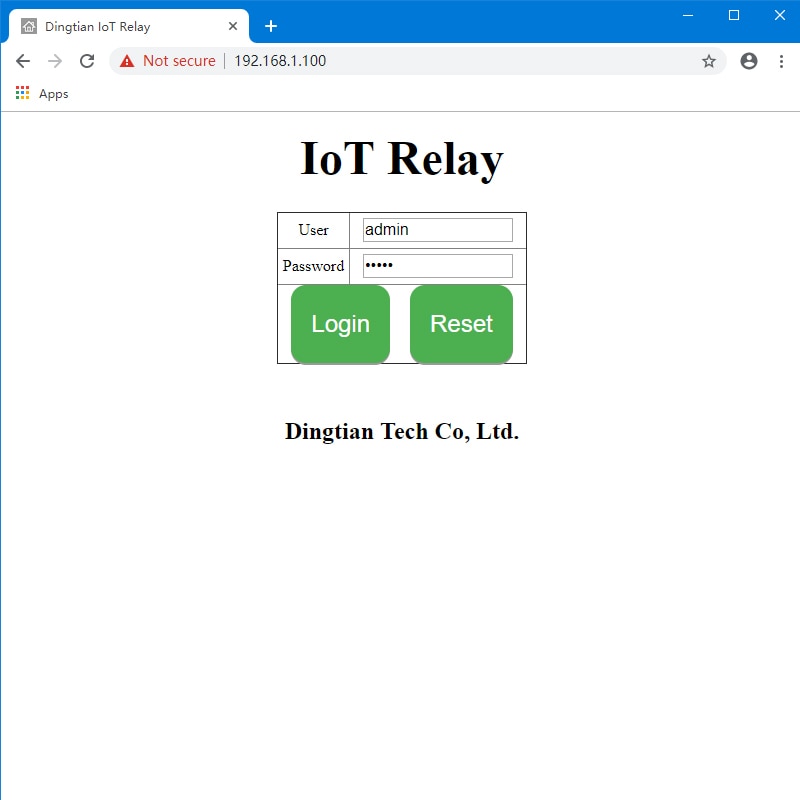

Web User/PWD | admin/admin | ||||
WiFi AP IP | 192.168.7.1 | ||||
WiFi AP SSID/PWD | dtrelaySN/dtpassword | ||||
WiFi STA IP | 192.168.1.97 | ||||
Support Customized and develop by our company
User manual and programming manual SDK:
http://www.dingtian-tech.com/sdk/relay_sdk.zip
This is a finished board, not a study board. Our default version don’t support flash by yourself,
if you want to flash custom firmware, please leave a message ”send relay board with test firmware” when order
Note: Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100

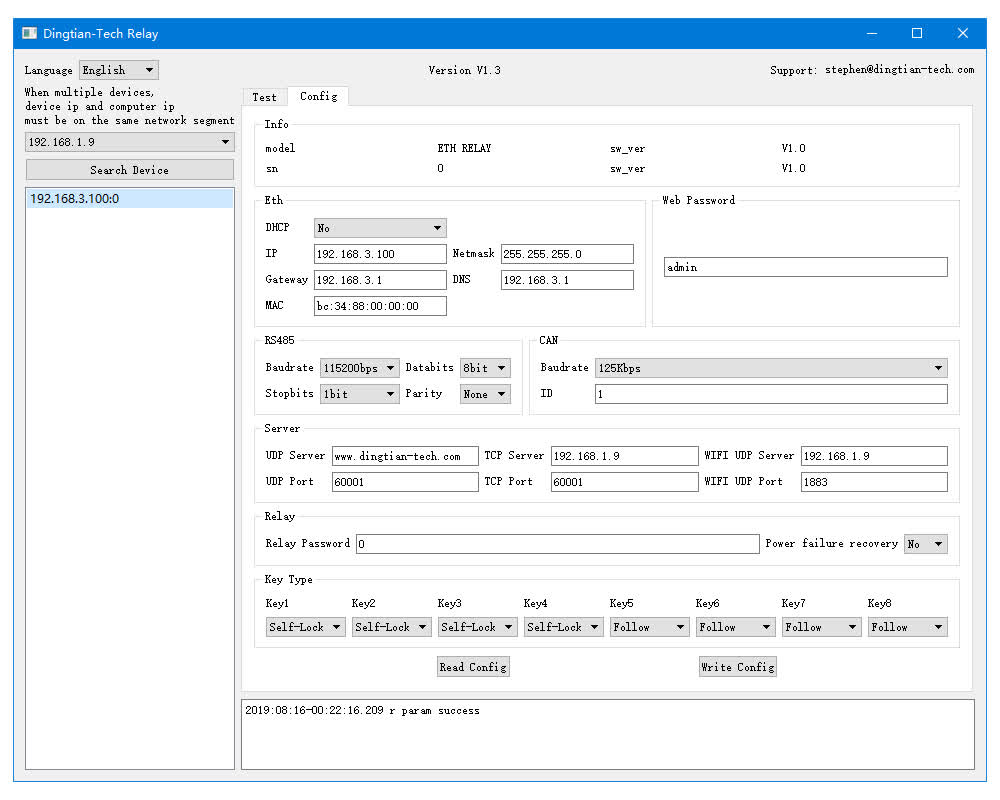

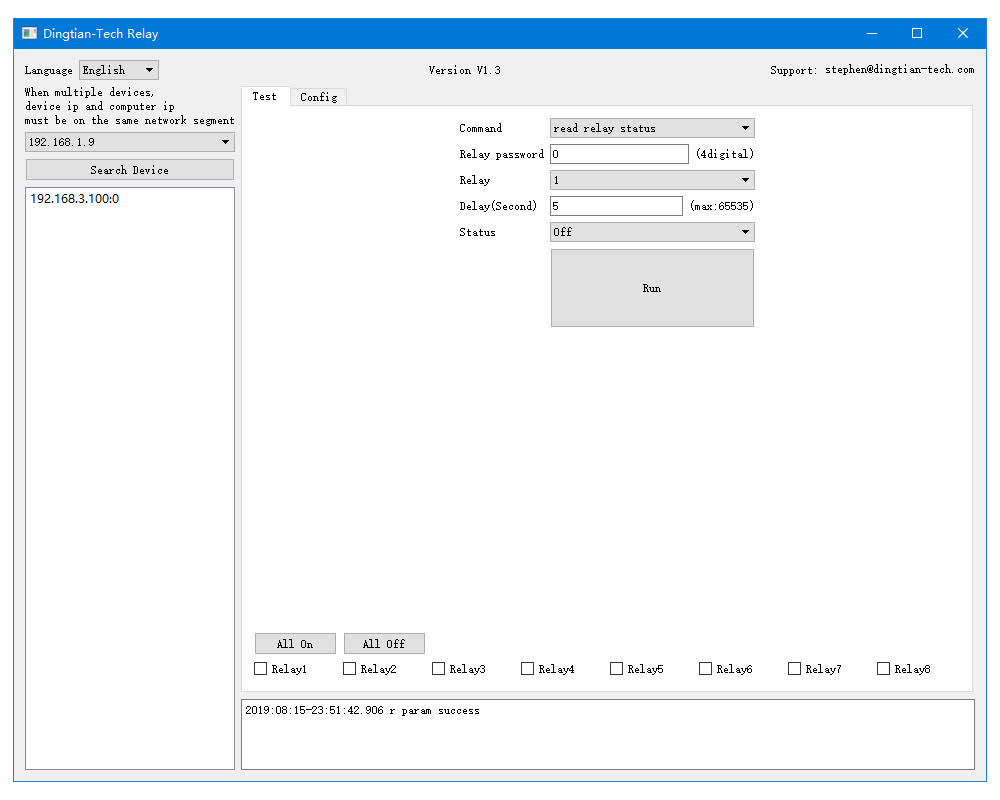

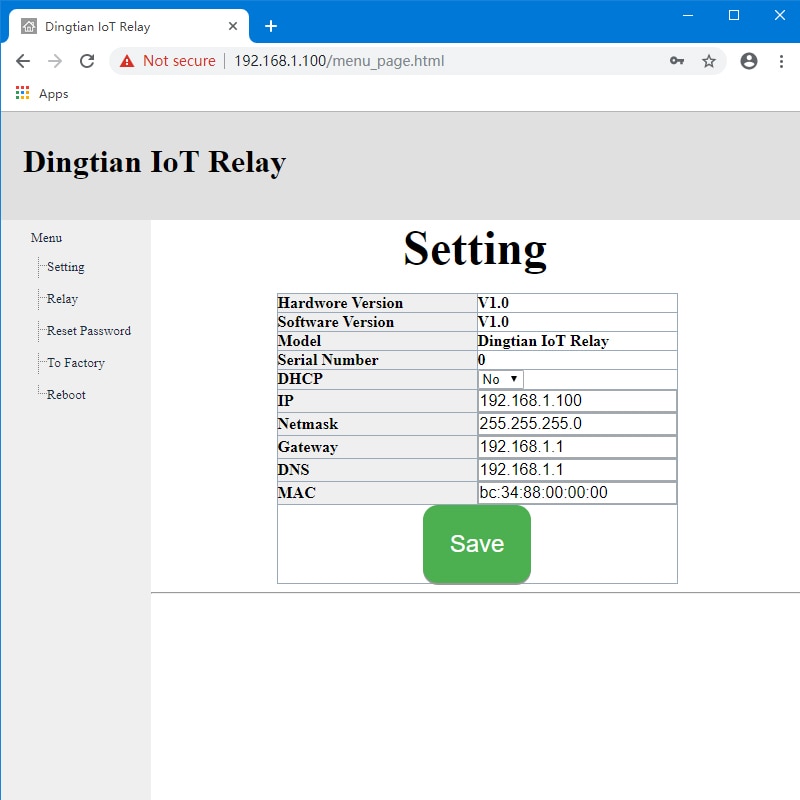

Setting
Relay Connect
Support protocol
Dingtian-String
Dingtian-Binary
Modbus-RTU., Modbus-ASCII, Modbus-TCP/UDP
CoAP
HTTP GET CGI(control relay, get input/relay status)
Input Mutual Control
MQTT(input/relay status change, report to your MQTT server auto)
Relay Task
Please sync the time on “setting” webpage firstly, you can config when relay ON and when relay OFF automatically
Input Link Relay
Input status change active relay ON/OFF, DELAY, JOGGING(PULSE),FLASH,TOGGLMOTOR
To config “Motor” to control motor (blind)
Input Link URL
Input status changes will active HTTP URL
Input Relay Alias
Rename input/relay to understand better
IP WatchDog
It can ping and reboot other device when network is OFF
Transparent Transmission
Repost data which is from your device through our relay board to your PC from UDP/TCP to RS485/CAN,vice versa
Upgrade
Upgrade new firmware by webpage
Support Domoticz /Home assistant (HA Discover)/openHAB

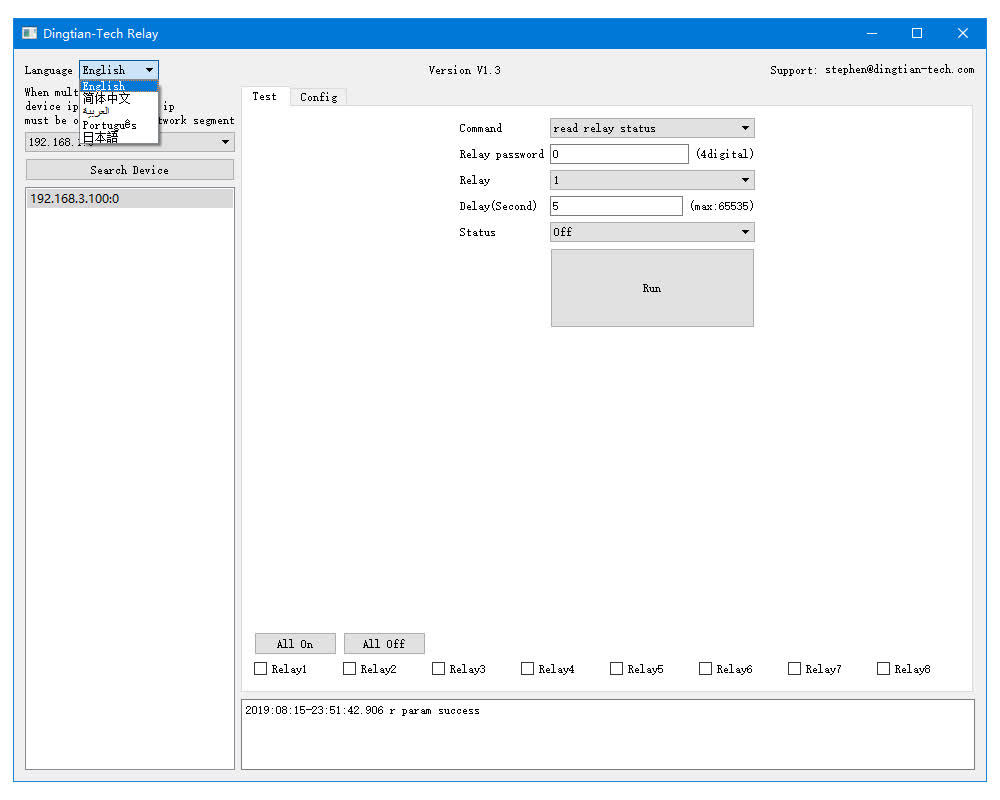

IP Finder to search device, support different network segment
Connection Diagram
Default firmware
Q: what is the ip address?
A: Ethernet ip: 192.168.1.100, user name and password both are admin
WIFI-AP SSID: dtrelaySN, PWD: dtpassword, IP:192.168.7.1
Q: Where can I find sdk and manual?
A: https://www.dingtian-tech.com/sdk/relay_sdk.zip
Q: How can I upgrade to latest firmware?
A: https://www.dingtian-tech.com/sdk/relay_upgrade_tool.zip
Please download and upgrade to latest firmware
Q: Why I cannot access the web through default ip?
A: Please keep your computer ip be the same network segment as our default ip
Default ip: 192.168.1.100, so your compute ip should be 192.168.1.x(x not 100)
Q: What can I do when computer ip is different network segment with your default ip?
A: Option 1: change your computer ip to 192.168.1.x, x means any numbers from 2~254
Option 2: Change our relay ip through our IP Finder tool to keep the same as your computer ip
Q: Can I connect a rfid keypad reader to it via wiegand
A: Our default firmware donot support, you can leave a message"send relay board with wiegand input firmware" when order
Q: Can you have separate input from the relay operation status
A: webpage “input link relay”->”input control relay” to “NO”
Test firmware
Q: Can I flash custom firmware?
A: please leave a message “send relay board with test firmware” when order”
https://github.com/dtlzp/relay_dev_demo
JL1101(compatiable with RTL8201F, only chip id is different)
https://github.com/dtlzp/relay_arduino_demo
Packaging Details
- Unit Type: piece
- Package Weight: 0.200
- Package Size: 16x5x16
- Brand Name: DTWONDER
- Origin: Mainland China
- Model Number: DT-R004
- Certification: CE
- Certification: FCC
- Smart home platform: other
- Home Automation: Home assistant, Domoticz,openHAB,Node Red
- PCB Size: 91,6*86,4mm
- Case: DIN35 rail
- Power Supply: 12/24VDC,12/24VAC
- Protocol: Dingtian-string, Dingtian-Binary, MQTT,HTTP GET, CoAP,Modbus
